CUCKOO CRP-P0609S High Pressure Rice Cooker User Manual

CUCKOO CRP-P0609S High Pressure Rice Cooker

IMPORTANT SAFEGUARDS

1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock, and/or injury to persons, do not immerse the cord, plugs, or Pressure Cooker Body in water or any other liquid.
4. Close supervision is necessary when this appliance is used by or near children. This appliance is not intended for use by young children without supervision.
5. Unplug the cord from the outlet when not in use and before cleaning. Allow the appliance to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, and/ or injury to persons.
8. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or your service agent.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas, electric burner, or in a heated oven.
12. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, or set all controls to “off”, then remove the plug from the wall outlet.
13. Do not use this appliance for anything other than its intended use.
14. Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
15. Oversized foods, metal foil packages, or utensils must not be inserted into the appliance as they are a risk of fire or electric shock.
16. Fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, etc., while in operation.
17. To reduce the risk of electric shock, cook only in the provided removable container.
18. This appliance cooks under pressure. Improper use may result in scalding injury. Before operating the unit, properly secure and close the unit. See “Operating Instructions.”
19. Do not cook foods such as applesauce, cranberries, cereals, macaroni, spaghetti, or other foods. These foods tend to foam, froth, and sputter, and may block the pressure-releasing device
20. Before use, always check the pressure-releasing device for clogging.
21. Do not open the pressure cooker until the unit has cooled and internal pressure has been reduced. See “Operating Instructions.”
22. Do not use this pressure cooker to fry in oil.

                                         SAVE THESE INSTRUCTIONS

ADDITIONAL IMPORTANT SAFEGUARDS

WARNING: This appliance generates heat and releases steam during use. Use proper precautions to prevent the risk of burns, fires, other injuries, or property damage.

1. Keep your hands and face away from the Pressure Release Valve when releasing pressure.
2. Take extreme caution when opening the Lid after cooking. Severe burns can result from steam inside.
3. Never open the Lid while the unit is in operation.
4. Do not use without the inner Pot in place.
5. Do not cover the Pressure Valve with anything, as an explosion may occur.
6. Do not touch the inner pot or any heating parts immediately after use. Allow the unit to cool down completely first. This appliance is intended to be used in household and similar applications such as :
   • staff kitchen areas in shops, offices, and other working environments;
   • farm houses;
   • by clients in hotels, motels, and other residential-type environments;
   • bed and breakfast type environments.

HOW TO USE AN EXTENSION CORD

Note:

• A. A short power-supply cord (or cord set) is provided to reduce the hazards from entanglement by a longer cord.
• B. The extension cord should be used properly.
• C. Extension cord usage for the rice cooker:
  • The correct rated voltage should be used for the rice cooker.
  • If the appliance is set on the ground, the extension cord should also be set on the ground.
  • The cord wires and extension cord should always be arranged to prevent hazards to children.
    This appliance has a polarized plug: (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not properly fit in the outlet, turn the plug over. If it still does not fit, contact a qualified electrician. Please, keep this safety feature.

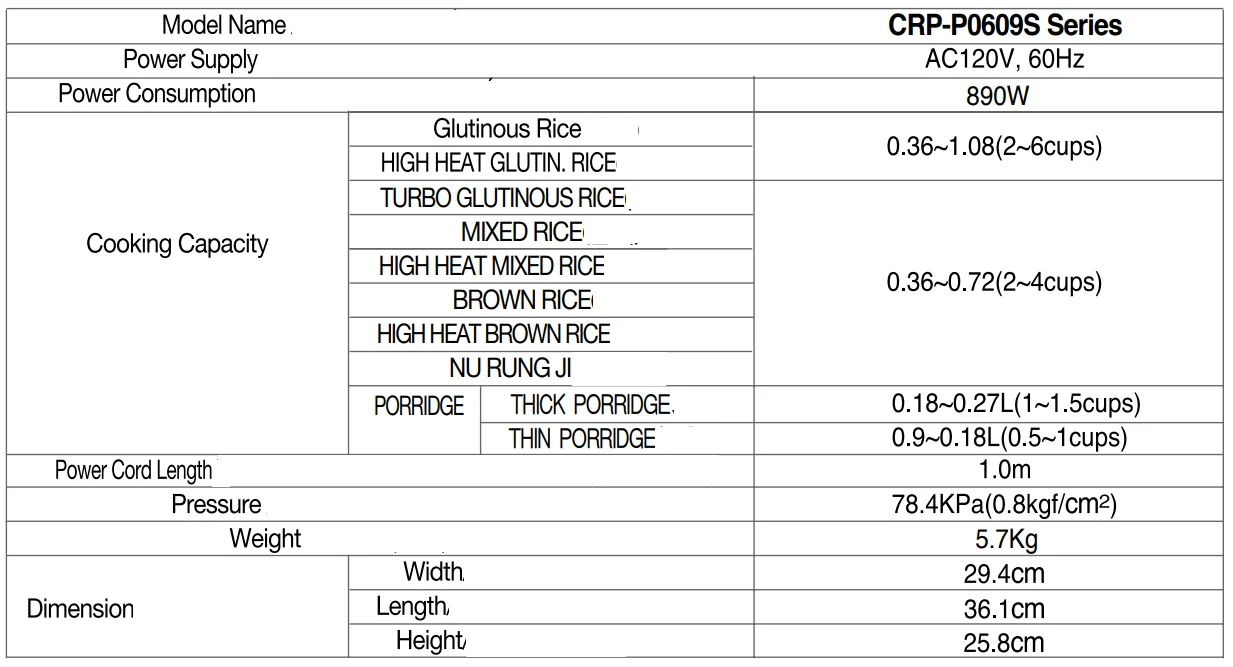

SPECIFICATION

HOW SERVICE IS HANDLED

SAFETY PRECAUTIONS

• Do not cover the automatic steam outlet or pressure weight with your hand or face.
  • It can cause bums.
  • Especially be careful to keep it out of children’s reach.
• Do not use the cooker near hot objects, such as stoves or gas stoves, or in direct sunlight.
  • It can cause an electric shock, fire, deformation, malfunction, or discoloration. Please check the power cord and plug frequently.
• Do not alter, reassemble, disassemble, or repair.
  • It can cause fire, electric shock, or injury.
  • For repair, contact the dealer or the service center.
• Use a single socket with a rated current above 15A.
  • Using several lines in one socket can cause overheating or fire. Please check the power cord and plug frequently.
  • Use an extension cord with a rated current above 15A.
• Please pay careful attention to water and chemicals
  • It can cause an electric shock or fire.
• Do not use a rice cooker at a place where dust is trapped or where chemical materials are located.
  • Do not use any combustible gas or flammable materials near a product.
  • It can cause an explosion or fire.
• Do not use a damaged power cord, plug, or loose socket.
  • Please check the power cord frequently for damage.
  • Serious damage can cause electric shock or fre.
  • If the plug is damaged, contact the dealer or a service center.

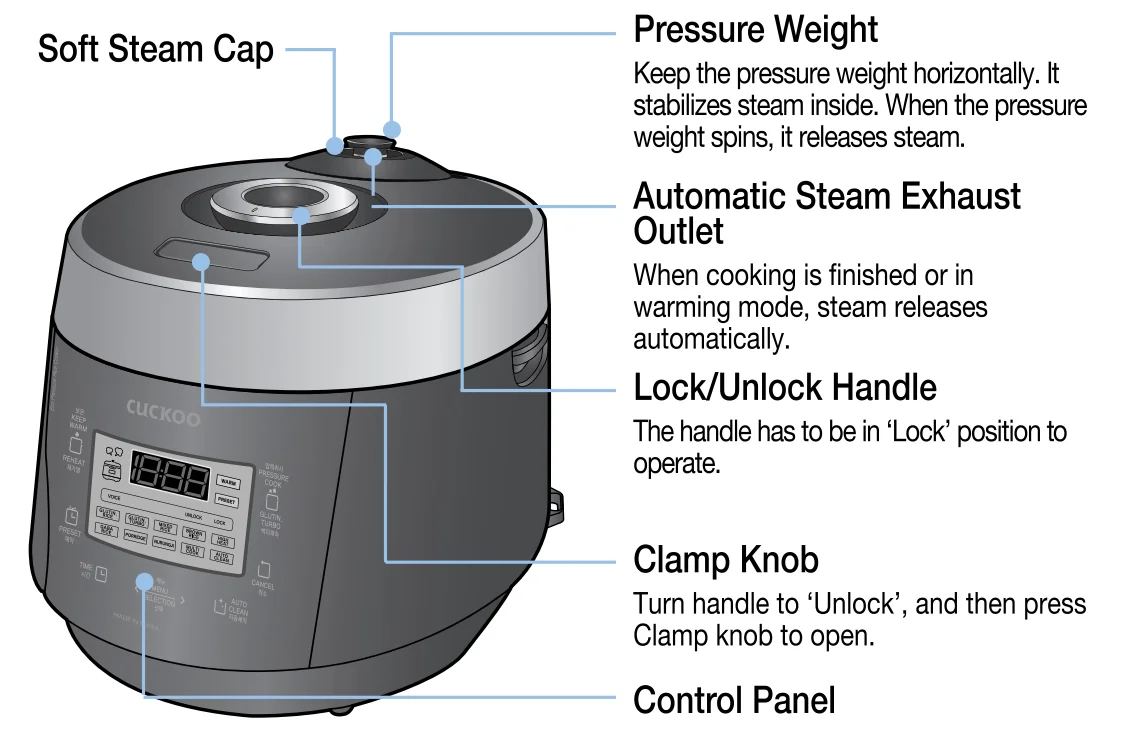

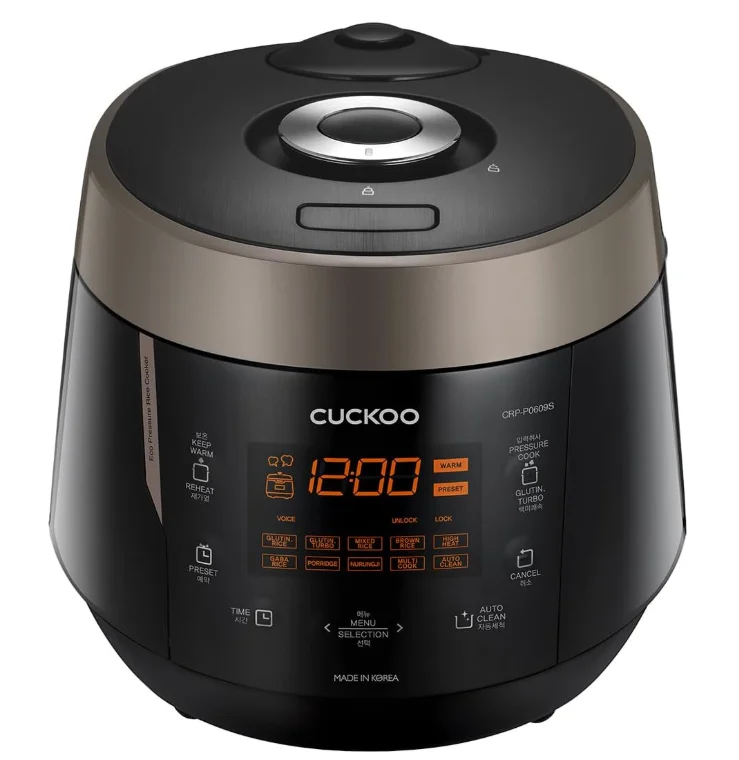

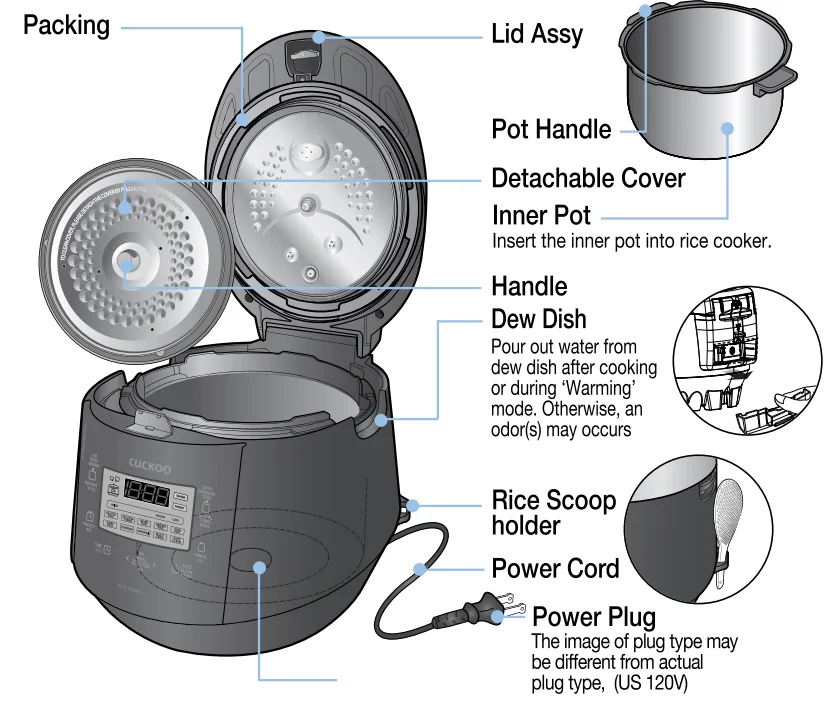

NAME OF EACH PART

Name of each part

Accessories

• Manual & Cooking Guide

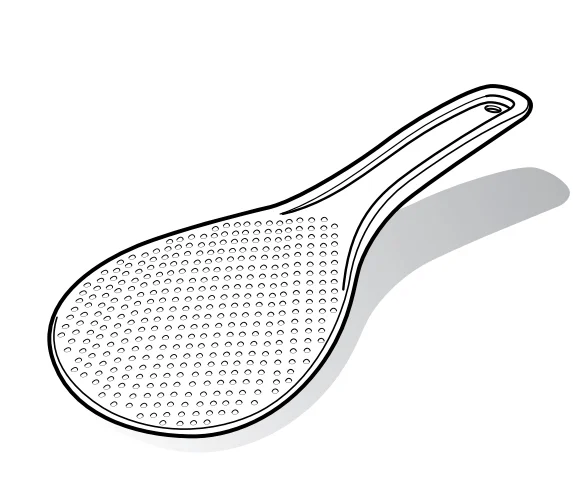

• Rice Scoop
• Rice Measuring Cup

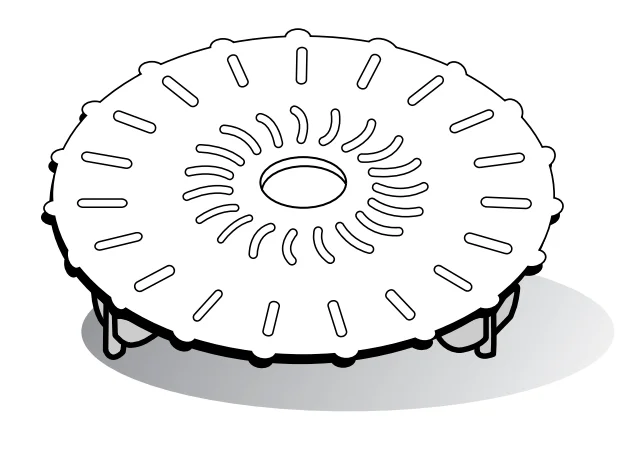

• Steam Plate
• Cleaning Pin
  (Attached to the bottom of the unit)

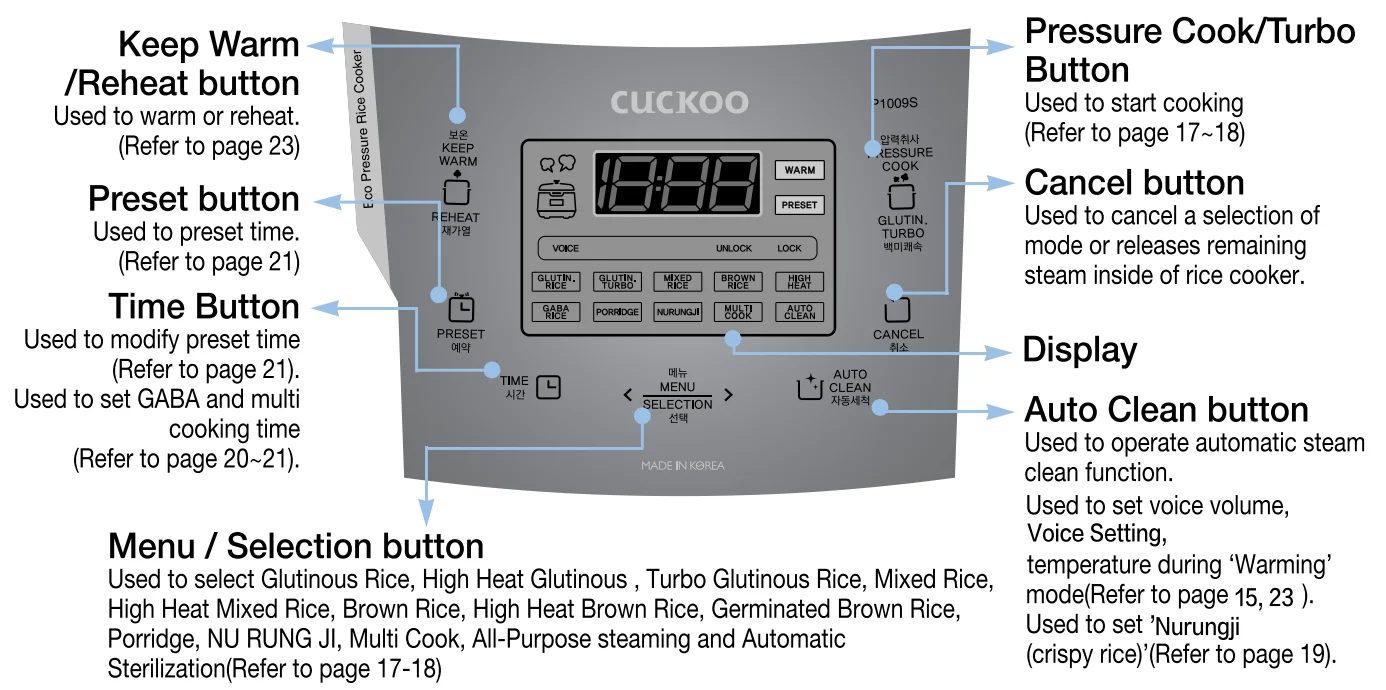

FUNCTION OPERATING PART/ HOW TO SET OR CANCEL VOICE GUIDE FUNCTION

• When you see an image like one on the right side of your display, it means the rice cooker is in ‘Waiting’ mode.
• Press the ‘Cancel’ button to enter the ‘Waiting’ mode.
• Press the button until you hear the buzzer sound. The image of the plate may be different.

Voice guide volume control (The function that can control volume and cancel)

When starting the auto clean mode, please press the Auto Clean button for at least 3 seconds.

In order to enter ‘Voice Setting’ Mode, press the ‘Auto Clean’ button for longer than 3 seconds during ‘Waiting’ Mode. Then press the ‘Auto Clean’ button 1 times to enter the mode. When you set to ‘OFF’ using the ‘Menu/Selection’ Button, ” vo1cE” and “OFF” will blink, and the voice function will be turned off. If you want to set up the voice volume level, press the ‘Menu/Selection’ button. (Voice volume level 1 to 5)

• To return to ‘Waiting’ mode after setting, press the ‘Pressure Cook/Gluten Turbo or Keep/Reheat’ button.

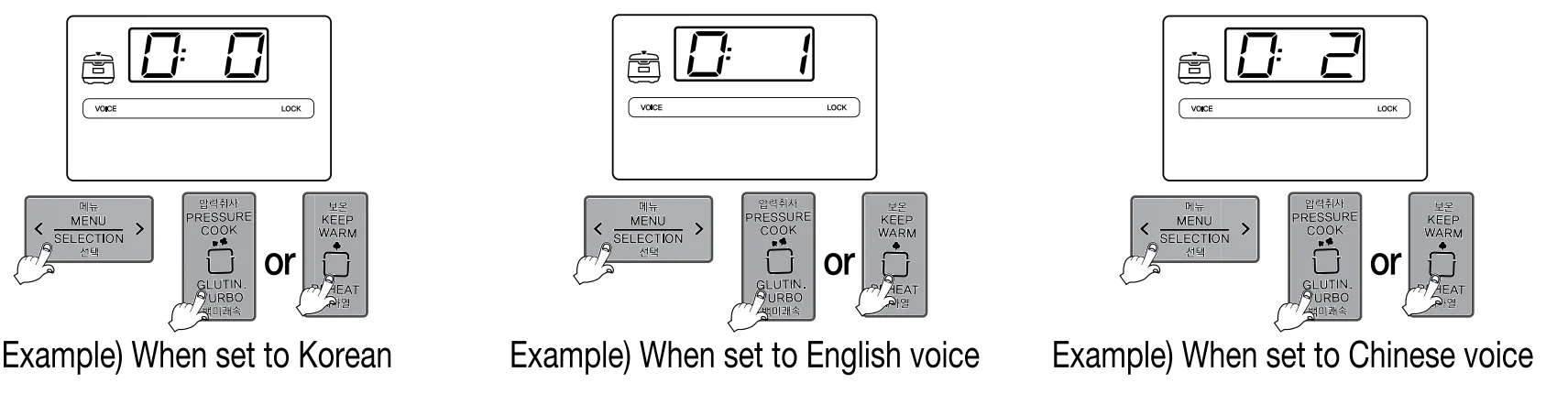

Voice Setting

You may select your preferred voice among ‘Korean, English, and Chinese.’ The default is Korean.

1. To operate ‘Voice Setting Mode’, press the ‘AuteClean’ button at least 3 seconds.
2. After finishing the setting, press ‘Pressure Cook/GLUTIN. Turbo or Keep/Reheat button to return to ‘Waiting’ mode.

BEFORE COOKING RICE

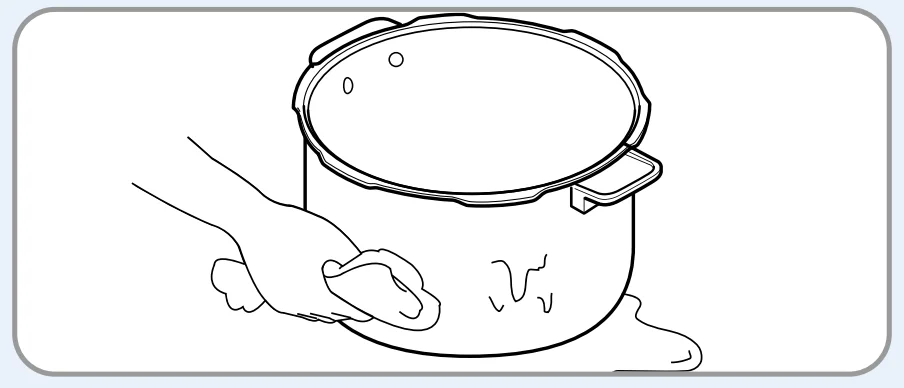

1. Use arty cloth to clean the inner pol
   • Use a soft scrubber to wash the inner pot.
   • Do not use a rough or metallic scrubber. Otherwise, the coating will peel off.
   • Do not put anything metallic and sharp into the inner pot while cleaning.
     (Fork. spoon, chopsticks, knife, etc.)

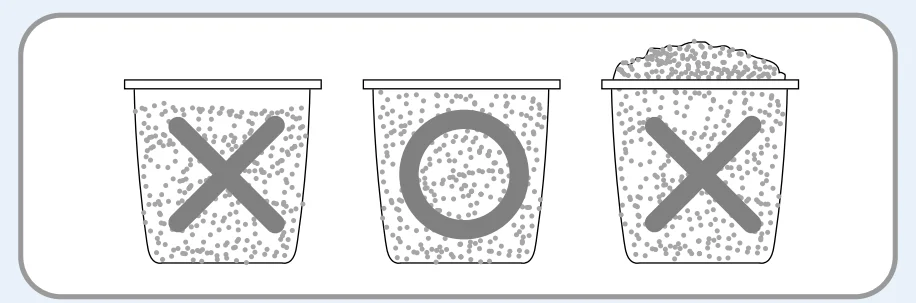

2. Use a measuring cup to meastn desirable cooking amount.
   • Make the rice flat to the top of the measuring cup, and it serves for 1 person. (ex, for 3 servings – 3 cups, for 6 servings – 6 cups)
3. Use another container to wash the rice.

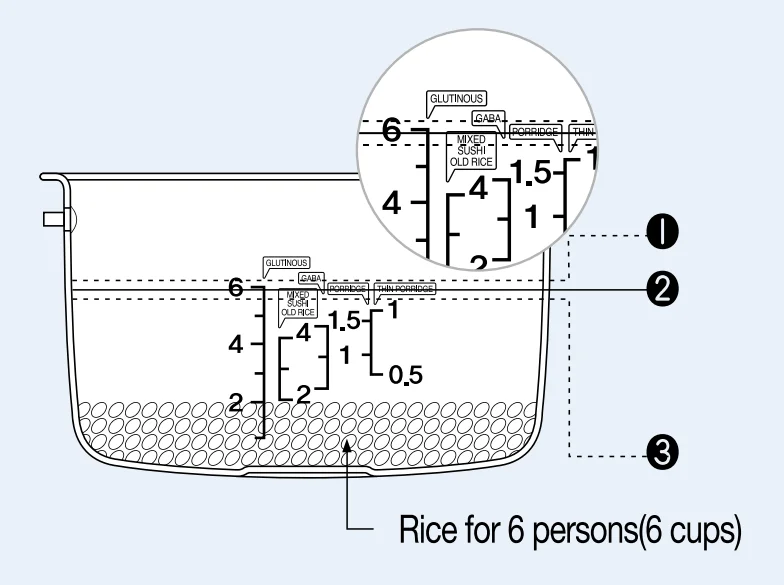

4. Adjust water level.
   • Place the inner pot on the flat surface to adjust the water level.
   • The marked lines in the lmer pot are the water level.
     1. want to cook old or 110ft lice, poll’ more Wal8r than measured scale.
     2. Glutin: Rice for 6 people (6 cups) pour water to ‘6’
     3. Overcook rice: pour less water than the measured scale.
5. Please plug the power cord before inserting the inner pot in the rice cooker.
   1. Wipe off or remove any substances on the temperature sensor or the bottom of the inner pot.
   2. Please place the inner pot correctly into the rice cooker.

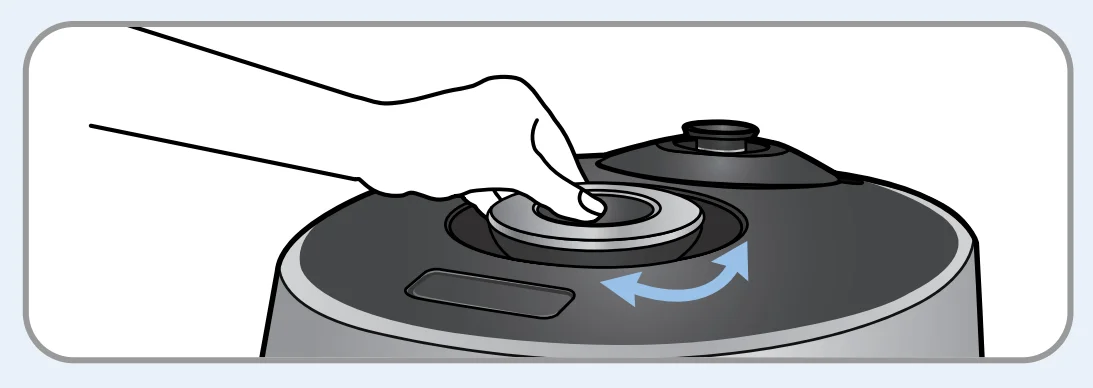

6. Plug the power cord and turn the handle to “Lock”·
   • The Lamp turning on means closed perfectly.

HOW TO COOK

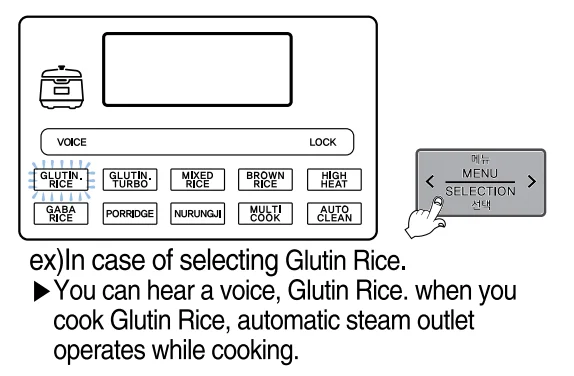

1. Choose the menu from the ‘Menu/Selection’ button.
   • Check that the removable cover is installed.
   • Before cooking, check that the Pressure Weight is well placed horizontally.
   • Each time the “Menu/Selection” button is pressed, the selection switches in the sequential order, Glutin. Rice→High Heat Glutin. Rice→Glutin. Turbo→Mixed Rice→High Heat Mixed Rice→Brown Rice→High Heat Brown Rice→Gaba Rice→Porridge →NU RUNG JI→Multi Cook→Auto Clean
   • If the button is pressed repeatedly, the menu switches continuously in sequential order.
   • In the cases of Glutin Rice, Glutin Turbo, Mixed Rice, Brown Rice, and GABA Rice, the menu remains memorized once each cooking is completed, so for continuous use of the same menu, no selection of the menu is required.
2. Start cooking by pressing “Pressure Cook/Glutin. Turbo” Button.
   • You must turn the lid handle to lock before cooking. Then press the “Pressure Cook/Glutin. Turbo” Button.
   • Unless the lid handle is turned to close, you get an alarm with “E O 1 “, and a sound “turn lid handle to lock”.

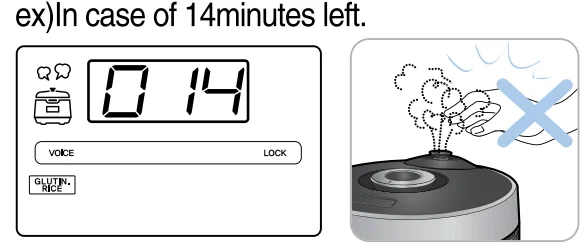

3. Cooking thoroughly
   • The cooktime remaining on the display is shown after cooking thoroughly. The cook time is different according to the menu.
   • Be careful not to burn yourself from the automatic steam outlet.

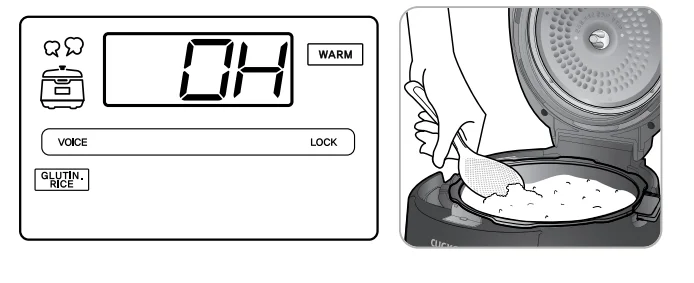

4. The end of cooking
   • When cooking is completed. warming will start with the voice “cuckoo completed glutinous”.
   • If you don’t want to keep the cooked rice warm, press Cancel for 2 seconds.
   • If  the lid handle is not working well, take out all the steam completely from the inner pot by turning over the pressure weight
   • Do not press the ‘Cancel’ button during cooking.

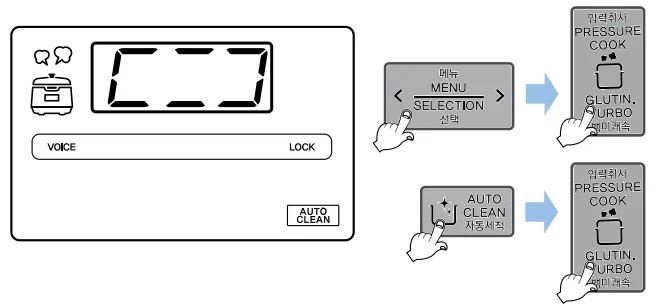

How to use Automatic Sterilization

Pour water up to Glutinous 2, make sure to close and lock the cover.

• Method 1. After choosing the automatic cleaning menu by pressing the “Menu/Selection” button, and then pressing “Pressure Cook/Glutin. Turbo” Button.
• Method 2. Press Auto Clean in the watting mode, and then press “Pressure Cook/Glutin. Turbo” Button.

Melanoizing effect

The cooked rice can be light yellow at the bottom of the oven, because this product is designed to improve the pleasant flavor and taste. Especially, melanoizing is more serious at the “Preset cooking” than just “Cooking” . It does not mean malfunction.

• When mixing other rice with Glutinous, the Melanoizing effect could increase more than the “Glutinous cook” setting.

What is Blackout Compensation

• This product remembers and maintains previous conditions and processes. After a blackout, it operates immediately.
• If a blackout occurs during cooking, the cooking will be delayed depending on the length of the blackout.
• ‘Warming’ will be canceled if a blackout occurs.

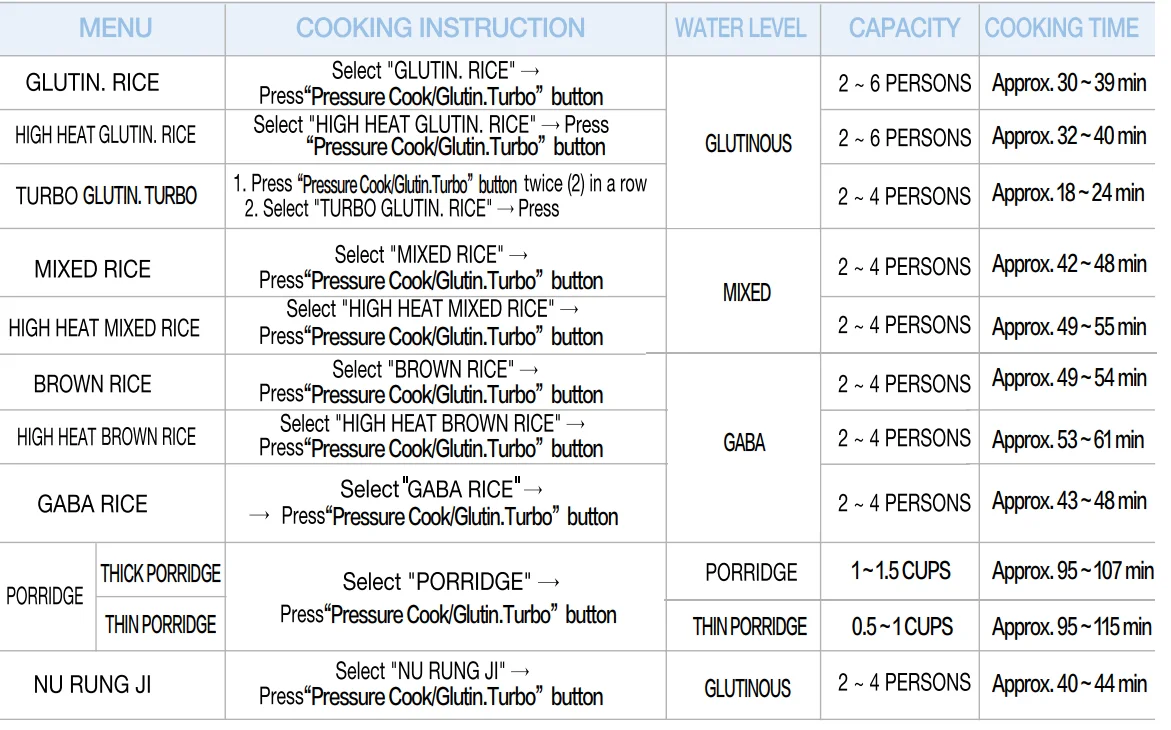

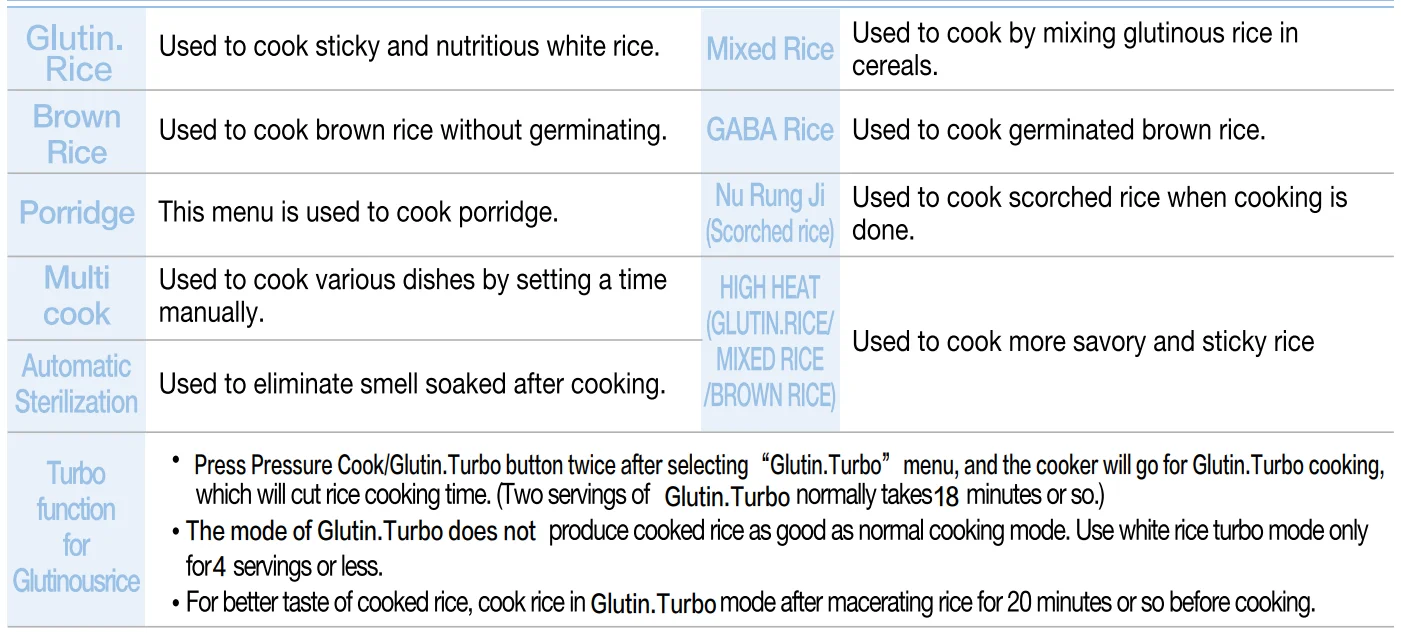

How to use the cooking menu

• After cooking in white rice turbo mode or cooking at a small saving, discard the water. In case of small servings, more water may be required than in other menus.

• When keeping warm, press Cancel to stop and select the desired function.
• When you cook after using options like Multi Cook, the odor may stick (refer to the product care method section to wipe the packing and cover and clean with the auto sterilization function).
• Please soak or boil hard grains such as beans and red beans under water first before starting cooking in the mixed ice option.
• Cooking time for each option may vary depending on the user’s environment, such as voltage, amount/temperature of water, etc.
• When you see “Edo” * on display, turn the Lock/Unlock handle towards (Unlock), and then turn it back towards (Lock) for it to work properly. (This does not apply when you turned the handle towards (Unlock) once or more after finishing cooking in the previous cooking)

CUCKOO Customized Taste Function/For Nurungji (Korean Crispy Rice Snack)

CUCKOO Customized Taste Function (cooking temperature customization)

This function allows you to select your preferred temperature level when cooking. Compared to the previous model, the temperature level has been fixed, and consumers are able to set the temperature according to their preferences. The initial value is set to 4:0. Please select the level depending on your preferences.

• High level: Select high level if you are cooking grains or want sticky rice.
• Low level: Select low level if you are cooking freshly harvested rice or don’t want sticky rice.

How to use CUCKOO Customized Taste Function

Press the Auto Clean button in the waiting mode for 3 seconds to go to voice setting mode. Press the Auto Clean button 4times to enter the customized taste setting mode. All options supported by ‘CUCKOO Customized Taste’ will be displayed.

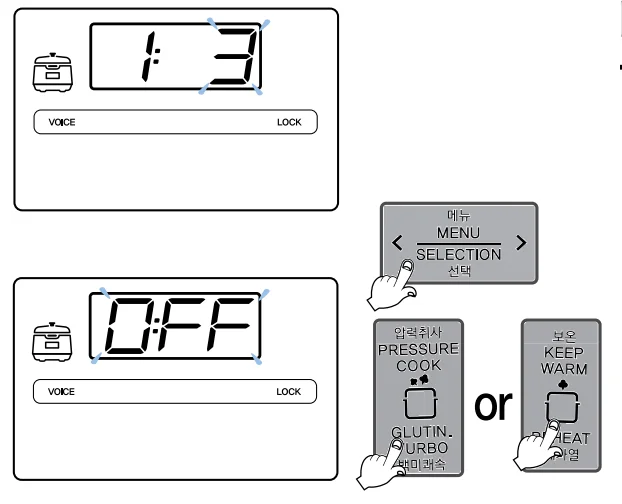

1. CUCKOO customized taste setting display.
   Press the Auto Clean button for 3 seconds to enter the voice volume setting mode. Press the Auto Clean button 4 more times to go to the customized taste setting display. Please refer to the display for the initial values.
2. High-level adjusting mode
   • Press the Menu/Selection button to change the display as shown in the image above.
   • Low-level adjusting mode
     Press the Menu/Selection button to change the display as shown in the image above.

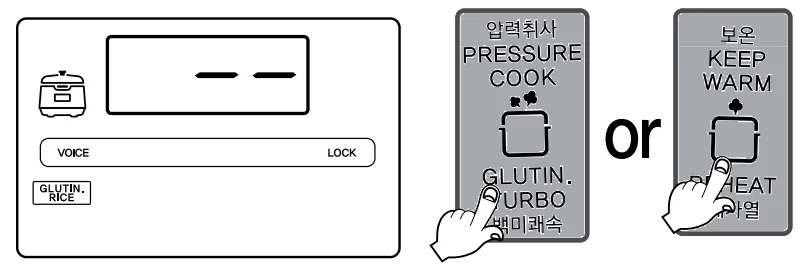

3. Setting complete display
   Press the Pressure Cook/Glutin Turbo or Keep Warm/Reheat button to save the set value and return to waiting mode. If you press Cancel or do not operate for 7 seconds, the setting will be canceled, and you will go back to the waiting mode. (When you press the Auto Clean button, you will enter the stronger Keep Warm setting mode without saving the changed value.)

• ‘CUCKOO Customized Taste function is applied to the following options: glutin rice, High Heat Glutin. Rice, glutin turbo, mixed rice, High Heat Mixed Rice, brown rice, High Heat Brown Rice, and GABA rice.
• Set up the step of the customized cooking function to taste. The scordl can occur when cooking in high-level mode.
• Cook is subject to change depending on the percentage of water content and the condition of the rice.

How to make Nu rung ji

1. Turn the Lock/Unlock handle to “Lock” and press the menu to select the ‘Nu Rung Ji’.
2. Press the”Pressure Cook/Glutin.Turbo” button to start cooking.-
3. When cooking is completed, scoop out the boiled rice. The Nu Rung Ji” on the bottom of the jar can be prepared for your taste (e.g., scorched rice tea}
   • “Nu Rung Ji” can be prepared for up to 4 people
   • For “Nu Rung Ji” cooking, set the water volume at “Glutinous· level.
   • Not too much washing rice.
   • If you want enhanced burning nu rung ji, cook after soaking rice in water for 30 minutes.

How to make more crispy Nu rung ji

cooking with “Nurungi” option, you can scorch the cooked rice on the bottom in different levels according to your preference.

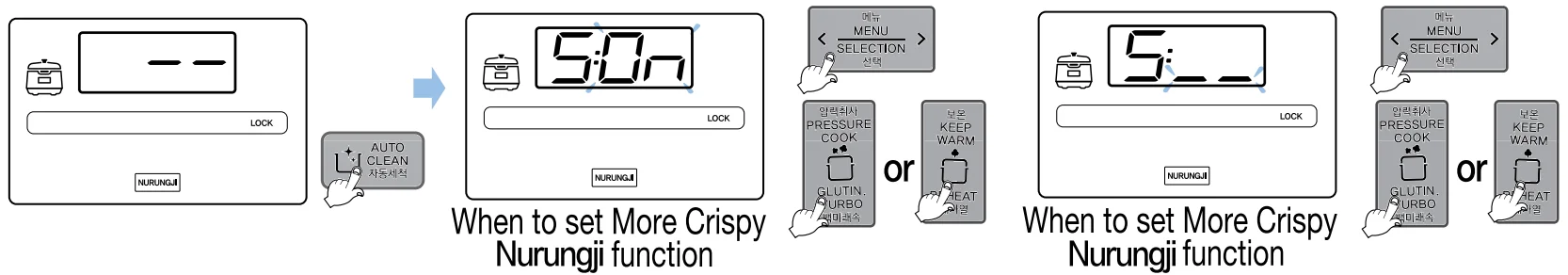

• How to set the More Crispy Nurungji function (When you want the cooked rice more “scorched” when cooking nurungi)

1. Press the Auto Clean button under waiting mode for 3 seconds or longer to enter the voice setting mode. Press the Auto Clean button 5 times to enter the More Crispy Nurungji setting mode.
2. When the More Crispy Nurungji setting mode begins, press Menu/Selection to select or cancel More Crispy Nurungji mode. Press the Pressure Cook/Glutin Turbo or Keep Warm/Reheat button to select or cancel the mode.
3. When you press Cancel or do not operate for 7 seconds, the function will be canceled, and the product will return to the waiting mode.

HOW TO USE “GABA RICE(BROWN RICE)”

What is Germinated Brown Rice?

Brown rice has richer nutrients than polished rice. However, brown rice is rather tough to digest. By germination, the enzymes in the brown rice are activated, generating nutrients, and are easier to digest.

Features of Germinated Brown Rice

Germinated brown rice increases nutrients and enhances taste, which is a weak point of brown rice. Germinated brown rice also improves digestion.

• Taste will be greatly enhanced.
• Easier to digest and is rich in nutrients.
  • Diabetic honeys are generated, improving digestion.
• Good as a health food for children or adults.
  • Rich in dietary fiber.
• Germinated brown rice has rich GABA (Gamma Aminobutyric Acid)
  • GABA promotes metabolism in the liver and kidneys, suppresses neutral fat, lowers blood pressure, promotes metabolism in brain cells -1hese effects have been proven by medical science.

Using “GABA RICE” Menu

1. In order to promote germination, soak brown rice for 16 hours in water. Method of Pre-germination
   • Put washed brown rice in an appropriate container, and pour a sufficient amount of water to soak the rice.
   • Pre-germination shall not exceed 16 hours. Make sure to rinse the rice clean with flowing water before using the “GABA RICE” menu. Be careful not to rinse too much or else the embryos that are required to germinate may wear off.
   • A unique smell may be generated according to the soaking time of pre-germination
   • When pre-germination has been completed, wash the rice and insert the inner pot. Pour an appropriate amount of water and use the “GABA RICE” menu.
   • During summer or a hot temperature environment, an odor may be generated. Reduce germination time and wash clean when cooking.
2. Set the Lock/Unlock handle at Lock, press the Menu/Selection button to select “GABA RICE”
   1. When cooking brown rice with or without germination, select the “Brown Rice” option and start cooking.
3. Press Pressure Cook/Glutin. Turbo button.
   • If you press the Pressure Cook/Glutin Turbo button, the brown rice will start to germinate for the set time, and cooking will start after germination is complete.
   • When germinating the brown rice, the remaining time will be displayed.

When the “GABA RICE” is selected, “3H” is indicated in the display

1. If a smaller germ is preferred, omit the pre-germination process. Select the “GABA RICE” menu, set up appropriate germination time, and start cooking (nutrient ingredients do not vary significantly by the size of the germ).
2. During hot seasons, a longer germination time may generate odor. Reduce germination time.
3. GABARICE cooking feeds up to 4 people
4. City water can be used for germination. However, filtered or drinkable water is recommended. Germination may not be properly performed in hot or boiled water, even after cooking.
5. Germination rate and germ growth may differ by the type of brown rice, condition, or period of storage.
   • The brown rice should be within 1 year of harvest, and not long since pounded.
6. In GABA RICE mode, preset on 3H may not be possible. If you want to preset the GABA RICE, set up the BROWN RICE menu. (See the page)
7. The taste of rice could be different depending on the kind of brown rice. Use the customized taste function or control the amount of water for your taste. (Refer to page 19)
8. Depending on the user’s environment or the condition of the rice, the sprout may not be visible.

For more manuals by Cuckoo, visit ManualsLibraryy

CUCKOO CRP-P0609S High Pressure Rice Cooker-FAQs
