Cuckoo CRP-P1009S 10-Cup Pressure Rice Cooker User Guide

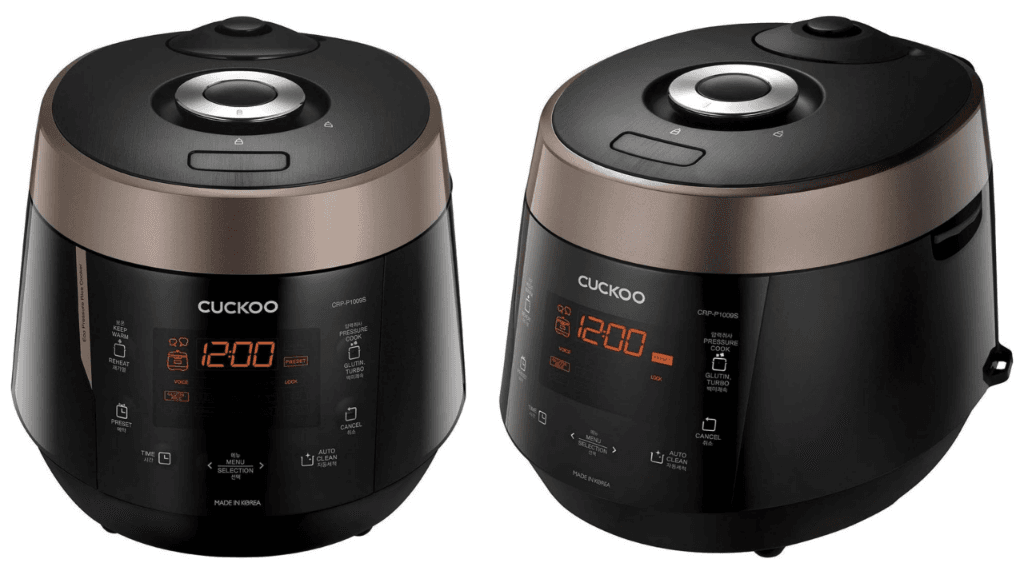

Cuckoo CRP-P1009S 10-Cup Pressure Rice Cooker

IMPORTANT SAFEGUARDS

1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock, and/or injury to persons, do not immerse the cord, plugs, or Pressure Cooker Body in water or any other liquid.
4. Close supervision is necessary when this appliance is used by or near children. This appliance is not intended for use by children under 3 years of age without adult supervision.
5. Unplug the cord from the outlet when not in use and before cleaning. Allow the appliance to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, and/or injury to persons.
8. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or your service agent.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas, electric burner, or in a heated oven.
12. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, or set all controls to “off”, then remove the plug from the wall outlet.
13. Do not use this appliance foanything r anything other than its intended use.
14. Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
15. Oversized foods, metal foil packages, or utensils must not be inserted into the appliance as they are a risk of fire or electric shock.
16. Fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, etc, while in operation.
17. To reduce the risk of electric shock, cook only in the provided removable container.
18. This appliance cooks under pressure. Improper use may result in scalding injury.
    Before operating the unit, properly secure and close the unit. See “Operating Instructions.”
19. Do not cook foods such as applesauce, cranberries, cereals, macaroni, spaghetti, or other foods. These foods tend to foam, froth, and sputter, and may block the pressure-releasing device..
20. Before use, always check the pressure-releasing device for clogging.
21. Do not open the pressure cooker until the unit has cooled and internal pressure has been reduced. See “Operating Instructions.”
22. Do not use this pressure cooker to fry in oil.

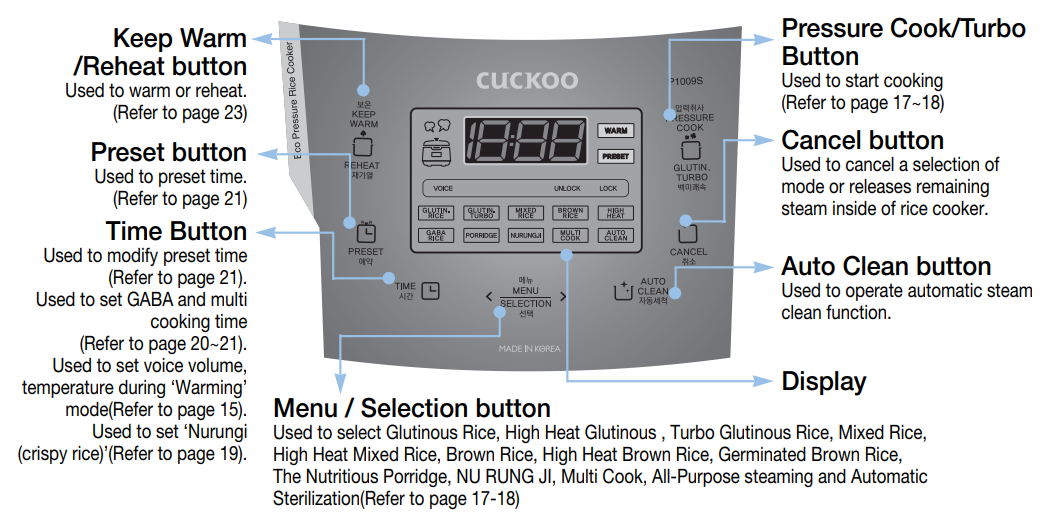

NAME OF EACH PART

FUNCTION OPERATING PART / HOW TO SET OR CANCEL VOICE GUIDE FUNCTION

Voice guide volume control (The function that can control volume and cancel)

• To operate ‘Auto Clean mode’, press the ‘Auto Clean’ button for at least 3 seconds.
• ▶ If you press the ‘Auto Clean’ button longer than 3 seconds, you will enter in ‘Voice Volume ’ setting, as shown in the image.
• To enter ‘Voice Setting’ Mode, press the ‘Auto Clean’ button longer than 3 seconds during ‘Waiting’ Mode. Then press the ‘Auto Clean’ button 6 times to enter the mode.
• After finishing the setting, press ‘Pressure Cook/GLUTIN. Turbo or Keep/Reheat’ button to return to ‘Waiting’ mode.  When you set the’ using ‘Menu/Selection’ Button, “ ” and “ ” will blink, and the voice function will be turned off. If you want to set up the voice volume level, press the ‘Menu/Selection’ button. (Voice volume level to )
• ▶ To return to ‘Waiting’ mode after setting, press ‘Pressure Cook/Gluten Turbo or
  Keep/Reheat’ button.

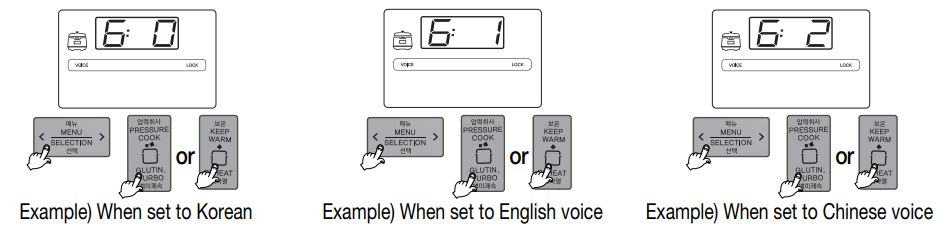

You may select your preferred voice among ‘Korean, English, and Chinese.’ The default is Korean

1. In order to enter ‘Voice Setting’ Mode, press the ‘Auto Clean’ button for longer than 3 seconds during ‘Waiting’ Mode. Then press the ‘Auto Clean’ button 6 times to enter the mode.
2. After finishing the setting, press ‘Pressure Cook/GLUTIN. Turbo or Keep/Reheat’ button to return to ‘Waiting’ mode.

BEFORE COOKING RICE

1. Use a dry cloth to clean the inner pot.
   •  Use a soft scrubber to wash the inner pot.
   • Do not use a rough or metallic scrubber. Otherwise, the coating will peel off.
   • Do not put anything metallic and sharp into the inner pot while cleaning. (Fork, spoon, chopsticks, knife, etc.)
2. Use a measuring cup to measure the desired cooking amount.

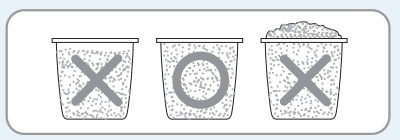

   • Make the rice flat to the top of the measuring cup, and it serves 1 person. (ex, for 3 servings → 3 cups, for 6 servings → 6 cups)
3. Use another container to wash the rice.
4. Adjust the water level
   • ▶ Place the inner pot on the flat surface to adjust the water level.
   • ▶ The marked lines in the inner pot indicate the water level
5. Please plug the power cord before inserting the inner pot in the rice cooker.
   • ▶ Wipe off or remove any substances from the temperature sensor or the bottom of the inner pot.
   • ▶ Please place the inner pot correctly into the rice cooker.

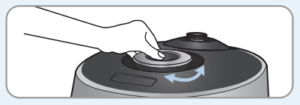

6. Plug the power cord and turn the handle to “Lock.”

HOW TO COOK

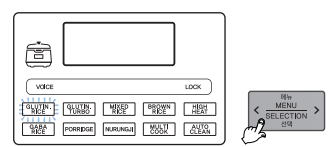

1. Choose the menu from the ‘Menu/Selection’ button.
   • Check if the removable cover is installed.
   • Before cooking, check that the Pressure Weight is well placed horizontally.
   • Each time “Menu” button is pressed, the selection switches in the sequential order, Glutinous Rice → High Heat Glutinous → Turbo Glutinous Rice → Mixed Rice → High Heat Mixed Rice → Brown Rice → High Heat Brown Rice → Germinated Brown Rice → The Nutritious Porridge → NU RUNG JI → Multi Cook → Automatic Sterilization.
   • If the button is pressed repeatedly, the menu switches continuously in
     sequential order.
   • In the cases of Glutin Rice,  Glutin Turbo, Mixed Rice, Brown Rice, and GABA
     Rice, the menu remains memorized once each cooking is completed, so
     For continuous use of the same menu, no selection of the menu is required.

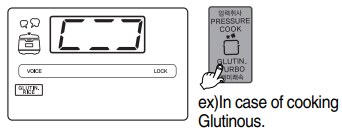

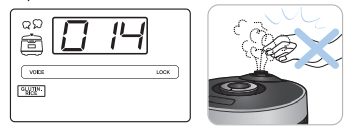

2. Start cooking by pressing the Pressure Cook button.
3. Cooking thoroughly

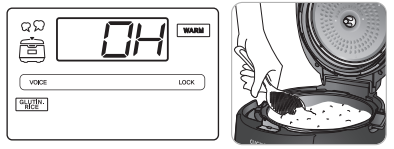

4. The end of cooking
   • When cooking is completed. Warming will start with the voice “cuckoo completed glutinous”.
   • If you don’t want to keep the cooked rice warm, press Cancel for 2 seconds.
   • If the lid handle is not working well, take out all the steam completely from the
     inner pot by turning over the pressure weight.
   • Do not press the ‘Cancel’ button during cooking.

How to Use Automatic Sterilization

Pour water up to scale 2, make sure to close and lock the cover.

• Method 1. After choosing the automatic cleaning menu by pressing “Menu/Select”
  button, and then press the “Pressure cook/turbo” button.
• Method 2. Press Auto Clean in the waiting mode, and then press the Pressure Cook/Glutin Turbo button.

How to use the cooking menu

• When keeping warm, press Cancel to stop and select the desired function.
• When you cook after using options like Multi Cook, the odor may stick (refer to the product care method section to wipe the packing and cover and clean with the auto sterilization function).
• Brown Rice/Mixed Rice, Brown Rice/Mixed Rice, and High Heat options are useful when cooking white rice and brown rice in a 5:5 ratio.
• Please soak or boil hard grains such as beans and red beans under water first before starting to cook in the mixed rice option.
• Cooking time for each option may vary depending on the user’s environment, such as voltage, amount/temperature of water, etc.
• When you see ” ” on display, turn the Lock/Unlock handle towards ” ” (Unlock), and then turn it back towards ” ” (Lock) for it to work properly. (This does not apply when you turned the handle towards ” Unlock) once or more after finishing cooking in the previous cooking.)

How to make more crispy Nu rung ji

When cooking with the “Nurungi” option, you can scorch the cooked rice on the bottom in different levels according to your preference.

1. Press the Auto Clean button under waiting mode for 3 seconds or longer to enter the voice volume setting mode. Press the Auto Clean button 4 times to start the More Crispy Nurungi setting mode.
2. When the More Crispy Nurungi setting mode begins, press Menu/Selection to select or cancel More Crispy Nurungi mode. Press the Pressure Cook/Glutin Turbo or Keep Warm/Reheat button to select or cancel the mode.
3. When you press Cancel or do not operate for 7 seconds, the function will be canceled, and the product will return to the waiting mode.

HOW TO USE “GABA (BROWN RICE)

Features of Germinated Brown Rice

Germinated brown rice increases nutrients and enhances taste, which is a weak point of brown rice. Germinated brown rice also improves digestion.

• Taste will be greatly enhanced.
• Easier to digest and is rich in nutrients. Diabetic hormone is generated, improving digestion.
• Good as a health food for children or adults. Rich with dietary fiber.
• Germinated brown rice has rich GABA (Gamma Aminobutyric Acid). GABA promotes metabolism in he liver and kidneys, suppresses neutral fat, lowers blood pressure, promotes metabolism in brain cells – these effects have been proven by medical science.

Using “GABA” Menu

1. In order to promote germination, soak brown rice for 16 hours in water.
   Method of Pre-germination
   • Put washed brown rice in an appropriate container, pour a sufficient amount of water to soak the rice..
   • Pre-germination shall not exceed 16 hours. Make sure to rinse the rice clean with flowing water before using the “GABA” menu. Be careful not to rinse too much, or else the embryos that are required to germinate may wear off.
   • A unique smell may be generated according to the soaking time of pre-germination
   • When pre-germination has been completed, wash the rice and insert the inner pot. Pour an appropriate amount of water and use the “GABA” menu.
   • During summer or a hot temperature environment, an odor may be generated. Reduce germination time and wash clean when cooking.
2. Set the Lock/Unlock handle at Lock, press the Menu button to select “GABA”
   • When cooking brown rice with or without germination, select the “Brown Rice” option and start cooking.
3. Press Pressure Cook/Glutin. Turbo button.
   • If you press the Pressure Cook/Glutin Turbo button, the brown rice will start to germinate for the set time, and cooking will start after germination is complete.
   • When germinating the brown rice, the remaining time will be displayed.

When the “GABA” is selected, “3H” is indicated in the display

1. If a smaller germ is preferred, omit the pre-germination process. Select the “GABA” menu, set up the appropriate germination time, and start cooking (nutrient ingredients do not vary significantly by the size of the germ).
2. During hot seasons, longer germination times may generate odor. Reduce germination time.
3. GABA cooking feeds up to 6 people
4. City water can be used for germination. However, filtered or drinkable water is recommended. Germination may not be properly performed in hot or boiled water after cooking.
5. Germination rate and germ growth may differ by the type of brown rice, condition, or period of storage. The brown rice should be within 1 year of harvest, and not long since pounded.
6. In GABA mode, preset on 3H may not be possible. If you want to preset the GABA, set up the BROWN RICE menu. (See page 21)
7. The taste of rice could be different depending on the kind of brown rice. Use the customized taste function or control the amount of water for your taste. (Refer to page 19)
8. Depending on the user’s environment or the condition of the rice, the sprout may not be visible.

HOW TO CLEAN

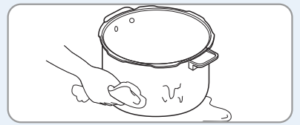

Wipe the inner, upper, and outer parts of the inner pot of any alien substance.

Wipe the top cover with a damp cloth. Be careful when cleaning the top heater..

If there are foreign substances stuck on the temperature sensor, remove them without
damaging the metal plate. Cleanly wipe the foreign substances or moisture from the heat plate..e

Wipe the main unit with a damp cloth.

If there is rice water left on the lid, please wipe it out with a wet towel. The center of the lid is made out of metal, so beware when cleaning.

Rice water from cooking is designed to gather in the dish through the steam outlet, so please wipe it clean with a wet towel after cooking.

In case the cauldron is stained with cooked rice broth or foreign matter, wipe the cauldron with a damp dishcloth. Using a rough scouring pad, brush, etc., may damage the cauldron surface. If the buttons are not functioning correctly, please contact our customer care service.

Before or after use, please wipe around the Lid Open button and remove rice water or any other foreign substances using a wet towel. Before or after use, if the Lid Open button does not work, please contact customer service.

How to Clean a Dew Dish

1. Separate the dew dish.
2. Separate the drain ditch cap by pushing it down.
3. Clean the drain ditch cap and dish with a neutral detergent.
4. Securely put in the dew dish after cleaning
5. Insert the dew dish firmly by pressing it in the direction of the arrow.

How to Clean The Pressure Weight Nozzle

The valve hole of the pressure weight allows steam to release. Check regularly to ensure that it is not blocked. If the valve hole of the pressure weight is blocked, the hot steam and hot content within the cooker can cause serious injury.

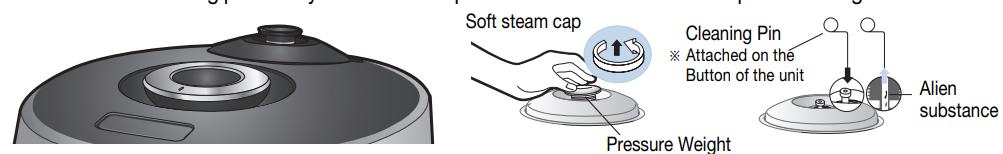

How to Disassemble the Pressure Weight

• ▶ Under the Lock/Unlock handle is the steam cap that guards the pressure weight. To remove the pressure weight, remove the steam cap, turn the pressure weight counter-clockwise while pulling it up, and keep turning until it comes out.
• ▶ Puncture the clogged valve hole with the cleaning pin and reassemble it by turning it clockwise.
• ▶ When the pressure weight is properly assembled, it can be freely turned.

Detachable Cover & Pressure Packing

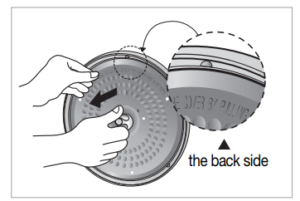

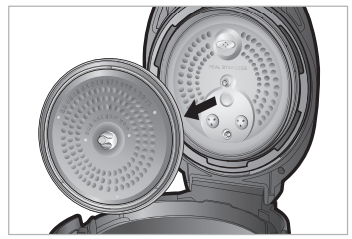

1. If you pull out the detachable cover, indicated by the arrow, it can be easily separated.

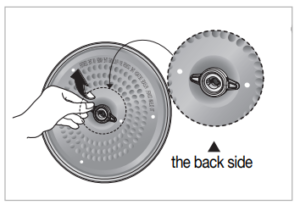

2. When cleaning the detachable cover, hold and pull out both sides of the cover, and then separate the handle and the rubber packing.

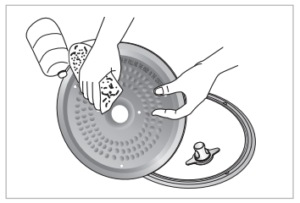

3. Frequently, clean the cover with a sponge and a neutral detergent.
4. Please put the detachable cover.
5. When you fix the rubber packing into the detachable cover, hold it between and put it on the edge of the detachable cover by turning it.
6. When putting the cover into the lid, press the cover handle after fitting the handle into the groove indicated by the arrow.w

How to install the Double Motion Packing (Pressure Packing)

How to remove and clean the pressure packing

1. Unplug the power cord and wait until the pot cools down before opening the top.
   Cover.

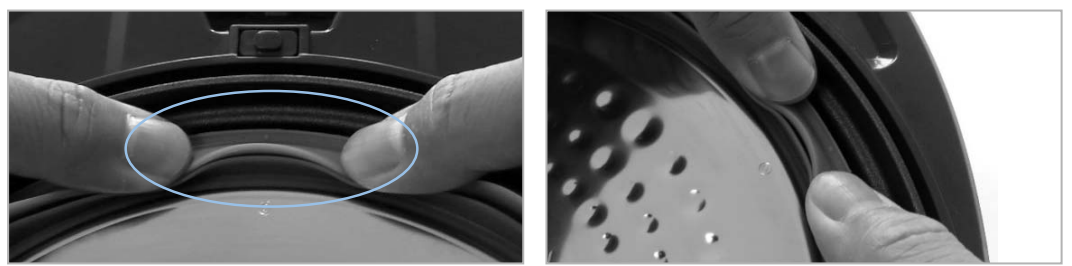

2. To remove the pressure packing, hold it as shown in the picture above and pull it out.
3. After hand washing it with a neutral cleaning liquid and a sponge, wipe it clean with a well-wrung dishcloth.

How to reassemble the pressure packing

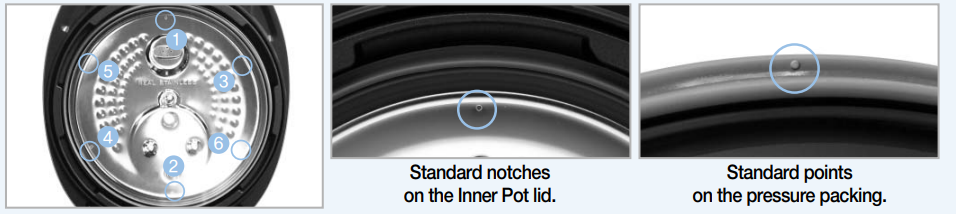

First, match the standard notches on the Inner Pot lid with the standard points on the pressure packing following the numerical order (1, 2, 3, 4, 5, 6). Then, press the outer rim of the packing to insert it into the groove. To reassemble the pressure packing, follow the order described below:

1. As Figure 1 shows, point #1 on the pressure packing with the standard
   notch #1 on the Inner Pot lid together before pressing the outer rim of the packing
   to insert it into the groove. Repeat with points #2 to # 6.
2. After matching the standard points 1 to 6, press the rest of the packing into the
   Groove by pushing on its outer rim.

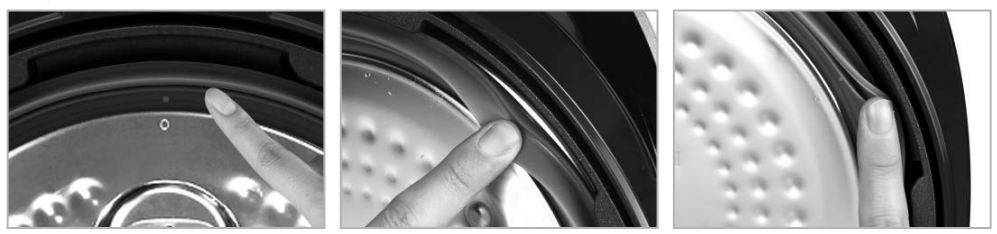

How to double-check whether the packing is well assembled

Physical inspection

• Check if the pressure packing is thoroughly put into the groove by rubbing the inside rim of the packing with a finger around the entire circumference as shown in the picture above.
• Check if the pressure packing is properly put into the groove of the Inner Pot lid by pushing the outer rim with a finger around the entire circumference as shown in the picture.
• Check if the pressure packing is thoroughly put into the groove by pushing the inside of the rim with a finger around the entire circumference, as shown in the picture.

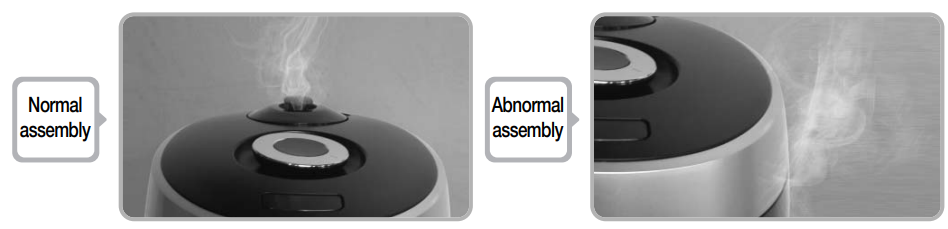

Water boiling test

• Pour water in the Inner Pot up to water level 2 (for “Rice”) and press the Menu/Selection button to select the self-cleaning mode. Then push the Pressure Cook/Turbo button.
• Within 10 minutes, the pressure regulator weight will start rattling and hissing while emitting a stream. If there is no steam coming out from the pot other than through the pressure regulator weight, the packing has been properly installed.
• If steam comes out from other parts, stop the test and pull out the power cord. Wait until the pot cools down before removing the pressure packing from the lid. Once reinstalled, repeat the boiling test.
• For a more precise water boiling test, you can wrap plastic around the circumference of the closed Top Cover. By doing so, you can easily check where the steam leakage is.

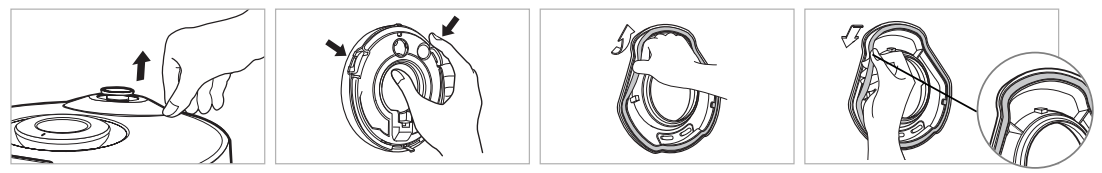

How to clean the soft steam cap

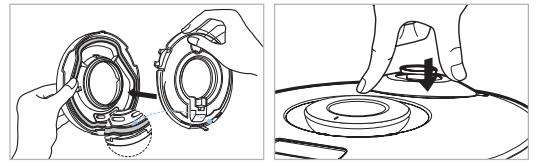

1. Peel off the soft steam cap as shown in the image above by grasping the dented part with your fingers and pulling to the side while lifting gently.
2. Disassemble the soft steam cap in the rear by pressing in the direction of the arrow, and wash it frequently with a neutral detergent or sponge.
3. Disassemble the rubber packing in the direction of the arrow.
4. When fitting the rubber packing into the plate, please make sure the packing is
   facing the correct direction.
5. When you are putting the soft steam cap together, match the bump on the bottom, press it towards the arrow, and make sure the hook in the front is locked.
6. When installing the soft steam cap, insert the cap firmly by pressing it in the direction shown above. Carefully insert the packing incorrectly.

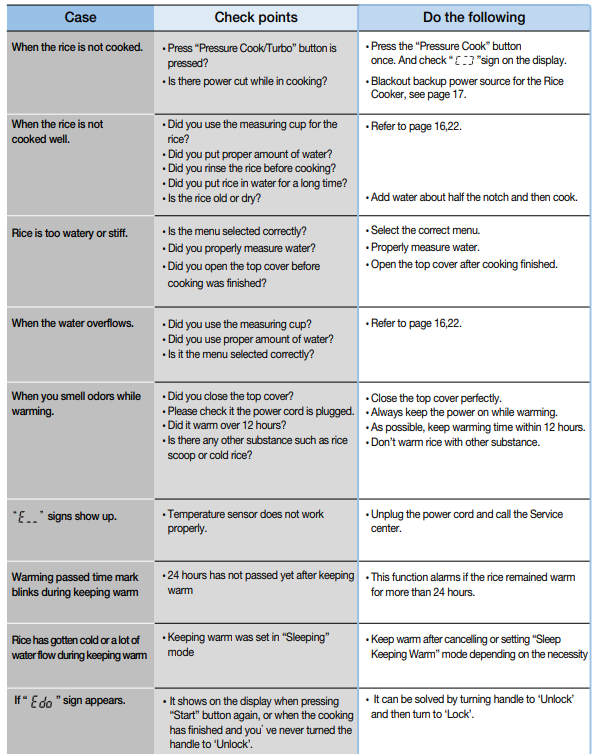

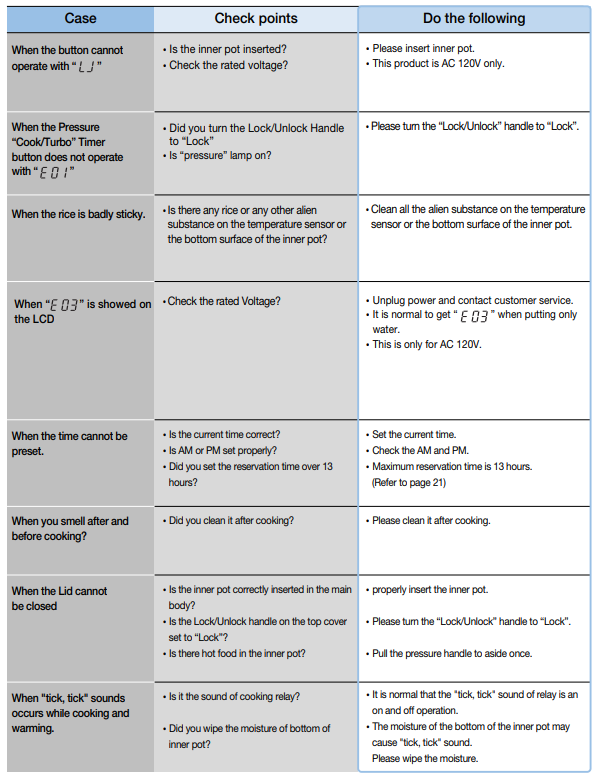

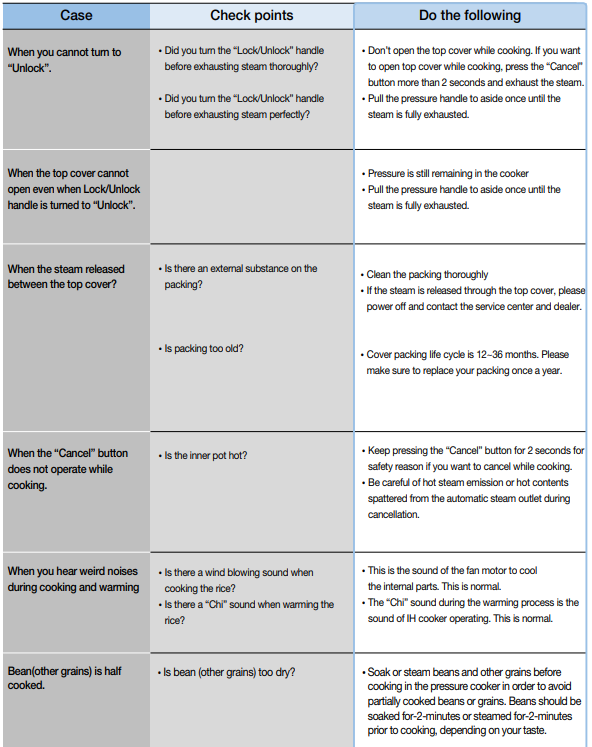

CHECK BEFORE ASKING FOR SERVICE

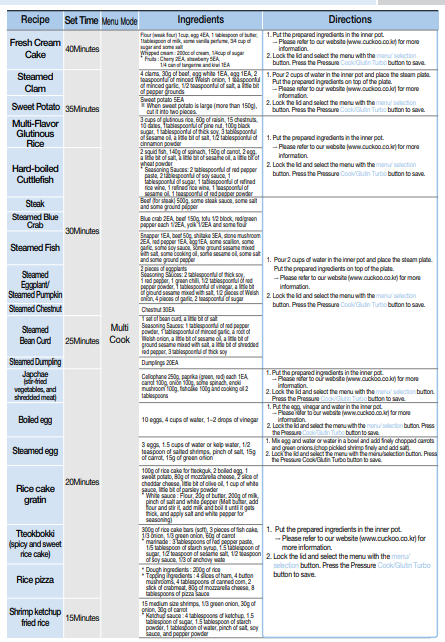

RECIPE
