DynaTrap DT1000 Mosquito Trap

Table of Contents

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS ABOUT THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

WARNING: When using electric appliances, basic precautions should always be followed, including the following:

Please read all instructions before using the DynaTrap® Insect Trap and keep for future reference.
Always turn the unit off and disconnect the plug before servicing or cleaning.
To reduce the risk of injury from moving parts or electric shock, always turn the unit off and disconnect the plug when not in use and before servicing or cleaning.
Always unplug before replacing the lamp. Replace with the same type of rated 7-Watt bulbs, DynaTrap® model 41050.
Do not position the unit near heat, gas, oil, or other flammable materials.
Place out of reach from children.
To reduce the risk of electrical shock, do not put the appliance in water or other liquid.
Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if it has been dropped into water or other liquid.
Connect only to a circuit that is protected by a ground-fault circuit-interrupter (GFCI).
Do not insert fingers or any foreign objects into the unit while it is connected to an electrical outlet.
Collected insects within the unit may contribute to fire, so clean insects from the unit frequently.
Do not clean this product with a water spray. Do not place it where it can fall into water, or near flammable materials.
Do not touch the fan while in motion.
Do not abuse the cord — never carry or hang the unit by a cord or yank it to disconnect from the receptacle. Keep the cord away from sharp edges.
If using outdoors, use only extension cords with a tag stating, “Suitable for Use with Outdoor Appliances.”
Use only extension cords that have plugs and receptacles that match the product plug. Replace or repair damaged cords.
Only use attachments recommended or sold by the manufacturer.
This appliance is provided with double insulation. Use only identical replacement parts. See instructions for Servicing Double-Insulated Appliances.

INSTALLATION & OPERATING INSTRUCTIONS

Unpack the unit. Save carton for off-season storage (if needed).
If hanging or mounting the trap place approximately 3-6 feet above the floor/ground level for optimal catch rate and easy access for cleaning.
If mounting the trap to a wall, secure the mounting bracket to a wall, fence, or other stationary surface using four (4) screws. Then, mount the trap on the bracket by sliding the mounting channel on the side wall of the trap over the mounting bracket peg.
For the best catch result, leave the unit on at all times, except when cleaning or servicing
Catch rate activity will be higher at night. For best catch results it is recommended to keep the unit away from competing light sources.
It is recommended to place the unit at least 20 to 40 feet away from where people will be sitting.
This unit is all-weather resistant – designed for outdoor use including rainy conditions. Intended for household and commercial, indoor and outdoor use.
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
SERVICING OF DOUBLE-INSULATED APPLIANCES – In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing of a double-insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double-insulated appliance must be identical to those parts in the appliance. The symbol must be identical to those parts in the appliance. A double-insulated appliance is marked with the words “DOUBLE INSULATION”, “DOUBLE-INSULATED”, or the symbol:

FCC COMPLIANCE

This device complies with part 18 of the FCC rules. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

USER MAINTENANCE INSTRUCTIONS – CLEANING

Clean the trap at least once a week to prolong life of the unit, insure fire prevention, and provide for more efficient operation.

Be sure to clean the unit once per week.
Unplug before cleaning.
For weekly cleaning, twist the cage clockwise, and remove the damper by grasping the crossbar near the edge of the damper. Pull up firmly. Remove any buildup from the inside of the retaining cage and fan with a brush. Replace the damper, snap firmly into place.
For major cleaning, remove the screws securing the fan housing to the light housing. After removing the screws, gently pull the fan housing away from the light housing. Using a soft brush, remove dirt and debris from the light housing. Once the cleaning process has been completed, align the screw holes in the fan housing with the screw holes in the lighting unit and tighten the screws to the base of the lighting unit.
When replacing the retaining cage, DO NOT press/push against the screen windows.

REPLACING BULB

Replace With DynaTrap Bulb #41050

The Light bulb’s life expectancy is approximately 3,000 hours (or about 4 months), and should be replaced regularly to ensure optimal UV effectiveness. Even though the bulb’s light may be visible to you, its ability to attract insects diminishes over time.

UNPLUG UNIT, and allow bulb to cool before replacing.

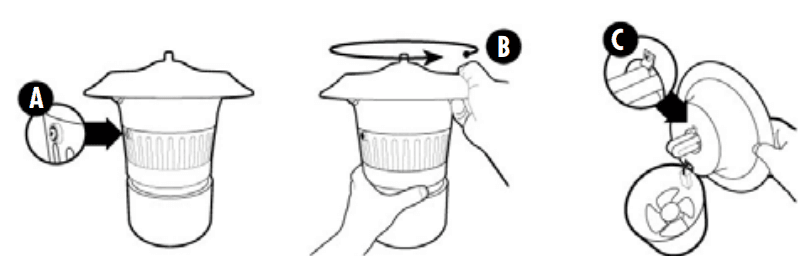

Remove screw (A). Twist the cover counter-clockwise (B). Tilt the cover back to expose bulb (C). Note: Upper and lower sections will remain connected by electrical wire – Do Not Pull or Attempt to Disconnect.
Untighten the screw securing the base of the light bulb to the light housing. Slide the metal clip to the side. Cover the bulb with a cloth to protect your finger and hand. Grasp the bulb (with your hand and fingers protected by the cloth) and gently pull the bulb from the socket.
Remove any debris from the lamp socket with a brush before inserting the new bulb. Replace the metal clip over the base of the bulb and tighten the retaining screw.

REPLACEMENT PARTS

41050 7-Watt Replacement UV Fluorescent Bulb (1 piece)

To see all replacement and accessory parts available for your DynaTrap, visit www.DynaTrap.com.

HOW THE DYNATRAP® INSECT TRAP WORKS

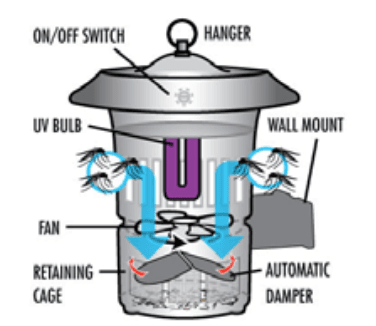

Flying insects are attracted to the unit by UV light and C02 that is generated by the photo-catalysis between the UV lamps and special TiO2 coating. The fan then pulls the insects into the screened base, trapping them until they dehydrate and die. The base can be removed, allowing the contents to be periodically emptied into the trash.

TROUBLESHOOTING

The bulb does not illuminate, and the fan does not spin.

Possible cause:

No electrical power.

Correction:

Check plug, receptacle, and fuse or circuit breaker.
Check to make sure power is switched to the “ON” position.

The bulb illuminates, but the fan does not spin.

Possible cause:

Shorted fan.

Correction:

UNPLUG UNIT: Examine fan to see that it is free from foreign material, dirt, or build-up of dead insects. Clean unit as in “CLEANING” section.

Fan spins, but bulb does not illuminate.

Possible cause:

Burnt out bulb.

Correction:

Check all sockets for proper bulb seating and alignment.
Replace bulb if needed, following instructions under “Replacing Bulb.”

LIMITED WARRANTY

DYNAMIC guarantees to the original purchaser that this product is free from defective materials and workmanship. This warranty is limited to the remedy of any defective part for one year from the date of original date of purchase. Retain your original receipt as proof of purchase. This warranty does not apply to the light bulb, nor to, in our judgment, misuse or abuse. If this unit has been altered, no warranty is in force.

This warranty does not apply if this unit is purchased outside the United States, excluding Canada and Mexico. In no case shall DYNAMIC be liable for any accidental, punitive, consequential, or any other damages of any kind for breach of this or any other warranty, expressed or implied, whatsoever.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
