EVICIV MDS-702 7-Inch HDMI Portable Monitor
Attention
Caution:
- Please read the manual and documents carefully before setup.
- To prevent from fire disaster or an electronic shock, please do not put the monitor in a humid environment or even in a worse condition.
- To prevent hurt from the dangerous high-voltage module inside the monitor, please do not open the shell by yourself.
- Please resort to a professional or support team, and do not handle it by yourself when a breakdown happens.
- Please confirm connections are right before powering on. Or contact the vendor if any damage.
- Openings on the back or top of the monitor for venting, please keep them in good condition. And do not put the monitor centered around a heating source or even in a worse condition.
- Please power the monitor with the specified power supply in the tag. And please confirm the specifications of the power supply before using.
- Please use the power socket stipulated by the standard locally.
- To prevent from fire disaster, please do not overload the power socket or the power supply cable.
- To make the monitor work longer, please keep it in a stable environment, but do not keep it in conditions of full of dust, moisture, and extreme temperatures.
- To prevent damage from variable voltage, please plug off the power supply cable during a thunderstorm or during an idle time.
- Please do not stuff any objects or liquids into openings on the body of the monitor.
- If you have any technical problems, we suggest you contact a professional or vendor.
Maintainance
- Please plug off the power supply and cables before lift or relocation, and lift it with the frame.
- Please power off before cleaning. And use a cleaning cloth without abrasive fiber and neutral detergent.
- Please do not use liquid with Alcohol or Acetone, but use a special detergent for cleaning the screen. And to prevent electronic shock, please do not spray directly on the screen to clean it.
- The screen flickers at first use. Plug off and power on again.
- A little bit of uneven brightness on the screen. Change the image to confirm again.
- There might be some residue for an image showing for hours or longer. Power off for a while and refresh the screen.
- Please do not repair it by yourself unless you are professional, but resort to a professional or vendor, while screen get black, flickering and break down.

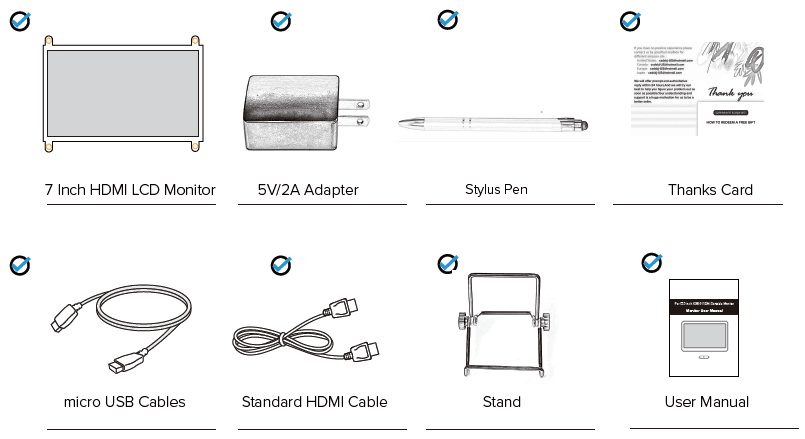

Product List
Button&Port
Power:
Power On/Off
Menu:
After entering the menu Option, press the Menu button, then enter the lower menu or confirm the command function.
It includes menu items such as brightness contrast, image adjustment, color temperature, location, and settings, etc.
UP Button:
Volume Up/Former Setting
DOWN Button:
Volume Down/Next Setting
EXIT button:
The EXIT button is the return button. When you need to return to the previous setting operation, please press the button.
Speakers:
Speakers
Power LED:
5V/IN Port:
Port for power supply.
5V+TOUCH Port:
The touch function is available when the 5V+Touch port is connected.
HDMI Port:
For HDMI cable connection, it is used to transmit a signal.
Built-in HDMI Port:
For the Raspberry Pi board and the monitor connection by a ribbon HDMI cable is used to transmit the signal.
Specifications
| Model | MDS-702 |
| Panel Type | IPS |
| Display Size | 7 inch |
| Resolution Ratio | 1024×600 Pixels |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 700:1 |
| Color Gamut | 50% NTSC |
| Visual Angle | 178 degree |
| Gray Level | 16.7M |
| Response Time | 5 ms |
| Aspect Ratio | 16:9 |
| Headphone Jack | 3.5 mm |
| Color | Black |
| Refresh Rate | 60 Hz |
| Ports | Micro-USB 5V In/5V Touch/ Standard HDMI |
| Operating Temperature | 0～50℃ / 32℉～122℉ |
| Storage Temperature Range | -20～60℃ / -4℉～140℉ |
| Display Area | 154*86mm |
| Shell Material | CNC Aluminium Alloy |
| Built-in Speakers | 8Ω2W |
| Net Weight (Monitor Only) | 239 g |
| Total Weight | 693g |
Connecting
Without a touch screen
Touch screen function

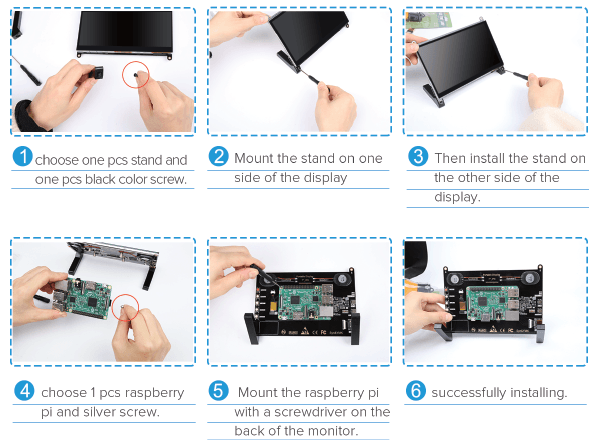

Do-it-yourself installation bracket and Raspberry Pi
Adjusting
Press the menu to enter the screen settings and, twice, press to option. Choose “Picture”, double press Enter picture setting. Press “UP” or “DOWN” to adjust brightness or contrast.
COLOR
Press menu, enter settings. Then press down to scroll and choose “COLOR”. Double-press Enter color setting. You can adjust “Red”, “Green”, and “Blue” to press up or down.
SIZE & POSITION
“SIZE & POSITION” is the default setting. The “Aspect Ratio” is 16:10.
SETUP
Choose “SETUP”, Double press to choose “Language”.There are 12 languages to choose. “Signal Source” is the default setting. Press menu to choose “Menu H-Position” Menu V-Position,” “Menu Timer”, “Audio Volume”, and press up or down to adjust.
Troubleshooting
Question/Problem | Possibly Quick Solutions | |
| 1 | Why not the screen? | Confirm the connection method below. When using touch screen function, All the 3 port need to be connected:HDMI port, 5V/Touch and 5V/IN port. |
| 2 | Does the monitor connect to other devices except the Raspberry Pi? | The devices could be connected if they have HDMI interfaces. |
| 3 | Is it bad that there is no back shell behind the monitor? | This display is designed for Raspberry Pi Microcomputer Series. If the back cover is installed, the raspberry pi board could not be installed on the back. So this model is an open design monitor. |
| 4 | Is this portable monitor compatible with Windows 10 devices? Could you make sure that the driver will work with this version? | Yes, the portable display that connects could be compatible with Windows 10 PC, MacBook Pro, and Raspberry Pi without any problem. |
| 5 | I connect all the cables for my laptop and the monitor, but the touch function could not work, what could I do? | Hello, please contact the seller or our after-service email, and they could help you to find the problem and give a good solution to update the 7-inch monitor. |
| 6 | The screen clicks to pop up windows. The resolution of 1024×600 is actually 640×480. Is it bad? | Please set the resolution of your computer; the resolution of your main display will affect this external display. if it still could not be solved, please contact the seller , the update program will solve the problem. |
SUPPORT
We value customer satisfaction. If you have any problems after ordering the Monitors. Please email us with your order number by the after-sales email address, and tell us the problem or question. I will do my best to solve the problem.
After-service Department site：
United States: eviciv-usa@szdskj.ltd
Europe:eviciv-uk@szdskj.ltd
For more Manuals by EVICIV, visit ManualsLibraryy
