Fanttik Fold V10 APEX Pivot Cordless Car Vacuum User Guide

Fanttik Fold V10 APEX Pivot Cordless Car Vacuum

Quick Start Guide

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire or injury:

All the safety and operating Instructions should be read before use and should be followed to avoid Injury, fire, electric shock, property loss, and other risks.

1. These appliances are intended for household use only.
2. This product has an internal battery. Do not put the device into fire or heat it. Do not charge, use, place it under high temperature conditions, and do not store it in the car in case of overheating, ignition, or explosion.
3. It is recommended to charge, e.,,  use or store the device between 32°F104°F04 °F.
4. People with physical,mental or sensory disabilities should not use the device for their safety.
5. Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
6. Do not use the device with wet hands to avoid injury.
7. Do not use this device to vacuum up any liquid such as water and cola.
8. Do not vacuum smoking or burning things such as cigarette butts,  matches. or hort ashes.
9. Do not vacuum hard or sharp objects to avoid injury when cleaning the dust bowl.
10. Do not use scented products on this equipment to avoid fire caused by the flammable chemicals in them.
11. Do not modify or repair the internal battery.
12. Do not use it in heated or moist places such as the heating room and bathroom.
13. When the vacuum cleaner’s service life is over, please give it to the recycling location designated by the government because the internal battery cannot be taken out.
14. If the charging wire is damaged or broken, please stop using it immediately.
15. If you don’t use it for a long time, please unplug the charging cable after full charge and place it in a cool, dry place. Charge it at least
    once every 3 months to maintain the battery performance.
16. If the device needs to be transported, it is recommended to use the original packaging box and keep it in the uOFFu state.
17. Unplug from the tlet when not in use and before servicing.
18. Do not allow it to be used as a toy.  Close attention is necessary when used near children.
19. Use only as described in this manual Use only the manufacturer’s recommended attachments.
20. If the appliance is not working as it should.has been dropped, damaged or, or left outdoors. Or dropped into water.  Return it to a service centre.
21. Do not pull or carry the y cord. Usethe cord as a handle.  Closea door on the cord. Or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.
22. Do not put any object into openings. Do not use with any opening blocked.
23. Keep hair, loose clothing, fingersan, nd all parts of the body away from openings and moving parts.
24. Use extra care when cleaning on stairs.
25. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
26. Do not use without a dust bag and/or filters in place.
27. Prevent unintentional starting. Ensure the switch is in the off position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch of an appliance that has thee switch on invites accidents.
28. Recharge only with the charger specified the manumanufacturerder non-abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs,   flush with water. If liquid contactsts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
29. Do not use an appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictablbehaviourror resulting in fire, explosion or risk of injury.
30. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 1 0 °C may cause an pexplosion
31. Follow all charging instructions and do not charge the appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
32. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
33. Do not modify or attempt to repair the appliance except as indicated in the instructions for use and care.
34. Use only with Listed/Certified Information Technology (Computer) Equipment, or Listed/Certified ITE Power Supply, or Listed Class 2 Power Unit.
35. This appliance contains batteries that are non-replaceable.

SAVE THESE INSTRUCTIONS

Please save the safety and operating instructions. We assume no responsibility for your property loss caused by improper use.

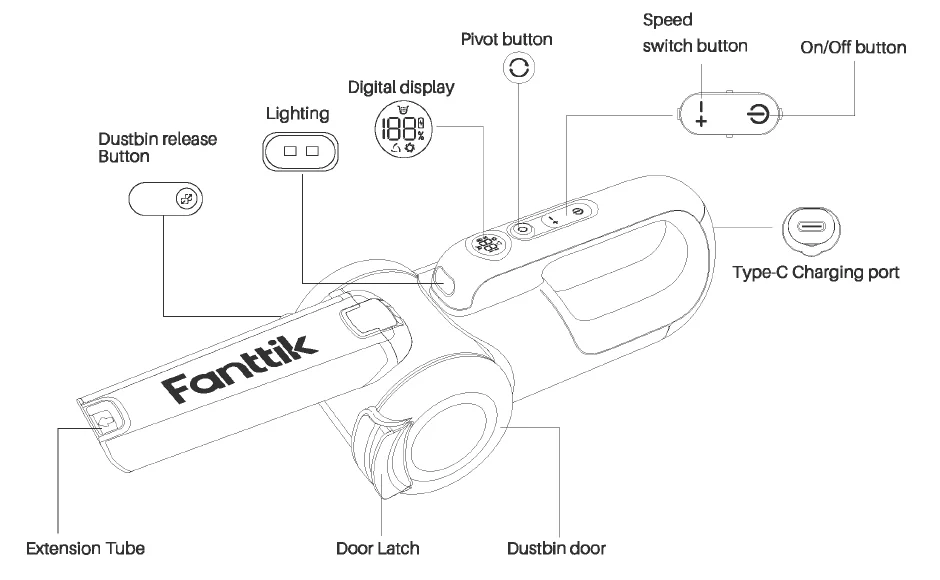

PRODUCT OVERVIEW

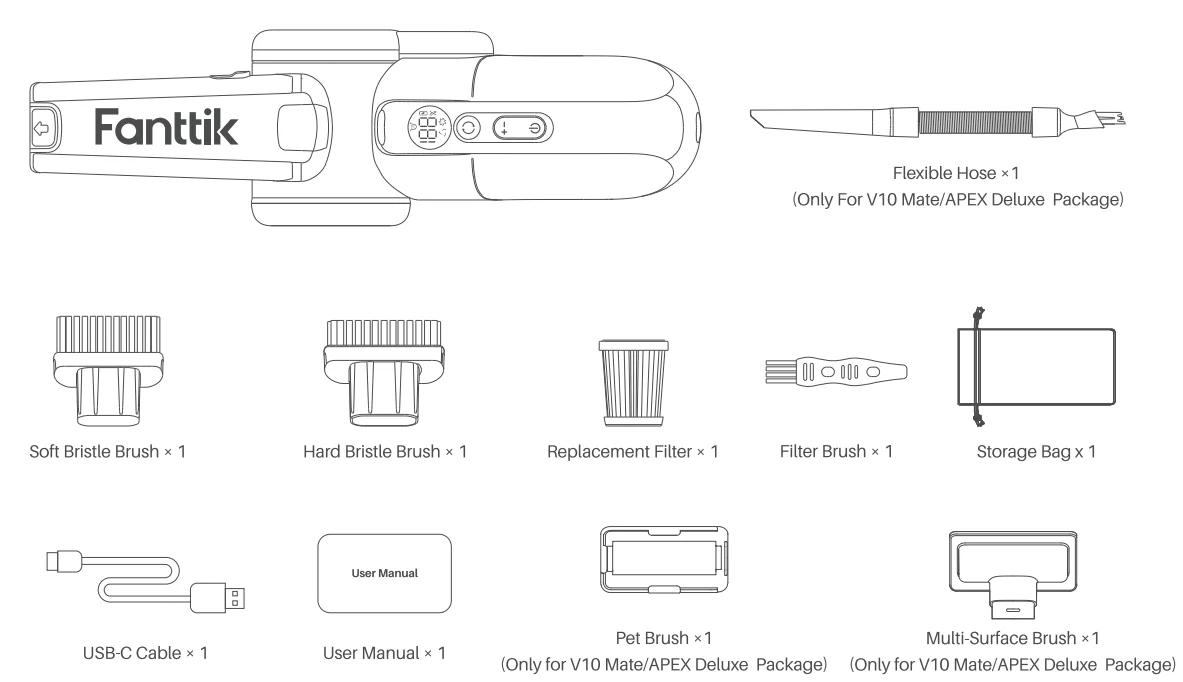

PACKAGE CONTENTS

HOW TO USE

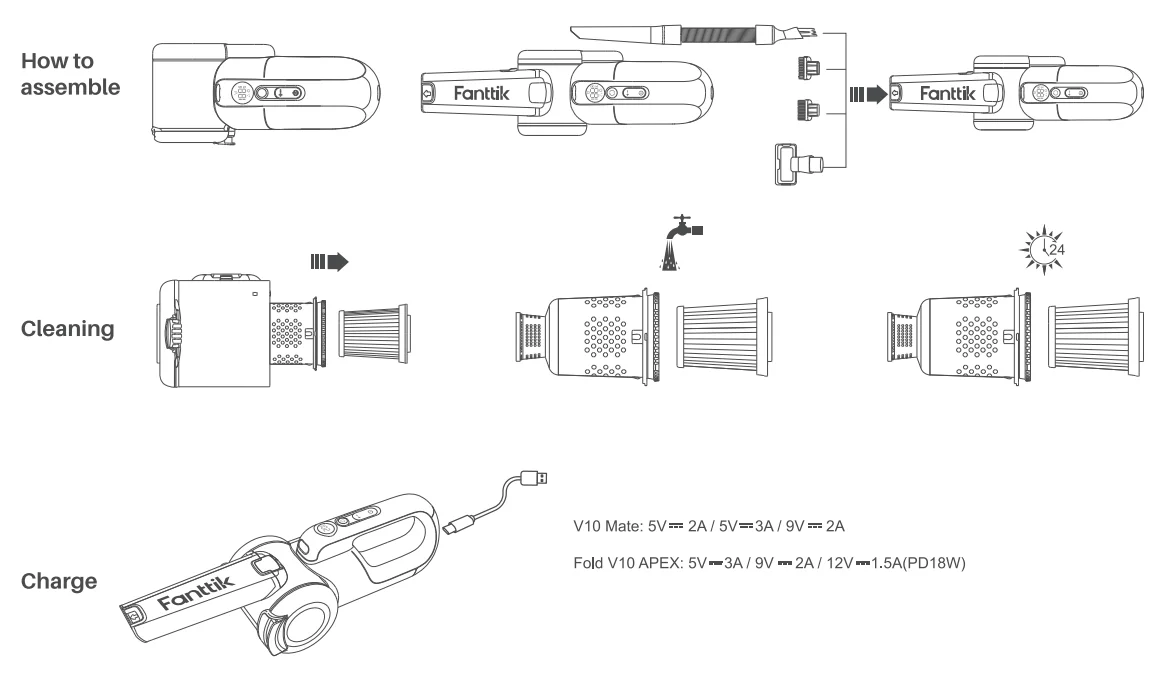

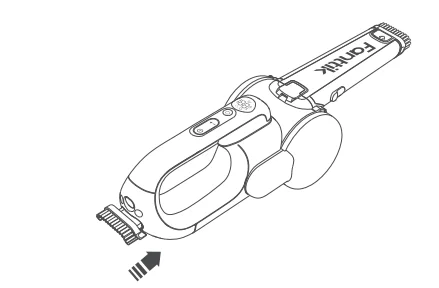

How to assemble

Take out the main machine and press the pivot button to adjust the nozzle to the desired angle. Select the accessories(hard bristle brush and soft bristle brush) as required and install them on the front port.

If you do not use a brush, there is a brush storage seat at the rear housing. You can put the brush here to avoid loss.

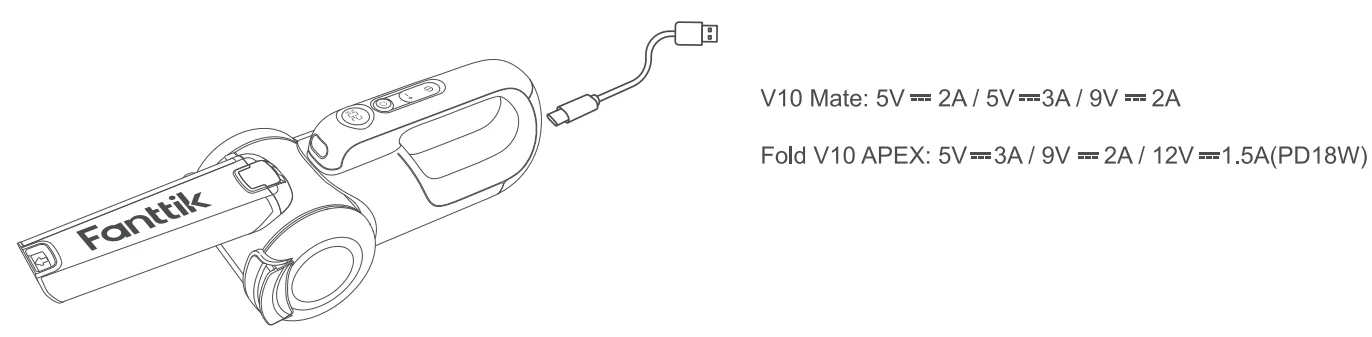

How to charge

1. Open the silicone cap on the rear housing.
2. Please use a 5V 2A / 5V 3A/ 9V 2A for V10 Mate and 5V 3A / 9V 2A/ 12V 1.5A (PD1 SW) for Fold V10 APEX power adapter (not included) and the type-C charging cable(included) to charge. The type-C charging cable can only be used for charging.
3. It takes about 2-2.5 hours to fully charge.
   1. V10 MATE: You can use the device in high speed mode for about 13minutes,  Low speed mode for about 30 minutes
   2. Fold V10 APEX: You can use the device in high speed mode for about 15 minutes, Low speedmode for about 35 minutes..
4. The lithium-ion battery must be FULLY charged before first use and after long-term storage.
5. If not used for a long time, it is recommended to charge the device every three months.

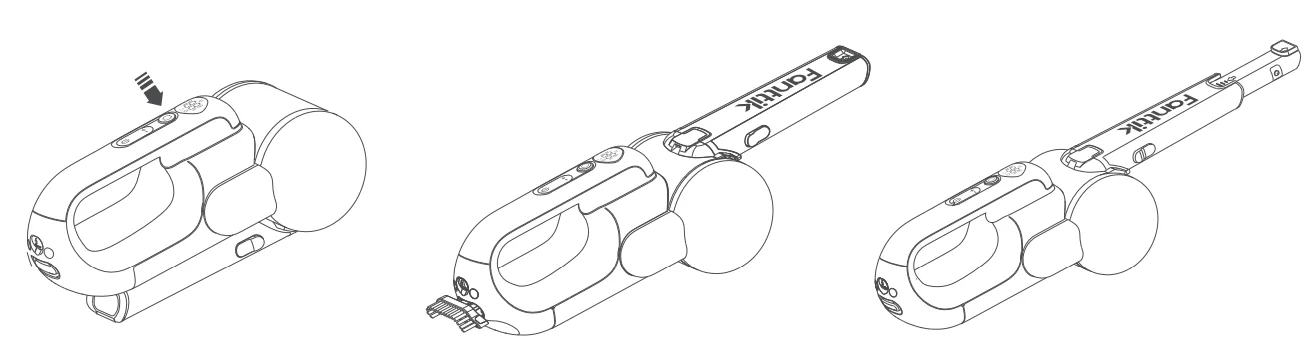

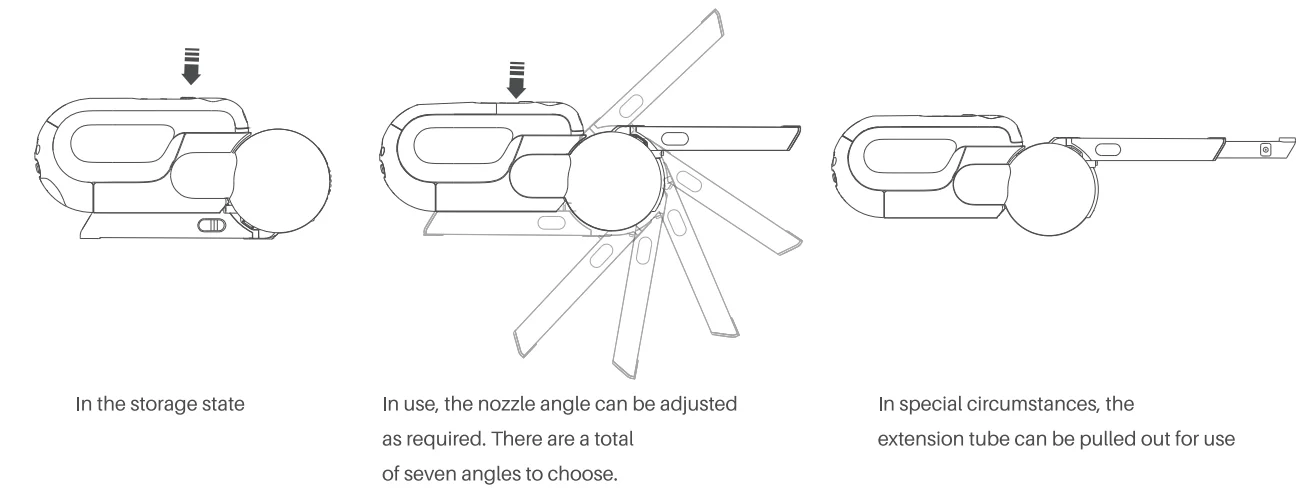

V10 different usage states

• When using, press the pivot button, rotate to the appropriate angle according to the need, and then select a different brush, and install it on the port for use. If necessary, the extension tube can be pulled out for use.

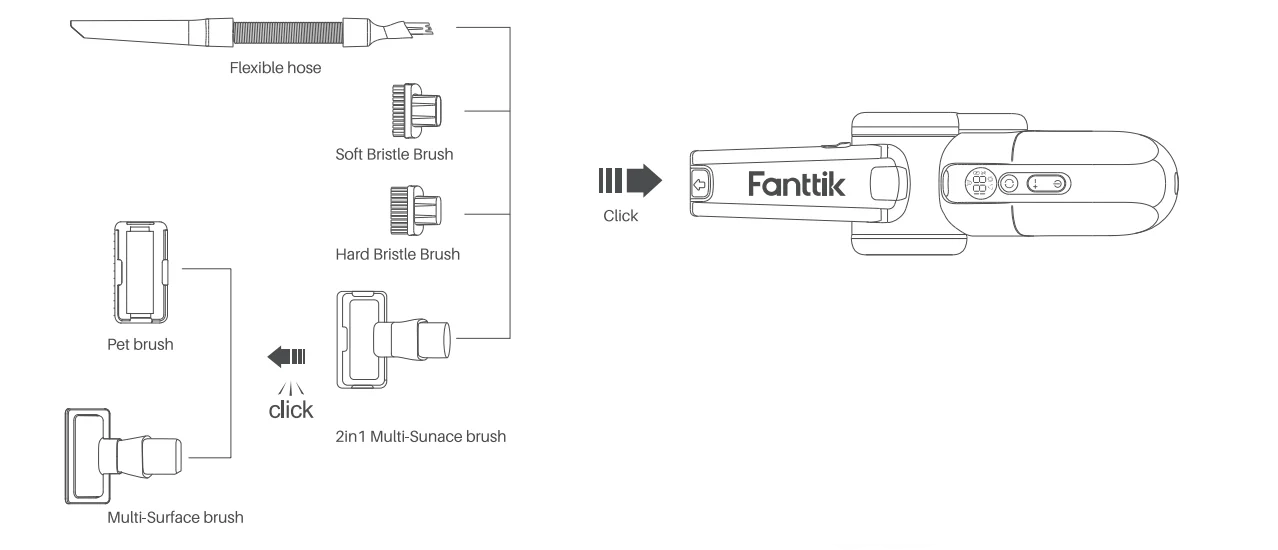

How to assemble

Take out the machine and press the pivot button to adjust the nozzle to the desired angle. Select the brush as required and install it on the nozzle. Use a different brush to clean as needed.

On/Off button

Press to turn on (light on), then press to turn off (light off)

Speed switch button

Short-press the speed switch button to switch to high speed and press again to switch back to low speed (long-press the button for 1.5 seconds to turn off the lamp).

CLEAN AND MAINTENANCE

1. Press the dustbin release button
2. Take down the SA Bowl sub-assembly
3. Take down the filter system
4. Pull out the filter and clean the prpre-filterrr and the filter with a cleaning brush.

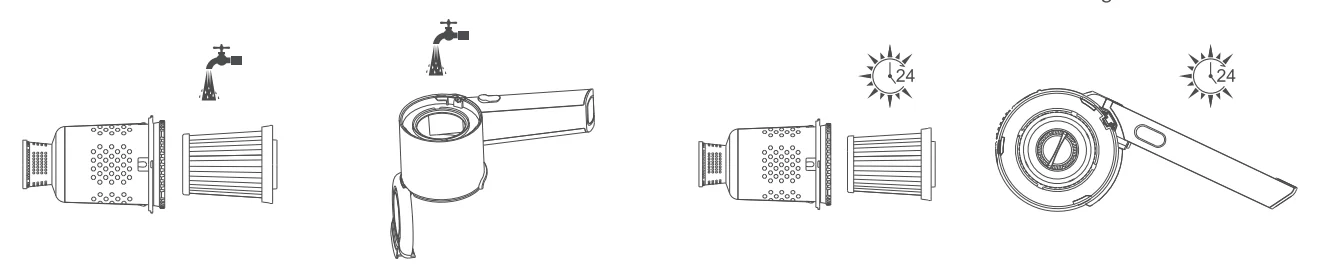

5. Clean the pre-filter and filter with clean water
6. Wash or clean the SA dustbin & Nozzle.
7. Wait for the filter system to dry completely before putting them back in the SA dustbin & Nozzle.
8. The SA dustbin & Nozzlare e are completely dry before putting them back.

Do not wash the unit or get the charging port wet. The filter element is recommended to be replaced every 3 months.

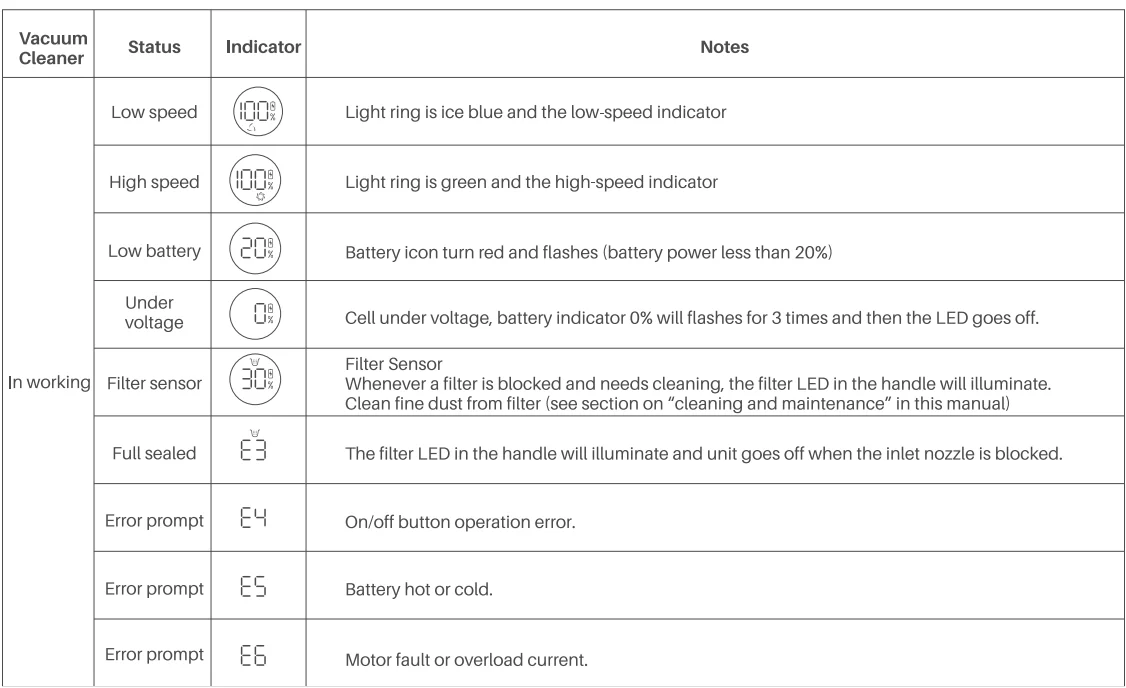

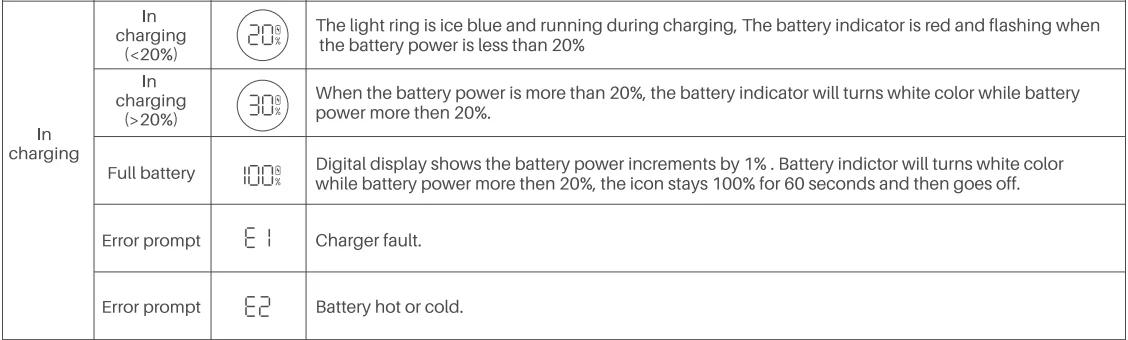

LED Indicator

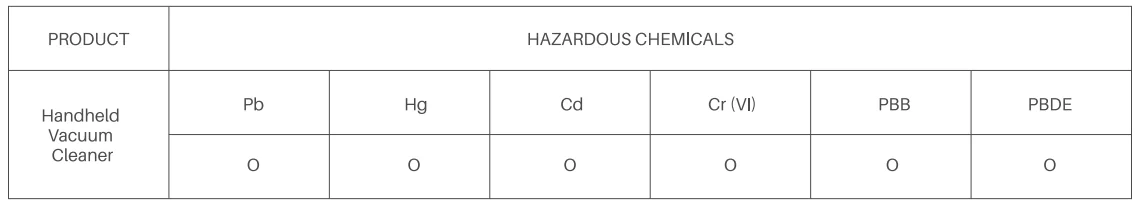

TOXIC AND HAZARDOUS SUBSTANCES

O indicates that all homogeneous materials’ hazardous substances content is beloww the limit specified in the Standard 2011/65/EU.
indicates thatat the hazardous substances content in at least one homogeneous material of the component exceeds the limit specified in the Standard 2011/65/EU.
X indicates that the replacement of non-environmental protection substances cannot be achieved currently due to the global technology limitations, which will be gradually improved with technical improvements

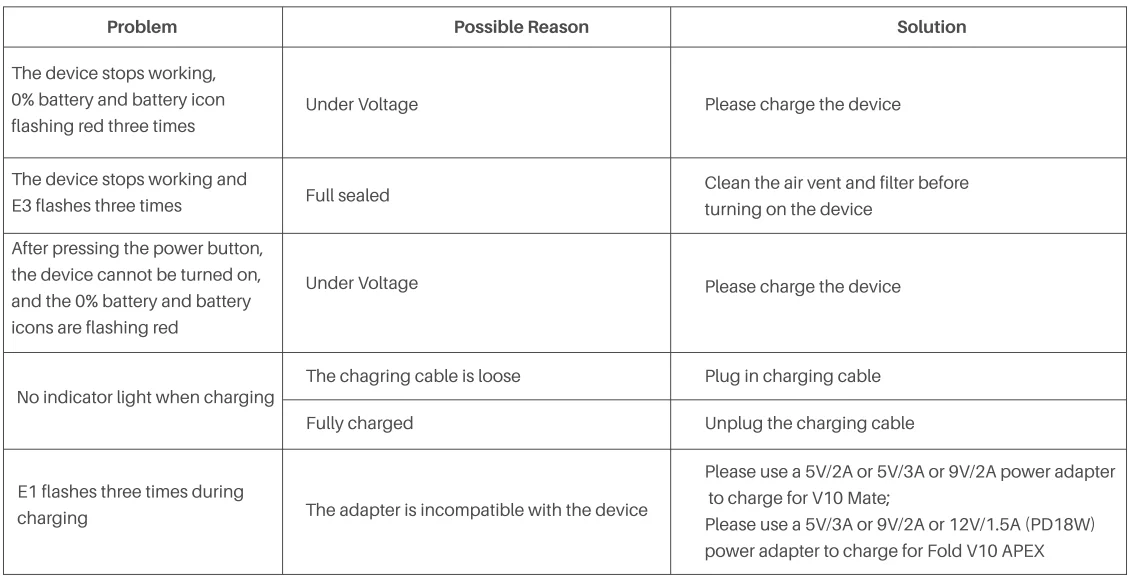

TROUBLESHOOTING

If the following operations can not solve your problems, please stop using the device and contact the thmanufacturerrre wEmailil: [email protected]

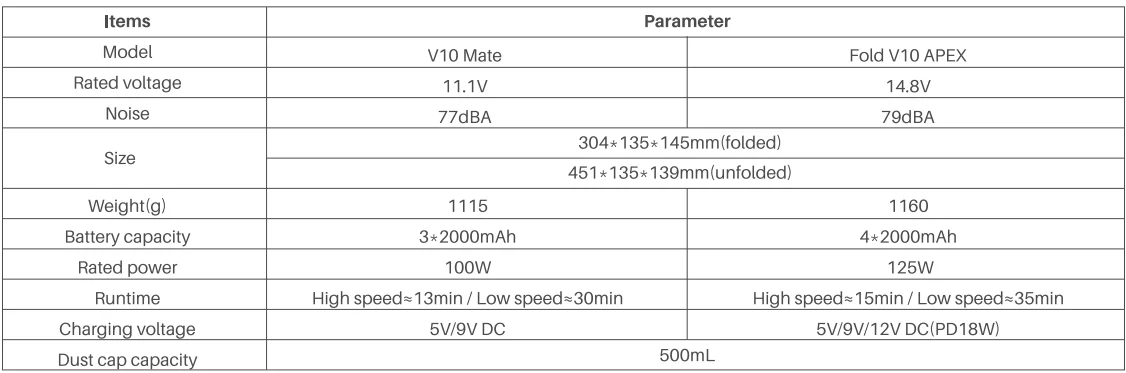

Technical Data

WARRANTY CARD

Your Warranty Includes

12-Month Coverage

Within 12 months of purchase, we will provide timely and effective online after-sales service. We will repair or replace any defective product (duto o a manufacturing fault) within the warranty period.

How to Return Your Fanttfk Product

•  Contact [email protected] with your order number.
• We will issue you a return label for your return.
• Tear off the ‘Return Details’ page and fill in the details. Include this inside your return package.
• We will issue your replacement/refund upon receipt of the return package.

Email: [email protected]

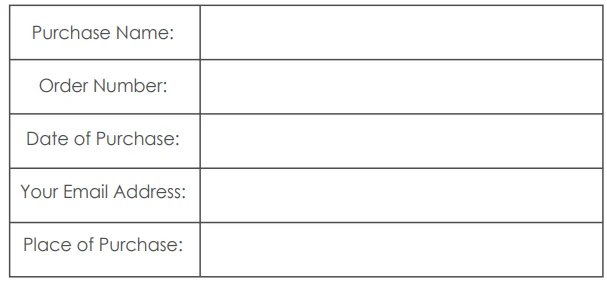

Return Details

In order to process your return as quickly as possible, we require the following information. Please fill out this form and include it in your return package.

If your purchase was fulfilled by Amazon, please use Amazon’s 30-day return service.
