GermGuardian AC5350 Air Purifier for Home User Manual

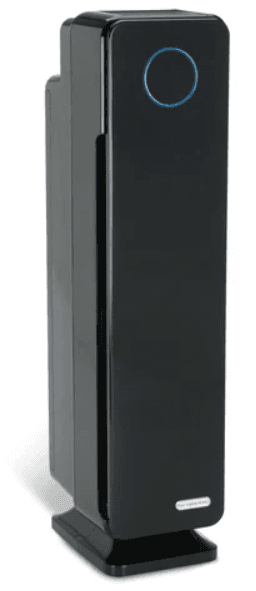

GermGuardian AC5350 Air Purifier

READ AND SAVE THESE INSTRUCTIONS

WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury. This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• IMPORTANT – This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• To avoid fire or shock hazards, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazards, NEVER put the cord under rugs, near heat registers, radiators, stoves, or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user-serviceable parts. All servicing should be performed by qualified personnel only.
• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect the power before replacing the lamp or servicing it.
• Replace Lamp With Lamp Model No. LB4000, Manufactured by Guardian Technologies. Always unplug the unit before cleaning or servicing in any way.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

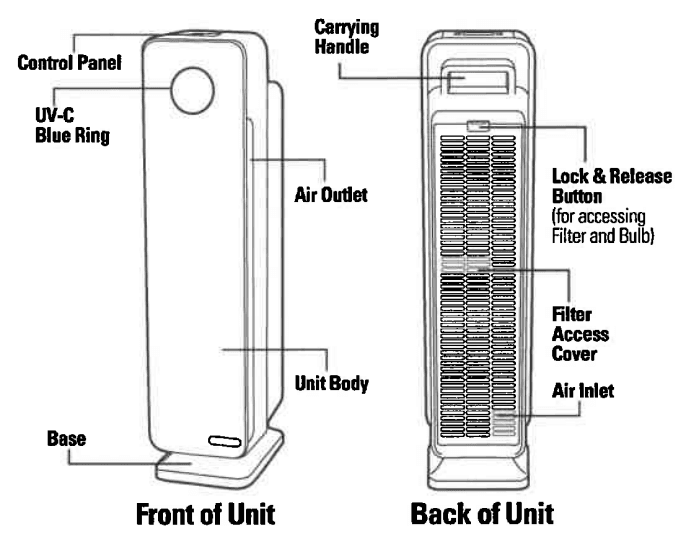

PRODUCT SPECIFICATIONS AND PARTS

• MODEL NUMBER…..AC5300, AC5350 Series
• DIMENSIONS……. 9.25″ D x 7″ W x 27.5* H
• WEIGHT ……………… 10.95 lbs
• INPUT VOLTAGE ………….120 V, 60Hz, 58W, 0.5 A
• REPLACEMENT FILTER…FILTER C (FLT5000)
• REPLACEMENT BULB….LB4000
• BULB……… 5W

CONTROLS

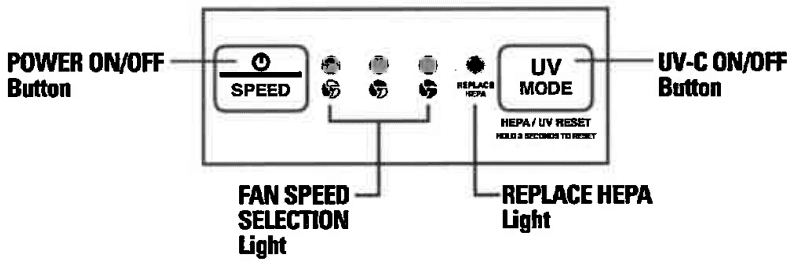

AC5300 Series Control Panel

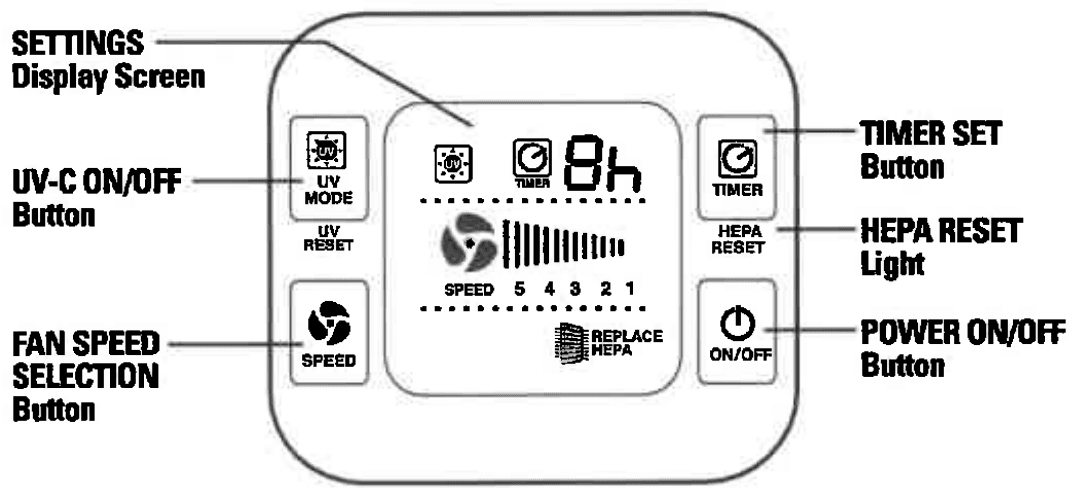

AC5350 Series Control Panel

AIR CLEANING SYSTEM

• Improve your indoor air quality with your new germguardian® Air Cleaning System. Multiple levels of cleaning include a combination True HEPA filter that captures allergens, and a Charcoal filter to remove odors. UV-C light technology enhances germ-killing.
• Pre-Filter
• Captures initial dust and allergen particles.
• Charcoal Filter (aka Activated Carbon)
• Charcoal/Activated Carbon contributes to the control and prevention of the growth of bacteria, germs, and mold.
• True HEPA Filter
• Captures 99.99% of dust and allergens.
• UV-C Light
• UV-C light technology works with Titanium Dioxide (TO?) to enhance the elimination of airborne germs. TO is activated by the UV-C light to decompose the remaining odor molecules caused by smoking, cooking and pets.
• Pre-filter and Charcoal Filter are combined into one layer that attaches to the HEPA Filter.

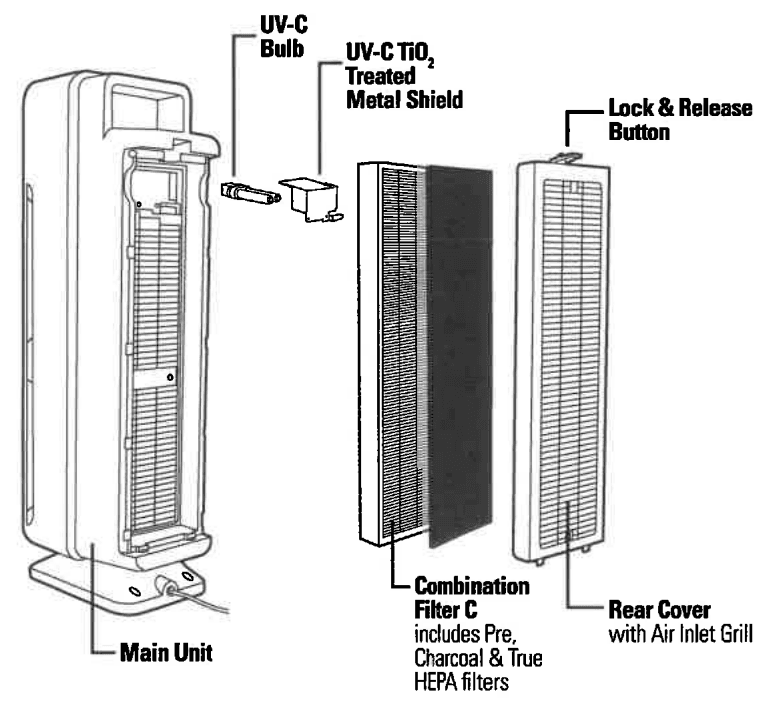

AIR CLEANING LAYERS

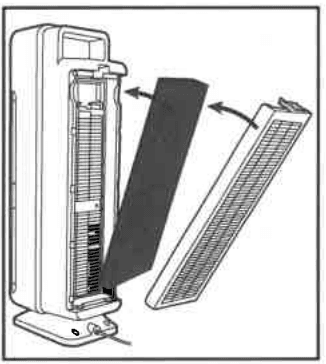

INSTALLING & REMOVING COMBINATION FILTER

• Replace Hepa
• The Air Cleaner will beep for 30 seconds and the Replace HEPA light will flash continuously indicating that it is time to replace your filter. Replace the filter
  according to directions then restart the system. See specific model instructions (E-7/E-8). Depending on usage, the filter will last approximately 6 months.

1. Turn off and unplug the unit.

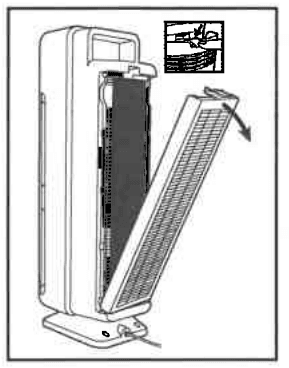

2. Press the Lock & Release Button and remove the

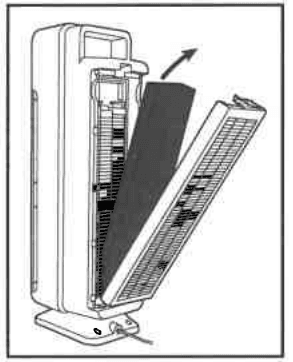

3. Remove the used Combination Filter (Filter C) Rear Cover from the unit. and dispose of it in the garbage.
4. Insert filter system into the unit. Consult the arrow on the filter for the correct installation direction.
5. Reattach the Rear Cover of the unit and securely latch into place.

OPERATING INSTRUCTIONS

BEFORE OPERATING THE AIR PURIFIER:

1. Select a firm, level, and flat location for the air purifier.
   • For proper airflow, locate the unit at least 1 foot from any wall or furniture.
   • Make sure none of the grills are blocked.
2. Plug the power cord into a 120V AC outlet.
   • IMPORTANT: When moving the air purifier, always lift the unit by the carrying handle located on the back.

OPERATING THE AIR PURIFIER (AC5300 SERIES):

1. Turn the unit power ON. To turn it OFF, press and hold the button for 3 seconds.
2. Select fan speed MODE 1 – 3
   • 1 = low, ultra-quiet sleep mode
   • 3= high
3. Select UV-C ON or OFF using the UV-C Mode Button.
   • Filter Replacement Indicator: The Replace HEPA light on the control panel will illuminate and flicker indicating that it is time to replace your filter. Replace the filter according to directions (E-6) then press and hold the UV Mode button for 3 seconds to reset the system
   • UV Bulb Replacement Indicator. The circular blue light on the front panel of the puncher will flicker when it’s time to replace the bulb. Replace the bulb according to directions (E- 8), then press and hold the UV Mode button for 3 seconds to reset the system.

OPERATING THE AIR PURIFIER (AC5350 SERIES):

1. Turn the unit power ON.
2. Select fan speed MODE 1-5
   • 1 = low, ultra-quiet sleep mode
   • 5= high-speed allergen control. The default setting is 5
3. Select UV-C ON or OFF using the UV-C Mode Button.
4. TIMER: If you prefer to run the purifier for a specific number of hours, you can select between 1 and 8 hours on the display.
   • Filter Replacement Indicator: The Replace HEPA light on the control panel will illuminate and flicker indicating that it is time to replace your filter. Replace the filter according to directions (E-6) then press and hold the UV Mode button for 3 seconds to reset the system
   • UV Bulb Replacement Indicator. The circular blue light on the front panel of the puncher will flicker when it’s time to replace the bulb. Replace the bulb according to directions (E- 8), then press and hold the UV Mode button for 3 seconds to reset the system.

INSTALLING & REMOVING UV-C BULB

1. Remove the Rear Cover of the unit by pushing the Lock & Release Button.

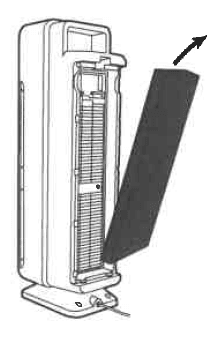

2. After removing the Rear Cover from the unit, remove the Combination Filter.

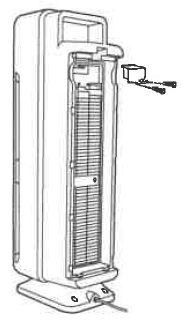

3. After removing the Combination Filter, use a Philips head screwdriver to remove 2 screws and detach the UV-C Metal Shield.

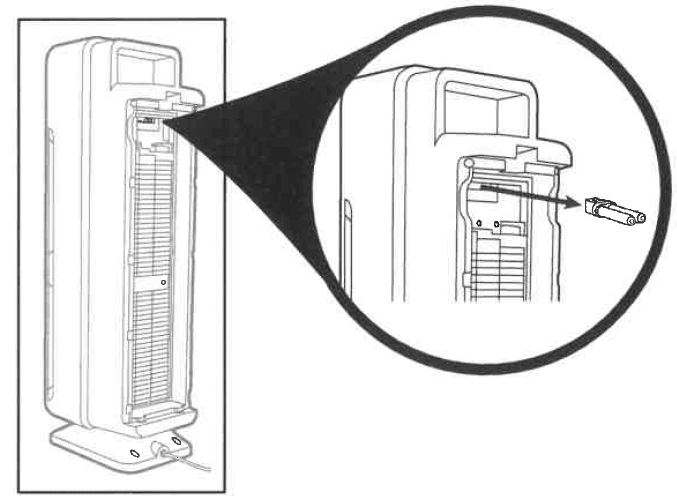

4. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit.
   • The bulb is NOT visible until the UV-C METAL SHIELD has been removed.
   • REPLACEMENT BULB: LB4000 AVAILABLE AT 866.603.5900 OR WWW.GUARDIANTECHNOLOGIES.COM
5. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit

CLEANING & MAINTAINING

• THE COMBINATION FILTER
• The air purifier should be cleaned at least once every month and the outer Pre-/Charcoal Filter attached to the HEPA Filter should be cleaned every month. More frequent cleaning may be required depending on environmental conditions.
• PRE-/CHARCOAL FILTER
• Clean with the brush attachment of your vacuum cleaner. This will remove lint and dirt.
• TRUE HEPA FILTER
• Remove the Combination Filter from the back of the unit.
• Remove the Pre-/Charcoal Filter to expose the HEPA filter. when the HEPA Filter turns from white to grey or black it should be replaced with a new one. If the HEPA filter is still white, it does NOT need to be replaced.
• IMPORTANT: Do NOT try to wash and re-use the Combination Filter. Please contact Customer Service at 1.866.603.5900 or visit us at www.guardiantechnologies.com to purchase a replacement filter. Replacement filter: FILTER C (FLT5000) or FILTER C PET (FLT5250PT)

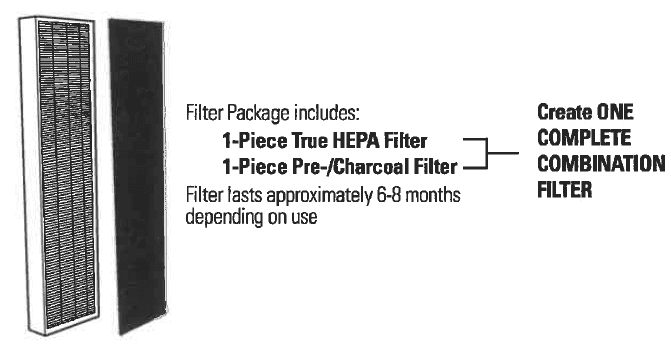

• NOTE: The Combination Filter is one filter system. The multiple layers include: the Pre-/Charcoal Filter and the True HEPA Filter.
• AIR PURIFIER
• Use a clean, dry, soft cloth to wipe the external surface of the unit.

Clean Air Delivery Rate

• From air cleaner to air cleaner, compare the CADR numbers. First, look at the suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.
• AC5300 air cleaner is suggested for use in a single, closed room up to 169 square feet.
• AC5350 air cleaner is suggested for use in a single, closed room up to 171 square feet. Higher CADR rates provide improved performance in all room sizes. Portable air cleaners will be much more effective in rooms when all the doors and windows are closed.
• TOBACCO SMOKE: AC5300 = 109+ AC5350 = 110+
• This value represents performance that can be expected within the first 72 hours of operation. Subsequent use may vary with use. Tested per ANSI/AHAM AC-1 National Standard

What is CADR?

• CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particulates from things like tobacco smoke and plant pollens from the room.
  • NOTE: Do NOT stick any foreign objects or your fingers inside of the unit.
  • CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

TROUBLESHOOTING GUIDE
