Golds Gym XRS-30 Home Gym

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your weight system before using your weight system. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

It is the responsibility of the owner to ensure that all users of the weight system are adequately informed of all precautions.
Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons
with pre-existing health problems.
Use the weight system only as described in this manual.
The weight system is intended for home use only. Do not use the weight system in a commercial, rental, or institutional setting.
Keep the weight system indoors, away from moisture and dust. Do not put the weight system in a garage or covered patio, or near water.
Use the weight system only on a level surface. Cover the floor beneath the weight system to protect the floor.
Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
Keep children under age 12 and pets away from the weight system at all times.
The weight system should not be used by persons weighing more than 300 lbs. (136 kg).
Wear appropriate exercise clothes while exercising; do not wear loose clothes that could become caught on the weight system. Always wear athletic shoes for foot protection.
Keep hands and feet away from moving parts.
Always secure the weight stack with the lock pin and the lock after exercising to prevent unauthorized use of the weight system (see LOCKING THE WEIGHT STACK on page 24).
Make sure that the cables remain on the pulleys at all times. If the cables bind while you are exercising, stop immediately and make sure that the cables are on the pulleys.
Always stand on the foot plate when performing an exercise that could cause the weight system to tip.
Never release the arms, leg lever, lat bar, or handle strap while weights are raised. The weights will fall with great force.
Always disconnect the lat bar from the weight system when performing an exercise that does not require the lat bar.
Over-exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

BEFORE YOU BEGIN

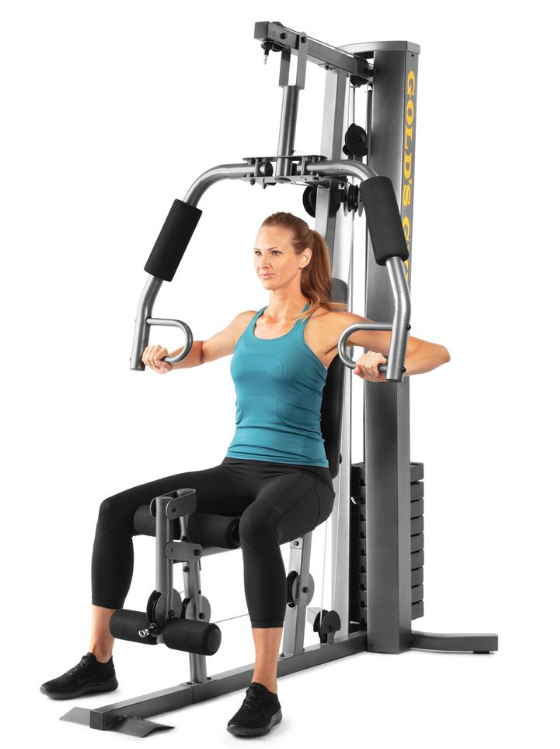

Thank you for selecting the versatile GOLD’S GYM® XRS 30 weight system. The weight system offers a selection of weight stations designed to develop every major muscle group of the body. Whether your goal is to tone your body, build dramatic muscle size and strength, or improve your cardiovascular system, the weight system will help you to achieve the specific results you want.

For your benefit, read this manual carefully before using the weight system. If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

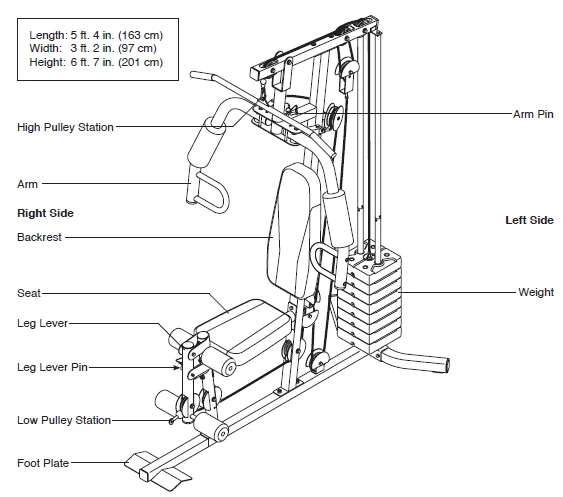

Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.

Note: The terms “right side” and “left side” are used relative to a person sitting on the seat; they do not refer to right and left on the drawings in this manual.

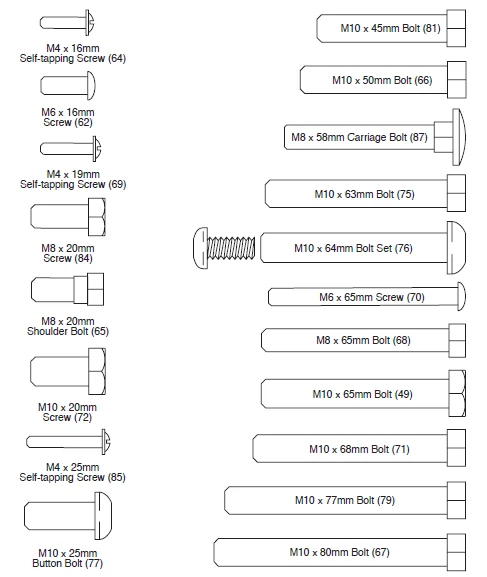

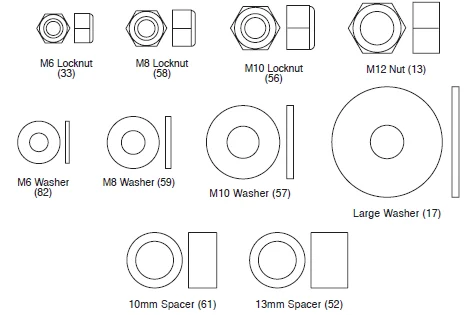

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST near the end of this manual.

Note: If a part is not in the hardware kit, check to see if it has been preattached.

ASSEMBLY

To make assembly easier, carefully read the following information and instructions:

To hire an authorized service technician to assemble the weight system, call 1-800-445-2480.
The assembly requires two persons.
Because of its weight and size, assemble the weight system in the location where it will be used. Make sure that there is enough clearance to walk around the weight system.
Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.
For help identifying small parts, see page 6.
The following tools (not included) may be required for assembly:

two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver

Assembly may be easier if you have your own set of wrenches.

The Four Stages of the Assembly Process

Frame Assembly

You will begin by assembling the base and the uprights that form the skeleton of the weight system.

Arm Assembly

During this stage, you will assemble the arms and the leg lever.

Cable Assembly

During this stage, you will attach the cables and pulleys that connect the arms to the weights.

Seat Assembly

During the final stage, you will assemble the seat and the backrest.

Go to www.workoutwarehouse.com/registration on your computer and register your product.

activates your warranty,
saves you time if you ever need to contact Customer Care,
allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call Customer Care (see the front cover of this manual) and register your product.

FRAME ASSEMBLY

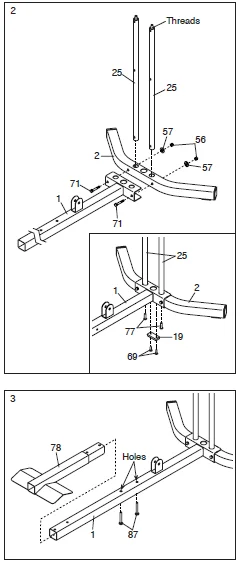

To make assembly easier, read the information on page 8 before you begin. Identify the two Lower Weight Guides (25), which have threaded upper ends. Attach the Lower Weight Guides (25) and the Stabilizer (2) to the Base (1) with two M10 x 68mm Bolts (71), two M10 Washers (57), and two M10 Locknuts (56). Do not tighten the Locknuts yet. See the inset drawing. Insert two M10 x 25mm Button Bolts (77) upward into the Base (1) and into the Stabilizer (2), and tighten the Button Bolts into the Lower Weight Guides (25). Then, attach the Base Foot (19) to the Base with two M4 x 19mm Self-tapping Screws (69).
Insert the Front Base (78) into the Base (1). Then, insert two M8 x 58mm Carriage Bolts (87) upward into the indicated holes in the Base (1).
Orient the Lower Upright (20) as shown. Attach the Lower Upright (20) to the Base (1) with the two indicated M8 x 58mm Carriage Bolts (87) and two M8 Locknuts (58). Do not tighten the Locknuts yet.
Orient the Upper Upright (3) as shown. Insert the Upper Upright (3) into the Lower Upright (20). Attach the Upper Upright with an M10 x 65mm Bolt (49), two M10 x 20mm Screws (72), four M10 Washers (57), and an M10 Locknut (56). Do not tighten the Locknut yet.

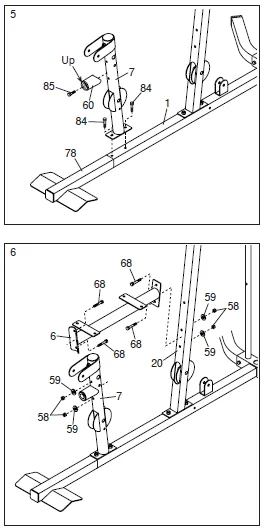

Attach the Front Leg (7) to the Base (1) and the Front Base (78) with two M8 x 20mm Screws (84). Do not tighten the Screws yet. Next, hold the Leg Bumper (60) against the Front Leg (7); orient the Leg Bumper so that the indicated end is pointing upward. Attach the Leg Bumper with an M4 x 25mm Self-tapping Screw (85).
Attach the Seat Frame (6) to the Lower Upright (20) with two M8 x 65mm Bolts (68), two M8 Washers (59), and two M8 Locknuts (58). Do not tighten the Locknuts yet. Attach the Seat Frame (6) to the Front Leg (7) in the same way.

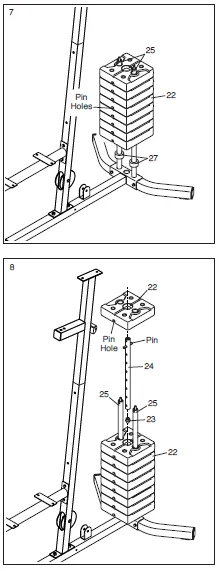

Slide the two Weight Bumpers (27) onto the Lower Weight Guides (25). Next, orient eight Weights (22) so that the pin holes are in the position shown, and slide the Weights onto the Lower Weight Guides (25).
Insert the Weight Tube Cap (23) into the Weight Tube (24). Next, orient the Weight Tube (24) so that the pin is in the position shown, and insert the Weight Tube into the eight Weights (22). Orient the remaining Weight (22) so that the pin hole is in the position shown, and slide the Weight onto the Lower Weight Guides (25).

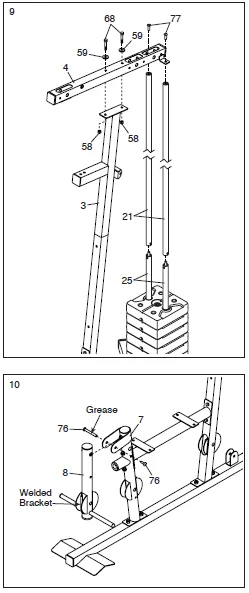

Tighten the two Upper Weight Guides (21) onto the Lower Weight Guides (25). Next, attach the Top Frame (4) to the Upper Upright (3) with two M8 x 65mm Bolts (68), two M8 Washers (59), and two M8 Locknuts (58). Do not tighten the Locknuts yet. Next, attach the Top Frame (4) to the Upper Weight Guides (21) with two M10 x 25mm Button Bolts (77). Then, tighten the two M8 Locknuts (58). See steps 2, 4, 5, and 6. Tighten the M10 Locknuts (56), the M8 Locknuts (58), and the M8 x 20mm Screws (84) used in these steps.

ARM ASSEMBLY

Apply grease to the barrel of an M10 x 64mm Bolt Set (76). Orient the Leg Lever (8) so that the welded support is on the side shown. Attach the Leg Lever (8) to the Front Leg (7) with the M10 x 64mm Bolt Set (76). Make sure that the barrel of the Bolt Set is inserted through both sides of the bracket on the Front Leg.

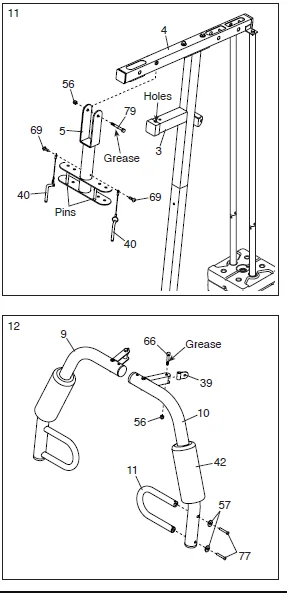

Apply grease to an M10 x 77mm Bolt (79). Orient the Pivot Frame (5) so that the welded pins are on the side shown. Attach the Pivot Frame to the Top Frame (4) with the M10 x 77mm Bolt (79) and an M10 Locknut (56). Do not overtighten the Locknut; the Pivot Frame must pivot easily. Attach the two Arm Pins (40) to the Pivot Frame (5) with two M4 x 19mm Self-tapping Screws (69). Insert the Arm Pins (40) into the two holes in the Upper Upright (3).
Apply grease to an M10 x 50mm Bolt (66). Attach a Cable Pivot (39) to the Left Arm (10) with the M10 x 50mm Bolt (66) and an M10 Locknut (56). Do not overtighten the Locknut; the Cable Pivot must pivot easily. Next, wet the inside of a Large Foam Pad (42) with soapy water. Slide the Large Foam Pad onto the Left Arm (10). Then, attach a Handle (11) to the Left Arm (10) with two M10 x 25mm Button Bolts (77) and two M10 Washers (57). Assemble the Right Arm (9) in the same way.

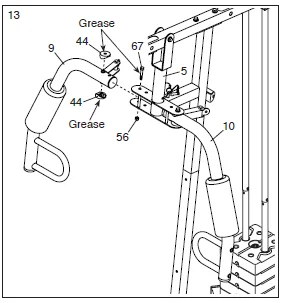

Apply grease to an M10 x 80mm Bolt (67) and to two Arm Bushings (44). Attach the Right Arm (9) to the Pivot Frame (5) with the M10 x 80mm Bolt (67), the two Arm Bushings (44), and an M10 Locknut (56). Do not overtighten the Locknut; the Right Arm must pivot easily. Attach the Left Arm (10) to the Pivot Frame (5) in the same way.

CABLE ASSEMBLY

See the CABLE DIAGRAM on page 27 to identify the cables as you assemble them. Identify the Arm Cable (54). Apply grease to an M8 x 20mm Shoulder Bolt (65). Attach the Arm Cable (54) to the indicated Cable Pivot (39) with the M8 x 20mm Shoulder Bolt (65) and an M8 Locknut (58).
Identify the two V-pulleys (46), the nine Pulleys (not shown), and the two Thin Pulleys (not shown). Route the Arm Cable (54) over a V-pulley (46). Attach the V-pulley (46), a Cable Trap (50), and two Full Guards (41) to the Upper Upright (3) with an M10 x 63mm Bolt (75) and an M10 Locknut (56). Make sure that the Cable Trap (50) is oriented to hold the Arm Cable (54) in the groove of the V-pulley (46).
Route the Arm Cable (54) under a Pulley (48). Attach the Pulley (48) and two Half Guards (43) to the Double U-bracket (63) with an M10 x 45mm Bolt (81) and an M10 Locknut (56). Make sure that the Half Guards are on the outside of the Double U-bracket as shown.

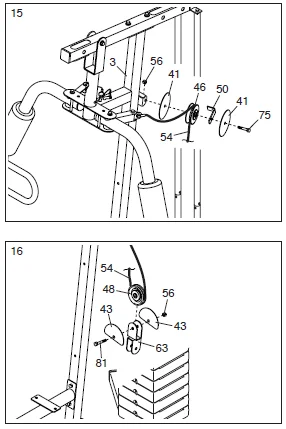

Route the Arm Cable (54) over a V-pulley (46). Attach the V-pulley (46), a Cable Trap (50), and two Full Guards (41) to the Upper Upright (3) with an M10 x 63mm Bolt (75) and an M10 Locknut (56). Make sure that the Cable Trap (50) is oriented to hold the Arm Cable (54) in the groove of the V-pulley (46).

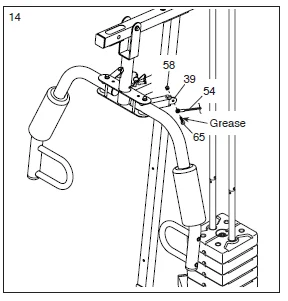

Apply grease to an M8 x 20mm Shoulder Bolt (65). Attach the Arm Cable (54) to the indicated Cable Pivot (39) with the M8 x 20mm Shoulder Bolt (65) and an M8 Locknut (58).
Identify the Low Cable (53). Route the Low Cable through the Leg Lever (8) and the Front Leg (7). Attach a Pulley (48) inside the Leg Lever (8), above the Low Cable (53), with an M10 x 68mm Bolt (71), two M10 Washers (57), two 13mm Spacers (52), and an M10 Locknut (56).
Attach a Pulley (48) inside the Front Leg (7), above the Low Cable (53), with an M10 x 68mm Bolt (71), two M10 Washers (57), two 13mm Spacers (52), and an M10 Locknut (56).
Route the Low Cable (53) under a Pulley (48) and through the Lower Upright (20). Attach the Pulley (48) inside the Lower Upright (20) with an M10 x 68mm Bolt (71), two M10 Washers (57), two 13mm Spacers (52), and an M10 Locknut (56).
Route the Low Cable (53) over a Pulley (48). Attach the Pulley (48) and two Half Guards (43) to the Double U-bracket (63) with an M10 x 45mm Bolt (81) and an M10 Locknut (56). Make sure that the Half Guards are on the outside of the Double U-bracket as shown.
Route the Low Cable (53) under a Pulley (48). Attach the Pulley (48) and two Half Guards (43) to the Base (1) with an M10 x 45mm Bolt (81) and an M10 Locknut (56). Make sure that the Half Guards are on the outside of the bracket as shown.
Attach the Low Cable (53) to the U-bracket (45) with an M6 Washer (82) and an M6 Locknut (33). See the inset drawing. Do not overtighten the M6 Locknut (33); it should be threaded onto the end of the Low Cable (53) so that only two threads are showing above the Locknut.
Identify the High Cable (55). Route the High Cable upward through the Top Frame (4) and over a Pulley (48). Attach the Pulley (48) inside the Top Frame (4) with an M10 x 68mm Bolt (71), two M10 Washers (57), two 13mm Spacers (52), and an M10 Locknut (56).
Route the High Cable (55) over a Thin Pulley (47) and downward through the Top Frame (4). Attach the Thin Pulley (47) inside the Top Frame (4) with an M10 x 68mm Bolt (71), an M10 Washer (57), and a 10mm Spacer (61). Make sure that the Thin Pulley does not fall out of the Top Frame while you complete steps 27 and 28.

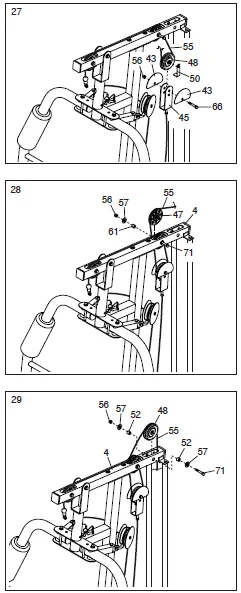

Wrap the High Cable (55) under a Pulley (48). Attach the Pulley (48), a Cable Trap (50), and two Half Guards (43) to the upper hole in the U-bracket (45) with an M10 x 50mm Bolt (66) and an M10 Locknut (56). Make sure that the Cable Trap (50) is oriented to hold the High Cable (55) in the groove of the Pulley (48) and that the Half Guards (43) are on the outside of the U-bracket (45).
Route the High Cable (55) upward through the Top Frame (4) and over a Thin Pulley (47). Attach the Thin Pulley (47) inside the Top Frame (4) with the M10 x 68mm Bolt (71) used in step 26, a 10mm Spacer (61), an M10 Washer (57), and an M10 Locknut (56).
Route the High Cable (55) over a Pulley (48) and downward through the Top Frame (4). Attach the Pulley (48) inside the Top Frame (4) with an M10 x 68mm Bolt (71), two M10 Washers (57), two 13mm Spacers (52), and an M10 Locknut (56).
Thread an M12 Nut (13) all the way onto the end of the High Cable (55). Next, place a Large Washer (17) on top of the Weight Tube (24). Tighten the High Cable (55) into the Weight Tube (24) until all of the slack is removed from the cables. Then, tighten the M12 Nut (13) against the Large Washer (17).

SEAT ASSEMBLY

Attach the Backrest (16) to the Lower Upright (20) and the Upper Upright (3) with two M6 x 65mm Screws (70) and two M6 Washers (82).
Attach the Seat (15) to the Seat Frame (6) with four M6 x 16mm Screws (62) as shown.

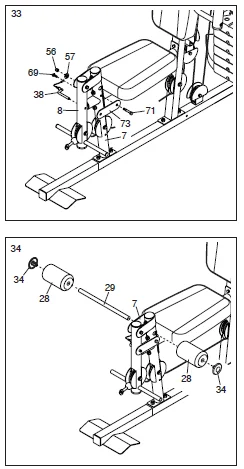

Attach the Lock Plate (73) to the Front Leg (7) with an M10 x 68mm Bolt (71), an M10 Washer (57), and an M10 Locknut (56). Do not overtighten the Locknut; the Lock Plate must pivot easily. Next, attach the Leg Lever Pin (38) to the Front Leg (7) with an M4 x 19mm Self-tapping Screw (69). Then, insert the Leg Lever Pin (38) through the Leg Lever (8) and the Lock Plate (73).
Insert the Pad Tube (29) into the Front Leg (7). Next, slide a Small Foam Pad (28) onto each end of the Pad Tube (29). Then, press a Pad Cap (34) into each Small Foam Pad (28).
Slide a Small Foam Pad (28) onto each pad tube on the Leg Lever (8). Then, press a Pad Cap (34) into each Small Foam Pad (28).
Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in ADJUSTMENT, beginning on the following page. Before using the weight system, pull each cable a few times to make sure that the cables move smoothly around the pulleys. If one of the cables does not move smoothly, find and correct the problem.

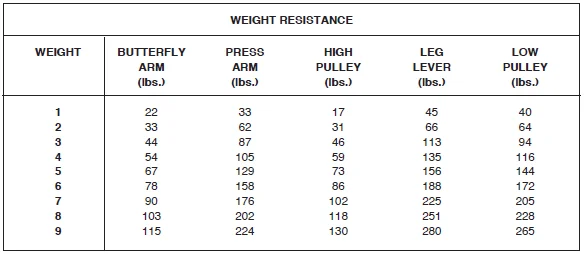

WEIGHT RESISTANCE CHART

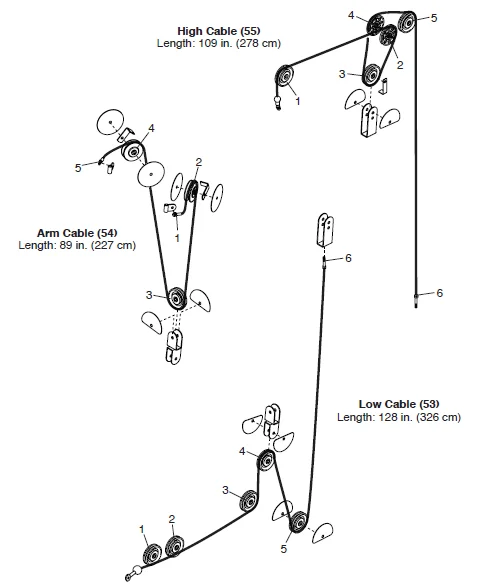

CABLE DIAGRAM

The drawings below show the proper routing of the cables. The numbers in each drawing show the proper route of that cable. Use the drawings to make sure that the cables, cable traps, and guards are assembled correctly. If the cables are not assembled correctly, the weight system will not function properly, and damage may occur. Make sure that the cable traps do not touch or bind the cables.

CUSTOMER CARE

For service at any time, go to www.workoutwarehouse.com.

Or call 1-877-776-4777, Mon.–Fri. 6 a.m.–6 p.m. MT Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.
