Gourmia GI500 Digital Electric Compact Ice Maker User Manual

Gourmia GI500 Digital Electric Compact Ice Maker

IMPORTANT SAFEGUARDS

When operating this electric appliance, basic safety instructions should always be followed. Refer to the following for these instructions.

1. READ ALL SAFETY & USAGE INSTRUCTIONS BEFORE USING ICE MACHINE PLUS.
2. EXERCISE EXTREME CAUTION: AVOID ELECTRICAL SHOCK. DO NOT immerse cord, plugs or the Ice Machine Plus in water or other liquid.
3. Do not overfill the Water Reservoir with water. Overfilling can result in damage and the risk of electrical shock.
4. Do not place any objects in the Water Reservoir or Ice Cube Basket, as it may cause damage to the machine.
5. UNPLUG the Ice Machine Plus from the outlet when not in use or before cleaning. Do not let the cord hang over the edge of the table or counter or touch hot surfaces.
6. Children should never use the Ice Machine Plus; close supervision is required when the appliance is used near children.
7. Operate the Ice Machine Plus on a level surface well away from any hot gas or electrical burner, heat source, combustible spray cans, or pressurized items. Do not incline or move the Ice Machine Plus while operating. The Ice Machine Plus must be level for optimal performance.
8. Do not operate the Ice Machine Plus outdoors.
9. Never operate the Ice Machine Plus with a damaged cord or plug, or one that has malfunctioned or been damaged in any way. Immediately contact Customer Service for analysis.
10. DO NOT add unauthorized accessory attachments. Such use may result in electric shock, injury, or fire.
11. Use only the factory cord supplied; NEVER add extension cords. When done using, switch the control to OFF, then pull the plug from the outlet.
12. ALWAYS fill the Water Reservoir and add the Ice Cube Basket before connecting the Ice Machine Plus to the electrical outlet.
13. Do not use the Ice Machine Plus for any use other than intended.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

Electrical 3-conductor Cord Set:

This Ice Machine Plus is equipped with a 3-conductor cord set that has a 3-prong grounding-type plug. It should be properly connected to a grounding-type outlet. The plug is designed to fit ONLY a 3-grounding outlet unit, and as such, the grounding prong should never be removed. If needed, purchase a 2-prong adaptor and ground it to the outlet. Consult a qualified electrician if in doubt. Do not use an adaptor unless you are confident it is grounded. Do not modify this plug. If the plug does not fit the outlet securely, call a qualified electrician for assistance.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

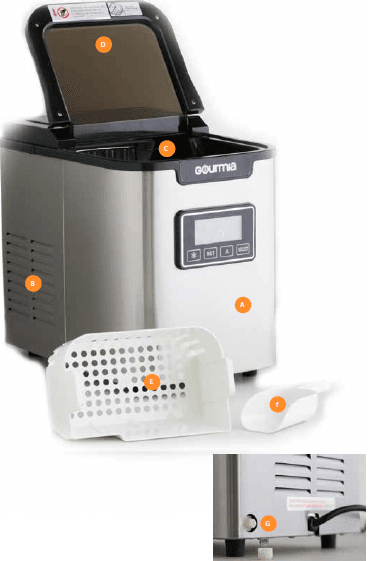

FEATURES & FUNCTIONS

• Ice Machine Plus Housing: The stainless steel Ice Machine Plus Housing holds the powerful internal compressor, air circulation system, interior water reservoir, and ice cube basket. The EasyVue Transparent Lid is attached.
• Air Circulation System: The air circulation system draws air in through the Air Intake and releases it out through the vents. This assists the Ice Machine Plus in cooling efficiency.
• Interior Water Reservoir: The Reservoir holds the water used to make the ice cubes. The Minimum Fill and Maximum Fill Lines are notched into the middle wall separating the Reservoir from the internal workings of the Housing. Always add more water than the Minimum Fill and less than the Maximum Fill. The Ice Cube Basket sits just above the Interior Water Reservoir.
• EasyVue Transparent Lid: Because the Lid is transparent, it is easy to observe the ice-making in progress without continually opening the Lid. The Lid is attached to the Housing and should not be removed.
• Ice Cube Basket: The Ice Cube Basket holds the maximum capacity of cubes, about 6 cups, and can be easily removed when filled. The Basket sits just above the Interior Water Reservoir.
• Ice Cube Scoop: Use the plastic Scoop to protect the interior of the Ice Cube Basket and to easily remove the freshly made ice cubes.
• EasyTurn Water Drain: Drain the water from the Interior Water Reservoir easily by pulling the Drain Plug and allowing the water to release. Drain into the sink or a basin. Note: An extra Drain Plug is included in the packed box for your convenience.

ASSEMBLY BEFORE USE

Assemble the Ice Machine Plus as follows:

1. Place the Ice Machine Plus on a level surface at least 30 minutes prior to making ice cubes.
2. Fill the Interior Water Reservoir with tap water to just below the Maximum Fill Line. Do not fill with ice water or any other liquid.
3. Place the Ice Cube Basket into the Ice Machine Plus Housing.
4. Close the EasyVue Transparent Lid.
5. Press the Snowflake button on the LCD Control Panel to start.

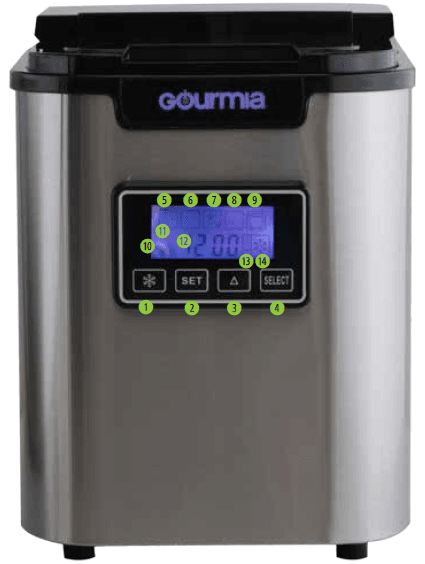

LCD CONTROL PANEL

LCD Control Panel Features

1. Snowflake button on panel = Start
2. SET button on panel = Set the clock time, auto start time, and auto off time.The
3. ₳ button on the panel = Activate/Deactivate the auto on and auto off features.
4. SELECT button on panel = Select ice cube size
5. Ц button on display = Ice cube obstruction/check box
6. Ice cube sizes on display = Large
7. Medium
8. Small
9. MAX button on display = Maximum ice capacity
10. The timing icon on display = indicates that the real-time clock is displayed.
11. Clock icons = On timer and Off timer active/set.
12. 88:88 on display = Real-time clock display, and timer settings.
13. MIN button on display = Indicates water is below minimum.
14. Snowflake button on display = Ice making; Stand by

STEP BY STEP INSTRUCTIONS

• Easy Manual Mode: Ice Cubes Now!
• Easy Automatic Mode: Pre-set Ice Cube Making
• Easy Self-Clean Mode

Easy Manual Mode: Ice Cubes Now!

1. Fill the Interior Water Reservoir with tap water to the Maximum Fill Line.
2. Place the Ice Cube Basket over the Interior Water Reservoir.
3. Plug the Ice Machine Plus Housing plug into the outlet.
4. Press the Snowflake button. The snowflake icon on the LCD display should start blinking, indicating that the unit is in Active mode.

Easy Automatic Mode: Pre-set Ice Cube Making

NOTE: The Ice Machine Plus runs on the “24-hour clock” or, as is commonly known, “military time.” Hours after 12:00 pm increase to 13:00pm, 14:00pm, etc. up to 24:00pm.

At that time, the time begins again at 1:00 am, 2:00 am, etc.

1. Set the current hour. Press the SET button. The preset hour will flash. Press the ₳ button to set the current hour to start.
2. Set the current minutes. Press the SET button. The preset minutes will flash. Press the ₳ button to set the current minutes to start.
3. Set the Auto Start Time: Press the SET button three (3) times. The hour will flash. Press the ₳ button to set the hour. Press the SET button once. The minutes will flash. Press the ₳ button to set the minutes.
4. Set the Auto Stop Time: Press the SET button five (5) times. The hour will flash. Press the ₳ button to set the hour. Press the SET button once. The minutes will flash. Press the ₳ button to set the minutes.
5. Activate the timers for Easy Automatic Mode: Press the A button once to activate the ‘ON’ timer (auto start). The ‘ON’ clock icon will appear, indicating that the ‘ON’ timer (auto start) is active. Note: At this point, the ‘off’ timer will not be active. Once turned on, the unit will remain on until manually turned off. Press the A button once again to activate the ‘OFF’ timer (auto stop). The ‘OFF’ clock icon will appear, indicating that the ‘OFF’ timer (auto stop) is active. Note: At this point, the ‘on’ timer will not be active. Once turned off, the unit will remain off until manually turned on. Press the A button once again to activate both the ‘ON’ and the ‘OFF’ timer (auto start and auto stop). Both the ‘ON’ and the ‘OFF’ clock icons will appear, indicating that the ‘ON’ and the ‘OFF’ timers (auto start and auto stop) are active.

Easy Self-Clean Mode

The Self-Clean Mode should be used before first use or if there has been a long period of time between uses. The three (3) ice cube size icons will continuously display while the Self-Clean Mode is in use.

1. Add equal parts water and vinegar (1:1) to the Interior Water Reservoir. Enough water and vinegar should be used to fill the reservoir at least halfway.
2. Plug in the Ice Machine Plus. Press the Snowflake icon on the panel for at least 5 seconds to activate the Self-Clean mode. After the beep sound, the mode will activate.
3. After the water is rinsed several times through the machine, the mode will stop, and the Ice Machine Plus will indicate Stand-by.
4. Drain the Interior Water Reservoir. Refill with water to the Maximum Fill Line. Press the Snowflake icon for at least 5 seconds to again activate the Self-Clean mode. When done, press Off and drain the reservoir again. Dry before use.

Note: If the water falls below the Minimum Fill Line during cleaning, the Ц button will light up. Hold the Snowflake button for 5 seconds to stop the Auto-Clean Mode.

BEFORE FIRST USE AND MAINTENANCE

Before first use, use the Easy Self-Clean Mode to thoroughly clean and prepare the Ice Machine Plus for usage. (See instructions above)

To clean the Ice Machine Plus after usage, drain the water from the Interior Water Reservoir using the EasyTurn Water Drain and plug. Dry the interior and exterior with a soft cloth. Do not use cleaning solvents, abrasives, or other harsh detergents or chemicals in or on the Ice Machine Plus. Do not place any parts or accessories in the dishwasher.

Troubleshooting

Problem: The Power indicator is not on.

Cause: The power cord is not connected or plugged in. Internal components are damaged.

Solution: Check the plug and reconnect.

Contact the service for assistance.

Problem: Malfunction light flashes.

Cause: Possible obstruction in the ice-making housing.

Solution: Check for and remove the obstruction.

Contact the service for assistance.

Problem: Ice-making performance is poor

Cause: Clogged ventilation outlets. The water temperature is too high. The ambient temperature is too high. Refrigerant leak.

Solution: Clean the cooling fan intake and vents. Fill the reservoir with room temperature water. Remove the machine to the cooler area. Damaged system – contact the service.

Problem: Abnormal noise.

Cause: Fan or pump damaged.

Solution: Ensure the machine is on a level surface.

Contact the service for assistance.

WARRANTY & SERVICE

This Limited Warranty is for one full year from the date of purchase. It is applicable to the original purchaser only and is not transferable to a third-party user.

Repair or replacement of defective parts is solely at the seller’s discretion. In the event that repair isn’t possible, the seller will replace the product/part. If product repair/replacement won’t suffice, the seller has the option of refunding the cash value of the product or component returned.

Product defects not covered under the Warranty provisions include normal wear and damage incurred from use or accidental negligence, misuse of instruction specifications, or repair by unauthorized parties. The manufacturing company is not liable for any incidental or consequential damages incurred by such circumstances.

Customer Service

For Customer Service or Questions, Please call: 888-552-0033

www.gourmia.com
