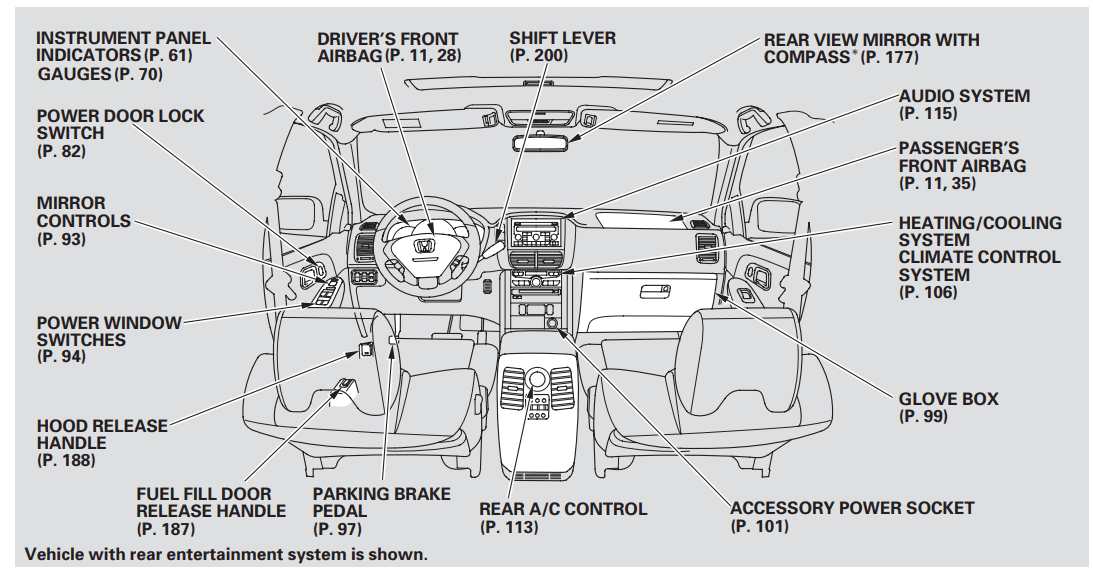

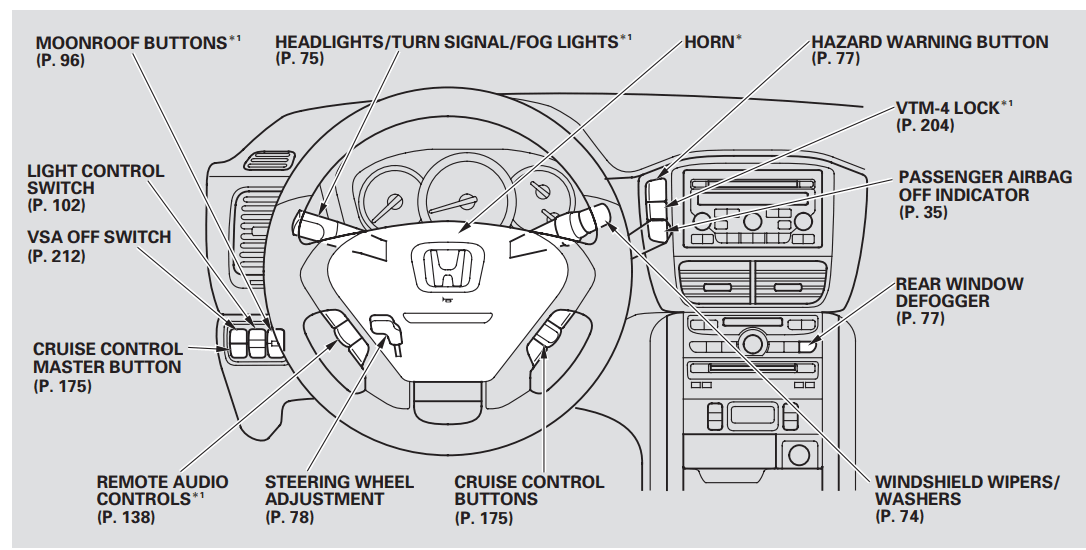

Your Vehicle at a Glance

＊: If equipped.＊: If equipped.
*: To use the horn, press the pad around the ‘‘H’’ logo.

Important Safety Precautions

You’ll find many safety recommendations throughout this section and this manual. ‘The recommendations on this page are the ones we consider to be the most important.

Always Wear Your Seat Belt

‘A seat belt is your best protection in all types of collisions. Airbags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with airbags, make sure you and your passengers always wear your seat belts, and wear them properly (see page 15).

Restrain All Children

Children age 12 and under should ride properly restrained in a back seat, not the front seat. Infants and small children should be restrained in a child seat. Children who are taller than 4 feet 9 inches should use a booster seat and a lap/shoulder belt until they can use the belt properly without a booster seat.

Be Aware of Airbag Hazards

While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual.

Don’t Drink and Drive

Alcohol and driving don’t mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don’t drink and drive, and don’t let your friends drink and drive, either.

Control Your Speed

Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed, the greater the risk, but serious injuries can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.

Keep Your Vehicle in Safe Condition

Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance (see page 229).

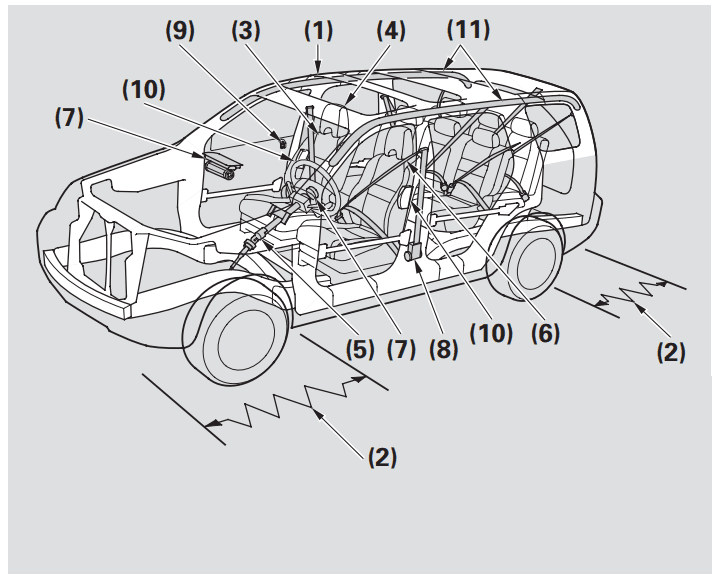

Your Vehicle’s Safety Features

Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Front Seat Belt Tensioners
Door Locks
Side Airbags
Side Curtain Airbags

Your vehicle is equipped with many features that work together to protect you and your passengers during a crash. Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering column, and tensioners that tighten the front seat belts in a crash. However, you and your passengers can’t take full advantage of these features unless you remain sitting in a proper position and always wear your seat belts. Some safety features can contribute to injuries if they are not used properly. The following pages explain how you can take an active role in protecting yourself and your passenger.

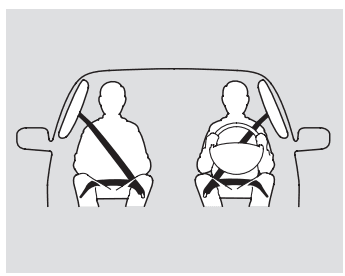

Seat Belts

Your vehicle is equipped with seat belts in all seating positions. Your seat belt system also includes an indicator on the instrument panel and a beeper to remind you and your passengers to fasten your seat belts.

Why Wear Seat Belts

Seat belts are the single most effective safety device for adults and larger children. (Infants and smaller children must be properly restrained in child seats.) Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags. In addition, most states and all Canadian provinces require you to wear seat belts.

WARNING: Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags. Be sure to always wear your seatbelt and wear it properly.

‘When properly worn, seat belts:

Keep you connected to the vehicle so you can take advantage of the vehicle’s built-in safety features.
Help protect you in almost every type of crash, including frontal, side, and rear impacts and rollovers.
Help keep you from being thrown against the inside of the vehicle and other occupants.
Keep you from being thrown out of the vehicle.
Help keep you in a good position should the airbags ever deploy. A good position reduces the risk of injury from an inflating airbag and allows you to get the best advantage from the airbag.Of course, seat belts cannot completely protect you in every crash. But in most cases, seat belts can reduce your risk of serious injury. What you should do: Always wear your seat belt, and make sure you wear it properly.

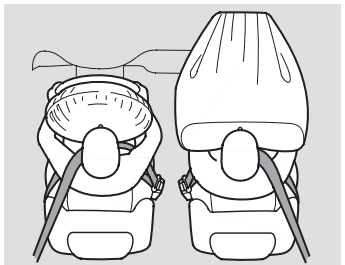

Airbags

Your vehicle has a supplemental restraint system (SRS) with front airbags to help protect the heads and chests of the driver and a front seat passenger during a moderate to severe frontal collision. Your vehicle also has side airbags to help protect the upper torso of the driver or a front seat passenger during a moderate to severe side impact.In addition, your vehicle has side curtain airbags to help protect the heads of the driver, front passenger, and passengers in the outer rear seating positions during a moderate to severe side impact or rollover.

The most important things you need to know about your airbags is:

Airbags do not replace seat belts.
They are designed to supplement the seat belts.
Airbags offer no protection in rear impacts, or minor frontal or side collisions
Airbags can pose serious hazards.
To do their job, airbags must inflate with tremendous force. So while airbags help save lives, they can cause minor injuries or more serious or even fatal injuries if occupants are not properly restrained or sitting properly.

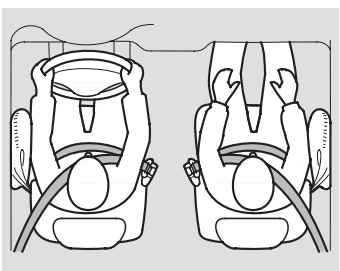

What you should do: Always wear your seat belt properly, and sit upright and as far back from the
steering wheel as possible while allowing full control of the vehicle. A front passenger should move their
seat as far back from the dashboard as possible.

The rest of this section gives more detailed information about how you can maximize your safety. Remember, however, that no safety system can prevent all injuries or deaths that can occur in a severe crash, even when seat belts are properly worn and the airbags deploy.

Protecting Adults and Teens

Introduction

The following pages provide instructions on how to properly protect the driver, adult passengers, and teenage children who are large enough and mature enough to drive or ride in the front seat.

Protecting Adults and Teens

Close and Lock the Doors

After everyone has entered the vehicle, be sure the doors and the tailgate are closed and locked. Your vehicle has a door and tailgate monitor indicator on the instrument panel to indicate when a specific door or the tailgate is not tightly closed. Locking the doors reduces the chance of someone being thrown out of the vehicle during a crash, and it helps prevent passengers from accidentally opening a door and falling out. Locking the doors also helps prevent an outsider from unexpectedly opening a door when you come to a stop.

Adjust the Front Seats

Adjust the driver’s seat as far to the rear as possible while allowing you to maintain full control of the vehicle. Have the front passenger adjust their seat as far to the rear as possible. If you sit too close to the steering wheel or dashboard, you can be seriously injured by an inflating front airbag or by striking the steering wheel or dashboard.

The National Highway Traffic Safety Administration and Transport Canada recommend that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and the chest. In addition to adjusting the seat, you can adjust the steering wheel up and down. If you cannot get far enough away from the steering wheel and still reach the controls, we recommend that you investigate whether some type of adaptive equipment may help. Once your seat is adjusted correctly, rock it back and forth to make sure it is locked in position.

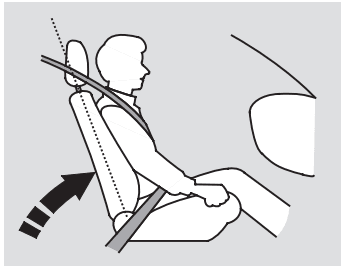

Adjust the Seat-Backs

Adjust the driver’s seat back to a comfortable, upright position, leaving ample space between your chest and the airbag cover in the center of the steering wheel. Passengers with adjustable seatbacks should also adjust their seatbacks to a comfortable, upright position.

Reclining a seat back so that the shoulder part of the belt no longer rests against the occupant’s chest reduces the protective capability of the belt. It also increases the chance of sliding under the belt in a crash and being seriously injured. The farther a seat-back is reclined, the greater the risk of injury.

Protecting Adults and Teens

Additional Safety Precautions

Never let passengers ride in the cargo area or on top of a folded-down back seat. If they do, they could be very seriously injured in a crash.
Passengers should not stand up or change seats while the vehicle is ‘moving. A passenger who is not wearing a seat belt during a crash or emergency stop can be thrown against the inside of the vehicle, against other occupants, or out of the vehicle.
Two people should never use the same seat belt. If they do, they could be very seriously injured in a crash.
Do not put any accessories on seat belts. Devices intended to improve occupant comfort or reposition the shoulder part of a seat belt can reduce the protective capability of the seat belt and increase the chance of serious injury in a crash.
Do not place hard or sharp objects between yourself and a front airbag. Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your front airbag inflates.
Keep your hands and arms away from the airbag covers. If your hands or arms are close to an airbag cover, they could be injured if the airbag inflates.
Do not attach or place objects on the front airbag covers. Objects on the covers marked “SRS AIRBAG” could interfere with the proper operation of the airbags or be propelled inside the vehicle and hurt someone if the airbags inflate.
Do not attach solid objects on or near a door. If a side airbag or a side curtain airbag inflates, a cup holder or other solid object attached on or near the door could be propelled inside the vehicle and hurt someone.

Additional Information About Your Seat Belts

Seat Belt System Components

Your seat belt system includes lap/shoulder belts in all seating positions. The front seat belts are also equipped with automatic seat belt tensioners. This system uses the same sensors as the front airbags to monitor whether the front seat belts are latched or unlatched, and how much weight is on the front passenger’s seat. The seat belt system includes an indicator on the instrument panel and a beeper to remind you and your passengers to fasten your seat belts. This system monitors the front seat belts. If you turn the ignition switch to the ON (II) position before your seat belt is fastened, the beeper will sound and the indicator will flash. If your seat belt is not fastened before the beeper stops, the indicator will stop flashing but remain on.

If a front passenger does not fasten their seat belt, the indicator will come on about 6 seconds after the ignition switch is turned to the ON (I) position. If either the driver or a front passenger does not fasten their seat belt, the beeper will sound and the indicator will flash again at regular intervals. When no one is sitting in the front passenger’s seat, or a child or small adult is riding there, the indicator should not come on and the beeper should not sound.

If the indicator comes on or the beeper sounds when the driver’s seat belt is latched and there is no front seat passenger and no items on the front seat, something may be interfering with the monitoring system. Look for and remove:

Any items under the front passenger’s seat.
Any objects hanging on the seat or in the seat-back pocket.
Any objects, such as a folded-down back seat, that is touching the rear of the seat-back.

If no obstructions are found, have your vehicle checked by a dealer.

Protecting Infants and Small Children

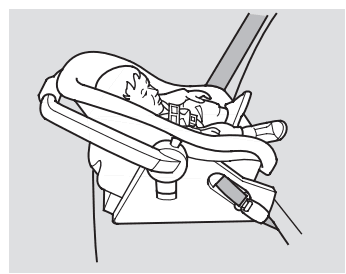

Protecting Infants

Child Seat Type

An infant must be properly restrained in a rear-facing, reclining child seat until the child reaches the seat maker’s weight or height limit for the seat, and the child is at least one year old. Only a rear-facing child seat provides proper support for a baby’s head, neck, and back. Two types of seats may be used: a seat designed exclusively for infants or a convertible seat used in the rear-facing, reclining mode.

Do not put a rear-facing child seat in a forward-facing position. If placed facing forward, an infant could be very seriously injured during a frontal collision.

Rear-facing Child Seat Placement

A rear-facing child seat can be placed in any seating position in the back seat, but not in the front. Never put a rear-facing child seat in the front seat. If the passenger’s front airbag inflates, it can hit the back of the child seat with enough force to kill or seriously injure an infant. ‘When properly installed in the second row, a rear-facing child seat may prevent the driver or a front passenger from moving their seat as far back as recommended, or from locking their seat back in the desired position. It could also interfere with the proper operation of the passenger’s advanced front airbag system.

Selecting a Child Seat, Installing a Child Seat

The child seat should meet U.S. or Canadian Motor Vehicle Safety Standard 213. Look for FMVSS 213 or CMVSS 213 on the box.
The child seat should be of the proper type and size to fit the child. Rear-facing for infants, forward-facing for small children.

The child seat should fit the vehicle seating position (or positions) where it will be used. Before purchasing a conventional child seat or using a previously purchased one, we recommend that you test the seat in the specific vehicle seating position or positions where the seat will be used.

Installing a Child Seat

After selecting a proper child seat and a good place to install the seat, there are three main steps in
installing the seat:

Properly secure the child seat to the vehicle. All child seats must be secured to the vehicle with the lap part of a lap/shoulder belt or with the LATCH (lower anchors and tethers for children) system. A child whose seat is not properly secured to the vehicle can be endangered in a crash.
Make sure the child seat is firmly secured. After installing a child seat, push and pull the seat forward and from side to side to verify that it is secure. A child seat secured with a seat belt should be installed as firmly as possible. However, it does not need to be “rock solid.” Some side-to-side movement can be expected and should not reduce the child seat’s effectiveness. If the child seat is not secure, try installing it in a different seating position, or use a different style of child seat that can be firmly secured.
Secure the child in the child seat. Make sure the child is properly strapped in the child seat according to the child seat manufacturer’s instructions. A child who is not properly secured in a child seat can be seriously injured in a crash. The following pages provide guidelines on how to properly install a child seat. A forward-facing child seat is used in all examples, but the Instructions are the same for rear-facing child seats.

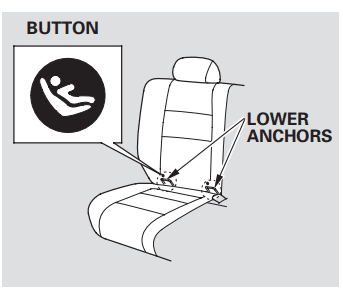

Installing a Child Seat with
LATCH

Your vehicle is equipped with LATCH (lower anchors and tethers for children) at the outer second row seats. The lower anchors are located between the seat-back and seat bottom, and are to be used only with a child seat designed for use with LATCH. The location of each lower anchor is indicated by a small button above the anchor point.

To install a LATCH-compatible child seat:

Move the seat belt buckle or tongue away from the lower anchors.
Make sure there are no objects near the anchors that could prevent a secure connection between the child seat and the anchors.

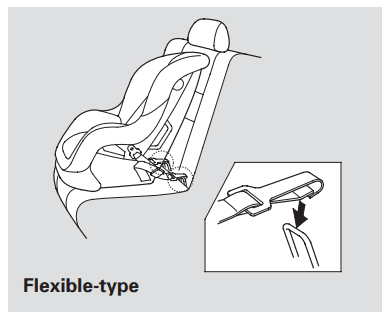

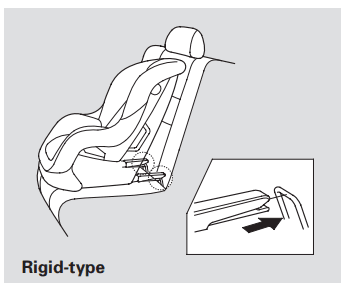

Place the child seat on the vehicle seat, then attach the seat to the lower anchors according to the child seat maker’s instructions. Some LATCH-compatible seats have a rigid-type connector as shown above.Other LATCH-compatible seats have a flexible-type connector as shown above.
Whatever type you have, follow the child seat maker’s instructions for adjusting or tightening the fit.
Lift the head restraint (see page 91 ), then route the tether strap through the legs of the head restraint and over the seat-back, making sure the strap is not twisted.

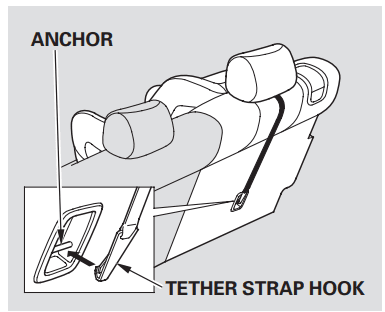

Attach the tether strap hook to the tether anchor, then tighten the strap as instructed by the child seat maker.

If the Engine Overheats

The pointer of your vehicle’s temperature gauge should stay in the midrange under most conditions. If it climbs to the red mark, you should determine the reason (hot day, driving up a steep hill, etc.). If your vehicle overheats, you should take immediate action. The only indication may be the temperature gauge climbing to or above the red mark. Or you may see steam or spray coming from under the hood.

Safely pull to the side of the road. Put the transmission in neutral or Park, and set the parking brake. Turn off all the accessories, and turn on the hazard warning lights.
If you see steam and/or spray coming from under the hood, turn off the engine. Wait until you see no more signs of steam or spray, then open the hood.
If you do not see steam or spray, leave the engine running, and watch the temperature gauge. If the high heat is due to overloading, the engine should start to cool down almost immediately. If it does, wait until the temperature gauge comes down to the midpoint, then continue driving.
If the temperature gauge stays at the red mark, turn off the engine.
Look for any obvious coolant leaks, such as a split radiator hose. Everything is still extremely hot, so use caution. If you find a leak, it must be repaired before you continue driving (see Emergency Towing on page 279).
If you don’t find an obvious leak, check the coolant level in the radiator reserve tank (see page 190). Add coolant if the level is below the MIN mark.
If there is no coolant in the reserve tank, you may need to add coolant to the radiator. Let the engine cool down until the pointer reaches the middle of the temperature gauge, or lower, before checking the radiator.
Using gloves or a large, heavy cloth, turn the radiator cap counterclockwise, without pushing down, to the first stop. After the pressure releases, push down on the cap, and turn it until it comes off.
Start the engine, and set the interior temperature to maximum. Add coolant to the radiator up to the base of the filler neck. If you do not have the proper coolant mixture available, you can add plain water. Remember to have the cooling system drained and refilled with the proper mixture as s00n as you can.
Put the radiator cap back on tightly. Run the engine, and check the temperature gauge. If it goes back to the red mark, the engine needs repair (see Emergency Towing on page 279).
If the temperature stays normal, check the coolant level in the radiator reserve tank. If it has gone down, add coolant to the MAX mark. Put the cap back on tightly.
