Honeywell HZ-960 Series Infrared Heater User Guide

Honeywell HZ-960 Series Infrared Heater

IMPORTANT SAFETY INSTRUCTIONS

WARNING – READ AND SAVE THESE OPERATING AND SAFETY INSTRUCTIONS BEFORE USING THIS HEATER. IF YOU DO NOT UNDERSTAND THESE INSTRUCTIONS OR PRODUCT LABELS, PLEASE CALL OUR CUSTOMER REPRESENTATIVES AT (800) 477-0457 FOR ASSISTANCE BEFORE USING THIS PRODUCT.

Warning – Failure to follow any of these safety instructions could result in fire, injury or death.

YOUR RESPONSIBILITIES

Electrical appliances may expose people to hazards that can cause severe injury as well as death. The use of electrical products may create hazards that include, but are not limited to, injury, fire, electrical shock, and electrical system damage. These instructions are intended to provide you with the information you need to use the product and to avoid such hazards. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Warning – Read all instructions before using this heater.
2. Warning – This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
3. Warning – Extreme caution is necessary when any heater is used by or near children or invalids, and whenever the heater is left operating and unattended.
4. Warning – Always unplug the heater when not in use.
5. Warning – Do not operate any heater with a damaged cord or plug, or after the heater malfunctions, has been dropped or damaged in any manner. Discard the heater or return the heater to an authorized service facility for examination and/or repair.
6. Warning – For residential use only.
7. Warning – Do not use outdoors.
8. Warning – This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate the heater where it may fall into a bathtub or other water container.
9. Warning – Do not run cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. Arrange the cord away from traffic areas and where it will not be tripped over.

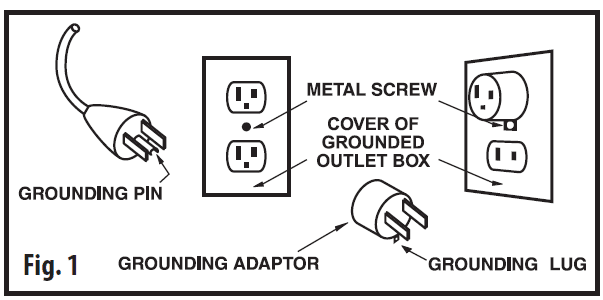

10. Warning – This heater is for use on 120 volts. The cord has a plug as shown in Fig. 1, and an adapter, as shown, is available for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available. Do not circumvent the safety features of the grounding-type plug. Do not modify the power cord.
11. Warning – This heater draws 12.5 amps during operation. To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working.
12. Warning – It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
13. Warning – To disconnect the heater, first turn off the product, then grip the plug body and pull it from the wall outlet. Never pull by the cord.
14. Warning – Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
15. Warning – To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, or where openings may become blocked.
16. Warning – A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored.
17. Warning – Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
18. Warning – Always plug the heater directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
19. Warning – Never tamper with this product or attempt to fix it. Any tampering with or modification of this product can result in serious injury, death, or fire. Risk of electric shock. Do not open. No user serviceable parts inside.
20. Warning – Do not remove product labels that contain warnings or safety instructions.
21. Caution – The output of this heater may vary, and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
22. Caution – Before cleaning, or storage, or when not in use, turn the product’s controls to the OFF position and unplug the heater from the electrical outlet and allow to cool.
23. Caution – Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9 m) away from any combustible materials. DO NOT use on an unstable surface such as bedding or deep carpeting. Be sure the heater is not in a position where it may be tripped over by small children or pets.
24. Caution – If your home has aluminum wiring, have a licensed electrician check your receptacles’ connections. When using a 1500-watt heater, aluminum wire connections can cause a safety issue.
25. SAVE THESE INSTRUCTIONS.

IMPORTANT SAFETY INSTRUCTIONS REGARDING THE PLUG ON YOUR PRODUCT

Product Specifications

This product is rated 12.5 Amps (1500 Watts) at 120 VAC, 60 Hz.

ABOUT INFRARED TECHNOLOGY

• Infrared energy is light within the spectrum that cannot be seen but can be detected by heat.
• Infrared heaters use quartz lamps to generate such a spectrum of light. In the Honeywell Infrared Heater, six long-lasting quartz elements heat the inner metal chamber. Air is drawn into the back of the heater by a fan, it passes through the warmed copper reflectors, and out the front of the heater to gently introduce soothing, warm air into the room.
• This type of heating technology provides comfortable, efficient, and even heating. It is designed with fan power to improve convection in order to provide core comfort to you and in extra-large spaces.

GETTING STARTED

Register your heater online and extend your warranty by six additional months. Log on to www.honeywellheatsavings.com/registration/ and simply fill out the registration form to register your product.

SET UP

• The Honeywell Infrared Heater requires no assembly. Simply unpack the heater and save all packaging materials for off-season storage.
• Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away from any wall or combustible material.
• DO NOT use on an unstable surface such as bedding or deep carpeting.
• BE SURE THE HEATER IS NOT IN A POSITION WHERE IT MAY BE TRIPPED OVER BY CHILDREN OR PETS.

MOVING THE HEATER

• This heater is equipped with a large Cool Touch handle and easy glide caster wheels for your convenience.
• To move, turn the heater off.
• Allow it to cool for ten minutes.
• Unplug heater and simply lift by the handle or roll to move.

REMOTE CONTROL

The Honeywell Infrared Heater can be controlled with the remote. This remote uses a button cell type battery which comes included in the remote.

• To activate the battery, simply pull the plastic tab.
• Place the remote control in the holder under the handle of the heater when not in use.

OPERATION

• NOTE: NEVER LEAVE AN OPERATING UNIT UNATTENDED
• Plug the heater into a 3-prong or grounded 120V outlet. DO NOT FORCE THE 3-PRONG PLUG INTO THE OUTLET; it will only fit one way.
• The Honeywell Infrared Heater is versatile and designed to be placed in the center of the room or closer to the wall (at least 3 feet away) for maximum safe and efficient room heating.

HZ-960 Series – Digital Infrared Heater Operation

Model HZ-960 User Interface Controls:

1. Status Indicators
2. Power Indicator
3. Power Button
4. Current Temperature/Desired Temperature Display
5. Set Temp Buttons
6. Constant Heat Settings

• The heater has two operational modes – constant heating or heating with a thermostat setting.
• Turn heater on by pressing the Power Button. The Power Indicator will light and the heater will begin Powering Up, as displayed in Status by a blinking light until the heater has warmed up and the fan comes on. The heater will start in the Constant High heat modeand display the Current Temperature in the room.
• To set a Constant Heat Setting, press:
  • Choose Low to use 1000 watts of power
  • Choose High to use 1500 watts of power
    NOTE: Because the Low setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about saving energy.
• To set the Thermostat, press the Set Temp Buttonsand choose your Desired Temperature. The Desired Temperature will flash three times and then the Current Temperature in the room will display as a steady red.
• To scroll quickly through the Heat Settings, press and hold either Set Temp Button.
• When the Current Temperature in the room reaches the Desired Temperature, the heater will be “At Temp” and be displayed in Status by a solid light.
  NOTE: The fan may remain on for a short time to cool the quartz bulbs.
• To shut the heater off, press the Power Buttonand the heater will begin Powering Down, as displayed in Status by a blinking light. The heater will automatically shut off in 60 seconds after the fan has cooled the internal components. Model HZ-970 Series – EnergySmart® Infrared Heater Operation
• The heater has two operational modes – constant heating or heating with an EnergySmart® thermostat control.
• Turn heater on by pressing the Power Button. The Power Indicator will light and the heater will begin Powering Up, as displayed in Status by a blinking light, until the heater has warmed up and the fan comes on. The heater will start in the Constant High Heat mode, and L2 will be displayed as the Desired Temperature.
• To set a Constant Heat Setting, press the Thermostat Control Buttons:
  • Choose L1 for constant Low
  • Choose L2 for constant High
    NOTE: Because the Low (L1) setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about saving energy.
• The Energy Usage Indicator will always display the power consumption used by the heater at any time:
  • If High, the heater is drawing 1500 watts to warm the room
  • If Low, the heater is drawing 1000 watts to warm the room or maintain the temperature
  • If Fan, the heater is drawing only enough power to run the fan to cool the quartz elements
  • If at Temp, the heater is drawing no power as the room has reached the Desired Temperature
• To save up to 25% in energy bills†, set the EnergySmart® thermostat by pressing the Thermostat Control Buttonsand choose a Desired Temperature between 60-85°. The EnergySmart® thermostat will automatically select the appropriate power level to best accommodate your Desired Temperature. As the air temperature (Current Temp) in the room approaches the Desired Temperature, the heater will automatically adjust the power consumption to provide consistent warmth without wasting energy.
• To override the EnergySmart® function, simply press the Thermostat Control Buttonsto choose either Constant Low (L1) or Constant High (L2) Heat.
• To set the Timer, press the Timer Buttonto select 2, 4, 6 or 8-hour setting. The heater will run for that chosen period in the selected mode, counting down the hours and automatically shut off after the desired time has passed.
• To shut the heater off, press the Power Buttonand the heater will begin Powering Down as displayed in Status by a blinking light. The heater will automatically shut off in about 60 seconds after the fan cools the internal components.

Model HZ-980 Series – MYEnergySmart™ Infrared Heater Operation

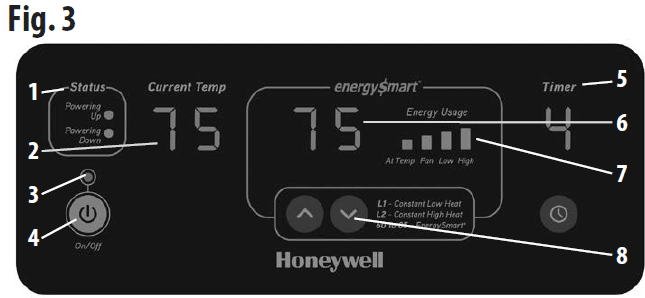

Model HZ-970 User Interface Controls:

1. Status Indicators
2. Current Temperature Display
3. Power Indicator
4. Power Button
5. Timer
6. Desired Temperature Display
7. Energy Usage Indicator
8. Thermostat Control Buttons

• The heater has two operational modes – constant heating or heating with an EnergySmart® thermostat control.
• Turn heater on by pressing the Power Button. The Power Indicator will light and the heater will begin Powering Up, as displayed in Status by a blinking light, until the heater has warmed up and the fan comes on. The heater will start in the Constant High Heat mode, and L3 will be displayed as the Desired Temperature.
• To set a Constant Heat Level, press the Thermostat Control Buttons:
  • Choose L1 for constant Low
  • Choose L2 for constant Medium
  • Choose L3 for constant High
    NOTE: Because the Low (L1) setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about saving energy.
• The Heating Energy Usage Indicator will always display the power consumption used by the heater at any time:
  • If High, the heater is drawing 1500 watts to warm the room
  • If Medium, the heater is drawing 1250 watts to warm the room or maintain the temperature
  • If Low, the heater is drawing 1000 watts to warm the room or maintain the temperature
  • If Fan, the heater is drawing only enough power to run the fan to cool the quartz elements
  • If at Temp, the heater is drawing no power as the room has reached the Desired Temperature
• To save up to 35% in energy bills†, set the EnergySmart® thermostat by pressing the Thermostat Control Buttonsto choose a Desired Temperature between 60-85°. The EnergySmart® thermostat will automatically select the appropriate power level to best accommodate your Desired Temperature. As the air temperature (Current Temp) in the room approaches the Desired Temperature, the heater will automatically adjust the power consumption to provide consistent warmth without wasting energy.
• To override the EnergySmart® function, simply press the Thermostat Control Buttonsto choose either Constant Low (L1), Constant Med (L2) or Constant High (L3) Heat.
• To set the Timer, press the Timer Buttonto select 1-8 hour setting. The heater will run for that chosen period in the selected mode, counting down the hours and automatically shut off after the desired time has passed.

Model HZ-980 User Interface Controls:

1. Status Indicator
2. Current Temperature Display
3. Power Indicator
4. Power Button
5. Desired Temperature Display
6. Timer
7. Energy Usage Indicator
8. MyTemp Settings
9. Thermostat Control Buttons

SAFETY FEATURES

The Honeywell Infrared Heater is equipped with several devices and features for added protection

• Cool to the touch housing and handle.
• A four-way tip-over switch that disables the heater if it is accidentally tipped in any front, back or side-to-side direction.
• A high-temperature safety control prevents overheating. See the troubleshooting section.
• Equipped with an overheat switch that will shut down the unit.
• This heater was created using a high-quality safety plastic.

TROUBLESHOOTING

PRODUCT SPECIFICATIONS

• Model(s) HZ-960 Series, HZ-970 Series, HZ-980 Series
• Unit dims 15.875”H x 12.625”W x 15.25”D, 16.5 lbs
• Amps 12.5
• Unit Voltage 120V, 60Hz
• Max Watts 1500
• Max BTUs 5118

3-YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

• A. This 3-year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ USA, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to  the original purchaser of this product from the original date of purchase.
• B. At its option, Kaz USA, Inc. will repair or replace this product if it is found to be defective in material or workmanship.
• C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
• D. Return defective product to Kaz USA, Inc. with a brief description of the problem. Include proof of purchase and a $10 US/$15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.
