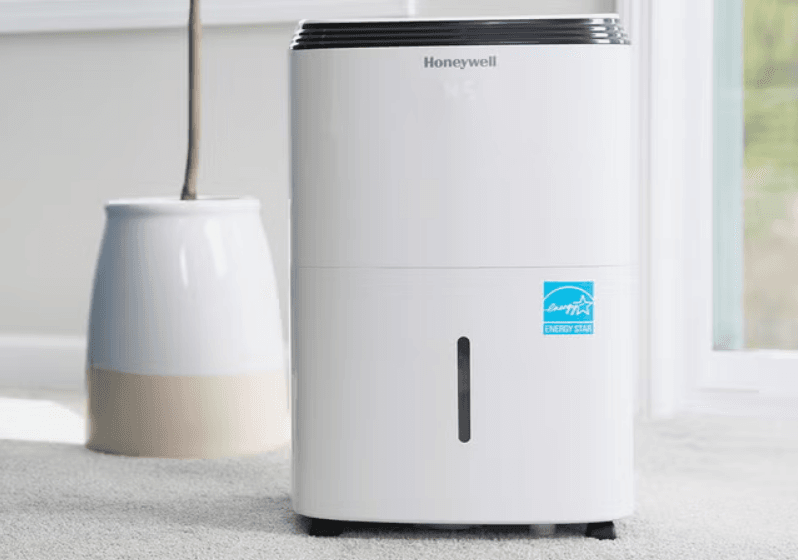

Honeywell TP50WK 50 Pint Energy Star Dehumidifier
SAFETY RULES
WARNING: READ AND SAVE THESE INSTRUCTIONS BEFORE USING THIS PRODUCT.
The use of electrical products may create hazards that include, but are not limited to, injury, fire, and electrical shock. Failure to follow these instructions may damage and/ or impair its operation and void the warranty. In case there is any inconsistency or conflict between the English version and any other language version of the content of this material, the English version shall prevail.
When using electrical appliances, basic safety precautions should always be followed:
- DO NOT touch the dehumidifier or the electrical plug with wet hands.
- Check the household voltage to ensure it matches the appliance’s specification.
- Before operating, remove all packaging material and check for any damage that may have occurred during shipping.
- DO NOT operate any product with a damaged cord or plug.
- DO NOT use an extension cord with this appliance.
- DO NOT run power cords under carpeting, or cover it with rugs or runners. Keep the cord away from areas where it may be tripped over.
- Always power off and unplug the dehumidifier before emptying the water tank.
- The water collected in the tank must be discarded. The water should never be used for drinking.
- Always unplug the dehumidifier and remove the water from the water tank before cleaning, servicing, or relocating the unit.
- Remove the power cord from the electrical receptacle by grasping and pulling on the power cord plug-end only; never pull the cord.
- This appliance has been manufactured for use in domestic environments and must not be used for other purposes.
- DO NOT use the product in areas where gasoline, paint, or other flammable goods and objects are used or stored.
- This dehumidifier is designed for indoor residential applications only. It should not be used for commercial or industrial applications.
- DO NOT attempt to repair or adjust any electrical or mechanical functions of the dehumidifier, as this may cause danger and void the warranty.
- DO NOT cover the air inlet or outlet on the appliance, as this may cause the unit to fail.
- DO NOT insert or allow objects to enter any ventilation or exhaust opening, as this may damage the product and could cause electrical shock or fire.
- DO NOT let children play with this appliance, packaging, or the included plastic bag.
- If the unit is damaged or it malfunctions, do not continue to operate it. Unplug the product from the electrical outlet. Refer to the troubleshooting section and contact the customer support center.
- Always place the dehumidifier on a leveled floor.
- Never install the product near a bathtub or any water container.
- Store in a dry area, away from direct sunlight, when not in use.
- This appliance and its packaging materials are not intended for use by persons (including children or the elderly) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.
- Always grip the top handle and keep the unit upright when transporting from room to room – DO NOT tilt the product on its side or upside-down.
- If the dehumidifier was transported tilted on its side, you must position it upright again and wait at least 4 hours before using it.
- WARNING: To reduce the risk of fire or electric shock, do not use this appliance with any solid-state speed control device.
UNPACKAGING THE DEHUMIDIFIER
- This Dehumidifier is packaged with a colored or transparent tape to secure some parts during transportation. Remove the colored or transparent packaging tape from the unit.
- Gently pull the water tank out of the dehumidifier.
- Remove the splash guard from the top part of the water tank.
- Take out the power plug, drain hose, and other accessories, which are placed inside the tank of the dehumidifier.
- Once all accessories have been removed, replace the splash guard onto the top part of the water tank. Make sure that the tank is properly positioned.
- There is a Foam Float inside the water tank that senses the water level to automatically stop dehumidification when the water tank is full. Make sure the Foam Float is positioned correctly inside the water tank by ensuring it lies level with the top edge of the water tank.
DO NOT REMOVE THE FOAM FLOAT.
PARTS DESCRIPTION
- Control Panel
- Handle
- LED Display
- Splash Guard
- Water Tank Handle
- Foam Float
- Water Tank
- Water Level Indicator
- Casters
- Dehumidified Air Exhaust Vent
- Washable Dust Filter
- Direct Drain Outlet
- Direct Drain Cap
- Mounting Holes for Cord Winders
- Power Cord & Plug
- Cord Winders
- Continuous Water Drain Tube (Inner Dia.: 0.47 inch; Length: 3.28 ft.)
- Continuous Water Drain Cap
- Auto Drain Pump Tube (Inner Dia: 0.21 inch; Length: 16.4 ft.)
- Auto Drain Pump Cap
INSTALL THE CORD WINDER
Once you have removed the cord winder accessories from the water tank, follow the steps below.
Step 1: Line up the cord winder pieces with the mounting holes.
Step 2: Rotate 45 degrees clockwise.
Step 3: Once you hear “click”, then you know the cord winder is ready for use.
NOTE: Once the installation of the cord winder has been completed. The cord winder cannot be removed. The installation is permanent.
USE & OPERATION
CONTROL PANEL
- Display Screen
- Power Control
- Humidity / Timer Set Controls
- Fan Speed Control
- Timer Control
- Filter Alert
- Sleep Mode
- Water Full Indicator Light
- Continuous Operation Light
- Wi-Fi Connectivity and Voice-Activated Control
- Auto Drain Pump Mode
FUNCTION BUTTONS
POWER CONTROL
Press the power button to switch the dehumidifier ON or OFF.
HUMIDITY CONTROL SETTING
When the unit is switched ON, the Display Screen shows the current humidity percentage. Press (+) or (-) to select your preferred humidity level. The humidity is adjusted in increments of 5% by pressing (+) or (-). The adjustable Relative Humidity (RH) range is between 30% RH to 90% RH. Ten seconds after setting the preferred humidity setting, the display will revert to displaying the current humidity.
IMPORTANT: There is a 5% threshold when the desired humidity setting has been reached. The compressor will shut off once the relative humidity is 5% lower than your desired setting. The fan will continue to run for up to 3 minutes to cool the motor and will then shut off. The operation restores once the relative humidity is 5% higher than your desired setting.
Recommended Settings: It is recommended to leave the unit running at 30% humidity at High Fan Speed during the first 2 to 3 days until damp odors are removed. After a few days, when the Relative Humidity has been reduced to a more comfortable level, press (+) or (-) to choose a higher RH% that maintains a comfortable humidity level thereafter. A recommended healthy humidity level is between 40% and 50%.
NOTE: The humidity sensor senses current humidity in the surrounding area. It is normal for about a 5%-8 % variance above or below the actual relative humidity in the room. Therefore, if there is a slight variance, the unit may sometimes operate slightly longer or shorter than the set RH% level.
CONTINUOUS MODE
To activate the Continuous Mode, press the (-) button on the Display Screen until
it appears. The
indicator light will be illuminated. The unit will run continuously.
WATER TANK FULL ALERT
When the Water Tank is full, the
indicator will be illuminated. The unit will beep for 3 seconds. The compressor will shut off, and the fan will stop for a few minutes. To switch off the indicator light, empty the water tank, and when replacing it, ensure the tank is secured properly in place.
IMPORTANT: Do not place the Water Tank on the floor when full. In case of an uneven base, which may cause the tank to spillover.
TIMER CONTROL
The dehumidifier can be set to automatically switch ON or OFF for a selected period of time (between 0.5-24 hours intervals). The Timer hours selection is displayed on the Display Screen.
NOTE: Before setting the Timer control, make sure there is power to the unit.
Auto-Off Timer:
While the unit is running, press
, the timer indicator light will flash, press (+) or (-) to select the number of hours (0.5-24 hours) you want the unit to run before it switches off. In 5 seconds without the operation, the Timer start function, the timer indicator light is illuminated. The timer must be set again after each use.
Auto-On Timer:
When the unit is in Standby Mode, press , the timer indicator light will flash, press (+) or (-) to select the number of hours (0.5-24 hours) until you want the unit to automatically start running.
After the Timer is set, it will activate after 5 seconds of inactivity, and the indicator light will illuminate. The previous fan speed and humidity setting will be maintained. The unit will turn on and continue running until the water tank is full (unless the unit is set up for continuous draining) or until you switch it off manually. The timer must be set again after each use.
NOTE:
- To cancel any Timer settings, simply press
again, and the timer indicator light will disappear. - The solid power light indicates the tank of the unit is full.
- “–” on the display indicates that the unit is in Standby Mode.
FAN SPEED CONTROL
There are two fan speeds – High and Low. When the
indicator light is illuminated, the unit is operating on High speed. When the indicator light is off, and the unit is on, the unit is operating on Low speed.
FILTER ALERT
When the Filter Alert Light is ON, it is time to clean the filter. Switch the unit OFF and carefully remove the filter from the unit and clean it. Replace the filter, switch on the unit, and reactivate the Filter Alert button by pressing it once.
The Filter Alert Light should not be illuminated until the filter requires cleaning again. The frequency of filter cleaning depends on the room environment conditions. Some rooms may require changing more frequently than others.
SLEEP MODE
The LED display brightness will be reduced when the unit is in Sleep Mode. Press the
to activate the Sleep Mode. When Sleep Mode is activated, the indicator light will be illuminated.
There is a one-minute window period in which you can adjust the settings, such as humidity and fan speed.
After one minute has lapsed, the top display will shut off, except the indicator light. Press any button to deactivate Sleep Mode.
WI-FI MODE
When the Smart Dehumidifier is connected to the wifi function, the indicator light will be illuminated.
THIS IS ONLY FOR MODEL TP30AWKN/ TP30AWKNR/ TP50AWKN/ TP50AWKNR/ TP70AWKN/ TP70AWKNR WITH WI-FI SMART FEATURES
AUTO DRAIN PUMP MODE
The Auto Drain Pump function helps to remove condensation vertically and horizontally.
Press the
to activate the Pump function, the indicator light will be illuminated.
Press button to activate the pump function. When the water Pump starts, the LED displays “PU” for 5 seconds every 1 minute. When the water pump does not work, there is no “PU” display.
IMPORTANT: The water tank will fill with water until it reaches the drain outlet for automatic drainage. Water will always sit in the tank when draining from the pump. Discard this water periodically.
PUMP DOES NOT AUTO-RESTART AFTER POWER FAILURE
WARNING: For models with the Auto Drain Pump, the Auto Drain Pump function will not automatically recover after a power outage.
AUTOMATIC DEFROST
Frost may build up on the internal coils of the unit. When there is frost buildup, the internal compressor will turn off, and the fan will continue to run until the frost has melted. Once the internal coils have defrosted and dried, the fan will continue to run for 8 minutes, and the compressor will automatically restart, and dehumidifying will resume.
DRAINING THE WATER
WARNING: Always drain and discard water collected from dehumidification. The water is not clean and cannot be used for drinking.
WARNING: Clean the water tank with a soft cloth and a drop of dish detergent every 1-2 weeks to prevent mold formation in and around the water tank. Rinse with clean water and dry it before reinstalling the tank into the unit.
Draining water collected in the Water Tank
The condensed water can be collected directly into the water tank. When the water tank is full, the dehumidifier will automatically shut OFF and the indicator will flash on the control panel, followed by a beeping sound.
IMPORTANT: Do not move the dehumidifier when the Water Tank is full, as it will be heavy and can cause water spillage.
- Locate the water tank at the front of the dehumidifier. Gently pull the water tank out.
- Grip the handle inside the water tank and carry the water tank to a sink to empty.
- Replace the empty water tank back into the front of the dehumidifier. Please make sure that the tank is properly positioned. The safety feature ensures that any misalignment of the tank and the unit will prevent the unit from turning back on.
IMPORTANT: Improper alignment or positioning of the water tank will cause the unit to pause operation.
A beeping sound and a warning light will flash when the water tank is not fitted properly.
For models with a built-in pump, the error code “P1” will display when the tank is not installed properly.
Continuous Water Drainage – Using a Continuous Water Drain Tube
VERY IMPORTANT: Do not use the pump function when you connect a continuous water drain tube.
A continuous water drain tube is included with this unit. To activate the continuous water draining function, you will require a suitable water drain (e.g., sink or drain hole at floor level) near the dehumidifier.
NOTE: The Continuous Drain Tube and Continuous Drain Cap come connected together.
- Locate the drain outlet at the back of the unit. Unscrew and remove the Direct Drain Cap. Insert and screw the Continuous Water Drain Tube into the Direct Drain Outlet.
- If there are leaks, the Continuous Water Drain Tube and Cap may have loosened and may not be connected properly. Disconnect, replace, and tighten again.
- Position the other end of the Continuous Water Drain Tube in the sink or drain. Make sure the tube is not bent or kinked, which might stop the water flow. Make sure the tube is secured over the drain and will not fall out of place, causing unwanted water spillage.
IMPORTANT: Make sure water can flow down the Continuous Water Drain Tube by keeping the tube angled down and free of bends or kinks.
IMPORTANT: If the unit is placed on uneven ground or the Drain Tube is installed incorrectly, the water may fill the water tank and stop running. Please check whether the ground is uneven and reinstall the Drain Tube.
CLEANING & MAINTENANCE
WARNING: Always switch OFF the dehumidifier and unplug it from the electrical outlet before attempting any cleaning or maintenance of this product.
Appliance Maintenance:
- Switch OFF the appliance before disconnecting the power supply.
- Only use a soft cloth to clean the appliance.
Dust Filter Maintenance:
The Dust Filter located at the back of the unit helps to remove dust particles from the air. A dirty filter clogged by dust particles can reduce the efficiency of the dehumidifier. For optimum dehumidification, it is recommended to clean the dust filter every 2 weeks:
- Switch off and unplug the dehumidifier from the electrical outlet.
- Carefully pull out the dust filter from the dehumidifier.
- Rinse the dust filter under running water, or vacuum away the dust with a vacuum cleaner. After cleaning the dust filter, dry it in a cool, shaded place, then carefully reinstall it into the unit.

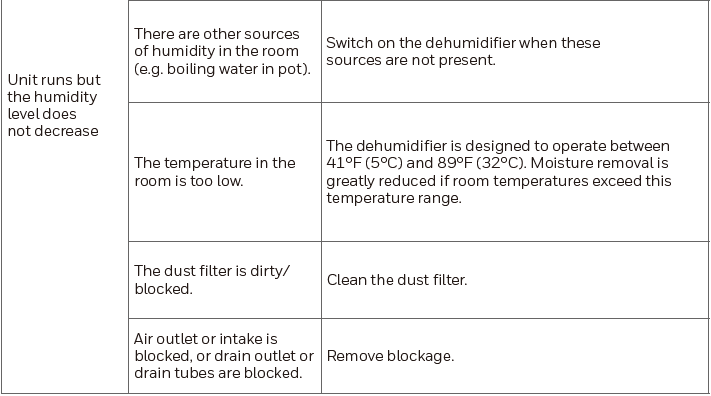

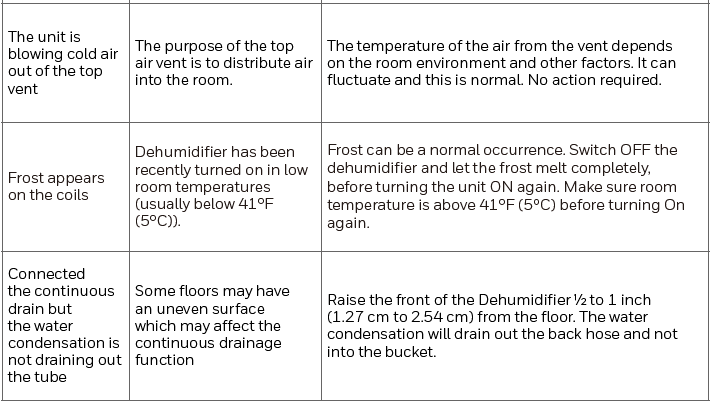

TROUBLESHOOTING GUIDE
The following troubleshooting guide addresses the most common problems. If problems persist, call customer service.
