Idylis Portable Air Conditioner 416709

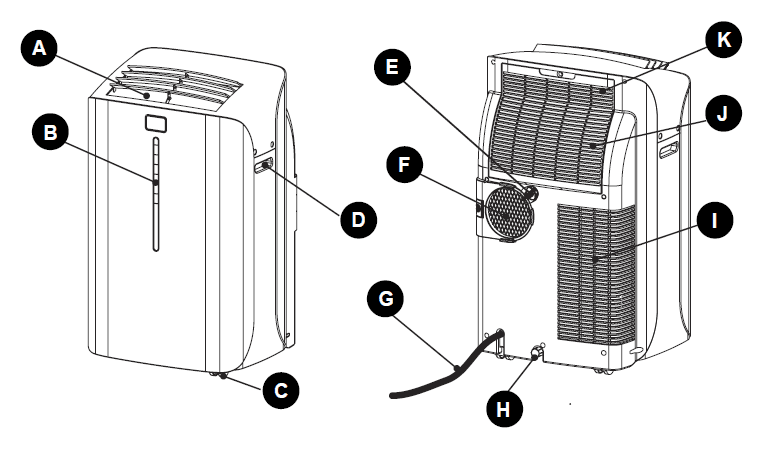

PACKAGE CONTENTS
PART | DESCRIPTION | QUANTITY |
A | Air Outlet | 1 |
B | Control Panel | 1 |
C | Castor | 4 |
D | Handle Hole | 1 |
E | Water Outlet Drain | 1 |
F | Air Outlet | 1 |
G | Power Supply Cord | 1 |
H | Water Outlet Drain | 1 |
I | Air Intake (Condenser) | 1 |
J | Air Intake (Evaporator) | 1 |
K | Air Filter | 1 |

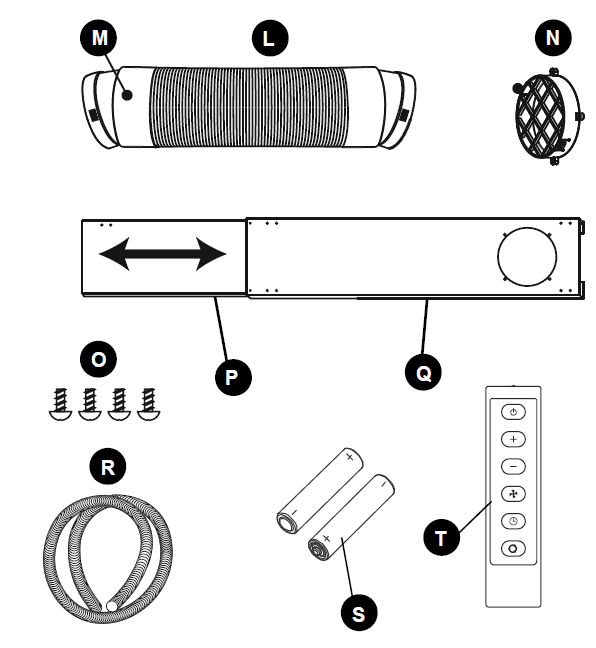

PACKAGE CONTENTS (NOT shown actual size)
PART | DESCRIPTION | QUANTITY |
L | Flexible Exhaust Hose | 1 |
M | Exhaust Nozzle Connector | 2 |
N | Tube Adapter | 1 |
O | Screw | 4 |
P | Window Panel Extension | 1 |
Q | Window Panel | 1 |
R | Drain hose | 1 |
S | AAA Batteries | 2 |
T | Remote | 1 |
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product. Portable air conditioners exhaust large amounts of room air. Always ensure an adequate supply of make-up air to operate efficiently.
- Check the available power supply and resolve any wiring problems BEFORE installation and operation of this unit. All wiring must comply with local and national electrical codes and be installed by a qualified electrician. If you have any questions regarding the following instructions, contact a qualified electrician.
- This appliance draws 9.5 nameplate amps and may be used in any properly wired general-purpose 15-amp household grounded receptacle.
- For your safety and protection, this unit is grounded through the power cord plug when plugged into a matching wall outlet. If you are not sure whether the wall outlets in your home are properly grounded, consult a qualified electrician
ASSEMBLY INSTRUCTIONS

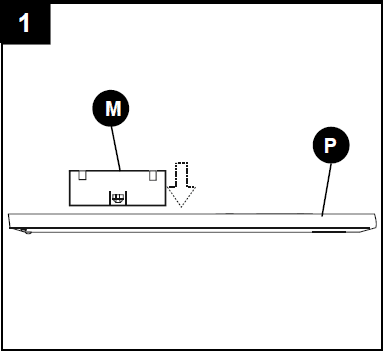

- Insert the tube adapter (M) through the back of the hole in the window panel (P).

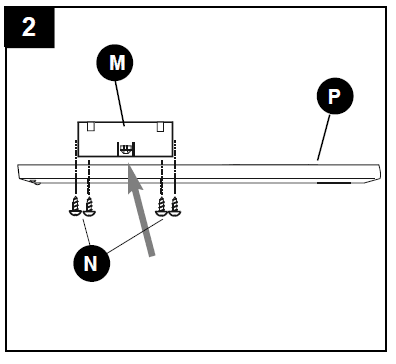

- Using the 4 screws (N) supplied, secure the tube adapter (M) from the front of the window panel (P).
- Insert window panel extension (O) into the window panel (P). Lightly tighten the pre-assembled screws in the window panel (P) to hold the extension (O) in
place. - Select a suitable location for the unit, making sure you have access to an electrical outlet

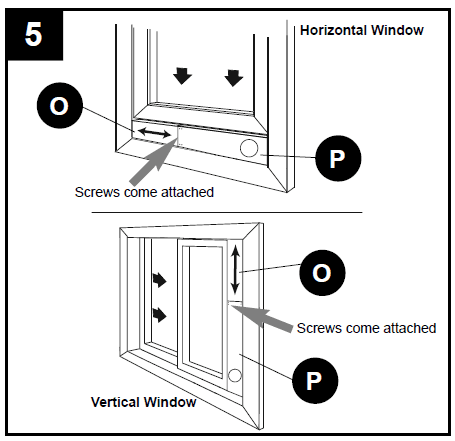

- Install the window panel (P) by expanding it to fit the length of the window and fully tightening the pre-assembled screws in the middle.

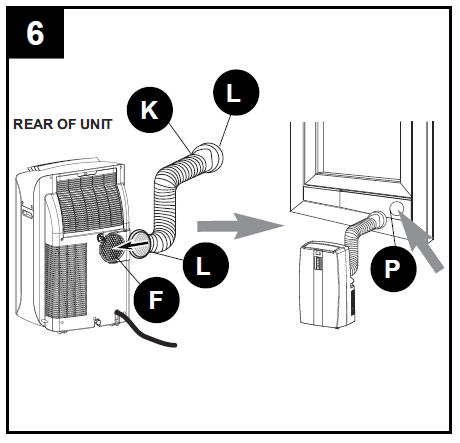

- Attach an exhaust nozzle connector (L) to each side of the exhaust hose (K). Then, install one end of the exhaust hose (K) to the air outlet (F) on the rear side of the unit, and the other end of the exhaust hose into the opening in the window panel (P). The minimum length of the exhaust hose is 21-13/20 in. and the maximum length is 66-3/20 in. when fully extended
OPERATING INSTRUCTIONS
Features of the Control Panel:
- Power switch: Turns unit on/off
- Mode: Allows you to scroll through the desired operating modes
- Fan: Select from three different fan settings: high, medium, and low.
- Auto timer
- Up/down buttons: By pressing both and down buttons at the same time for more than 3 seconds, the display will toggle between Celsius and Fahrenheit.
LCD Display Note: The default display is room temperature
AIR CONDITIONING
Note: The exhaust hose must be properly vented outdoors during air conditioning mode.
- 1) Press the POWER SWITCH button to switch on the unit, and the most recent set temperature will be shown in the temperature display area of the control panel.
- 2) Press the MODE button until the COOL indicator light illuminates on the control panel. Each depression of the MODE button will advance to a different mode setting (Cool – Dehumidifier – Fan)
- 3) Press the appropriate increase or decrease buttons to select a suitable operating temperature setting. Temperature settings are adjustable between 16°C (61°F) to 32°C (89°F).
- 4) Press the FAN button to select the desired fan speed setting (High-Med-Low.) Your selection will appear on the control panel (each depression of the fan key will advance to a different setting.) Cooling stops automatically when the set temperature is achieved. Cooling resumes when the room temperature rises above the ‘set’ temperature level
DRAINING EXCESS WATER
If the water tank in the unit becomes full, a ‘full tank’ indicator light will come on. To drain excess water:

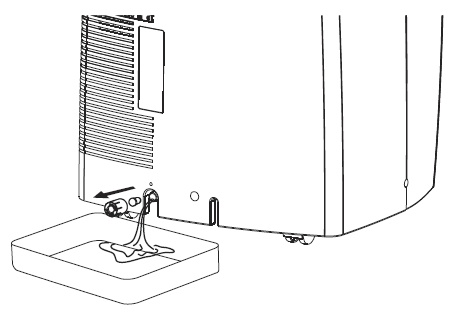

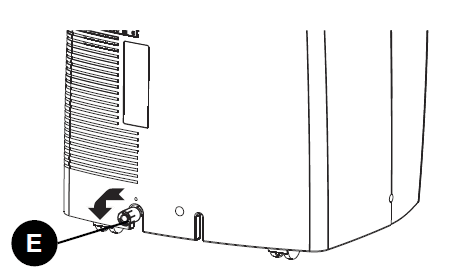

- Begin by placing a pan under the water outlet drain (E).
- Unscrew the drain cover and remove the soft rubber stopper. Let the water drain into the pan. When the water stops draining out, replace the soft rubber
Stopper and tighten the drain cover. - Remove the pan of water and empty it into a sink.
- Operate the unit in Fan Mode to dry the interior of the unit.
INSTALLING DRAIN HOSE
IMPORTANT: The drain hose (Q) must be installed during dehumidifier mode. The continuous drain function can be set up using the following steps:
- 1) To save having to frequently empty the water tank, this unit can be configured for continuous drain. You can use the supplied drain hose (Q) to connect the continuous drain connector.

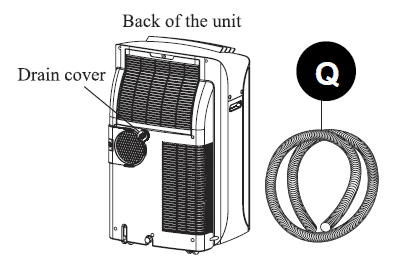

- 2) Unscrew and remove the drain cover from the drain port at the rear of the unit.
- 3) Remove the soft rubber stopper from the drain cover and place it in the water tank for safekeeping.

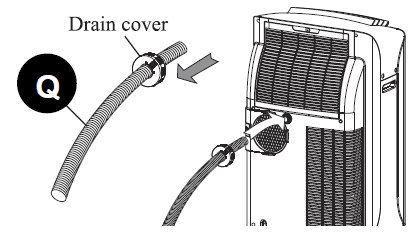

- 4) Insert the drain hose (Q) through the hole of the drain cover.
- When using the continuous drain function, the drain hose must be placed horizontally below the drainage hole. Avoid uneven ground and folding the hose. NOTE: Should you damage or misplace the drain hose, a standard garden hose (not included) can be used as a replacement.
AUTO-TIMER:
While the Air Conditioner is in Standby Mode (Auto-On):
- 1) Press the Timer button once, and the adjacent Auto-Timer display will illuminate.
- 2) Use the Up/Down arrows to select a delayed On Time of up to 24 hours.
- 3) Select the appropriate mode under which you want the unit to operate (Cool-Dehumidify- Fan.)
- 4) Select the fan speed setting.
- 5) The time you selected will appear in the LED display.
While the Air Conditioner is on (Auto-Off):
- 1) Press the Timer button, and the adjacent Auto-Timer display will illuminate.
- 2) Use the Up/Down arrows to select a delayed Off Time of up to 24 hours.
- 3) Follow steps 3, 4, and 5 the same as above.
REMOTE CONTROL:

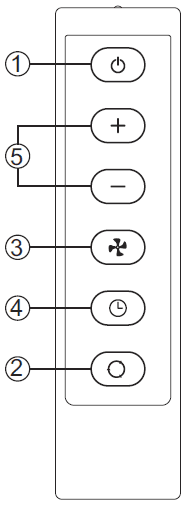

Control Buttons:
- 1) Power
- 2) Mode
- 3) Fan Speed
- 4) On/Off Timer
- 5) Time/Temperature Set
- The timer setting is programmable from 1-24 hours by first pressing the On/Off Timer button and then the Time/Temperature Set buttons.
- When either the or down button is pressed in cool mode, the set temperature is displayed and may be adjusted. After 15 seconds, the display will revert to room temperature.
Batteries should be replaced when:
- a) No signal (beep) is heard when attempting to program the main unit using the remote.
- b) The main unit does not respond to a command issued by the remote control.
Battery replacement:
- 1) Gently slide the rear cover of the remote in the direction of the arrow until it separates completely from the unit.
- 2) Insert two Alkaline AAA batteries following the same orientation (polarity) depicted inside the battery chamber (+/-).
- 3) Reinstall the rear cover.
- 4) If the remote control will not be used for extended periods of time, the batteries should be removed
CLEANING THE AIR FILTER:
- CAUTION: Never operate this unit without the air filter in place, as this may result in damage to the unit.
- If the air filter becomes clogged with dust/dirt, air flow is restricted, which reduces cooling efficiency. The air filter should be cleaned every two (2) weeks. More frequent cleaning may be necessary depending on indoor air quality.

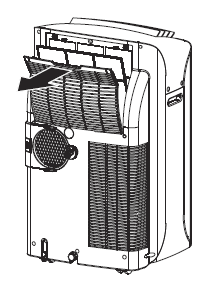

- 1) To remove the air filter: Pull the air filter cover upward in the direction of the arrow and remove the air filter.
- 2) Dust/dirt clogged in the filter can be removed by vacuum cleaning the soiled areas.
- 3) The filter can also be washed in lukewarm, soapy water while rubbing it lightly with a brush. A mild detergent (such as dishwashing liquid) is recommended.
- 4) Rinse the filter well using clean water. Allow time to dry before reinstalling into the unit.
- 5) Replace the air filter and cover
TROUBLESHOOTING
PROBLEM | POSSIBLE CAUSE | CORRECTIVE ACTION |
The unit does not work. | 1. Power is out 2. The unit is not plugged in properly 3. The water tank is full. The STOP warning light will illuminate 4. Electrical current is leaking or the test button on the LCDI plug is being pressed | 1. Wait for power to return 2. Plug in properly 3. Remove drain water from the drain tank (refer to page 9) 4. Press the reset button after resolving the problem. |
The unit suddenly stops during operation. | 1. The indoor set temperature has been reached 2. The preset time is up 3. The water tank is full. The STOP warning light will illuminate | 1. Reset the temperature level 2. Reset the timer 3. Remove drain water from the drain tank (refer to page 9) |
The unit runs intermittently | 1. Malfunction 2. Surrounding temp. Is warmer/cooler than the current heat/cool setting. 3. The exhaust duct hose is blocked | 1. Contact your dealer 2. This is normal. The unit doesn’t need to be operating constantly in this condition 3. Check and unblock the duct hose |
The unit functions, but the room is not cooled. | 1. A window or a door is open in the room 2. There is a heat source or too many people in the room 3. The air intake grille is clogged 4. The filter is too dirty 5. Temperature setting is too high/warm | 1. Close all windows/doors 2. Move any heat sources from the room 3. Clean air intake grille 4. Replace the filter 5. Lower the temp. setting |
Condensed water spills out when moving the unit. | 1. The water tank is nearly full | 1. Follow the instructions on page 9 for draining water |
WARRANTY
LIMITED IN-HOME APPLIANCE WARRANTY
- This quality product is warranted to be free from the manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by the manufacturer or by an authorized distributor of the manufacturer, and is non-transferable.
- TERMS OF WARRANTY
- Plastic parts are warranted for thirty (30) days only from the purchase date, with no extensions provided.
- First 12 Months:
- During the first twelve (12) months, any functional parts of this product found to be defective will be repaired or replaced, at the warrantor’s option, at no charge to the ORIGINAL purchaser.
- To obtain service, the manufacturer reserves the right to limit the boundaries of “In Home Service” to the proximity of an Authorized Service Depot.
- Service:
- The manufacturer reserves the right to limit the boundaries of “In-Home Service” to the proximity of an Authorized Service Dealer. Any appliance requiring service outside the limited boundaries of “In Home Service”, will be the consumer’s responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See “Boundaries of In-Home Service” below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized manufacturer service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, or the unit is used for commercial purposes, all obligations of the manufacturer under this warranty shall be void.
