Insignia 50-Pint Dehumidifier
IMPORTANT SAFETY INSTRUCTIONS
Warning
To reduce the risk of fire, electrical shock, or injury follow these basic precautions when using your dehumidifier.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not exceed the rating of the power outlet or connection device.
- Do not operate or stop the appliance by switching the power supply on or off.
- Do not damage or use an unspecified power cord.
- Do not modify the power cord length or share the outlet with other appliances.
- Do not plug or unplug the AC power cord with wet hands.
- Do not install the appliance in a location that may be exposed to combustible gas.
- Do not place the appliance near a heat source.
- Disconnect the power cord if strange sounds, smells, or smoke come from the appliance.
- Do not try to take apart the appliance or repair it yourself.
- Before cleaning, turn off the power and unplug the appliance.
- Do not use the appliance near flammable gas or combustibles, such as gasoline, benzene, or thinner.
- Do not drink or use the water drained from the appliance.
- Do not remove the water tank during operation.
- Do not use the appliance in small spaces.
- Do not put in places where water may splash onto the appliance.
- Place the appliance on a level, sturdy floor.
- Do not cover the intake or exhaust openings with cloths or towels.
- Care should be taken when using the appliance in a room with infants, children, elderly people, or people sensitive to humidity.
- Do not use in areas where chemicals are handled.
- Never insert your finger or other foreign objects into grills or openings. Take special care to warn children of these dangers.
- Do not place heavy objects on the power cord and make sure that the power cord is not compressed.
- Do not climb up on or sit on the appliance.
- Always insert the filter securely. Clean the filter once every two weeks.
- If water enters the appliance, turn it off and disconnect the power cord, then contact a qualified service technician.
- Do not place flower vases or other items containing water on top of the appliance.
- Do not use an extension cord.
Features
- Maintains a comfortable relative humidity level
- Capable of removing 20, 35, or 50 pints of water out of the air each day (depending on the model)
- 20 pt. – 3.2 qt. (3 liter) tank
- 35/50 pt. – 6.3 qt. (6 liter) tank
- Automatically turns off when the tank is full
- Adjustable humidistat for complete control
- Portable design with caster wheels for easy movement and placement
- EnergyStar certified
Package contents

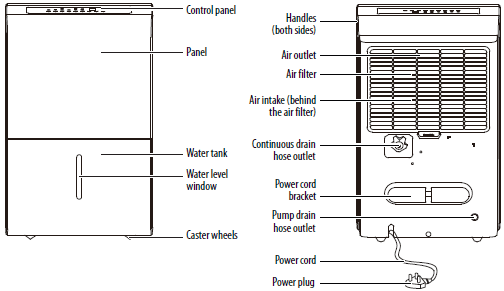

Components
Front and back

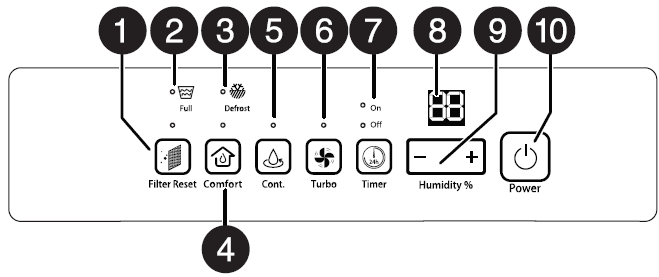

Control panel
| # | FEATURE | FUNCTION |
| 1 | Filter Reset | The filter light flashes after 250 hours of operation, indicating that the air filter needs to be cleaned. To reset the light after cleaning the filter, press the FILTER button. |
| 2 | Full | Turns on when the water tank is full. Turn off the unit and empty the water tank. |
| 3 | (Auto) Defrost | Turns on when the dehumidifier is in auto-defrost mode. The fan continues to run in this mode. |
| 4 | Comfort | Press to set the dehumidifier to the comfort setting (humidity level cannot be specified). The indicator LED turns on. Press again to turn off the comfort setting. The indicator LED turns off. |
| 5 | Cont. (Continuous dehumidifying) | Press to turn on continuous dehumidifying. The indicator LED turns on. Press again to turn off continuous dehumidifying. The indicator LED turns off. |
| 6 | Turbo | Press to set the fan speed to high. The indicator LED turns on. Press again to set the fan speed to normal. The indicator LED turns off. |
| 7 | Timer | Press to initiate the Auto Start and Auto Stop programs. See Auto Start and Auto Stop timers on page 9. |
| 8 | LED Display | Normally displays the actual room relative humidity level (from 30% to 90%). When setting the desired humidity level, displays the setting level from 35% to 85%. When setting the auto start/stop time, display the time (0~24 hours). |
| 9 | Humidity % +/- buttons | Use to set the desired humidity level from 35% to 85% (in 5% increments). When auto start/stop mode is initiated, press to set the time until auto start is initiated, then press to set the duration until auto stop turns the unit off. |
| 10 | Power | Press to turn the power on or off. |
Notes:
- Touch the control panel lightly when pressing the keys.
- To avoid scratching the control panel, do not touch it with sharp objects.
Setting up your dehumidifier
Preparing your dehumidifier
- Remove the exterior and interior packing.
- Clean the exterior surface with lukewarm water using a soft cloth.

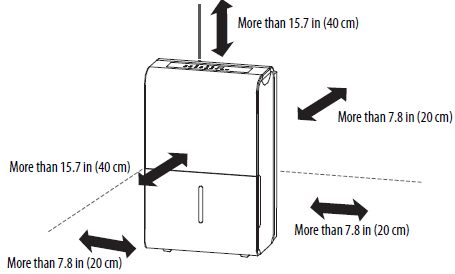

Finding a suitable location
Note: Your dehumidifier is more efficient when in a closed room, but it can be used in a room with the doors open to dehumidify a larger area.
- This dehumidifier is designed to be free-standing.
- Place your dehumidifier on a solid floor that is strong enough to support it when the water tank is full.
- The working environment should be between 41° F (5° C) and 90° F (32° C).
- Locate the dehumidifier away from direct sunlight and sources of heat (stove, heater, radiator, and so on). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperatures below 41° F (5° C) and above 90° F (32° C) will hinder the performance of this appliance.
Connecting to power
- Plug your dehumidifier into a dedicated, properly installed, grounded wall outlet. This appliance should be operated on a separate electrical circuit from other operating appliances. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.
- Do not use an extension cord with this dehumidifier. If the power cord is too short, have a qualified electrician install an outlet near the appliance. The use of an extension cord can negatively affect the dehumidifier’s performance.

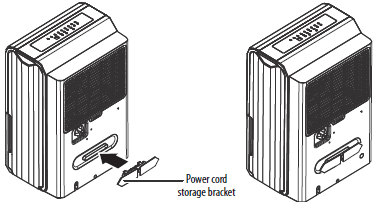

- Remove the power cord storage bracket from your dehumidifier’s water tank (on the front), then insert the power cord storage bracket into the back of your dehumidifier. The power cord storage bracket will click into place.
Cleaning the air filter
The air filter should be cleaned after 250 hours of use or 30 days, whichever comes first. The FILTER LED indicator lights up after 250 hours of use to indicate when to clean the filter.
- Remove the air filter by pulling it outwards.
- Wash the filter with water, then let it air dry.
- Reinstall the filter, then press Filter Reset.
Note: Do not splash water directly onto your dehumidifier. Doing so may cause an electrical shock, deterioration of the insulation, or rust.
Notes:
- Clean the tank every few weeks to prevent the growth of mold, mildew, and bacteria.
- Do not use a dishwasher to clean the tank.
CAUTION: Do not use your dehumidifier without a filter. Doing so may allow dirt and lint to damage your dehumidifier.
Storing your dehumidifier
- Before storing, let your dehumidifier rest for one full day so that it can air dry, then empty the water tank.
- Clean the grill, case, tank, and air filter.
- Wrap the power cord around the power cord buckle.
- Cover your dehumidifier with a plastic bag.
- Store the unit upright in a dry, well-ventilated area.
Troubleshooting
| PROBLEM | SOLUTION |
| My dehumidifier does not start | • Make sure that your dehumidifier is plugged in. • Make sure that the water tank is in the proper position. • Check if the water tank is full. • Check if your dehumidifier has reached your set humidity level. • Check the house fuse/circuit breaker box. |
| My dehumidifier does not dry the air as it should | • Make sure that you have allowed your dehumidifier enough time to remove moisture from the air. • Make sure that there are no curtains, blinds, or furniture blocking the front or back of the dehumidifier. • Lower the humidity level. • Make sure that all doors, windows, and other openings are closed. • Make sure that the room’s temperature is not below 41° F (5° C). • Make sure that there isn’t a water vapor source in your room. |
| My dehumidifier makes a loud noise when operating | • Make sure that the air filter is not dirty. If it is, clean the air filter. • Make sure that your dehumidifier is upright and is placed on a level floor. • Your dehumidifier may sound loud for the first two or three minutes of operation while the compressor starts up. |
| My dehumidifier makes a soft, swishing noise when operating. | • This is normal. Your dehumidifier has liquid refrigerant flowing inside of it. |
| My dehumidifier makes a gurgling noise when operating. | • Make sure that your dehumidifier is upright and is placed on a level floor. |
| Frost appears on my dehumidifier’s coils. | • This is normal. Your dehumidifier has an auto-defrost feature that starts when too much frost buildup occurs. |
| There is water on my floor | • If you are using the water tank, make sure that the back drain plug is in place. • If you are using the drain hose, make sure that the hose is connected securely to your dehumidifier. |
| The LED display shows ES, AS, P2, or Eb. | • These are error and protection codes. See Understanding the LED display codes below. |
Understanding the LED display codes
| CODE | MEANING |
| Error | |
| AS | Humidity sensor error. Unplug your dehumidifier and plug it back in. If the error persists, contact Customer Service. |
| ES | Evaporator tube temperature sensor error. Unplug your dehumidifier and plug it back in. If the error persists, contact Customer Service. |
| Eb | The water tank has been removed or is not in the correct position. Replace the tank in the correct position. This code only displays on units with the pump feature. |
| Protection | |
| P2 | The water tank is full or is not in the correct position. Empty the tank or place it in the correct position. On units with pump feature – The water tank is full and needs to be emptied. |
Note: When the AS or ED error code is displayed, turn off the unit and check for any obstructions, then restart the unit. If the error code returns, turn off the unit and unplug the power cord. Contact the manufacturer or its service agents or a similarly qualified person for service.
ONE-YEAR LIMITED WARRANTY
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product.
Your purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts, or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.
Contact Insignia: 1-877-467-4289
For more Manuals by Insignia, visit ManualsLibraryy
Insignia 50-Pint Dehumidifier-FAQs
How often do I need to empty the water tank?
Typically, you’ll need to empty the tank once a day or every other day, depending on humidity levels. A 50-pint dehumidifier collects around 10–20 pints per day.
Should I keep my dehumidifier running all the time?
Yes, it’s safe and effective to leave the dehumidifier running 24/7. It will automatically turn on or off based on the humidity level in your space.
Should I run the dehumidifier on high or low?
For larger rooms or high humidity, using the high fan speed setting is more effective. It helps remove moisture faster and improves air circulation.
What temperature is best for using a dehumidifier?
Dehumidifiers work best at room temperature (above 65°F or 18°C). In colder environments, the coils may freeze, reducing performance.
How do I know when the tank is full?
The unit has a full tank indicator light and will automatically shut off when the water bucket is full. You can either empty the tank manually or use a hose for continuous drainage.
Is it safe to run the dehumidifier overnight?
Yes, it’s perfectly safe to leave your dehumidifier on overnight. It will continue working as needed to maintain a comfortable humidity level.
How much space can a 50-pint dehumidifier handle?
The Insignia 50-pint model can cover up to 4,500 square feet, making it ideal for large rooms or basements. It has a 1.7-gallon water tank.
Where should I place my dehumidifier for best results?
Avoid placing it in corners or tight spaces. For maximum airflow and efficiency, position the unit away from walls and obstructions, ideally in the center of the room.
When should I turn off the dehumidifier?
Turn it off if the room temperature drops to around 65°F (18°C) or below. Cold air can cause the coils to freeze, which may damage the unit.
