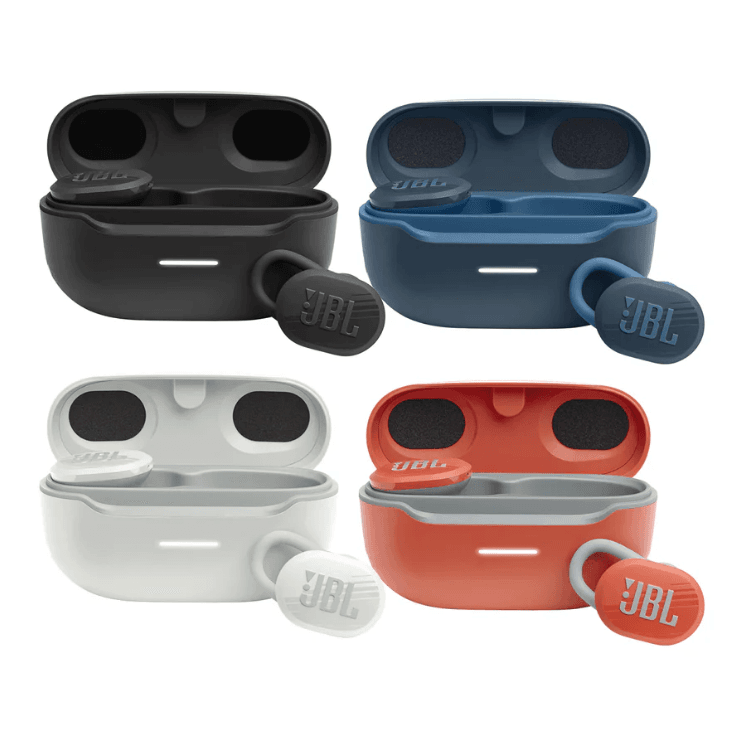

JBL Endurance RACE TWS Earbuds

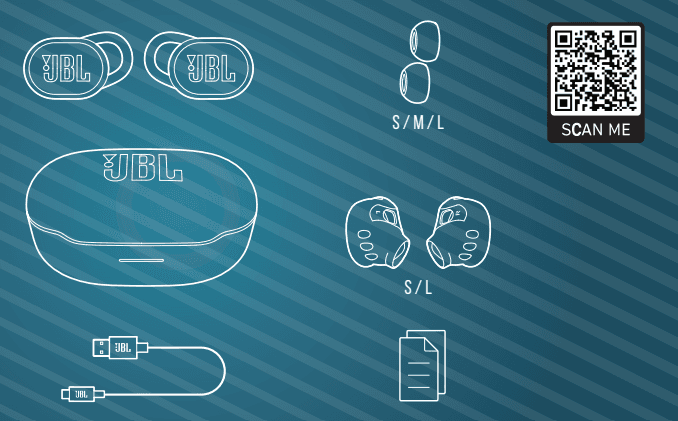

WHAT’S IN THE BOX

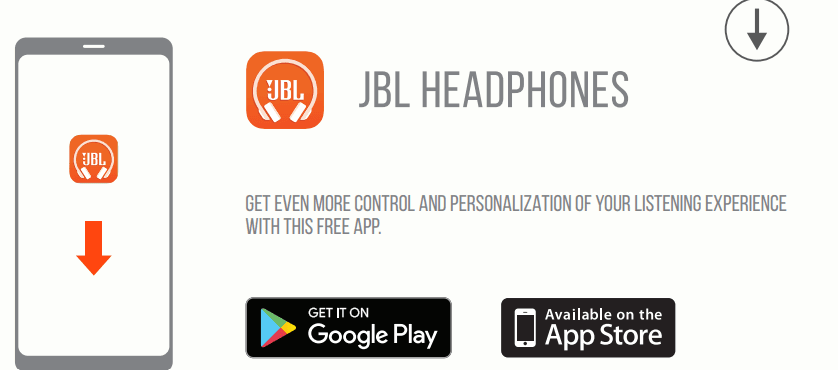

APP

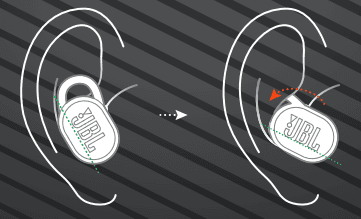

How to wear

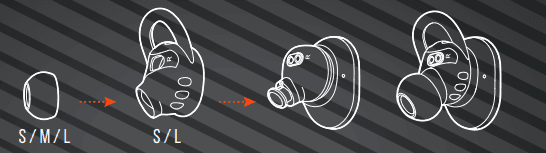

- Mix and match for a perfect fit and audio performance.

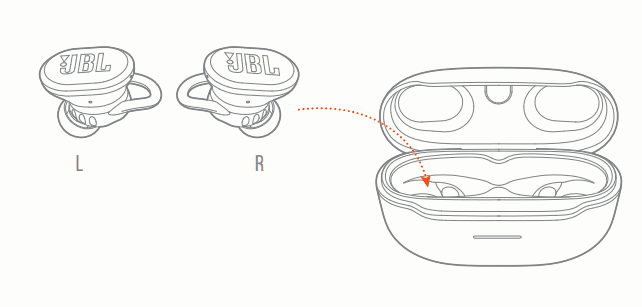

First time use

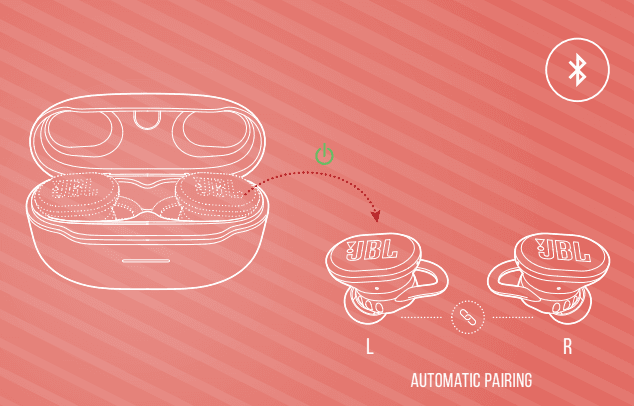

Power on & CONNECT
DUAL CONNECT

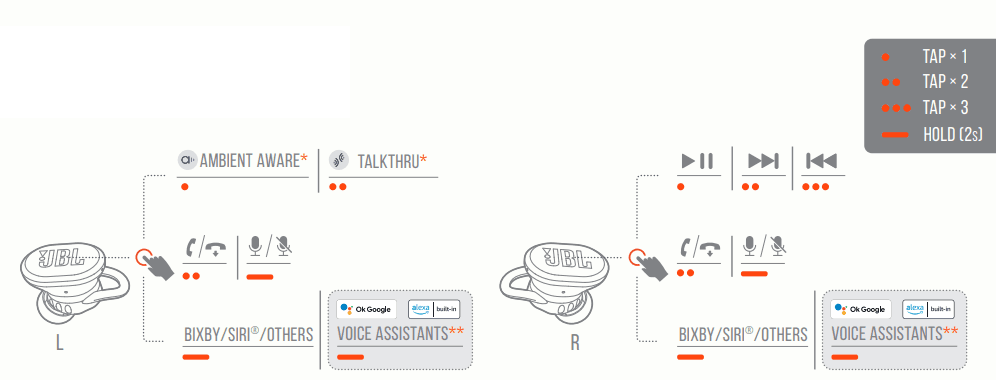

CONTROLS
* Enable advance controls by connecting your JBL ENDURANCE RACE TWS to JBL Headphones App .
** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO Y OUR PREFERRED EARBUD (L/R).

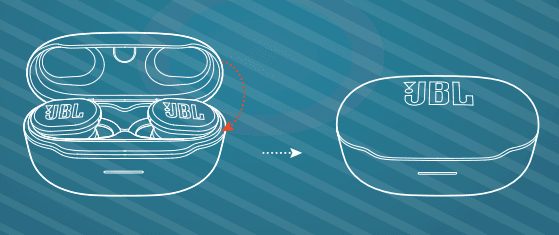

Power off

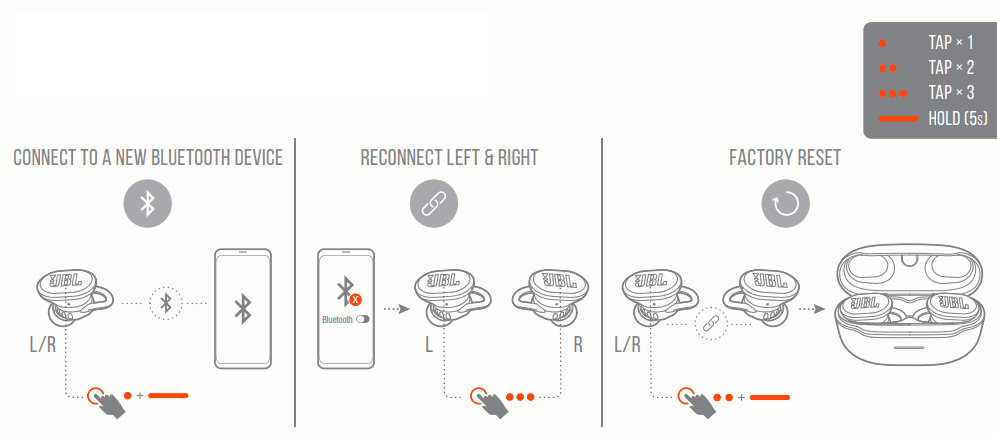

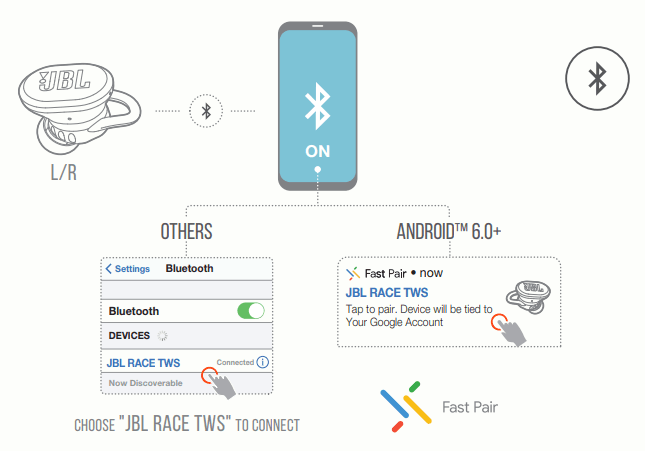

MANUAL SETUP

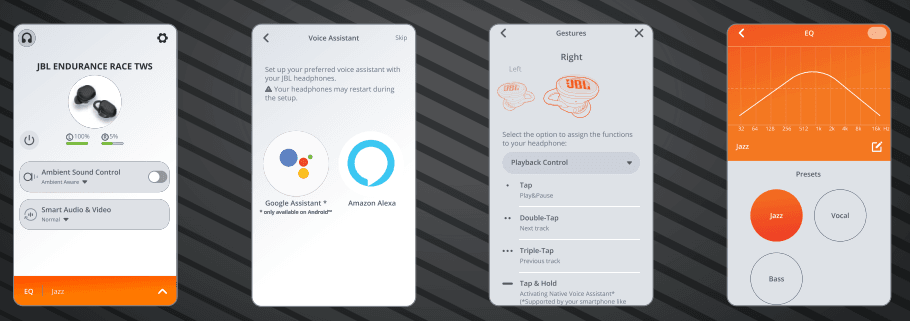

DO MORE WITH THE APP

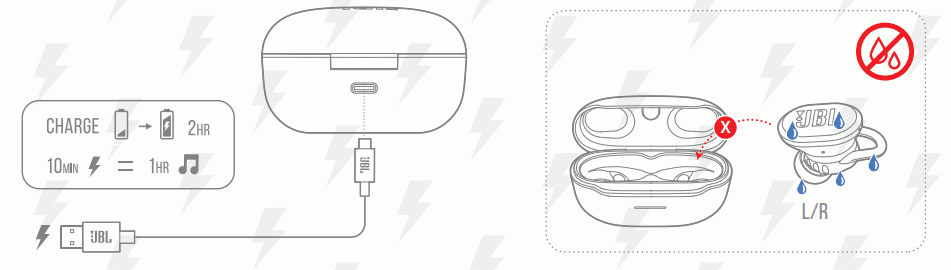

CHARGING

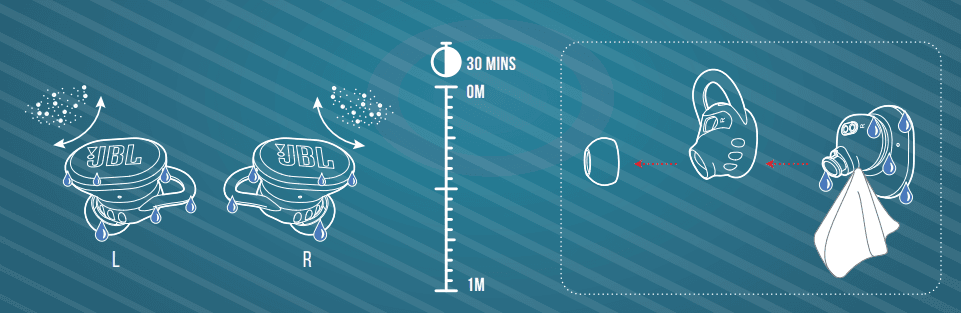

WATERPROOF & DUSTPROOF IP67

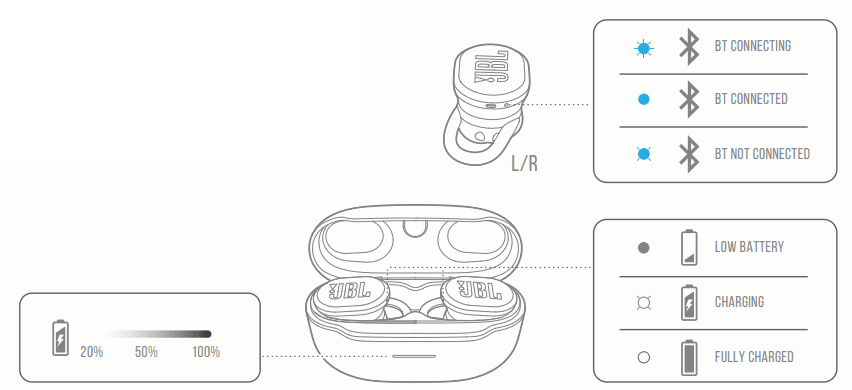

LED behaviors
TECH SPEC
- Model: ENDURANCE RACE
- Driver size: 6mm 1/4 Dynamic Driver
- Power supply: 5V=1A
- Earbud: 6.2 g per pe (12.4 g combined) 0.014 Ibs per pe (0.028 Ibs combined)
- Charging case: 4499/0099 Ibs
- earbud battery type: Lithium-ion Battery (70 mAh /3.85V)
- Charging case battery type: Lithium-ion Battery (S50 mAh /3.7V)
- Charging time: <2hrs from empty
- Music playtime with BT on: > 10s
- Frequency response: 20Hz-20kHz
- Impedance: 16 0hm
- Sensitivity: 99 dB SPL@1 kHz
- Maximum SPL: 9248
- Microphone sensitivity: -38.dBV/Pa kHz
- Bluetooth version: 52
- Bluetooth profile version: A2DPVL3, AVRCPV1.6, HEPAT
- Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
- Bluetooth transmitter power: < 10 dBm
- Bluetooth transmitter modulation: GFSK, π/4QPSK, BDPSK.
- Maximum operation temperature: 45°C
