Jimi IoT GT06N Multifunctional GPS Vehicle Tracker User Manual

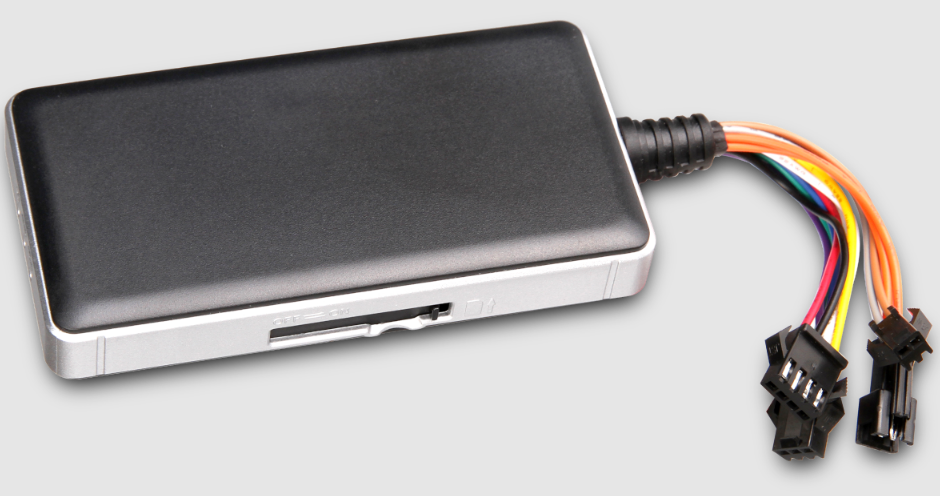

Jimi IoT GT06N Multifunctional GPS Vehicle Tracker

Accessories

• Device
• Powercord
• Relay
• Microphone
• SOS alarm cable & button
• User Manual

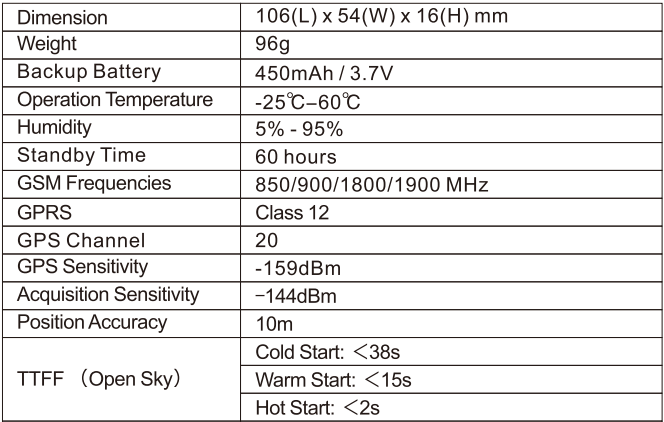

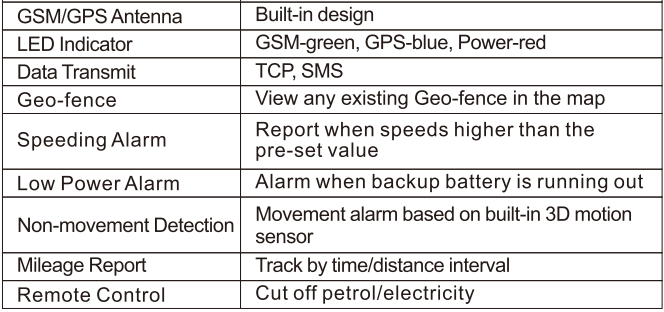

Specifications

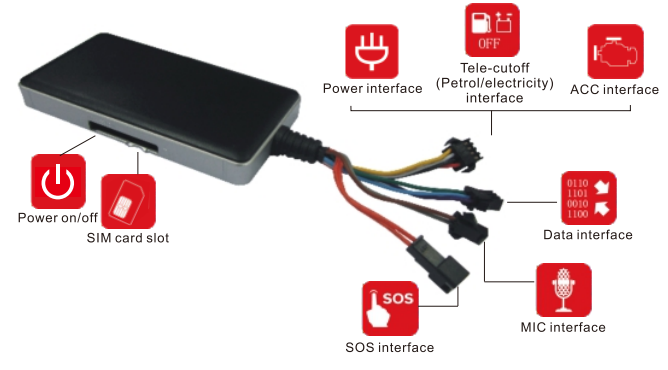

My device

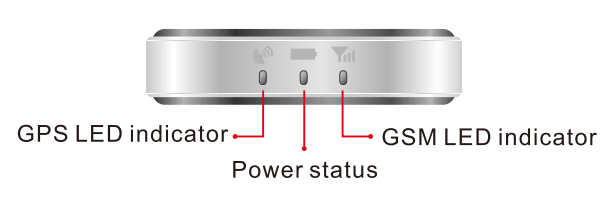

Ignition detection indication: three LED indicators take turns flashing.

Getting Started

Please follow the instructions below to ensure safe and correct use.

Install the SIM card

Place the SIM card into the device with the gold-colored side facing down.

Note:

Make sure there is enough credit on the SIM card. If you will be using the GPRS function, you should pay attention to the current SIM card GPRS charge.

Install the device

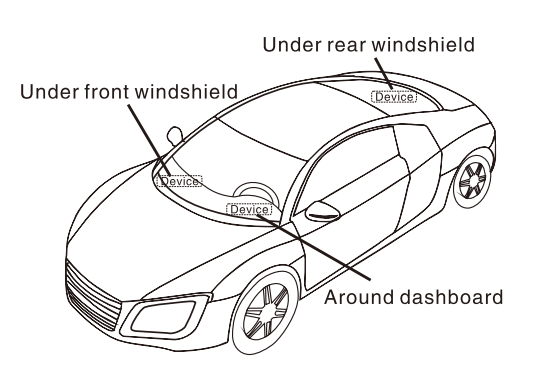

You need to choose somewhere that it ·t be found. Installation: Please refer to the picture below.

Important

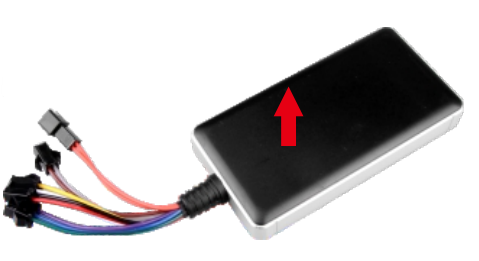

This side must face towards the sky.

NOTE:

1. Any high-power devices, such as reversing radar, anti-theft devices, or communication equipmen,t would affect the signal of the device.
2. All metallic cases of the windshield will attenuate the signal on the tracking device. It’s simply due to the shielding effects of the metal compound of the case.

Wiring configuration

Notes on the relay wiring

The relay wiring of the pump: oil connectors of both ends are a fine white line (85) and a fine yellow line (86). The fine white line (85) is connected to the vehicle’s positive power (+12V). The fine yellow line is connected to the device relay control line. Cut off the positive connection line of the pump; then connect in series to the relay N.C. contact (the thick green line 67a) and the other end to the relay COM contact (thick green line 30).

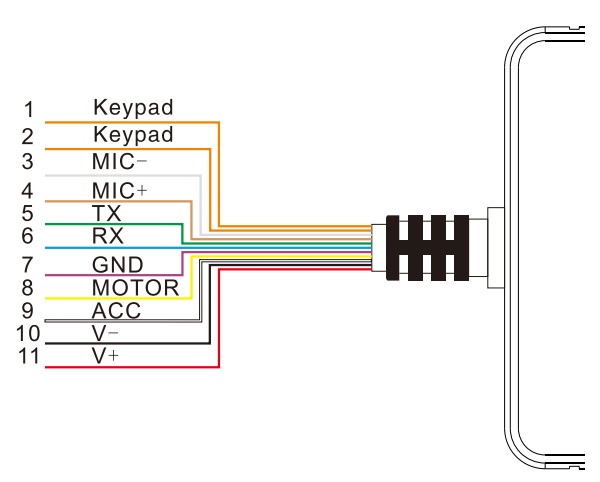

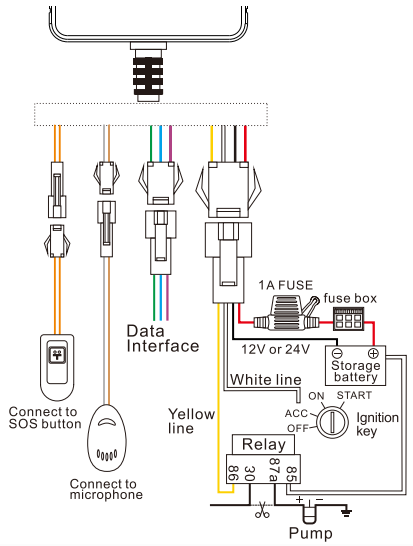

Device wiring diagram

Please choose the right relay (12V-standard / 24V optional) for the proper installation.

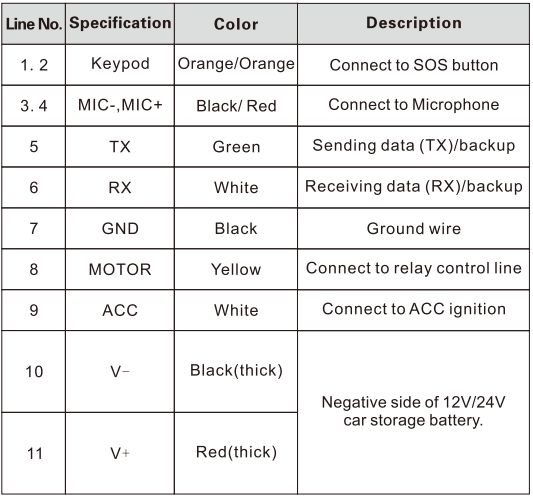

Power/ACC/Tele-cutoff(petrol/electricity) control line (4pin)

1. Your device comes with a power cord and is designed to use only the manufacturer-specified original device. The red line is positive while the black one is negative (the side should not be connected with the ground wire).
2. The ACC line (white) connects to the ACC switch of the vehicle. Please be sure to connect the ACC line; otherwise, the device will enter ignition detection status when the ACC line is disconnected. If you don’t need to anti-theft temporarily, just connect the ACC line to the positive side in parallel.
3. Tele-cutoff (petrol/ electricity) control lineJyellow) is connected to pin 86 of the Tele-cutoff (petrol electricity) relay (equal to the yellow line of the relay socket).
4. USB cable (3-pin)
   Firmware updating interface/expanded function to reserve space.
5. MIC line (2 pin)
   Externally connect to a microphone for the voice monitoring function.
6. SOS line (2 pin)
   Externally connect to the SOS switch for the SOS function.

Quick Operation Instructions

Operation Tips: To properly use the device, common parameters should be set before initial use. This can be done by using the parameter editor or by sending SMS commands to the device. (“/should be English comma and no space before and after the comma)

APN setting

To ensure GPRS is activated, please make sure the APN is correct. You are sending an SMS command to set APN:

APN Command Fuimat APN, APN’s Name#
EE.g, APN, internet # ( “internet” is the APN of Carriei?

The device will reply “OK” if the setting is successful

Note: The APN of some countries username and a password. You may need to send SMS command as follows: APN,  APN name, username, password #

Server setting

Default platform is www.tracksolid.com

To connect to another platform, please send the SMS command to change the DNS or server IP:
DN: SERVER.1, DNS, Port,0#
E.g: SERVER,1,gpsdev.tracksolid.com,21100,0#
IP: SERVER, O, IP, Port,0#
It will reply “OK” after being set successfully.

ON /OFF GPRS

When you want to disable GPRS, you can SMS command to the SIM card number used in the device.

Command format:
GPRSON: GPRSON,1#
GPRSOFF: GPRSON,0#
It will reply “OK” after being set successfully.

Add a specific number.

SMS command to the device to set the SOS number. SOS, A,  No.1, No.2, No.3#
“A” means to add new numbers, for example: SO  A, 13510905991,13510905992,13510905993#

If there is only one SOS number, you can appoint a specific number as the SOS number. And the null means no adding.
For example:
SOS, A, 13510905991# meanstosetthefirstnumberas SOS number
SOS,  A13510905992# means to set the second number as the SOS number
SOS, A., 13510905993# means to set the third number as the SOS number

If set successfully, there is a “success reply SMS.

Delete a specific number.

Before deleting a specific number, please check its corresponding code. For the code, please SMS “PARAM#” to the device. SMS command to the device to delete the number.
SOS,D,serial N0.1,serial N0.2,serial N0.3#

“D” means to delete the number, for example:
SOS, D,1# means to delete the first number
SOS, D,3# means to delete the third number

If you want to delete more than one number, you can send this command:

SOS, D, 1,3# means to delete the first and third numbers.

If you forget the serial number of the mobile number you want to delete, you can send this command:

SOS, D, mobile number# means to delete the mobile number directly.

For-example:

SOS,  D, 13527852360# means to delete the 13527652360 directly. After deleting the SOS number, it will receive “Delete number 135XXXXXXXX success! specific number 2” for successful deletion of the specific number.

Set the center number..

If you want to cut off/restore oil by SMS command, you have to set the centernumber first. Only the center number can send the cut-off/restore oil command to the device. You can set your own mobile number as the center number.

The command for setting the center number is:

CENTER, A, mobile number#

For example: CENTER, A, 15942703401 #
If set successfully, there is an “OK” reply message.

NOTE: Only the SOS number can be used to set the center number successfully.

Warranty instructions and service

1. The warranty is valid only when the warranty card is properly completed! Bd, and upon presentation of the proof of purchase consisting of the original invoice indicating the date of purchase, model, and serial number of the product. We reserve the right to refuse warranty if this information has been removed or changed after the original purchase of the product from the dealer.
2. Our obligations are limited to the repair of the defect or replacement of the defective part, or, at its discretion, replacement of the product itself.
3. Warranty repairs must be carried out by our Authorized Service Centre. Warranty cover will be void, even if a repair has been attempted by any unauthorized service centre.
4. Repair or replacement under the terms of this warranty does not provide the right to extension or renewal of the warranty period.
5. The warranty does not apply to cases other than defects in material, design, and workmanship.

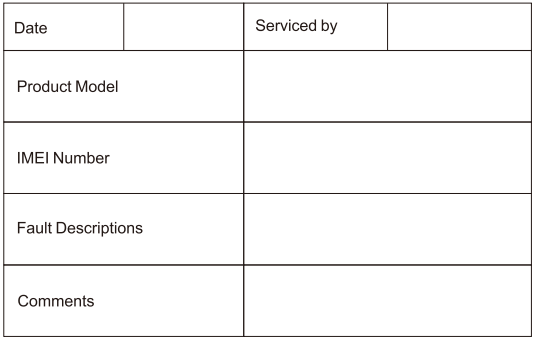

Maintenance Record 1

Maintenance Record 1

Maintenance Record 1

Delete the center number.

SMS command to the device to delete the center number.

The command is: CENTER, D#
For example: CENTE D#
If set successfully, there is an “OK” reply SMS.

NOTE: Only the SOS number can be used to delete the center number successfully.

Only the SOS phone number can send this command successfully to set the center number. There is only one center number that can be set.

Check parameter setting

Send a command to the terminal, and you can check the parameter setting.

Command format PARAM#
e.g.: PARM!#
Information replied:
IMEI: 353419032348877-IMEI 1J.1mberofthedevice;
Timer: 10, 1 O; -GPS data uploading Interval;
SENDS:5; – the GPS working time when ACC is OFF;
SOS: 15942703401; -SOS 1J. 1 members, maximum 3 SOS numbers can be set and used for alarm and monitoring;
Center Nurriler: 15942703401; -only 1 canter 1J.1mber can be set and used for cutti1g off /restoring oil command;
Sensorset:10, 1,5,180 -detect 5vibrationsin 10s; the alann delay is 180s;
Defense time: 10; the defense delay is 1 minute.
TimeZ0ne:  E,8,0; – set time zone; default as EB.
The replied information contains IMEI 1J.1mber, GP$ data uploading interval, SENDS, SOS, center number,~ time interval, defense time, and tie;mne.

Check GPRS parameters

SMS command format: GPRSSETW
E.g.: GPRSSET#

Reply message:
GPRS: ON                              //GPRS on/off status//
Currently useAPN:.,;          //APN setting information//

Server: 1,egt06.szdalasource.oom,8841,0; //platform information/I
URL: http://maps.google.com/maps?q=; //preset web link selling information II

GPS data uploading interval

The default sending interval is 10,10. ltmeanswhenACC ON, the device will upload positioning data to the platform server every 10s.when ACC is OFF, the device will upload positioning data to the platform server every 10s.

Users can modify the sending interval by SMS
“TIMER,time1(seconds), time2(seconds)#’
Thetime1&1ime2 ranges from 10-18000s

For example: TIMER, 10,20#

It means when ACC ON, the device will upload positioning data to the platform server every 10s.whenACC OFF, the device will upload positioning data to the platform 9elver every 20s.

Sensor alarm time setting

When the vehicle power is off and ACC is in low-level, if ACC is off for over 10 minutes, the device will enter sensor alarm state. In this case, if the vehicle vibrates a few times, it will activate the vibration alarm system. If the vehicle battery is still not on (ACC is in low level) after 3 minutes, the device will start vibration alarm. SMS format “DEFENSE, TIME(minutes)#” The time ranges from 1 to 60 minutes.

For example: DEFENSE, 15#. It means when ACC is in low level for 15 minutes, it will enable sensor alarm status (Wlhide por, M1r is off)

NOTE:

1. Preset SOS numbers when sending SMS alarm messages and calls.
2. If there is no need for the vibration alarm, please SMS SENALM, OFF# to close it.

Restore to factory settings.s

SMS commandfcnnat: “FACTORY#’ to set all parameters to the default factory value. Once received “OK”, it succeeds.

Reboot device

When there is something wrong with the link of GPRS, e.g., the parameter setting of the device is coned, but you can’t track the car on the platform. IV. At this moment, you can send a command to the device to reboot the device.

The format is: RESET#
After receiving this command, the device will reboot after 1 minute.

Operation of the device

Power on/ Power off

Pcmer on Once you insert a valid SIM card and connect all the wires, turn on the device, then the Power LED will flash first, the Durig signal searching process, GSM and GPS LED will flash. Once the GPS LED keeps a solid light, it means the device has been localized, and it starts to work.

Power off: Just turn off the power switch.

The device will begin to upload positioning data to the server once it inserts a valid SIM card and powers on. During working time, it can upload data to the server every 10 seconds.

Check location

ViaSMS

1. SMS “WHERE#” to the SIM number of the device. The device will send a location message automatically. You can get the coordinates. If the device does not search for any location information, it wi II send “No data• to the cell phone.
   Example:
   Lat:N22.571285,Lon:E 113.877115,Course:42.20,Speed:O
   .0740,DateTime:10-11-23 22:28:51
2. SMS “URL#” to the SIM number of the device. The device will send a locgle MapMapsnk. If the device does not search for any location information, it will send “No data• to the cell phone.
   Example:
   <Date Time: 10-11-23 23:42:51 > http://maps.google.com/maps?q=N22.571490,E113.877103

Via platform

Go to the platform website offered by dealers to check your vehicle location.

SOS alarm

In an emergent case, press SOS for 3s to activate sos alarm. Then the device will send an SOS SMS to preset specific numbers and then dial the numbers in circles until the cell is picked up. IV. In the meantime, the device will upload SOS alarm data to the server. And it will send:
SOSAlarm! <DateTime:11-06-1714: 53: 06>,
http://maps.google.com/maps?q=N22576713,E113.916585

Note: The specific numbers should be preset, just refer to 5.4

Wire cut-off alarm

When the electricity supply to the device is art off, it will activate the art-elf alarm. In this case, Iha’s device will send related SMS to the specific numbers and dial the numbers in circles. If nobody answers, the call just keeps 3 loops at most. A1 in the meantime, the dllllice will upload SOS alarm data to the seNa”. And it will send:

Cut Power! <Date Time:11-M-1714: 53: 06>,
http://maps.google.com/maps?q=N22576713,E113.916585

Note: The specific numbers should be preset. Just refer to 5.4

Low battery alarm

When the device is only working with a battery, once the internal voltage of the battery is less than 3. 7V, the device will send a low battery alarm sms to a specific number and an alarm on the platform.

Low battery alarm srns conlBnt lllCllmple: “Attention!!!  Battery too low, please charge.• Which means the battery is too low to inform the user that charging is in time.

Note: The specific numbers should be preset, just refer to 5.4

Vibration alarm

The vibration alarm function is off by default. To activate this function, please send the following command: SENALM, ON#. The alarm will be sent to both the service platform and SOS numbers.

When vehicle power is off, ACC status is low, and if the lead time of low ACC is more than 10 minutes (settable), the device will activate the security alarm. When the security alarm is on, once the vehicle vibrates several times, the alarm will be activated; in the next 3 minutes, if the vehicle’s power is still off (ACC status is low), the device will start the alarm. At this time, it will send an alarm message to the service platform with the latitude and longitude, while the platform will reply with the Chinese address. Then the terminal will send a vibration alarm message to SOS numbers with the Chinese address, and call the SOS numbers in a cycle. If nobody answers, it will stop calling after 3 loops.

If the Chinese address can not be acquired for a certain reason, the terminal will send a message with the website link to the SOS numbers.
e.g.:Sensor Alarm! <11-23 14:53>,
http://maps.google.com/maps?q=N22576713,E113.916585

Note:

1. The SOS numbers should be preset.
2. Send “SENALM, OFF#” to turn off the vibration alarm.

Voice monitoring

When the special number cell phone dial device rings for 10 seconds, it will enter voice monitoring status. At this time, the caller can monitor the sound in the vehicle. Incoming call from non non-special number will not activate the voice monitoring function.

Note: To realize this function, please set a special number beforehand. The SIMM card put into the device should be equipped with caller identification.

Oil cut-off

Via platform

Send the oil cut-off command on the platform. To ensure the security of the vehicle, the tracker can only indicate to cut off oil when the GPS is in a valid position status, and the speed is less than 20KM/H ora in a static position. The platform account password is needed when sending the oil cut-off command.

Via SMS

Firstly, you should set a center number. Please refer to 6.6. Only the center number can send the command to the device to cut off and restore oil.

The format is: RELAY,1#
After the command is carried out, it will reply, “Cut off the fuel supply:
Success! Speed Km/h. If the command didn’t carry out, it will reply with the reason for failure to carry out.

Note: To ensure the safety of the driver and the car, this command is valid only under two conditions: the GPS is located, and the speed is less than 20km/h

Restoring Oil

Via platform

When the alarm is off, send recovery oil commands manually. The device will restore the oil supply, and the vehicle will work normally again. The platform account password is needed when sending the oil cut-off command.

Via SMS

Only the center number can send the command to the device to restore oil.

The format is: RELAY,0#
After the command is carried out, it will receive “Restore fuel supply: Success!”

Over-speed Alarm

When the car is moving at an average speed in average in a limited time period, then the device will send over speed alarm SMS to the user. To turn on the over speed function, please send the below SMS command: SPEED, ON/OFF, Time, Limited speed, uploading mode##

Speed alarm switch: ON/default: OFF
Time range (seconds):5-600s(default as 20s)
Limited speed range(km/h): 1-255km/n. default: 100
Mode:0/1. default: 1 way of alarming,0 means GPRS only, 1 means SMS+GPRS

Example: SPEED, ON,20,100, 1#
Means when the car is moving over 100km/h on average for 20 seconds, the device will send over speed alarm to the user.

Web-based tracking online activation

The GPRS web-based tracking platform allows real-time tracking with the la also a playback feature that allows you to view where the vehicle has been for up to 30 days in the past, making it ideal for fleet management.

Trouble shooting

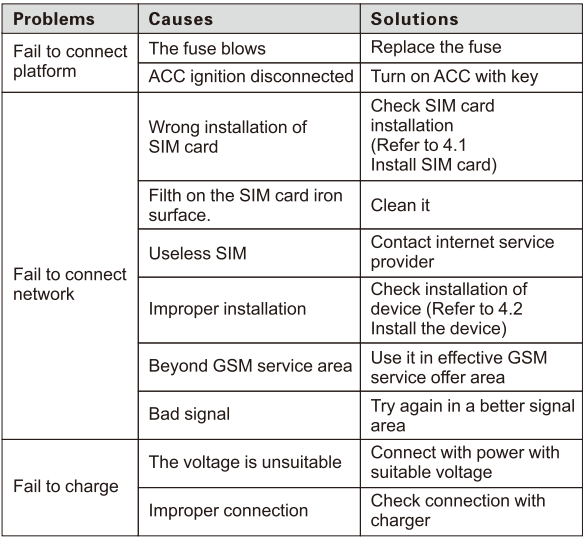

If you are having trouble with your device, try these troubleshooting procedures before contacting a service professional.
