Secrui PR3 Motion Sensor Alarm Motion Detector

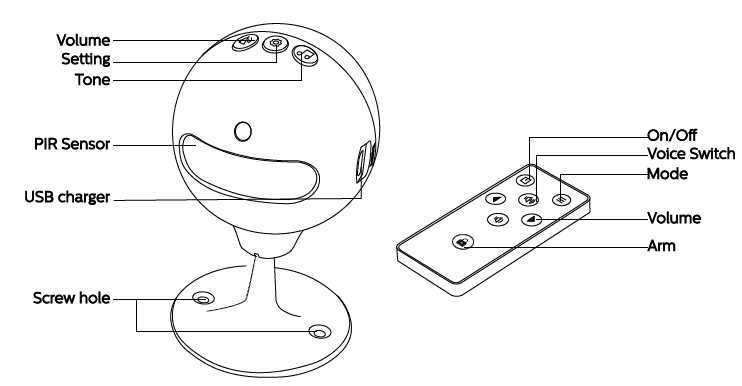

PARTS IDENTIFICATION

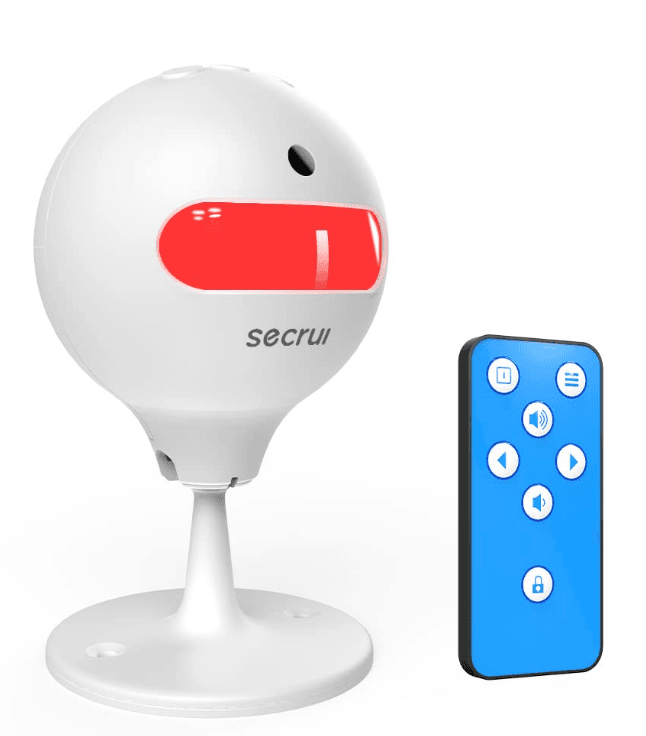

Product Introduction
This host is a passive infrared detector. It uses digital dual-core fuzzy logic infrared control processing technology and an intelligent analysis algorithm, which can effectively distinguish the interference signal and the human motion signal to prevent false alarms. This host can connect the remote control, and the performance is suitable and reliable. It is suitable for large villas, office buildings, clubs, leisure centers, hotels, families, and sandhops. Etc.
Package
- PIR Alarm unit(s)
- Remote control(s)
- Warranty card
- AAA alkaline batteries
Feature
5 tunes optional.
4 levels of adjustable volume.
The remote control can control all the functions.
Operating Instructions
PIR Alarm Unit Setting

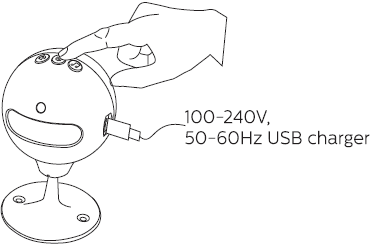

Setting
- Short press < 2s shift Arm and Disarm, beep once means Arm, beeps twice means Disarm.
- Long press >5s from on to off, it will beep once, from off to on, it will beep once continuously.

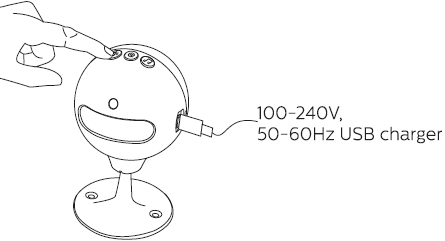

Setting (Tone)
Short press: Choose a different ringtone.

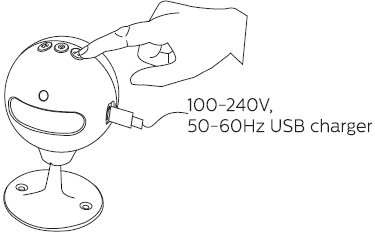

Setting (Volume)
Short press: Change volume cycle adjustment.
NOTE: When the host broadcasts the voice, even if you trigger any button on the host, the host state does not change.
Remote Control Setting
Switch on/off to control the PIR alarm power.
Press this button, the host will be alarmed.

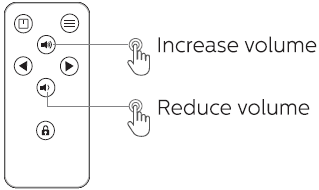

When it reaches Maximum volume and minimum volume, the PIR detector will beep twice.
Shift Arm and Disarm, Beeps once means Arm, Beeps twice means Disarm.
Factory Settings
Plug and long-press [tone] and [volume] buttons until it beeps once, it will turn to the first tune and the biggest volume.

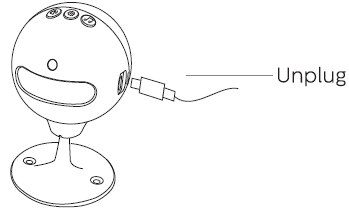

Low Power Prompt
- When the voltage is lower than a certain value, the button on the host or the remote control is triggered, the indicator light flashes 3 times, and there is no voice prompt; it indicates that you should change the battery or plug in USB power.
- When the battery voltage is too low, it will shut down automatically.
Attention
- Please use an Alkaline or rechargeable battery; do not mix the new and old batteries to use
- Non-professionals are not allowed to repair.
- Do not install the product in a place where it is exposed to rain, long periods of direct sunlight, or where the temperature will change rapidly.
Technical Parameters
- Working voltage: USB 5V or 3*AAA Alkaline battery.
- Standby current: <300uA.
- Working current: <100mA.
