LEVOIT Core 300-P Air Purifier User Manual

LEVOIT Core 300-P Air Purifier

Package Contents

• 1 x Air Purifier
• 1 x Pre-Installed Original Filter 1 x User Manual
• 1 x Quick Start Guide

Specifications

GETTING TO KNOW YOUR AIR PURIFIER

• A. Fan Speed Indicators
• B. Fan Speed Button
• Ci Sleep Mode Indicator/Button
• D. Timer Button
• E. Timer Indicators
• F. On/Off Button
• G. Display Lock Button
• Hi Check Filter Indicator
• I. Display Off Button
• J. Air Outlet
• K. Housing
• L. Air Inlet
• M. Power Cord
• N .Filter Cover
• O. Original Filter

CONTROLS

On/Off Button:

• Turns the air purifier on/off.

Fan Speed Button

• Cycles through fan speeds: I (low), II (medium), and Ill (high).

Sleep Mode Button

• Turns Sleep Mode on/off (see page 8).

Timer Button

• Cycles through timer options (see page 9).

Display Lock Button

• Prevents current settings from being changed (see page 9).

Check Filter Indicator

• Lights up when the filter should be checked (see Check Filter Indicator, page 11).

Display Off Button

• Turns the display off.
• Tap any button to turn the display back on.

GETTING STARTED

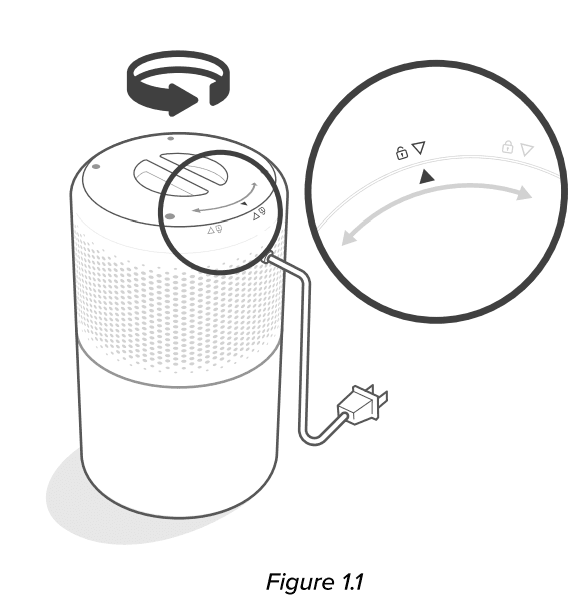

1. Flip the air purifier over twist the filter cover counter clockwise and remove it.

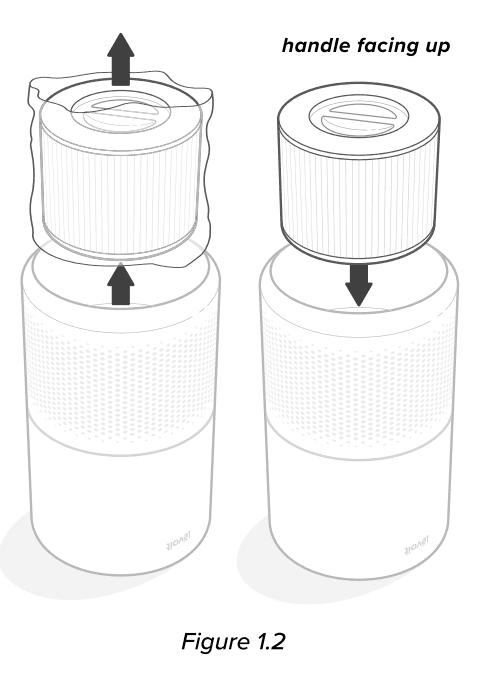

2. Remove the filter from its plastic packaging and place the filter back into the air purifier with the handle up.

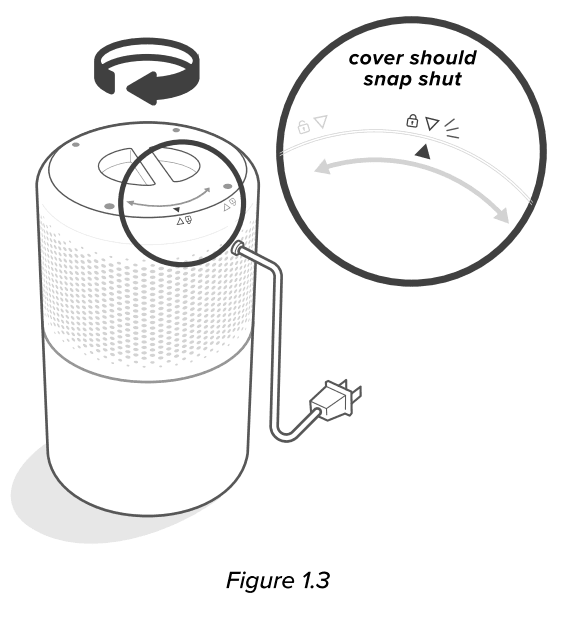

3. Replace the filter cover and twist clockwise to lock.

USING YOUR AIR PURIFIER

1. Place the air purifier on a flat, stable surface with the display facing up. Allow at least 15 inches / 38 cm of clearance on all sides of the air purifier. Keep away from anything that would block airflow, such as curtains. [Figure 2.1]
2. Plug in and tap  to turn on the air purifier. The fan will start on level I.
   [Figure 2.2]
3. Optionally, tap to change fan speed.
4. Tap to turn off the air purifier.

Memory Function

When the air purifier is plugged in, it will remember its previous fan speed setting.

Sleep Mode
Sleep Mode operates quietly by using the lowest possible fan speed.

• Tap to turn Sleep Mode on/off.
• Tapping will exit Sleep Mode.

NOTE:

• The indicators are not buttons and cannot be used to change the fan speed.
• The fan speed indicators will light up when active.
• Fan speed Ill is the loudest, but cleans air the quickest. For best results, or to address a specific air quality issue such as smoke, run the air purifier at high speed (level Ill) far 15-20 minutes before using a lower speed.
• To effectively clean air, keep windows and doors closed while the air purifier is on.

USING YOUR AIR PURIFIER (CONT.)

Timer
You can set a timer for 2, 4, 6, or 8 hours.

1. Tap repeatedly to select a time. The timer will start automatically.
2. Once the timer has finished, the air purifier will turn off.
3. To cancel a timer, tap  until all timer indicators are off.

ABOUT THE FILTER

Humidity
Moisture may damage the filter. This air purifier should be used in an area with a humidity level below 85% RH. If you use the air purifier in excessively humid areas, the surface of the filter will become moldy.

Essential Oils
Do not add essential oils to the air purifier or filter. The filter will become damaged by the oil and will eventually release an unpleasant smell. Do not use oil diffusers near the air purifier.
LEVOIT REPLACEMENT FILTERS
Choose the filter best suited to the environment of your home.

CARE & MAINTENANCE

Cleaning the Air Purifier

1. Unplug before cleaning.
2. Wipe the outside of the air purifier with a soft, dry cloth. If necessary, wipe the housing with a damp cloth, then immediately dry.
3. Vacuum the inside of the air purifier.

Cleaning the Filter

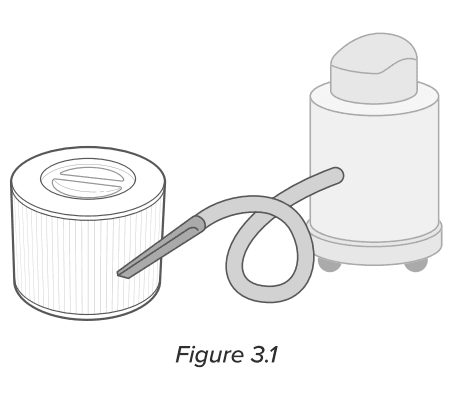

The outer pre-filter should be cleaned every 2-4 weeks to increase the efficiency and extend the life of your filter. Clean the pre-filter using a soft brush or vacuum hose to remove hair, dust, and large particles. [Figure 3.1] Do not clean the filter with water or other liquids.

Replacing the Filter

1. Unplug the air purifier. Flip the air purifier over and remove the filter cover (see Getting Started, page 7).
2. Remove the old filter.
3. Clean out any remaining dust or hair inside the purifier using a vacuum hose. Do not use water or liquids to clean the purifier. [Figure 3.2]
4. Unwrap the new filter and place it into the housing (see Getting Started, page 7).
5. Replace the filter cover. The air purifier will not power on unless the cover is replaced correctly.
6. Plug in and turn on the air purifier.
7. Reset the Check Filter Indicator

TROUBLESHOOTING
