LG LFXS28596 Door-in-Door Refrigerator User Manual

LG LFXS28596 Door-in-Door Refrigerator

PRODUCT OVERVIEW

Product Features

The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.

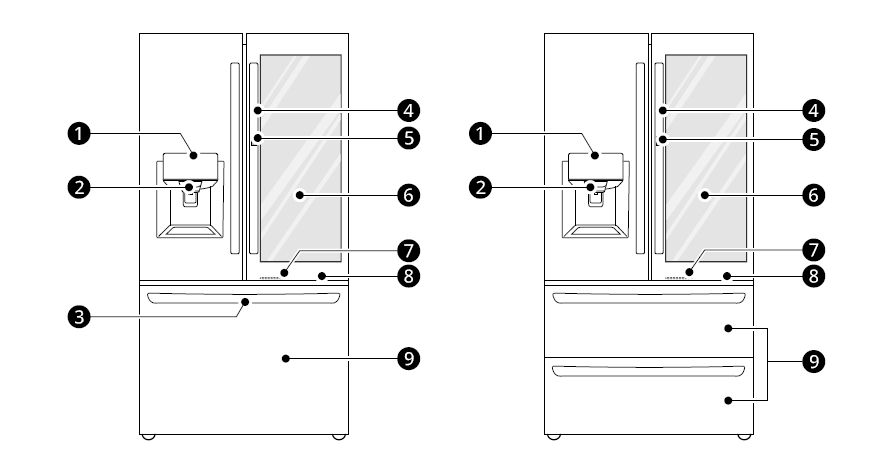

Exterior

This feature is only available on some models.

Control Panel
Sets the refrigerator temperature and freezer temperature, the water filter condition and the dispenser mode.
Filtered Water and Ice Dispenser
Dispenses purified water and ice.
EZ Handle
Easily opens the freezer door.
Handle
Opens and closes the refrigerator door.
Door Button
Opens the Door-in-Door Compartment.
InstaView Door-in-Door
Allows for easy access to commonly used food items.
LED Light
Lights up when the freezer door is opened.
Refrigerator
Fresh food compartment
Freezer
Frozen food compartment

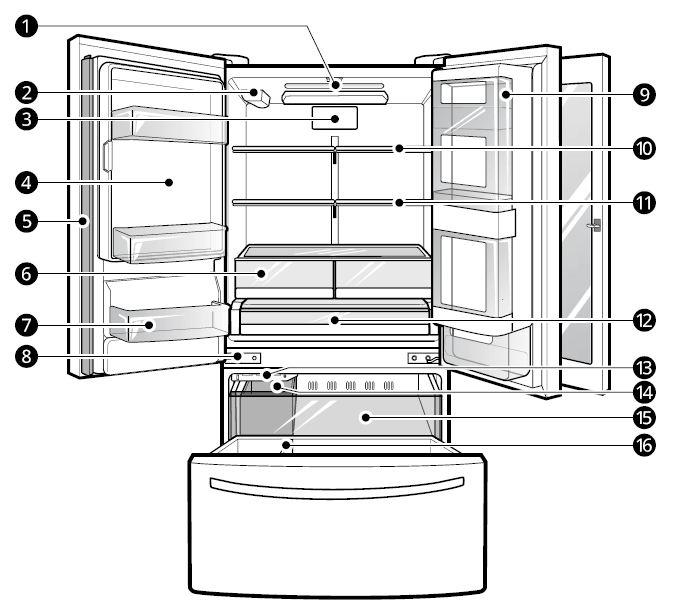

Interior

† This feature is only available on some models.
InstaView Door-in-Door

LED Interior Lighting
Lights up the inside of the refrigerator.
Water filter
Purifies water. The filter should be replaced every 6 months
Air Filter
Reduces odors inside the refrigerator compartment.
In-Door Icemaker (Refrigerator)
This is where ice is automatically produced and stored.
Door Mullion
Prevents the cold air in the refrigerator from escaping when the doors are closed.
Humidity Controlled Crisper
Helps vegetables and fruit to stay crisp and controls humidity.
Fixed Door Bin
Stores chilled food or drinks.
Auto-Closing Hinge
The refrigerator doors and freezer drawers close automatically when pushed slightly. (The door only closes automatically when it is open at an angle of less than 30°.)
Door-in-Door Case
A convenient storage area for frequently-used items that require easy access.
Adjustable Refrigerator Shelf
The refrigerator shelves are adjustable to meet individual storage needs.
Folding Shelf
Store taller items, such as gallon containers or bottles, by pushing the front half of the shelf
underneath the back half of the shelf.
Glide ‘N’ Serve
Stores food items at a different temperature than the regular refrigerator area.
Automatic Icemaker (Freezer)
Dispenses ice automatically.
Ice Bin
Stores ice from the freezer icemaker.
Pullout Drawer
Provides extra storage within the freezer compartment.
Durabase and Durabase Divider
Provides storage for large frozen food items.

Product Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

Electrical requirements: 115 V, 60 Hz
Min. / Max. water pressure: 20 – 120 psi (138 – 827 kPa)

Model	Description	Net weight
LFXS28596*	Standard-depth, InstaView Door-in-Door French door refrigerator, bottom freezer, Sabbath Mode	320 lb (145 kg)
LMXS28596*	Standard-depth, InstaView Door-in-Door French door refrigerator, bottom freezer	334 lb (152 kg)
LMRS28596*	Standard-depth, InstaView Door-in-Door French door refrigerator, bottom freezer, Sabbath Mode	340 lb (154 kg)
LRMVS2806*	Standard-depth, Insta View Door-in-Door French door refrigerator, bottom freezer, Sabbath Mode	336 lb (153 kg)
LFXS26596*	Standard-depth, Insta View Door-in-Door French door refrigerator, bottom freezer, Sabbath Mode	309 lb (140 kg)
LFXC22596*	Counter-depth, Insta View Door-in-Door French door refrigerator, bottom freezer, Sabbath Mode	295 lb (134 kg)

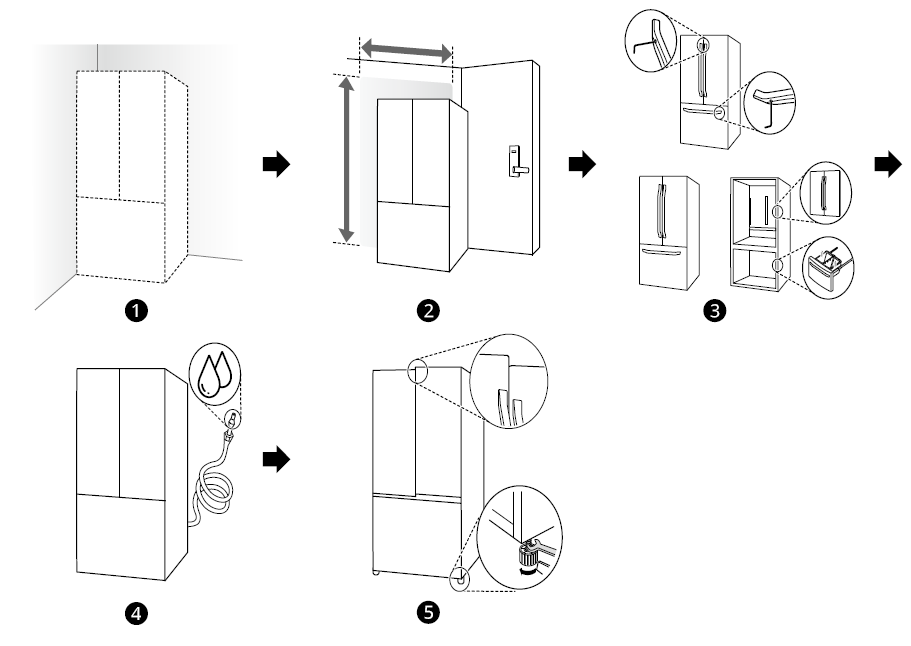

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting it to another location.

Unpacking the Refrigerator
Choosing the Proper Location
Disassembling/Assembling
Connecting the Water Line
Leveling and Door Alignment

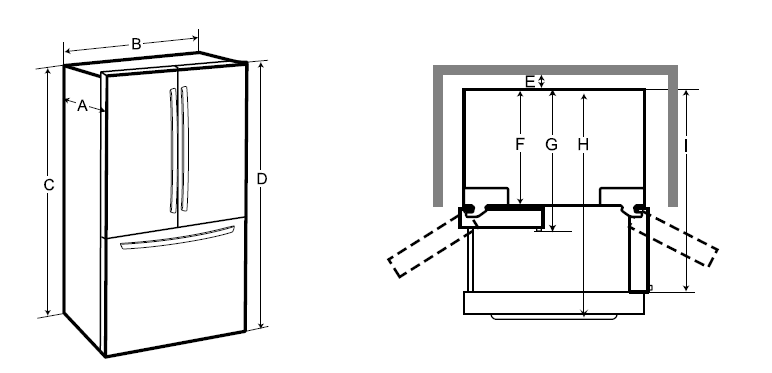

Dimensions and Clearances

Check the dimensions of the appliance and the installation path to ensure there is sufficient room to move the refrigerator through doors or narrow openings.
If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/Assembling the Doors and Drawers in this manual.
The installation location chosen for the refrigerator should allow space behind the unit for connections and airflow and space in front to open the doors and drawers.
Too small of a distance from adjacent items may result in lowered freezing capability and increased electricity consumption charges. Allow at least 24 inches (610 mm) in front of the refrigerator to open the doors, and at least 2 inches (50.8 mm) between the back of the refrigerator and the wall.

–	Dimension/Clearance	LFXS28596* LMXS28596* LMRS28596* LRMVS2806*	LFXS26596*	LFXC22596*
A	Depth without Handle	33 3/4″ (857 mm)	32 3/8″ (822 mm)	28 3/4″ (728 mm)
B	Width	35 3/4″ (908 mm)	35 3/4″ (908 mm)	35 3/4” (908 mm)
C	Height to Top of Case	68 1/2″ (1737 mm)	68 1/2″ (1737 mm)	68 1/2″ (1737 mm)
D	Height to Top of Hinge	69 3/4″ (1772 mm)	69 3/4″ (1772 mm)	69 3/4″ (1772 mm)
E	Back Clearance	2″ (50 mm)	2″ (50 mm)	2″ (50 mm)
F	Depth without Door	29 7/8” (759 mm)	28 1/2˝ (724 mm)	24 3/4″ (628 mm)
G	Depth with Handle	36 1/4″ (921 mm)	34 7/8″ (886 mm)	31 1/4″ (792 mm)
H	Depth (Total with Freezer Drawer Open)	57 5/8” (1461 mm)	56 1/4” (1426 mm)	48 1/2” (1232 mm)
I	Depth (Total with Door Open 90°)	48 5/8” (1234 mm)	47 1/4” (1199 mm)	43 1/2” (1103 mm)

Removing/Assembling Handles

These instructions are for models which ship with the handles assembled. For models shipped with the handles disassembled, follow the instructions included in the handle package.

Tools Needed
Units shipped with disassembled handles: 3/32″ and 1/4″ Allen wrenches only
Units shipped with assembled handles: 3/32″, 1/8″ and 1/4″ Allen wrenches

When moving the refrigerator through a narrow opening, removing the doors is preferred. If you must remove the handles, be very careful not to scratch the doors.
The appearance of the handles may vary from what is shown.

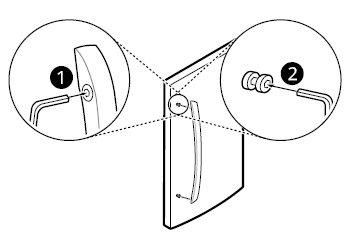

Assembling Refrigerator Handles

If needed, reassemble the mounting fasteners a on the door with a 1/4 in. Allen wrench.
Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws b with a 3/32 in. Allen wrench

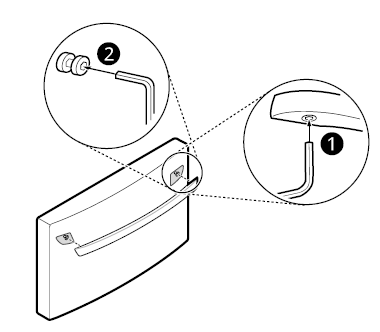

Removing Freezer Drawer Handles

Loosen the set screws a located on the lower side of the handle with a 3/32 in. Allen wrench and remove the handle.
- For models shipped with the handles assembled, use a 1/8 in. Allen wrench.
Loosen the mounting fasteners b with a 1/4 in. Allen wrench, and remove the mounting fasteners.

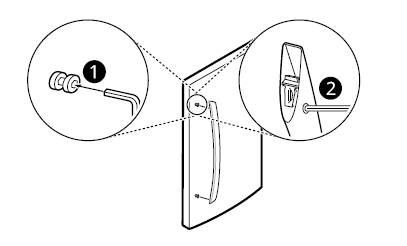

Removing Refrigerator Handles

Loosen the set screws a with a 3/32 in. Allen wrench and remove the handle.
If needed, loosen the mounting fasteners b that connect the refrigerator door and handle using a 1/4 in. Allen wrench, and remove the mounting fasteners.

Assembling Freezer Drawer Handles

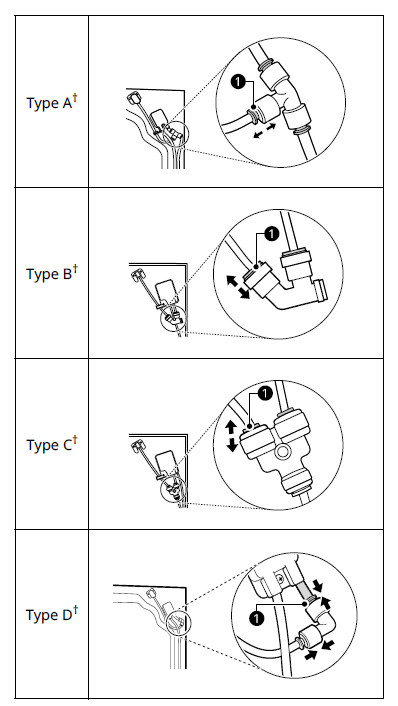

The water supply is connected to the upper right part of the rear surface of the
refrigerator. Remove the clip in the joint area. Hold the water supply connection and gently push the collet a to detach the water supply line as shown.

OPERATION

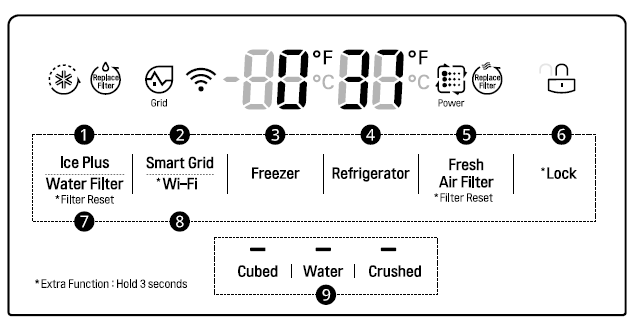

Control Panel

Depending on the model, some of the following functions may not be available. The actual control panel may differ from model to model.

Control Panel Features

Ice Plus
This function increases both ice making and freezing capabilities. Press the Ice Plus button to illuminate the icon and activate the function for 24 hours. The function automatically shuts off after 24 hours. Stop the function manually by pressing the button once more.
Smart Grid
Press the Smart Grid button to turn the function On/Off. When the function is on, the icon illuminates. The function automatically turns on when the refrigerator is connected to the Wi-Fi network. When the refrigerator is responding to a Demand Response (DR) message from the electric company, the Grid text illuminates.
Freezer
Indicates the set temperature of the freezer compartment in Celsius (°C) or Fahrenheit (°F). The default freezer temperature is 0°F (-18 °C).
- Type A: Press the Freezer button repeatedly to select a new set temperature from -6 °F to 8 °F (-21 °C to -13 °C).
- Type B: Press the Freezer button repeatedly to select a new set temperature from -7 °F to 5 °F (-23 °C to -15 °C).
Refrigerator
Indicates the set temperature of the refrigerator compartment in Celsius (°C) or Fahrenheit (°F). The default refrigerator temperature is 37 °F (3 °C)
- Type A: Press the Refrigerator button repeatedly to select a new set temperature from 33 °F to 46 °F (1 °C to 8 °C).
- Type B: Press the Refrigerator button repeatedly to select a new set temperature from 33 °F to 43 °F (1 °C to 7 °C). 28 OPERATION
  NOTE
- To change the temperature mode from °F to °C (or vice versa) press and hold the Refrigerator and Freezer buttons simultaneously for approximately five seconds. The temperature indicator on the display window switches between Celsius and Fahrenheit.
- The displayed temperature is the target temperature, and not the actual temperature of the refrigerator. The actual refrigerator temperature depends on the food inside the refrigerator.
Fresh Air Filter
The Fresh Air Filter helps remove odors from the refrigerator. The Fresh Air Filter has two settings, Auto and Power. In Auto mode, the Fresh Air Filter cycles on and off in increments of ten minutes on and 110 minutes off. If set to the Power mode, the Fresh Air Filter stays on continuously for four hours, cycling on and off in increments of ten minutes on and five minutes off. After four hours, the Fresh Air Filter switches back to Auto mode.
- Press the Fresh Air Filter button repeatedly to toggle between Power mode and Auto mode.
  NOTE
- Replace the air filter when the g icon turns on. After replacing the air filter, press and hold the Fresh Air Filter button for three seconds to turn the icon light off. Replace the air filter approximately every six months.
- Refer to the Replacing the Fresh Air Filter section for details.
Lock
The lock function disables every other button on the display.
- When power is initially connected to the refrigerator, the lock function is off.
- To lock the control panel buttons, press and hold the Lock button until the k icon appears in the display and the function is activated.
- To disable the function, press and hold the Lock button for approximately three seconds.
Water Filter
Replace the water filter when the h icon turns on. After replacing the water filter, press and hold the Water Filter button for three seconds to turn the icon light off. Replace the water filter approximately every six months.
Wi-Fi
The Wi-Fi button, when used with the LG ThinQ app, allows the refrigerator to connect to a home Wi-Fi network. Refer to Smart Functions for information on the initial setup of the application. The f icon shows the status of the refrigerator’s network connection. The icon illuminates when the refrigerator is connected to the Wi-Fi network. Press and hold the Wi-Fi button for 3 seconds to connect to the network. The icon blinks while the connection is being made, then turns on once the connection is successfully made.
Water & Ice Type
Select the desired dispenser mode from the buttons on the dispenser control panel. Press the dispenser switch with a glass or other container to dispense cubed ice, water or crushed ice. Changing the Craft Ice Mode

SMART FUNCTIONS

LG ThinQ Application
This feature is only available on models with Wi-Fi. The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Smart Learner
Provides a more personalized experience based on an analysis of your usage patterns.
Smart Sabbath
Activates or deactivates the Sabbath mode and sets the schedule for the mode activation.
Energy Monitoring
This feature keeps track of the refrigerator’s power consumption and the number of door openings.
Remote Control
Controls the refrigerator temperature, air filterand Ice Plus from the smartphone application.
Push Messages
If the door remains open for more than ten minutes, you will receive a push message. When Ice Plus is finished, you will receive a push message.
Smart Diagnosis
This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.
Settings
Allows you to set various options on the refrigerator and in the application.

MAINTENANCE

Performance Data Sheet

Model: LT1000P, LT1000PC, LT1000PCS NSF System Trade Name Code: MDJ64844601. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ ANSI Standard 42, Standard 53 and Standard 401.

Substance Reduction	Average Influent Challenge	NSF Specified Challenge Concentration	Avg % Reduction	Average Product Water Concentration	Max Permissible Product Water Concentration	NSF Reduction Requirements
Chlorine Taste and Odor	2.0 μg/L	2.0 μg/L± 10 %	>97.5 %	0.050 μg/L	N/A	2 50.00 %
Nominal Particulate Class I, , 2 0.5 to < 1.0 μm	12,000,000 pts/mL	At least 10,000 particles/mL	99.80 %	24,000 pts/ml	N/A	2 85.00 %
Asbestos	180 MFL	107 to 108 MFL; fibers greater than 10 μg/Lin length	>99.00 %	< 1 MFL	N/A	2 99.00 %
Atrazine	8.5 μg/L	9.0 μg/L ± 10 %	>94.10 %	0.500 μg/L	3.0 μg/L	NA
Benzene	15.0 μg/L	15.0 μg/L ± 10 %	>96.60 %	0.510 μg/L	5.0 μg/L	NA
Carbofuran	74.0 μg/L	80.0 μg/L ± 10 %	98.30 %	1.258 μg/L	40 μg/L	NA
Lindane	1.9 μg/L	2.0 μg/L ± 10 %	>99.00 %	0.019 μg/L	0.2 μg/L	NA
P-Dichlorobenzene	230.0 μg/L	225.0 μg/L ± 10 %	>99.80 %	0.460 μg/L	75.0 μg/L	NA
2,4-D	210.0 μg/L	210.0 μg/L ± 10 %	>99.90 %	0.210 μg/L	70.0 μg/L	NA
Lead pH @6.5	140.0 μg/L	150.0 μg/L ± 10 %	99.60 %	0.560 μg/L	10.0 μg/L	NA
Lead pH @8.5	150.0 μg/L	150.0 μg/L ± 10 %	>99.70 %	<0.500 μg/L	10.0 μg/L	NA
Mercury @ pH6.5	5.9 μg/L	6.0 μg/L ± 10 %	91.00 %	0.531 μg/L	2.0 μg/L	NA
Mercury @ pH8.5	5.6 μg/L	6.0 μg/L ± 10 %	92.5 %	0.420 μg/L	2.0 μg/L	NA
Cyst*	100,000 cysts/L	Minimum 50,000 cysts/L	>99.99 %	10 cysts/L	N/A	2 99.95 %
Atenolol	240 ng/L	200 ± 40 % ng/L	>95.50 %	10.80 ng/L	30 ng/L	NA
Carbamazepine	1600 ng/L	1400 ± 40 % ng/L	98.40 %	25.60 ng/L	200 ng/L	NA
DEET	1600 ng/L	1400 ± 40 % ng/L	97.10 %	46.40 ng/L	200 ng/L	NA
Trimethoprim	170 ng/L	140 ± 40 % ng/L	>96.80 %	5.44 ng/L	20 ng/L	NA
Linuron	160 ng/L	140 ± 40 % ng/L	>96.60 %	5.44 ng/L	20 ng/L	NA
Phenytoin	200 ng/L	200 ± 40 % ng/L	>94.80 %	10.40 ng/L	30 ng/L	NA
Ibuprofen	400 ng/L	400 ± 40 % ng/L	>94.50 %	22.00 ng/L	60 ng/L	NA
Naproxen	140 ng/L	140 ± 40 % ng/L	>96.10 %	5.46 ng/L	20 ng/L	NA
Estrone	120 ng/L	140 ± 40 % ng/L	>96.10 %	4.68 ng/L	20 ng/L	NA
Bisphenol A	2000 ng/L	2000 ± 40 % ng/L	>98.90 %	22.00 ng/L	300 ng/L	NA
Nonyl Phenol	1600 ng/L	1400 ± 40 % ng/L	>97.10 %	46.40 ng/L	200 ng/L	NA

TROUBLESHOOTING

Before Calling for Service

Review this section before calling for service; doing so will save you both time and money.

Problem

Possible Cause & Solution

Refrigerator is not cooling or has no power.

The refrigerator control is set to OFF (some models).

Turn the control ON. Refer to the Setting the Controls section for proper temperature settings.

Refrigerator is set to Demo Mode.

Demo Mode allows the lights and control display to work normally while disabling cooling, to save energy while the refrigerator is on the showroom floor. See the FAQs section of this manual for instructions on how to disable Demo Mode.

Refrigerator is in the defrost cycle.

During the defrost cycle, the temperature of each compartment may rise slightly. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

Refrigerator was recently installed.

It may take up to 24 hours for each compartment to reach the desired temperature.

Refrigerator was recently relocated.

If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.

Cooling system runs too much.

Refrigerator is replacing an older model.

Modern refrigerators require more operating time but use less energy due to more efficient technology.

Refrigerator was recently plugged in or power restored.

The refrigerator will take up to 24 hours to cool completely.

The door is opened often or a large amount of food / hot food was added.

Adding food and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)

Doors are not closed completely.

Firmly push the doors shut. If they will not shut all the way, the “Doors will not close correctly or pop open” section in Troubleshooting.

Refrigerator is installed in a hot location.

The compressor will run longer under warm conditions. At normal room temperatures (70

°F or 21 °C) expect your compressor to run about 40 % to 80 % of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 110 °F (43 °C).

Condenser / back cover is clogged.

Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

Interior moisture buildup.

Doors are opened often or for long periods of time.

When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.

Doors are not closed correctly.

See the “Doors will not close correctly or pop open” section.

Problem

Possible Cause & Solution

Interior moisture buildup.

Weather is humid.

Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.

Defrost cycle recently completed.

During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has completed.

Food is not packaged correctly.

Food stored uncovered or unwrapped, and damp containers can lead to moisture accumulation within each compartment. Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.

Food is freezing in the refrigerator compartment.

Food with high water content was placed near an air vent.

Rearrange items with high water content away from air vents.

Refrigerator temperature control is set incorrectly.

If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Panel section for more information.

Refrigerator is installed in a cold location.

When the refrigerator is operated in temperature below 41 °F (5 °C), food can freeze in the refrigerator compartment. The refrigerator should not be operated in temperature below 55 °F (13 °C).

Refrigerator or Freezer section is too cold.

Incorrect temperature control settings.

If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Panel for more information.

Frost or ice crystals form on frozen food (inside of sealed package).

Condensation from food with a high water content has frozen inside of the food package.

This is normal for food items with a high water content.

Food has been left in the freezer for a long period of time.

Do not store food items with high water content in the freezer for a long period of time.

Frost or ice crystals form on frozen food (outside of package).

Door is opened frequently or for long periods of time.

When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and duration of door openings.

Door is not closing properly.

Refer to the “Doors will not close correctly or pop open” section in the Troubleshooting.

Refrigerator or Freezer section is too warm.

Refrigerator was recently installed.

It may take up to 24 hours for each compartment to reach the desired temperature.

The air vents are blocked. Cold air circulates from the freezer to the fresh food section and back again through air vents in the wall dividing the two sections.

Locate air vents by using your hand to sense airflow and move all packages that block vents and restrict airflow. Rearrange items to allow air to flow throughout the compartment.

Doors are opened often or for long periods of time.

When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.

Problem

Possible Cause & Solution

Refrigerator or Freezer section is too warm.

Unit is installed in a hot location.

The refrigerator should not be operated in temperatures above 110 °F (43 °C).

A large amount of food or hot food was added to either compartment.

Adding food warms the compartment requiring the cooling system to run. Allowing hot food to cool to room temperature before putting it in the refrigerator will reduce this effect.

Doors are not closed correctly.

See the “Doors will not close correctly or pop open” section in the Troubleshooting.

Temperature control is not set correctly.

If the temperature is too warm, adjust the control one increment at a time and wait for the temperature to stabilize.

Defrost cycle has recently completed.

During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

FOR MORE MANUALS BY LG, VISIT ManualsLibraryy

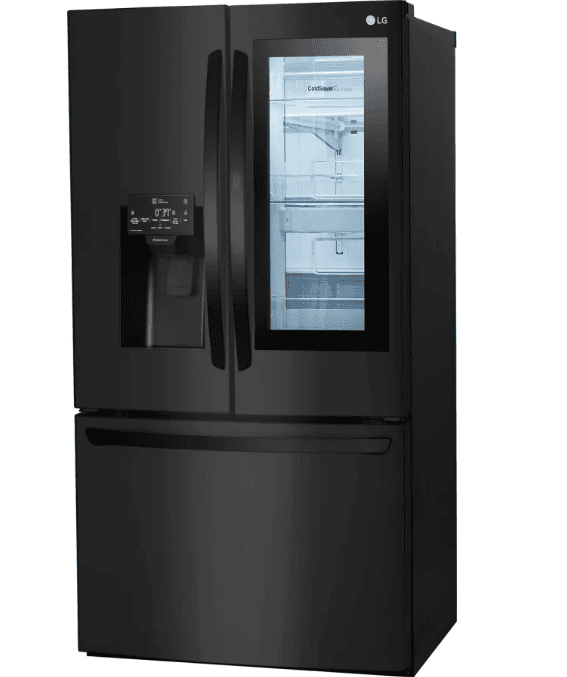

LG LFXS28596 Door-in-Door Refrigerator User Manual
