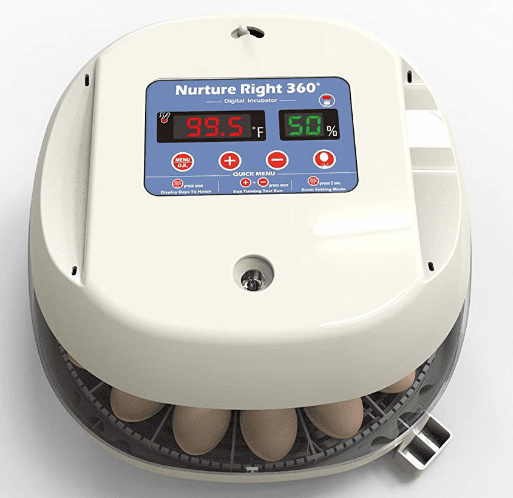

MannaPro Harris Farms Nurture Right 360 Egg Incubator

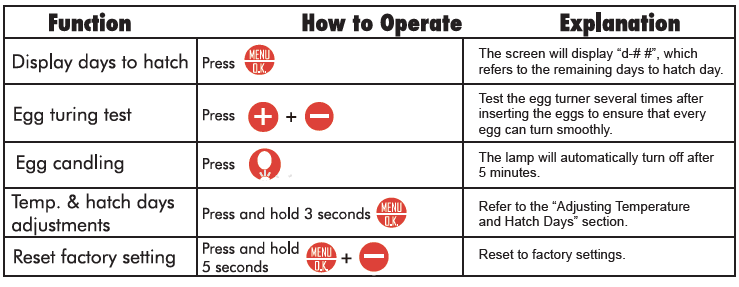

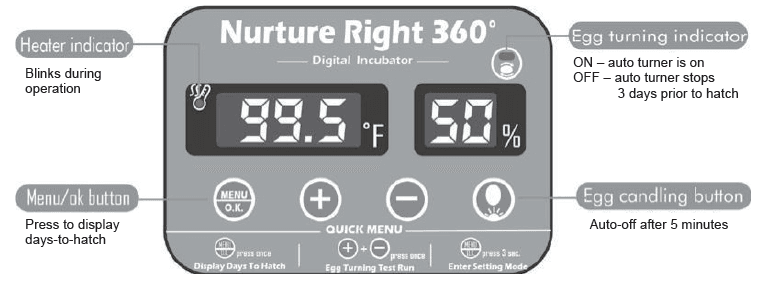

1) Digital Control Function
2) Choosing the Right Location for Your Incubator
The incubation room environment can have a considerable effect on the hatch rate. The incubator needs to be placed in a room with a stable temperature between 74°-80°F. Pay attention to the room temperature to ensure that it doesn’t drop below 72°F, particularly at night. Do not place the incubator near a window to avoid direct sunlight and drafts. Do not use the incubator on the floor. Not enough fresh air is available close to the ground due to the CO2 concentration.
3) Assembling the Incubator
- a) Place the egg tray onto the base, making sure the tray sits flat and level.
- b) Fit the egg turner onto the “D-shaped” shaft of the turner motor located in the center of the incubator base.

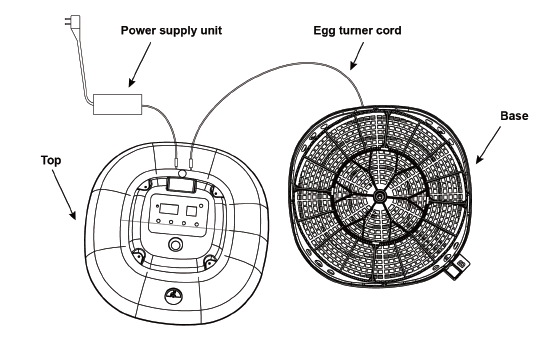

- c) Plug the egg turner cord (coming out from the base) into the socket located on the back of the incubator top. Connect the power supply unit to the incubator top.

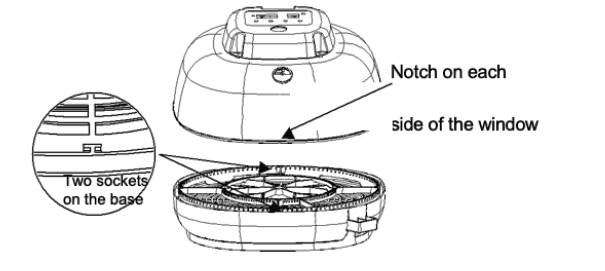

- d) Place the top onto the incubator base, ensuring the clear window is completely closed. It’s important to align the two notches on the bottom of the clear window with the two sockets on the base.
Make sure the notches align completely with the two sockets on the base
4) Adjusting Temperature and Hatch Days
This incubator is factory pre-set to 99.5°F and has 21 hatch days for chicken eggs. Upon plugging the incubator into power, the timer will immediately begin countdown from 21 days and the temperature will gradually increase to 99.5 °F. During this time, the heater indicator light will blink – this is normal.
To change the temperature, press and hold the “MENU” button for 3 seconds, and the pre-set “99.5” °F will blink on the screen. Then, use the “+” or “-” buttons to adjust the temperature. After completing the temperature adjustment, press the “MENU” button again to enter hatch days setting mode, and the pre-set “d – 21” will blink on the screen. Then use “+” and “-” to adjust the hatch days.
When finished, press the “MENU” button once more to exit the setting mode. The incubator will then start to run using the new settings. During the initial warm-up period, the “Low Temperature” alarm may be triggered as the unit slowly warms up to 99.5°F. This is normal due to the cooler starting temperature of the eggs, water, and ambient air inside the incubator. To disable the alarm, press the “MENU” button once.

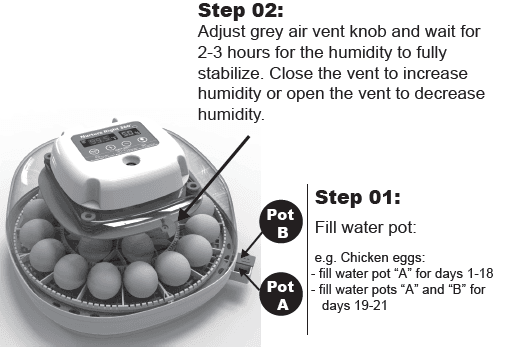

5) Controlling Humidity
The humidity in this incubator can be roughly adjusted by adding water to one or both water pots via the external water filling port and can be further adjusted via the air vent knob to achieve the required humidity level.
Day 1 until 3 days before hatch day
To prepare the incubator for the first stage of incubation, fill water pot “A” and open the grey air vent halfway. Then wait for 2-3 hours for the humidity to fully stabilize, to achieve a humidity around 50% (48-55% is acceptable) which is suitable for most poultry.
Last 3 days before hatch day
To prepare the incubator for the final stage of incubation, remove the red plug from water pot “B” and add water to water pot “B” in addition to water pot “A”. Next, open the grey air vent fully. Then wait 2-3 hours for the humidity to fully stabilize, to achieve a humidity around 70% (65-75% is acceptable) which is suitable for most poultry.
IMPORTANT NOTE
When in use, the air vent cannot be fully closed. The air vent should be set 1/2 open for the first 18 days. If the incubator is not at 48-55% humidity with the 1/2 open setting, the vent can be further closed to increase humidity. However, the vent must remain at least 1/3 open for the first 18 days and fully open for the last 3 days to ensure adequate ventilation for the eggs.
To ensure adequate ventilation, open the vent to at least 1/3 open for the first 18 days, although 1/2 open is recommended.
To ensure adequate ventilation, the air vent MUST be fully opened for the last 3 days of incubation.
The red plug on water pot “B” is used to prevent the warm air from leaking out. Do not remove it until 3 days before hatch day. When adding water, slowly and carefully pour the water to 2/3 or 3/4 of the height of the water pot. Take care when adding water to water pot “A” to not spill any water into water pot “B” to prevent the humidity from spiking.
Inspect the water pot every 24 hours and refill it as needed. Do not let the incubator run without water! To reduce the impact of cold on the eggs, using warm distilled water (80-90°F) is recommended. After adding water, the humidity may fluctuate. Allow 2-3 hours for the humidity to fully stabilize before making any further adjustments.
6) Inserting Eggs and Turning
Before setting eggs, ensure the incubator has been run for 4-5 hours with warm water added to water pot “A”. Also, allow stored eggs to naturally warm up for 6-8 hours to room temperature before setting them into the incubator. This will minimize dew condensation on the egg surface.

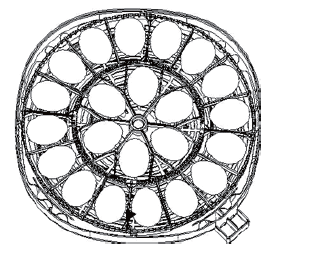

Eggs need to be set lying flat with their pointed ends facing inwards towards the center of the incubator. Ensure there is a gap on the side of each egg. This will allow for smooth rolling.
After setting the eggs, conduct a turning test to check if each egg is sitting correctly and can turn smoothly. Conduct the test run by pressing the “+” and “-” buttons at the same time. To make observation easier, the sides of the eggs can be marked with a pencil mark “X”.
Next, replace the cover. The clear window must be completely flush with the base and the two notches on the lid must be properly aligned with the sockets on the base to maintain the air seal. Otherwise, the warm air will leak out causing an internal temperature fluctuation.
The timer will begin the countdown from 21 days immediately upon plugging the unit in. After running the incubator without eggs for several hours to allow it to stabilize, the timer will need to be reset to the full incubation period. To ensure that the timer is accurate to 21 days, reset the timer after inserting the eggs. To reset the incubator, press and hold the “Menu” and “-“ buttons for 5 seconds. The incubator will reset to exactly 21 days and restart the countdown from 21 days.
7) Using the Built-In Egg Candler
Remove the lid and place it next to the incubator base, taking care not to unplug the egg turner cord. Then gently place the large end of the egg onto the candling zone. Press the candling button and observe the interior of the egg.
- Dimming room lights will make observation easier.
- Please take special care to avoid giving shocks or vibrations to the egg.
- Excessive shaking or turning during candling can cause the egg to die of stress.
- Since the room temperature is much lower than that of the incubator, candling should be completed within 8 minutes.
- The low-temperature alarm may be triggered during candling since opening the incubator will cause a temperature loss. To disable the alarm, press the “MENU” button once. After closing the lid the temperature will gradually return to 99.5°F.
8) Preparing for Hatching
When the days-to-hatch countdown reaches 3 days before hatch, the egg turner will automatically stop turning the eggs and the egg turner indicator light will be OFF. This is a reminder to remove the egg turner from the incubator base and to increase the humidity.
Open the incubator and slowly and gently lift the egg turner out of the motor shaft (the egg turner is detachable), and then close the incubator. The eggs do not need to be removed to remove the egg turner. The egg turner must be removed 3 days before hatch to allow enough space for the chicks to exit the shell, otherwise chicks may become stuck in the shell.

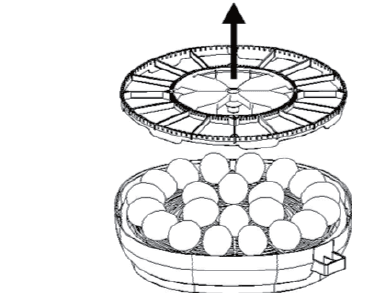

Gently lift upward to remove the egg turner from the base
Remove the red plug from water pot “B”, fill both water pots “A” and “B”, and adjust the air vent knob to achieve a higher humidity of around 70%. Avoid opening the lid frequently. Every time the lid is opened to remove the chicks, the humidity level will fall dramatically and will take time to return to around 70%. Therefore do not open the lid more often than every 6 hours unless necessary.
Chicks can be removed from the incubator after 24 hours when they are fully dry and fluffed but can remain in the incubator up to 2 days after hatching. As some chicks may be late to hatch, the unhatched eggs can remain in the incubator for up to 2 extra days until the end of day 23.
9) Returning to the Factory Setting
When the hatch is complete, the timer will count down to 0 days but will not automatically reset to 21 days. To start a new countdown timer for a subsequent hatch, reset the timer after putting in new eggs, otherwise, the egg turner will not operate automatically.
Resetting the incubator will return it to the factory settings of 99.5°F and 21 hatch days. To reset the incubator, press and hold both the “Menu” and “-” buttons for more than 5 seconds. The incubator will beep and the display will blink one time, indicating that the incubator has successfully been reset. The timer will then restart the countdown from 21 days.
10) Cleaning the Incubator
Disconnect the incubator from the main power supply before cleaning. Wipe all internal surfaces with a disinfectant solution using a damp cloth. Then wipe dry with a clean cloth. Ensure that all electrical parts are kept dry during cleaning. Do not immerse any electrical parts! After cleaning the incubator, plug the incubator into power to run dry (with no added water) for 24 hours to ensure it is thoroughly dry before storage.
11) Calibrating Temperature & Humidity
The built-in calibration function is for resetting the incubator temperature or humidity reading with an external thermometer or hygrometer. As the incubator is already calibrated at the factory, recalibration is not recommended without first verifying that the temperature or humidity reading is incorrect.
For more manuals by MannaPro visit, ManualsLibraryy
MannaPro Harris Farms Nurture Right 360 Egg Incubator-FAQs
How often does the Nurture Right 360 egg turner operate?
The egg turner runs for five seconds every 60 minutes when turned on.
How can I adjust the temperature on the Nurture Right 360 incubator?
Press and hold the “MENU” button for three seconds until the pre-set temperature of 99.5°F blinks on the screen. Use the “+” or “-” buttons to set your desired temperature.
How long can eggs survive in an incubator without power?
Eggs can remain viable at temperatures as low as 70°F for short periods. Many embryos can survive temperatures below 90°F for up to 18 hours.
How long can eggs go without being rotated?
Turning is crucial during the first 10–12 days of incubation. After this period, stopping rotation generally does not significantly affect hatchability.
How can I lower the humidity in the Nurture Right 360 incubator?
Adjust the vent to increase or decrease humidity levels during days 1–14 of incubation.
What is the ideal temperature for an incubator?
The optimal temperature is 99.5°F (37.5°C). Temperatures outside the range of 35–40.5°C (84.5–104.9°F) can decrease hatch rates and cause abnormalities. Above 40.5°C (104.9°F), embryos will not survive.
When should I stop using the egg turner?
Turn off or remove the egg turner on day 18 of incubation. At this stage, chicks are preparing for hatching, and humidity should be increased to 65–70%.
What is the recommended room temperature for an incubator?
Maintain an optimum room temperature of 100.5°F, with an acceptable range of 99–102°F. For humidity, keep 50–55% from days 1–17 and raise it to 70% on day 18.
