Ninja DZ201 Foodi 8QT 6-in-1 DualZone 2-Basket Air Fryer User Manual

Ninja DZ201 Foodi 8QT 6-in-1 DualZone 2-Basket Air Fryer

IMPORTANT SAFEGUARDS

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of appliance in a safe way and understand the hazards involved.
Keep the appliance and its cord out of reach of children. DO NOT allow the appliance to be used by children. Close supervision is necessary when used near children
Children should not play with the appliance.
NEVER use an electrical socket below the counter.
NEVER connect this appliance to an external timer switch or separate remote-control system.
When using this appliance, provide at least 6 inches (15.25 cm) of space above and on all sides for air circulation.
To protect against electrical shock, DO NOT immerse the cord, plugs, or main unit housing in water or other liquid. Cook only in the basket provided.
Regularly inspect the appliance and power cord. DO NOT use the appliance if there is damage to the power cord or plug. If the appliance malfunctions or has been damaged in any way, immediately stop use and call Customer Service.
DO NOT use an extension cord. A short power-supply cord is used to reduce the risk of children grabbing the cord or becoming entangled and to reduce the risk of people tripping over a longer cord.
ALWAYS ensure the appliance is properly assembled before use.
DO NOT cover the air intake vent or air outlet while the unit is operating. Doing so will prevent even cooking and may damage the unit or cause it to overheat.
Before placing the removable basket into the main unit, ensure the basket and unit are clean and dry by wiping with a soft cloth.
This appliance is for household use only. DO NOT use this appliance for anything other than its intended use. DO NOT use in moving vehicles or boats. DO NOT use outdoors. Misuse may cause injury.
Intended for worktop use only. Ensure the surface is level, clean and dry. DO NOT move the appliance when in use.
DO NOT place the appliance near the edge of a worktop during operation.
DO NOT use accessory attachments not recommended or sold by SharkNinja. Do not place accessories in a microwave, toaster oven, convection oven, or conventional oven or on a ceramic cooktop, electric coil, gas burner range or outdoor grill. The use of accessory attachments not recommended by SharkNinja may cause fire, electric shock, or injuries.
ALWAYS ensure the basket is properly closed before operating.
DO NOT use the appliance without the removable basket installed.
DO NOT use this appliance for deep-frying.
DO NOT place the appliance on hot surfaces or near a hot gas or electric burner or in a heated oven.
Prevent food contact with heating elements. DO NOT overfill when cooking. Overfilling may cause personal injury or property damage or affect the safe use of the appliance.
22 DO NOT place items on top of the unit at any time.
Socket voltages can vary, affecting the performance of your product. To prevent possible illness, use a thermometer to check that your food is cooked to the temperatures recommended.
Should the unit emit black smoke, unplug it immediately. Wait for smoking to stop before removing any cooking accessories.
DO NOT touch hot surfaces. Appliance surfaces are hot during and after operation. To prevent burns or personal injury, ALWAYS use protective hot pads or insulated oven mitts and use available handles.
Extreme caution must be used when the appliance contains hot food. Improper use may result in
personal injury.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact qualified electrician. DO NOT attempt to modify the plug in any way.
Spilled food can cause serious burns. Keep appliance and cord away from children. DO NOT let cord hang over edges of tables or counters or touch hot surfaces.
The basket and crisper plate become extremely hot during the cooking process. Avoid physical contact while removing the basket or plate from the appliance. ALWAYS place basket or plate on a heat-resistant surface after removing. DO NOT touch accessories during or immediately after cooking.
Cleaning and user maintenance should not be carried out by children.
To disconnect, press the power button to turn off the unit, then unplug from socket when not in use
and before cleaning. Allow to cool before cleaning, disassembly, putting in or taking off parts and storage.
DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating the risk of electric shock.
Please refer to the Cleaning & Maintenance section for regular maintenance of the appliance.

SAVE THESE INSTRUCTIONS

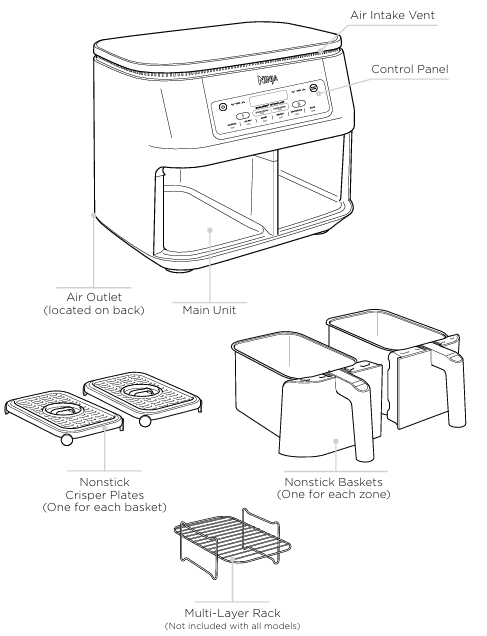

PARTS

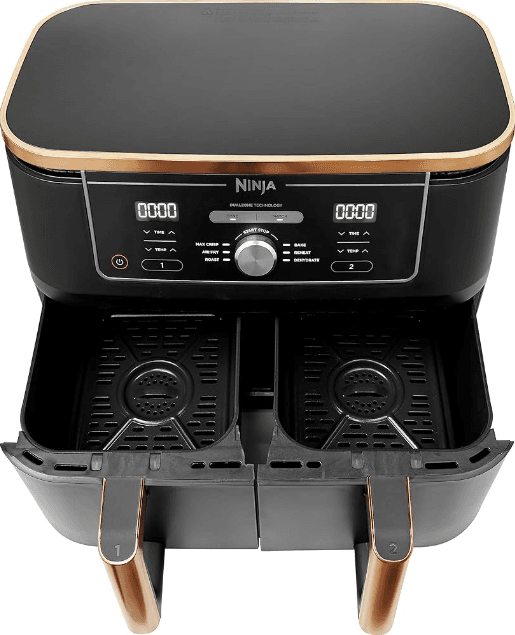

GETTING TO KNOW YOUR NINJA® FOODI® 2-BASKET AIR FRYER

FUNCTION BUTTONS*

AIR BROIL: Add the crispy finishing touch to meals, or melt toppings to create the perfect finish.
AIR FRY: Use this function to give your food crispiness and crunch with little to no oil.
ROAST: Use the unit as a roaster oven for tender meats and more.
REHEAT: Warm your leftovers, with a crispy result.
DEHYDRATE: Dehydrate meats, fruits, and vegetables for healthy snacks.
BAKE: Create decadent baked treats and desserts.

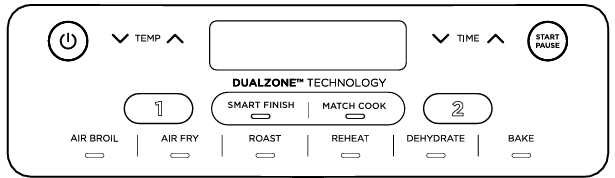

OPERATING BUTTONS

Controls the output for the basket on the left.
Controls the output for the basket on the right.

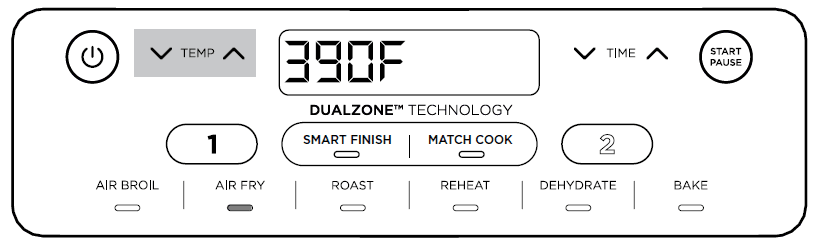

TEMP arrows: Use the up and down arrows to adjust the cook temperature before or during cooking.
TIME arrows: Use the up and down arrows to adjust the cook time in any function before or during the cook cycle.
SMART FINISH button: Automatically syncs the cook times to ensure both zones finish at the same time, even if there are different cook times.
MATCH COOK button: Automatically matches zone 2 settings to those of zone 1 to cook a larger amount of the same food, or cook different foods using the same function, temperature, and time.
START/PAUSE button: After selecting temperature and time, start cooking by pressing the START/PAUSE button. To pause cooking, first select the zone you would like to pause, then press the
START/PAUSE button.
POWER BUTTON: The POWER button turns the unit on and off and stops all cooking functions.
Standby Mode: After 10 minutes of no interaction with the control panel, the unit will enter standby mode. The Power button will be dimly lit.

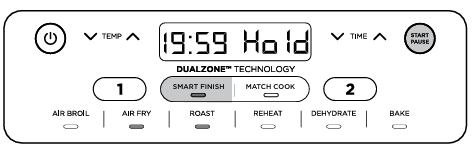

Hold Mode: Hold will appear on the unit while in SMART FINISH mode. One zone will be cooking, while the other zone will be holding until the times sync together.

BEFORE FIRST USE

Remove and discard any packaging material, promotional labels, and tape from the unit.
Remove all accessories from the package and read this manual carefully. Please pay particular attention to operational instructions, warnings, and important safeguards to avoid any injury or property damage.
Wash the baskets and crisper plates in hot, soapy water, then rinse and dry thoroughly. The crisper plates and baskets are the ONLY dishwasher-safe parts. NEVER clean the main unit in the dishwasher.

COOKING IN YOUR 2-BASKET AIR FRYER

COOKING WITH DUALZONETM TECHNOLOGY

DualZone Technology utilizes two cooking zones to increase versatility. The Smart Finish feature ensures that, regardless of different cook settings, both zones will finish ready to serve at the same time. For detailed instructions on using each function, see pages 10–13.

SMART FINISH
To finish cooking at the same time when foods have different cook times, temps, or even functions:

Place ingredients in the baskets, then insert baskets in unit.

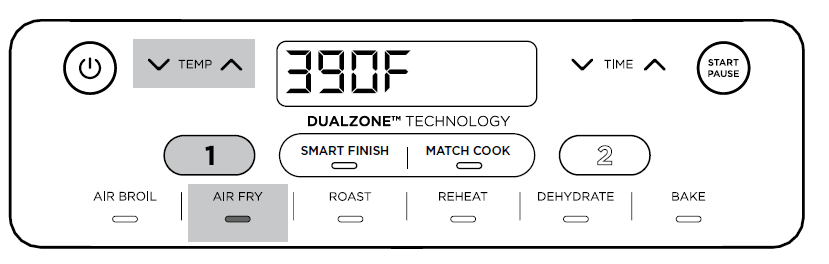

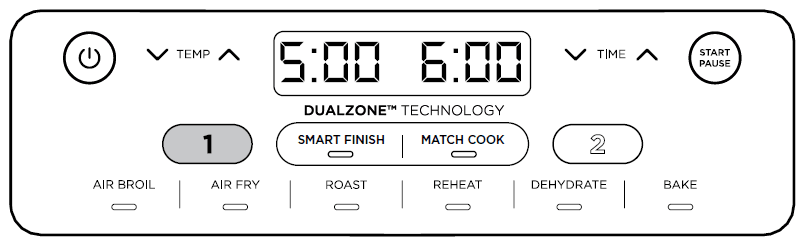

Zone 1 will remain illuminated. Select the desired cooking function. Use the TEMP arrows to set the temperature, and use the TIME arrows to set the time.

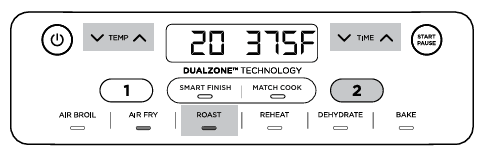

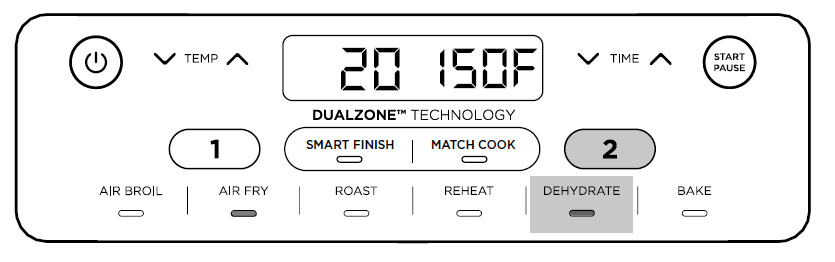

Select zone 2, then select the desired cooking function. (AIR BROIL is not available if selected in zone 1) Use the TEMP arrows to set the temperature, and use the TIME arrows to set the time.NOTE: You can select a different function for zone 2. Air Broil can only be used in one zone.

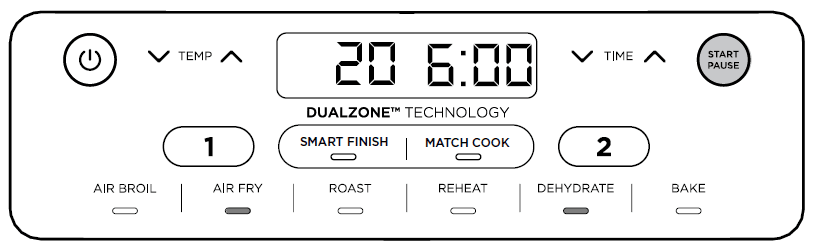

Press SMART FINISH, then press the START/PAUSE button to begin cooking in the zone with the longest time. The other zone will display Hold. The unit will beep and activate the second zone when both zones have the same time remaining.NOTE: It is recommended to shake your food during cooking. To keep the time at a synchronized finish, press the START/PAUSE button to pause both zones. To pause a single zone during dual zone cooking, refer to page 8.

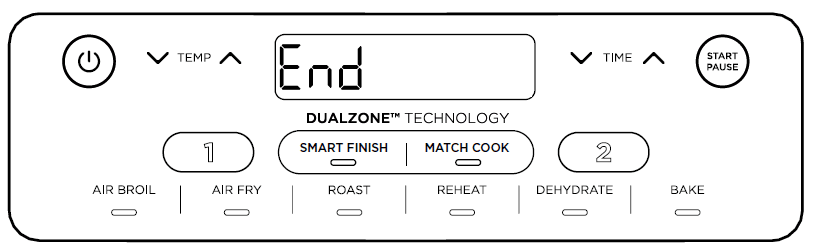

When cooking is complete, the unit will beep and “End” will appear on the display.
Remove ingredients by dumping them out or using silicone-tipped tongs/utensils. DO NOT place drawer on top of unit.

NOTE: If you decide the food in one of the zones is done cooking before the cook time is up, you can STOP A ZONE. Select that zone, then press START/PAUSE to pause the zone or set the time to zero. See page 11 for further instructions.

MATCH COOK

To cook a larger amount of the same food, or cook different foods using the same function, temperature, and time:

Place ingredients in the baskets, then insert baskets in unit.
Zone 1 will remain illuminated. Select the desired cooking function. (AIR BROIL is not available with this function.) Use the TEMP arrows to set the temperature, and use the TIME arrows to set the time.

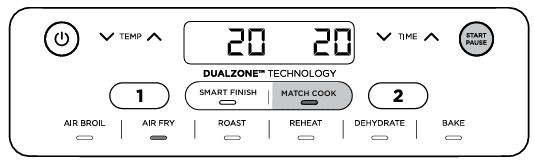

Press the MATCH COOK button to copy the zone 1 settings to zone 2. Then Press START/PAUSE to begin cooking in both zones.NOTE: It is recommended to shake your food during cooking. To keep the time at a synchronized finish, press the START/PAUSE button to pause both zones. To pause a single zone during dual zone cooking, refer to page 8.

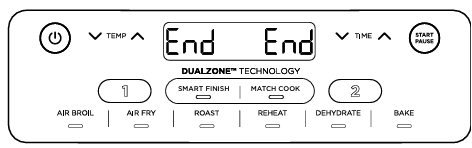

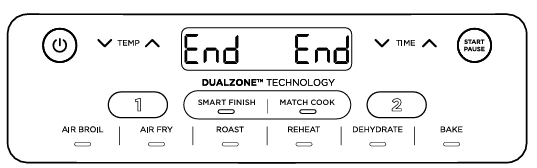

“End” will appear on both screens when cooking ends at the same time.
Remove ingredients by dumping them out or using silicone-tipped tongs/utensils.

NOTE: Air Broil cannot be used in Match Cook mode.

Starting both zones at the same time, but ending at different times:

Select zone 1, then select the desired function. Use the TEMP arrows to set the temperature.
Use the TIME arrows to set the time.
Repeat steps 2 and 3 for zone 2. (AIR BROIL is not available if programmed in zone 1.)
Press the START/PAUSE button to begin cooking in both zones.NOTE: If you decide the food in one of the zones is done cooking before the cook time is up, you can STOP A ZONE. Select that zone, then press START/PAUSE to pause the zone or set the time to zero. See page 11 for further instructions.
When cooking is complete in each zone, the unit will beep and “End” will appear on the display.
Remove ingredients by dumping them out or using silicone-tipped tongs/utensils.

ENDING THE COOK TIME IN ONE ZONE (WHILE USING BOTH ZONES)

Select the zone you would like to stop.

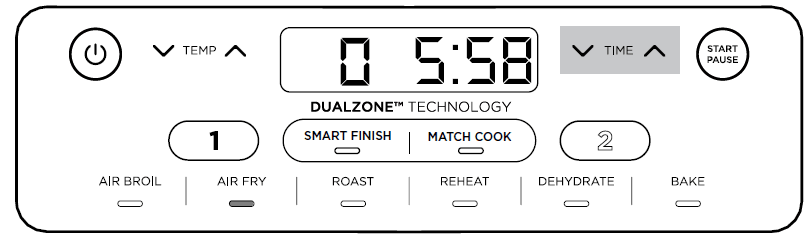

Then press the down TIME arrow to set the time to zero.
Once you have set the time to zero, press the START/PAUSE button.

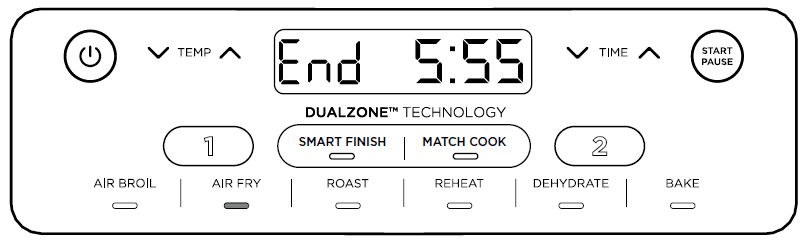

The time in that zone is then canceled, and “End” will appear on the display. Cooking will continue in the other zone.

PAUSING BOTH ZONES AT THE SAME TIME

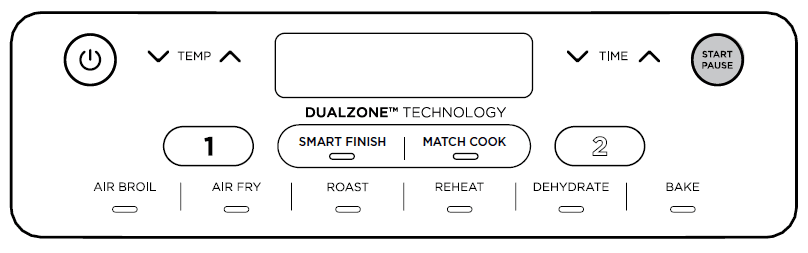

To pause time in the SMART FINISH mode, or to pause both zones in dual zone cooking, press the START/PAUSE button.
To resume cooking, press the START/PAUSE button again.

PAUSING A SINGLE ZONE DURING DUAL ZONE COOKING

To pause time in a single zone while both zones are running, select the zone you want to pause, then press the START/PAUSE button.
To resume cooking, press the START/PAUSE button again.

COOKING IN A SINGLE ZONE

For instructions on using both zones at the same time, see pages 6–7. To turn on the unit, plug the power cord into a wall outlet, then press the power button.

Air Fry

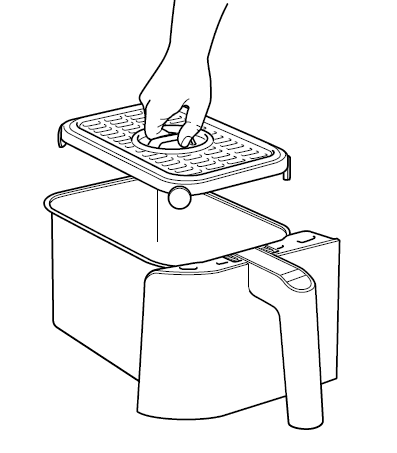

Install a crisper plate in the basket, then place ingredients in the basket and insert the basket into the unit.

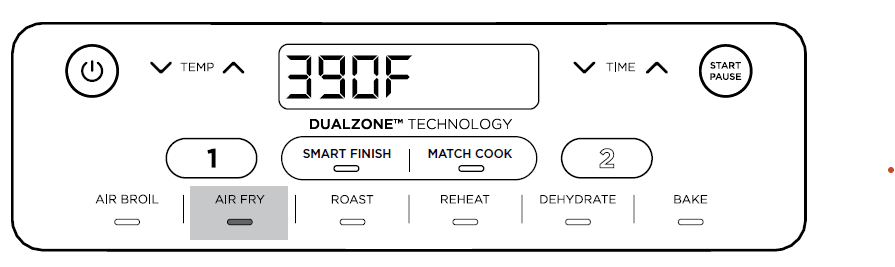

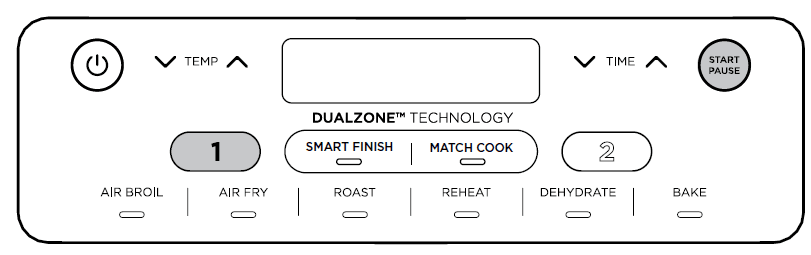

The unit will default to zone 1 (to use zone 2 instead, select zone 2). Select AIR FRY.
Use the TEMP arrows to set the desired temperature.
Use the TIME arrows to set the time in 1-minute increments up to 1 hour. Press the START/PAUSE button to begin cooking.NOTE: During cooking, you can remove the basket and shake or toss ingredients for even crisping. If you would like to pause during this time, press the zone number, then START/PAUSE. If using a single zone, press START/PAUSE
When cooking is complete, the unit will beep and “End” will appear on the display.
Remove ingredients by dumping them out or using silicone-tipped tongs/utensils.

CLEANING YOUR 2-BASKET AIR FRYER

The unit should be cleaned thoroughly after every use. Unplug the unit from the wall outlet before cleaning.

Part/Accessory	Cleaning Method	Dishwasher Safe?
	To clean the main unit and the control panel, wipe them clean with a damp cloth.
Main Unit	NOTE: NEVER immerse the main unit in water or any other liquid. NEVER clean the main unit in a dishwasher.	No
Crisper Plates	The crisper plates can be washed in the dishwasher or by hand. If hand-washing,	Yes
	air-dry or towel-dry all parts after use.
Baskets	The baskets can be washed in the dishwasher or by hand. If hand-washing, air-dry or towel-dry all parts after use.	Yes*
	*To extend the life of your basket, we recommend hand-washing them.

If food residue is stuck on the crisper plates or baskets, place them in a sink filled with warm, soapy water and allow to soak.

HELPFUL TIPS

For consistent browning, make sure ingredients are arranged in an even layer on the bottom of the basket with no overlapping. If ingredients are overlapping, make sure to shake them halfway through cooking.
Cook temperature and time can be adjusted at any time during cooking. Simply select the zone you want to adjust, then press the TEMP arrows to adjust the temperature or the TIME arrows to adjust the time.
To convert recipes from a traditional oven, reduce the temperature by 25°F. Check food frequently to avoid overcooking.
Occasionally, the fan from the air fryer will blow lightweight foods around. To alleviate this, secure foods (like the top slice of bread on a sandwich) with wooden toothpicks.
The crisper plates elevate ingredients in the baskets so air can circulate under and around ingredients for even, crisp results.
After selecting a cooking function, you can press the START/PAUSE button to begin cooking immediately. The unit will run at the default temperature and time.
For best results with fresh vegetables and potatoes, use at least 1 tablespoon of oil. Add more oil as desired to achieve the preferred level of crispiness.
For best results, check progress throughout cooking and remove food when the desired level of brownness has been achieved. We recommend using an instant-read thermometer to monitor the internal temperature of proteins.
For best results, remove food directly after the cook time is complete, to avoid overcooking.

REPLACEMENT PARTS

To order additional parts and accessories, visit ninjaaccessories.com or contact Customer Service at 1-877-646-5288.
