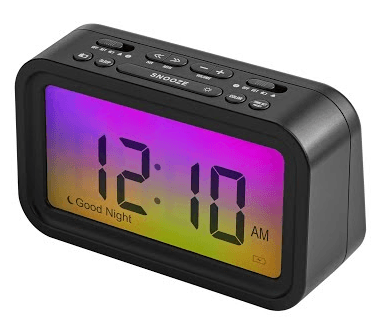

Onn ONB14AV201 digital alarm clock with radio

Table of Contents

Note: Please read and follow these instructions before using your unit.

SAFETY INSTRUCTION

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Caution: The Marking and rating plate was located at the bottom enclosure of the apparatus.

The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.
Main plug is used to disconnect the device and should remain readily operable during intended use. To disconnect the apparatus from the main socket completely, disconnect the main plug from the main socket outlet.
The battery shall not be exposed to excessive heat, such as sunshine, fire, or the like.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cad, Ni-MH, etc) batteries.
Location of label on the apparatus, if that label was affixed under a lid or on the bottom of the apparatus with a mass not exceeding 7 kg.

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades, with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

QUICK REFERENCE

CLK/MEM Button: In CLOCK mode, use this button to set the clock. In RADIO mode, use this button to store radio stations in the memory.
HR Button: In CLOCK mode, use this button to adjust the hour in CLOCK or ALARM time. In RADIO mode, use this button to search for the radio station in the backward direction.
MIN Button: In CLOCK mode, use this button to adjust the minute in CLOCK or ALARM time. In RADIO mode, use this button to search for the radio station in the forward direction.
DIMMER Button: Use this button to change the brightness of the display.
ALM2/VOL− Button: In CLOCK mode, use this button to set the alarm time in ALARM2. In RADIO mode, use this button to decrease the volume.
ALM1/VOL+ Button: In CLOCK mode, use this button to set the alarm time in ALARM1. In RADIO mode, use this button to increase the volume.
ALARM OFF/SOURCE Button: Use this button to turn the ALARM off after the Alarm activates. Use this button to select RADIO or AUX mode.
SNOOZE/SLEEP Button: Use this button to temporarily suspend the ALARM for a short period. In RADIO mode, use this button to set the SLEEP time.
LED Display: Display for the CLOCK and RADIO frequency.
ALARM2 BUZZER Indicator: This indicator shows that the unit is set in ALARM2 buzzer mode.
ALARM2 RADIO Indicator: This indicator shows that the unit is set in ALARM2 radio mode.
ALARM1 BUZZER Indicator: This indicator shows that the unit is set in ALARM1 buzzer mode.
ALARM1 RADIO Indicator: This indicator shows that the unit is set in ALARM1 radio mode.
BATTERY COMPARTMENT: Compartment for the back-up battery.
AC Power Cord: Connects the unit to the wall outlet.
FM Wire Antenna: Extend this wire antenna to obtain better FM broadcasting.
AUX-IN Jack: Connects the unit to an external audio device
PM Indicator: This indicator shows that the time display is PM.
SPEAKER: Sound output.

CONNECTING THE UNIT TO POWER

Plug the AC power cord into the AC wall outlet. Before switching on the unit, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

BATTERY BACKUP

Insert 2 AAA batteries into the battery compartment. Be sure to observe the proper polarity (the “+” and “-” signs) as indicated inside the battery compartment.

In case of power failure or interrupted AC power, the current time, alarm time settings, and stored radio stations are preserved in the memory of the unit using the battery backup function.

SETTING THE CLOCK

With the unit in CLOCK mode, press and hold the CLK/MEM button for about 1 second, and the time will begin to flash on the LED display.
Press the HR button to adjust the hour.
Press the MIN button to adjust the minutes.
When the correct time is selected, press the CLK/MEM button again to confirm.

SETTING THE ALARMS

With the unit in CLOCK mode, press and hold the ALM1/VOL+ or ALM2/VOL− button. The ALARM time will begin to flash on the LED display.
Press the HR button to adjust the alarm hour.
Press the MIN button to adjust the alarm minute.
When the correct time is selected, press the ALM1/VOL+ or ALM2/VOL− button to confirm.
Press the ALM1/VOL+ or ALM2/VOL− button to select the ALARM sound mode – buzzer or the currently set radio station. The alarm buzzer or radio indicator will light up.

SNOOZE FUNCTION

Whenever the alarm (radio or buzzer) activates, it can be temporarily suspended for a short period of 9 minutes by pressing the SNOOZE/SLEEP button once.
The buzzer or radio will then automatically activate again after the 9-minute SNOOZE period has ended.
This procedure can be repeated for up to approximately one hour.

DIMMER FUNCTION

Press the DIMMER button to change the brightness of the display.

TURN OFF THE ALARM

When the ALARM activates, press the ALM OFF/SOURCE button to turn off the ALARM.

LISTENING TO THE AM/FM RADIO

Press the ALM OFF/SOURCE button to select the FM or AM mode.
Press the MIN button or HR button step by step to tune to the desired radio stations.
Press and hold the MIN button or HR buttons for approximately. In 1 second, it will start to search the next radio station in the direction of the search. The search operation simply finds stations with strong signals. Stations with weak reception can only be tuned in manually.

ANTENNA

For best reception, fully extend the FM wire antenna to receive FM stations. For AM reception, the unit has a built-in antenna; turn the whole unit on for best reception.

SAVING A RADIO STATION TO THE MEMORY

Tune the radio to the desired station.
Press and hold the CLK/MEM button for approximately 1 second; the LED display will show P01 and flash, and the radio station will be stored in memory.
Up to 10 AM and 10 FM radio stations can be stored in the memory.

TO LISTEN TO A SAVED RADIO STATION

Press the ALM OFF/SOURCE button to select FM or AM mode.
Press the CLK/MEM button to select the stored radio station.

SLEEP TO MUSIC FUNCTION

This function allows you to listen to the radio while you fall asleep.
Press the SNOOZE/SLEEP button, the display will show the default sleep time of 90 minutes.
Press the SLEEP button again to adjust the desired sleep time.
The options are 90-80-70-60-50-40-30-20-10-min. or OFF.
Now you can enjoy listening to the radio for the pre-set period of sleep time.
After this preset time has elapsed, the unit will switch off automatically.

AUX IN CONNECTION

Insert one side of the audio cable (requires 3.5mm stereo plug, not supplied) into the line-out jack or phones jack on your MP3 player or audio device and the other side to the aux-in jack on the unit.
Press the ALM OFF/SOURCE button to select AUX mode, AUX will display in the LED display for a few seconds.
Turn on your MP3 player and follow the playback instructions.
To stop this function, simply turn off your MP3 player.

SPECIFICATIONS

Frequency Range: AM 520 – 1710 KHz, FM 87.5 – 108 MHz
Power Supply: AC 110V ~ 60 Hz
Back-Up Battery: 2 pc. UM4 ‘AAA’ size

Specifications are subject to change without prior notice.
