Oreck STEAM IT STEAM100 All Purpose Steam Wand User Manual

Oreck STEAM IT STEAM100 All Purpose Steam Wand

Safety

IMPORTANT SAFETY INSTRUCTIONS!

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS STEAM CLEANER
WARNING!To reduce the risk of fire, electric shock, or injury:

• Do not leave the steam cleaner unattended when plugged in. Unplug it from the socket when not in use.
• To prevent electric shock, do not use outdoors.
• Not to be used as a toy. Close supervision is necessary when using near children.
• Use only as directed in this manual.
• Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center or call customer service at:  USA: 1-800-989-3535 Canada: 1-888-676-7325
• Do not pull or carry by the cord, use the cord as a handle, allow the cord to come into contact with hot or sharp surfaces, or close a door on the cord.
• Do not unplug by pulling on the cord.
• Do not handle the plug or cleaner with wet hands.
• Do not put any objects into openings or operate with openings blocked.
• Do not use without the tank cap in place.
• Turn off all controls before unplugging.
• Do not use an extension cord.
• Store indoors, put away after use to prevent tripping accidents.
• Using improper voltage may result in damage to the steam cleaner and possible injury to the user. The correct voltage is listed on the rating label.
• This steam cleaner is intended for household use only.
• A hazard may occur if the steam cleaner runs over the power cord.
• Never immerse the steam cleaner in water or other liquids.
• The steam cleaner is not suitable for outdoor use.
• Do not operate the steam cleaner without water in the tank.
• Empty the water tank when the steam cleaner is not in use.
• Never fill the tank with anything other than water. Never put additives (such as
  perfume, stain remover, or products containing alcohol) in the water, as they may
  damage the steam cleaner or make it dangerous to use.
• Always remove the power cord from the outlet and handle the steam cleaner with care when filling it with water.
• Do not overfill the tank. Do not exceed the maximum prescribed filling level. Please use the funnel included.
• Ensure that the water tank’s closure cap has been screwed down fully before use.
• Do not touch any hot areas on the steam cleaner. It is normal for the steam cleaner to heat up during operation.
• Do not use the steam cleaner to treat any item of clothing while being worn on the body.
• The force and heat of the steam may hurt some materials. Always test the steamer on a small concealed area to determine if it is suitable for treatment with the steam cleaner.
• Never aim the steam cleaner at people, animals, or plants (risk of scalding!) Do not aim the steam cleaner at electrical systems or wires.
• Accessories become hot during use – allow them to cool down before handling.
• Do not use the steam cleaner directly overhead.

IMPORTANT! This steam cleaner is equipped with a steam release valve mechanism, located at the rear of the steam generator. In the event of a steam flow blockage, the safety valve is designed to release the steam. Regular cleaning of the steam chamber and nozzle is therefore recommended to avoid such an occurrence. If the steam is released from the safety valve, stop cleaning and unplug the steam cleaner from the electrical outlet. Allow the steam cleaner to cool down thoroughly for at least one hour. After this time, clean the steam chamber and nozzle. If steam is still being released from the safety valve after cleaning, contact a service center.
SAVE THESE INSTRUCTIONS Household Use Only

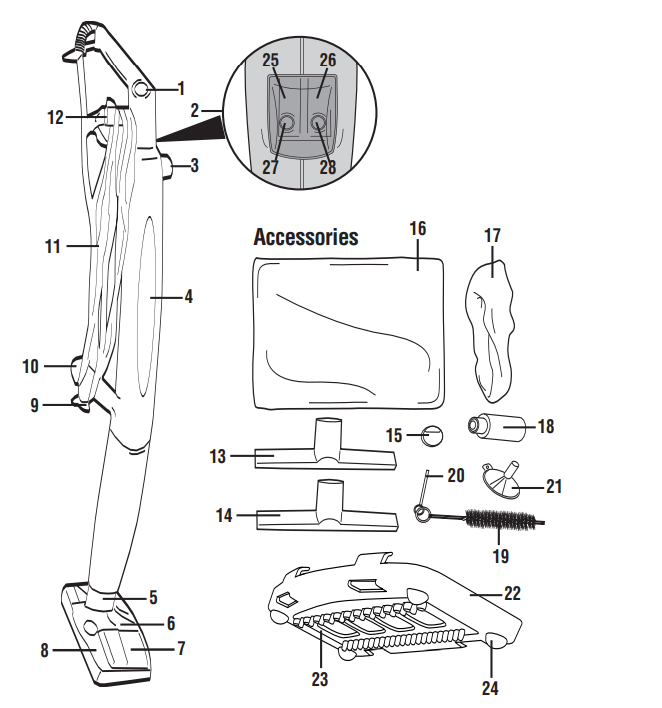

Parts: Product Components & Accessories

Parts

1. Steam Regulator
2. Control Switches
3. Water Tank Cap
4. Water Tank
5. Lock Button
6. Powerhead
7. Towel Grips
8. Brush Slides
9. Cord Wrap
10. Lower Handle
11. Power Cord
12. Cord Dump
13. Squeegee
14. Utility Tool
15. Deflector Nozzle
16. Floor Cloth
17. Utility Cloth
18. Spot Brush
19. Nozzle Brush
20. Nozzle Pin
21. Funnel
22. Carpet Glide Base
23. Steam Comb
24. Corner Gliders
25. On/Off Switch
26. Steam Switch
27. Power ON Light (red)
28. Steam Ready Light (green)

Operation

Operating Instructions

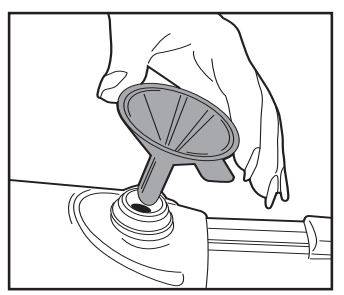

1. Place the steam cleaner in a horizontal position and remove the water tank cap. Use the funnel provided to slowly fill the 1-liter water tank with clean water. Replace the cap securely.
2. Insert the power plug into an electrical outlet. Make sure the steam cleaner is switched off.
3. Press the ON/OFF switch located on the handle to switch the steam cleaner on. The red heater “ON” light should now be illuminated.
4. Press the steam switch to the “ON” position. After approximately 30 seconds, the green “steam ready” light should come on.
5. Turn the steam regulator control to maximum and point the steam nozzle towards a cloth or sink for approximately 10 – 15 seconds, to stabilize the flow and produce a continuous stream.

NOTE: Ensure the steam switch is turned off and the powerhead has cooled before connecting the powerhead or any of the other cleaning accessories.
Using the Steam-It™

NOTE: Carpets should be dry and vacuumed thoroughly before using the steam cleaner.

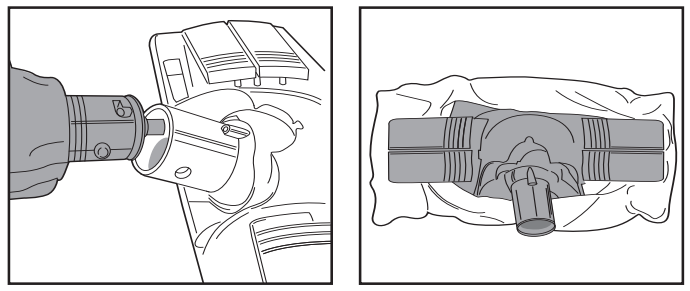

1. Align the hole in the side of the powerhead with the lock button on the main body of the steam cleaner. Ensure that the lock button clicks firmly into place.
2. After assembling the powerhead, connect the floor cloth to the powerhead by using the towel grips.
3. Turn the steam switch on.

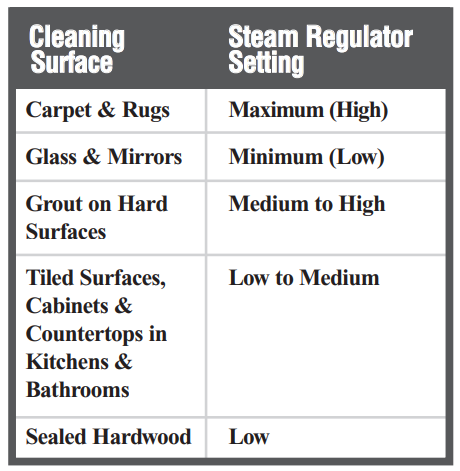

Cleaning Surface/Steam Setting Reference

Carpet Cleaning
When cleaning carpets and rugs, leave the steam regulator control set to “maximum.” Always test the steamer on a small surface area to determine if it is suitable for treatment with the steam cleaner. Use slow backward strokes and lift the powerhead slightly during forward strokes to reduce friction between the cloth and the carpet.

For Large Carpeted Areas.

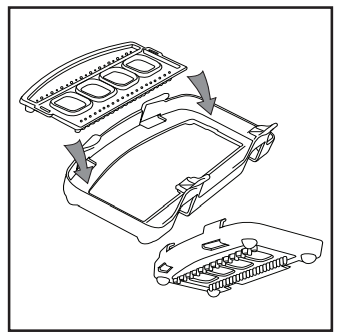

For smoother movement of the steamer over larger carpeted areas, the carpet glide attachment can be used:

1. Detach and remove the steam comb section from the carpet glide attachment.
2. Fold the cloth and place it inside the carpet glide base.
3. Secure the powerhead inside the carpet glide base and connect the cloth to the attachment by using the towel grips.

NOTE: On a flat pile carpet, unscrew and remove the corner gliders.

Stubborn Stains

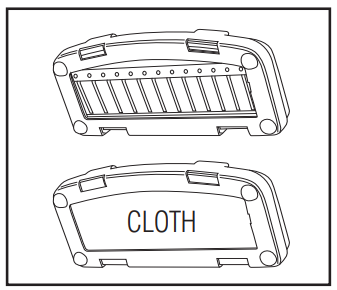

For removing stubborn stains or embedded grime on hard surfaces, fold and attach the cloth, leaving the brushes underneath the powerhead visible. Move the brush sliders so that the brushes appear underneath the powerhead. Move the brushes backwards and forwards over the selected area.
NOTE: Do not use the brushes for routine carpet and hard floor cleaning, as unnecessary scrubbing may cause damage. The brushes should only be used for removing stubborn stains and grime.
Carpet Pile Rejuvenation

To rejuvenate a flattened carpet pile, remove the cloth and connect the carpet glide base to the powerhead with the steam comb section in place. IMPORTANT! The housing and accessories become hot during operation. Allow the steam cleaner to cool down before changing the accessories. Never open the water tank cap while the steam switch is on.
Hard Floor Cleaning
Reduce the steam flow to a lower setting by turning the steam control regulator. Use both forward and backward strokes across the floor area. NOTE: When the cloth becomes very wet, let it cool, ring out the moisture, use the reverse side, or replace with a clean, dry cloth.
Attaching an Accessory
Accessories can be used on the main body of the steam cleaner by removing the powerhead and then attaching the desired accessory.

1. Press the lock button to remove the powerhead when cool.
2. Attach the desired accessory by aligning the hole in the side of the accessory with the lock button on the main body of the steam cleaner. Ensure the lock button clicks firmly into place.

Squeegee
For cleaning glass and mirror panels. Use the squeegee at a very low steam flow. Achieve this by adjusting the steam regulator. A cloth can be used to wipe the blade and remove excess water during usage when cool. For small window panels, remove the squeegee tool and spray the steam directly onto the surface. Use the squeegee separately to wipe away the moisture.
Spot Brush
For cleaning the grout between tiles or stubborn marks and stains on hard surfaces. Use at medium or high steam flow.
Utility Tool

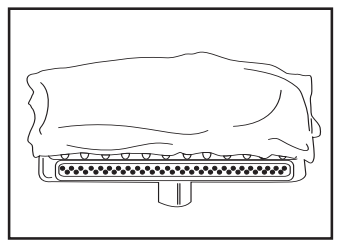

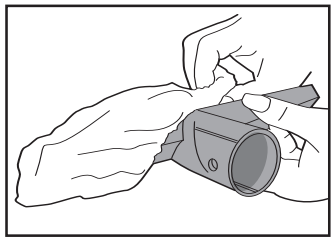

For cleaning tiled surfaces, cabinets, and countertops in kitchens and bathrooms. Use on a low to medium steam flow. Cover the utility tool with the elasticised cloth.
Deflector Nozzle
For cleaning sanitary ware such as toilet bowls, taps, or drain covers. Use this nozzle at maximum steam flow. Point it directly at stains on carpets or upholstery while holding a clean cloth near the stained area to capture any loosened dirt.

Maintenance

After Each Use
NOTE: When you have finished steam cleaning, ensure that both the power switch and steam switch are turned off and that the plug is removed from the electrical outlet. Let the unit cool and then empty any remaining water from the tank by unscrewing the water tank cap and turning the steam cleaner upside down over a sink or outdoors. Store the steam cleaner by using the hanging strap at the top of the handle if needed.

Cleaning the Steam Generator

IMPORTANT! Only follow these instructions when the steam cleaner is completely cooled down. Also, ensure that the plug is removed from the electrical outlet.

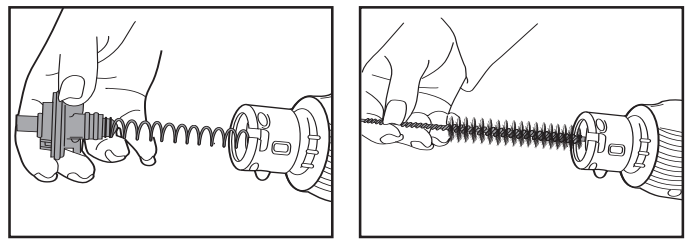

1. Twist the steam nozzle, releasing it from its locked position. Pull upwards; this will remove it completely from the steam chamber.
2. Insert the nozzle brush into the chamber.
3. Rotate the brush while pulling it in and out of the chamber.
4. Insert the steam nozzle back into the chamber and turn it clockwise to lock back into position.

NOTE: Oreck recommends cleaning the chamber at least after every 12 – 15 uses to ensure optimum performance.
Unblocking the Steam Outlet
If the steam flow appears reduced, the steam nozzle may be blocked. Unplug the unit from the electrical outlet and allow it to cool.

1. Insert the nozzle pin into the center of the steam nozzle to clear any blockage that may have formed.

Cleaning the Clothes
Both the floor and utility cloths can be machine washed (60°C max). For heavy soiling, soak the cloths in warm water and detergent or a mild stain remover. Allow the clothes to dry completely before storing.

Troubleshooting

If the following troubleshooting tips do not resolve the problem, please contact Oreck Customer Service. U.S.: 1-800-989-3535 Canada: 1-888-676-7325 IMPORTANT! Always unplug and allow the steam cleaner to cool down before conducting any troubleshooting. See safety warnings
