Razer Naga V2 HyperSpeed Wireless Gaming Mouse User Manual

Razer Naga V2 HyperSpeed Wireless Gaming Mouse

Table of Contents

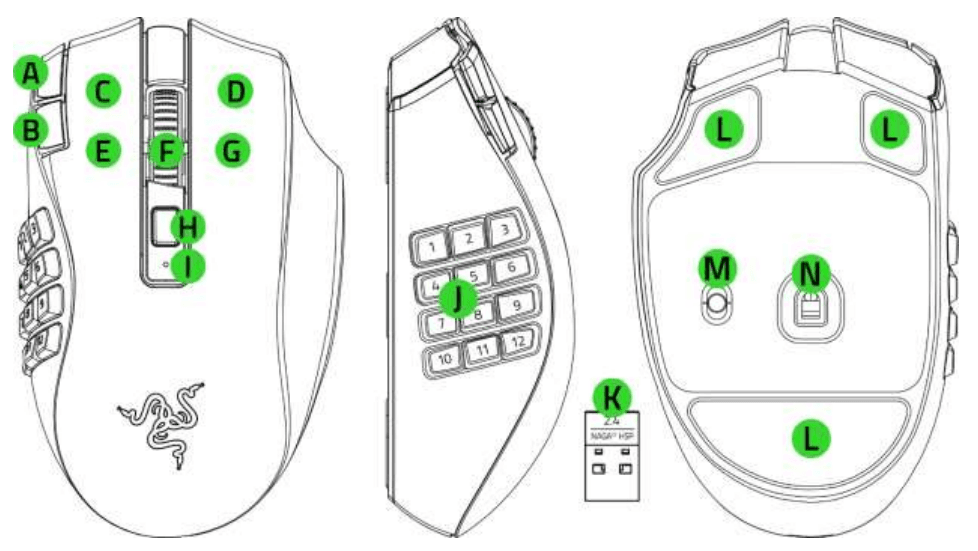

WHAT’S INSIDE

Razer Naga V2 HyperSpeed
A. DPI stage up button*
B. DPI stage down button*
C. Left mouse button
D. Right mouse button
E. Left tilt-click
F. Scroll wheel
G. Right tilt-click
H. Scroll mode button
Free-Spin Scrolling mode
Tactile Cycling mode
I. Status indicator
J. 12-button thumb grid
K. Razer HyperSpeed wireless USB dongle
L. PTFE mouse feet
M. Slider switch
• Bluetooth mode
• Power off mode
• Razer™ HyperSpeed Wireless (2.4 GHz) mode
N. Razer Focus Pro 30K Optical Sensor

WHAT’S NEEDED

PRODUCT REQUIREMENTS

USB Type A port or Bluetooth connectivity

RAZER SYNAPSE REQUIREMENTS

Windows® 10 64-bit (or higher)
Internet connection for software installation

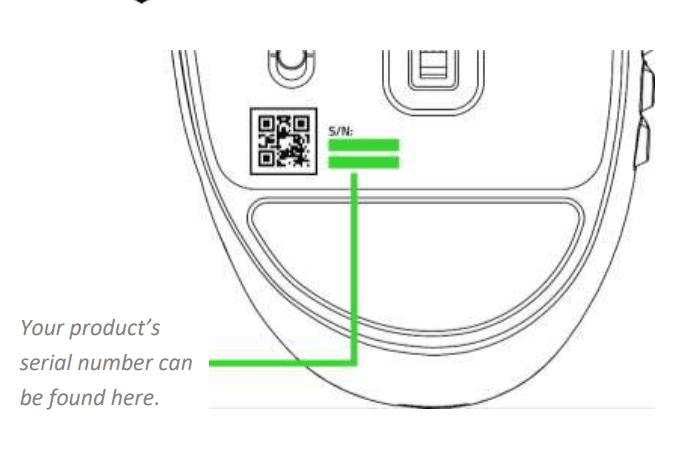

LET’S GET YOU COVERED

TECHNICAL SPECIFICATIONS

Razer™ Focus Pro 30K Optical Sensor with 99.8% resolution accuracy
Up to 750 inches per second (IPS) / 50 G acceleration
Advanced Lift-off / Landing distance customization
Razer™ Mechanical Mouse Switches Gen-2 rated for 60-million clicks
2 modes of connection – HyperSpeed (2.4 GHz) and Bluetooth
19 programmable buttons
100% PTFE mouse feet
Ergonomic right-handed design with textured side-grips
4-way tilt wheel
On-The-Fly Sensitivity Adjustment (Default stages: 400/800/1600/3200/6400)
Razer Synapse 3 enabled
Battery life: Approximately 400 hours on BLE 250 hours with HyperSpeed wireless (estimated with an AA Alkaline battery)

SETTING UP YOUR RAZER NAGA V2 HYPERSPEED

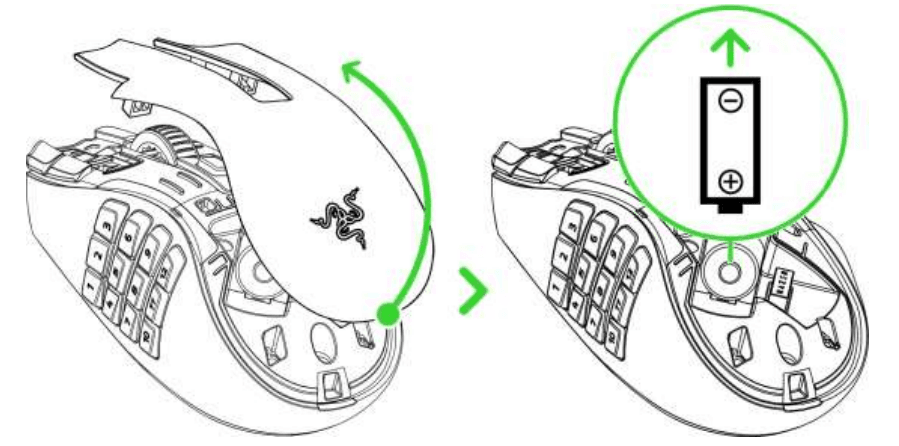

INSERTING A BATTERY

Remove the top cover of the mouse and insert the AA battery as indicated in the battery compartment.

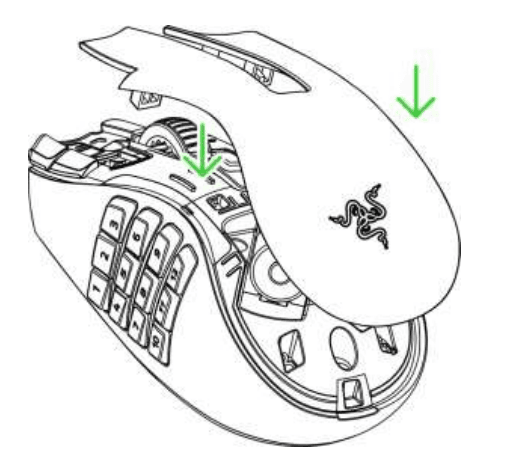

Reattach the top cover onto the mouse and make sure that it is tightly secured.

CONNECTING YOUR MOUSE

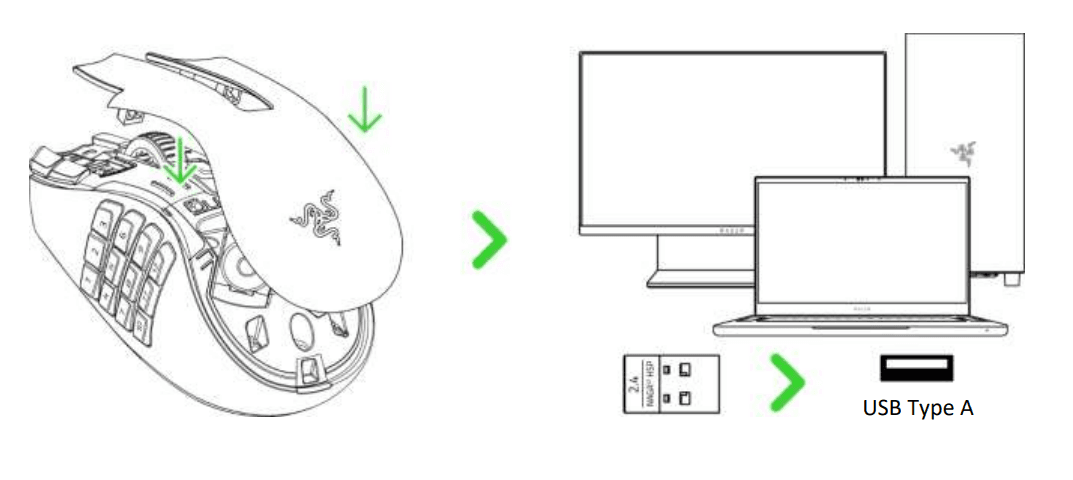

A. Via Razer™ HyperSpeed Wireless (2.4 GHz) mode

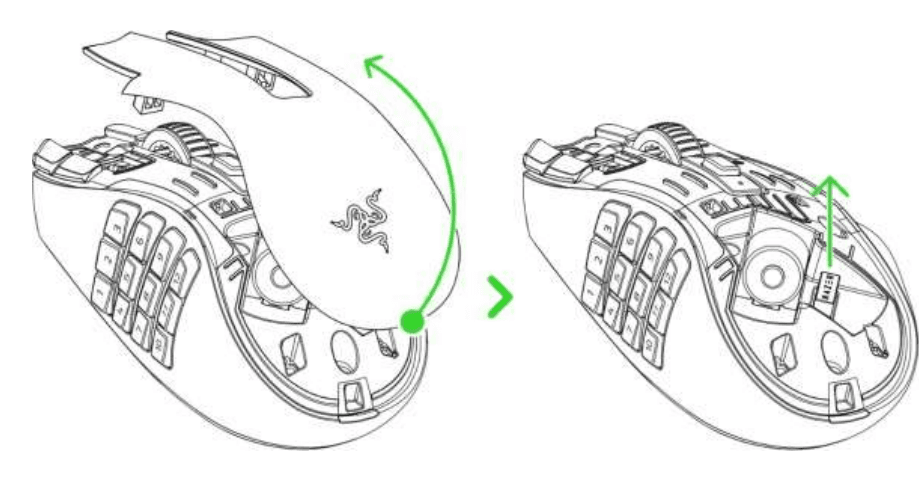

Remove the top cover of the mouse and take out the wireless USB dongle
Reattach the top cover and plug the wireless USB dongle into your PC.

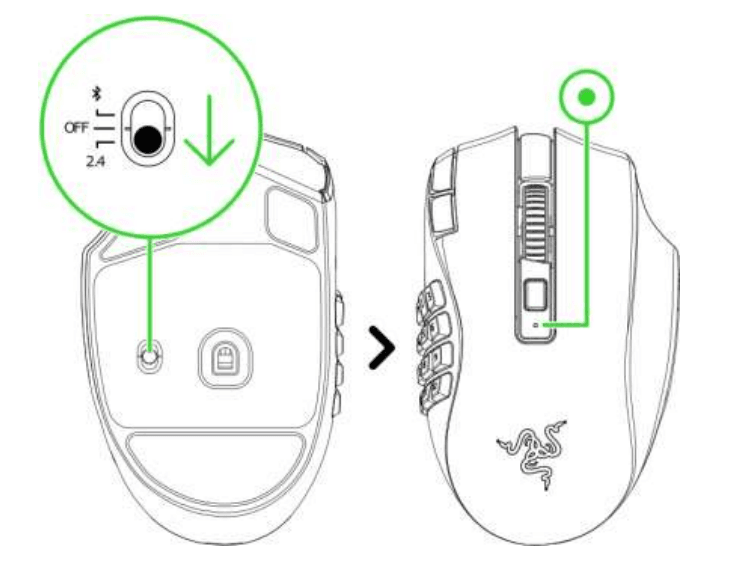

Push the slider switch to Razer™ HyperSpeed Wireless (2.4 GHz) mode. When connected, the status indicator will briefly turn static green.

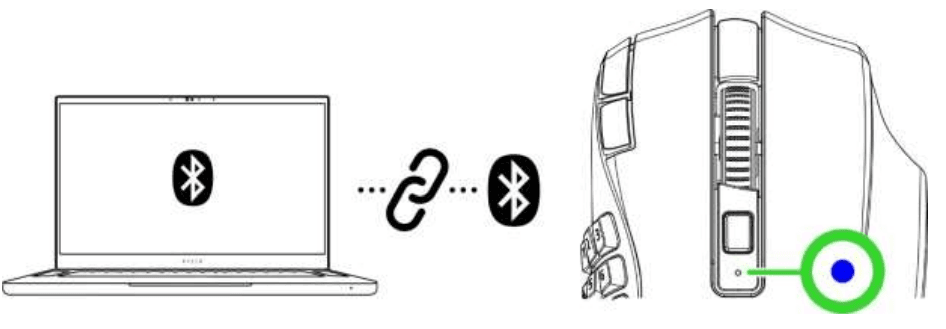

B. Via Bluetooth mode

Push the slider switch to Bluetooth mode .

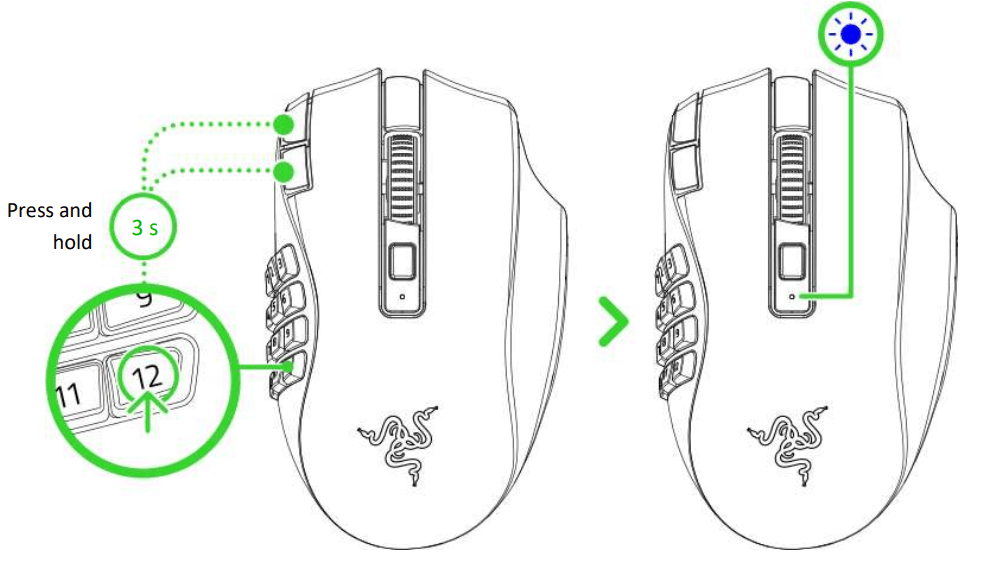

Press and hold button 12 on the thumb grid and the DPI stage up and down button simultaneously for three seconds to activate pairing mode. The status indicator will start blinking to show that the mouse is in pairing mode.

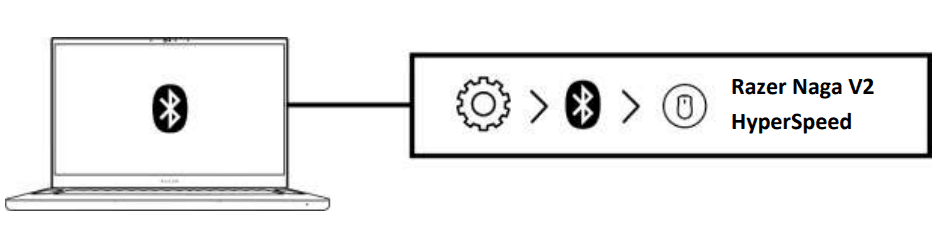

Activate Bluetooth on your device and select “Razer Naga V2 HyperSpeed” from the list of devices found.
Wait until the mouse pairs with your device. The Razer logo will briefly turn static blue when paired.

USING YOUR RAZER NAGA V2 HYPERSPEED

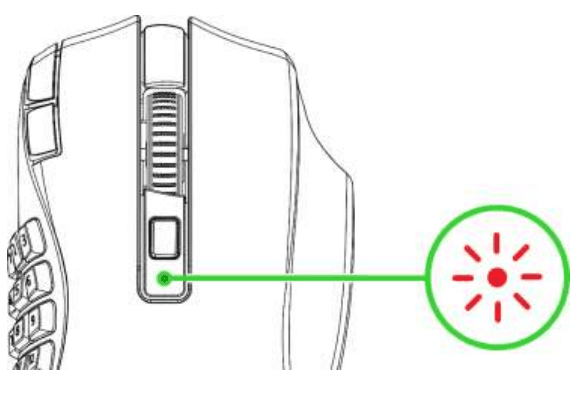

LOW POWER INDICATOR

The status indicator will blink red twice in repeated intervals to indicate that the mouse’s battery power is less than 5%. This lighting sequence will repeat until the battery is drained.

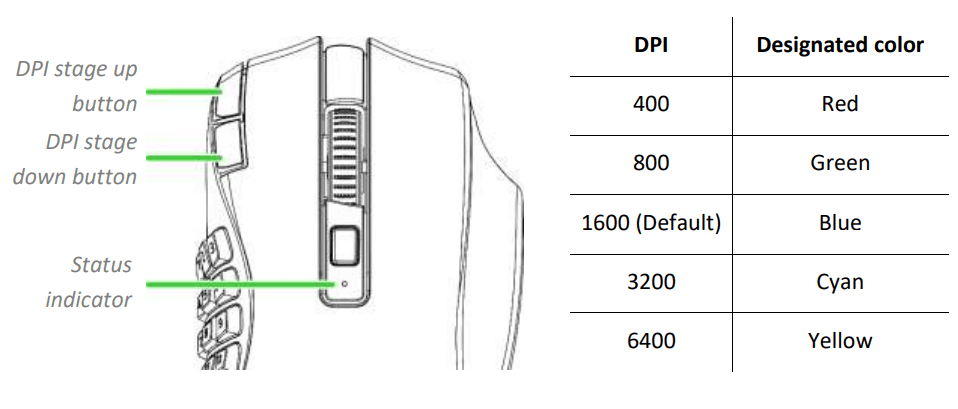

PERSONALIZING YOUR MOUSE
Change your mouse’s DPI to match your playstyle with a press of the DPI stage up or DPI stage down buttons, or re configure them to your favorite key binds using the Razer Synapse app. The status indicator will briefly change color to show which DPI stage is active.

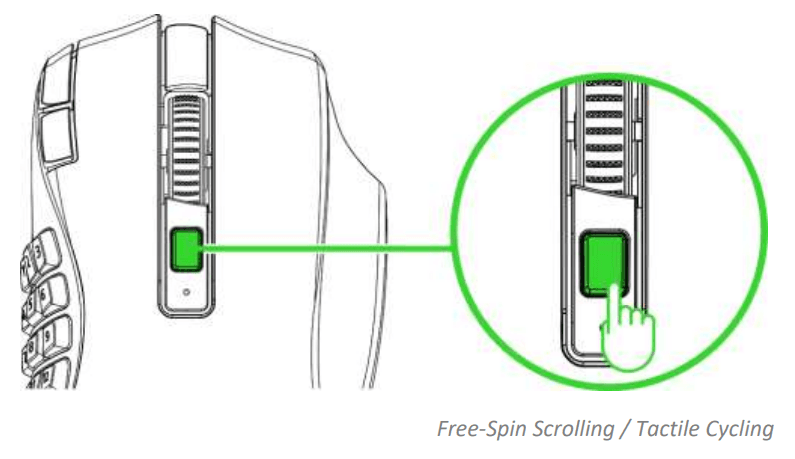

SWITCHING SCROLL MODES
The scroll mode button allows you to control how you speed through content using the scroll wheel. Press the scroll mode button to switch between Free-Spin Scrolling for unbridled scroll wheel navigation and Tactile Cycling for more precise control of scroll wheel movement.

CONFIGURING YOUR RAZER NAGA V2 HYPERSPEED VIA RAZER SYNAPSE

SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab.

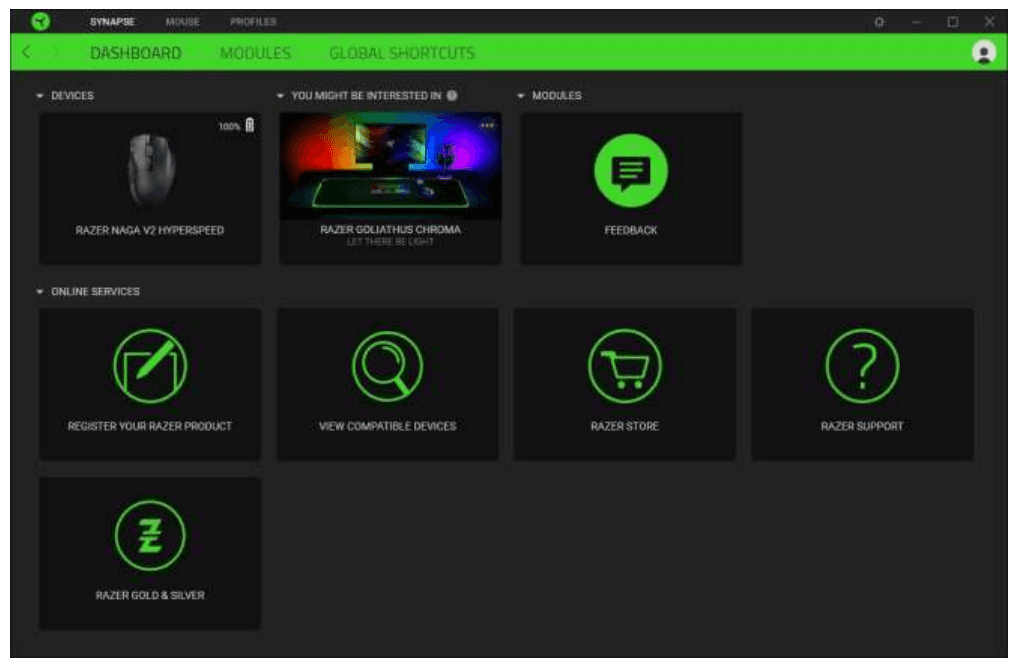

Dashboard
The Dashboard subtab is an overview of your Razer Synapse, where you can access all your Razer devices, modules, and online services.

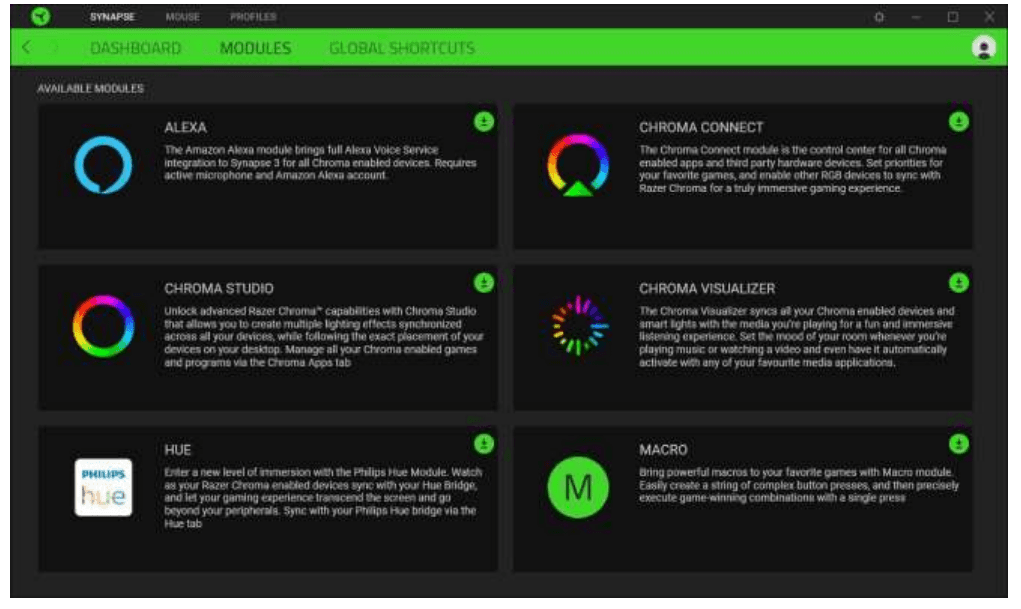

Modules
The Modules subtab displays all installed and available modules for installation.

Global Shortcuts
Bind operations or Razer Synapse functions to custom key combinations from any Razer Synapse-enabled device inputs, which apply across all device profiles.

MOUSE TAB
The Mouse tab is the main tab for your Razer Naga V2 HyperSpeed. From here, you can change your device’s settings, such as button assignment and DPI sensitivity. Changes made under this tab are automatically saved to your system and cloud storage.

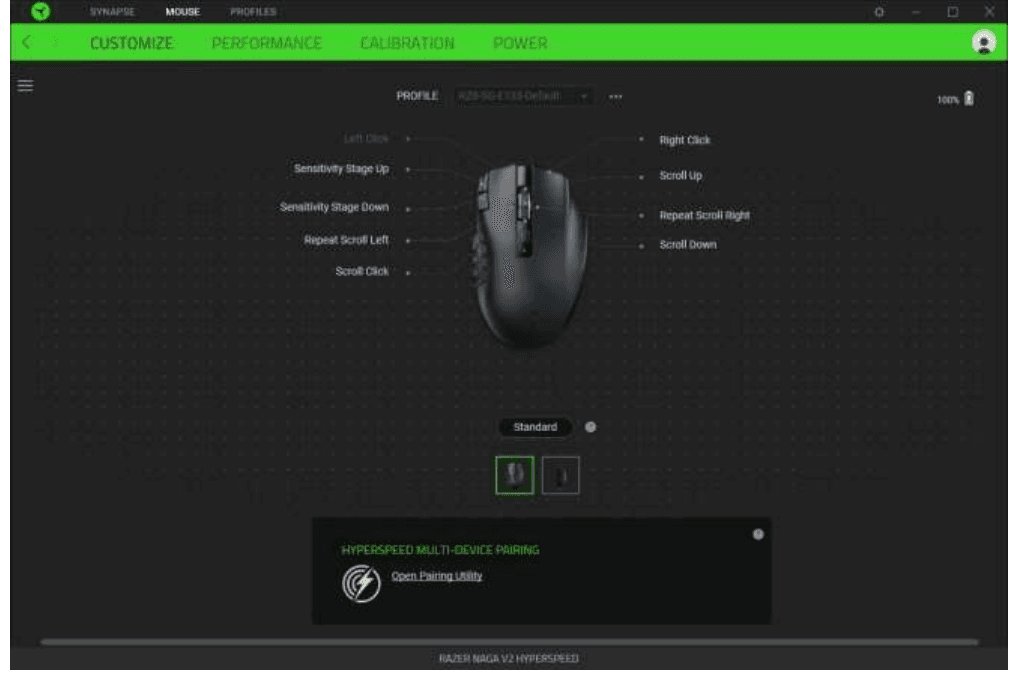

Customize
The Customize subtab is for modifying your mouse’s button assignments.

Profile
Profile is a data storage for keeping all your Razer peripheral’s settings. By default, the profile name is based on your system’s name. To add, rename, duplicate, or delete a profile, press the Miscellaneous button ( ).
Standard / Hypershift
Hypershift mode is a secondary set of button assignments activated when the Hypershift key is held down. By default, the Hypershift key is assigned to the fn key of your Razer Synapse-supported keyboard. However, you can also set any mouse button as a Hypershift key.
HyperSpeed Multi-Device Pairing
Use this feature to pair an additional HyperSpeed-compatible device with the wireless USB dongle of your Razer Naga V2 HyperSpeed. As its wireless USB dongle can support a keyboard and mouse simultaneously, you’ll be able to remove the usage of separate dongles for each peripheral.

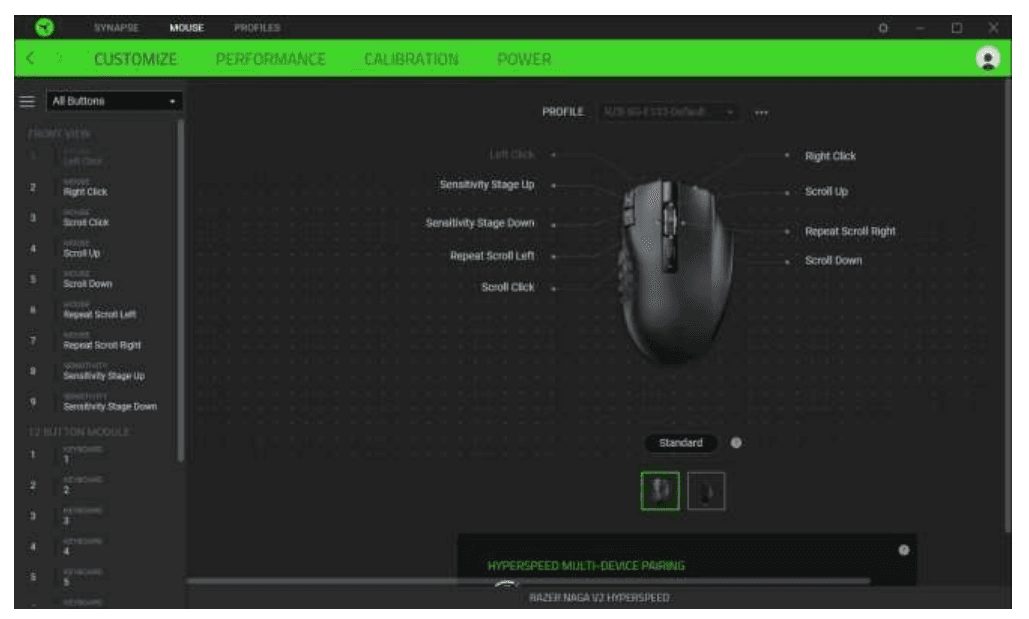

Alternatively, you can skip to a specific button assignment by selecting it on the Customize tab.

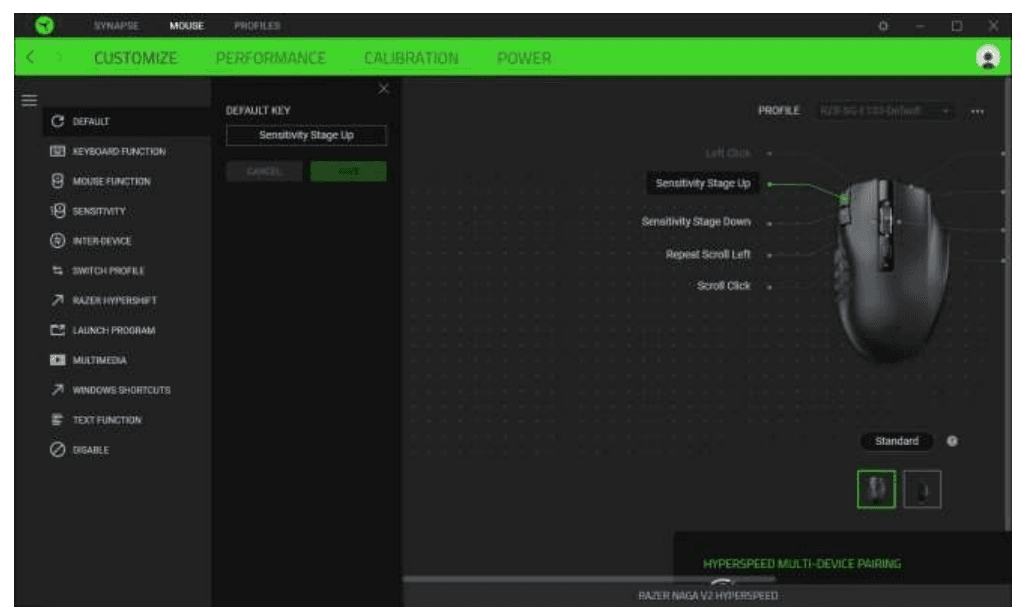

This option substitutes the current button assignment for another mouse function. Listed below are the functions which you can choose from:

Left Click – Performs a left mouse click using the assigned button.
Right Click – Performs a right mouse click using the assigned button.
Scroll Click – Activates the universal scrolling function.
Double Click – Performs a double left click using the assigned button.
Mouse Button 4 – Performs a “Backward” command for most internet browsers.
Mouse Button 5 – Performs a “Forward” command for most internet browsers.
Scroll Up – Performs a “Scroll Up” command using the assigned button.
Scroll Down – Performs a “Scroll Down” command using the assigned button.
Scroll Left – Performs a “Scroll Left” command using the assigned button.
Scroll Right – Performs a “Scroll Right” command using the assigned button.

This function allows you to manipulate the DPI setting of your Razer Naga V2 HyperSpeed with a touch of a button. Listed below are the Sensitivity options and their description:

Sensitivity Clutch – Changes the sensitivity to a predefined DPI while the designated button is held down. Releasing the button will return it to the previous sensitivity.
Sensitivity Stage Up – Increases the current sensitivity by one stage.
Sensitivity Stage Down – Decreases the current sensitivity by one stage.
On-The-Fly Sensitivity – Pressing the designated button and moving the scroll wheel either up or down will increase or decrease the current DPI.
Cycle Up Sensitivity Stages – Increases the current sensitivity stage by one. Once it reaches the highest sensitivity stage, it will return to stage 1 when the button is pressed again.

This option allows you to assign multimedia controls to your Razer device. Listed below are the multimedia controls you can choose from:

Volume Down – Decreases the audio output.
Volume Up – Increases the audio output.
Mute Volume – Mutes the audio.
Mic Volume Up – Increases the microphone volume.
Mic Volume Down – Decreases the microphone volume.
Mute Mic – Mutes the microphone.
Mute All – Mutes both microphone and audio output.
Play / Pause – Play, pause, or resume playback of the current media.
Previous Track – Play the previous media track.
Next Track – Play the next media track.

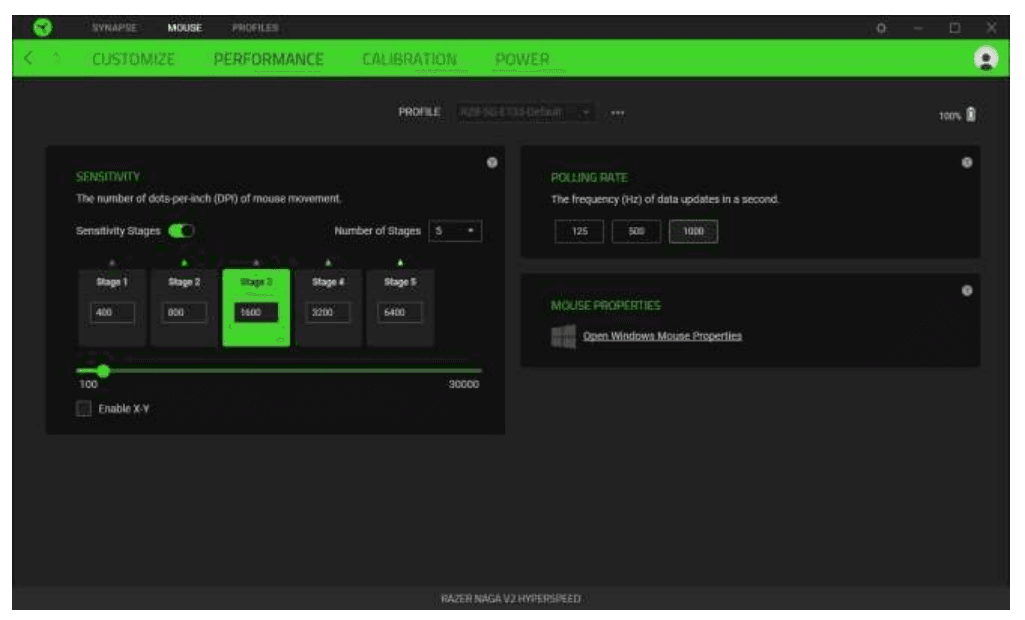

Performance
The Performance subtab allows you to modify the sensitivity, acceleration, and polling rate.

Sensitivity
Sensitivity refers to the distance the cursor will travel based on how far the mouse moves. The higher the DPI, the farther the cursor will travel, given the same mouse movement distance.

Sensitivity Stages
A sensitivity stage is a preset sensitivity value. You can create up to 5 different sensitivity stages, which you can cycle through using the sensitivity stage up/down buttons. You may use the Enable X-Y Sensitivity concurrently with this option.

Enable X-Y Sensitivity
By default, the X-axis (horizontal) and Y-axis (vertical) use the same sensitivity values. However, you may set different sensitivity values for each axis by selecting the Enable X-Y Sensitivity option.

Polling Rate
The higher the polling rate, the more often the computer receives information about the status of your mouse, effectively reducing input latency and improving your mouse pointer’s reaction time. You can switch between 125Hz, 500Hz, and 1000Hz by selecting your desired polling rate from the options provided.

Mouse Properties
Allows you to access the Windows Mouse Properties, where you modify operating system settings that can directly affect your Razer Naga V2 HyperSpeed.

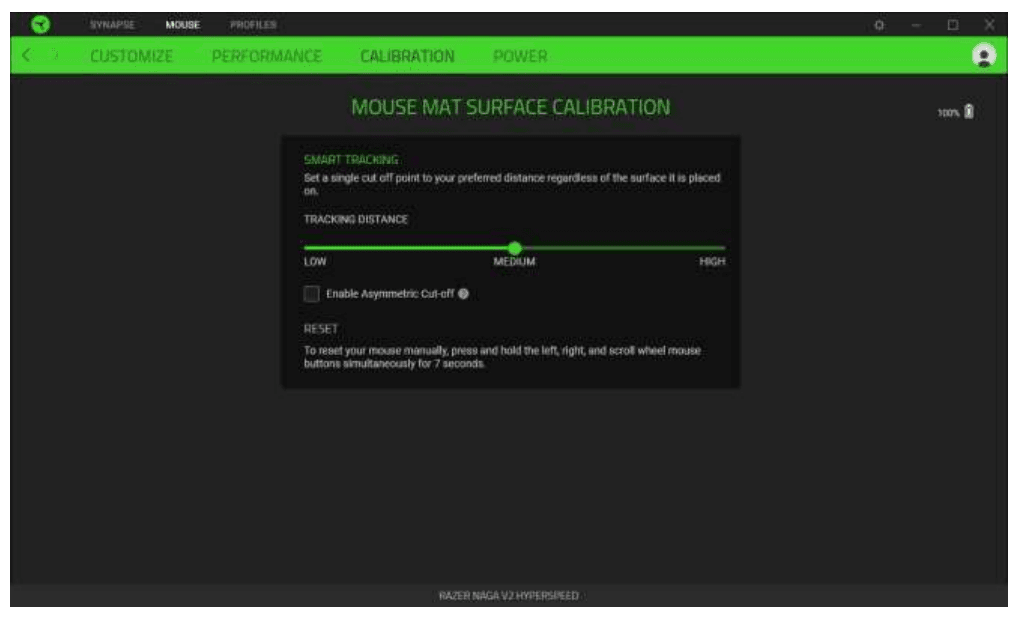

Calibration
The Calibration subtab allows you to optimize your Razer Precision Sensor to any surface for better tracking.

Smart Tracking
Smart Tracking lets you set the distance at which the sensor stops tracking when it is lifted from its surface to avoid unwanted cursor movement. By selecting the Enable Asymmetric Cut-Off, you may assign different values to the lift-off and landing distances.

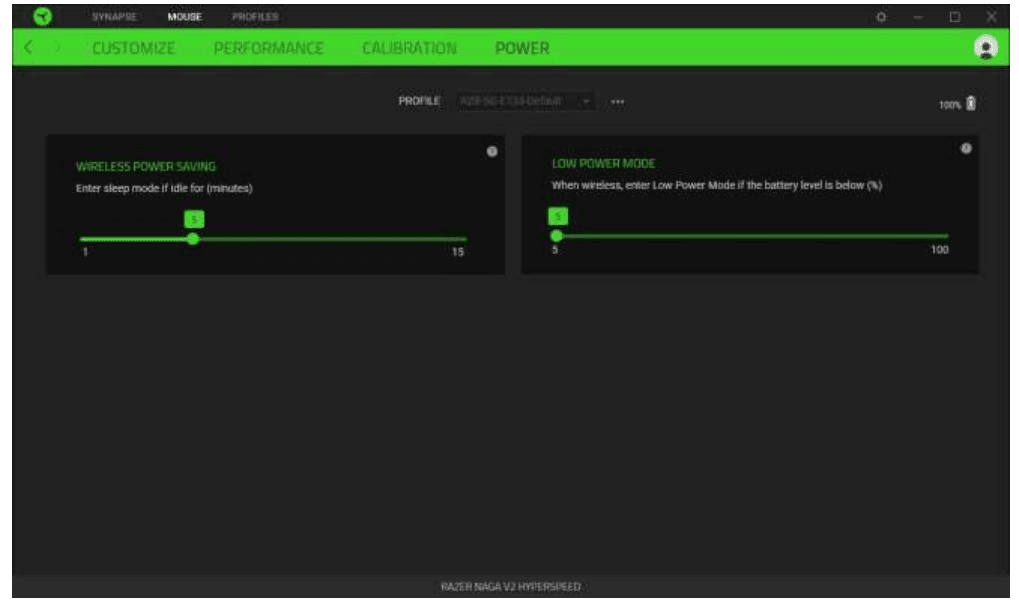

Power
The Power subtab allows you to set your device to enter sleep mode when idle for a certain amount of time or manage its energy consumption when wireless.

PROFILES TAB
The Profiles tab is a convenient way to manage all your profiles and link them to your games and applications.

Devices
View which games are linked to each device’s profiles or which Chroma Effect is linked to specific games using the Devices subtab.

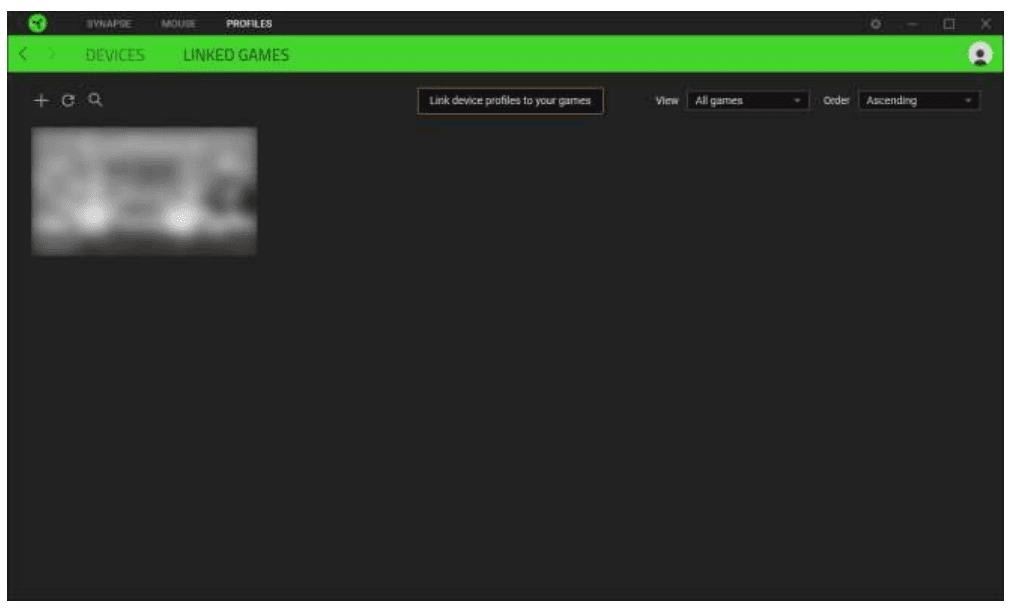

Linked Games
The Linked Games subtab allows you to add games, view devices linked to games, or search for added games. You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here, even if they are not linked to a Razer device.

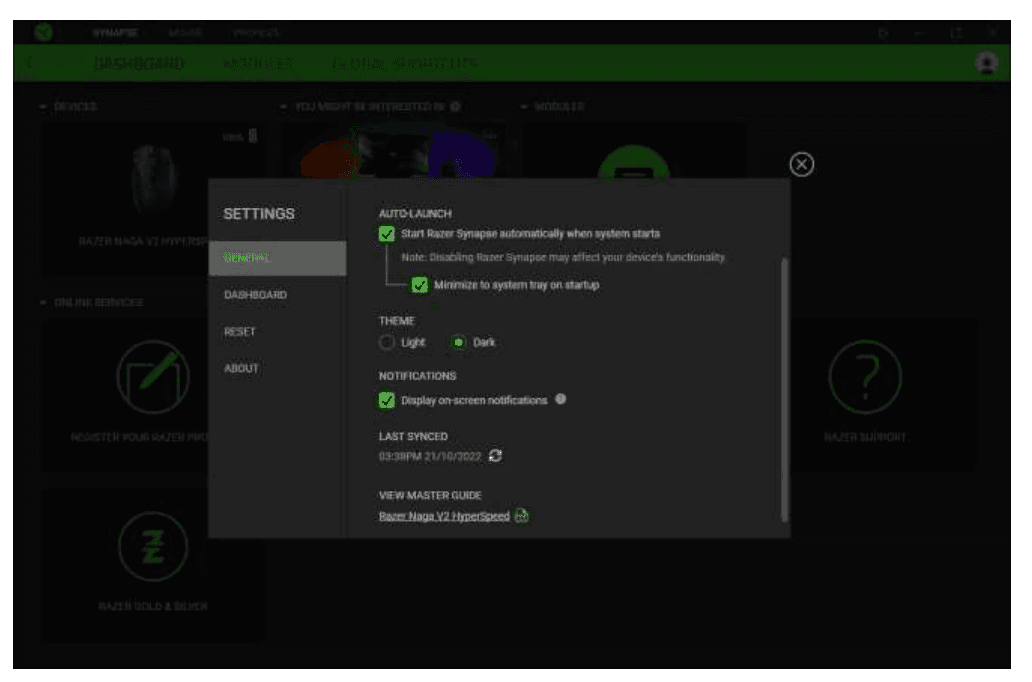

SETTINGS WINDOW
The Settings window, accessible by clicking the button on Razer Synapse, enables you to configure the startup behavior and display language of Razer Synapse, view the master guides of each connected Razer device, or perform a factory reset on any connected Razer device.

General tab
The General tab lets you change the software’s display language, startup behavior, theme, and on-screen notifications display. You may also manually sync your profiles to the cloud ( ) or view the master guide of all connected Razer devices and installed modules.

Dashboard tab
Use the Dashboard tab to customize which Razer device recommendations based on your setup, and the games you play will appear on the Dashboard.

Reset tab
The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory and/or reset Razer Synapse tutorials to acquaint yourself again with Razer Synapse’s new features on its next launch.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

To achieve maximum safety while using your Razer Naga V2 HyperSpeed, we suggest that you adopt the following guidelines:

Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for support.
Don’t take apart the device, and don’t attempt to operate it under abnormal current loads. Doing so will void your warranty.
Keep the device away from liquid, humidity, or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device to stabilize the temperature to an optimal level.

COMFORT
Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer Naga V2 HyperSpeed.

Position your keyboard and monitor directly in front of you with your mouse next to it. Place your elbows next to your side, not too far away, and your keyboard within easy reach.
Adjust the height of your chair and table so that the keyboard and mouse are at or below elbow height.
Keep your feet well supported, posture straight, and your shoulders relaxed.
During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend or twist your hands for long periods.
Don’t rest your wrists on hard surfaces for long periods. Use a wrist rest to support your wrist while gaming.
Don’t sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck, and legs.

If you experience any physical discomfort while using your mouse, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck, or back, please consult a qualified medical doctor immediately.

MAINTENANCE AND USE

The Razer Naga V2 HyperSpeed requires minimum maintenance to keep it in optimum condition. Once a month, we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab to prevent dirt buildup. Don’t use soap or harsh cleaning agents.
To get the ultimate experience in movement and control, we highly recommend a premium mouse mat from Razer. Some surfaces will cause undue wear on the feet requiring constant care and eventual replacement.
Do note that the sensor of the Razer Naga V2 HyperSpeed is ‘tuned’ or optimized specially for the Razer mouse mats. This means that the sensor has been tested extensively to confirm that the Razer Naga V2 HyperSpeed reads and tracks best on Razer mouse mats.
