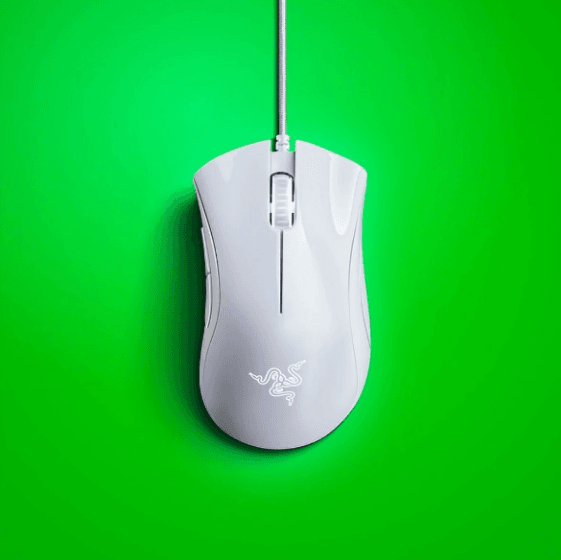

Razer DeathAdder Essential Gaming Mouse
WHAT’S INSIDE / WHAT’S NEEDED

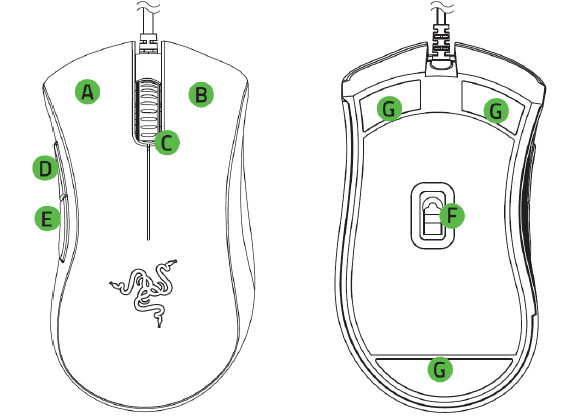

WHAT’S INSIDE
Razer DeathAdder Essential
- A. Left mouse button
- B. Right mouse button
- C. Scroll wheel
- D. Mouse button 5
- E. Mouse button 4
- F. True 6,400 DPI optical sensor
- G. Ultraslick mouse feet
WHAT’S NEEDED
PRODUCT REQUIREMENTS
- USB Type-A port
RAZER SYNAPSE REQUIREMENTS
- Windows® 7 64-bit (or higher)
- Internet connection for software installation
LET’S GET YOU COVERED

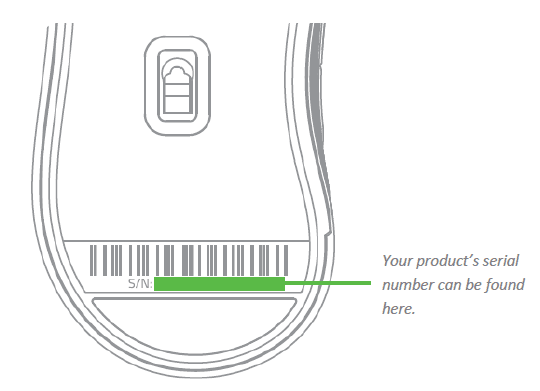

- You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com
- Got a question? Ask the Razer Support Team at support.razer.com
TECHNICAL SPECIFICATIONS
- True 6,400 DPI optical sensor
- Up to 220 inches per second (IPS) / 30 G acceleration
- Five independently programmable Hyperesponse buttons
- Razer™ Mechanical Mouse Switches with 10 million-click life cycle
- Gaming-grade tactile scroll wheel
- Ergonomic right-handed design
- 1000 Hz Ultrapolling
- Single-color green lighting
- Razer Synapse 3 enabled
APPROXIMATE SIZE & WEIGHT
- Length: 127 mm / 5.0 in
- Width: 73 mm / 2.90 in
- Height: 43 mm / 1.70 in
- Weight: 96 g / 0.211 lbs
GETTING STARTED

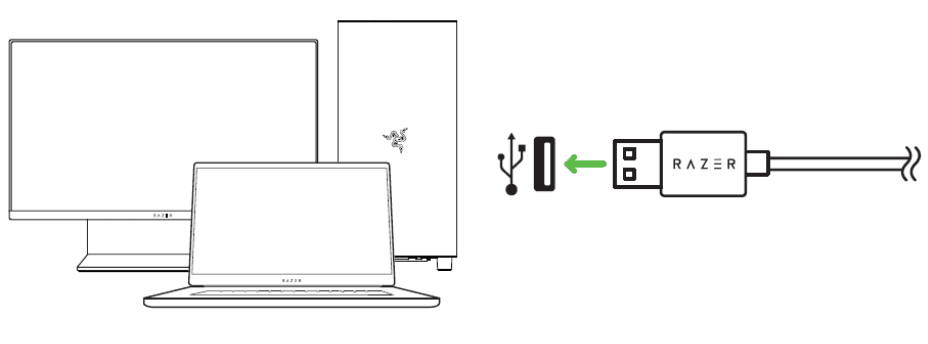

- Connect your Razer device to the USB port of your computer.
- Change your mouse’s DPI to match your playstyle by pressing the DPI cycle button, or use the Razer Synapse app to fine-tune your own sensitivity setting and even customize its lighting.
- Install Razer Synapse when prompted or download the installer from razer.com/synapse
CONFIGURING YOUR RAZER DEATHADDER ESSENTIAL
- An internet connection is required for installation, updates, and cloud-based features. Registering for a Razer ID account is recommended, but optional. All listed features are subject to change based on the current software version, connected device(s), and supported apps and software.
SYNAPSE TAB
- The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab.
- Dashboard
- The Dashboard subtab is an overview of your Razer Synapse, where you can access all your Razer devices, modules, and online services.
- Modules
- The Modules subtab displays all installed and available modules for installation.

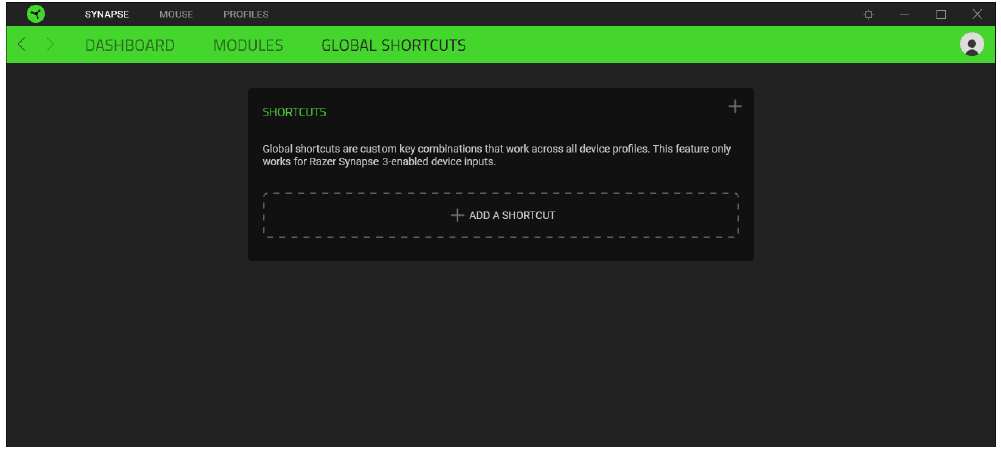

- Global Shortcuts
Bind operations or Razer Synapse functions to custom key combinations from any Razer Synapse-enabled device inputs, which apply across all device profiles
MOUSE TAB
- The Mouse tab is the main tab for your Razer DeathAdder Essential. From here, you can change your device’s settings, such as button assignment, DPI sensitivity, and lighting. Changes made under this tab are automatically saved to your system and cloud storage

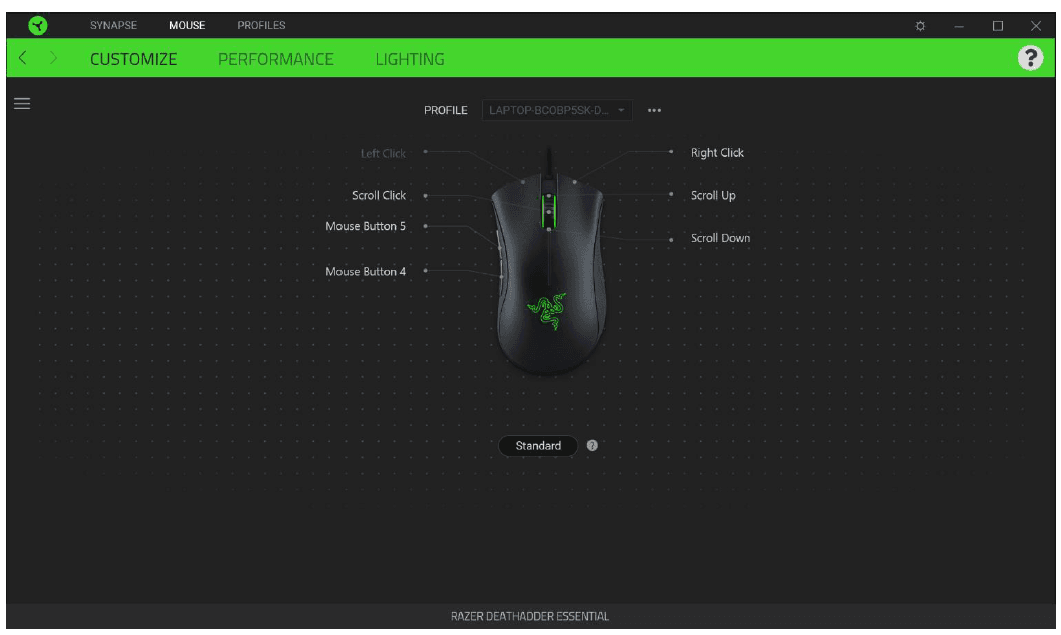

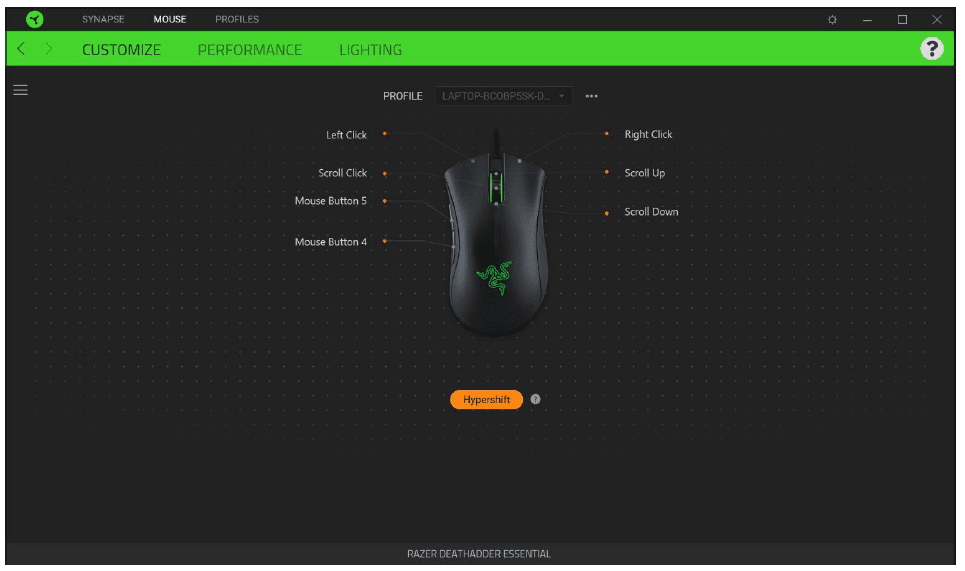

- Customize
- The Customize subtab is for modifying your mouse’s button assignments
- Profile
- Profile is a data storage for keeping all your Razer peripherals’ settings. By default, the profile name is based on your system’s name. To add, rename, duplicate, or delete a profile, simply press the Miscellaneous button
- Hypershift
- Hypershift mode is a secondary set of button assignments that is activated when the Hypershift key is held down. By default, the Hypershift key is assigned to the fn key of your Razer Synapse-supported keyboard however, you can also assign any mouse button as a Hypershift key.
- Sidebar
- Clicking the Sidebar button will reveal all current button assignments for your Razer DeathAdder Essential
- Default
- This option enables you to return the mouse button to its original setting.
- Keyboard Function
- This option changes the button assignment into a keyboard function. You can also choose to enable Turbo mode, which allows you to emulate a repeated keyboard function while the button is held down.
- Mouse Function
- This option substitutes the current button assignment for another mouse function. Listed below are the functions that you can choose from:
- Left Click – Performs a left mouse click using the assigned button.
- Right Click – Performs a right mouse click using the assigned button.
- Scroll Click – Activates the universal scrolling function.
- Double Click – Performs a double left click using the assigned button.
- Mouse Button 4 – Performs a “Backward” command for most internet browsers.
- Mouse Button 5 – Performs a “Forward” command for most internet browsers.
- Scroll Up – Performs a “Scroll Up” command using the assigned button.
- Scroll Down – Performs a “Scroll Down” command using the assigned button.
- Scroll Left – Performs a “Scroll Left” command using the assigned button
- Macro
- A Macro is a prerecorded sequence of keystrokes and button presses that is executed with precise timing. By setting the button function to Macro, you can conveniently execute a chain of commands. This function will only be visible when the Macro module is installed.
- Inter-device
- Inter-device allows you to change the functionality of other Razer Synapse-enabled devices. Some of these functionalities are device-specific, such as using your Razer gaming keyboard to change the
- Multimedia
- This option allows you to assign multimedia controls to your Razer device. Listed below are the multimedia controls you can choose from:
- Volume Down – Decreases the audio output.
- Volume Up – Increases the audio output.
- Mute Volume – Mutes the audio.
- Mic Volume Up – Increases the microphone volume.
- Mic Volume Down – Decreases the microphone volume.
- Mute Mic – Mutes the microphone.
- Mute All – Mutes both the microphone and audio output.
- Play / Pause – Play, pause, or resume playback of the current media.
- Previous Track – Play the previous media track.
- Next Track – Play the next media track
- Windows Shortcuts
- This option allows you to assign your preferred button to a Windows Operating System shortcut command. For more information, please visit: support.microsoft.com/kb/126449

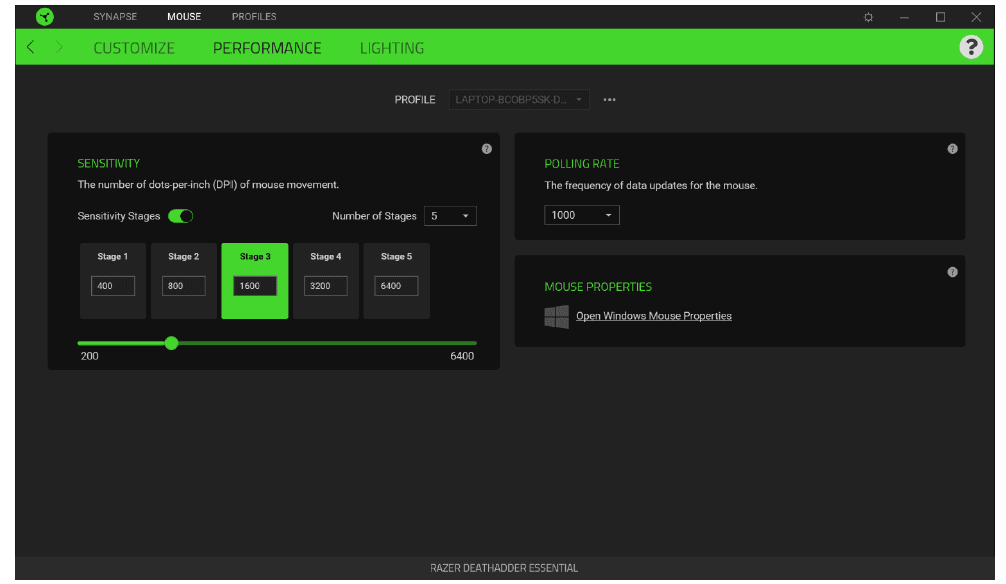

Performance
- The Performance subtab allows you to modify the sensitivity, acceleration, and polling rate
- Sensitivity
Sensitivity refers to the distance the cursor will travel based on how far the mouse moves. The higher the DPI, the farther the cursor will travel given the same distance of mouse movement. - Polling Rate
- The higher the polling rate, the more often the computer receives information about the status of your mouse, thus increasing the mouse pointer’s reaction time. You can switch between 125Hz (8ms), 500Hz (2ms), and 1000Hz (1ms) by selecting your desired polling rate on the dropdown menu.
- Mouse Properties
- From here, you can access the Windows Mouse Properties, where you modify operating system settings that can directly affect your Razer DeathAdder Essential.

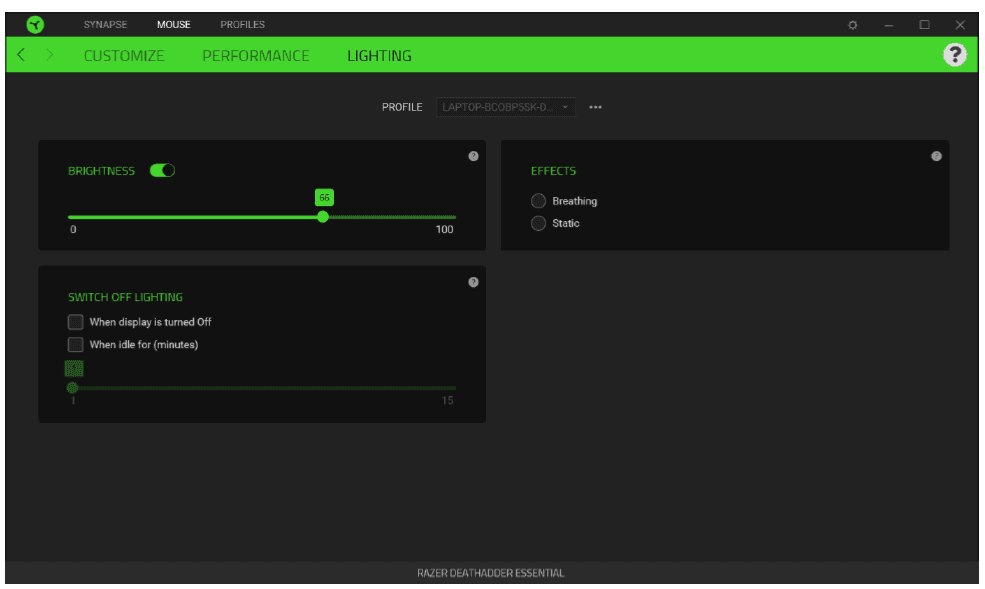

Lighting
- The Lighting subtab enables you to modify your Razer device’s light settings
- Brightness
- You can turn off your Razer device’s lighting by toggling the Brightness option or increasing/decreasing the luminance using the slider.

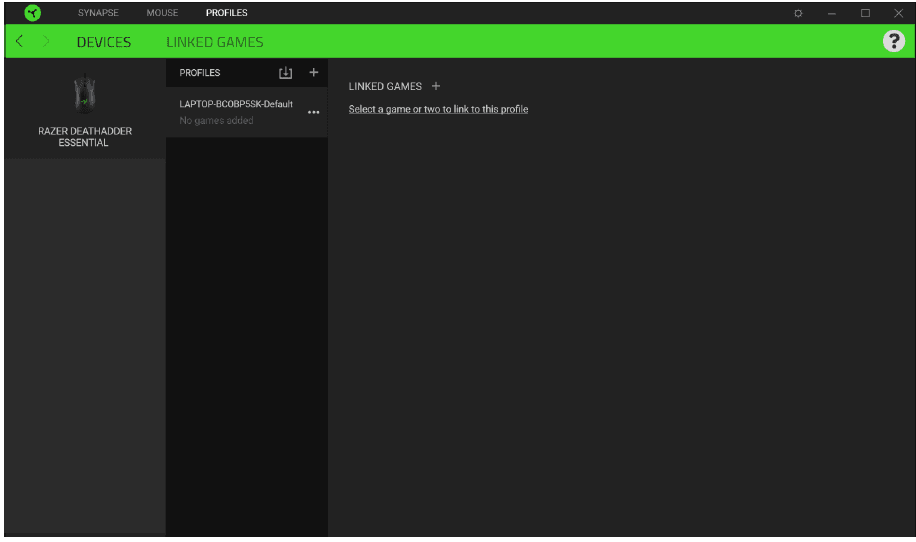

PROFILES TAB
- The Profiles tab is a convenient way of managing all your profiles and linking them to your games and applications.
- Devices
- View which games are linked to each device’s profiles or which Chroma Effect is linked to specific games using the Devices subtab

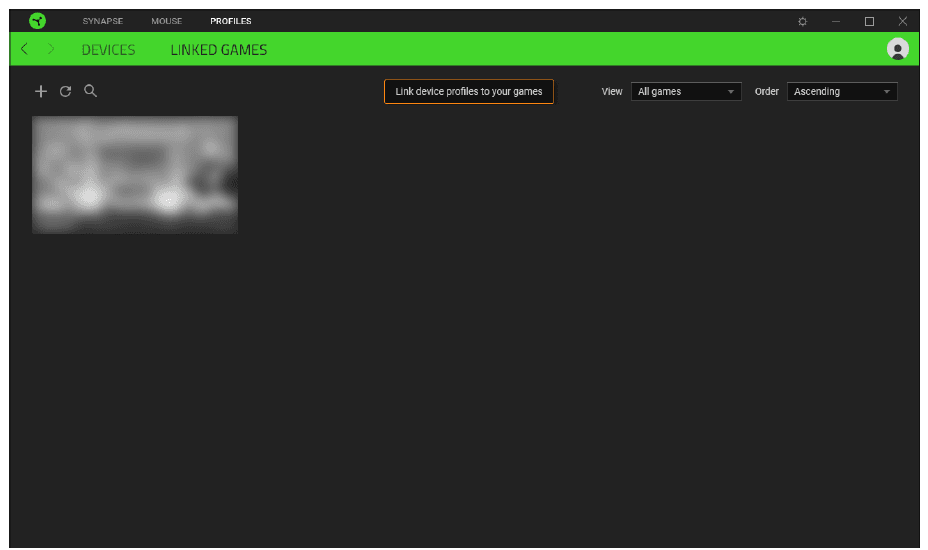

- Linked Games
- The Linked Games subtab gives you the flexibility to add games, view devices that are linked to games, or search for added games. You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here even if it is not linked to a Razer device
- To link games to connected Razer devices or Chroma Effects, simply click on any game from the list, and then click Select a device and its profile to launch automatically during gameplay to select the Razer device or Chroma Effect it will link with. Once linked, you may click on the Miscellaneous button (Three dots) of the corresponding Chroma Effect or device to select a specific Chroma Effect or profile

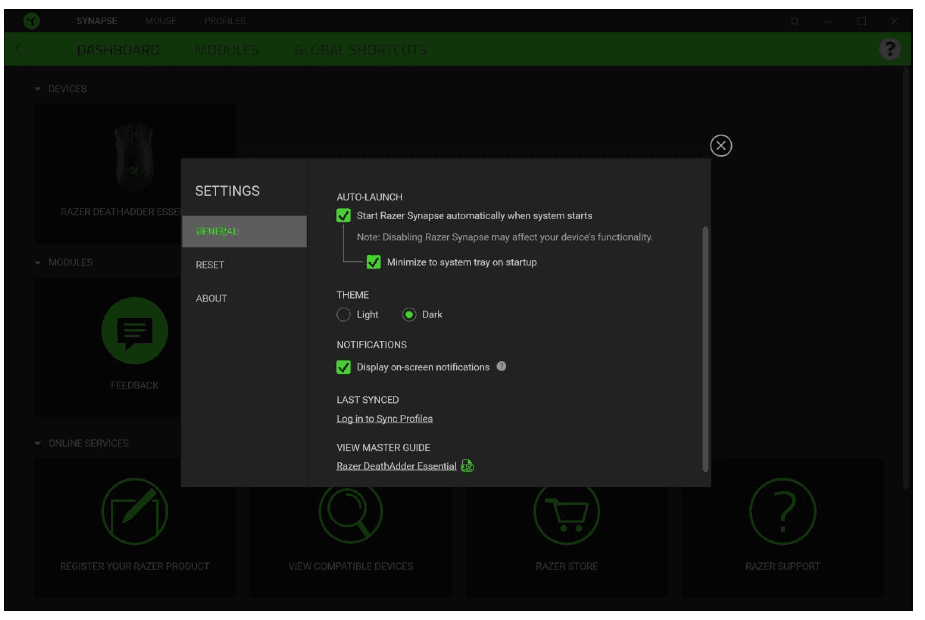

SETTINGS WINDOW
- The Settings window, accessible by clicking the button on Razer Synapse, enables you to configure the startup behavior and display language of Razer Synapse, view the master guides of each connected Razer device, or perform a factory reset on any connected Razer device.
- About tab
- The About tab displays brief software information, a copyright statement, and provides relevant links for its terms of use. You may also use this tab to check for software updates, or as a quick access to Razer’s social communities
SAFETY AND MAINTENANCE
SAFETY GUIDELINES
In order to achieve maximum safety while using your Razer DeathAdder Essential, we suggest that you adopt the following guidelines:
- Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for support.
- Do not take apart the device (doing so will void your warranty), and do not attempt to operate it under abnormal current loads.
- Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
MAINTENANCE AND USE
- The Razer DeathAdder Essential requires minimal maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
- To get the ultimate experience in movement and control, we highly recommend a premium mouse mat from Razer. Some surfaces will cause undue wear on the feet, requiring constant care and eventual replacement.
- Do note that the sensor of the Razer DeathAdder Essential is ‘tuned’ or optimized especially for the Razer mouse mats. This means that the sensor has been tested extensively to confirm that the Razer DeathAdder Essential reads and tracks best on Razer mouse mats.
LIMITED PRODUCT WARRANTY
- For the latest and current terms of the Limited Product Warranty, please visit razer.com/warranty
- LIMITATION OF LIABILITY
- Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of the distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.
- GENERAL
- These terms shall be governed by and construed under the laws of the jurisdiction in which the Product was purchased. If any term herein is held to be invalid or unenforceable, then such term (in so far as it is invalid or unenforceable) shall be given no effect and deemed to be excluded without invalidating any of the remaining terms. Razer reserves the right to amend any term at any time without notice
