Revolution R180S High-Speed Touchscreen Toaster User Manual

Revolution R180S High-Speed Touchscreen Toaster

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety Precautions should always be followed, including the following: READ ALL INSTRUCTIONS.

1. Do not touch hot surfaces. Do not insert body parts into toaster slots. Use the touchscreen to operate the toaster. Wait until the toaster is cool before touching or moving.
2. To protect against electrical shock, do not immerse the cord, plugs, or the appliance in water or other liquids.
3. Close supervision by an adult is necessary when any appliance is used by or near children.
4. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. Flashing START button indicates ready to operate. Avoid any contact with live parts.
5. Do not operate any appliance with a damaged cord or pl, ug, or after the appliance
   malfunctions or has been damaged in any manner. Return the appliance to the nearest
   authorized service facility for examination, repair, or adjustment.
6. The use of any accessory attachments is not recommended by the appliance manufacturer and may cause injuries.
7. Do not use outdoors.
8. Do not let the cord hang over the edge of the table or counter or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. To disconnect the toaster, remove the plug from the wall outlet.
11. Do not use the toaster for anything other than its intended use.
12. Oversized foods, metal foil, packages, or utensils must not be inserted in a toaster as they may create a risk of fire or electric shock.
13. A fire may occur if toasters are covered or touching flammable materials, including curtains, draperies, walls, cabinets, and the like, when in operation.
14. Do not attempt to dislodge food when the toaster is plugged in.
15. Do not operate unattended.
16. When heating toaster pastries, always use the toaster pastry setting.
17. If for any reason the toaster interface freezes, unplug, wait 30 seconds, and plug back in to reboot the toaster.
18. Do not use the toaster without the crumb tray in place. Do not allow crumbs to build up in the crumb tray. Failure to clean the crumb tray regularly may result in a fire hazard and damage to the toaster.

ADDITIONAL SAFEGUARD INFORMATION

DO

• Always use the toaster in the upright position.
• Before each use, make sure that the crumb tray is in its proper location.
• Regularly remove crumbs from the crumb tray.
• If food jams in the toaster slots while toasting, unplug from the outlet and wait for the toaster to cool before removing the food.
• Unplug the toaster if it shows any working abnormalities.

DO NOT

• Do not leave the toaster unattended during operation.
• Do not immerse the toaster in water or run water into the toaster.
• Do not place the toaster in the dishwasher.
• Do not touch the hot surfaces of the toaster.
• Do not transport the toaster by grasping the toaster slots.
• Do not put body parts in the toaster slots.
• Do not attempt to toast foods with ingredients that melt or drip in the toaster.
• Do not toast torn slices of bread.
• Do not place buttered bread or wrapped food into the toaster.
• Do not toast small-sized breads, mini-baguettes, breadsticks, etc., in this toaster.
• Do not toast foods thicker than one inch in the toasting slots.
• Do not cover this appliance while in use.
• Do not use this appliance as a source of heating or drying.
• Do not use this toaster near any flammable materials such as curtains, under shelving, or wall cupboards, etc.
• Do not put paper, cardboard or plastic, or cloth in, on, or under the toaster.
• Do not operate the toaster under or around any flammable materials.
• Do not use the toaster for cooking, grilling, or defrosting frozen food other than recommended food products (bread, bagel, waffle, English muffin, toaster pastry).
• Do not unplug the appliance by pulling on the cord. Instead, grasp the plug and pull to disconnect.
• Do not wrap the cord around the toaster.
• Do not insert non-food objects into the toaster.
• Do not toast food items that are not recommended for this toaster. Recommended
  food items are bread, bagels, waffles, English muffins, and toaster pastries only. Placing other food items in the toaster can cause a fire.
• This product has been designed for household use only. Any professional use, inappropriate use, or failure to comply with the instructions will void the warranty.

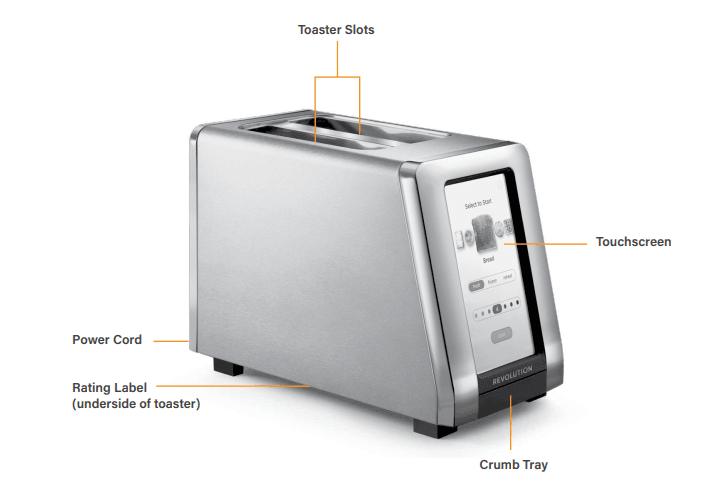

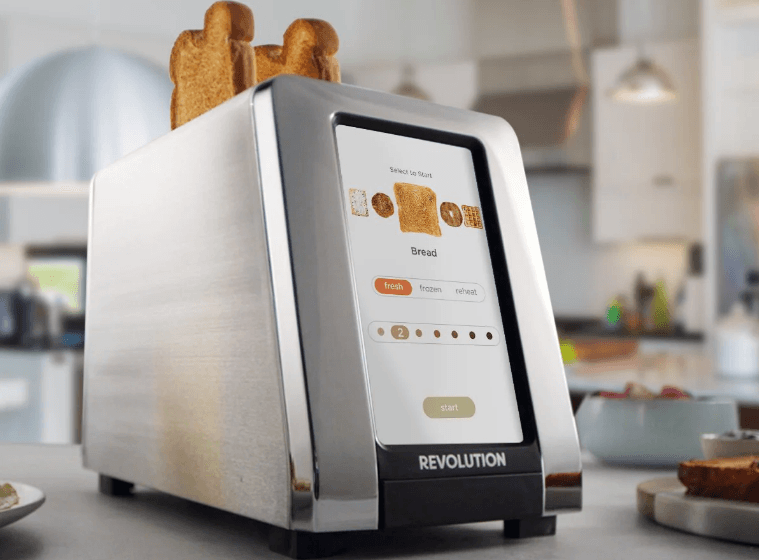

MEET YOUR REVOLUTION COOKING™ R180 TOASTER

USAGE INSTRUCTIONS

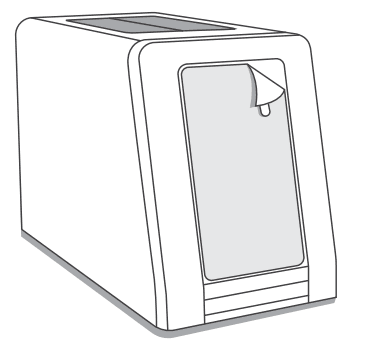

1. Unpack your toaster and remove any packing materials, including the cardboard
   inserts in the toaster slots and the adhesive cling on the touchscreen. Place the toaster on a countertop and plug it into a grounded outlet. Please check locally to see if materials are recyclable. Note: Before using the toaster for the first time,
   we recommend selecting Bread, level 4, and running two toast cycles without food in the toaster to prepare it for toasting (don’t forget to remove the cardboard inserts!). A mild odor is normal and will subside.
2. Place your food in the toaster slots. For bagels and English muffins, insert the slices so that the cut sides are facing inward, as indicated on the top of your toaster.
3. Select your food type: tap the image that matches the food type you want to toast. Be sure to select the food type that matches the food you are toasting for the best results. Note that food selection is required to enable the START button to begin toasting. Your Revolution Toaster has smart technology that uses algorithms to calculate your optimal toast time based on the food you’re toasting, the temperature of the toaster, and the voltage coming from your outlet. So whether you’re toasting bread, bagels, waffles, English muffins, or toaster pastries, you’ll get consistent toasting every time!

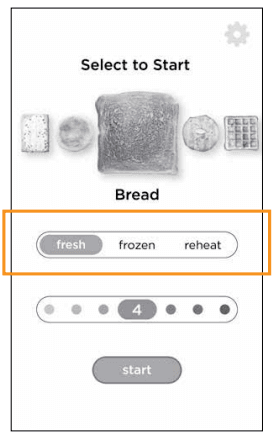

4. Select your food setting: choose the setting that matches the food you want to toast. Fresh – for fresh foods or foods you keep on the counter or fridge. Frozen foods you keep in the freezer. Reheat – for foods you just want to warm up a bit without additional toasting or browning.

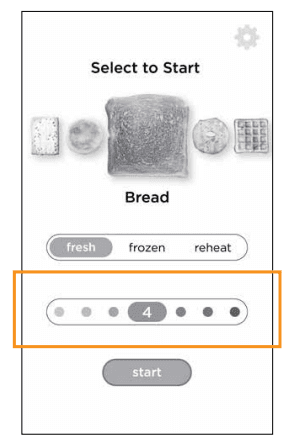

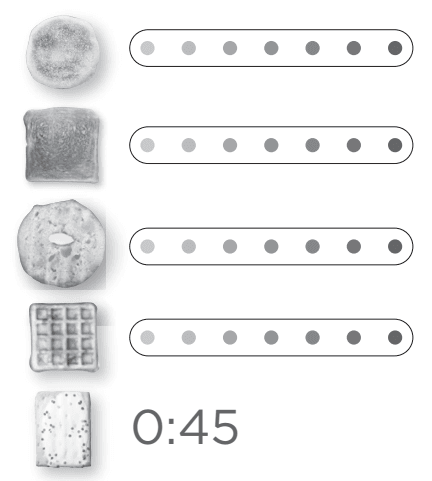

5. Select your desired level of toasting — no more guessing what your toast will look like! Note that food images are for reference only. Toasting shades may vary slightly.

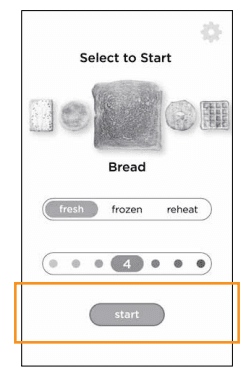

6. When the START button flashes, give it a tap and get ready for your deliciously toasted food!

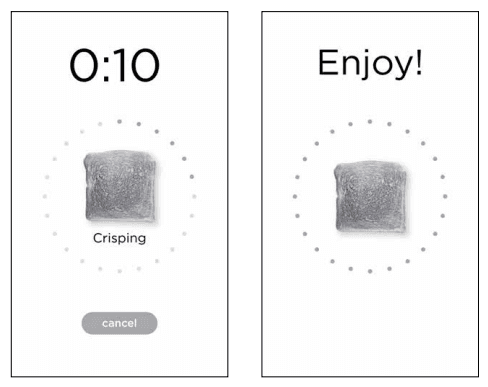

A countdown timer will appear at 10 seconds, once the “Crisping” cycle has started.

Note: This toaster is equipped with an automatic lift. Pressing the START button will automatically lower your food into the toaster. Based on food selection, the toaster will position the food in the proper position for the best quality toast. The toaster will automatically move the food to the raised position when toasting is complete. Note: Toasting can be cancelled at any time by pressing the CANCEL button. This will cancel
The operation and the food will move to the raised position.

HOW TO PERSONALIZE YOUR TOASTER

Press the Gear icon in the top right corner to access the Settings menu. From here, you
can select your ideal settings and functions to completely personalize your toaster. Press the gear icon to exit the Settings menu.

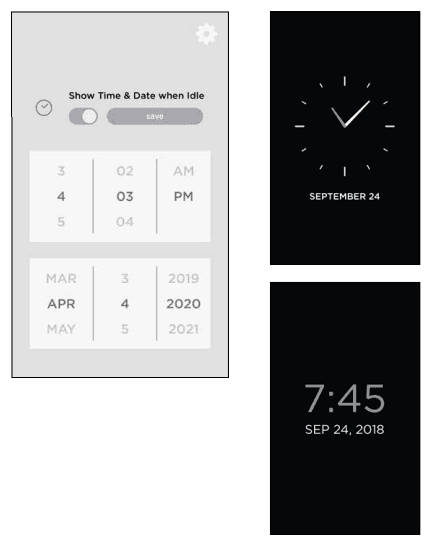

Show Time & Date
Select to set the time and date so your toaster will display the time and date when it’s not
making your toast. You may select an analog or digital clock. Note that the time and date will reset if you unplug your toaster.

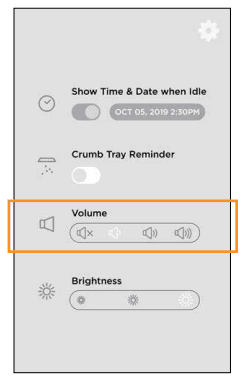

Volume
Choose your desired volume level for the alert notifying you when your food is done toasting.

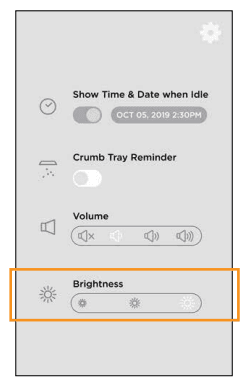

Brightness
Select your desired level of brightness for your touchscreen display.

CARE AND CLEANING

1. Remove the power plug from the power outlet and allow the toaster to cool completely before cleaning.
2. To clean any crumbs from the toaster, remove the crumb tray by pulling it outwards. Empty and replace the crumb tray before using the toaster again. Replace the crumb tray by sliding it inwards until it locks into position.
3. Wipe the outside of the toaster with a slightly dampened soft cloth, then polish with a soft dry cloth to dry completely.

Storage
Remove the power plug from the power outlet and allow the toaster to cool completely before storing. Follow the directions for cleaning and store in an upright position on a flat surface. For long-term storage, we recommend returning your toaster to its original packaging.
