Revolution R270 High-Speed Touchscreen Toaster User Manual

Revolution R270 High-Speed Touchscreen Toaster

Table of Contents

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:
READ ALL INSTRUCTIONS

Do not touch hot surfaces. Do not insert body parts into toaster slots. Use the touchscreen to operate the toaster. Wait until the toaster is cool before touching or moving.
To protect against electrical shock, keep the cord, plugs, and appliance away from water or other liquids.
Close supervision by an adult is necessary when any appliance is used by or near children.
Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. Flashing START button indicates ready to operate. Avoid any contact with live parts.
Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
The use of any accessory attachments other than those specifically designed for this appliance is not recommended by the appliance manufacturer and may cause injuries.
Do not use outdoors.
Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a heated oven.
To disconnect the toaster, remove the plug from the wall outlet.
Do not use the toaster for anything other than its intended use.
Oversized foods, metal foil, packages, or utensils must not be inserted in a toaster as they may create a risk of fire or electric shock.
A fire may occur if the toaster is covered or touches flammable materials, including
curtains, draperies, walls, cabinets, and the like, when in operation.
Do not attempt to dislodge food when the toaster is plugged in.
Do not operate unattended.
When heating toaster pastries, always use the toaster pastry setting.
If for any reason the toaster interface freezes, unplug, wait 30 seconds, and plug back in to reboot the toaster.
Do not use the toaster without the crumb tray in place. Do not allow crumbs to build up in the crumb tray. Failure to clean the crumb
tray regularly may result in a fire hazard and damage to the toaster.
To protect the life of the toaster and screen, do not spray directly or douse the toaster with any type of cleaner or solution. Per the care instructions, please only use a cloth dampened by water to clean the toaster.

SAVE THESE INSTRUCTIONS. HOUSEHOLD USE ONLY
WARNING! Shock Hazard
Your toaster is fitted with a short power supply cord to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised. If a longer cord is used, the electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must also be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or pets, or accidentally tripped over. If the appliance is of the grounded type, the
cord set of the extension cord should be a grounding-type 3-wire cord. To avoid electrical circuit overload, do not use another high-wattage appliance on the same circuit
as this appliance. Note: This toaster is electronically controlled and can
only be used with a 120-volt power outlet.

ADDITIONAL SAFEGUARD INFORMATION

Always use the toaster in the upright position.
Before each use, make sure that the crumb tray is in its proper location.
Regularly remove crumbs from the crumb tray.
If food jams in the toaster slots while toasting, unplug from the outlet and wait for the toaster to cool before removing the food.
Unplug the toaster if it shows any working abnormalities.
Let the toaster cool completely after running up to 6 panini press cycles.

DO NOT

Do not leave the toaster unattended during operation.
Do not immerse the toaster in water or run water into the toaster.
Do not place the toaster in the dishwasher.
Do not touch the hot surfaces of the toaster.
Do not transport the toaster by grasping the toaster slots.
Do not put body parts in the toaster slots.
Do not attempt to toast foods with ingredients that melt or drip in the toaster.
Do not toast torn slices of bread.
Do not place buttered bread or wrapped food into the toaster.
Do not toast small-sized breads, mini-baguettes, breadsticks, etc., in this toaster.
Do not toast foods thicker than one inch in the toasting slots.
Do not cover this appliance while in use.
Do not use this appliance as a source of heating or drying.
Do not use this toaster near any flammable materials such as curtains, under shelving, or wall cupboards, etc.
Do not put paper, cardboard or plastic, or cloth in, on, or under the toaster.
Do not operate the toaster under or around any flammable materials.
Do not use the toaster for cooking, grilling, or defrosting frozen food other than recommended food products (e.g., bread, bagel, waffle, English muffin, toaster pastry, etc.).
Do not unplug the appliance by pulling on the cord. Instead, grasp the plug and pull to disconnect.
Do not wrap the cord around the toaster.
Do not insert non-food objects into the toaster.
Do not toast food items that are not recommended for this toaster. Recommended
food items are bread, bagels, waffles, English muffins, toaster pastries, and other items as listed in the Settings on the toaster. Placing other food items in the toaster can cause a fire.
This product has been designed for household use only. Any professional use, inappropriate use, or failure to comply with the instructions will void the warranty.
This product is only certified for use in the United States and Canada. Any failure to comply with these instructions will void the warranty.

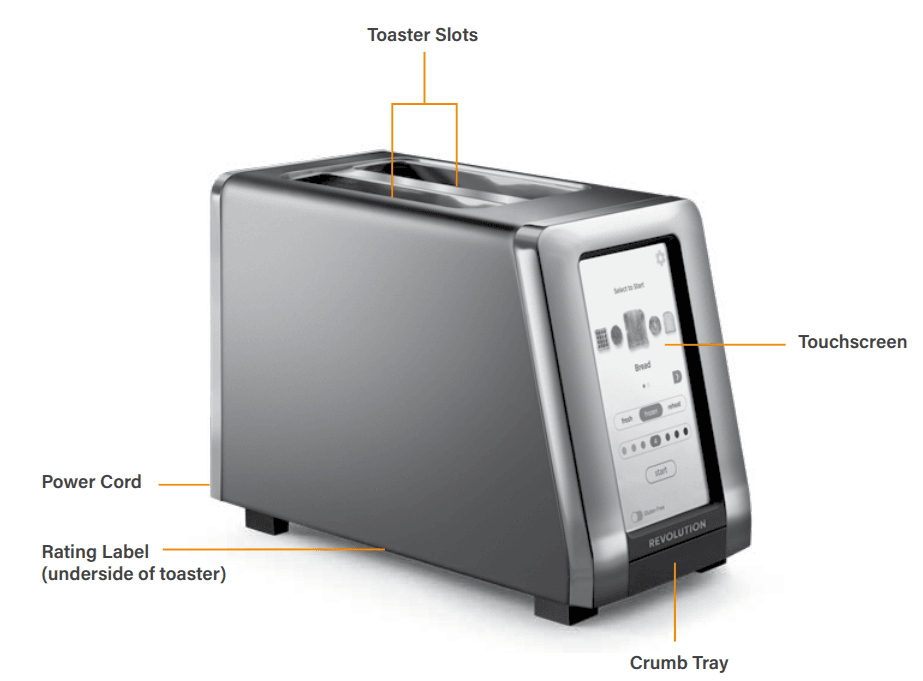

MEET YOUR REVOLUTION INSTAGLO™ TOASTER

USAGE INSTRUCTIONS

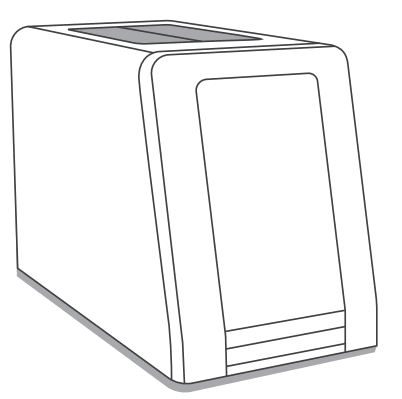

Unpack your toaster and remove any packing materials, including the cardboardInsertt in the toaster slots. Place the toaster on a clutter-free countertop and plug it into a grounded outlet. Please check locally to see if materials are recyclable or save them for long-term storage. Note: Before placing food in the toaster, we recommend selecting “Bread” and level 4 and running two toast cycles. This will prepare the toaster for toasting (don’t forget to remove the cardboard insert!). A mild odor is normal and will subside.
Place your food in the toaster slots. For bagels and English muffins, insert the slices so that the cut sides are facing inward, as indicated on the top of your toaster.
Your R270 allows you to choose from an extended toast library to customize your
Home Screen with your favorite 10 food modes. See section “How to customize your toaster” in this User Manual.

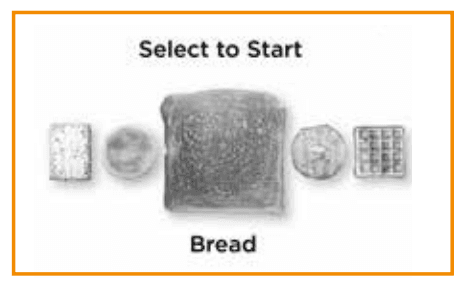

Select your food type: tap the image that matches the food type you want to toast.
Your Home Screen will show up to ten food types. To navigate between sets of
food types, press the arrow below the food images. Be sure to select the food type that matches the food you are toasting for the best results. The icons are for reference only, and they approximate the end toast shade result. Note that food selection is required with each toasting cycle to enable the START button to begin
toasting. This two-touch selection is a safety measure.
- Gluten-Free Setting 6 Your toaster has a Gluten-Free setting that is
  designed to optimize your toasting experience with your favorite gluten-free breads. When toasting a gluten-free item, select your food type and turn on the Gluten-Free setting by toggling the Gluten-Free button on the bottom left corner of your Home Screen. An icon should appear on your selected food
  setting. To turn it off for your next toast cycle, simply deselect the Gluten-Free button. To turn the Gluten-Free setting off for your next toast cycle, simply deselect the Gluten-Free button.

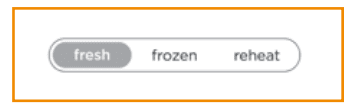

Select your food setting: choose the setting that matches the food you want to toast. Fresh – for fresh foods or foods you keep on the counter or fridge Frozen – for foods you keep in the freezer Reheat – for foods you just want to warm up
a bit without additional toasting or browning.

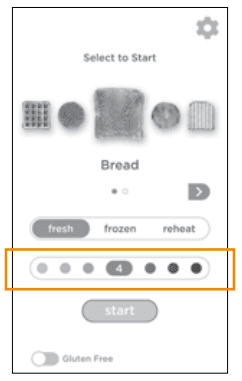

Select your toasting shade. The picture will show how dark or light your food will be toasted. Note that images are for reference only. Shades may vary slightly. Shade selections vary by food type. Your Revolution InstaGLO™ toaster features
our InstaGLO™ rapid heating system. In addition to heating instantly, it calculates
the optimal time to toast based on the food you select and other qualities that can affect how long your food should be toasted. So no matter what you’re toasting, you’ll get consistent toasting every time.

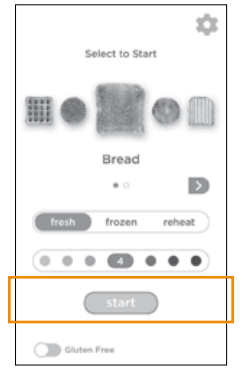

When the START button flashes, give it a tap and get ready for your deliciously
toasted food!

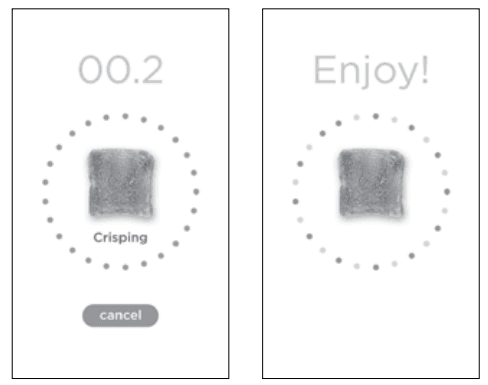

A countdown timer will appear with 10 seconds remaining once the “Crisping” cycle has started.

Note: This toaster is equipped with an automatic lift. Pressing the START button will automatically lower your food into the toaster. Based on food selection, the toaster will position the food in the proper position for the best quality toast. The toaster will automatically move the food to the raised position when toasting is complete. (The automatic lift does not function when the warming rack is selected.) Note: You may see heating elements turn on and off during the toasting process. This is normal operation to ensure the food item is toasted according to specific InstaGLO™ algorithms. Note: Toasting can be cancelled at any time by pressing the CANCEL button. This will cancel the operation, and the food will move to the raised position.

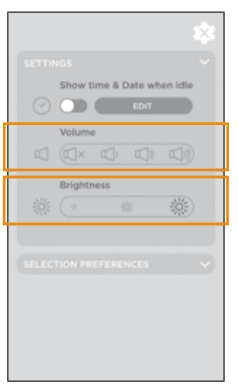

Press the Gear icon in the top right corner to access the Settings menu. From here, you can select your ideal settings and functions to completely personalize your toaster. Press the gear icon to exit the Settings menu.
Show Time & Date
Move the toggle to the on position so that your toaster will display the time and date when in rest mode. Tap the orange bar with date and time to set the correct date and time, and choose analog or digital clock.

Volume
Choose your desired volume level for the alert notifying you when your food is done toasting.
Brightness
Select your desired level of brightness for your touchscreen display.

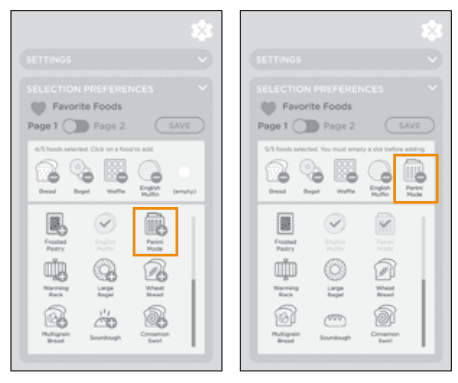

HOW TO PERSONALIZE YOUR TOASTER

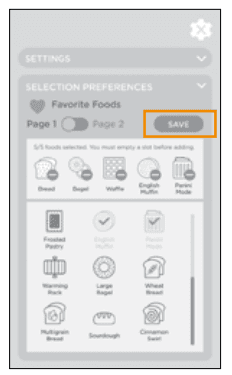

You can now customize your Home Screen with your 10 favorite food types.

Select the page number of the Home Screen that you want to customize.
Your selected items will appear in orange with a minus symbol at the top of the menu and appear faded in the bottom menu with a checkmark. To remove a selected food, press the button. That slot will now appear as empty, and the food will return to the full menu as an option.
To add an item to your Home Screen, select the food by pressing the button, and your selection will now appear in your top five at the top of the page.
Repeat Steps 2 & 3 until your Top 5 for Page 1 are chosen and hit Save.
To make changes on Page 2 of your Home Screen, press the toggle to move to Page 2 and repeat Steps 2-4.
After saving your selection preferences, tap the top left corner to return to the
home screen.

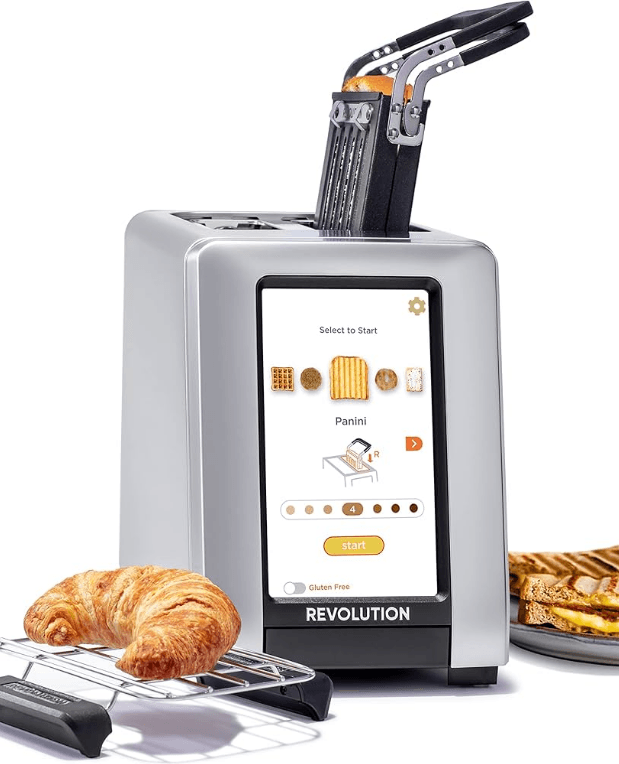

Note: Panini Press & Warming Rack modes require accessories that are sold separately and designed to work exclusively with Revolution InstaGLO™ Toasters

CARE AND CLEANING

Remove the power plug from the power outlet and allow the toaster to cool completely before cleaning.

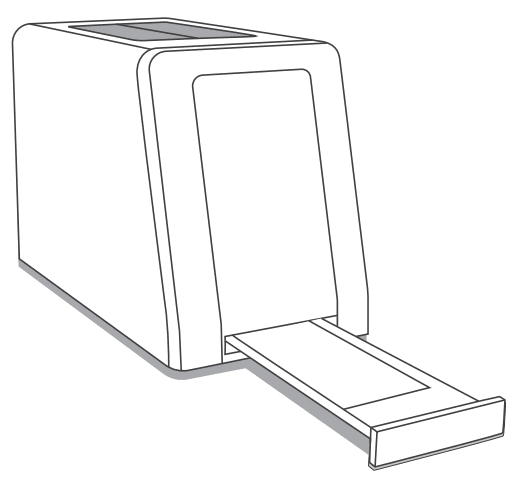

Your toaster will remind you when it’s time to clean the crumb tray. To clean any crumbs from the toaster, remove the crumb tray by
pushing it in to eject, then pull towards you. Empty and replace the crumb tray before using the toaster again. Replace the crumb tray by sliding it inwards until it locks into position.
Wipe the outside of the toaster with a soft cloth, slightly dampened with water, then polish with a soft dry cloth to dry completely. Avoid spraying the toaster directly with any type of cleaner when cleaning.

Storage
Remove the power plug from the power outlet and allow the toaster to cool completely before storing. Follow the directions for cleaning and store in an upright position on a flat surface. For long-term storage, we recommend returning your toaster to its original packaging.
