Scosche PBJF600 PowerUp 600 Torch Portable Jump Starter Manual

Scosche PBJF600 PowerUp 600 Torch Portable Jump Starter

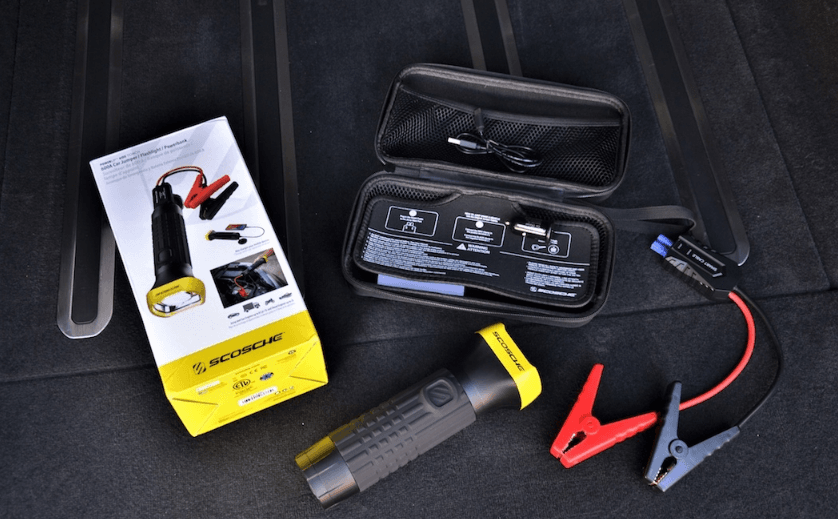

INCLUDED ELEMENTS

• Powerup TORCH Flashlight & Power Supply with Built-In Jump Starter
• “Smart Cable” Jumper Cables
• USB-C Charge Cable
• 12V USB Charging Adapter
• Storage Case

DEVICE SETUP

• SECTION A- Flashlight & Power Supply Overview
• SECTION B Charge Panel
• SECTION C – “Smart Cable” Jump Starter
• SECTION D – LED Functions
• SECTION E Flashlight Modes

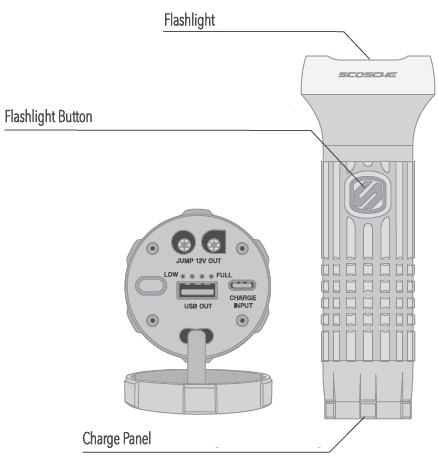

SECTION A

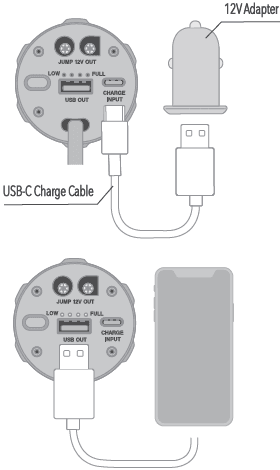

SECTION B

To charge the Power Supply, plug the included 12V USB adapter into a 12V AUX socket, then connect the power supply with the included USB-C cable.

To charge your mobile device, use the device’s USB charging cable (not included) to connect to the Power Supply’s USB Charger.

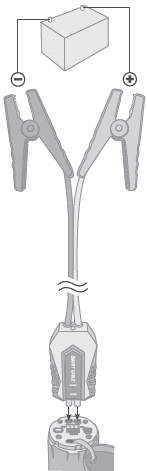

SECTION C

1. To use the jumpstarter, make sure the Power Supply is at least 50% charged. Plug the Smart Cable into the Power Supply. The light on the back of the Smart Cable illuminates low-light conditions. (See Section D)
2. Connect the Jumper Cables to the battery terminals. Connect RED (+) first, then BLACK (-). The ‘START’ light on the Smart Cable indicates that jump start may proceed. If the ‘ERROR’ light displays, DO NOT PROCEED. Check connections and charge level of the Power Supply. Only proceed when the ‘START’ light displays (see Section D)
3. After jump starting, remove cables from terminals in reverse order: BLACK (-), then RED (+). Unplug the Smart Cable from the Power Supply.

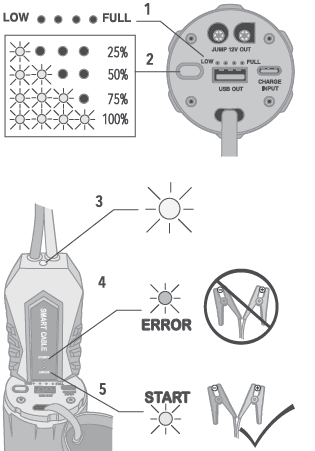

SECTION D

Charge Panel

• Charge level LEDs
• Check Charge Level Button

Smart Cable LEDs

• Night Assist (white)
• Error(red)
• Start(green)

SECTION E

Flashlight Modes

• Press the Flashlight Button once to cycle through modes.
• Press and hold to power off in any mode
• On: Press and hold (I sec)
• Dimmed: Press once
• Strobe: Press once
• SOS Press once
• Off: Press once

SPECIFICATIONS

• 12VCharger Input: 12 24V=; Output 5V=2A
• USBC Input: IV= 2A
• USB A Output SV= 24A
• Battery Capacity: 2000 mAh, 29 6 Wh
• Flashlight: 330 Lumens@492 fi (150m)
• Jump Start Capacity Gas, up to 5.0 L/Diesel, up to 2.0 L
• Jump Starter Output: 12V = 600A(O I sec), 200A(5 sec)
• Charging Temp 32° -104° F (0° -40°C)
• Discharging Temp 4° -140° F ( 20° -60°C)
• Life Cycle Upto: 1000 jumps
