Soundcore by Anker P20i True Wireless Earbuds
APP
Soundcore
- Download the Soundcore app to experience the full range of features such as gaming mode, Find Device, EQ tuning, firmware updates, and more.
- If your earbuds cannot connect with the Soundcore app, re-install the app or update it to the latest version in your mobile app store
WEARING

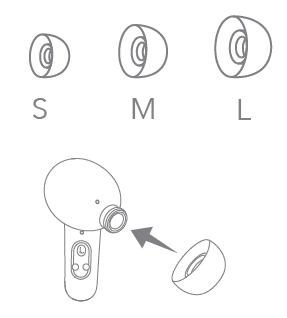

- Choose the ear tips that fit your ears best.

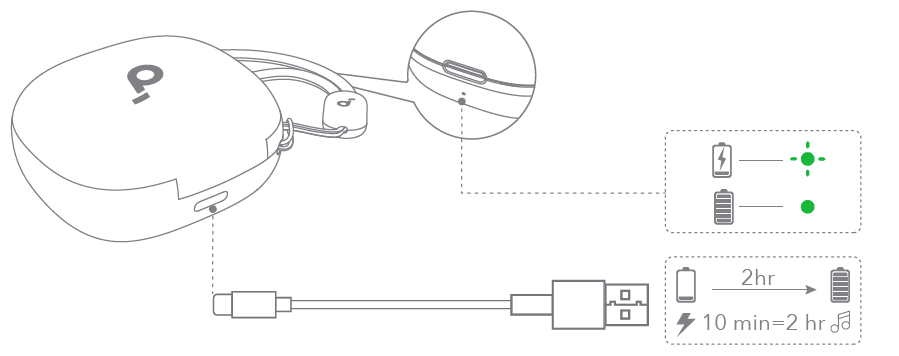

CHARGING
- Tear off the insulation sticker on the earbuds before first use.
- Place the earbuds in the charging case and close it.
- Fully dry off the earbuds and the USB-C charging port before charging.
- Connect the charging case to the power supply by using a certified USB-C charging cable.
- Fully charge both the earbuds and the charging case before the first use.
- Fully charge both the earbuds and the charging case before the first use.
POWERING ON & PAIRING
- Open the charging case and take the earbuds out of the case. They will automatically power on and enter Bluetooth pairing mode.

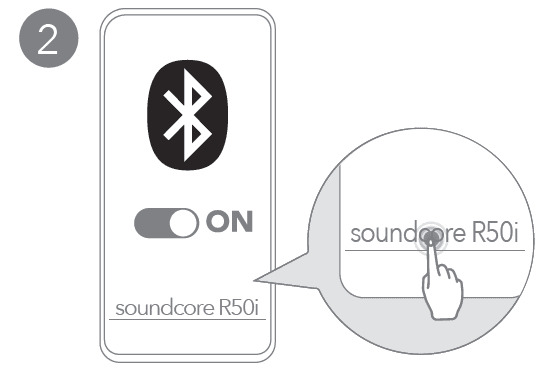

- Select Soundcore R50i / P20i / P25i * on your device’s Bluetooth list when connecting for the first time.
- The device name may vary depending on the region.
MANUAL PAIRING
- To manually enter Bluetooth pairing mode, take the earbuds out of the case, then tap and hold the touchpads on both earbuds for 3seconds.
CONTROLS
- You can also customize controls in the Soundcore app
TWS mode Mono mode Play / Pause Tap twice (R) Tap twice Previous track Tap and hold for 2 seconds (L) / Next track Tap and hold for 2 seconds (R) / Answer / End a call Tap twice (L/R) Tap twice Reject a call Tap and hold for 2 seconds (L/R) Tap and hold for 2 seconds Activate voice assistant software Tap twice (L) /

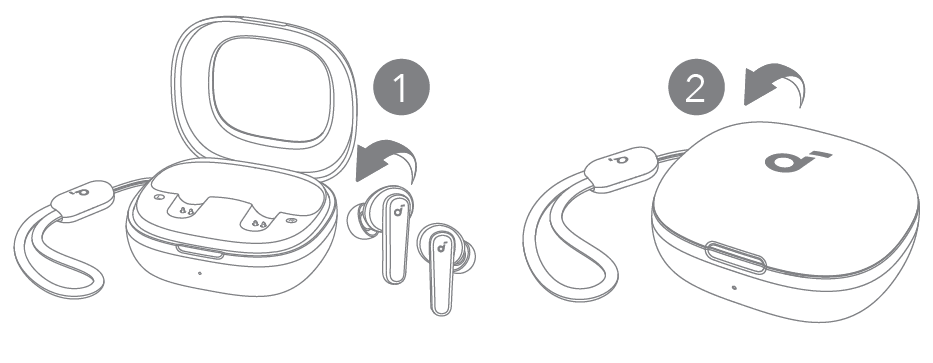

POWERING OFF
- To power off, return the earbuds to the charging case and close it. The earbuds will automatically power off after 30 minutes if they are not connected

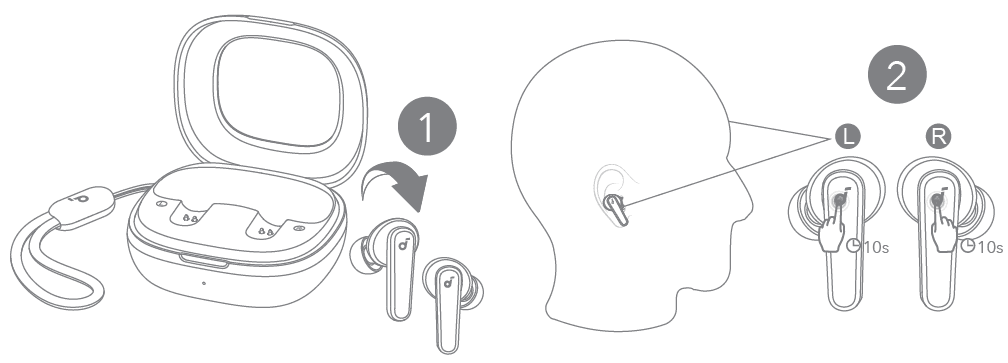

RESET
- Reset if the earbuds have issues pairing with each other or with other devices.
- Delete the pairing history from your Bluetooth device first. Take the earbuds out of the case. Within one minute of the earbuds powering on, tap and hold the touchpads on both earbuds for 10 seconds until you hear a notification sound
LED LIGHT GUIDE
Flashing white
Steady white
Flashing white

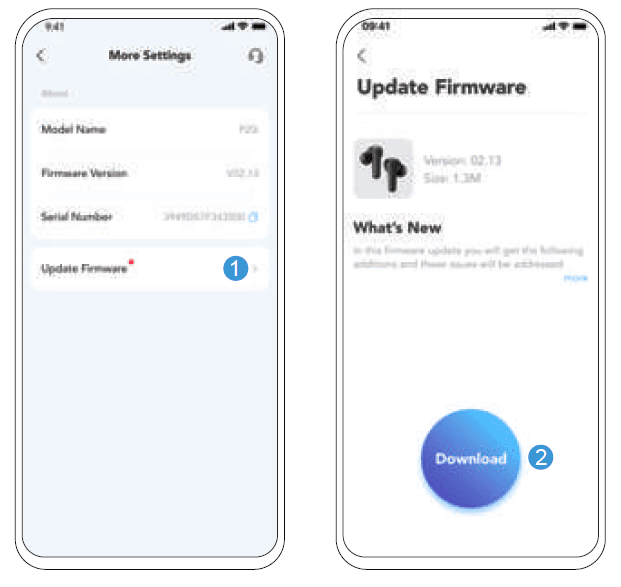

Steady whiteFIRMWARE UPDATE
- You will be informed once the new version of firmware is detected when you connect the earbuds to the app. Ensure the earbuds are placed in the charging case and the case remains open until the firmware update is completed. During the update, ensure the earbuds are being charged and avoid any usage
SPECS
- Specifications are subject to change without notice
Input 5 V 0.43A Rated output power 5mW Battery capacity 60mAh × 2 (earbuds); 430mAh (charging case) Charging time Up to 2 hours Playtime (varies by volume level and content) Up to 10 hours (up to 30 hours with the charging case) Driver unit 10mm dynamic driver Frequency response 20Hz – 20kHz Impedance 16Ω Waterproof level (Earbuds) IPX5 Bluetooth version 5.3 Bluetooth range 10m / 33ft
For more manuals by Anker visit, ManualsLibraryy
Soundcore by Anker P20i True Wireless Earbuds-FAQs
Does Soundcore have a mobile app?
Yes, the Soundcore app is available for both iOS and Android devices. You can use it to customize controls and update firmware.
Are Soundcore P20i earbuds waterproof?
They are water-resistant with an IPX5 rating. This means they’re safe to use in light rain or during sweaty workouts, but not suitable for full submersion.
What should I do if only one earbud connects?
Try resetting the earbuds. First, delete the pairing from your Bluetooth device. Then take both earbuds out of the case and, within one minute, press and hold the touchpads on both for 10 seconds until you hear a reset tone.
How can I tell if my Soundcore earbuds are charging?
The LED indicators on the charging case show the charging status of the earbuds and the case itself.
Do Soundcore P20i earbuds have touch controls?
Yes, they feature touch controls for music, calls, and voice assistants. You can customize the touch functions using the Soundcore app.
Can I overcharge my Soundcore earbuds?
No, the earbuds are designed with built-in protection and will not overcharge.
How do I turn off the Soundcore P20i earbuds?
Simply place the earbuds back into the charging case and close the lid—they’ll power off automatically.
How do I manually power on the earbuds?
If they don’t turn on automatically when removed from the case, tap and hold the touchpad on each earbud for 3 seconds to power them on manually.
