SteelSeries Arctis 7 Lossless Wireless Gaming Headset
STEELSERIES ENGINE
To enjoy DTS Headphone X v2.0 and custom audio effects on your new Arctis 7 headset, download SteelSeries Engine at steelseries.com/engine
WELCOME TO ARCTIS.
Your new headset is the result of more than 15 years of gaming expertise and our unyielding pursuit of perfection. We poured our hearts into making your new Arctis, giving it the best gaming mic available, 7.1 surround sound, and comfort and style unlike anything you’ve experienced before.
PACKAGE CONTENTS
- Product Information Guide
- Headset
- Wireless Transmitter
- Mobile / Console Cable
- Micro-USB Charging Cable
SOFTWARE REQUIREMENTS
Platforms:
- Windows 7 +
- Mac OS X 10.8 +
120 MB of free hard drive space for installation
SYSTEM COMPATIBILITY
PC / MAC
DTS Headphone: X v2.0 is available for Windows 7-10 only. Software installation required.
Find help at support.steelseries.com

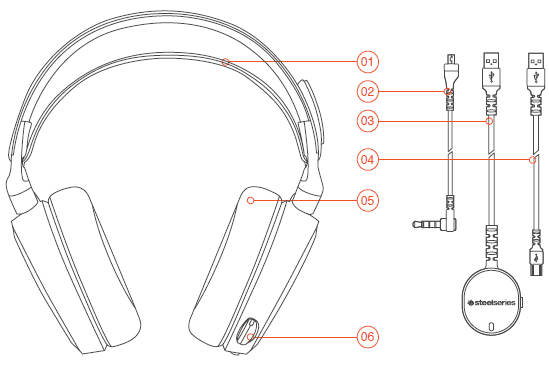

PRODUCT OVERVIEW
- Ski Goggle Headband
- Mobile / Console Cable
- Wireless Transmitter
- Micro-USB Charging Cable
- Airweave Ear Cushion
- Retractable Microphone
- Microphone Mute Button
- Volume Control
- Mobile Cable Jack
- Headphone Share Jack
- Micro-USB Charging Jack
- ChatMix Dial
- Power Button
Selected accessories available at steelseries.com
SETUP
Find help at support.steelseries.com

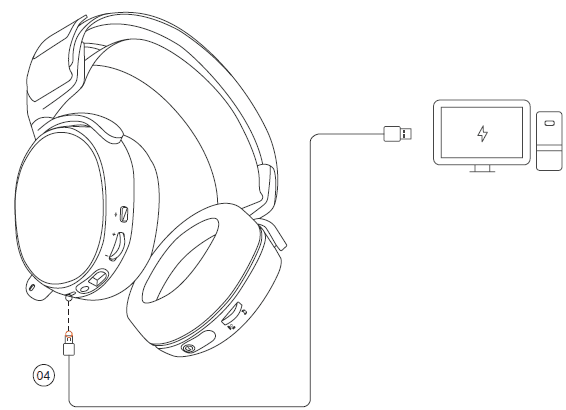

CHARGING
To charge the headset, connect the micro-USB cable to the charging port on the headset, and plug the other end into any USB power source.
The color of the power button indicates the battery level.
- Green = 100-50%
- Yellow = 49-20%
- Red = 19-10%
- Red (fast blink) = 9-1%

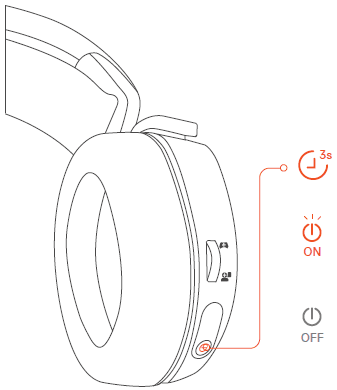

POWER ON / OFF
To power on the headset, press and hold the power button for at least 3 seconds. You will hear a tone, and the power button will illuminate.
To power off the headset, press and hold the power button for at least 3 seconds.
Find help at support.steelseries.com

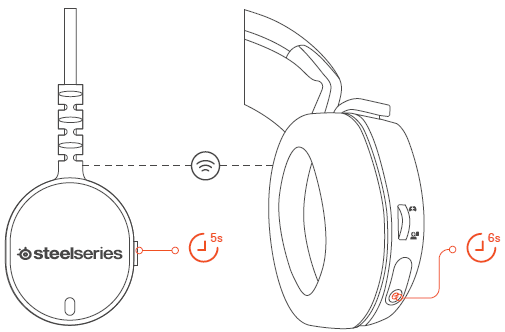

PAIRING
e-1
Press and hold the transmitter pairing button for 5 seconds until the LED begins blinking rapidly.
e-2
With the headset off, press and hold the power button for 6 seconds.

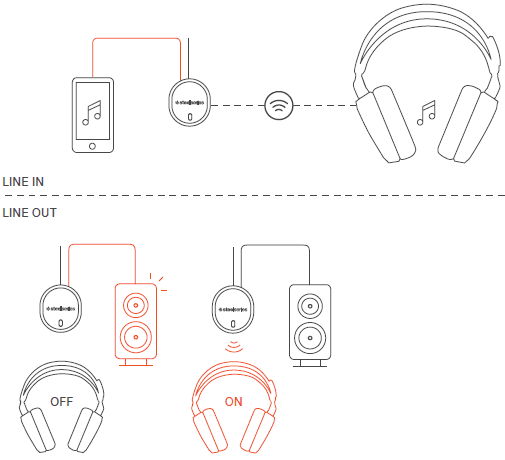

LINE IN / LINE OUT
When the headset is off, audio can be sent to the speakers via Line Out. When the headset is powered on, Line Out is automatically muted.
MICROPHONE
Retractable microphone
Positioning
Position the microphone close to the corner of your mouth with the flat surface facing you
g-1

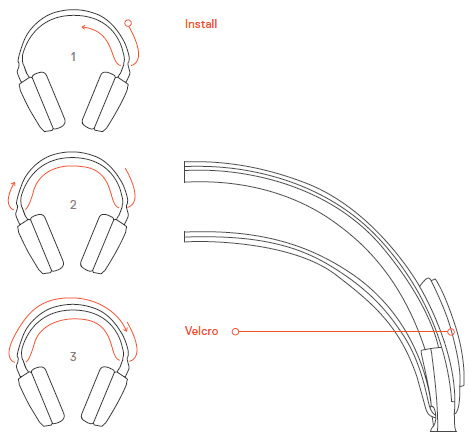

SKI GOGGLE HEADBAND
Install
Direction of headband installation.
Velcro
Tighten or loosen the Velcro strap on top of the headband to achieve the desired fit.
Accessory headbands are available at steelseries.com

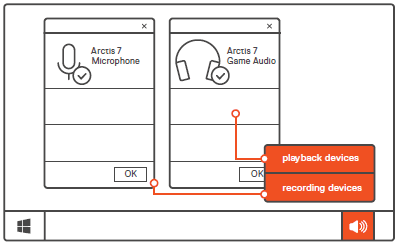

SYSTEM SETTING: WINDOWS
- Go to Sound Settings
- Under ‘Playback’ highlight Arctis 7 Game Audio and select ‘Set Default’
- Under ’Recording’ highlight Arctis 7 Microphone and select ‘Set Default’
- In your VoIP (chat) application, select Arctis 7 Chat Audio as the default audio device.

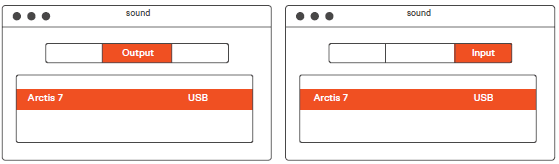

SYSTEM SETTING: MAC
- Go to System Preferences > Sound
- Under ‘Output’ select Arctis 7 Game Audio
- Under ‘Input’ select Arctis 7 Microphone
- In your VoIP (chat) application, select Arctis 7 Chat Audio as the default audio device
Safety Guideline for Lithium Battery
Please follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.
This product must not be disposed of with your other household waste or treated in compliance with the local regulations. Contact your local city office, your household waste disposal service, or the shop where you purchased the product.
“CAUTION!” Risk of explosion if the battery pack is not replaced with the same type as specified by the manufacturer. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.
Please keep this battery pack away from fire and high heat sources, as to explosion might happen. Do not place your battery pack close to any heater or hot location.
This battery pack shall not be hit or impacted. This battery pack shall not be dealt with by any sharp or keen objects either.
This battery pack shall not be exposed to moisture, dripping, or splashing.
If any electrolyte flows out of this battery pack when touching the user’s eyes and skin, please seek medical advice immediately.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.
