SunPenTown SPT SD-9252SS Built-In Dishwasher Manual

SunPenTown SPT SD-9252SS Built-In Dishwasher

DISHWASHER FEATURES

This electric dishwasher has the common characteristics of other household dishwashers, as
well as these unique specialties:

• Time delay feature: Allows you to program the operation to begin at a later time, between 1 to 24 hours. Program to run during off-peak hours helps reduce electricity costs.

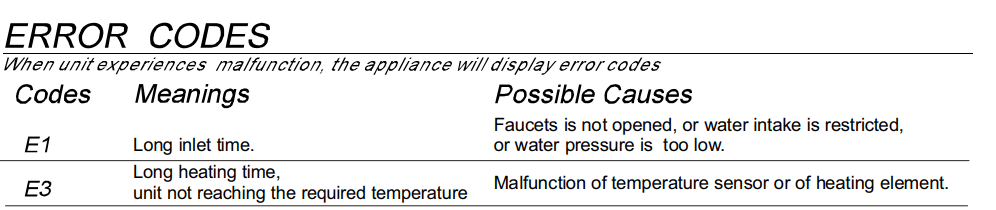

• Error alarm: Fault codes display would inform the user of the abnormal status of the machine.
• Rinse aid Warning Indicator: When the rinse aid is running low, are refill reminder will be displayed on the panel. This ensures the machine continues to operate at optimum performance.
• Stainless steel tub
• 6 wash programs: Choose from 6 wash cycles, based on load and soiled level: All-in-1, Heavy, Normal, Light, Rinse, and Speed.

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance to electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING! Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

About Electrical Connection

DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THE APPLIANCE. DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD GROUNDING PRONG. This dishwasher is designed for operation on an adequately wired individual 110V, 60Hz. Use the required fuse of 15 amps. A fuse electrical supply is required – copper wire only. Time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

WARNING! PROPER USE

• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not touch the heating element during or immediately after use.
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand-washing detergent in your dishwasher. Keep these products out of children’s reach.
• Keep the child away from detergent and rinse aid, and keep the child away from the open door of the dishwasher, there could still be some detergent left inside.
• The door should not be left in the open position since this could present a tripping hazard.
• since this could present a tripping hazard. During installation, the power supply must not
  be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is not intended for use by young children or informed persons without supervision.
• Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects of stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:
  1. Locate sharp items so that they are not likely to damage the door seal;
  2. Load sharp knives with the handles up to reduce the risk of cut-type injuries.
• When using your dishwasher, you should prevent plastic items from contacting with the heating element.
• If the supply cord is damaged, it must be replaced by the manufacturer its service agent, or a similarly qualified person in order to avoid a hazard.
• Please dispose of packing materials properly.
• Use the dishwasher only for its intended function.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• Young children should be supervised to ensure that they do not play with the appliance.
• Check that the detergent receptacle is empty after the completion of the wash cycle.

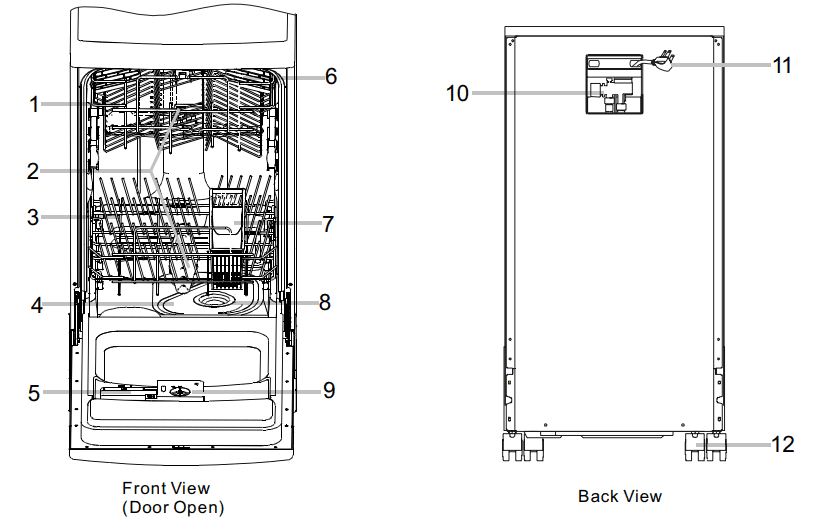

PARTS IDENTIFICATION

WARNING: To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

1. Upper Basket
2. Spray Arms
3. Lower Basket
4. Main Filter
5. Detergent Dispenser
6. Cup Shelf
7. Silverware Basket
8. Coarse Filter
9. Rinse Aid Dispenser
10. Faucet Adapter Assembly (Quick Connect)
11. Power Cord
12. Caster

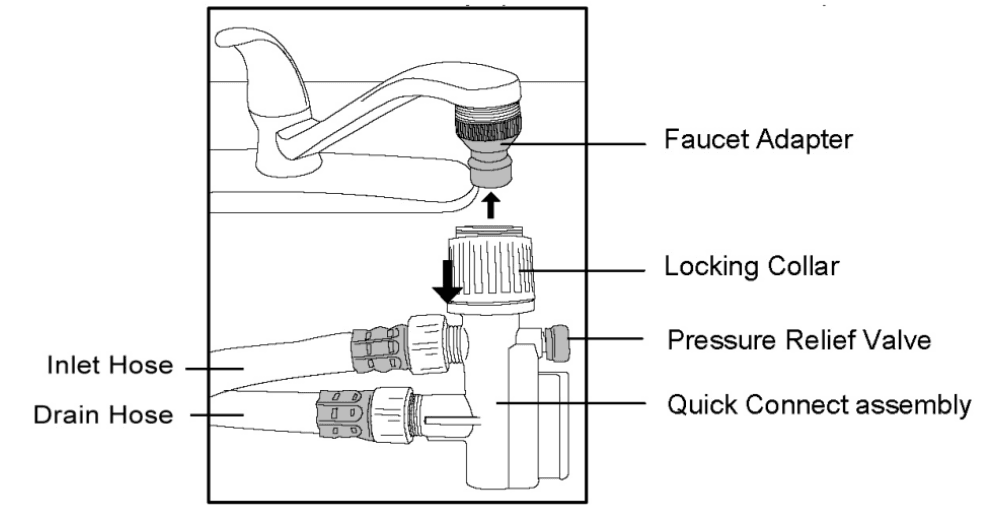

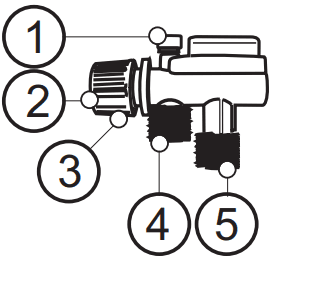

FAUCET ADAPTER ASSEMBLY (QUICK CONNECT)
Your dishwasher comes equipped with a Faucet Adapter Assembly (#10 above) The faucet adapter is to be installed on the faucet. This adapter is located on the back of the dishwasher. The faucet adapter is compatible with faucets inclusive of either male (outside) or female (inside) threaded faucet connections.

1. Pressure relief valve
2. Faucet adapter connection
3. Locking collar
4. Inlet hose connection
5. Drain hose connection

INSTALLATION

Unpacking

Have at least two people move and install the dishwasher to prevent personal injuries. Remove all packaging materials: shipping tape, foam pieces, etc. before use. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners. Check and make sure all parts necessary for installation are included. If parts are missing, please contact Sunpentown at 1-800-330-0388. The dishwasher must be placed on a level and flat surface that can support the weight when the dishwasher is fully loaded.

Positioning

The dishwasher is equipped with a water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. Make sure the water supply/faucet connection is within reach of the hose assembly (3 ft).

Electrical Requirements

Read all safety precautions listed at the beginning of the manual. Make sure the electrical outlet is within reach of the power supply cord. It is recommended to not use receptacles that can be turned on/off by a switch or pull chain. Refer to the rating label and be sure the voltage and frequency correspond to the power supply. Use a dedicated circuit that is rated for 10 amps.

The dishwasher is equipped with a power supply cord with a 3-prong grounding plug. The cord must be plugged into a mating 3-pronged wall receptacle. If a mating wall receptacle is not available, it is the personal responsibility of the customer to have a properly grounded, 3-pring wall receptacle installed by a certified electrician.

Connecting the Dishwasher

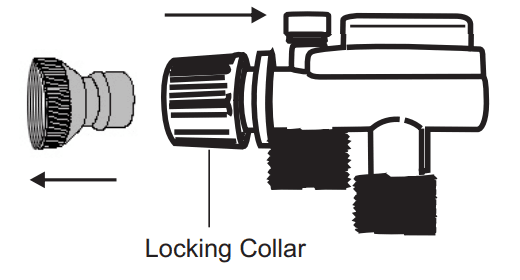

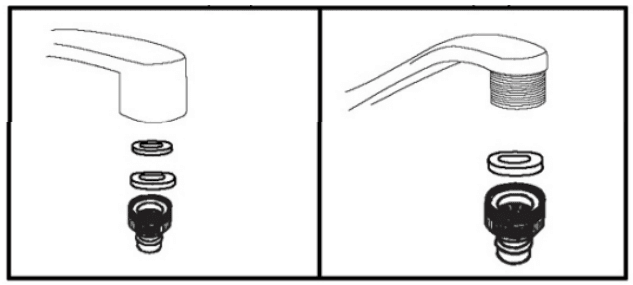

Remove the Faucet Adapter by pulling back the locking collar on the Quick Connect; while pulling the Faucet Adapter in the opposite direction. The Faucet Adapter is compatible with either female (inside) or male (outside) threaded faucet connections:

• If your faucet is “female” type, both rubber washers must be installed inside the faucet adapter.
• If your faucet is “male” type, use only one rubber washer. Remove the second rubber washer.

Installing Quick Connect to faucet

1. Screw the Faucet Adapter onto (or into) the faucet. Check for leaks (use Teflon or plumbers
   tape to eliminate any leaks if necessary).
2. Attach the Quick Connect assembly onto the Faucet Adapter – pull down on the locking collar,
   while pushing the Quick Connect upwards onto the Faucet Adapter.
3. Release the locking collar when the Quick Connect Assembly snaps onto the Faucet Adapter. Verify connection is secure.
4. Slowing turn on the water and check for any signs of a water leak. If the leak is located, immediately turn off the water supply and repair the leak.

IMPORTANT

• Once you turn on the water supply (even if turned off immediately), the inlet hose will be pressurized.
• To relieve the water pressure (make sure the water supply is turned off), press and hold the red pressure-relief button on the Quick Connect until the flow of water stops.

WARNING: Failure to relieve water pressure before disconnecting the Quick Connect may result in back-pressure over-spray. The temperature of incoming water may be very hot, and back-pressure over-spray can cause severe burns and/or scalding.

Disconnecting the Dishwasher

1. Turn off the water supply at the faucet.
2. Disconnect the power supply cord.
3. Release water pressure: press and hold the red Pressure Relief Valve until the flow of water stops.
4. Disconnect the Quick Connect by pulling down on the locking collar and releasing from the Faucet Adapter.

OPERATING INSTRUCTIONS

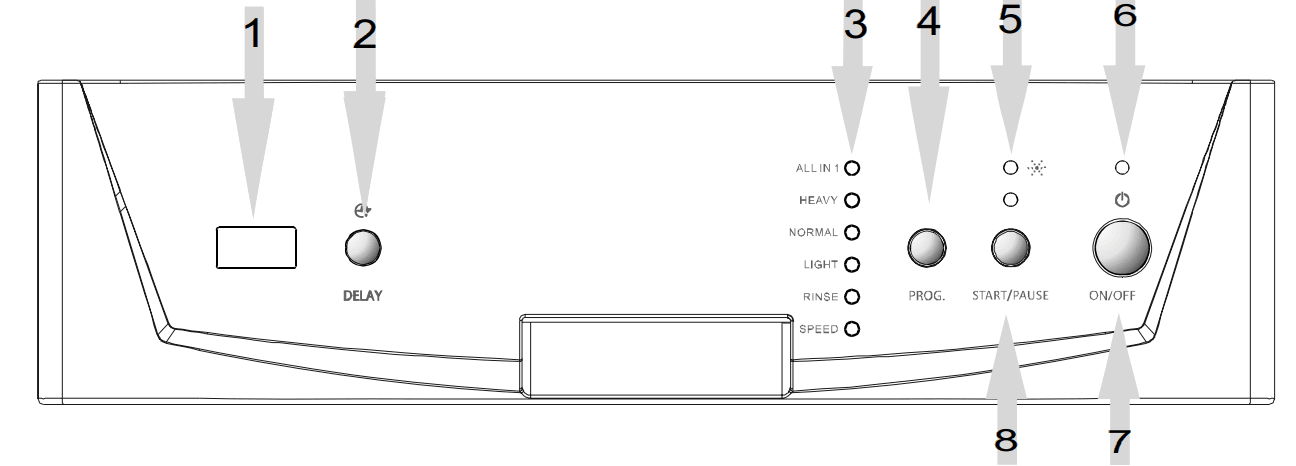

Control panel

1. Display window: Program remaining time, delay time, running indicator, fault codes and etc.
2. Delay Button: Press to program delay start.
3. Program indicator lights: Indicates the selected wash cycle.
4. Wash Program Selector: Press to select one of the six programs.
5. Rinse aid low warning light.
6. Power indicator light.
7. Power switch: To turn on/off the power supply.
8. Start /Pause button: To start the selected washing program or pause the washing program when the machine is working.

Loading the Dishwasher

The following items are not suitable for wash in the dishwasher:

• Cutlery with wooden, horn china or mother-of-pearl handles and wooden platters
• Plastic items that are not heat-resistant
• Older cutlery with glued parts, bonded cutlery items, or dishes
• Pewter or copper items
• Crystal glass
• Steel items subject to rusting
• Very small items as they may fall out of the basket
• Items made from synthetic fibers

Items of limited suitability:

• Silver and aluminum – tend to discolor after washing
• Glazed patterns may fade

CUTLERY BASKET

Flatware should be placed in the cutlery basket with handles at the bottom. Knives and other sharp utensils should be placed with handles up, but make sure the tips do not extend through the bottom. If the rack has side baskets, spoons should be loaded individually into slots. Longer utensils should be placed horizontally at the front of the upper rack.

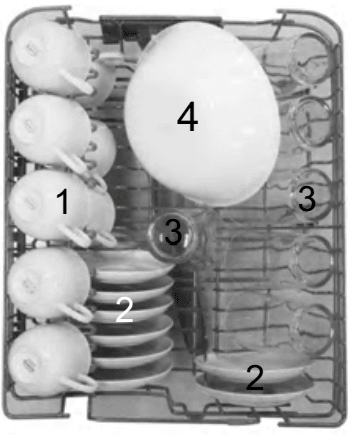

UPPER RACK

The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee, and tea cups, and saucers, as well as plates, small bowls, and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water. The upper rack can be lifted (or lowered) by removing and placing the rack into different rails. This makes room for either rack to accommodate different size items.

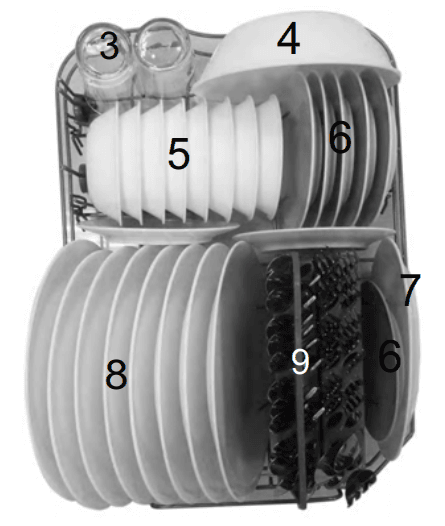

LOWER RACK

We recommend placing large items that are most difficult to clean into the lower rack: pots, pans, lids, serving dishes ,and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

• Pots, serving bowls, etc, must always be placed top down.
• Deep pots should be slanted to allow water to flow out.

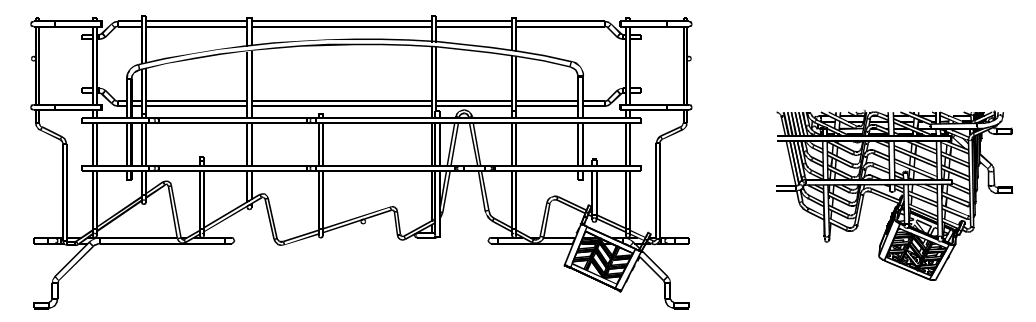

• The bottom rack features fold-down tine rows to accommodate larger pots and pans.

1. Cups
2. Saucer
3. Glasses
4. Serving Bowl
5. Fruitbowl
6. Bread and butter plates
7. Serving plate
8. Dinnerplates
9. Silverware basket

FOR BEST PERFORMANCE

• Scrape off food particles before loading.
• Soften remnants of burnt food in pans
• Place cups, glasses, bowls, and pots/pans face down.
• Curved items, or those with recesses, should be loaded at a slant so water can burn off.
• Allow sufficient space between items to allow water and detergent to reach each surface.
• Ensure glasses and stemware are secure and balanced.
• Ensure breakable items are not sitting on metal cutlery which can chip the dishes.
• Do not overload the dishwasher.

WARNING

• To prevent damage, do not remove glass and cutlery from the dishwasher immediately after the end of a program. Allow the dishware to return to room temperature

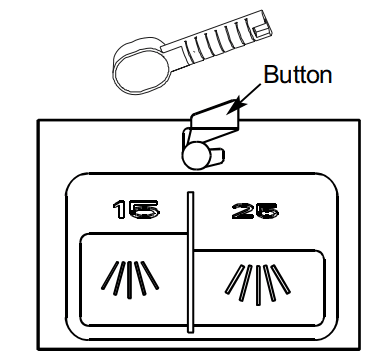

Detergent Dispenser

To prevent the formation of deposits, do not add too much detergent. This dishwasher has a specially designed water softener. This unit uses less detergent and rinse aid than most conventional dishwashers. In general, only one tablespoon of detergent is needed for a normal wash load. Add more detergent as needed for heavily soiled loads. The amount of detergent can also vary due to differences in water hardness. To determine the water hardness in your area, contact your local water utility company. The harder the water, the more detergent may be needed. Remember, you should adjust the amount of detergent by small amounts until you find the correct amount.

The dispenser must be refilled before the start of each wash cycle and always add detergent just before starting the dishwasher, otherwise, it could get damp and not dissolve properly. Use only detergent specifically made for use with dishwashers.

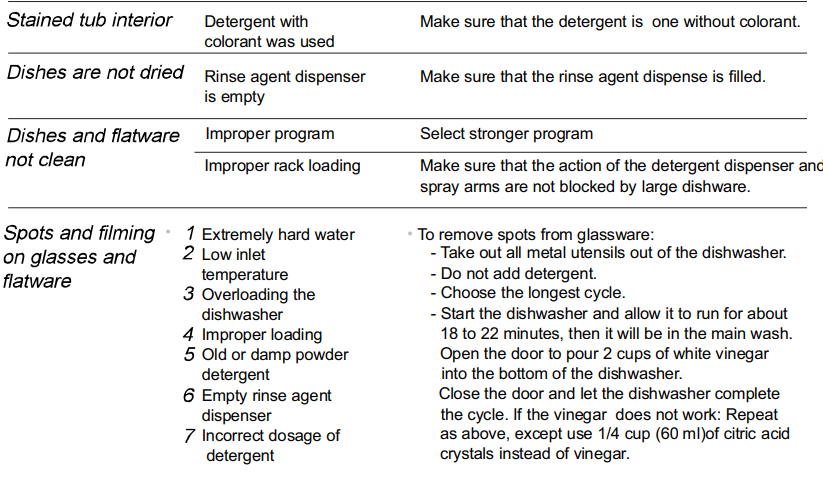

Removing Hard Water Spots

• To remove hard water spots, try the following:
• Remove all metal dishware, such as cutlery, pans, etc., from the dishwasher.
• Do not add detergent.
• Pour two cups of vinegar into a bowl and set the bowl face up on the lower rack of the dishwasher.
• Run the dishes through a normal wash program.
• If this doesn’t work, try the same process with 1/4 cup of citric acid crystals instead of vinegar.

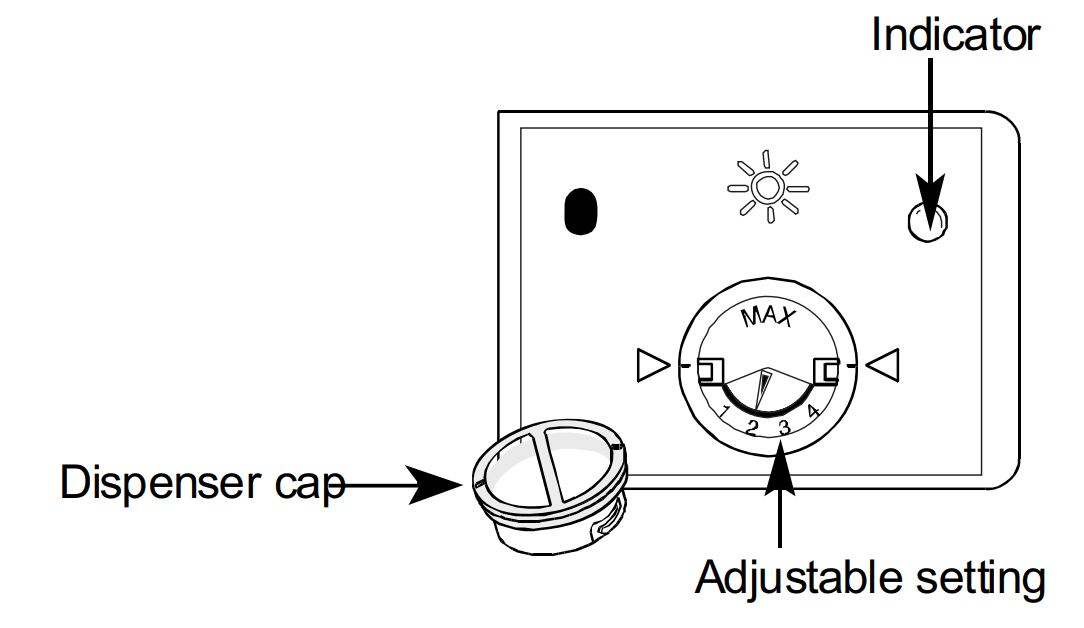

Rinse Aid Dispenser

• To open the dispenser, turn the cap to the “open” (left) arrow and lift it out.
• Pour the rinse aid into the dispenser, being careful not to overfill.
• To replace it, align the cap with the “open” arrow and turn clockwise to close
• The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to “sheet” off the dishes.
• Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The dispenser holds about 100ml of liquid rinse aid.
• Be careful not to overfill the dispenser, because this could cause over-sudsing. Wipe away any spills with a damp cloth.
• Don’t forget to replace the cap before you close the dishwasher door. If you have soft water, you may not need rinse aid for it may cause a white film to develop on your dishes.

Adjusting Rinse Aid Dispenser

A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in a lather of foaming and cause cloudiness or steaks on your dishes. If the water in your area is very soft, you may not need rinse aid. If you do, you can dilute the rinse aid with an equal amount of water.

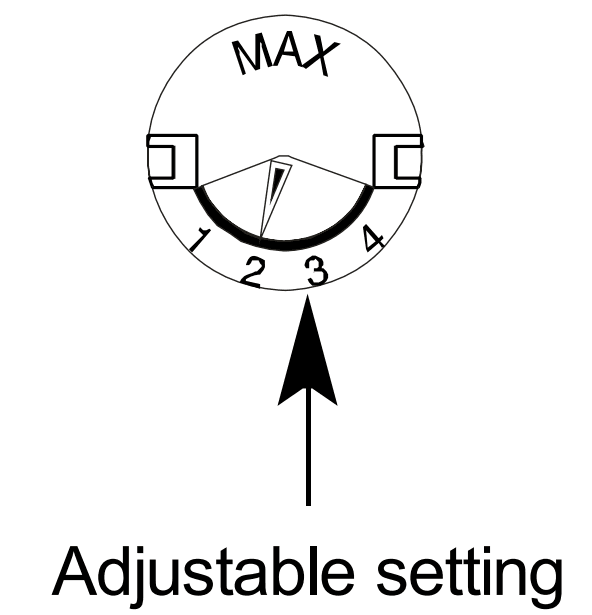

The rinse aid dispenser has four settings. Always start with the dispenser set on” 2″. If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to “3”. If the dishes still are not drying properly or are spotted, adjust the dial to”4″. Refill when the Rinse Aid Warning Light illuminates.

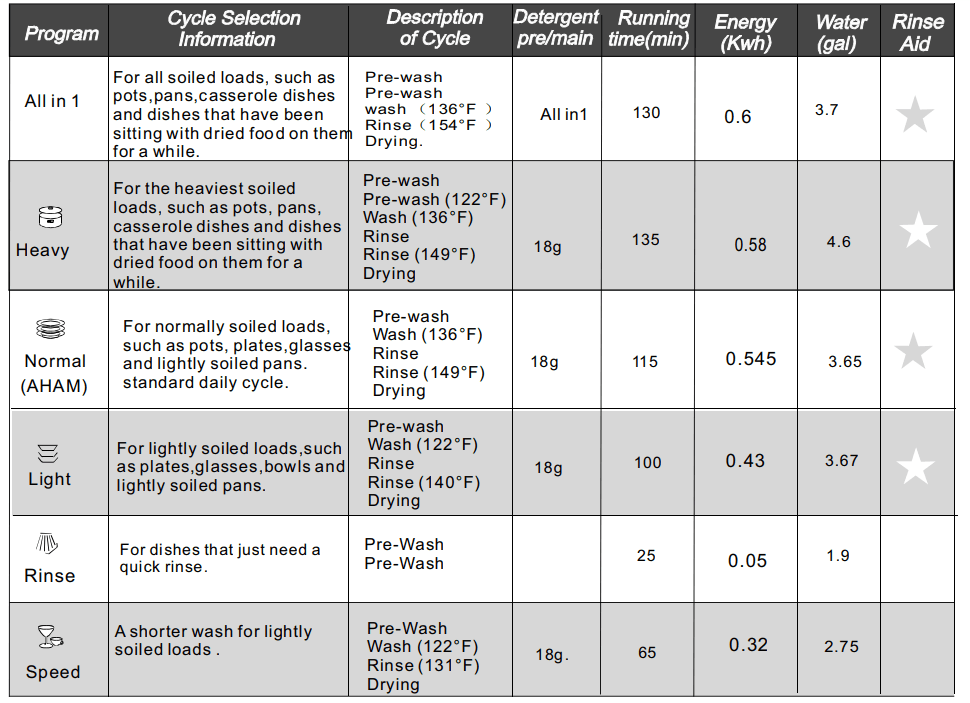

WASH CYCLE TABLE

Starting a wash cycle:

Once the dishwasher is loaded, follow these instructions to start the wash cycle:

1. Ensure the dishwasher is properly connected to the power supply.
2. Ensure the water supply is properly connected and is turned on to full pressure.
3. Add detergent and check Rinse Aid is full.
4. Close the door and press the ON/OFF button to turn on the dishwasher.
5. Press the PROG button to select the desired program: All-in-1 -> Heavy -> Normal -> Light -> Rinse -> Speed.
6. If you wish to delay the start time, press the DELAY button to set (1 to 24 hours)
7. Press the START/PAUSE button to begin the wash cycle.

Changing the Wash Program

You can change the wash program if the unit just started and only ran for a short time. Otherwise, detergent may have been released and water drained. If this is the case, the detergent dispenser must be refilled. Open the door slightly, and press and hold the PROG button for 3 seconds. Press the PROG button again to select desired mode. Close the door.

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cups open:

1. Open the door slightly to pause the cycle.
2. After the spray arm stops spinning, you can open the door completely.
3. Add forgotten dishes.
4. Close the door and dishwasher will resume operation after 10 seconds.

At the End of the Wash Cycle

When wash cycle has finished, the dishwasher will buzz for 8 seconds.

1. Turn the unit off by pressing the ON/OFF button.
2. Shut off the water supply and open the door.
3. Leave the door ajar and wait for a few minutes before unloading. This will allow the dishes to cool and assist in the drying process. Dishes that are still hot are more susceptible to breakage.

WARNING! It is dangerous to open the door when washing, because the hot water may scald you.

How To Use The All in 1 Program

Your dishwasher has an “All-in-1 Program” which needs no rinse aid but an “All-in-1” tablet.

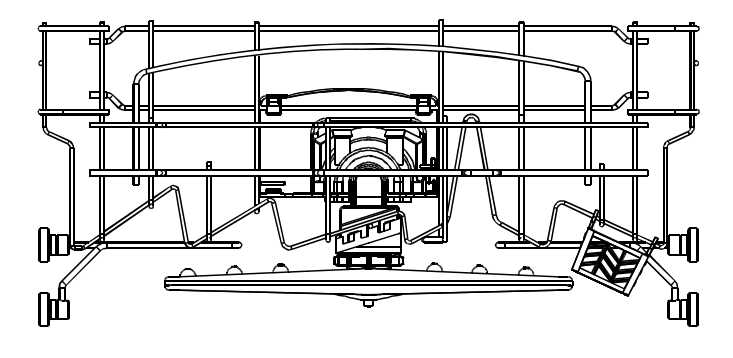

1. The figure below shows how to hang the All-in-1 tablet container on the upper basket.
2. Rotate the upper sprayer and change the location of the container to ensure the upper sprayer is not obstructed by the All -i n-1 tablet container. Refer to the figure below for reference.
3. Put the All in1 tablet into the container, then start the All in1 program.

MAINTENANCE

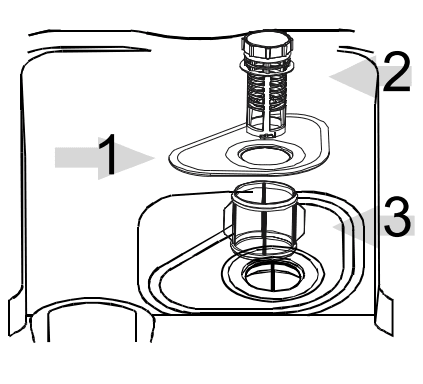

Filter System

For your convenience, the drain pump and filtering system are placed within easy reach inside the tub. There are three components of the filter system: the Main Filter, Coarse Filter, and Fine filter:

1. Main Filter: Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
2. Coarse Filter: Larger items, such as pieces of bone, that could block the drain are trapped here. To remove items caught in this filter, gently squeeze the tabs on the top and lift them out.
3. Fine Filter: This filter holds soil and food residue in the cylindrical base and prevents it from being redeposited on the dishes.

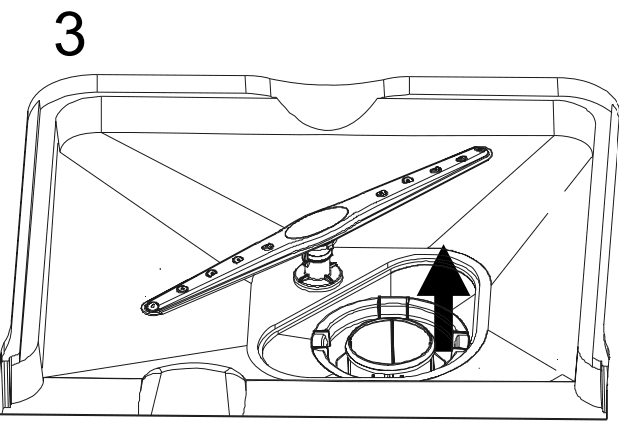

Cleaning the Filters

The filters efficiently removes food particles so the wash water can be recycled during a wash cycle. For best performance and results, the filter assembly must be cleaned regularly. Remove the filter assembly per the instructions below and rinse clean under running water. Use a soft cleaning brush or old toothbrush to clean the Coarse and Fine Filters. Reassemble in reverse order.

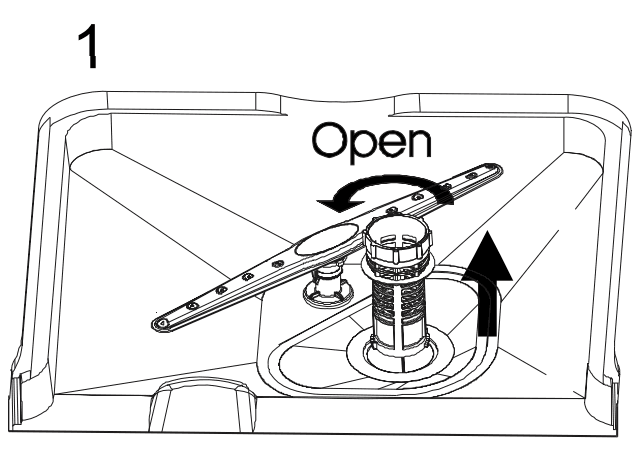

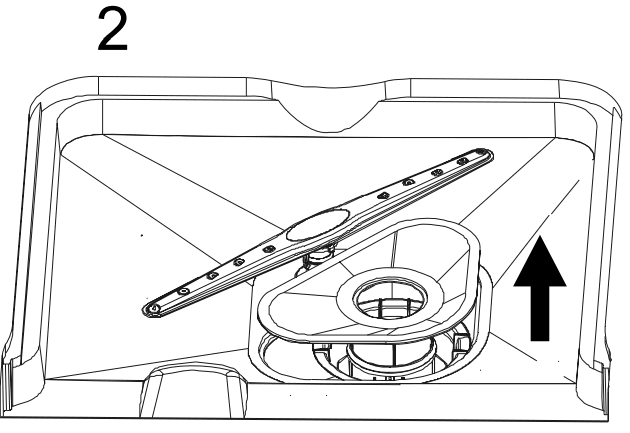

• Step 1: Turn the filter counterclockwise and lift it upwards
• Step 2: Lift the Main Filter
• Step 3: Lift the Fine Filter

WARNING!

• Inspect filters after each use.
• When cleaning, do not knock or bang the filters to remove residues. This could contort the filters and reduce performance of the dishwasher.
• Never run the dishwasher without filter assembly in place.
• Improper placement of the filter or damaged filter may reduce the unit’s performance and may cause damage to dishes and/or utensils.
• The entire filter assembly should be cleaned at least once a week.

Cleaning the Spray Arm

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arm, screw off the nut to take out the washer on top of the spray arm and remove arm. Wash with soapy and warm water and use a soft brush to clean the jets. Carefully reinstall making sure the rotary movement is not impeded.

Cleaning the Dishwasher

The control panel can be cleaned by using a slightly dampened cloth. Dry thoroughly with a soft towel. The exterior can be wiped with a towel and mild detergent solution. Wipe clean and follow with a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing

If your dishwasher is left in an unheated place during the winter months, please follow these procedures after each wash:

1. Turn off the dishwasher.
2. Turn off water supply and disconnect water inlet hose from the water valve.
3. Drain water from the inlet hose and water valve (use a pan to catch the water).
4. Reconnect the water inlet hose to water valve.
5. Remove the plastic sump cover in the bottom of tub and use a sponge (or towel) to soak up water in the sump

Cleaning the Door

Use only a soft damp cloth with warm water to clean the edge around the door. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING: Abrasive agents and some paper towels may scratch or leave marks on the surface.

Keeping Your Dishwasher in Shape

After Every Wash: Turn off the water supply and leave door slightly open so moisture and odors are not trapped inside.

Remove the Plug: Before cleaning or performing maintenance, always remove the plug from the socket. Do not take risks.
No Solvents or Abrasive Cleaning: Never use abrasive cleaners or solvents to clean the dishwasher. Use only a dampened soft towel with warm water. To remove spots or stains on the interior surface, you may use a cloth dampened with water and a little white vinegar.

Clean Filters Regularly: Clean the filters regularly to prevent clogs and odors.

Clean the Door Seals: Food that gets trapped in the seals may cause odor to form. Periodic cleaning with a damp sponge will prevent this from occurring.

Moving the Dishwasher: If the dishwasher must be moved, try to keep it in the upright position. If absolutely necessary, it can be positioned on its back.

Storage or Vacation Time :It is recommended you run a wash cycle with the dishwasher empty. Disconnect from power and turn off the water supply. Remove any remaining water in the sump area with a sponge. Leave the door slightly open. This will help the door seal to last longer and prevent odors from forming inside the dishwasher.

User-Maintenance Instructions Before Calling for service . . .

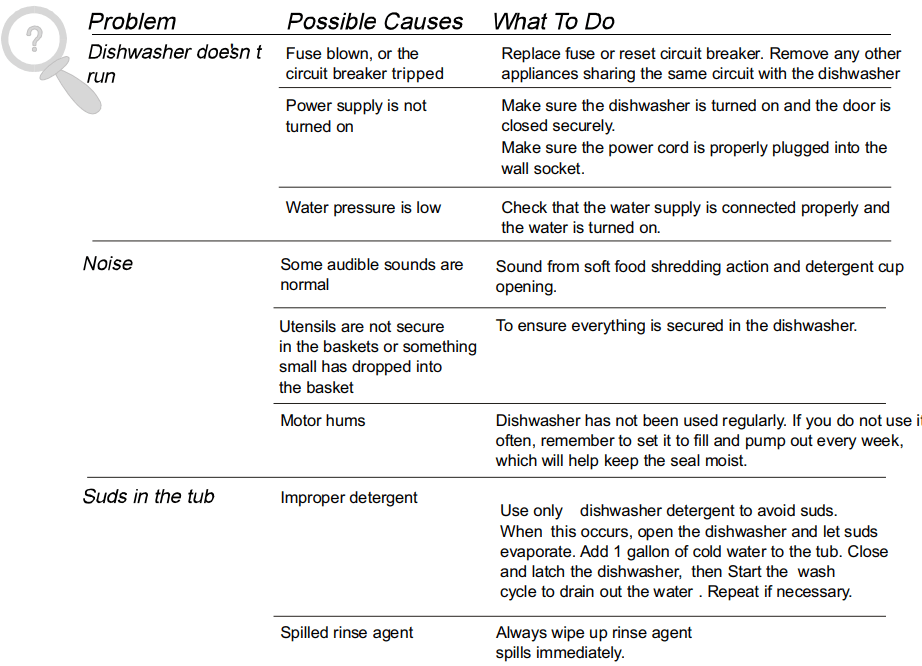

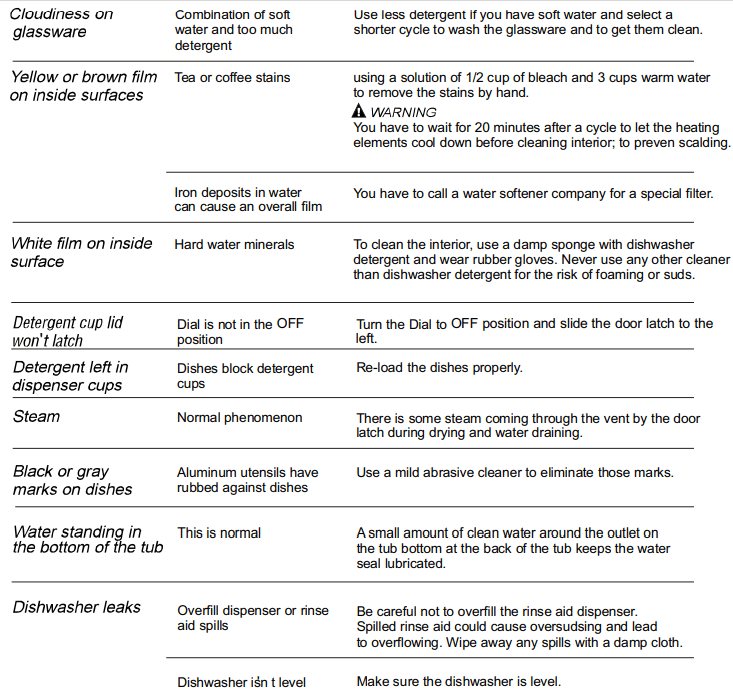

Troubleshooting Tips: Review the charts on the following pages may make you be free of calling for service.

Your Guarantee

If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms:

• Sunpentown must be notified of the fault.
• Proof of purchase must be presented to Sunpentown’s nominated representative.
• The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
• The warranty after repair will not be extended beyond the original one-year period.
• All replacement parts will be new or reconditioned.
• Parts, which are replaced, become the property of Sunpentown.
• The warranty applies for the use of the product in the USA only.

What is NOT COVERED:

• Warranty does not include freight charges.
• Damage due to installation error, product abuse, and/or misuse.
• Incidental or consequential damage caused by possible defects with this product.
• Labor cost incurred for the installation and/or removal of a possible defective unit.
• Damage to the product caused by improper power supply voltage, accident, fire, foods, or acts of nature.
• Failure of product resulting from unauthorized modifications to the product.
• Improper installation or failure to perform the necessary maintenance.
• Normal wear and tear on parts or replacement of parts designed to be replaced.
• Damage to personal property from use of the product.
• Replacement or repair of household fuses, circuit breakers, wiring, or plumbing.

For more manuals by SunPenTown, visit ManualsLibraryy

SunPenTown SPT SD-9252SS Built-In Dishwasher-FAQs
