SYNCO G2A2 Wireless Lavalier Microphone User Manual

SYNCO G2A2 Wireless Lavalier Microphone

Setting The Recording Level Correctly

Camera devices generally have poor-quality, noisy preamps. In order to get the cleanest signals possible, it is highly recommended that you set the recording level on your camera quite low, 1/2 or 1/3 of it. G2 provides variable gain control, allowing you to tailor your levels to just | about environment and recording device.

Note: The first TX that successfully connects with the RX will be Channel.

Adjust the recording level of inbuilt mics for Canon Camera (Take EOS 5D Mark IV for example.

Adjust the recording level of inbuilt mics for Panasonic Camera (Take LUMIX GHS for example).

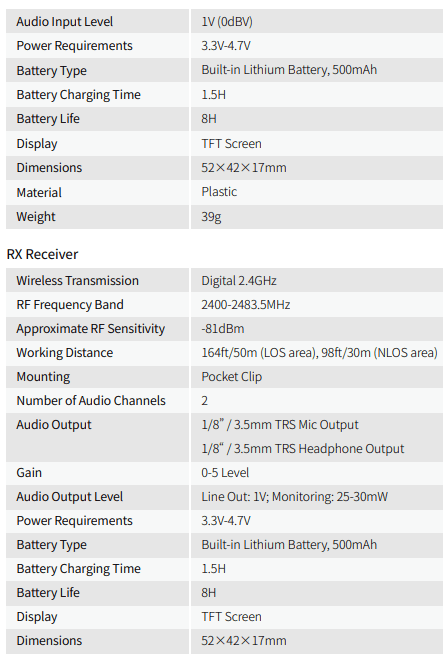

SPECIFICATIONS

TX Transmitter

Microphone

Warranty

Thank you for purchasing SYNCO products.

1. Customers are entitled to free replacement or repair service in case of the quality defect(s) found in the product under normal use within 30 days upon receipt of the product.
2. Original SYNCO products are entitled to a 12-month limited warranty service. The warranty period begins on the date of purchase of brand-new, unused products by the first end-user. Within the warranty period, if a product defect or failure is attributable to material defection or technological problem, the defective product or defective part will be repaired or replaced without charge (service and materials fee).

Warranty Exclusions and Limitations

• Faults result from the inappropriate use of a product without following its operation specification.n
• Artificial damage, e.g., crash, squeeze, scratch, or soaking
• Modifications to a product by its user or a third party without prior written consent of SINCO, e.g. replacement ofan  element or circuit, label alteration
• The code on the product is inconsistent with that of the warranty certificate, or the code on the product or warranty certificate i altered or torn off.
• All consumable accessories attached to a product, like a cable, wind muff, and battery
• Faults as a result of force majeure, such as fire, flood, lightning, etc.

Warranty Claim Procedure

• If failure or any problem occurs to your product after purchase, please contact a local agent for assistance, or you can always contact SYNCO’s customer service through email at support@syncoaudio.com.
• Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only a sales return or a chargeable service will be provided.
• If the SYNCO product is out of the warranty coverage, the service and parts costs will be charged.

Caring For Your SYNCO Product

• Please keep the product in a dry, clean, dust-free environment.
• Keep corrosive chemicals, liquids, and heat sources away from the product to prevent mechanical damage.
• Use only a soft and dry cloth for cleaning the product.
• Malfunction may be caused by dropping or the impact of an external force.
• Do not attempt to disassemble the product. Doing so voids the warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions occur.
• Failure to follow all the instructions may result in mechanical damage.
• Warranty does not apply to human errors.

Package List

Product Instruction

1. External Mic Input
2. USB-C Port
3. Power (MUTE)
4. Reset(Help with Eject Pin)
5. Low Cut.
6. 3.5mm Audio Output
7. 3.5mm Monitoring Jack
8. Display Screen
9. Pocket Clip

1. USB-C Port

2. Power(Mono/Stereo)

3. Reset(Help with Eject Pin)

4. Channel A Gain Control

5. Channel B Gain Control

6. 3.5mm Audio Output

7. 3.5mm Monitoring Jack

8. Display Screen

9. Pocket Clip

Display Screen

Operations

TX

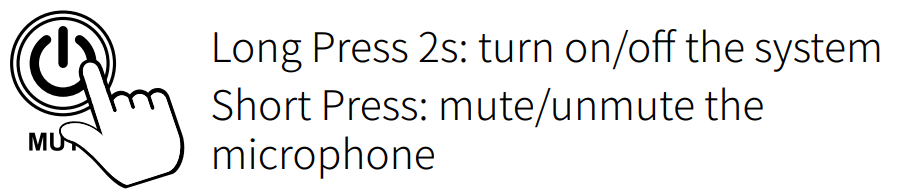

1. Power/ Mute

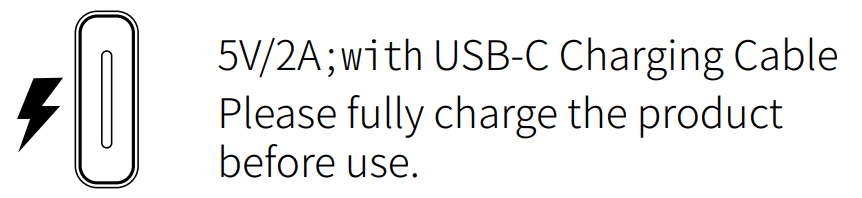

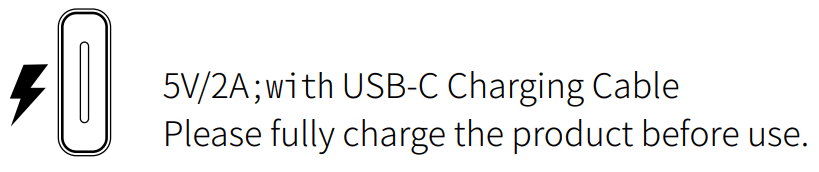

2. Charging

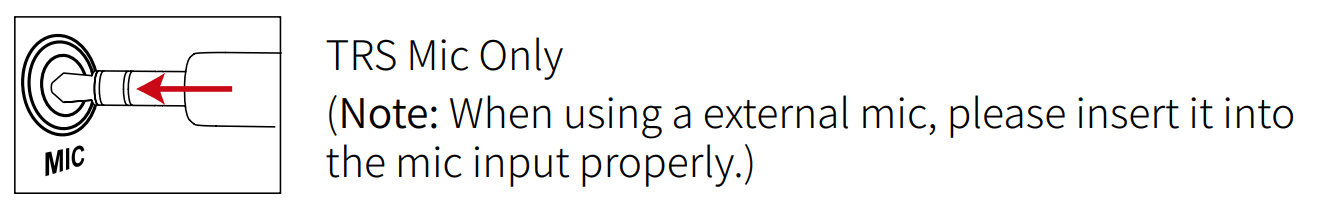

3. External Mic Input

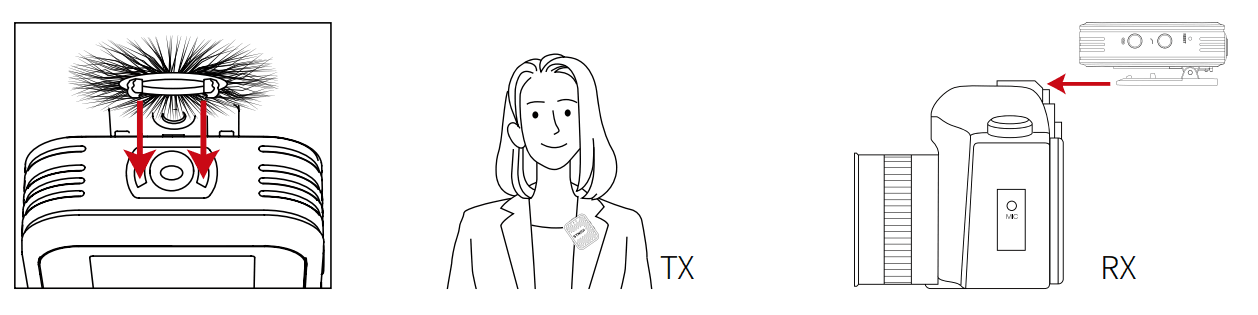

4. Mic Windshield & Device Installation

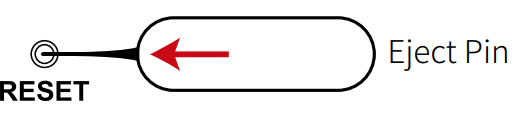

5. Reset

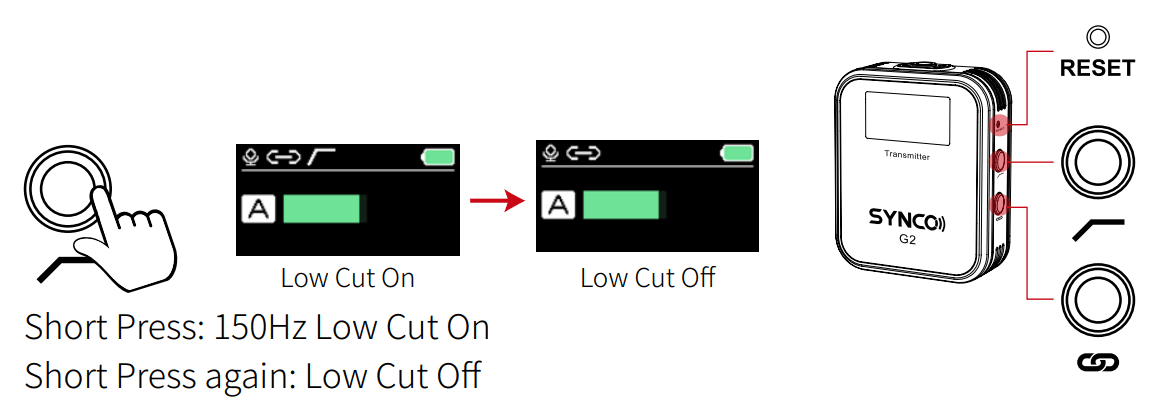

6. Low Cut

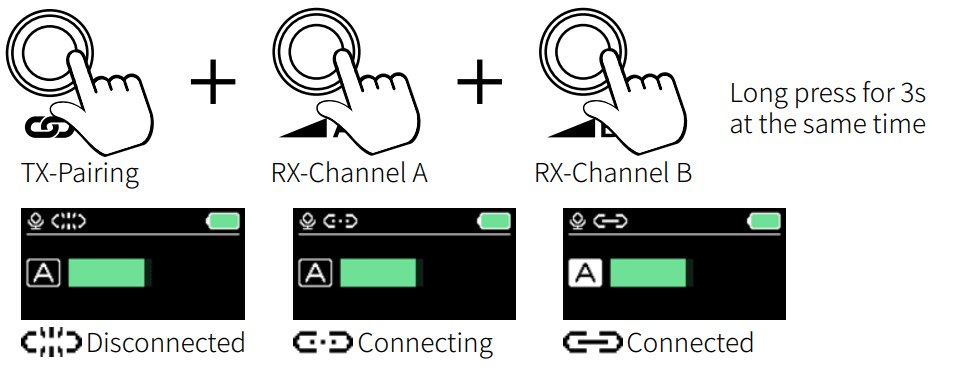

7. Pairing
   The system will pair automatically after power on.

Note: Before successfully connecting, the transmitter channel will display A by default. The TX connected to the receiver first is Channel A, and the one connected later is Channel B.) Manual pairing: long-press the Channel A Gain Control and Channel B Gain Control on the RX and pair on the TX for 3 seconds at the same. Time. The system will pair automatically after power is on. Manual pairing: long-press the Channel A Gain Co Gain Control on the RX and Pairing on the TX for 3 times.

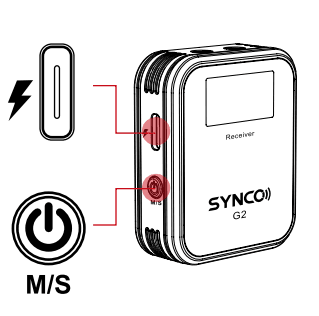

RX

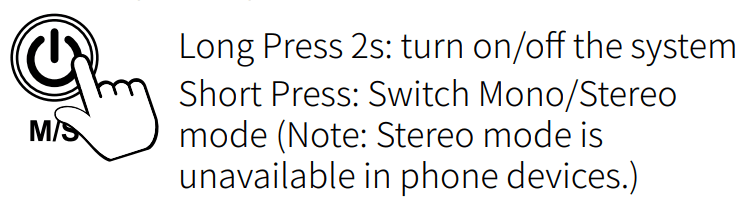

1. Power/ Mono/Stereo Switch
2. Charging
3. Reset
4. Gain Control

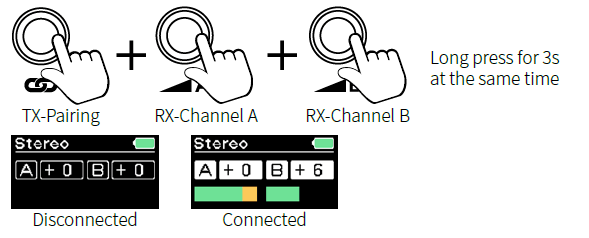

5. Pairing

The system will pair automatically after power on. Manual pairing: long press the Channel A Gain Control and Channel B Gain Control on the RX and Pairing on the TX for 3 seconds at the same time
