Vicks V188 WarmSteam Vaporizer User Manual

Vicks V188 WarmSteam Vaporizer

Vicks® Warm Steam Vaporizer

(Model V150SGNL Series)

Using Your Vicks Warm Steam Vaporizer

Instructions

NOTE: Mineral content in water can vary greatly by region and could affect the performance of your unit. Steps to ensure your vaporizer functions properly are explained in step # 7 and the Troubleshooting section.

1. EXTEND POWER CORD FULLY BEFORE USE. Failure to do so could cause overheating and possible fire hazard. Always unplug the cord from electrical outlet before removing steam unit or when not in use. Allow the vaporizer to cool for at least 20-30 minutes before handling.

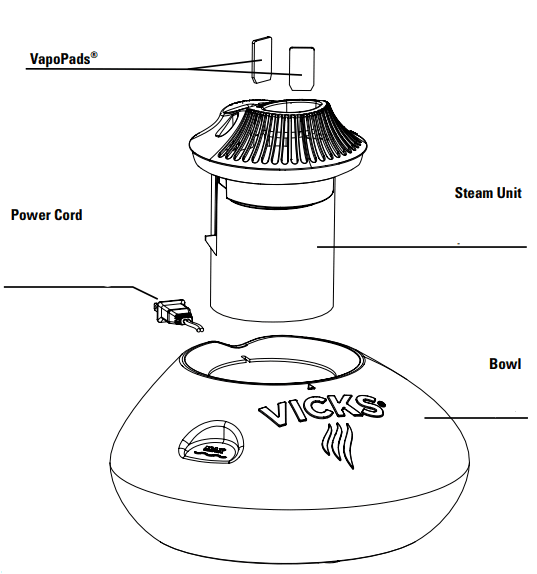

2. FILL WATER CONTAINER. Use finger grips located on the sides of the steam unit when handling this part. Steam unit will come in locked position. Remove steam unit from container by turning the steam unit to the unlock symbol. Lift the steam unit from the vaporizer bowl and set the steam unit aside. Fill the container with tap water to WATER LEVEL MARKING on bowl. DO NOT OVERFILL. Use fresh water each time vaporizer is used.
3. LOCKING STEAM UNIT. Hold down the steam unit for ten seconds to allow water to enter the housing and seat properly in water container. Be sure to lock steam unit into place on the container by aligning the arrow on the steam unit with the lock symbol on the container. If the steam unit floats, container is overfilled.
4. PLACE VAPORIZER IN A SAFE POSITION. Vaporizer should always be placed on a firm, flat surface at least four feet away from bedside and out of the reach of patient and children. Be sure the vaporizer is in a stable position and the power cord is out of the way to prevent the vaporizer from being tipped over. Protect floor, rug or furniture by placing the vaporizer on a non-metallic, waterproof, heat-resistant surface.
   CAUTION: Do not direct steam flow directly at patient, walls or furniture. You will still obtain desired level of humidity.
   WARNING: KEEP OUT OF THE REACH OF CHILDREN, ESPECIALLY CRAWLING INFANTS AND TODDLERS. STEAM CAN CAUSE BURNS.
5. VAPORIZER INHALANTS AND SCENT PADS If you choose not to add scent pads or liquid inhalants to the product, please continue to step 6.

INHALANTS

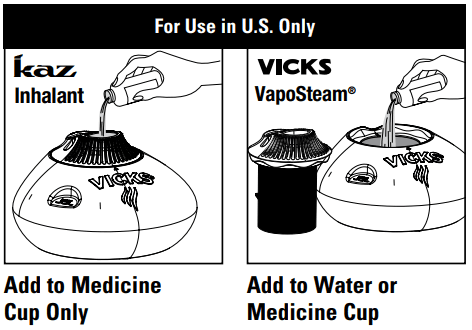

IN the U.S: For best results, fill the medication cup on the steam unit (located directly below the nightlight and in front of the steam outlet). Vicks VapoSteam® can also be added directly to the water container (see Vaposteam package directions before using).

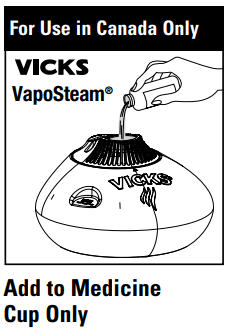

IN CANADA: For best results, fill the medication cup on the steam unit (located directly below the nightlight and in front of the steam outlet) with one tablespoon of Vicks VapoSteam®.

NOTE: In Canada, Vicks VapoSteam® cannot be added directly to the water.

If you use Vicks VapoSteam®, please pay careful attention to the added cleaning directions in the Daily Maintenance and Care and Cleaning sections.

Do not fill the medicine cup above the pour level indicator line.

VapoPads®

Your Vicks Vaporizer includes a Scent Pad heater so that you can enjoy Vicks Soothing Menthol vapors to increase your comfort. Vicks VapoPads work with heat to gradually release soothing aromatic vapors. One complimentary menthol VapoPad is included with your unit.

1. Open scent pad pouch at notch to expose pad. Do not touch exposed pad directly. If you do touch a pad, be sure to wash your hands thoroughly.

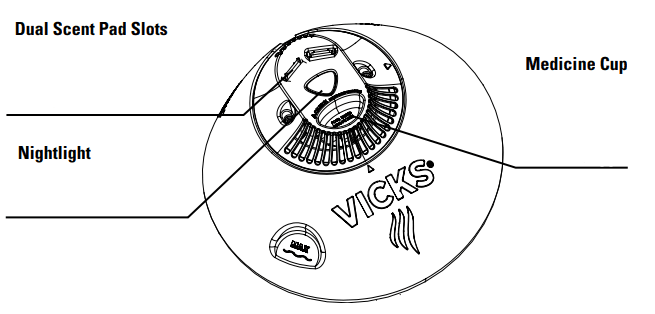

2. Insert the scent pads into the slots located on the top of the steam unit behind the steam outlet.
3. Vapor intensity can be controlled by using 1 or 2 pads. Insert 1 pad into one slot for moderate scent release and insert another pad into the second slot for maximum scent release.
4. Before changing or removing the pads unplug the steam unit from the outlet and allow to cool for 20-30 mintues. Pads should be replaced after 8 hours of use.

Recommended Usage for the Vicks VapoPads (VSP-19 / VSP-19-CAN):

• Not recommended for infants under 10 pounds.
• For children between 10-22 pounds, do not use more than 2 pads in 24 hours. Ingredients: Eucalyptus Oil, Menthol, Glycol, Cedar Leaf Oil & Others

Replacement VapoPads® can be purchased at most mass and drug retailers or online at www.vickshumidifiers.com. Use only the Vicks® VapoPads® models: In the US, VSP-19, VVP-6 or VBR-5. In Canada, VSP-19-CAN. Other brands of replacement scent pads may not be compatible with this vaporizer.

NOTE: DO NOT place more than one pad in each slot. DO NOT use any other pads or oils in the scent pad slots.

PLUG IN

Plug the power cord into 110-120 Volts AC outlet in good condition fused for at least 15 Amps. Do not use with extension cords or power strip. This product has a polarized plug (one blade is wider than the other) as a safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.

The vaporizer will produce a gentle flow of steam within a few minutes. If steaming does not start within ten minutes, you may need to add salt. Please see step 7 and the Troubleshooting checklist.

Vaporizer will automatically stop producing steam when water has reached minimum level (about 3/4 inch from bottom of container).

The night-light will remain on, indicating that the vaporizer is plugged in. ALWAYS unplug steam unit and allow to cool for 20-30 minutes before removing from the water container.

Under conditions of rapid boiling and near the end of each operation, steam may emerge from SAFETY VENTS (above and on both sides of the steam vent). This condition is normal. Preventing over-boiling by relieving steam pressure. Do not lift or move the vaporizer while it is in use.

IF YOUR VAPORIZER FAILS TO STEAM AFTER 10-15 MINUTES, YOU MAY HAVE LOW MINERAL CONTENT IN YOUR WATER.

For areas where tap water has low to moderate mineral content, ADD SALT. For tap water of low to moderate mineral content, ADD 1 TO 2 PINCHES (1/8 teaspoon) of ordinary table salt to the water and mix thoroughly. After 10 minutes, if your vaporizer still does not produce steam, add another pinch or 2 of salt. Saldoes not aaffectthe purity of the steam or medication.

CAUTION: TOO MUCH SALT CAN CAUSE EXCESSIVE BOILING, BLOWN FUSE, OR TRIPPED CIRCUIT BREAKER.

NOTE: Please do not add salt to your vaporizer each time you operate the product. Salt will build up over time and you may not need to repeat the process. Before adding salt, operate your vaporizer following steps 1-4. If vaporizer does not produce steam after 15 minutes gradually add salt following the above directions.

USE FRESH WATER AND MEDICATION each time the vaporizer is used.

AFTER EACH USE.

Once the vaporizer has been allowed to cool, empty any unused water from the water container. Shake the container gently back and forth to remove any remaining water. Rinse the container thoroughly, drain and wipe with a dry, clean cloth.

NOTE: All medicinal ingredients in Vicks® VapoSteam® are released in use, leaving only the mineral oil base in ithe medication cup. This should be emptied and cleaned with a piece of cotton.

IMPORTANT: To maintain proper operation of your vaporizer, be sure to follow the Care and Cleaning instructions.

Special Notes

Discoloration/Black Particles

After use, the water residueatn the bottom of the container may contain black particles, and in some areas, the water in the bottom of the container may discolor. These conditions are normal and do not affect the purity of the steam or medication. The container is easily cleaned with soap and water. Thoroughly rinse and dry the container after cleaning.

Ventilation

When the vaporizer is used in closed or small rooms, check periodically for proper ventilation, as excessive humidity can cause condensation stains on walls.

Condition of Sale

As a condition of sale, the purchaser assumes responsibility for the proper care and use of this appliance by our printed instructions.

WARNING: KEEP OUT OF REACH OF CHILDREN. Carefully supervise children when the vaporizer is operating, especially infants and toddlers. Vaporizers produce hot steam that can cause serious burns.

Care and Cleaning

ALWAYS DISCONNECT THE PLUG FROM THE ELECTRICAL OUTLET AND ALLOW THE UNIT TO COOL FOR 20-30 MINUTES BEFORE CLEANING. REMOVE STEAM UNIT, LETTING ALL WATER DRAIN BACK INTO THE CONTAINER.

DO NOT ATTEMPT TO DISASSEMBLE THE ELECTRODE HEATING UNIT. DOING SO WILL VOID THE WARRANTY AND COULD DAMAGE THE VAPORIZER OR CAUSE PERSONAL INJURY.

DANGER: NEVER CONNECT ELECTRIC CORD TO WALL OUTLET UNLESS OUTER CAP, HEATING UNIT, LENS, AND PROTECTIVE HOUSING ARE SECURELY ATTACHED.

Daily Maintenance

Unplug unit before performing any maintenance. Empty any unused water from the water container. Rinse container thoroughly with water, drain and wipe with a dry, clean cloth.

Weekly Maintenance

1. Unplug unit before performing any maintenance. Empty any unused water from the water container. Rinse container thoroughly with water, drain and wipe with a dry, clean cloth.
2. With the steam unit safely unplugged, soak the steam unit in 4 inches of white vinegar for 10 minutes.
   Then, over a sink, with fingers covering the bottom hole of the steam unit, add tap water into steam outlet. Cover Steam outlet with other hand, shake steam unit back and forth, do not shake up and down, then empty the water through steam outlet. Repeat several times until black particles are no longer emitted and vinegar odor is gone.
   If using Vicks VapoSteam®, make sure any residue is cleaned off the steam unit using a mild detergent.
3. Rinse area under the steam guard to remove any dust or dirt particles. With a long toothpick, you can gently poke through the steam outlet and drain hole if they ve become obstructed.
4. Disinfecting the Reservoir:
   Fill the reservoir with water and add 1 teaspoon of bleach per gallon of water. Swish to wet all inner surfaces. Let it stand for 20 minutes. Then empty the reservoir and rinse with tap water until the bleach smell is gone. Dry with a clean cloth.

End-Of-Season Maintenance/Storage

Follow Weekly Maintenance procedure at end-of-season or when the vaporizer will not be used for several days. Be sure to dry all parts and store in a cool, dry location. DO NOT STORE UNIT WITH WATER INSIDE.

Troubleshooting: What To Do If…

The vaporizer does not operate or steam too slowly.

1. Make sure the vaporizer is plugged in and the night-light is lit. If the night-light is not on, you may have a blown fuse, a tripped circuit breaker or a defective electrical outlet. Try a different outlet. You may want to contact an electrician to check the potentially defective outlet.
2. If the vaporizer is plugged in and the nightlight is on, the fault may be the low mineral content of the water in your area. Unplug the vaporizer from the electrical outlet and allow it to cool. Remove the steam uni,t allowing the water to drain out, add one or two PINCHES (1/8 tsp) of salt to the water and mix thoroughly. Replace the steam unit and plug in the vaporizer. It should steam within 5 minutes. Add salt only by the PINCH, since too much salt can cause excessive boiling or blow a fuse.
3. If the vaporizer has been operating normally and is now failing to steam, it needs to be cleaned. See the “Weekly Maintenance” section of Care and Cleaning Instructions.

Vaporizer operates too fast, fuse blo.ws

Overboiling, flickering lights, blown fuse, or heavy steam flow from Safety Vents generally indicates one of the following causes…

1. Too much salt was added to the water. To correct the condition: Disconnect the vaporizer from the electrical outlet and allow it to cool. Pour out water and rinsethe  container. Rinse the steam unit as described in the “Weekly Maintenance” section of the Care and Cleaning Instructions. Refill with fresh water, but DO NOT ADD SALT. If the vaporizer now does not operate or steams too slowly, see directions in Section A above.
2. You live in a “hard water” area and minerals in the tap water are causing the vaporizer to steam too rapidly.
   To correct the condition: Disconnect vaporizer from electrical outlet and allow to cool. Remove steam unit allowing hot water to first dribble out, pour out water and rinse container. Rinse steam unit as described in “Weekly Maintenance” section of Care and Cleaning Instructions. Refill with fresh water but DO NOT ADD SALT.
   If the unit still steams too rapidly, use ½ distilled water and ½ tap water. Food and drug stores usually stock distilled water. In “hard water” areas, it is advisable to clean the unit every few daysbyh the “Weekly Maintenance” section of Care and Cleaning Instructions.

Vaporizer is making crackling/buzzing/humming sounds, orthe  water container is unusually hot.

1. You may have added too much salt. See section B above.
2. You may live in a “hard water” area. See section B above.
3. This condition can happen when the water level in the container is low. Disconnect the vaporizer from the electrical outlet, allow to cool, remove the steam unit, allowing water to first dribble out. Fill the container with tap water to the water level marking.
4. This may be an indication that your vaporizer needs cleaning. Refer to the “Weekly Maintenance” section of Care and Cleaning Instructions.

If you are still experiencing difficulty in operating your vaporizer, please call our Consumer Service Department at 1-800-VAPOR-1-2 (1-800-827-6712).

3-YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

• This 3-year limited warranty applies to the repair or replacement of the product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use, or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
• At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.
• This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use notbyh the instruction manual.
• This warranty does not cover the filters, pre-filters, UV bulbs, or other accessories (if included) except for material or workmanship defects.

Consumer Relations

For questions or comments

Call us toll-free at: 1-800-VAPOR-1-2 (1-800-827-6712)
E-mail: consumerrelations@kaz.com
Or visit our website at: www.vickshumidifiers.com

Please be sure to specify the model number V150SGNL.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE PRODUCT TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSINGYOURSELFF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.
