VIVA A1313361VB Wine Cooler Water Dispenser User Manual

VIVA A1313361VB Wine Cooler Water Dispenser

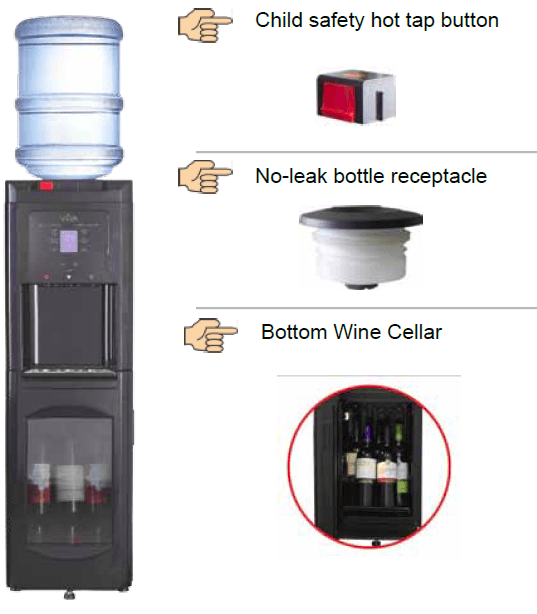

PRODUCT FEATURES

1. This water cooler can provide you with hot, Cold, and room-temperature water and a Wine Cellar for food storage
2. Fast cooling and heating systems can provide you 80-92C hot water and 3- 10 °C cold water, with hot water capacity of 4L/H and Cold water peak capacity of 4L/4L/H. The bottom Wine Cellar can chill beer, beverages, store food or make ice cubes.
3. Unique patented safety designs: Child-safety hot tap button, no-leak bottle receptacle, and double safety hot tank

SAFETY PRECAUTIONS

When operating this dispenser, always exercise basic safety precautions, including the following:

• Before use, this dispenser must be properly assembled and installed in accordance with this manual.
• This dispenser is intended for water dispensing only. Do NOT use other liquids. Do NOT use for other purposes. Never use any other liquid in the dispenser other than known and microbiologically safe bottled water. Warranty is void if used for any other liquids, including coffee, tea, juices, beer or wine.
• For indoor use only. Keep the water dispenser in a dry place away from direct sunlight. Do NOT use outdoors.
• Install and use only on a hard, flat, and level surface.
• Do NOT place the dispenser into an enclosed space or cabinet.
• Do NOT operate the dispenser in the presence of explosive fumes.
• Position the back of the dispenser no closer than 4 inches from the wall and permit free airflow between the wall and the dispenser. There must be at least 4 inches of clearance on the sides of the dispenser to permit airflow.
• Use only properly grounded outlets.
• Do not use an extension cord with your water dispenser.
• Always grasp the plug and pull straight out from the outlet. Never unplug by pulling on the power cord.

SPECIFICATIONS

• Voltage/frequency/current
• 120V/ 60Hz/ 5 A
• Refrigerant Type
• R-134A
• Cooling Power
• 100 W
• Cold water capacity / Hour
• 1Gallon / 3.79L (-10C)
• Hot water capacity / Hour
• 1Gallon / 3.79L
• Wine cellar temperature
• 3°C~20°C / 37.4°F – 68°F
• Wine cellar volume
• 5.94 Gallon / 22.5L
• Dimensions
• 102.8 cm H x 32 cm W x 38.2 cm D 40.5 inch H × 12.6 inch W × 15 inch D
• Net Weight
• 48.1Ibs / 21.8Kg

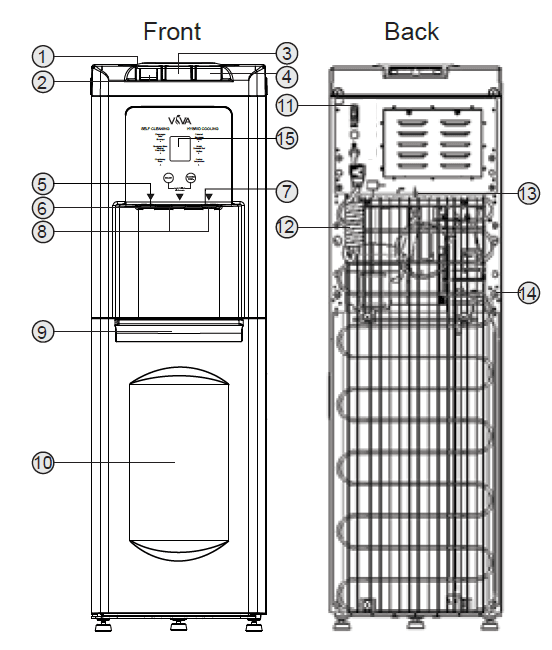

PARTS & FEATURES

1. Tap button: Hot Water
2. Child Safety Lock
3. Tap button: Room Temp Water
4. Tap button: Cold Water
5. Tap: Hot Water
6. Tap: Room Temp Water
7. Tap: Cold Water
8. LED Night Lights
9. Drip Tray
10. Door
11. Hot Power Switch
12. Power Cord
13. Carry Handle
14. Drain Plug
15. LCD display

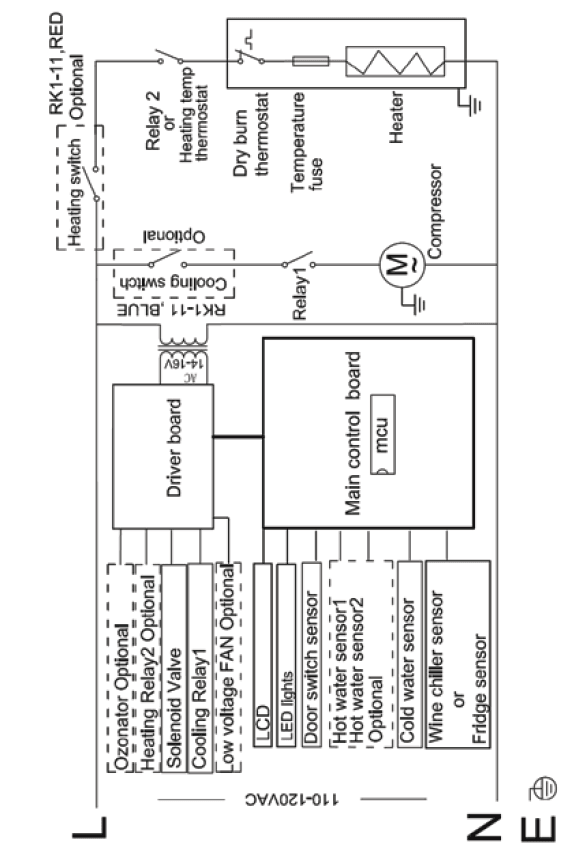

Electrical diagram

ASSEMBLY

1. Remove the dispenser from the packaging.
2. Unpack the drip tray and insert it into the dispenser. As shown in the figure
3. Remove the bottle receptacle from the packaging and insert it into the Stainless cold tank As shown in the figure
4. Properly dispose of all packaging.
5. Find a location for your water cooler that is protected from direct sunlight and other sources of heat. Like all other water coolers, prolonged exposure to
   Sunlight will discolor the plastic exterior
6. Place the cooler on a flat, level surface
7. To ensure the cooler is level, adjust its feet by rotating them, adjusting 4 feet first, and slightly adjusting the 5th foot last. As shown in the figure
8. Make sure the back of your water cooler is at least 4 inches away from the wall. Keep a minimum distance of at least 4 inches on each side of your water cooler. Keep items such as papers, clothing, and furniture at a safe distance. As shown in the figure
9. This cooler is designed and built for indoor use only. Room temperature should not exceed 37 °C/99F

PROPER CARE & CLEANING

SANITIZING

• In order to remove the dust produced in the course of transportation. Prior to using the water cooler. It should be cleaned
• Perform: Every 3 months or whenever an off-taste occurs.
• Time Required: 15 minutes.

1. Place the cooler upright.
2. Make a sanitizing solution of 1.5 gallons of tap water and 3 tablespoons of unscented household bleach in a 5-gallon bottle.
3. Put the bottle with cleaning liquid on the water cooler, as shown in the figure
4. Press down the cold, hot tap button, take out 0.5 gallons of water for cleaning the taps.
5. Place a 2-gallon or larger bucket under the drain plug in
   The rear of the dispenser, as shown in the figure
6. Remove the drain cap and the silicon plug. Cold water will immediately flow into the bucket. Several seconds later, hot water will dispense
7. Repeat steps 2-12 with clean water until the water becomes clean and odorless.
8. Once a unit has drained, replace the silicon plug and drain cap.

Operation

1. Tear off the plastic seal or label wrapping outside of the bottle cap. Place the water bottle down into the bottle receptacle vertically, the bottle cap will be pierced by the probe, and bubbles will pop up while filling water into the cooler.
2. Press down the cold and hot tap buttons until the water comes out from both taps.
3. Plug the power cord into a grounded power socket, the compressor will start cooling, turn on the hot switch, and the hot tank will start working, it may take 60 minutes to cool the water temperature down to icy cold and 15-20 minutes to heat up the hot water.
4. To change a new water bottle, remove the bottle vertically up, then repeat steps 1 and 2.

How to use a digital display panel

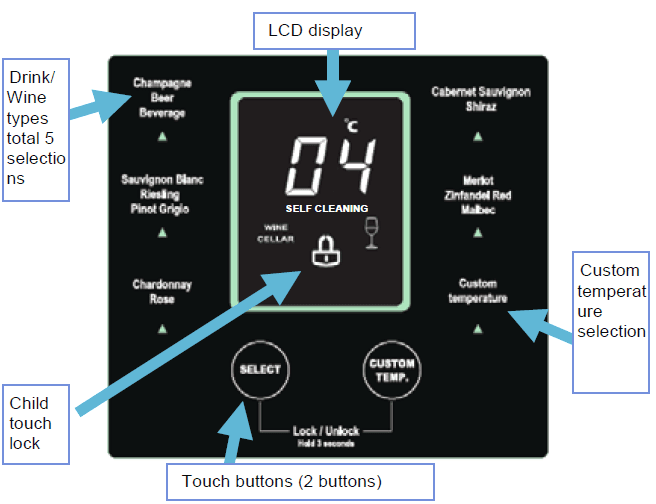

1. View of the display panel
2. System default temperature table


   Drink/Wine name	Default temperature
   Champagne/Beer/Beverage	4
   Sauvignon Blanc/Riesling/Pinot Grigio	6
   Chardonnay/Rose	8
   Cabernet Sauvignon/Shiraz	10
   Merlot/Zinfandel Red/Malbec	12
   Custom temperature	3    ~20     selectable

3. LCD display
   The temperature displayed is the storage temperature for drink/wine, but not the dynamic actual temperature inside the Wine Cellar. The Lock icon is open means settings can be adjusted. If the lock icon is closed means the setting can not be changed to prevent the naughty child from changing the settings The glass cup icon lights up means the Wine Cellar is working
4. Customer setting

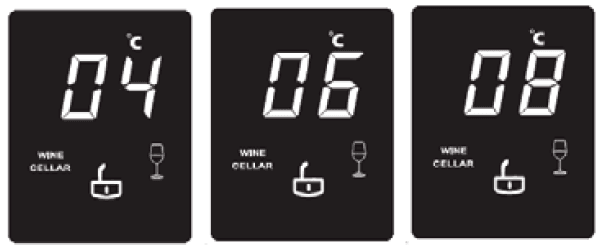

   Before making the setting, unlock the child-safety lock by pressing the “SELECT” and “CUSTOM TEMP” concurrently for 3 seconds. Then, start to select wine or make a custom temperature setting. The store temperature will be displayed, and the LED light which is below the wine name will flash when a different wine is selected, like the pictures shown below (5 kinds of drink/wine selectable):

How to use the child-safety hot water tap

• First, press down the child safety lock, and then press
  down the button without releasing the child-safety lock, as shown in the figure
• Wine cellar door
• The wine cellar door must be closed tightly to make sure the wine cellar works properly.

TROUBLESHOOTING

LIMITED WARRANTY

• Electrotemp Technologies Inc., (“Vendor”) warrants to the original purchaser of this dispenser, and to no other person, that if this dispenser is assembled and operated in accordance with the printed instructions accompanying it, then for a period of ONE (1) years from the date of purchase, all parts in such dispenser shall be free from defects in material and workmanship. The vendor may require reasonable proof of your date of purchase from an authorized retailer or distributor.
• Therefore, you should retain your sales slip or invoice. The Limited Warranty shall be limited to repair or replacement of parts, which prove defective under normal use and service, and which the Vendor shall determine in its reasonable discretion upon examination to be defective. Before returning any parts, you should contact the Vendor’s Customer Service Department using the contact information listed below. If Vendor confirms, after examination, a defect covered by this Limited Warranty in any returned part, and if Vendor approves a claim, Vendor will replace such defective part without charge. If you return defective parts, transportation charges must be prepaid by you. The vendor will return replacement parts to the original purchaser, freight or postage prepaid
