Winco ESW-66 10QT Electric Deluxe Kettle Soup Warmer

Package Contents

All units come with an Operating Instruction Manual and the following:

• Kettle Style Electric Soup Warmer
• Stainless Steel Hinged No-Drip Lid
• Stainless Steel Bain Marie Inset
• Magnetic Label Holder with Labels

WINCO prides itself on quality and service, ensuring that at the time of packing, all products are supplied fully functional and free of damage. Should you find any damage as a result of freight, please contact your WINCO dealer immediately.

Unpacking the Equipment

DISPOSE OF ALL PACKAGING MATERIALS IN AN ENVIRONMENTALLY RESPONSIBLE MANNER.

1. Remove all packing materials and tape, as well as any protective plastic and cardboard, from the unit.
2. Clean any glue residue left over from the plastic or tape.
3. Place the unit in the desired position and height.

SAVE THE ORIGINAL BOX AND PACKAGING FOR USE IN PACKAGING AND SHIPPING THE EQUIPMENT IF SERVICES ARE NEEDED.

Important Safeguards

• To ensure safe installation and operation, please carefully read and understand the following statements.
• Unless the operator is adequately trained and supervised, there is a possibility of serious injury. Owners of this equipment bear the responsibility to make certain that this equipment is used properly and safely, and to strictly follow all of the instructions contained in this manual and the requirements of local, state, or federal law.
• Owners should not permit anyone to touch this equipment unless they are over 18 years old, are adequately trained and supervised, and have read and understood this manual.
• Owners should also ensure that no customers, visitors, or other unauthorized personnel come in contact with this equipment. It is the responsibility of the owner and the operator to remain alert to any hazards posed by the function of this equipment.
• If there is ever uncertainty about a particular task or the proper method of operating this equipment, ask an experienced supervisor.

Installation

These instructions should be followed at all times. Failure to follow these instructions could result in injury to yourself and others.

TO REDUCE RISK OF INJURY OR DAMAGE TO THE UNIT:

1. Read this manual thoroughly before installation and operation. DO NOT proceed with installation and operation if you have any questions or do not understand anything in this manual. Contact your representative or the manufacturer first.
2. Remove the equipment from the packaging. Be certain that all protective plastics and residues are thoroughly cleaned from its surface.
3. Place your equipment on a firm level surface. Local standards and regulations should be consulted in order to abide by standards set in relation to positioning, spacing, and ventilation. Winco recommends no less than 4” for a ventilation
   gap around the perimeter of this unit.
4. Proper connections and power supply are essential for efficient performance. Supply the appropriate power and connect to the source; your equipment is now ready to turn on and operate. (For power supply, please see the technical specification on page 1).
5. Units are wired to be used with a standard AC receptacle that correlates to the unit’s operating voltage (see technical specification on page 1).
6. The installation of the unit must conform to the NATIONAL ELECTRICAL CODE, ALL LOCAL ELECTRICAL CODES AND ORDINANCES, AND ALL THE LOCAL ELECTRICAL COMPANY RULES AND REGULATIONS. Additionally, we recommend a 4″ spacing surrounding the unit to provide adequate ventilation.

Operation

1. USE WITH WET HEAT ONLY.
2. Add 20 oz. (0.6 liters) of water to the kettle before placing the bain marie insert into the warmer.
3. Never overfill with water. Use the waterline marks at the base of the kettle. Under no circumstances should the bain marie insert float, even when empty. DO NOT EXCEED MAX LEVEL. Remove any excess water immediately.
4. Turn the warmer on. The indicator light will glow, showing that the unit is on.
5. Adjust the temperature control dial to the correct setting:
   • Settings 8-12 are designed for initial warm-up
   • Normal control settings range from 1-8
   • Once the kettle has reached the desired temperature, adjust the temperature control dial to a lower setting. It is recommended that the lowest possible setting that maintains food-safe serving temperatures be used.
6. Always keep the hinged lid attached and closed when not serving.

Cleaning & Maintenance

Before using this equipment, it must be cleaned and dried thoroughly. Clean all surfaces before use. Failure to clean surfaces before using the unit could cause food contamination. Always unplug the unit after every use and before cleaning. Unplug the unit when not in operation.

• Allow the unit to cool completely before cleaning.
• Spilled food should be removed immediately from all exterior surfaces and the top collar.
• Clean the main body with a damp, soapy cloth. Do not use harsh or abrasive chemicals or scouring agents.
• Allow to dry before turning the unit back on.
• Do not immerse the device completely in water to clean it. The appliance should also NOT be cleaned with a water jet.
• The bain marie insert and lid are dishwasher safe.

SAFETY PRECAUTIONS

Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and aware of all precautions. Accidents and problems can result from a failure to follow fundamental rules and precautions.

• A WINCO® Approved, Recommended Qualified Service Technician should carry out repairs if necessary. Do not remove any components or service panels on this product.
• Allow the unit to cool down after use before dismantling for cleaning; the unit will be too hot to handle immediately after use.
• Before cleaning, switch the power OFF and disconnect the power cord from the outlet.
• Do not immerse the unit in water or use a hose to clean.
• If the power cord is damaged, it must be replaced with a WINCO® Approved, Recommended, Qualified Service Technician in order to avoid a hazard.

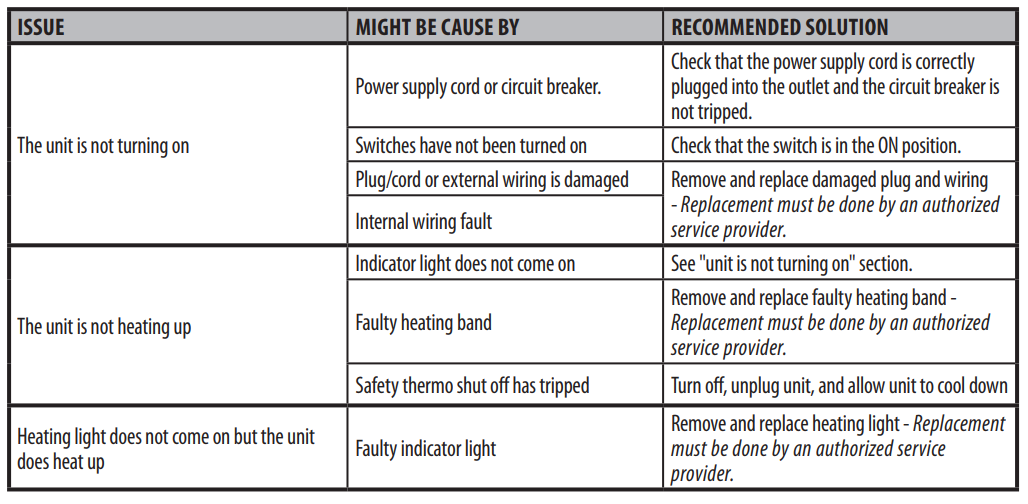

Troubleshooting

If your WINCO Infrared Strip Heater does not operate, please check the following before placing a service call.

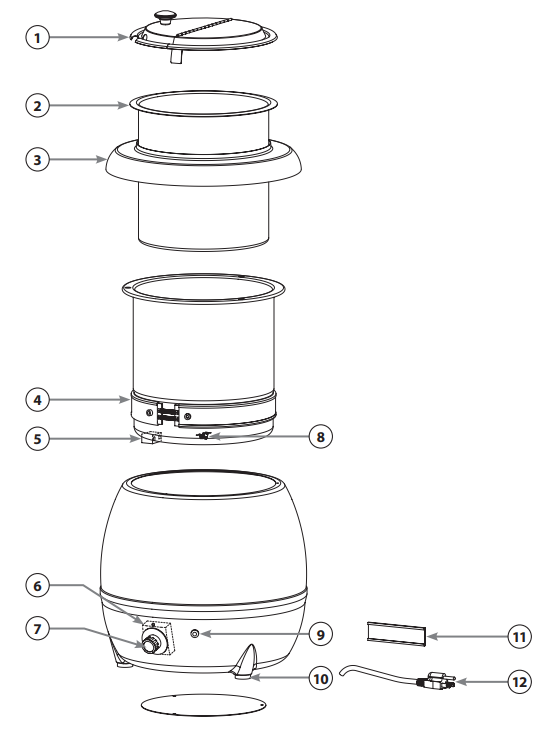

Exploded Views
MODELS: ESW-66 & ESW-66-I

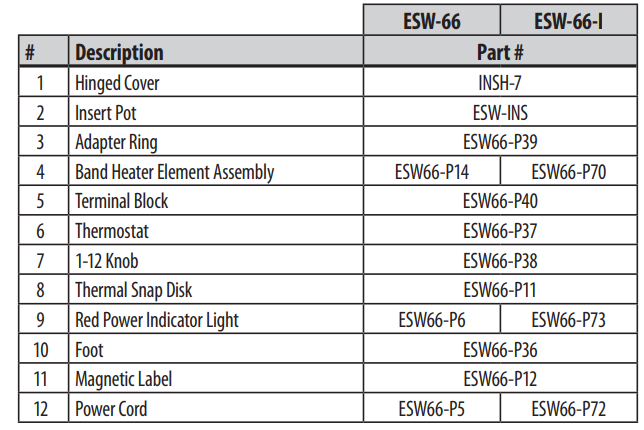

Parts List
MODELS: ESW-66 & ESW-66-I

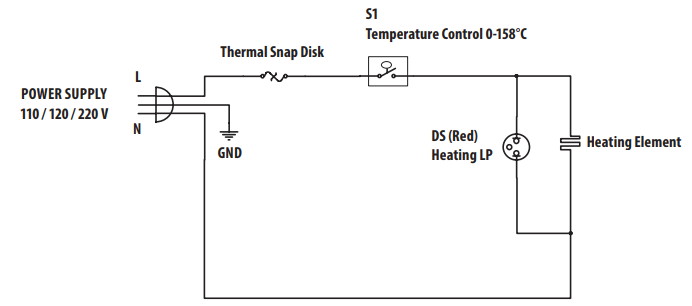

Electrical Circuit Diagram
MODELS: ESW-66 & ESW-66-I
