Anker A17A0 EverFrost Powered Cooler 30 User Manual

Anker A17A0 EverFrost Powered Cooler 30

Important Safety Instructions

To reduce the risk of injury, users must read the instruction manual.

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. If the power cord is damaged, it must be replaced by the manufacturer, service agent, or similarly qualified persons in order to avoid a hazard. The appliance is only to be used with the power supply unit provided with the appliance. Disconnect the power supply before cleaning and maintenance. Instructions for appliances incorporating batteries that are intended to be replaced by the user shall include the following:

• Battery type: Rechargeable lithium-ion battery (A17B0)
• Disposal of a battery into a fire or hot oven, or mechanically crushing or cutting off a battery, can result in an explosion.
• CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Do not use nonrechargeable batteries!
•  A battery subjected to extremely low air pressure may cause an explosion or leakage of flammable liquid or gas. Under abusive conditions, liquid may be ejected from the battery—avoid contact. If contact accidentally occurs, rinse with water. If liquid gets in your eyes, seek medical help as it may cause irritation or burns.
• The battery must be removed from the appliance before it is scrapped.
• The appliance must be disconnected from the main power supply when removing the battery.
• Do not dispose of the battery in heat or fire. The battery is to be disposed of safely.
• When disposing of secondary cells or batteries, keep cells or batteries of different electrochemical systems separate from each other.

WARNING: To recharge the battery, only use the detachable supply unit provided with this appliance.

When connecting to the DC power supply, the appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance. Detachable Supply Unit GM95-145600-D

• Suitable for camping.
• The appliance shall not be exposed to rain.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING: Do not place multiple portable socket outlets or portable power supplies at the rear of the appliance.

A child entrapment warning statement shall be included in either the operating instructions or in a use and care manual provided with each refrigerator and shall include the following or equivalent wording:

WARNING: Risk of child entrapment.

Before you throw away your old refrigerator or freezer:

• Remove the doors.
• Leave the shelves in place so children cannot easily climb inside.

Prevent unintentional starting. Ensure the switch is off before connecting to the battery pack, picking it up, or carrying the appliance. Carrying the appliance with your finger on the switch or powering the appliance with the switch on may lead to accidents. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. Recharge only with the charger specified by the manufacturer. A charger suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can connect one terminal to another. Burn hazards or fire may occur if the terminals are shorted together.
Under abusive conditions, liquid may be ejected from the battery—avoid contact. If contact accidentally occurs, rinse with water. If liquid gets in your eyes, seek medical help. Liquid ejected from the battery may cause irritation or burns. Do not use a battery pack or appliance that is damaged or modified, as they may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause an explosion. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. The battery pack must be used with the Anker adapter (GM95-145600-D) for charging.

Bluetooth:

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Anker Innovations Limited is under license. Other trademarks and trade names are those of their respective owners.

Manufacturer: Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

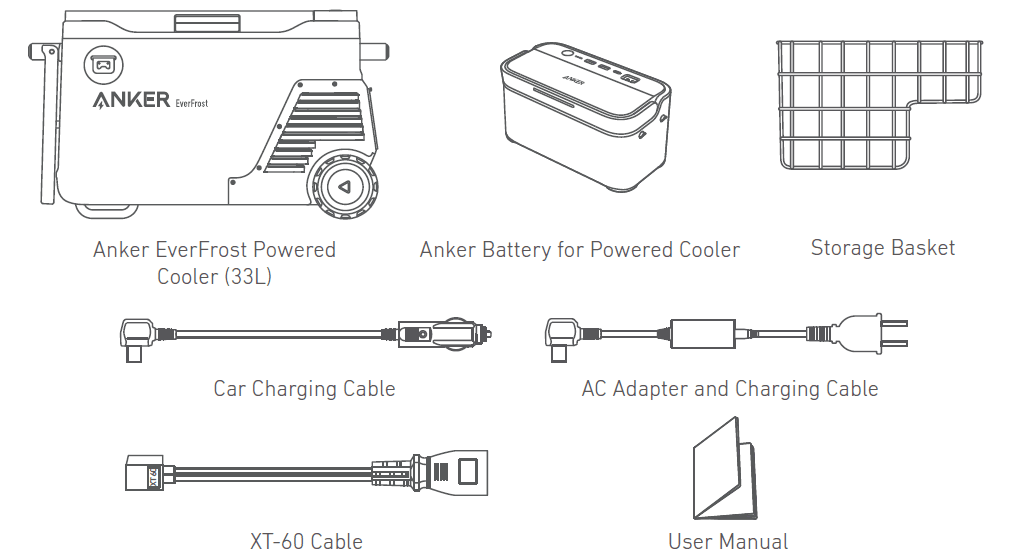

What’s in the Box

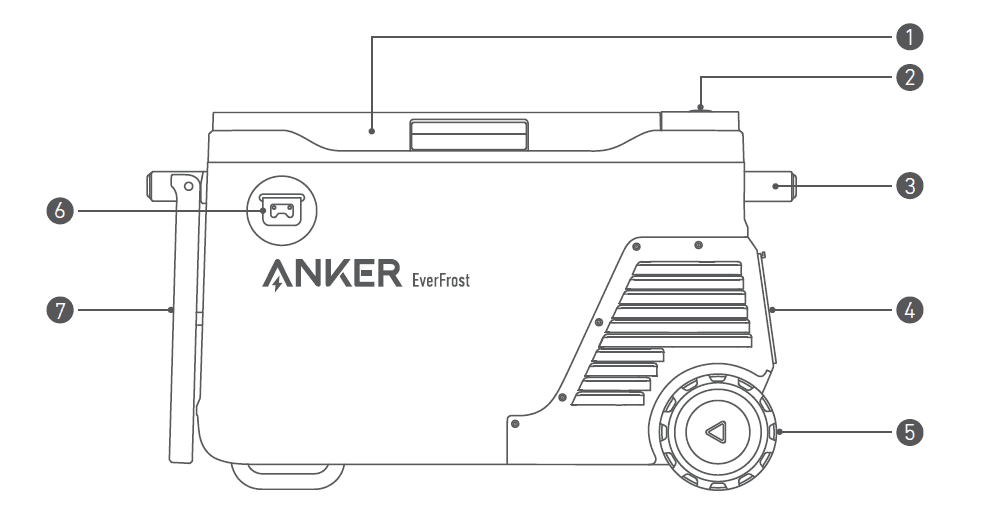

Overview

1. Cooler Cover
2. LCD Screen
3. Handle
4. Battery Cover
5. Wheels
6. Screwdriver
7. Tray Table

• Prop up the tray and set up the kickstand underneath the cooler

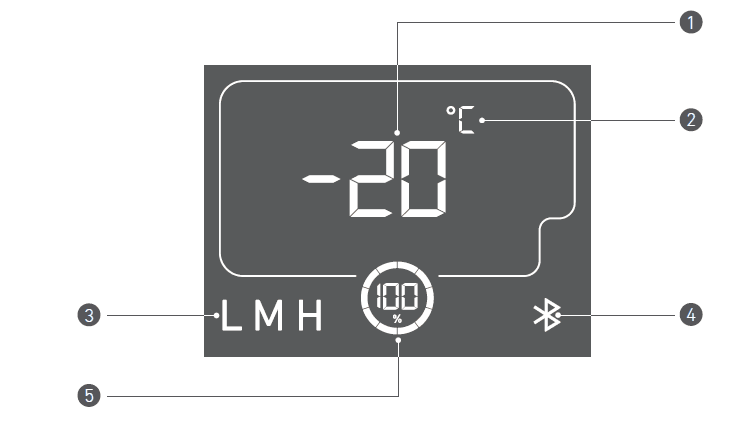

LCD Screen

1. Temperature
2. Temperature Unit
3. Voltage
4. Bluetooth
5. Remaining Battery in Percentage (if using)
6. Protection Level battery to power)

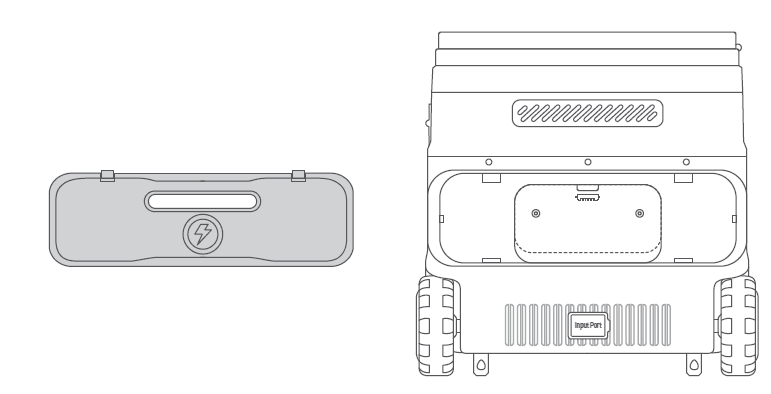

Without the Battery

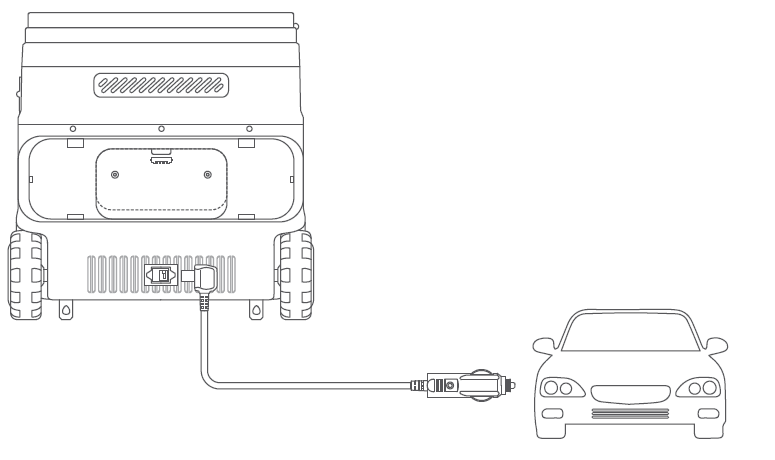

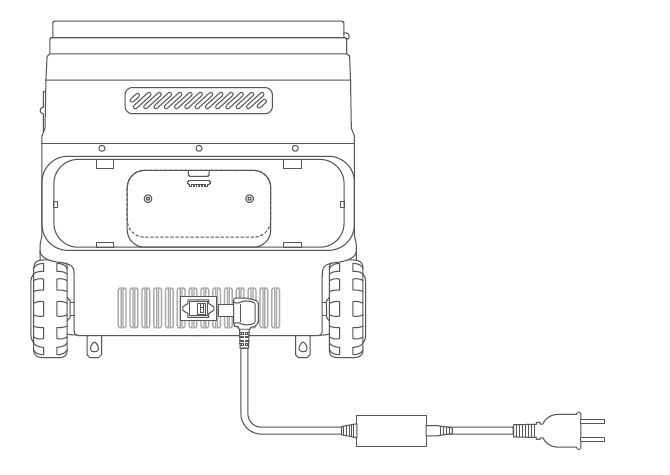

AC Power: Power the cooler by connecting to a wall outlet with the AC charging cable.Power via Car: Connect the cooler to a car’s output port with the car charging cable.

With the Battery

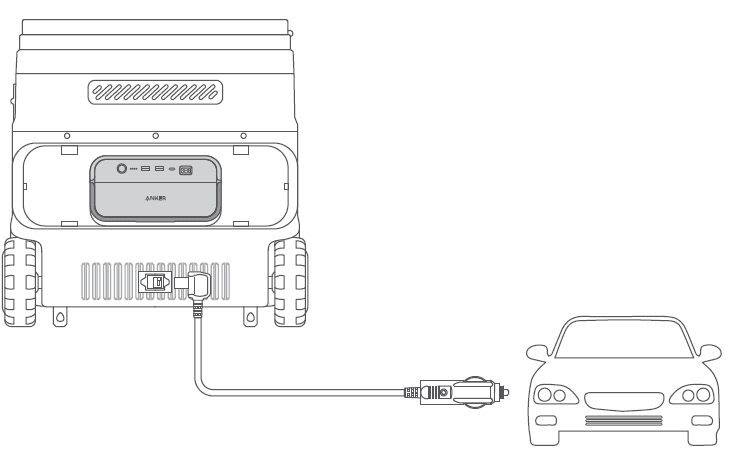

AC Power: Power the cooler by connecting to a wall outlet with the AC charging cable.Power via Car: Connect the cooler to a car’s output port with the car charging cable.

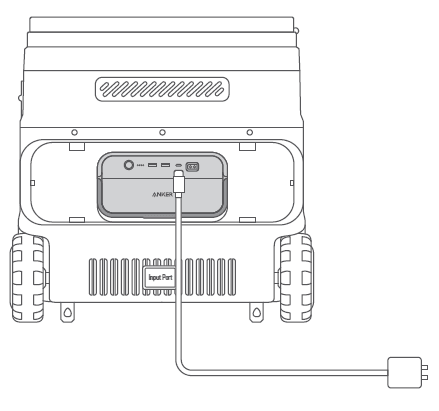

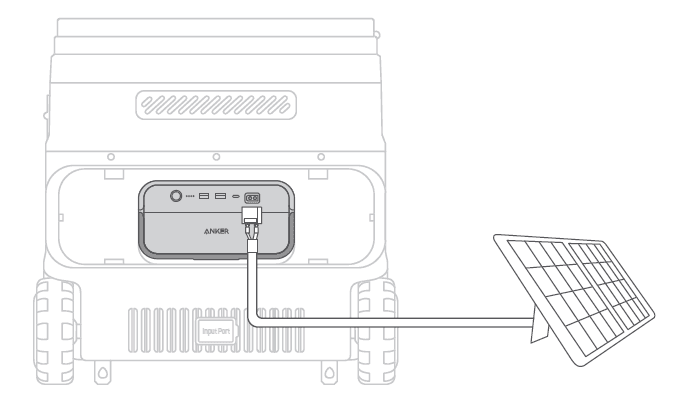

Recharging via Solar Panel: Power the cooler by connecting the battery to a solar panel with an XT-60 to XT-60 cable.USB-C Recharging: Power the cooler by connecting the battery to a wall outlet with the USB-C cable.

Using Your Cooler

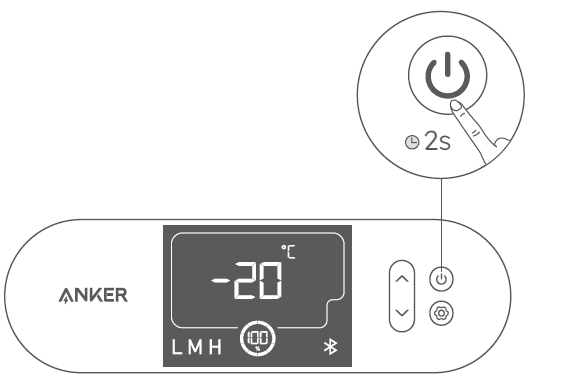

1. Press the power button for two seconds to turn on your cooler. The LCD screen will light up.

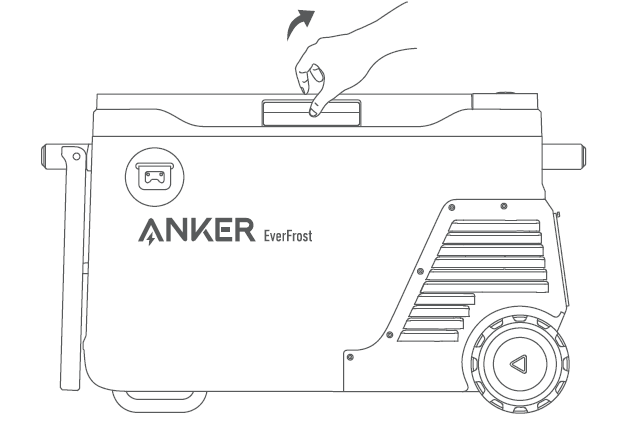

2. Push the cover up to open the cooler.
3. Press the power button once to light up the LCD screen.

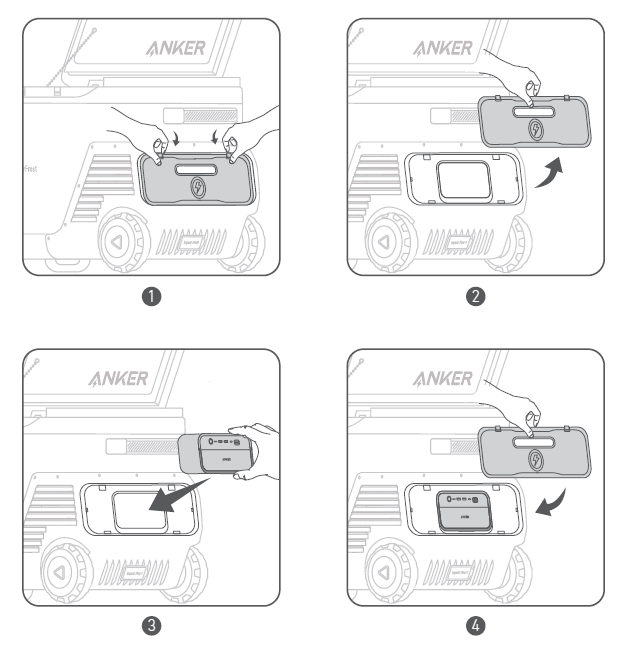

Installing the battery

Press the snap-fits to remove the battery cover. Place the battery inside and you will hear a click when the installation is successful. Then, place the battery cover back.

• The battery cover will automatically open when lifted up.

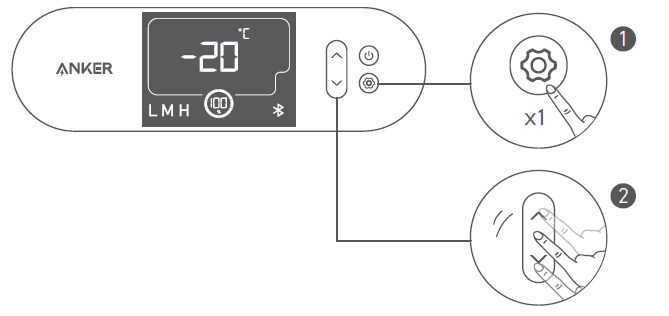

Setting the Temperature

Press the settings button once to switch between Fahrenheit and Celsius. Press the up or down buttons to adjust the temperature, and confirm your temperature by pressing the button again.

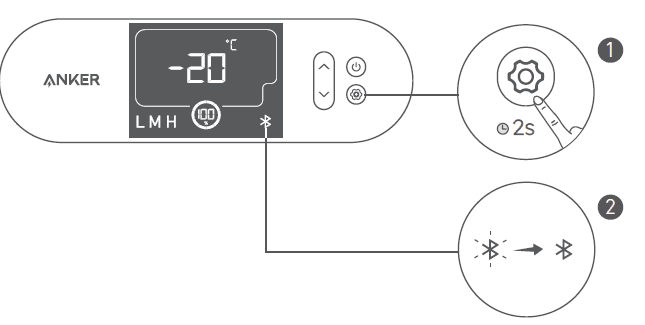

Bluetooth

Press the settings button for 2 seconds to turn on Bluetooth. The Bluetooth icon on the screen will flash. It will automatically connect to your phone with Bluetooth on, and the icon will turn steady white.

• The Bluetooth function will be turned off after 12 hours without any connection.

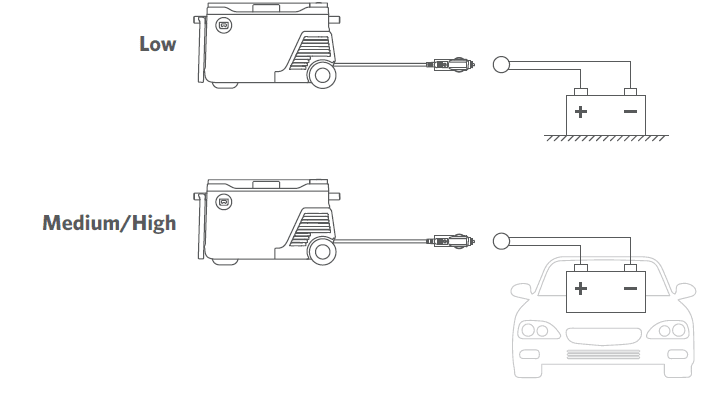

Car Battery Protection Grades

When powering the cooler via a car, press the settings button once to choose the car battery’s protection grade. Press the up or down buttons to adjust.

When the car’s battery voltage is lower than the set value without the battery, your cooler will stop working. When the car’s battery voltage is lower than the set value, the cooler switches to its own battery for power supply. Once the car battery is restored, it switches to the car battery’s power source.

The Anker App for Smart Control

You can remotely control your powered cooler using the Anker app. Please download the app and its
user manual by scanning this QR code. Connect the device to a network before using the app for the first time. After connecting successfully, you can connect your devices off-grid.

Specifications

Troubleshooting

• Reminder to Close Doors: The buzzer will send a reminder if the cooler’s cover is not closed for more than 180 seconds.
• The cooler will stop working if the tilt angle exceeds 30 degrees. Place it horizontally, and it will resume normal operation in 5 minutes.

FAQ

Q1: How long does the cooler’s battery last when fully charged?
The battery capacity of the cooler is 299.52Wh. When the cooler’s temperature is at 77°F (25°C), it will run for X hours. When the temperature is at 68°F (20°C), it will run for X hours.

Q2: What ambient temperature can the cooler be used normally?
The recommended ambient temperature is 32°F – 104°F (0 – 40°C).

Q3: What should I do when using a solar charger to charge the Anker EverFrost Powered Cooler?
The solar input supports an 11- 30V solar charger with an XT-60 connector. We recommend using Anker 100W Solar Panel to get the best compatibility.

Anker EverFrost Powered Cooler Warranty Policy

This Anker EverFrost Powered Cooler purchased on AnkerDirect and Anker authorized resellers to come with a limited warranty (“warranty”) as set out below. By using an Anker EverFrost Powered Cooler, you agree to be bound by the terms of the Anker limited warranty. 2-year limited warranty for Anker EverFrost Powered Cooler and 3-year limited warranty for the compressor for purchases made on AnkerDirect and Anker authorized resellers. The warranty period starts from the date of purchase. Anker’s limited warranty is restricted to the country of purchase. The limited warranty is void on items taken outside the country they were originally bought in or shipped to directly from an authorized online purchase.

Exclusions and Limitations
Not covered under warranty:

• Products that are damaged or modified.
• Products operated with a damaged cord, plug, or output cable.
• Products that are disassembled.
• Products that are cleaned with harmful chemicals or detergents.
• Non-quality related issues (after 30 days of purchase).
• Products purchased from unauthorized resellers.
• Products without sufficient proof of purchase.
• Products that have been refunded.
• Products with an expired warranty.
• Lost, stolen, or free products.
• Damage from outside sources.
• Repairs through 3rd parties.
• Damage from misuse of products (including, but not limited to falls, use of the product in excess of its output rating, exposure of the product to rain or snow, extremely low air pressure, extreme temperatures).
• Purchases from illegitimate sources.
• Batteries that are damaged when not used for a long time or not properly maintained according to the user manual.

Anker is Not Liable For:

• Loss of data incurred from the use of Anker products.
• Returning personal items sent to Anker.

When returning items with a prepaid shipping label provided by Anker, Anker takes responsibility for any damage or loss incurred in transit. When returning items for non-quality issues, the buyer assumes responsibility for any damage or loss incurred in transit. Anker does not provide refunds for items damaged in transit due to non-quality related warranty claims.

Register Your Anker PowerHouse Today

Why Register?

1. Hassle-Free Warranty: Confirm the 2-year limited warranty for your Anker EverFrost Powered Cooler and 3-year limited warranty for the compressor.
2. Fast Customer Service: Enjoy exclusive customer service and get what you need quickly.
3. Receive the Latest News: Get exclusive first looks at new products and instant updates on official events.

• Scan the QR code below to enter the smart self-service page for more information about your Anker EverFrost.
