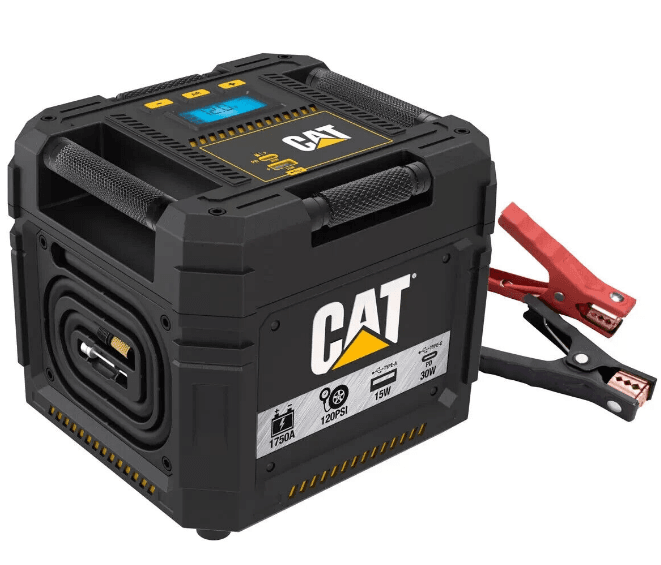

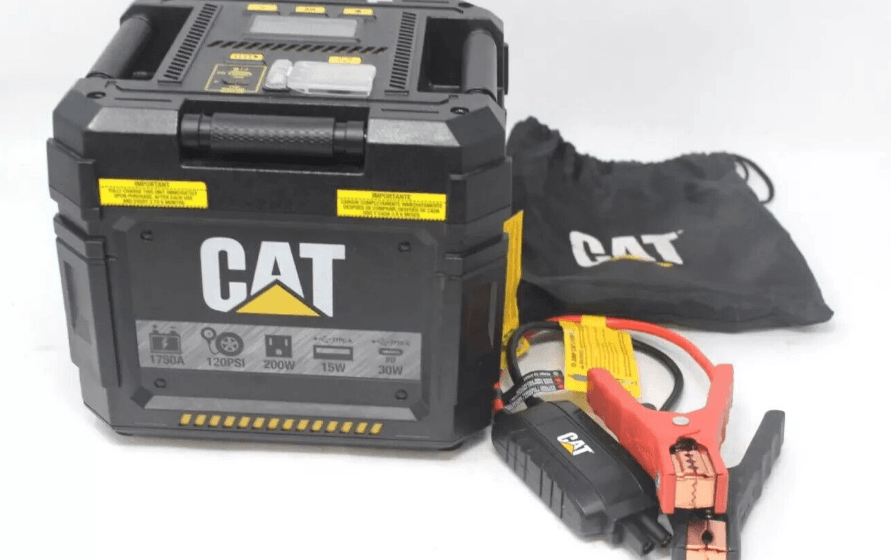

CAT PPSCL3 Cube Lithium 4 In 1 Portable Jump Starter

Table of Contents

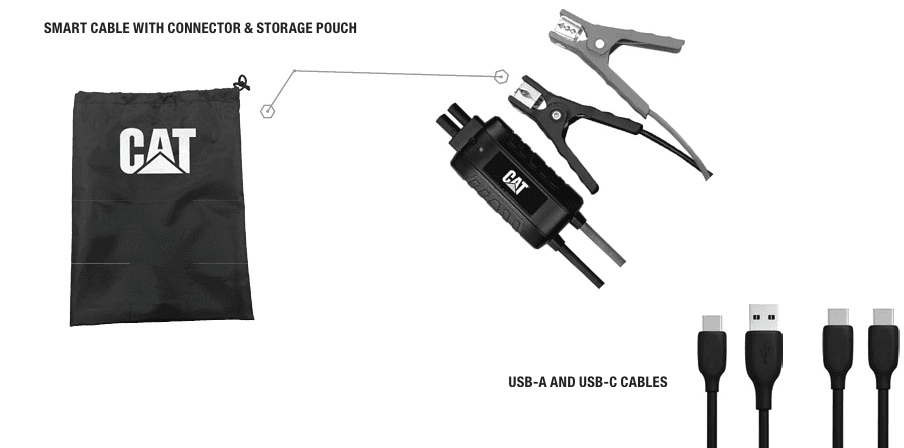

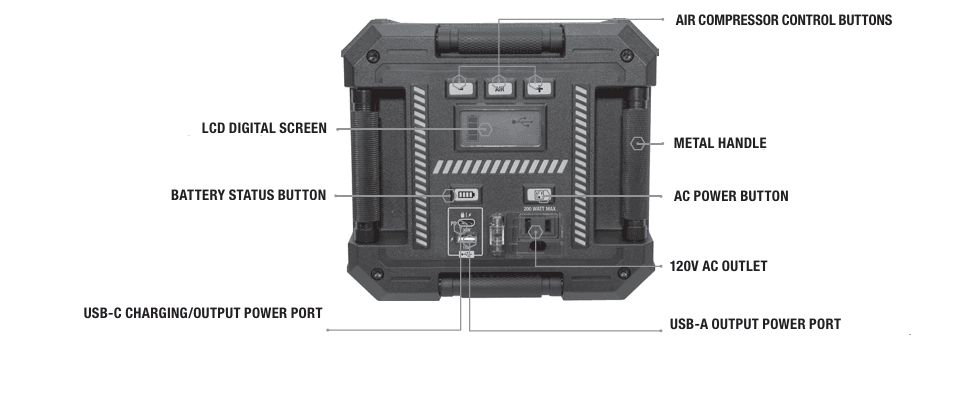

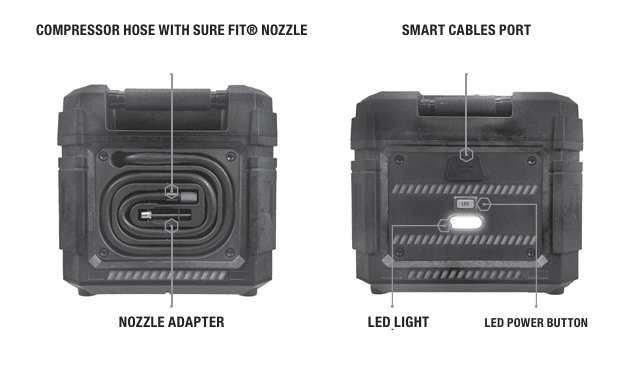

FEATURES

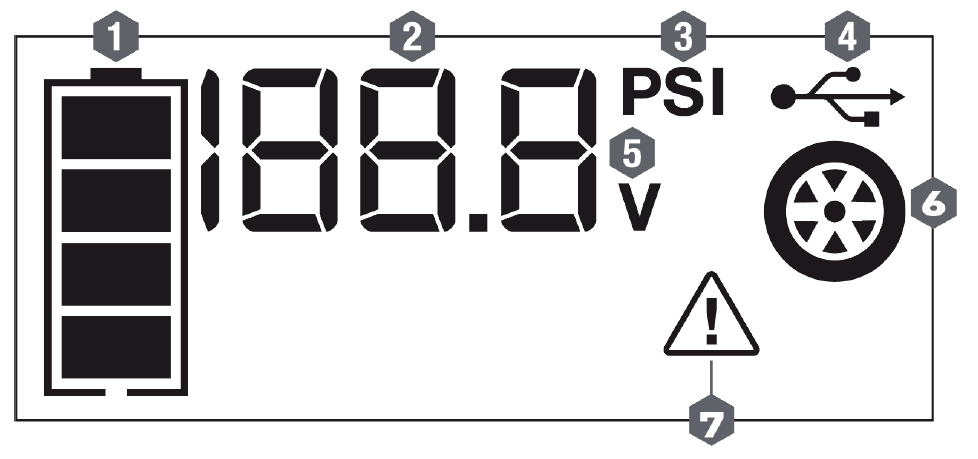

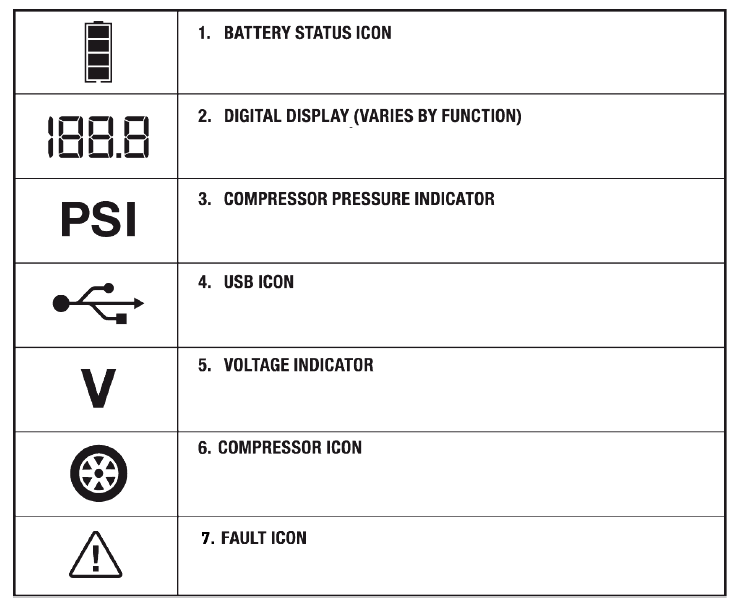

DIGITAL LCD SCREEN

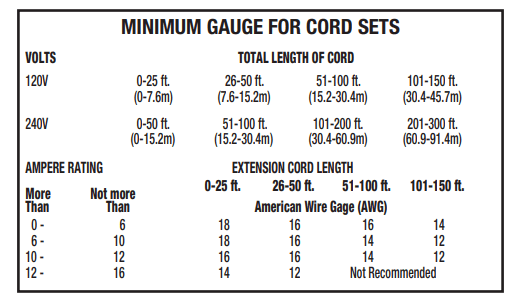

EXTENSION CORDS

WARNING: Use of an improper extension cord could result in a risk of fire and electric shock. When using an extension cord, make sure that the pins of the extension cord are the same number, size, and shape as those in the charger; and be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

When an extension cord is used, make sure that 1. The pins of the extension cord are the same number, size, and shape as those in the charger, 2. The extension cord is properly wired and in good electrical condition,n and 3. The wire size is large enough for the AC rating of the charger.

TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:

Pull the extension cord by the plug rather than the cord when disconnecting from the AC outlet.
SPECIFIC SAFETY INSTRUCTIONS FOR JUMP STARTERS
WARNING: BURST HAZARD Do not use the unit for charging dry-cell batteries that are commonly used with home appliances. These batteries may burst and cause injury to persons and damage property. Use the unit for charging/boosting a lead-acid battery only. It is not intended to supply power to a low-voltage electrical system other than in a starter-motor application.

Use of an attachment not supplied, recommended, or sold by the manufacturer specifically for use with this unit may result in a risk of electrical shock and injury to persons.
Working in the vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases during normal battery operation. For this reason, it is of the utmost importance that each time before using the jump-starter, you read this manual and follow instructions exactly.
To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and the manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and on the engine.

TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:

NEVER ATTEMPT TO JUMP-START OR CHARGE A FROZEN BATTERY.
Do not operate unit with a damaged cord or plug; or if the unit has received a sharp blow, been dropped, or otherwise damaged in any way.
Do not disassemble the unit; return it to the manufacturer when service or repair is required. Opening the unit may result in a risk of electric shock or fire, and will void warranty.
Make sure the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
Do not leave the unit unattended while in use.
Pull by the plug rather than the cord when disconnecting the USB Charging Cable.
Vehicles that have on-board computerized systems may be damaged if vehicle battery is jump-started. Before jump-starting, read the vehicle’s owner’s manual to confirm that external-starting assistance is suitable.
Never smoke or allow a spark or flame in the vicinity of the vehicle battery, engine, or power station
Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead acid battery. A lead acid battery can produce a short circuit current high enough to weld a ring, or similar metal object, to skin, causing a severe burn.
Do not wear vinyl clothing when jump-starting a vehicle. Friction can cause dangerous static electrical sparks.
Be extra careful to avoid dropping a metal tool onto the battery. It might spark or short-circuit the battery or another electrical part and could cause an explosion.
Jump-start procedures should only be performed in a safe, dry, well-ventilated area.
Always store battery clamps when not in use. Never touch battery clamps
together. This can cause dangerous sparks, power arcing, and/or explosions.
When using this unit close to the vehicle’s battery and engine, stand the unit on a flat, stable surface, and be sure to keep all clamps, cords, clothing and body parts away from moving vehicle parts.
Never allow red and black clamps to touch each other or another common metal conductor — this could cause damage to the unit and/or create a sparking/explosion hazard.

SPECIFIC SAFETY INSTRUCTIONS FOR THE USB PORTS

Do not insert foreign objects into the USB Ports.
Do not attach USB hubs or more than one personal electronic device to each USB Port.
Do not use this unit to operate appliances that require more than 15W for the USB-A port; and up to 30W when using the USB-C port only; total 15W output on both the USB-A and USB-C when they are used simultaneously.
Some household USB-powered electronics will not operate with this unit.

SPECIFIC SAFETY INSTRUCTIONS FOR COMPRESSORS
CAUTION – TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:

Never leave the compressor unattended while in use.
Do not operate the compressor continuously for longer than approximately 10 minutes, depending on ambient temperatures, as it may overheat. This could damage the compressor. Follow the instructions in the “Portable Compressor” section.

WARNING – BURST HAZARD: Bursting articles can cause serious injury.

Carefully follow the instructions on the articles to be inflated.
Never exceed the recommended pressure listed in the instructions on the articles to be inflated. If no pressure is given, contact the article manufacturer before inflating.
Monitor the pressure at all times on the LCD screen.

FIRST AID
When working with lead-acid batteries, always make sure immediate assistance is available in case of accident or emergency. Always have protective eyewear when using this product: contact with battery acid may cause blindness and/or severe burns. Be aware of first aid procedures in case of accidental contact with battery acid. Avoid touching the eyes while working with a battery. Acid, acid particles or corrosion may get into the eyes. Have plenty of fresh water and soap nearby in case battery acid contacts the skin. Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a lead-acid battery. A lead-acid battery can produce a short-circuit current high enough to cause a severe burn. Be extra cautious to reduce the risk of dropping a metal object onto the battery. This might cause sparks or short-circuit the battery or other electrical parts, which can cause an explosion.

SAVE THESE INSTRUCTIONS

WARNING – To reduce the risk of injury: Follow these instructions and those published by the battery manufacturer and manufacturer of any equipment you intend to use with this unit. Review cautionary markings on these products and on engine.

IMPORTANT NOTES:

Several factors can affect a jump-starter’s ability to boost a vehicle’s battery, including, but not limited to the size of the battery, the temperature (hot or cold), whether the battery is damaged or defective, and whether the jump-starter itself is fully charged.
The jump-starter requires a minimum voltage to detect the correct connection before it will begin to boost. If the vehicle battery voltage is below approximately 2 volts, it may not be able to detect connection and may not be able to start the vehicle. While this low battery voltage is rare it may occur under extreme conditions.

OVERVIEW

COMMON ACTIONS AND UNIT RESPONSES
The following actions turn the unit on and activate the LCD screen:

Press the LED Area Light Power Button. (Refer to the “LED Area Light” section.)	A beep will sound and the Area Light will turn on. The backlight will turn on for 10 seconds (only). The LCD screen will continue to display the Battery Status Icon and Battery Voltage Indicator. The unit remains on until the LED Area Light Power Button is pressed again to turn it off.
Press the AC Power Button. (Refer to the “120V AC Power Outlet” section.)	A beep will sound and the backlit LCD screen will display the Battery Status Icon and the Digital Display shows “AC”, indicating the AC outlet is ready to use. The unit remains on until the AC Power Button is pressed again to turn it off.
Connect An USB-A or USB-C Powered Device to USB-A or USB-C Port	The LCD screen will display the Battery Status Icon, Battery Voltage Indicator, and the USB Icon.
Press the Battery Status Button. (Refer to the “Viewing Battery Status” section.)	A beep will sound and the backlit LCD screen will display the battery status and voltage indicator for 10 seconds before the unit automatically turns off.
Press the Compressor Power Button. (Refer to the “Portable Compressor” section.)	A beep will sound and the backlit LCD screen will display the Battery Status Icon, “XXX” PSI and the Compressor Icon. If no further actions are taken after 1 minute, the unit will display the Battery Status Icon and Battery Voltage Indicator for 10 seconds before automatically turning off.
When the unit is charging or recharging (refer to the “Charging/Recharging” section)	The backlight will turn on for 10 seconds (only). The LCD screen will continue to display the Battery Status Icon and Battery Voltage Indicator. The bars on the Battery Status Icon will change from empty to solid (bottom to top) repeatedly.

WARNING – Battery fluid is a diluted sulphuric acid and may cause personal injury or damage to property. In case of skin or eye contact, follow the instructions below.

Skin: If battery acid comes in contact with the skin, rinse immediately with water, then wash thoroughly with soap and water. If redness, pain, or irritation occurs, seek immediate medical attention.
Eyes: If battery acid comes in contact with your eyes, flush your eyes immediately for a minimum of 15 minutes and seek immediate medical attention.
LCD liquid crystal display: If liquid crystal comes in contact with your skin, Wash the area off completely with plenty of water. Remove contaminated clothing. If liquid crystal gets into your eye: Flush the affected eye with clean water and then seek
medical attention. If liquid crystal is swallowed, Flush your mouth thoroughly with water. Drink large quantities of water ,induce vomiting, and seek medical attention.

VIEWING BATTERY STATUS

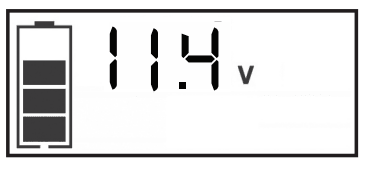

To check the unit’s battery charge level, press the Battery Status Button. The Battery Status Icon and Battery Voltage Indicator indicate the battery charge level as follows.

If the battery charge level is at full capacity, four solid bars will display.
If the battery is partially charged, two or three solid bars will be displayed.
If the battery is nearly empty, one solid bar will display. The unit should be charged at this time.
If the battery is completely empty, the empty Battery Status icon may display.
The unit MUST be charged at this time or the unit’s built-in low voltage protection will activate.

CHARGING/RECHARGING

IMPORTANT CHARGING NOTES

This unit is delivered in a partially charged state – you must fully charge it before using it for the first time. When the unit is not in use, we recommend that the battery is charged at least every 3 to 6 months.
Recharging the battery after each use will prolong battery life; frequent heavy discharges between recharges and/or overcharging will reduce battery life.
Make sure all other unit functions are turned off during recharging, as this can slow the recharging process.
CAUTION – Risk of property damage: Failure to keep the battery charged will cause permanent damage and result in poor jump-starting performance.

NOTES:

During the charging process, the unit will stop charging if the battery is: Overheated due to extensive use or recharging. The process will automatically resume after a cool-down period;
Too cold (the ambient temperature has dropped below 0°C). The process will automatically resume after a warm-up period.

PROCEDURE

USB CHARGING CABLE AND A DEVICE WITH A USB POWER PORT (NOT SUPPLIED).

Make sure all other unit functions are turned off during recharging, as this can slow the recharging process.
Insert the USB-A plug or USB-C plug at one end of the USB Charging Cable into an external device’s functional USB power port.
Insert the USB-C plug at the other end of the USB Charging Cable into the USB-C port on the front of the unit.

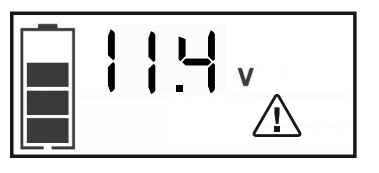

When the unit is properly connected, after a few seconds the backlit LCD Display will show the following.

The bars on the Battery Status Icon will change from empty to solid (bottom to top) repeatedly to indicate the unit is charging. The backlit LCD Display will turn on for 10 seconds (only).

When the unit is fully recharged, the Battery Status Icon shows 4 solid bars.
Disconnect the USB Charging Cable from the external device’s USB power port and the unit.
After a short period of time the unit will automatically shut down.
When charging is complete, store the USB Charging Cable in a safe place.

Notes: The charging process is slower when using the USB-A to USB-C charging cable. The manufacturer recommends using the USB-C to USB-C charging cable and an external USB-C power source with PD 30W output to charge the unit. Do not charge the unit over 10 hours through an external USB-C power source with PD 30W output The unit should be fully recharged within 10 hours with this method.

JUMP-STARTING USING THE SMART CABLES

IMPORTANT: All features must be turned off with the exception of the area light when jump-starting. The unit is intended to be used only in the upright position. The unit must be kept upright during use. See the illustration to the right for correct orientation.

Battery Clamp Connection Precautions

Connect and disconnect the battery clamps only after unplugging the power source.
Make sure engine is not running when connecting/disconnecting battery clamps.
Never allow clamps to touch each other.
Attach clamps to battery and chassis as indicated in the section “Connecting the Jump-Starter Using the Included Battery Clamps”

INFLATING TIRES OR PRODUCTS WITH VALVE STEM

Screw the Sure Fit® nozzle onto the valve stem. Do not overtighten.

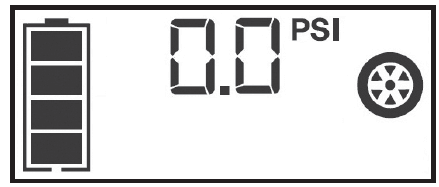

Press the Compressor Power Button. A beep will sound and the backlit LCD screen will display the following:The Compressor Icon will light and the digital display will alternately show the flashing pre-set psi value (that was last set by the compressor pressure control buttons) and the current pressure of the item being inflated (which will light solid).

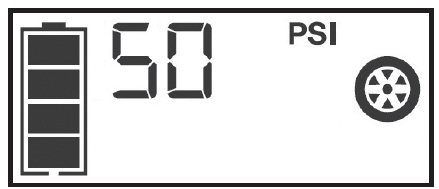

Press the “+” and “–” Pressure Control Buttons to set the desired pressure from a range pre-set values (between 3 and 120), which will display on the backlit LCD screen. The unit will sound a beep with each press of the buttons (holding the button speeds up the upward or downward value selection). Once the desired pressure has been entered, release the button and the flashing digital display will show the new selected pressure, as follows:The new selected value is now stored in the unit’s memory until it is manually reset.
Press the Compressor Power button once more to begin inflating. The Compressor icon will flash and the digital display will only show the current pressure value (which will light solid) to indicate the compressor is activated. Monitor the pressure on the LCD screen.

TROUBLESHOOTING

Problem

Possible Solution

Unit not charging

• Make sure all of the unit’s functions are turned off.

• Check the connection to the power source.

• Confirm there is a functioning power source.

• The unit may have shut down to protect the battery from overheating after a long period of operation or charging, or too cold (the ambient temperature has dropped below 0°C). Disconnect the USB charging cable from the unit and power source. Allow the unit to cool down or warm up for a period before resuming charging.

Engine fails to jump- start

• Check that all the unit functions are all turned off.

• Make sure a proper polarity cable connection has been established and the Bi-Color Booster Status Indicator on the Smart Cables Controller lights green.

• The unit may be in over-current / over-time protection. Remove the clamps and restart after a cooling down period of approximately 30 minutes.

• The unit may be overheated due to the excessive engine cranking. Make sure all the unit functions are turned off and allow the unit to cool down before resuming operation.

• The vehicle battery may in fault condition and cannot accept starting assistance. The manufacturer recommends taking it to a certified automotive service center for evaluation.

• Check that the unit has a full charge. Recharge the unit if necessary.

Problem	Possible Solution
Portable Compressor will not inflate	• Make sure the Compressor Power button has been pressed to turn the compressor on. • Make sure the unit is not being operated in the Jump Starter mode. • Make sure the Sure Fit® nozzle is securely screwed on to the valve stem when attempting to inflate tires or that the nozzle adapter is securely screwed into the Sure Fit® nozzle and is inserted properly into the item to be inflated on all other inflatables. • The battery of the unit may overheats or is too cold. Allow the unit cools down or warm up before resuming operation. • Check that the unit has a full charge. Recharge unit if necessary.
LED Area Light does not come ON	• Make sure the LED Area Light Power button has been pressed to turn on the area light. • The battery of the unit may overheats or is too cold. Allow the unit cools down or warm up before resuming operation. • Check that unit has a full charge. Recharge unit if necessary.
USB Power Port will not power appliance	• Make sure an USB-A powered device connected to USB-A port or an USB-C powered device connected to USB-C port. • A fault condition exists in one of the USB Ports. Refer to the Important Notes in the “USB Ports” section to remedy any faults. • Make sure the USB device plugged into the USB-A port does not exceed 15W. The USB device plugged into USB-C port does not exceed PD 30W or the total drained power of the USB-A port and USB-C port do not exceed 15W when they are used simultaneously. • Some USB-powered household electronics will not operate with this USB charging/power port. Check the manual of the corresponding electronic device to confirm that it can be used with this type of USB charging/power port. • The battery of the unit may overheats or is too cold. Allow the unit cools down or warm up before resuming operation. • Check that the unit has a full charge. Recharge the unit if necessary.
120 Volt AC outlet will not power appliance	• Make sure the AC Power Button has been pressed to turn the AC outlet on. • Make sure you have followed all the steps in the “120 AC Power Outlet” section carefully. Refer to the important notes included in that section that explain common problems and solutions. • Make sure the combined draw of the appliance being powered is not more than 200 watts. • The battery of the unit may overheats or is too cold. Allow the unit cools down or warm up before resuming operation. • Check that unit has a full charge. Recharge unit if necessary.

ACCESSORIES

Recommended accessories for use with your tool may be available from the manufacturer. If you need assistance regarding accessories, please contact the manufacturer at 855.806.9228

WARNING: The use of any accessory not recommended for use with this appliance could be hazardous.

SPECIFICATIONS

Boost Ampere: 1750A Max.
Battery Type: Lithium polymer, 11.1V DC
Input: 5VDC 3A / 9VDC 3A / 12VDC 2.5A / 15VDC 2A / 20VDC 1.5A (PD 30W) or 5VDC 2A MAX.
Compressor: 120 PSI (max.)
USB-A Output: 5VDC / 9VDC / 12VDC, 15W MAX.
USB-C Output: 5VDC 3A / 9VDC 3A / 12VDC 2.5A / 15VDC 2A / 20VDC 1.5A (PD 30W MAX.)
USB-A and USB-C used simultaneously: 5VDC, 15W MAX.
120V AC Power Outlet: 120V AC, 60Hz, 200W

CARE AND MAINTENANCE

All batteries lose energy from self-discharge over time and more rapidly at higher temperatures. When the unit is not in use, we recommend that the battery is charged at least every three to six months. From time to time wipe the outside of the appliance with a soft cloth. Do not immerse the appliance in water.
There are no user-replaceable parts. Periodically inspect the condition of adapters, connectors and wires. Contact the manufacturer to replace any components that have become worn or broken.

BATTERY REPLACEMENT/DISPOSAL

Battery
Please be advised that the battery is designed to last the service life of the unit and is not replaceable, removable or serviceable. Service life is dependent on a number of factors, including but not limited to the number of recharge cycles, and proper care and maintenance of the battery by the end user. Contact manufacturer for any information you may need.

SAFE BATTERY DISPOSAL
Contains a lithium battery, which must be disposed of properly. Recycling is required. Failure to comply with local, state and federal regulations can result in fines or imprisonment.
