COSORI CAF-R121 11-in-1 13-Quart Air Fryer Oven User Manual

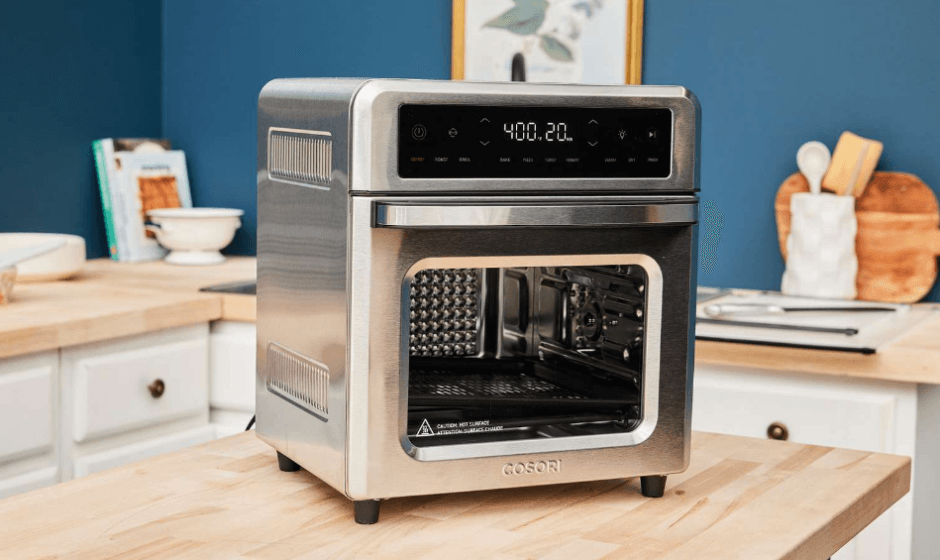

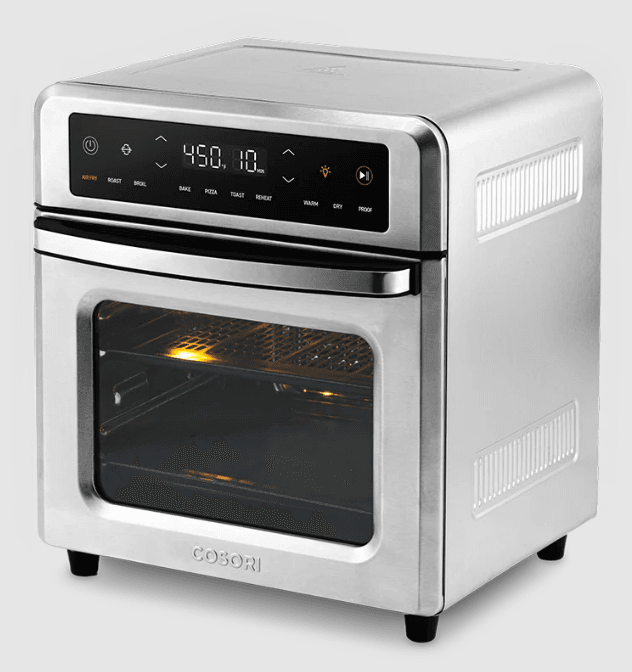

COSORI CAF-R121 11-in-1 13-Quart Air Fryer Oven

Package Contents

1 x Air Fryer Oven
1 x Food Tray
1 x Air Fryer Tray
1 x Drip Tray
1 x Rotisserie Basket
1 x Rotisserie Fork Set
1 x Rotisserie Handle
1 x Recipe Book
1 x User Manual
1 x Quick Reference Guide

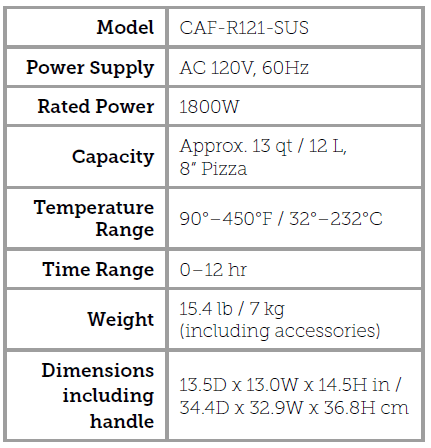

Specifications

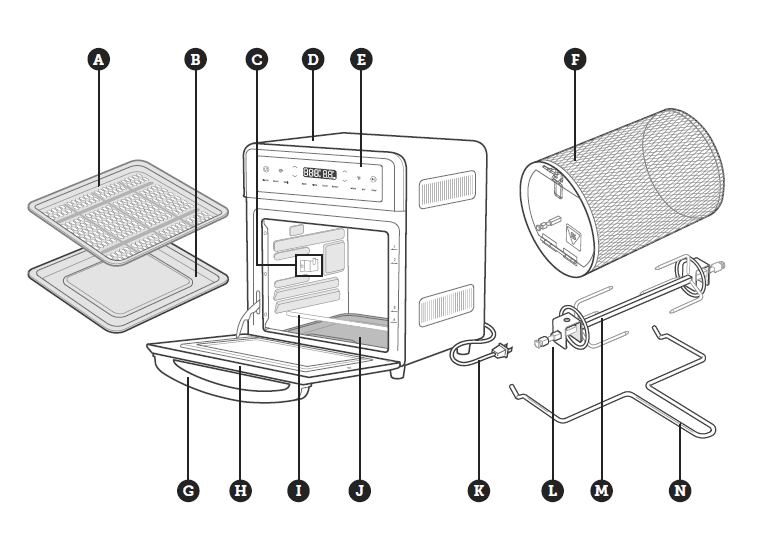

GETTING TO KNOW YOUR AIR FRYER OVEN

A. Air Fryer Tray
B. Food Tray
C. Rotisserie Slots
D. Housing
E. LED Display
F. Rotisserie Basket
G. Handle
H. Door
I. Heating Elements
J. Drip Tray
K. Power Cord
L. Rotisserie Fork Set
M. Rotisserie Shaft
N. Rotisserie Handle

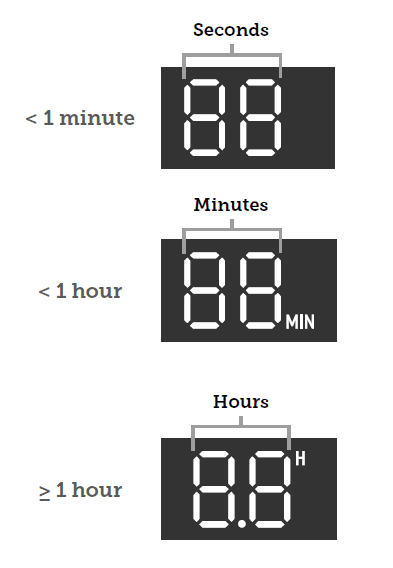

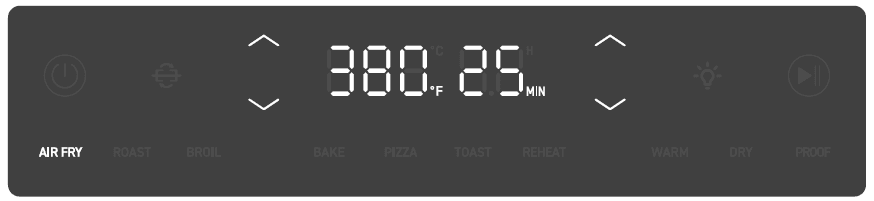

DISPLAY

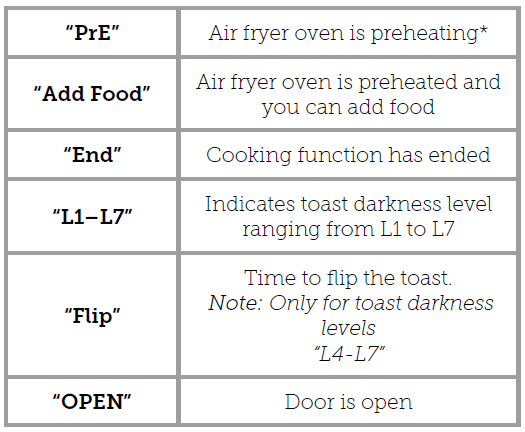

Status Messages

*Preheating is automatically included in the Air Fry, Roast, Bake, and Pizza cooking functions.

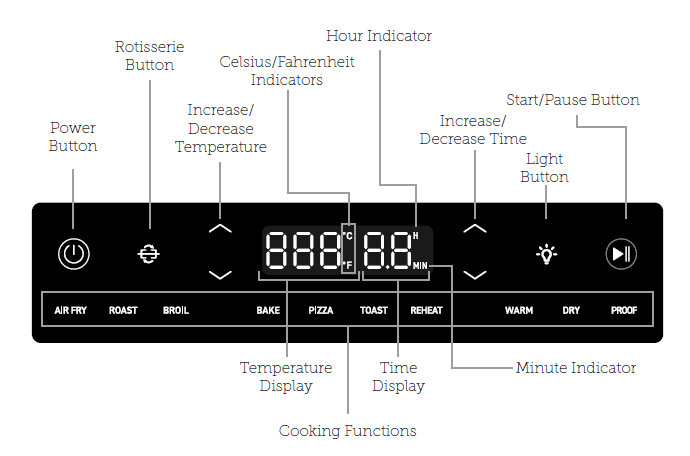

CONTROLS

Power Button

Tap to turn the air fryer oven on/off.
While the air fryer oven is cooking or paused, tap to cancel cooking. The air fryer oven will return to standby.
Press and hold for 10 seconds to reset the air fryer oven to factory settings and restore all default cooking function settings.

Light Button

Tap to turn the interior light on/off.
If not manually turned off, the light will turn off automatically after 1 minute.
The light turns on when the door is opened and also in the last 30 seconds of a cooking function.

ROTISSERIE Button

Tap to turn rotisserie rotation on/off.
Rotisserie rotation is only available when using the Air Fry or Roast cooking functions.
The rotation turns off automatically when a cooking function finishes.

Increase/Decrease Temperature

Tap ” ” and ” ” adjust the temperature setting.
The temperature will adjust in increments of 5°F. Press and hold to adjust in increments of 10°F.
Press and hold ” ” and ” ” at the same time for 5 seconds to switch temperature units from Fahrenheit to Celsius.

Increase/Decrease Time

Tap ” ” and ” “to adjust the time setting.

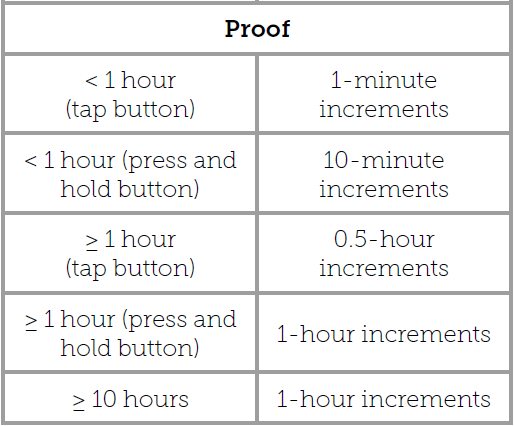

Time will adjust in increments of 1 or 10 minutes or 0.5 or 1 hour, depending on the cooking function (see chart).

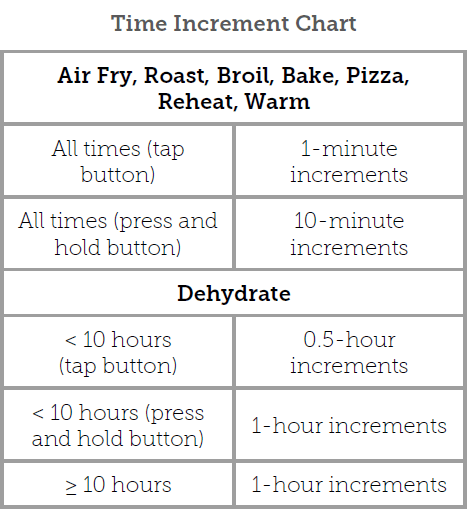

Press and hold to adjust time in higher increments (see chart).
To turn selection sounds on/off, press and hold “” and ” ” at the same time for 5 seconds.

Note: You cannot turn off “press and hold” sounds or error alert sounds.

Note: Not all cooking functions can exceed 1 hour of cooking time.

START/PAUSE Button

Tap and to adjust the time setting.
Time will adjust in increments of 1 or 10 minutes or 0.5 or 1 hour, depending on the cooking function (see chart).
Press and hold to adjust time in higher increments (see chart).
To turn selection sounds on/off, press and hold at the same time for 5 seconds.
Starts or pauses a cooking function.
Tap during cooking to switch cooking functions.
Tap during preheating to skip the preheating stage. Preheating is automatically included in the Air Fry, Roast, Bake, and Pizza cooking functions.

Note: When you open the air fryer oven door during cooking, the air fryer oven will pause cooking automatically, and the interior light will turn on. When you close the air fryer oven door, the air fryer oven will resume cooking and the interior light will turn off again.

BEFORE FIRST USE

Setting Up

Remove all packaging around and inside the air fryer oven.

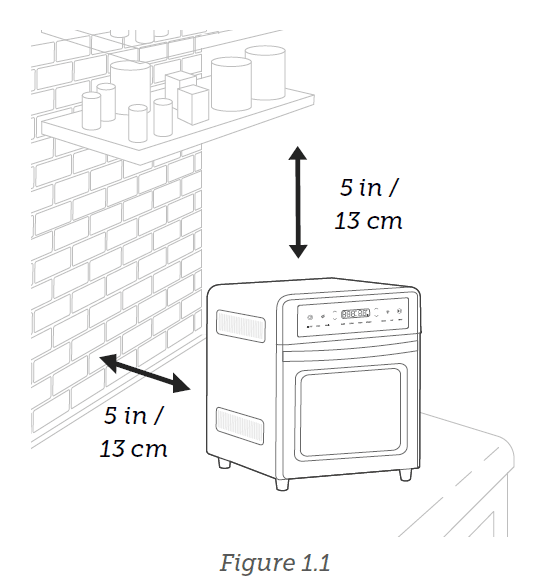

Place on a stable, level, heat-resistant surface, away from anything that can be damaged by heat. Note: Leave 13 cm / 5 inches of space behind and above the air fryer oven. [Figure 1.1] Leave enough room to open the door.
Wash all accessories and clean the air fryer’s interior (see page 27). Dry and place accessories back in the air fryer oven.

Test Run

A test run will help you become familiar with your air fryer oven, make sure it’s working correctly, and clean it of possible residues.

Make sure there is no food or packaging in the oven and plug it in.
Tap AIR FRY, then tap to begin preheating. Note: We recommend running the air fryer oven for 30–60 minutes during the test run.
Tap again to skip the preheating stage, and the display will show the timer counting down.
The air fryer oven will stop heating and beep several times when finished.

COOKING WITH YOUR AIR FRYER OVEN

CAUTION

The outer surface of the air fryer oven, including the oven door, is hot during and after use. The temperature may be over 212°F. Do not touch hot surfaces. Use the handle.
Always use heat-resistant gloves, pads, or oven mitts when handling hot materials and when placing items in or removing items from the air fryer oven.

Using the Trays

Three trays are included with your air fryer oven: the food tray, air fryer tray, and drip tray. The cooking functions require different trays, so make sure to use the correct tray. Follow the recipe instructions or the suggestions given in each function section.

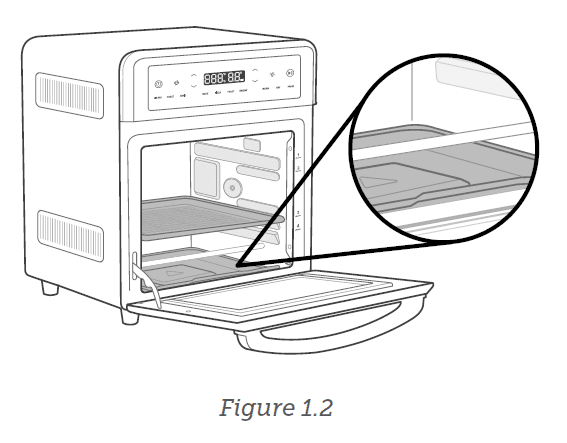

Always make sure the drip tray is properly in place at the bottom of the air fryer oven when cooking. [Figure 1.2] The drip tray is not intended for cooking food on.

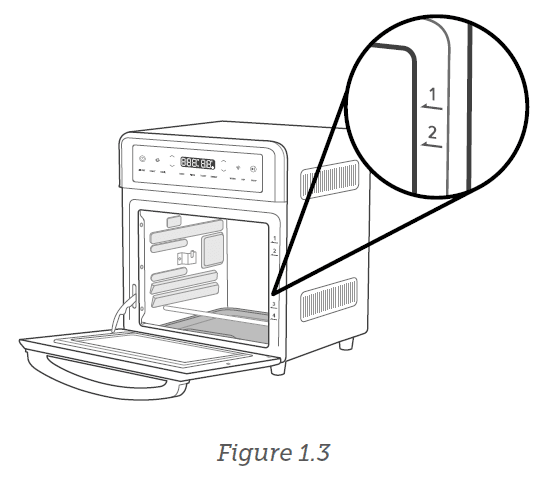

Tray Positions

Each cooking function has a recommended tray position with slots that you can slide a tray into (the food tray or air fryer tray). The standard recommended positions are indicated on the front of the air fryer oven [Figure 1.3]. The four positions are numbered 1, 2, 3, and 4, from top to bottom.

Cooking Greasy Foods

When cooking with oil or air frying greasy food such as beef, chicken, or pork, place the air fryer tray on the food tray (or insert the food tray underneath the air fryer tray) to prevent oil from dripping on the heating elements. [Figure 1.4]

Rotisserie Handle

The rotisserie handle is used to place the rotisserie basket or fork set into the rotisserie slots in the air fryer oven. [Figure 1.5] The handle is also used to remove the rotisserie basket and fork set after cooking is finished.

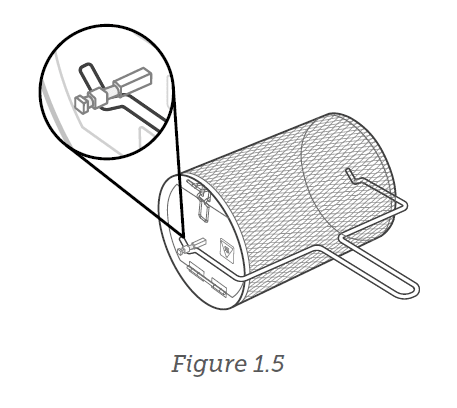

Rotisserie Basket

The rotisserie basket is used for air frying small foods, such as french fries, nuggets, or Brussels sprouts.

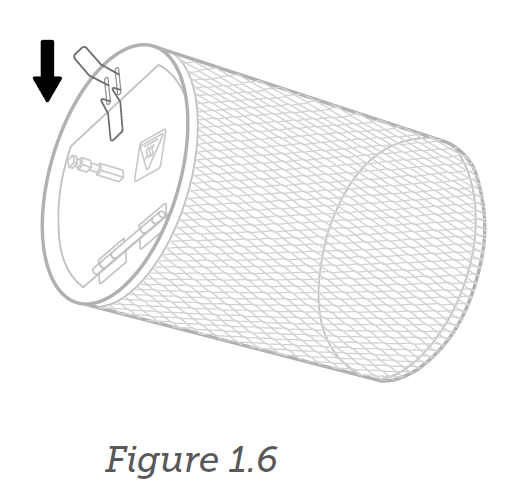

Press the wire latch to open the door on the side of the rotisserie basket. [Figure 1.6]
Place food inside the basket and close the door.
Use the rotisserie handle to place the basket inside the air fryer oven, securing both ends of the rotisserie shaft into the rotisserie slots.

Rotisserie Fork Set

The rotisserie fork set is used for rotating roasts and is ideal for roasting a whole chicken. Do not cook more than 4 pounds at a time on the rotisserie fork set.

Slide the food item onto the rotisserie shaft.
Place the rotisserie forks on either side of the shaft and insert them into the food item to secure it on the shaft. Tighten the knobs on the forks to secure them. [Figure 1.7] Note: When cooking a rotisserie chicken, secure the legs and wings with butcher’s twine so they do not hang loosely as the chicken rotates.
Use the rotisserie handle to place the food item inside the air fryer oven, securing both ends of the rotisserie shaft into the rotisserie slots.

Preheating

The following cooking functions automatically include preheat: Air Fry, Roast, Bake, and Pizza.

Tap a cooking function that includes preheating.
Tap to start the cooking function. “Pre” will show on the display, and the air fryer oven will begin preheating.
When preheating is finished, the air fryer oven will beep 3 times, and “Add Food” will show on the display.
Open the air fryer oven door and place food inside, then close the door to start cooking.

Note: Tap during preheating to skip the preheating stage.

Air Fry Function (“AIR FRY”)

This function is ideal for cooking a variety of food, including french fries and chicken wings. Uses intense heat and maximized airflow.

Heating Elements: Top and bottom heating elements cycle on and off. If using the rotisserie function, the bottom heating elements are turned off.

Rack Position: Level 2 or 3

Fan Speed: High

Tap AIR FRY to select the Air Fry cooking function.
Optionally, customize the temperature and time. You can do this anytime during cooking (except during preheating).
Tap it to begin preheating. The button will light up, and the display will show “PRE”. When preheating is finished, the air fryer oven will beep 3 times and “Add Food” will show on the display.
- Tap during preheating to skip the preheating stage.
Place food in the air fryer tray or rotisserie basket.
- Avoid overfilling the air fryer tray, or food may not air fry correctly.

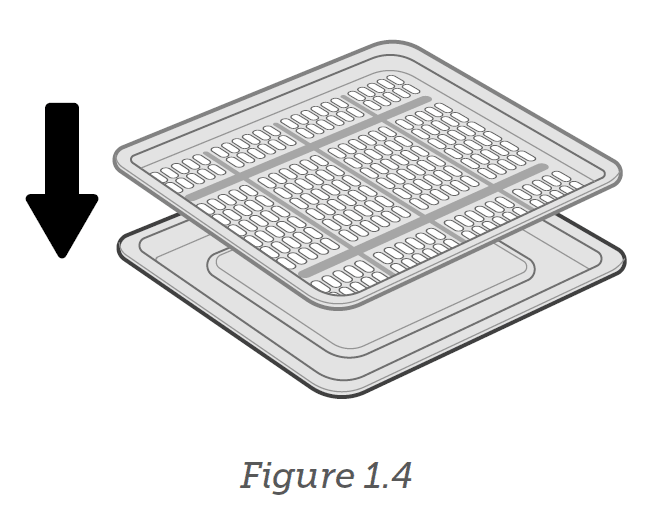

- When air frying fatty foods (such as chicken wings), place the air fryer tray on the food tray (or insert the food tray underneath the air fryer tray) to prevent oil from dripping on the heating elements.
Insert at level 2 or 3 position.

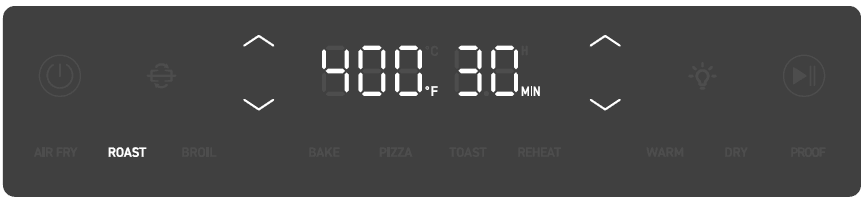

Close the air fryer oven door to start cooking. The display will show the timer counting down.
The air fryer oven will stop heating and beep several times when finished.

Roast Function (“ROAST”)

This function is ideal for cooking a variety of meats and poultry. Food will be tender and juicy on the inside and well-roasted on the outside.

Heating Elements: Top and bottom heating elements cycle on and off. If using the rotisserie function, the bottom heating elements are turned off.

Rack Position: Level 4

Fan Speed: High

Tap ROAST to select the Roast cooking function.
Optionally, customize the temperature and time. You can do this anytime during cooking (except during preheating).
Tap it to begin preheating. The button will light up, and the display will show “PrE”. When preheating is finished, the air fryer oven will beep 3 times, and “Add Food” will show on the display.
- Tap during preheating to skip the preheating stage.
Place food inside the air fryer oven. Insert the food tray at the level 4 position.
- Optionally, use the rotisserie handle to place the rotisserie basket or rotisserie fork set in the designated slots.
- Note: Use extreme caution when using foil, and always fit foil as securely as possible. To avoid overheating and risk of fire, make sure foil does not contact the heating elements.
Close the air fryer oven door to start cooking. The display will show the timer counting down.
The air fryer oven will stop heating and beep several times when finished.

CARE & MAINTENANCE

Clean air fryer oven accessories (including trays, etc.) and air fryer oven interior after every use.

Before cleaning, turn off and unplug the air fryer oven and allow it to cool completely. Open the door for faster cooling.
Apply non-abrasive liquid cleanser or a mild spray solution to a soft, damp cloth or sponge (not the air fryer oven surface) and wipe all parts of the air fryer oven, especially the air fryer oven interior. Do not use a dry cloth on the display screen, or it may be scratched.
To clean the glass door, use a glass cleaner or mild detergent and a soft, damp sponge or soft, plastic scouring pad.
Let all surfaces dry completely before plugging in or turning on the air fryer oven.

Cleaning the Accessories

Apply non-abrasive liquid cleanser or a mild spray solution to a soft, damp sponge or soft, plastic scouring pad (not the accessory surface). Wipe the accessories and soak them in warm, soapy water if necessary.
For stubborn grease:
- In a small bowl, mix 2 US tbsp / 30 mL of baking soda with 1 US tbsp / 15 mL of water to form a spreadable paste.
- Use a sponge to spread the paste on the trays and scrub. Let the trays sit for 15 minutes before rinsing.
- Wash trays with soap and water.
Dry thoroughly.
Replace the drip tray into the air fryer oven before plugging in or turning on the air fryer oven.

Storage

Clean and dry the air fryer oven and all accessories.
Insert the drip tray into the air fryer oven. Insert the rack at mid mid-position. Make sure the air fryer oven door is closed.
Store the air fryer oven in an upright position. Do not store anything on top.

TROUBLESHOOTING

Problem: The air fryer oven will not turn on.
- Possible Solution:
- Make sure the air fryer oven is plugged in.
Problem: Food is not completely cooked.
- Increase cooking temperature or time.
Problem: Food is overcooked or burned.
- Possible Solution:
- Decrease cooking temperature or time.
- Make sure food items are not too large and are not touching the heating elements.
Problem: Food is cooked unevenly.
- Possible Solution:
- Preheat the air fryer oven manually by using the Preheat function (see page 16).
- Make sure food items are not too closely packed into a tray, rack, or other container.
Problem: White smoke or steam is coming out of the oven.
- Possible Solution:
- The air fryer oven may produce some white smoke or steam during cooking. This is normal.
- During first use, dust from the packing process may cause white smoke. This is normal for toaster air fryers and many other kitchen appliances. To eliminate any dust, see Test Run (page 12).
- Excess oil or fatty foods may produce white smoke. Make sure the inside of the air fryer oven is cleaned properly and isn’t greasy.
Problem: A thermometer shows that the air fryer oven temperature is different from the air fryer oven setting.
- Possible Solution:
- Commonly used thermometers usually have low sensitivity and take over 10 minutes to measure the correct temperature. This will not affect cooking.
Problem: The display shows Error Code “E1”.
- Possible Solution:
- There is an open circuit in the temperature monitor. Contact Customer Support (see page 31).
Problem: The display shows Error Code “E2”.
- Possible Solution:
- There is a short circuit in the temperature monitor. Contact Customer Support (see page 31).
Problem: The display shows Error Code “E3”.
- Possible Solution:
- The temperature in the air fryer oven is too high. Contact Customer Support (see page 31).
Problem: The display shows Error Code “E4”.
- Possible Solution:
- The air fryer oven has been plugged into an incorrect power source, such as a 220–240V outlet. Unplug the air fryer. Only use the air fryer with 120V, 60Hz outlets, such as those in North America.

If your problem is not listed, please contact Customer Support (see page 31).

FCC SUPPLIER’S DECLARATION OF CONFORMITY (SDOC)

Arovast Corporation hereby declares that this equipment is in compliance with FCC requirements. The declaration of conformity may be consulted in the support section of our website, accessible from www.cosori.com

WARRANTY INFORMATION

TERMS & POLICY

Arovast Corporation (“Arovast”) warrants this product to the original purchaser to be free from defects in material and workmanship, under normal use and conditions, for a period of 2 years from the date of original purchase.
Arovast agrees, at our option during the warranty period, to repair any defect in material or workmanship or furnish an equal product in exchange without charge, subject to verification of the defect or malfunction and proof of the date of purchase.

There is no other express warranty.

This warranty does not apply:

If the product has been modified from its original condition;
If the product has not been used in accordance with the directions and instructions in the user manual;
To damages or defects caused by accident, abuse, misuse, or improper or inadequate maintenance;
To damages or defects caused by service or repair of the product performed by an unauthorized service provider or by anyone other than Arovast;
To damages or defects occurring during commercial use, rental use, or any use for which the product is not intended;
To damages or defects exceeding the cost of the product.

Arovast will not be liable for indirect, incidental, or consequential damages in connection with the use of the product covered by this warranty.

This warranty extends only to the original consumer purchaser of the product and is not transferable to any subsequent owner of the product, regardless of whether the product is transferred during the specified term of the warranty.

This warranty does not extend to products purchased from unauthorized sellers. Arovast’s warranty extends only to products purchased from authorized sellers that are subject to Arovast’s quality controls, and have agreed to follow its quality controls.

All implied warranties are limited to the period of this limited warranty.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

If you discover that your product is defective within the specified warranty period, please contact Customer Support via support@cosori.com. DO NOT dispose of your product before contacting us. Once our Customer Support Team has approved your request, please return the product with a copy of the invoice and order ID.

Every COSORI product automatically includes a 2-year warranty. To make the customer support process quick and easy, register your product online at www.cosori.com/warranty.

CUSTOMER SUPPORT

If you have any questions or concerns about your new product, please contact our helpful Customer Support Team.

Arovast Corporation
1202 N. Miller St., Suite A Anaheim, CA 92806 USA

Support Hours
Mon–Fri, 9:00 am–5:00 pm PST/PDT

Email: support@cosori.com
Toll-Free: 1-888-402-1684

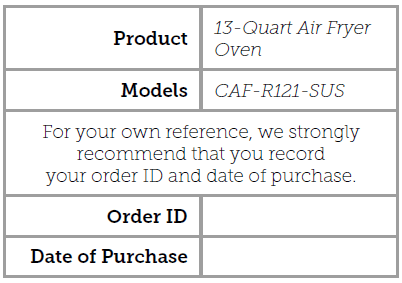

* Please have your invoice and order ID ready before contacting Customer Support.
