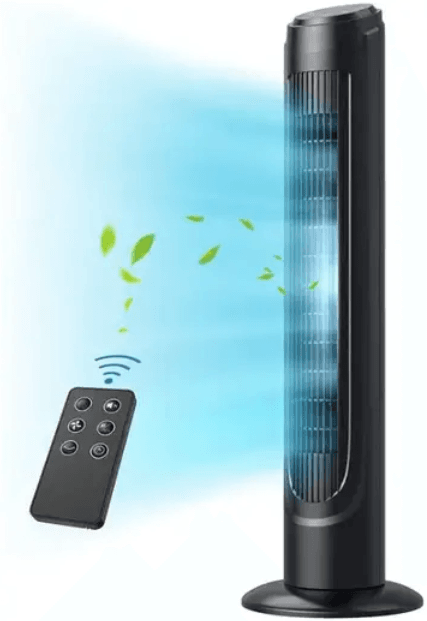

Dreo DR-HTF003 Cruiser Pro Tower Fan
Safety Warning
IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USE
When using the fan, the following basic instructions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read and save these instructions.
- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way, If the plug does not fit fully in the outlet, reverse the plug. If it still does not it, contact a qualified electrician. Do not attempt to defeat this safety feature.
- This unit should be placed on a smooth floor and the power cord can’t be close to the heating appliances.
- Please check the consumption voltage applied with this unit. This unit consumes a voltage is 120V AC, 60Hz.
- Please don’t use such a power cord: too long, and damaged. Before use, the power cord can’t be pushed by force to avoid damage. And If the power cord is too long, it s easy to produce fire electric shock and others.
- Before assembly is completed, please don’t use this unit.
- If don’t use it, please cut off the power cord and keep apart the power supply.
- Please keep your hands dry when connecting the power supply.
- Please don’t put your fingers, pencil, and other things into the grid when the blades are operating.
- Unplug or disconnect the appliance from the power supply before cleaning.
- Don’t let this unit immerse into water, of, basically, acidity high-temperature conditions.
- Please note not to cover by window curtain or others to avoid the blades draw them.
- This unit isn’t used outdoors.
- Please don’t use insecticide on the unit, or the resin and paint are easily damaged.
- Please don’t use it directly for a long time when have a baby, a patient, or an old man.
- Store the fan in a clean dry place when not in use.
- WARNING: Chemical Bum Hazard. Keep batteries away from children.
- This product contains a lithium button icon cell battery. If a new or used lithium buttoncoin cell battery is swallowed or enters the body, it can cause severe intimal bums and can lead to death in as little as 25 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body,
seek immediate medical attention. - WARNING: To reduce the risk of fire or electric shock, Do not use this fan with any solid-state speed control device.
FOR HOUSEHOLD USE ONLY
READ AND SAVE THESE INSTRUCTIONS
Packing Details:
- 1 X DREO Tower Fan Body
- 1 x Front Fan Base
- 1 x Rear Fan Base
- 4 x Thumbs Screws
- 1 x Remote Controller
- 1 x CRR025 Type Lithium Battery{Installed In The Remote Controller)
- 1 X Use Guide
- 1 x Quick Start Guide
User Servicing Instructions
- If your fan loses power and you suspect that the fuse on your fan has blown, grasp the plug and remove it from the receptacle or other outlet device. Do not unplug by pulling on the cord.

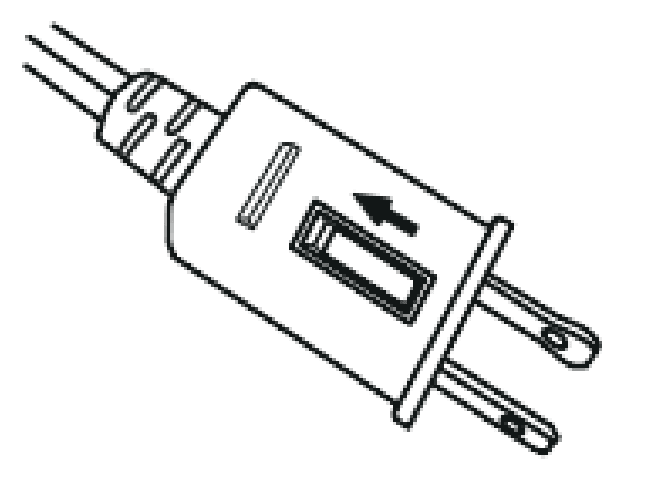

- Slide fuse cover, located on the top of the plug, towards the prongs of the plug.

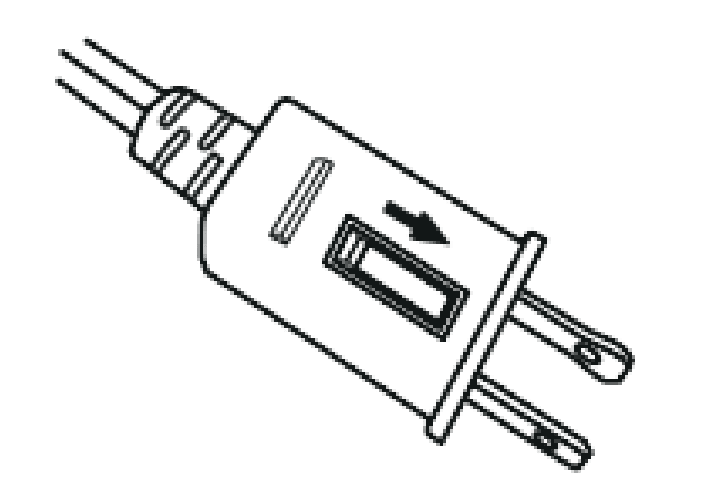

- Carefully remove the blown fuse and snap a new fuse into place. Fully close the fuse door by sliding it back into place. Discard the blown fuse. The plug should now be ready for normal use.
- Side fuse cover, located on the top of the plug, towards the prongs of the plug.
- To Reduce the Risk of Fire, do not replace the attached plug. Contains a safety device (fuse) that should not be removed, Discard the product if the attached plug is damaged.
- If you need further information on how or when to replace the fuse in the safety plug, please contact Customer Service for support.
Assembly Instructions
STEP 1

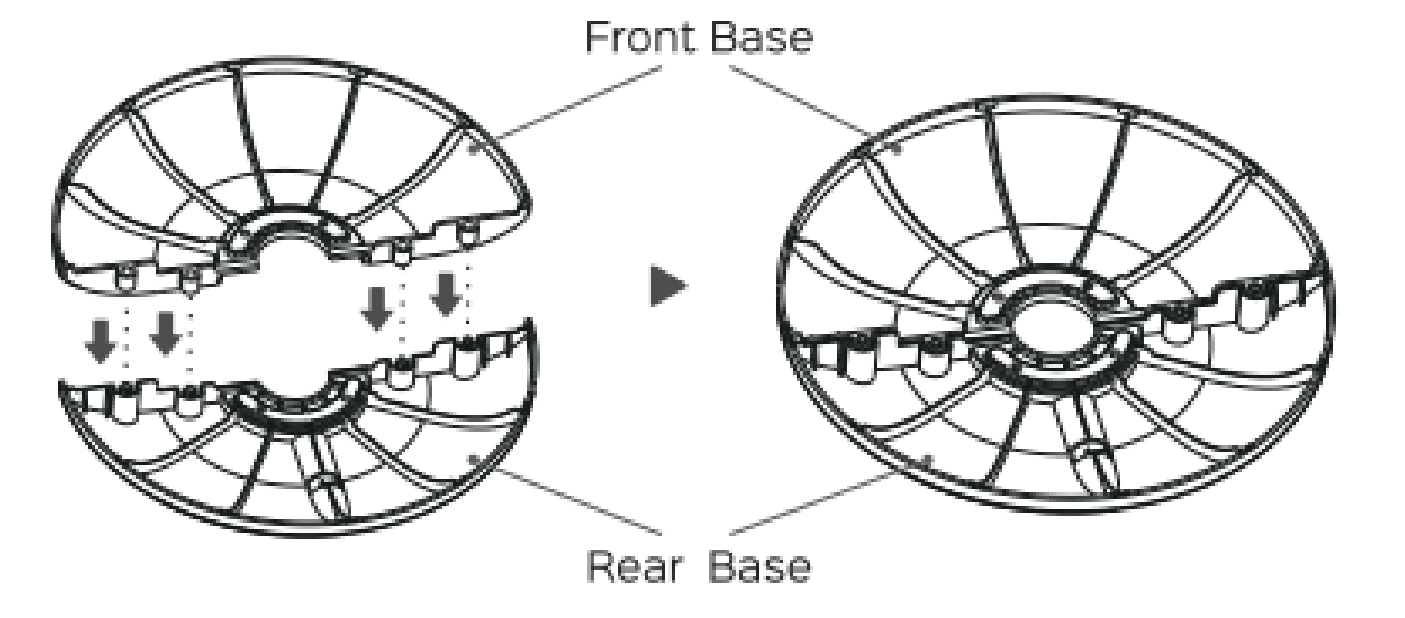

- Do not operate the tower fan without the base. The tower fan base is composed of two pieces(Front Base and Rear base). The base needs to be connected together prior to attaching it to the tower fan Align, and then insert, the plastic pegs of the BASE BACK with the holes on the BASE FRONT until both pieces snap together.
STEP 2

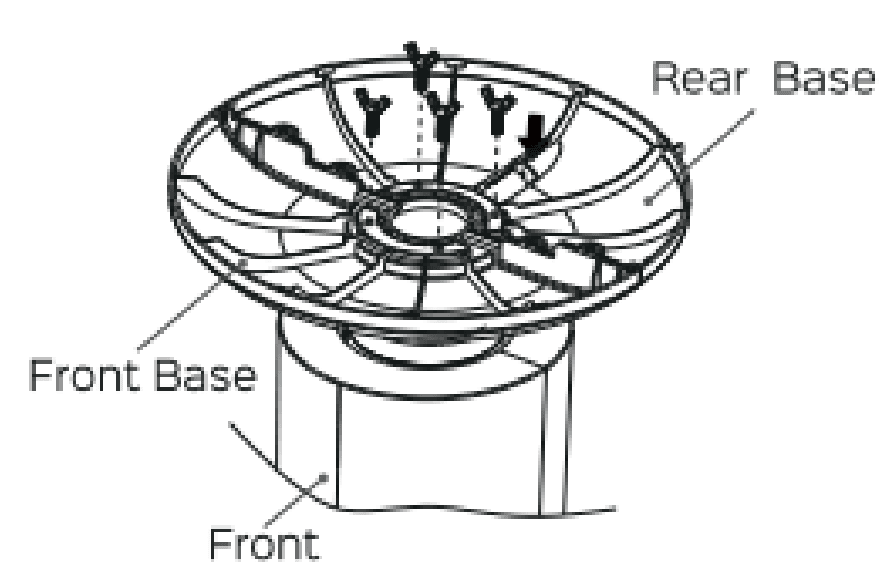

- Mow that the base is connected together, add the screw, and rotate it clockwise to secure the base.
STEP 3

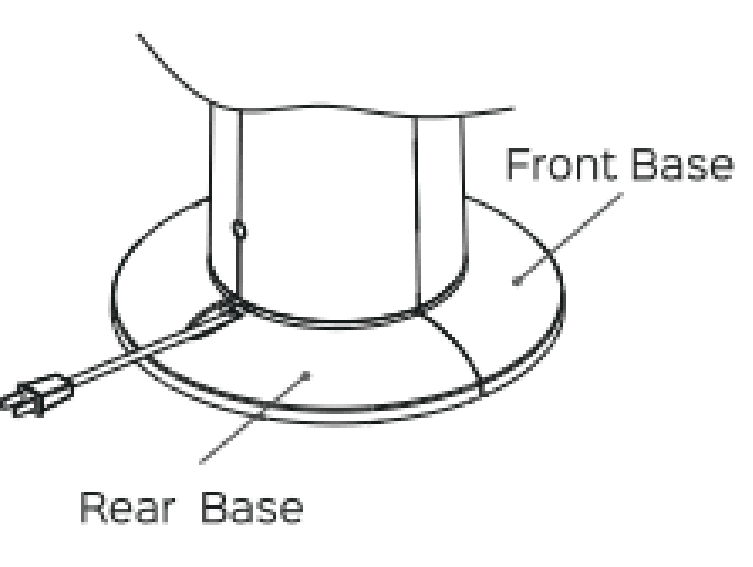

- Gently pressing the wire into the clamps, Your tower fan is now ready for use.
Control Panel/ Remote Control
STYLE: Wind Mode Control, Auto Mode Control.
SPEED: Fan Speed Control.
POWER: Power Control, LED Display Control.
TIMER: Timer Setup, Timer Running Status.
OSC: Decillation Control.
MUTE: Beep On Off Control.
POWER:
Press POWER
to turn the fan on or off. The fan will restore to the Speed of the most recent use. Remark: The timer and auto feature will not be restored.
LED Display Control
Press POWERfor 3 seconds to turn the LED display on or off.
STYLE
Change the vind mode
NATURAL
, 4 speed levels. simulate a natural breeze controlled
by a designed fan speed algorithm.
sleep
speed levels. Fan speed will decrease from the current setting every thirty minutes until it reaches speed level 1. And LED display will be off after 20 seconds.
AUTO feature
Press and hold STYLE
for 2 seconds to turn the Automatic control feature on or off AUTO will be lighted accordingly.
When the AUTO feature is on
Fan speed will adapt to the temperature of the surrounding environment.
SPEED: Fan speed control.
OSC: Turn the oscillation feature on or off.
TIMER: press TIMERto set a timer or to display the timer running status while the timer is working. Temperature will displayed instead of timer after 20 seconds
Turn off the timer, Press TIMERrepeatedly and select OH, or Press POWER to turn off the fan and turn it on again. Display timer running status, Press TMERto display the timer running status while the timer is working.
MUTE (remote control): Turn the beeping that occurs when you press a button on or off and MUTEwill be lighted accordingly.
Specifications
| Model | DR-HTF003 |
| Rated Power | 55W |
| Input | AC120V60Hz |
Battery Replacement
The a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
- Remove the battery holder by pressing the locking tab A with your thumb and puling it out as per arrow 8.
- Replace the battery with the same type (CR2025 Type Lithium Battery), making sure the (+] side facing up.
- Gently push in the holder until securely locked into place.
Back of remote control
CAUTION:
The a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
WARNING
Chemical Burn Hazard Keep batteries away from children.
This product contains a lithium button/icon cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. The cells shall be disposed of as property, including keeping them away from children; and
Even used cells may cause injury.
Cleaning And Storage
- Ensure the fan is turned off and unplugged.
- Use only a soft cloth to gently wipe the outer surfaces of the fan clean.
- To clean between the grills and fan blade area, we recommend using a pipe cleaner, flexible dust wand, or vacuum cleaner of compressed air to gently remove the dust.
- To clean the rear grill use a soft dry cloth.
- DO NOT immerse the fan in water and never allow water to drip into the motor housing.
- DO NOT use gasoline, paint thinner, or other chemicals to clean the fan.
- For storage, you may leave the fan assembled and covered to protect it from dust. Store the fan in a cool, dry place.
Warranty And Services
- This product found to be defective in material or workmanship is covered by a 1-year limited warranty from the date of its original purchase. If any problems occur, please contact the DREO Customer
- Care Center for replacement of repair.
- We can only provide customer care service for products sold by DREO or DREO-authorized retailers or distributors. If you purchase a product other than this, please contact the seller for warranty service.
- Contact information: support@dreo.com
For more manuals by Dreo, visit ManualsLibraryy
Dreo DR-HTF003 Cruiser Pro Tower Fan-FAQs
How do I reset my Dreo tower fan?
Press and hold the Power button for 10 seconds to reset the fan to factory settings. If needed, press and hold the Oscillation button for 5 seconds to enter connection mode for Bluetooth pairing.
How do I set the timer on my Dreo fan?
Press the Timer button on the fan or remote control to select your preferred timer duration, cycling through 1 to 12 hours.
What is Auto Mode on the Dreo fan?
In Auto Mode, the fan speed automatically adjusts based on the room temperature.
Why did my tower fan lose power?
Check for a loose plug, damaged power cord, or faulty outlet. Ensure the fan is firmly plugged in and try a different power source if needed.
Can I leave my tower fan on overnight?
While you can, prolonged use may dry out your skin and eyes, trigger allergies, or cause muscle stiffness. Consider using the timer function for better sleep comfort.
Can a tower fan overheat?
Yes, running a fan continuously for long hours may cause overheating. Using a fan with a built-in timer can help prevent this.
What is Sleep Mode on the Dreo fan?
In Sleep Mode, the fan reduces noise and turns off its display lights for a quieter, more restful sleep.
How do I clean my Dreo tower fan?
Use compressed air to remove dust from the fan blades. A dust brush or microfiber duster can help, followed by a vacuum hose to pick up loose debris.
