Ecovacs WINBOT MINI User Manual

Ecovacs WINBOT MINI

Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS

1. This appliance can be used by persons with reduced physical, sensory, or mental capabilities or a lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. The appliance is not to be used if it has been dropped, if there are visible signs of damage, or if it is leaking. Keep the appliance out of reach of children when it is energized.
2. Do not use and charge the Appliance in extremely hot or cold environments (below 0˚C/32˚F or above 40˚C/104˚F, above 85% humidity), or it may affect battery lifespan.
3. The Appliance can be used to clean exterior windows if it is properly tethered to a safe position with the Carabiner, winds are calm, and it is not raining or snowing.
4. Before use, please use the Carabiner to lock the safety tether to a strong indoor railing, and make sure WINBOT is securely attached to it.
5. Do not leave the Appliance unattended when using it. To prevent bodily injury or property damage caused by accidental falling of the Appliance, please make sure there are no people, animals, or valuable, fragile objects under the working area of WINBOT.
6. Do not use the Appliance in whole gale storms and force-10 winds, or in areas where the altitude exceeds 2000 meters (6562 feet).
7. Please ensure the Appliance is plugged in while it is cleaning. The Appliance has a Safety Battery that charges during use. The Safety Battery powers the Appliance if it becomes unplugged or the electricity fails.
8. Do not leave the Appliance unattended when it is plugged in.
9. For household use ONLY (including exterior windows). Do not use the Appliance in commercial or industrial environments.
10. Do not use on broken or uneven glass, such as glass with static cling stickers, advertising posters, or raised patterns, to prevent glass breaking or the Appliance’s falling. Do not use on surfaces with gaps, such as a piece of glass with gaps or holes, or two pieces of adjacent, frameless glass with a gap between them, so as to prevent the Appliance from falling due to poor attachment.
11. Only use accessories recommended or supplied by the manufacturer. Only use the Power Adapter supplied by the manufacturer.
12. Please make sure your power supply voltage matches the power voltage marked on the Power Adapter.
13. Do not use the Appliance on framed glass with a frame smaller than 5 mm (0.2 in).
14. Do not use on glass less than 3 mm (0.12 in) thick or mirrors less than 4 mm (0.16 in) thick.
15. Do not use on glass or mirrors with a handle height of 70~105 mm (2.76~4.13 in).
16. Do not use the Appliance on greasy windows.
17. When used in a high-humidity environment, the cleaning performance will be affected.
18. Store the Appliance away from heat and flammable materials.
19. In rainy weather, do not use the Appliance on exterior windows to avoid the risk of the Appliance’s damage or falling.
20. Do not use the Appliance if it does not firmly attach to the glass or has visible signs of damage.
21. To reduce the risk of electrical shock, do not put the Appliance in water or other liquids. Do not place or store the Appliance where it can fall or be pulled into a tub or sink.
22. Do not touch the power plug with wet hands.
23. When charging the Appliance, do not place it on other electrical appliances and keep it away from fire and liquid.
24. Take care not to damage the power cord. Do not pull on or carry the Appliance by the power cord, use the power cord as a handle, close a window on the power cord, or put heavy weights on the power cord. Keep the power cord away from hot surfaces.
25. Do not use with a damaged power cord or receptacle. Do not use the Appliance if it is not working properly, has been dropped, damaged, or has come in contact with water. It must be repaired by the manufacturer or its service agent to avoid a hazard.
26. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent to avoid a hazard.
27. The plug must be removed from the receptacle before cleaning or maintaining the Appliance. Do not unplug the Power Adapter by pulling on the power cord.
28. The Safety Battery must be replaced by the manufacturer or its service agent to avoid a hazard.
29. The Safety Battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
30. The Appliance must be disconnected from the receptacle before removing the battery for disposal of the Appliance.
31. Please dispose of used batteries according to local laws and regulations.
32. Do not incinerate the Appliance even if it is severely damaged. The battery can explode in a fire.
33. The Appliance must be used in accordance with the directions in this Instruction Manual. The company cannot be held liable or responsible for any damages or injuries caused by improper use.
34. WARNING: For the purposes of recharging the battery, only use the detachable supply unit GM95-240375-D provided with this Appliance.
35. The robot contains batteries that are only replaceable by skilled persons.
36. The plug and the Power Adapter must be used indoors.
37. If the vacuum glass, which WINBOT is working on, is leaking, remove WINBOT immediately after cleaning is completed.
38. Before cleaning, please observe the area to attach WINBOT for any small particles. If there are any, please remove them or switch to a particle-free area to avoid scratching the glass.
39. Clean the Mopping Pad in time and make sure that any small particles on it are completely removed to avoid scratching the glass.
40. The appliance is only to be used with the unit provided.
41. Keep the appliance out of reach of children when it is energized or cooling down.
42. The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

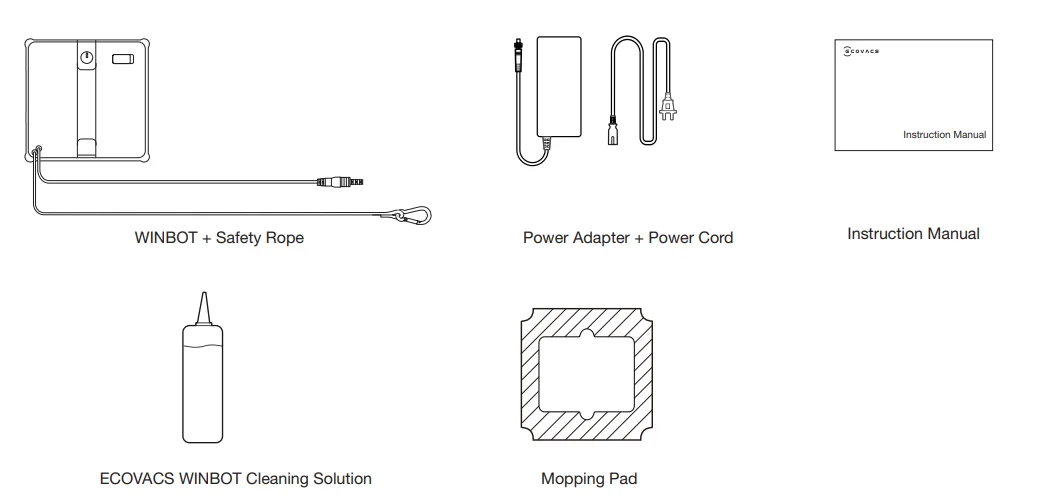

Product Contents

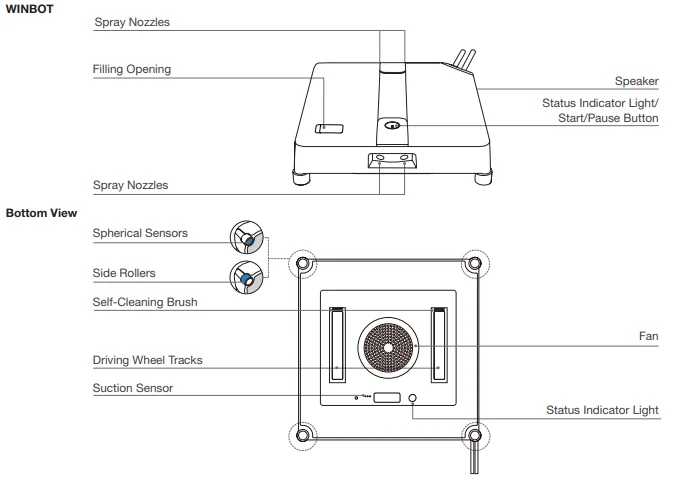

Product Diagram

2. Quick Start

2.1 Notes Before Cleaning

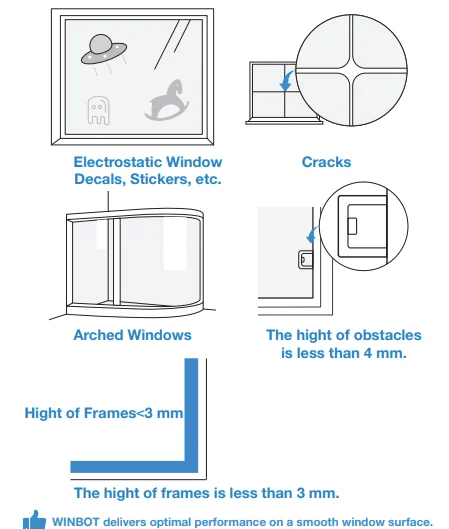

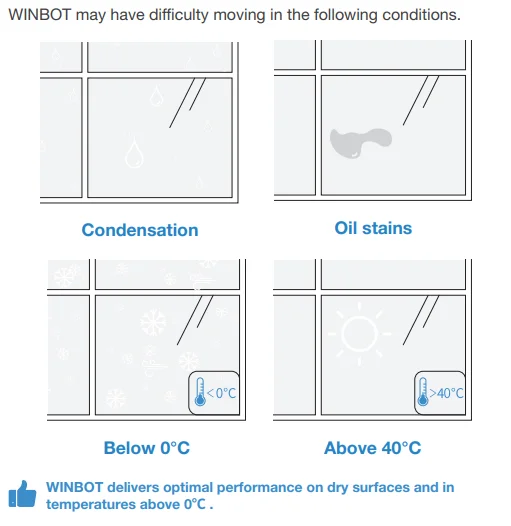

The following situations are not recommended for using WINBOT:

1. Do not use WINBOT on windows with condensation or oil stains or in extremely cold or hot environments.

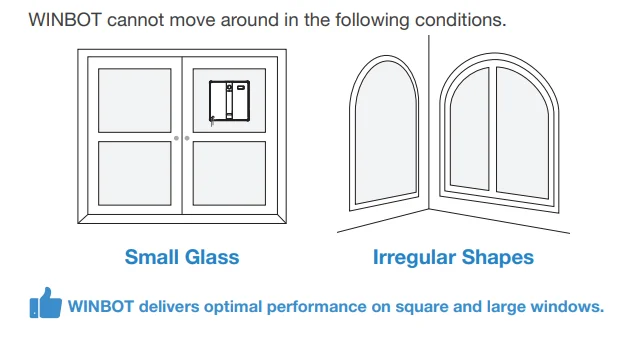

2. Do not use WINBOT on windows that are too small or have irregular shapes.
3. Do not use WINBOT on uneven windows.
4. Do not use WINBOT on windows that are too large.

Make sure the safety rope is connected before use.

The safety rope is assembled by default. Do not disassemble it at will.

2.2 Preparation Before Use

1. Install Mopping Pad

2. Wet the mopping pad.

Before using, wet the mopping pad.

2. Twist the mopping pad.

Twist the mopping pad to wring water out. To ensure cleaning performance, wring it out as much as you can.

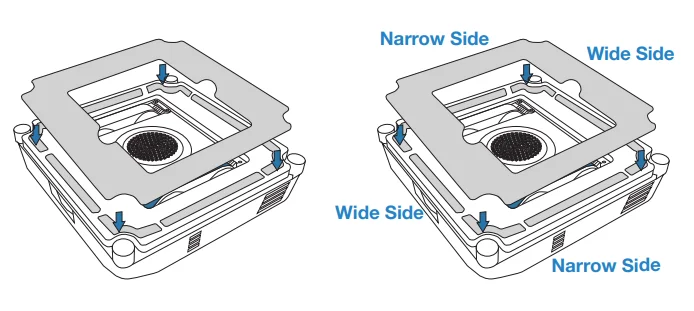

3. Stick the mopping pad.

Stick the mopping pad onto the velcro at the bottom of WINBOT, with its groove corresponding to the blue mark. Then press it with your hands to help the mopping pad stick firmly.

Fill Up the Water Tank

It is recommended to use it with the ECOVACS WINBOT cleaning solution. The maximum volume of the reservoir is about 60 ml. In the fast cleaning mode, the full water tank can spray water continuously for about 20 minutes.

• Do not add too much cleaning solution to overflow the reservoir.
• Do not add purified water or filtered water.
• Please use ECOVACS WINBOT cleaning solution. Using other cleaners could have an adverse effect on cleaning performance.
• If the cleaning solution is used up, you can temporarily use tap water instead. Using the ECOVACS WINBOT cleaning solution can provide better cleaning performance.

Note:

1. Do not put your fingers into the filling opening.
2. Wipe the water droplets on the body and the four spray outlets clean, so as not to affect normal operation.

Tie the Safety Rope

Properly tie the safety rope to a stable object that cannot be easily moved (e.g., table leg, chair leg, bed leg, sofa leg, curtain rod, stair handrail, etc.), and lock the carabiner as shown below.

Note: Please make sure to use under supervision. People or animals are prohibited from standing directly under the WINBOT working area. Make sure there are no valuable or fragile objects under this area.

• To ensure safety, please make sure to secure the carabiner before use.
• It is recommended to fasten the safety rope with the carabiner on a firm and safe metal railing.

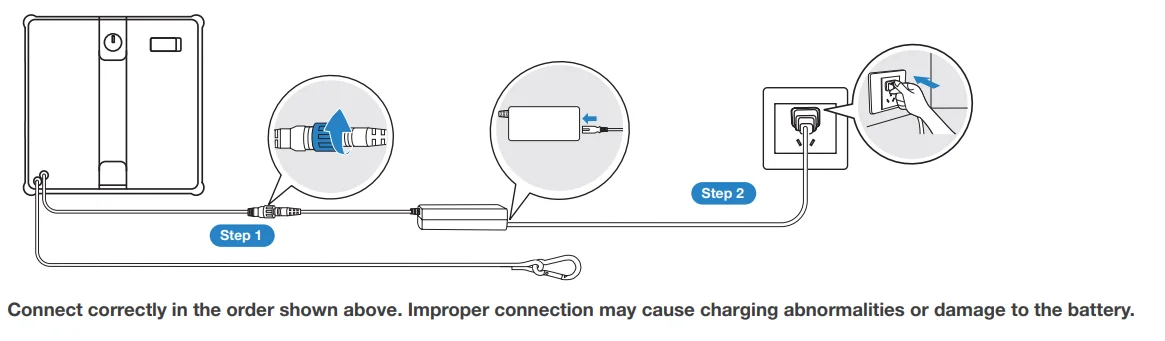

4. Connect WINBOT Power Cord, Power Adapter, and Plug.

Please ensure the battery is fully charged before using. Charging time will be approximately 3 hours.

• Do not cut the power off when WINBOT is running, otherwise it may lead to the risk of falling.
• It is particularly emphasized that the aviation plug needs to be firmly connected.

2.3 Quick Start

1. Start

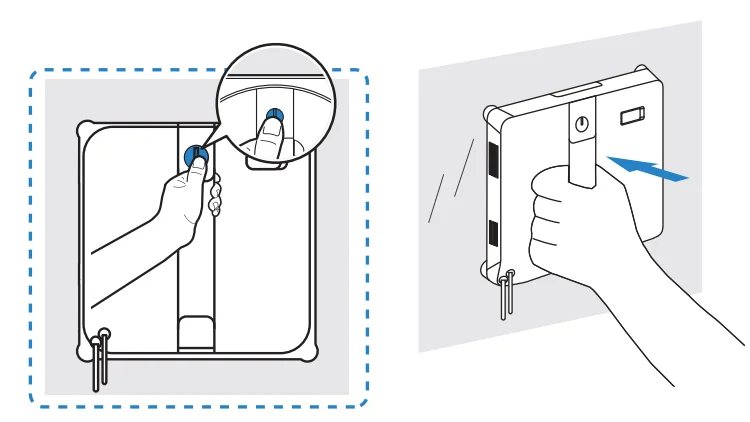

1. Connect the power supply and long-press the WINBOT start button for 2 seconds.
2. After hearing the fan start, place the bottom of the WINBOT (the side with the mopping pad) on the glass. WINBOT will adhere to the window automatically and start cleaning.
   • Do not stick the WINBOT too close to the edge when cleaning frameless glass. It is recommended to be more than 10 cm away from the edge.
   • WINBOT can only clean flat surfaces. Please make sure that the glass thickness is not less than 3 mm.
   • Do not put the fan close to hair and other small objects after powering on, so as not to block the fan.
   • Before cleaning, please observe the area to attach WINBOT for any small particles. If there are any, please remove them or switch to a particle-free area to avoid scratching the glass.
   • Please dry the water droplets at the spray outlet before cleaning.

2. Maintenance During Cleaning

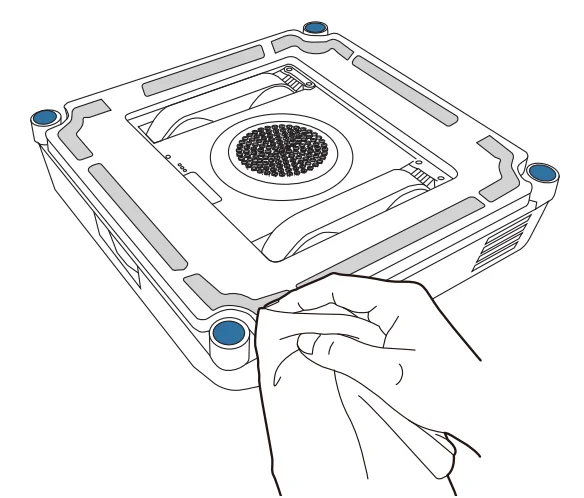

For heavily stained glass, please wash or replace the mopping pad several times and clean the four spherical sensors in a timely manner.

• Clean in time when the mopping pad is dirty. Make sure that the small particles on the mopping pad are completely removed to avoid scratching the glass.

3. Finish

Pause

During cleaning, press on WINBOT or pause it via the App.

Remove WINBOT

When cleaning is complete, WINBOT will return to the starting position and beep. Please hold the handle tightly. Long-press for 2 seconds, and remove it after the fan stops working.

• Please pour out the cleaning solution after cleaning.

Power Off

Turn off the power to shut down.

Unfasten Safety Rope

2.4 Advanced Function

To enjoy all available features, it is recommended to control your WINBOT via the ECOVACS HOME App.

a. Multiple Cleaning Modes

• Deep Cleaning Mode: Clean multiple times.
• Fast Cleaning Mode: Realize all-around cleaning.
• Spot Cleaning Mode: Say goodbye to stubborn stains.

b. Troubleshooting

When the WINBOT alarms, do not panic. You can check the detailed troubleshooting guidance through the App.

c. Remote Control

Through the App, you can remotely control WINBOT. This function supports views of both inside and outside windows, spot cleaning, and manual water spraying.

1. Scan the QR Code under the Top Cover to download the App.
2. Scan the QR code or search and download the ECOVACS HOME App in the app store.

3. Maintenance

Mopping Pad

a. Replace the Mopping Pad

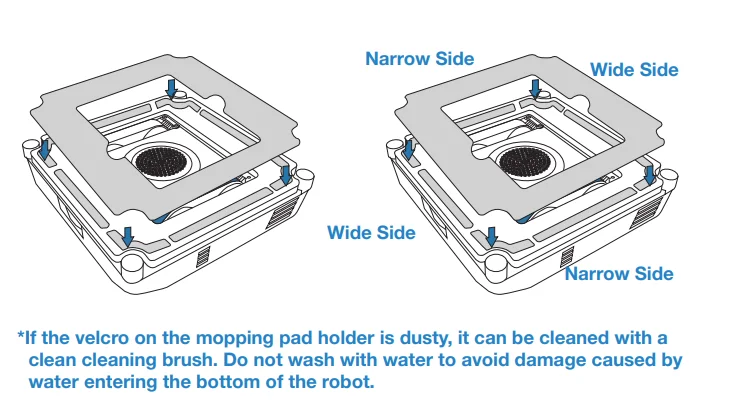

Remove the dirty mopping pad from WINBOT. Place a new one flat within the mopping pad holder at the bottom of WINBOT. Ensure that the groove of the mopping pad corresponds to the blue mark at the bottom of WINBOT. Then press it with your hands to make the mopping pad stick firmly. Please make sure the mopping pad is correctly attached. Be careful not to stick the mopping pad outside the holder to avoid affecting the normal operation of WINBOT.

b. Wash the Mopping Pad

Remove the mopping pad. Wash it with tap water, and wring it dry before use.

• Washing the Mopping Pad regularly can extend its service life. If the Mopping Pad becomes worn or no longer fits exactly within the fastener area, replace it with a new one to achieve optimal cleaning performance.
• Explore more accessories at the ECOVACS HOME App or at https://www.ecovacs.com/global, https://mall.ecovacs.cn.

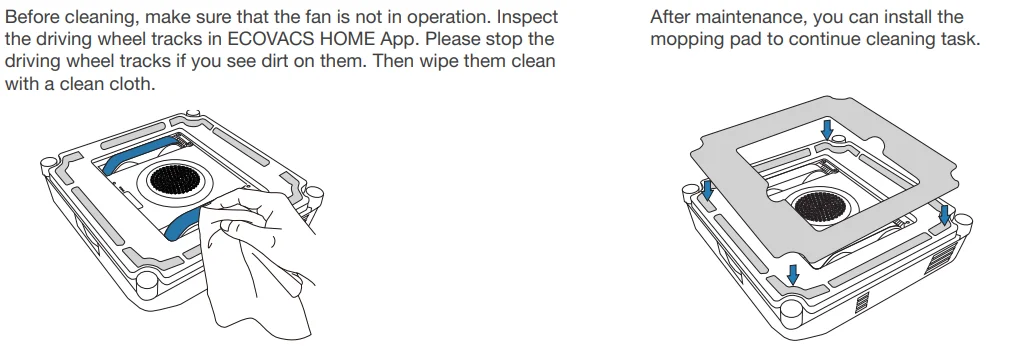

Driving Wheel Tracks

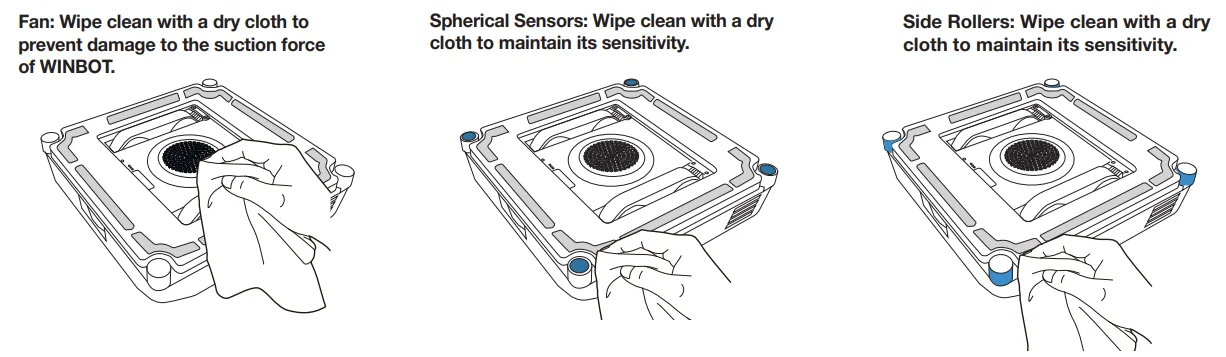

Bottom Component

• After WINBOT issues a low battery warning, be sure to fully charge WINBOT before using or storing it to avoid reducing the service life of the battery.
• If WINBOT is not used for a long time, fully charge it, turn it off, and then store it. Charge it at least every six months to prevent battery damage due to over-discharge and inability to charge.

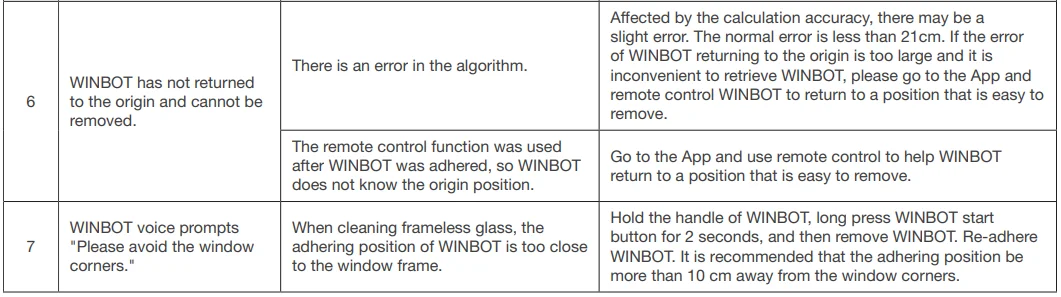

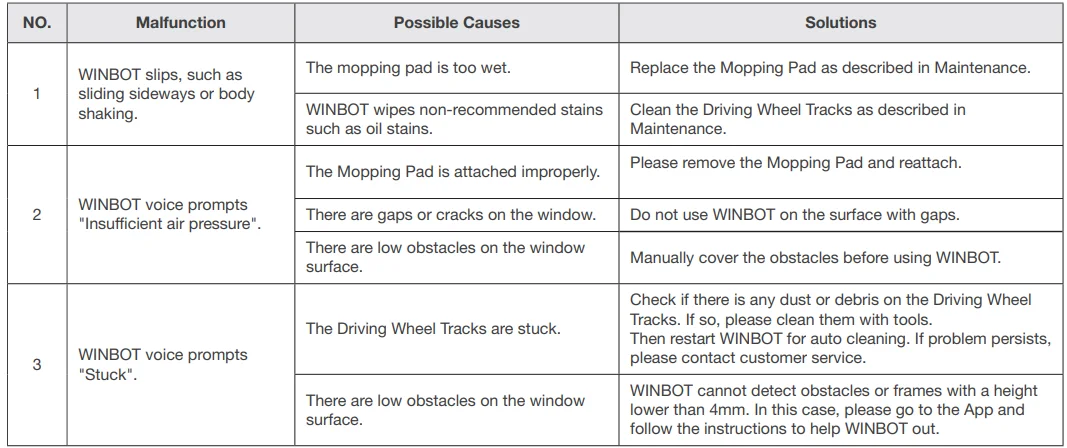

5. Troubleshooting

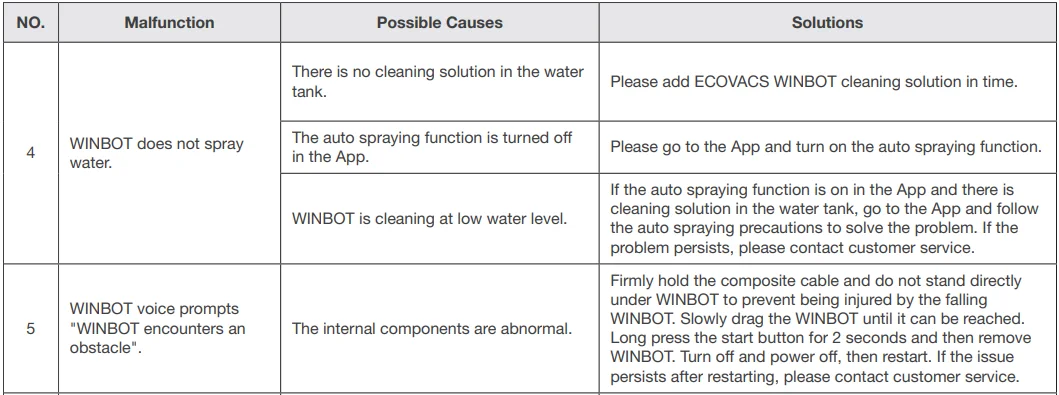

5.1 Malfunction Elimination

For More Manuals By ECOVACS, Visit ManualsLibraryy.

Ecovacs WINBOT MINI-FAQs
