Fellowes Jupiter 125 Thermal Laminator Machine

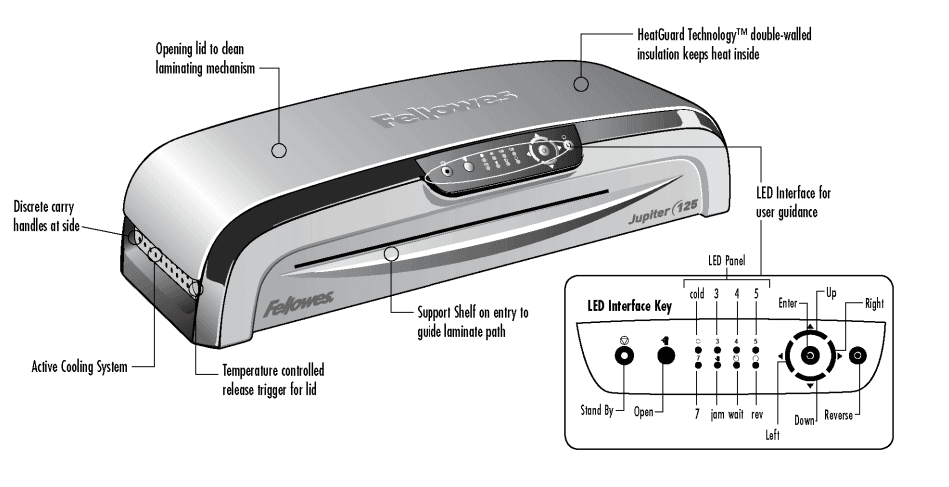

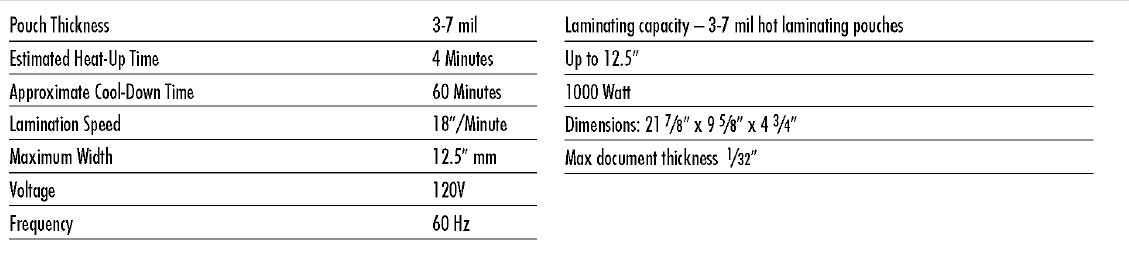

CAPABILITIES

IMPORTANT SAFETY INSTRUCTIONS – Please Read Before Using!

WARNINGS

• The socket outlet must be installed near the equipment and be easily accessible.
• To prevent electrical shock, do NOT use a laminator close to water, and do NOT spill water on the laminator, electric cord, or wall socket.
• Do not leave the electric cord in contact with a warm surface.
• Do not leave an electric cord hanging from a cupboard or shelf.
• Do not use a laminator if the electric cord is damaged.
• Do not laminate metal objects.

CAUTION

• Only use pouches specifically designed for the lamination setting you intend to use.
• Always supervise children during laminator operation.
• Keep pets away from the laminator while in use.
• Switch off and unplug the laminator when not in use.
• Only open the laminator as explained under “Maintenance”. Do not open or attempt to repair in any other way, as this could result in electric shock and will void your warranty. Contact Customer Service if you have questions. Please note the warranty does not apply in cases of abuse, mishandling, or unauthorized repair.
• Please be careful of sharp edges and corners and residual heat when opening the laminator.

IMPORTANT SAFETY INFORMATION

This laminator is equipped with an Auto shut-off function. It will turn the laminator into standby mode if it has not been used for over 60 minutes. To switch the laminator back on, simply press the standby button at the left of the front operating panel. During lamination, the direction of the pouch can be reversed, if you are unsure about the progress of the lamination. To do so, press down the reverse key. This will eject the pouch back at the front entry.

TIPS

• Always put the item in a pouch. Never laminate an empty pouch.
• Trim excess pouch material from around your item after laminating and cooling.
• Clean laminator rollers with Fellowes roller wipes (item #5703702) after 15-20 laminations to guarantee optimum laminating results. For further details, please see the “maintenance” section.
• Before laminating valuable items, do a test run with an item similar in size and thickness.
• Do not laminate heat-sensitive documents (i.e., tickets, ultrasounds, etc.).
• Use a dry-erase marker for writing on laminated pouches.

BEFORE YOU LAMINATE

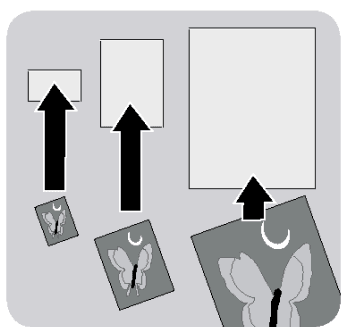

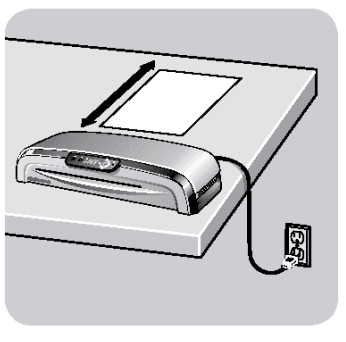

Use Fellowes® brand pouches for best results. Select the correct pouch size for laminated items.Position the laminator so you have enough space to allow items to pass freely through the machine.

COLD LAMINATION STEPS

CAUTION: Only use self-adhesive pouches when laminating with a cold setting.

1. Please connect the laminator to the socket using the separate power cable supplied.
2. Switch the laminator on with the Power On/ Off button at the back of the machine.
3. Press the Stand-by button at the left of the front operating panel to switch the laminator on.
4. Use the navigation keys to select a setting for cold lamination.

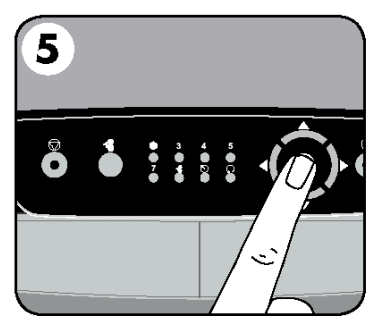

5. Confirm your selection by pressing the “Enter” button in the middle of the navigation keys. “Wait” LED will stop flashing and a beep will sound when the laminator has finished the temperature adjustment.

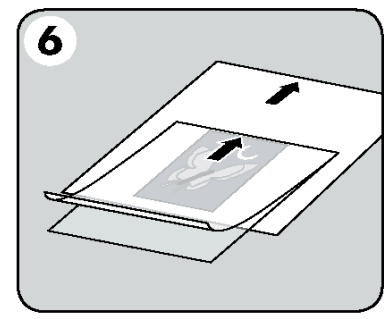

6. The center item is on the clear side against the sealed edge; documents cannot be repositioned once laminated.

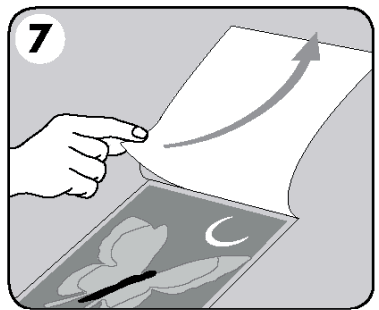

7. Peel a small part of the protective sheet away from the document.

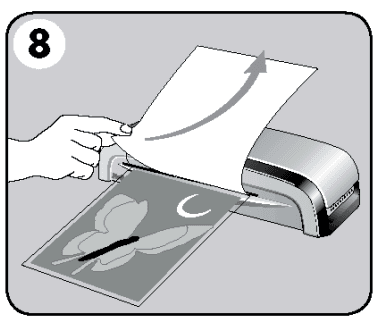

8. When the “wait” LEDstops flashing, place the pouch, sealed edge first, into the laminator entry. Keep the pouch straight and use the edge guide to center it. Continue peeling the protective sheet away.

HOT LAMINATION STEPS

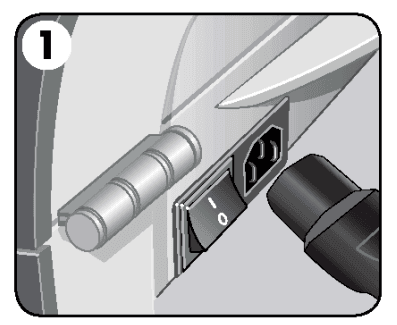

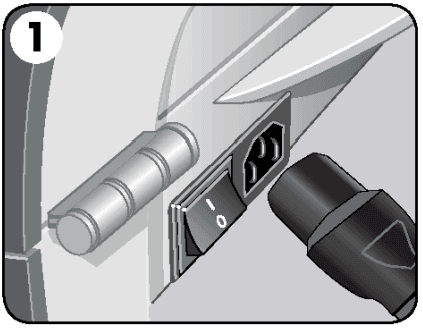

1. Please connect the laminator to the socket using the separate power cable supplied.

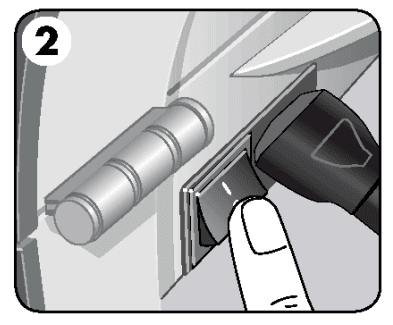

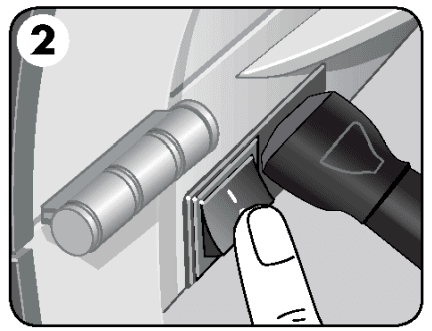

2. Switch the laminator on with the Power On/Off button at the back of the machine.

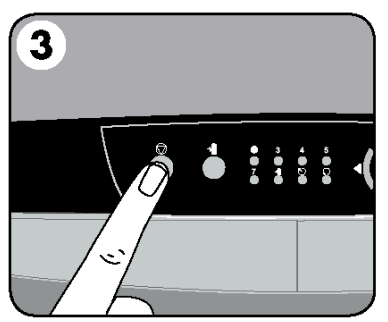

3. Press the Stand-by button at the left of the front operating panel to switch the laminator on.

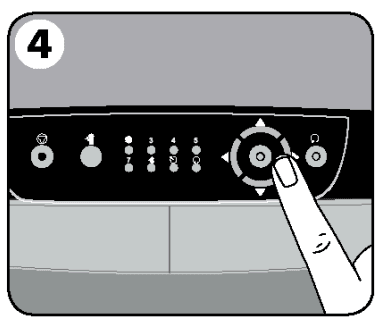

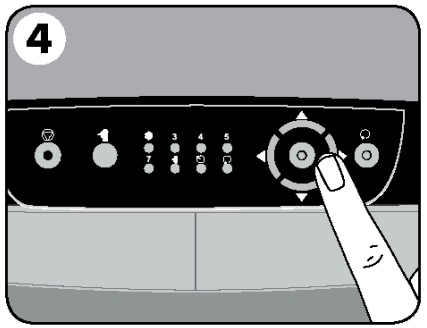

4. Use the navigation keys to select the setting for the hot lamination pouch thickness (3-7 mil) you wish to laminate.

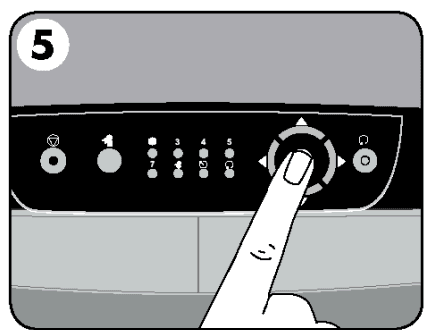

5. Confirm your selection by pressing the “Enter” button in the middle of the navigation keys. “Wait” LEDwill begin flashing and the laminator will take a few minutes to reach the required temperature.

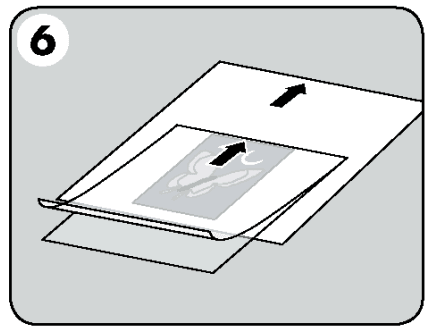

6. While the laminator is warming up, please prepare the item you wish to laminate. Place the item inside the pouch and center it against the sealed edge of the pouch. To prevent jamming, use a carrier sheet when the item is smaller than the pouch.

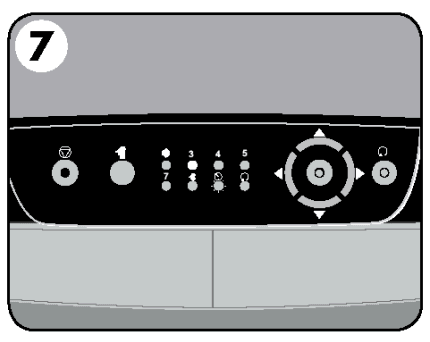

7. “Wait” LEDwill stop flashing and an acoustic bleep signal will sound when the machine is ready to laminate the selected pouch thickness.

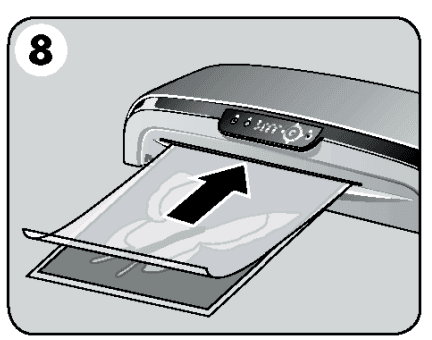

8. Place pouch, sealed edge first, into laminator entry. Keep the pouch straight and use the edge guide to center it.

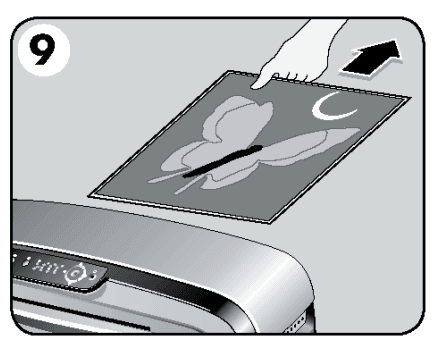

9. To prevent jamming, immediately remove the laminated item from the beck of the machine. let the item cool on a flat surface for several seconds.

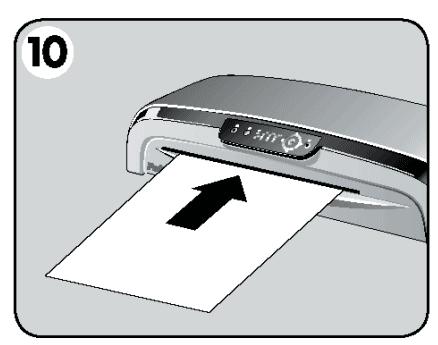

10. Before switching off the laminator, feed the empty cleaning sheet through the machine to clean the unit.

MAINTENANCE – Unique Easy-Access technology

This laminator is equipped with the unique Easi-Access technology for easy maintenance. This allows the user to open the laminator for maintenance, just like a photocopier.

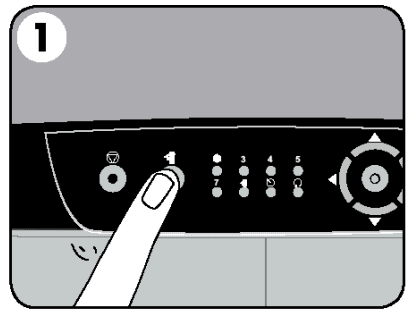

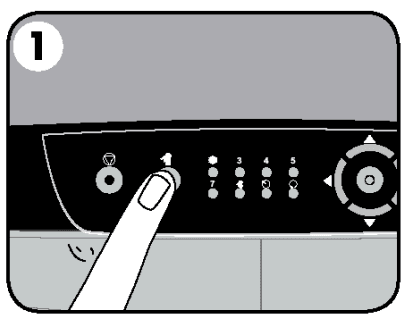

1. To open the laminator, please press the “Open”button as shown in the illustration. The red Open light will illuminate.

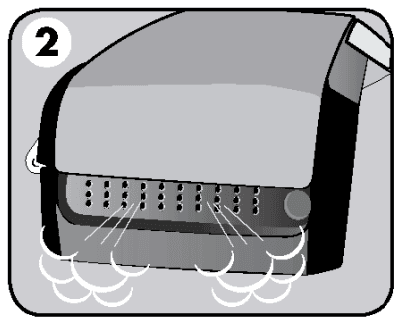

2. If the machine is hot, the fan will tum on to cool the machine down to a safe handling temperature inside. During this time the “Wait” symbol will flash and the cover will remain locked.

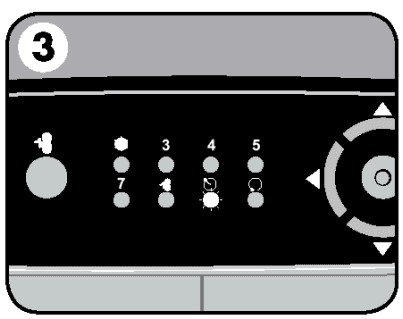

3. The “Wait” LED will turn off and the ready beep will sound when the machine is ready to be opened.

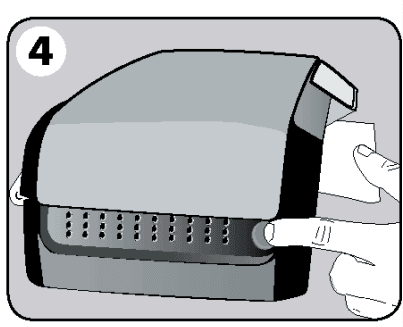

4. Press the silver buttons on both sides of the machine fo activate the Easi-Access (The laminator needs to be switched on to allow the active temperature control fo work).

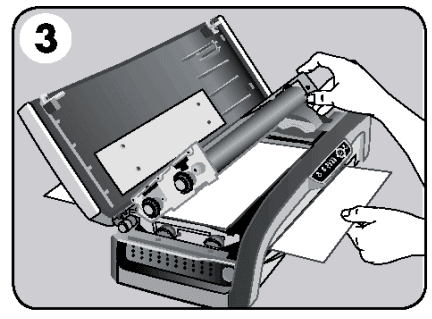

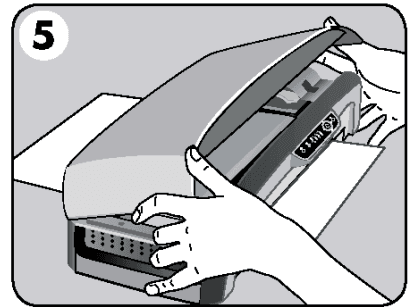

5. Open the lid with both hands. You are now able to clean the inside of the laminator and carefully remove any residual glue or other items. When the laminator is opened, the power fo internal parts is isolated, so that the user is not in danger of electric shock.

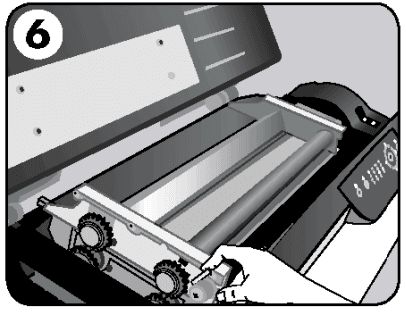

6. For further maintenance, the rollers can be released by experienced users. Press cam levers to release the rollers.

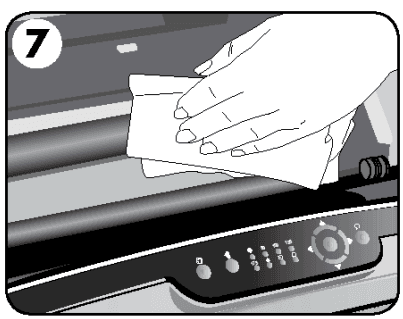

7. To clean residue off laminator rollers, please only use Fellowes Laminating Roller wipes (item No 5703702) as explained in their product instructions.

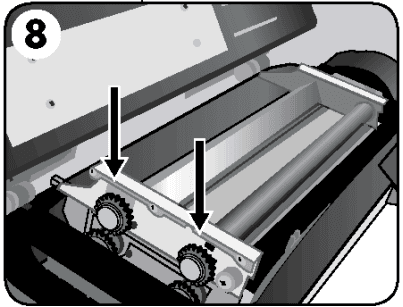

8. Please remember to re-secure the rollers before closing the cover to ensure safe operation.

TROUBLESHOOTING

Problem

Ready Light does not go on after an extended time Pouch did not completely adhere to the item Jamming.

Cause

The laminator is in a hot, humid area. The laminated item may be too thick. No item in the pouch Manually cut-out pouch was used Pouch was not used. The pouch was not centered or straight when fed
through Pouch /Document Entry. Glue and residue left on laminating rollers.

Solution

Move the laminator to a cool dry area. Pass through the laminator a second time. Al our laminators have been designed to operate jam-ree. In the unlikely event of a jam occurring, please press the “open”button and wait for the waitlight to stop flashing. The laminator can be opened to remove Corey’s inserted items as described under maintenance. Please ensure that you follow the described steps. Gently pull on the jammed material to release it. Always put the item in a pouch. Align sealed edge with Pouch/Document Entry. Use the guide on the machine to center. Clean residues off rollers using Fellowes Laminating Roller wipes, see “maintenance” section. Make sure that no residue is left on the rollers and use a cleaning sheet before laminating.

LIMITED WARRANTY

Fellowes warrants ll parts of the laminator to be free of defects in material and workmanship for 2 years from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes” option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling, or unauthorized repair. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION 10 THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. IN NO EVENT SHALL FELLOWES BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ATTRIBUTABLE TO THIS PRODUCT. This warranty gives you specific legal rights. You may have other legal rights that vary from this warranty. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain services under this warranty, please contact us or your dealer.
