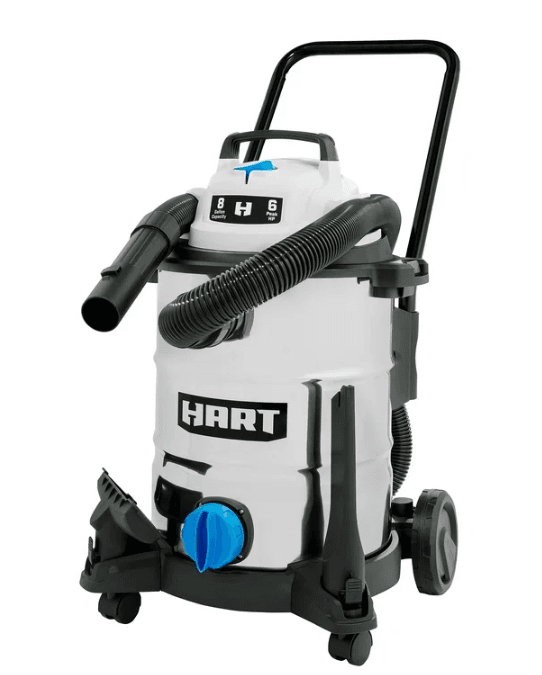

HART VOC812SW 3701 8 Gallon Wet Dry Vaccum
SAFETY INFORMATION
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.
Read and understand this operator’s manual and all labels on the vacuum cleaner before operating. Safety is a combination of common sense, staying alert, and knowing how your vacuum works. Use this vacuum only as described in this manual. To reduce the risk of personal injury or damage to your vacuum, use only manufacturer-recommended accessories. For Household Use Only
SAVE THIS MANUAL FOR FUTURE REFERENCE.
When using a vacuum, basic precautions should always be followed by the following:
WARNING:
To reduce the risk of fire, electric shock, or injury:
- Do not run the vacuum unattended.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not vacuum, or use this Wet/Dry vacuum near flammable liquids, gases, or explosive vapors like gasoline or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the motor can ignite flammable vapors or dust.
- To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
- Do not use or store near hazardous materials.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not expose to rain. Store indoors.
- If the vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
- Do not use with a damaged cord or plug.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
- Keep the cord away from heated surfaces.
- Do not run the vacuum over the cord.
- Do not handle the plug or vacuum with wet hands.
- Do not use without a dust bag and/or filters in place.
- Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
- To reduce the risk of injury from accidental starting, unplug the power cord before changing or cleaning the filter.
- Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
- Turn off all controls before unplugging.
- Unplug before connecting or disconnecting hose, or any other accessories.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Use extra care when cleaning on stairs.
- Use only as described in this manual. Use only manufacturer’s recommended attachments
- This vacuum is provided with double insulation. Use only identical replacement parts. See DOUBLE INSULATION INSTRUCTIONS.
CAUTION:
To reduce the risk of injury from moving parts, unplug before servicing.
WARNING:
To reduce the risk of electric shock, unplug before cleaning or servicing. When using as a blower:
- Direct air discharge only in the work area.
- Do not use a Wet/Dry Vacuum as a sprayer.
- Do not direct air at bystanders.
- Keep children away when blowing.
- Wear safety goggles.
WARNING:
Servicing of double-insulated wet/dry vacuum – With a double-insulated wet/dry vacuum, two systems of Insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added. Servicing a double-insulated wet/dry vacuum requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated wet/dry vacuum must be identical to the parts they replace. Your double-insulated wet/dry vacuum is marked with the words ‘DOUBLE INSULATED’ and the symbol(square within a square) may also be marked on the appliance.
Extension Cords

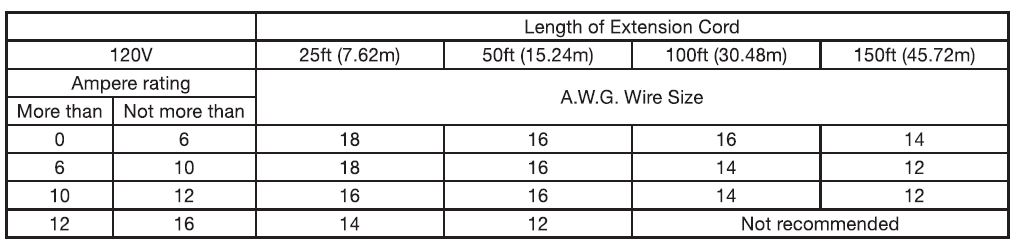

When using an extension cord with your Wet/Dry Vacuum, refer to the following table to determine the required AWG wire size. Before using the vacuum, make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use.
FEATURES
PRODUCT SPECIFICATIONS
Weight ……………………………………………………………………………………………………………………………… 18 lbs.
Assembled Dimensions ……………………………………………………………………………………. 23.2 x 16.1 x 30. 7 in.
ASSEMBLY
TOOLS NEEDED

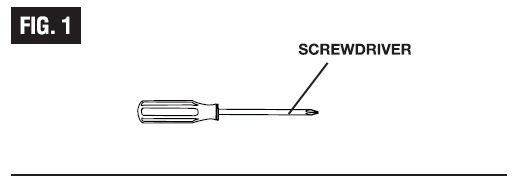

See Figure 1.
The following tool (not included or drawn to scale) is needed for assembly:
- Phillips head screwdriver
LOOSE PARTS LIST

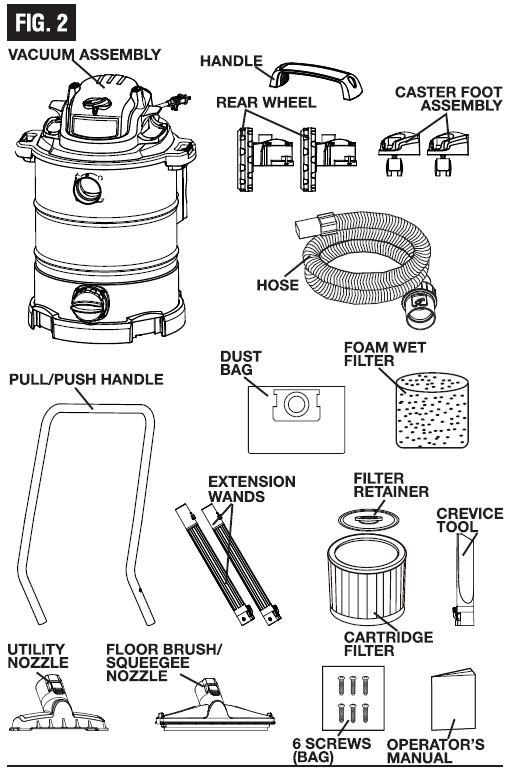

See Figure 2.
Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the loose parts list.
- Vacuum Assembly ……………………………………………. 1
- Handle …………………………………………………………. 1
- Pull/Push Handle …………………………………………….. 1
- Hose …………………………………………………………… 1
- Extension Wand …………….. … ……. ……………………… 2
- Caster Foot Assembly ……………………………………….. 2
- Rear Wheel. ……………………………………………………… 2
- Foam Wet Filter ……………………………………………….. 1
- Cartridge Filter ………….. … ……. …………………………… 1
- Filter Retainer …………………………………………………. 1
- Dust Bag ………………………………………………………. 1
- Crevice Tool …………………………………………………… 1
- Utility Nozzle ………………………… . .. ……………………. 1
- Floor Brush/Squeegee Nozzle ………………………………. 1
- 6 Screws (Bag) ……………………………………………….. 1
- Operator’s Manual …………………………………………… 1
NOTE: The hose and accessories for this vacuum are 1-7/8″ in diameter.
WARNING:
Do not plug the power cord into a power outlet. Make sure the plug is disconnected before assembling the wet/dry vacuum. To reduce the risk of electric shock, do not expose yourself to rain.
UNPACKING YOUR WET/ORY VACUUM

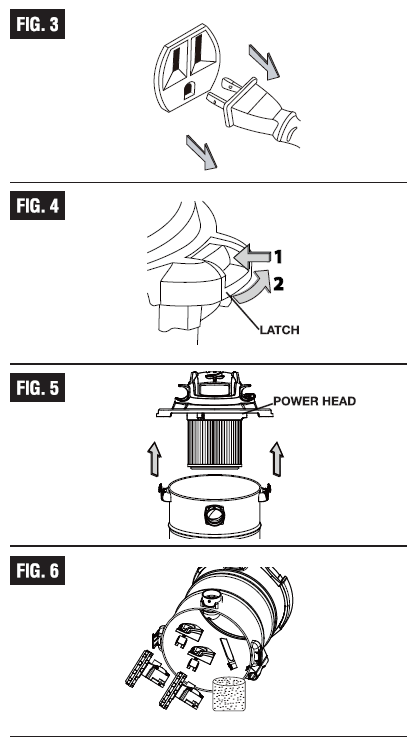

See Figures 3-6.
- Verify that the power cord is disconnected from the outlet.
- Undo the latches.
- Lift the power head off the collection tank.
- Remove the contents from inside the collection tank; make sure you have all contents as listed on page 5.
ATTACHING THE REAR WHEELS & CASTERS

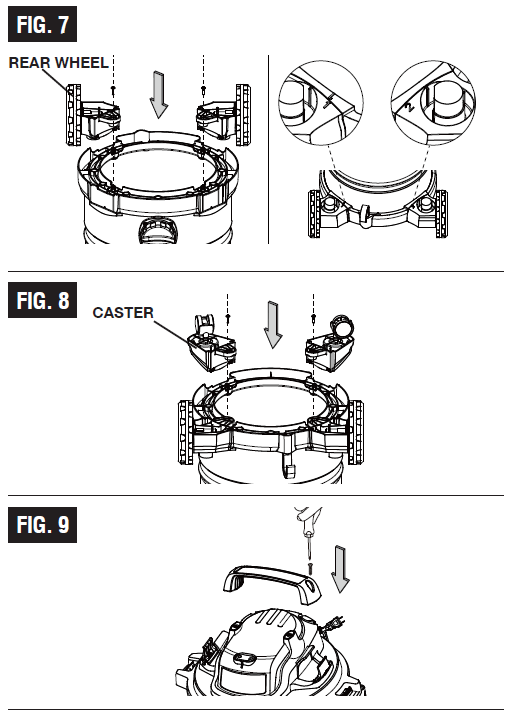

See Figures 7 and 8.
- Turn the collection tank upside down. Insert the two caster feet into the slots on the front of the collection tank and tighten with supplied screws. The rear wheels and the vacuum base are marked with the numbers 1 and 2. Insert wheel 1 into slot 1 on the back of the vacuum and tighten with supplied screw. Insert wheel 2 into slot 2 on the back of the vacuum and tighten with supplied screw. Verify that the rear wheels and casters are mounted correctly as shown. Do not over-tighten screws.
ATTACHING THE HANDLE
See Figure 9.
- Attach the handle into the slots located on the top of the power head and secure with supplied screws.
INSTALLING THE PULL/PUSH HANDLE

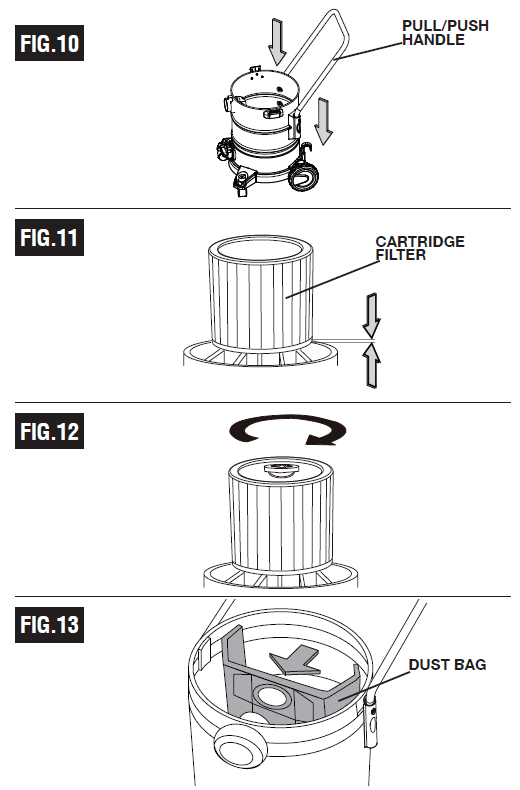

See Figure 10.
- Insert the pull/push handle into the handle sockets mounted on the sides of the collection tank. Push down until the lock pins click into place.
INSTALLING THE CARTRIDGE FILTER
See Figures 11 and 12.
- Your vacuum comes ready for dry vacuum cleaning. If the cartridge filter is not installed, refer to page 13 for installation instructions.
INSTALLING THE DUST COLLECTION BAG
See Figure 13.
- Optional: For improved dust filtration, fit the dust bag flange onto the inlet port, taking care not to damage the bag.
INSTALLING THE FOAM WET FILTER

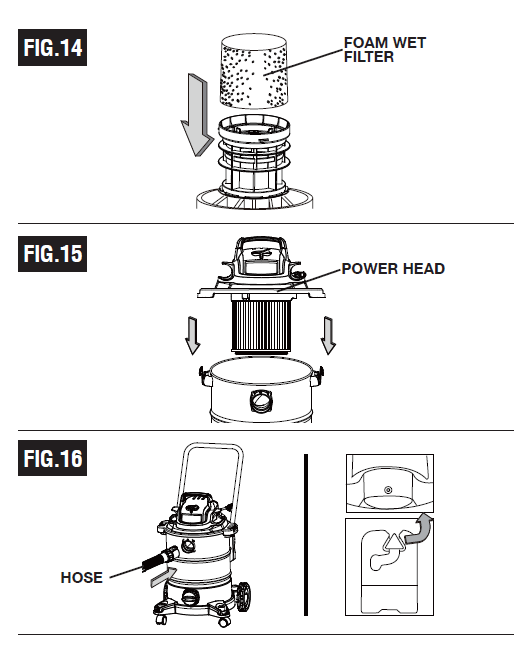

See Figure 14.
- For wet vacuum cleaning, remove the cartridge filter and install the supplied foam wet filter. See page 13 for the foam wet filter installation instructions.
ATTACHING THE POWER HEAD
See Figure 15.
- Place the power head back on the collection tank, aligning the top section with the latches, and snap into place.
ATTACHING THE HOSE
See Figure 16.
- Insert the locking end of the hose into the vacuum port on the collection tank and lock into place.
INSTALLING & REMOVING ATTACHMENTS

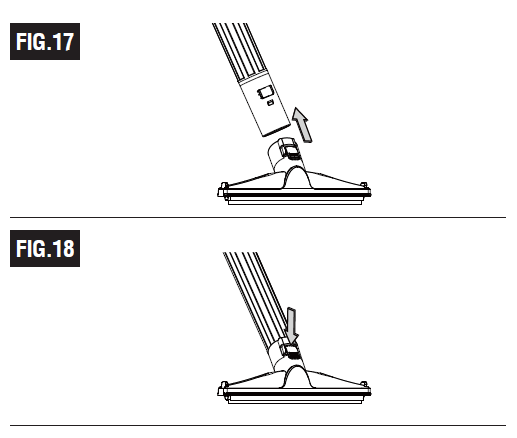

See Figures 17 and 18.
- These attachments lock together to prevent them from detaching during use. Connect the desired attachment onto the end of the hose or extension wand by aligning the tabs and pushing them together until they lock into place.
- To remove the attachment, press down on the locking tab and slide it off.
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. Double insulation eliminates the need for the three-wire grounded power cord and grounded power supply system.
OPERATION
DRY VACUUMING

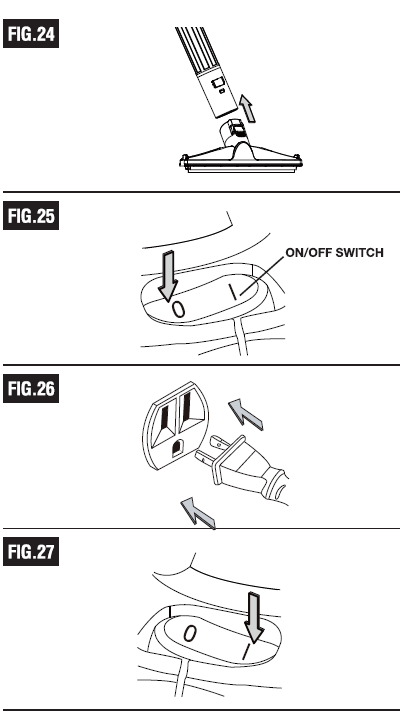

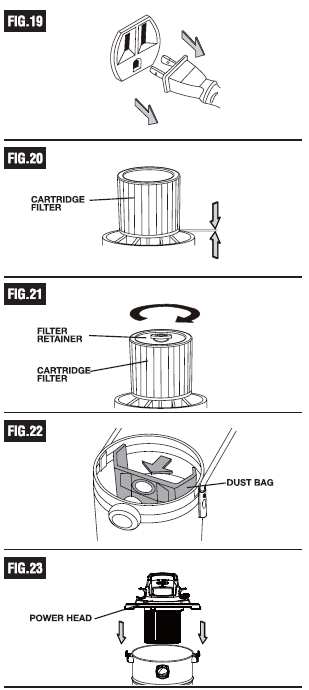

See Figures 19-27.
WARNING:
Be sure to read, understand, and apply the information entitled “SAFETY INFORMATION”. Do not vacuum in areas with flammable gases, vapors, or explosive dusts in the air. Flammable gases or vapors include, but are not limited to, lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol, or aerosol sprays. Explosive dusts include but are not limited to, coal, magnesium, grain, or gun powder. To reduce the risk of health hazards from vapors or dust, do not vacuum toxic materials.
WARNING:
Do not plug the power cord into a power outlet. Make sure the plug is disconnected before changing the
filters.
CAUTION:
Do not vacuum drywall dust, fireplace soot, or ash with a standard wet/dry filter. This is a very fine dust that will not be captured by the filter and may cause damage to the motor. When vacuuming fine dust, use a fine dust filter (sold separately).
- Verify that the power cord is disconnected from the outlet.
- In order to prepare your vacuum for dry vacuuming, make sure the cartridge filter completely covers the filter cage against the power head. Your wet/dry vacuum comes with the cartridge filter pre-installed. For installation instructions, see page 13.
- Place the filter retainer on the top of the cartridge filter and tighten down by turning the retainer handle clockwise.
- Optional: For improved dust filtration, fit the dust bag flange onto the inlet port, taking care not to damage the bag.
- Place the power head back on the collection tank and secure it in place using the latches.
- Insert the locking end of the hose into the vacuum port on the collection tank and lock into place.
- The included attachments lock together to prevent them from detaching during use. Connect the desired attachment onto the end of the hose or extension wand by aligning the tabs and pushing them together until they lock into place.
- Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet.
- Turn the motor on by flipping the switch to the ‘I’ ON position and begin vacuuming.
- Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord from the outlet.
O=OFF l=ON
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING. DO NOT USE THE DUST BAG FOR LIQUID VACUUMING.
LIQUID VACUUMING
See Figures 28-33.
WARNING:
Be sure to read, understand, and apply the information entitled “SAFETY INFORMATION”. Do not vacuum in areas with flammable gases, vapors, or explosive dusts in the air. Flammable gases or vapors include, but are not limited to, lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol, or aerosol sprays. Explosive dusts include but are not limited to: coal, magnesium, grain, or gun powder. To reduce the risk of health hazards from vapors or dust, do not vacuum toxic materials.
WARNING:
Do not plug the power cord into the power outlet. Make sure the plug is disconnected before changing
the filters.
- Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is clean and free of dust and dirt.
- Remove the cartridge filter, then carefully install the foam wet filter over the filter cage and place the power head back on the collection tank. For foam wet filter installation instructions, see page 13.
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
- The included attachments lock together to prevent them from detaching during use. Connect the desired attachment onto the end of the hose or extension wand by aligning the tabs and push together until they lock into place.
- Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet.
- Turn the motor on by flipping the switch to the ‘I’ ON position.
- Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord from the outlet.
- After use, empty the collection tank by unscrewing the drain cap. Drain liquids into a suitable receptacle or drain. Remember to refit the drain cap to the collection tank.
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the collection tank reaches its maximum
capacity. You will notice an increase in motor speed. When this happens, turn off the machine, disconnect from the power supply, and drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the collection tank with the drain cap. After wet vacuuming, turn the machine off
and remove the plug from the power supply. Empty the collection tank, clean and dry the inside and outside before storage.
REMEMBER! The foam wet filter must be removed after wet vacuuming, and the cartridge filter must be installed before dry vacuuming again.
BLOWER OPERATION

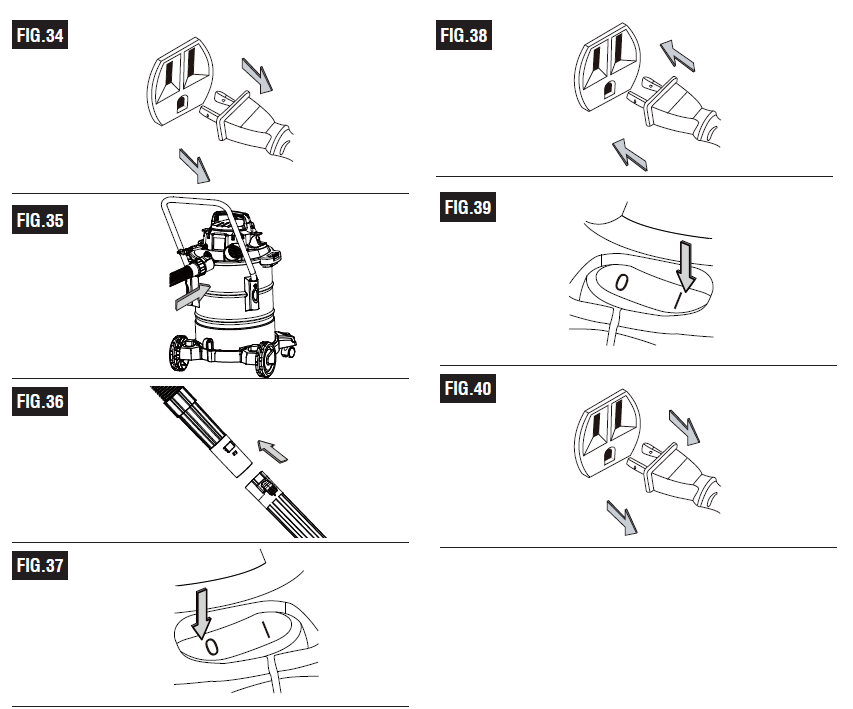

See Figures 34-40.
This wet/dry vacuum has blowing capabilities. To use the blower feature, follow the instructions listed.
WARNINGs:
Always wear safety goggles complying with ANSI 287 .1 (or in Canada, CSAZ94.3) before using a blower.
Keep bystanders clear of blowing debris.
Wear a dust mask if blowing creates dust that might be inhaled.
- Verify that the power cord is disconnected from the outlet.
- Make sure the collection tank is empty before using as a blower. Clear all dirt and debris from the hose and collection tank.
- Remove the hose from the vacuum port.
- Insert the locking end of the hose into the blower port on the back side of the power head and lock into position.
- The included attachments lock together to prevent them from detaching during use. Connect the desired attachment onto the end of the hose or extension wand by aligning the tabs and push together until they lock into place.
- Verify that the power switch is in the ‘O’ OFF position before plugging the power cord into the outlet. Plug the power cord into the outlet.
- Before turning on the vacuum, firmly hold the loose end of the hose. Turn the motor on by flipping the switch to the ‘I’ ON position.
- Once you have completed blowing, flip the power switch to the ‘O’ OFF position and unplug the power cord from the outlet.
MAINTENANCE
EMPTYING THE COLLECTION TANK

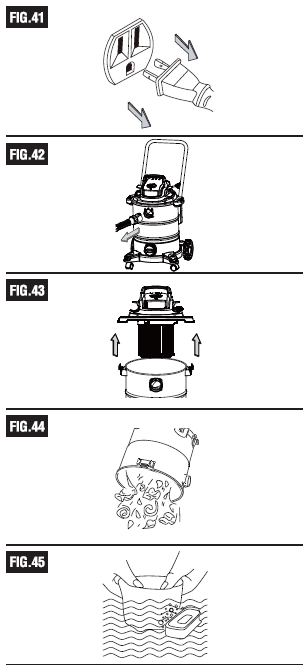

See Figures 41-45.
WARNING:
Always disconnect the plug from the power outlet before removing the power head from the collection tank.
- Verify that the power cord is disconnected from the outlet.
- Disconnect the hose from the vacuum.
- Undo the latches and remove the power head from the collection tank. Place the power head on a soft, clean surface upside down.
- Clear all dirt or debris from the collection tank and hose it into a proper waste container.
- Clean or replace the filters.
- Check the hose, attachments, and power cord to ensure that they have not been damaged.
- Place the power head back onto the collection tank and secure the latches.
IMPORTANT! Clean or change the filter regularly for best performance. ALWAYS USE THE CARTRIDGE FILTER FOR DRY VACUUMING. If the machine is used without the cartridge filter, the motor will burn out, and the warranty will be voided. Always keep spare filters on hand.
NOTICE! The filters included are made of high-quality materials designed to stop small dust particles. The cartridge filter should be used for dry pick-up only. A dry cartridge filter is necessary to pick up dust. If the cartridge filter is wet, it will clog quickly and be very difficult to clean. Handle the filter carefully when removing it for cleaning and replacing it. Check the filters for tears or small holes. A small hole can let dust pass through and out of the filter. Do not use a filter with holes or tears; replace it immediately.
STORAGE
Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories should be cleaned DID and stored so they can be readily available when needed. Store the wet/dry vacuum indoors.
REPAIRS
Repairs for this wet/dry vacuum should be performed only by qualified service personnel using only identical replacement parts.
INSTALLING CARTRIDGE FILTER

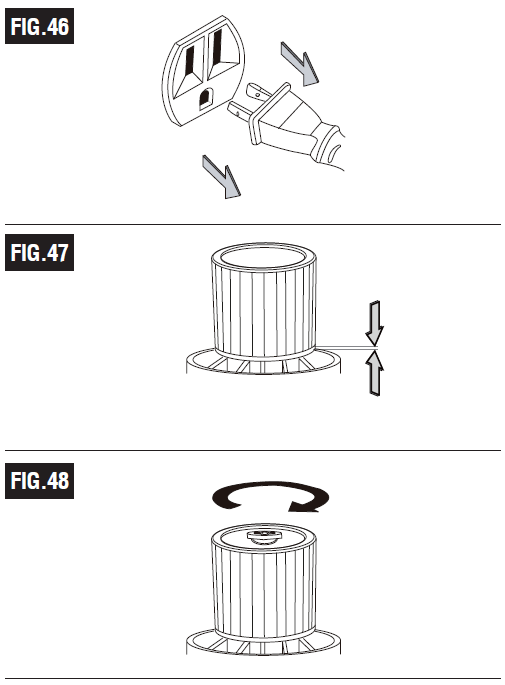

See Figures 46-48.
- Verify that the power cord is disconnected from the outlet.
- Remove the power head and place it in an upside-down position.
- Install the cartridge filter over the filter cage, making sure the cage is completely covered.
- Place the filter retainer on the top of the cartridge filter over the raised lip and tighten down by turning the retainer clockwise; do not over-tighten.
- Place the power head back onto the collection tank.
REMOVING & CLEANING CARTRIDGE FILTER

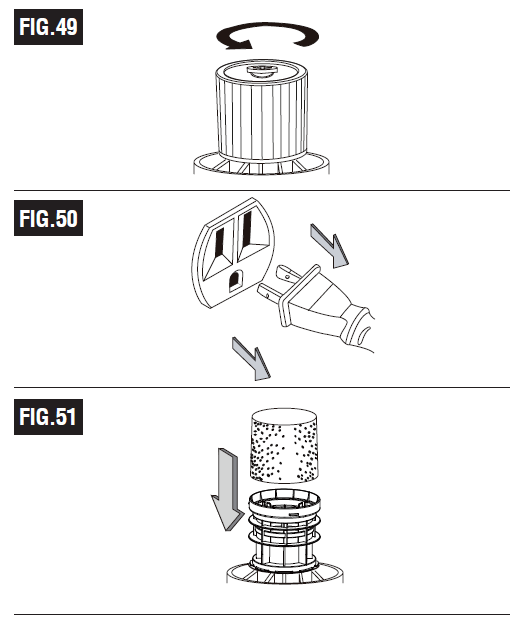

See Figure 49.
- Unlock and remove the filter retainer by turning the retainer handle counterclockwise.
- With the removed power head in an upside-down position, carefully remove the cartridge filter from the filter cage.
- Clean the cartridge filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in living areas. For optimal performance, a new filter is recommended.
- Install cleaned or new filters as above in steps 2-4 of Installing Cartridge Filter.
- Wet filters should be removed and allowed to air dry for 24 hours before installing onto the filter cage.
INSTALLING FOAM WET FILTER
See Figures 50-51.
- Verify that the power cord is disconnected from the outlet.
- Remove the power head and place in an upside-down position. Follow the instructions to remove the cartridge filter on page 13.
- Carefully slide the foam wet filter down over the filter cage, making sure the cage is completely covered.
- Place the power head onto the collection tank.
CLEANING FOAM WET FILTER

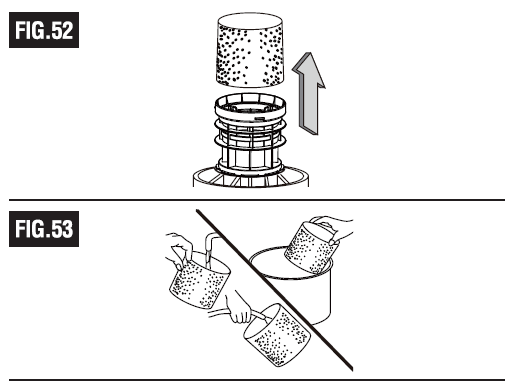

See Figures 52-53.
- With the removed power head in an upside-down position, carefully remove the foam wet filter.
- Use a mild soap and water solution to wash the foam wet filter and rinse with clean water.
- Allow the wet filter to air dry for 24 hours before installing it onto the filter cage.

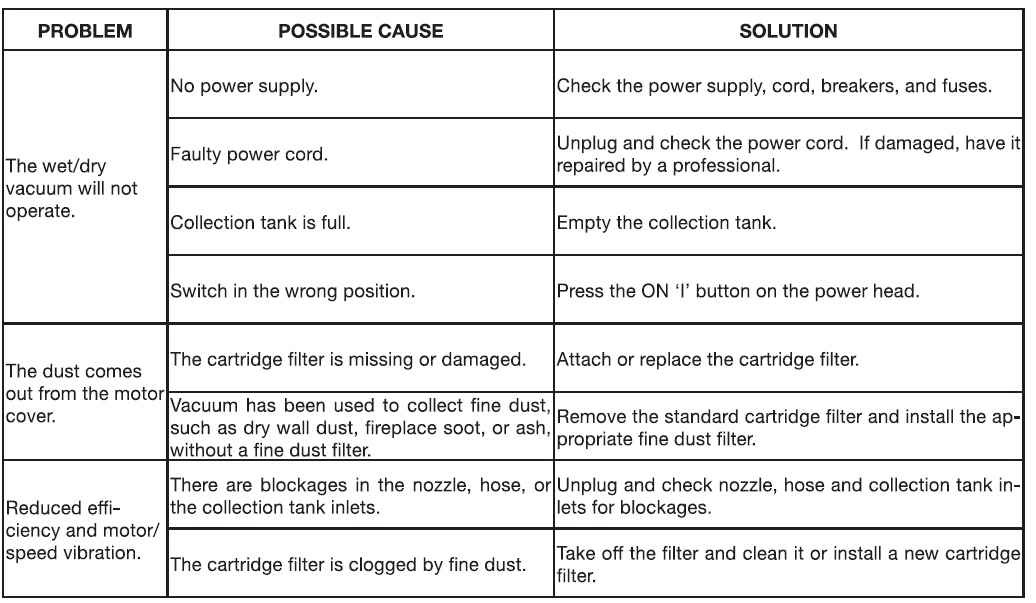

TROUBLESHOOTING
WARRANTY
We take pride in producing a high-quality, durable product. This HARTTM product carries a limited three (3) year warranty against defects in workmanship and materials from the date of purchase under normal household use. If the product is to be used for commercial, industrial, or rental use, a 90-day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. For product service, call Customer Service at 1-866-384-8432. Not Covered by Warranty:
- Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents, improper maintenance, repairs, or alterations;
- Consumables such as filters and accessories;
- Normal wear and tear of parts and attachments, such as hoses, nozzles, or casters;
- Normal deterioration of the exterior finish due to use or exposure;
- Any product where the serial number/data label is tampered with or removed;
- Any product purchased from an unauthorized retailer.
