SAFETY PRECAUTIONS

To prevent injury to the user or personal and property damage, these instructions must be followed. Incorrect operation due to ignoring instructions may cause harm or damage. The level of risk is shown by the following indications.

WARNING: This symbol indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: This symbol indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.

NOTICE: This symbol addresses practices not related to physical injury.

WARNING:

Do not modify the power cord length or share the outlet with other appliances. It may cause an electric shock or fire due to overheating.
Do not operate or stop the unit by inserting or pulling out the power plug. It may cause an electric shock.
Do not allow water to enter into electric parts. It may cause failure or an electric shock.
Do not use the power outlet if it is loose or damaged. It may cause fire and electric shock.
Do not use or keep the power cord close to heating appliances or heat sources such as fireplaces. It may cause fire and electric shock.
Do not disassemble or modify the unit. It may cause failure and an electric shock.
Do not damage or use an unspecified power cord. It may cause fire and electric shock.
Do not use the unit near flammable gas or combustibles, such as gasoline, benzene, thinner, etc. It may cause a fire.
Do not operate with wet hands. It may cause an electric shock.
Do not open the unit during operation. It may cause an electric shock.
Do not drink the water from the bucket.
Do not use the unit in small spaces or place it in a sink or shower. Lack of ventilation can cause overheating and fire.
Do not attempt to repair the unit yourself.

CAUTION:

Do not use in places where water may splash onto the unit. Water may enter the unit and degrade the insulation. It may cause an electric shock or fire.
Place the unit on a level, sturdy section of the floor. If the unit falls over, it may cause water to spill and damage belongings, or cause an electrical shock or fire.
Never insert your finger or other foreign objects into grills or openings. Take special care to warn children of these dangers. It may cause failure or an electric shock.
Do not climb up on or sit on the unit. You may be injured if you fall or if the unit falls over.
Always insert the filters securely, and take caution to avoid injuries to your hand and fingers. Clean the filter once every two weeks.
If water enters the unit, turn the unit off and disconnect the power. Contact the Service Center at 1-866-646-4332.
If the unit is knocked over during use, turn off the unit and unplug it from the main power supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact customer service.
In a thunderstorm, the power should be disconnected from the unit due to lightning.
Do not run the power cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. Arrange the cord away from the traffic area and where it will not be tripped over.
Do not place anything on top of the unit. This would restrict airflow, possibly damage the unit, and decrease performance.
Always lift the unit with 2 hands using proper lifting technique.
Before turning the unit on, make sure it is seated correctly on the bucket.
Before lifting, ensure the handle is properly attached.
Only use the bucket that came with the unit. Do not use any other bucket.
Clean the bucket regularly.

UNIT SPECIFICATIONS AND FEATURES

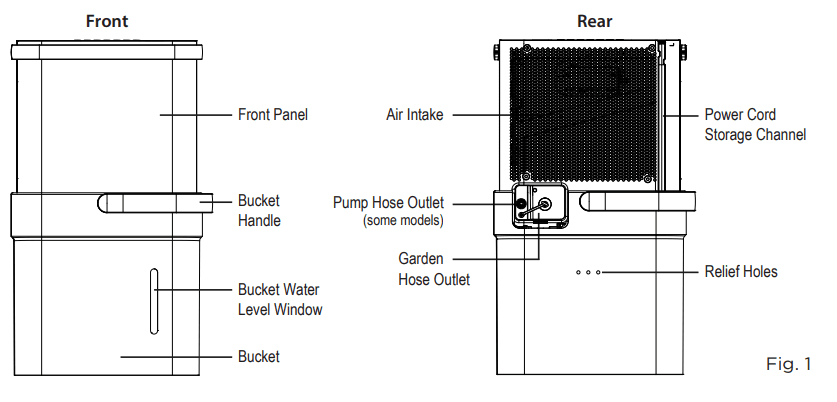

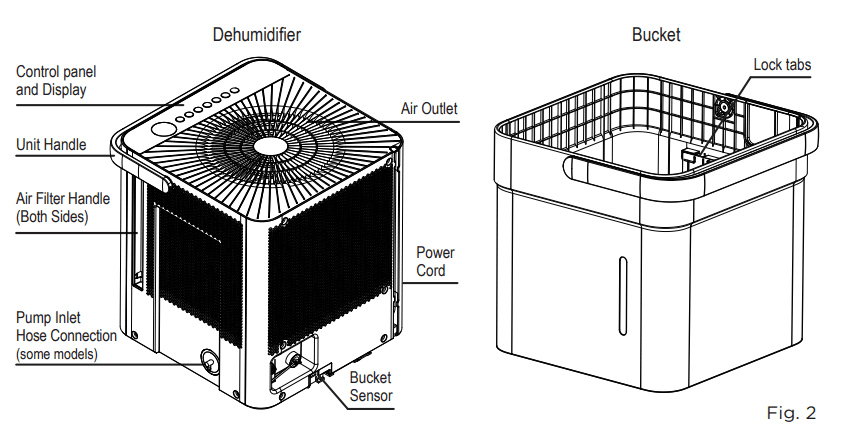

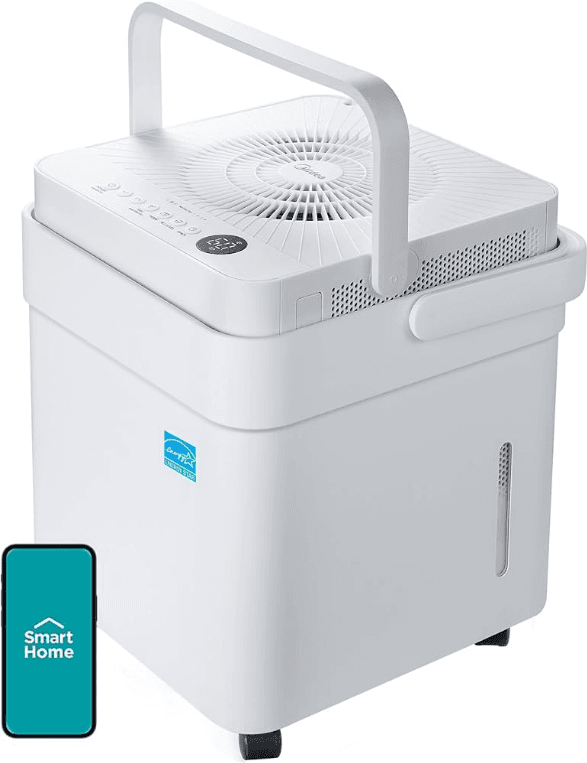

Product overview

Accessories

SET UP INSTRUCTIONS

Step 1

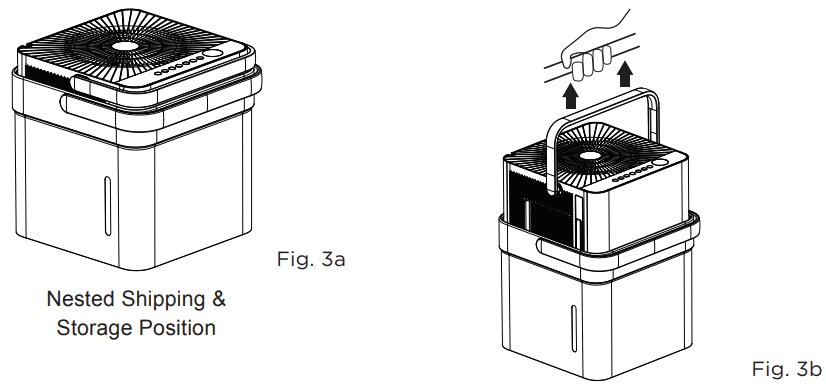

Separate the dehumidifier & bucket from the nested shipping/storage position.

Step 2

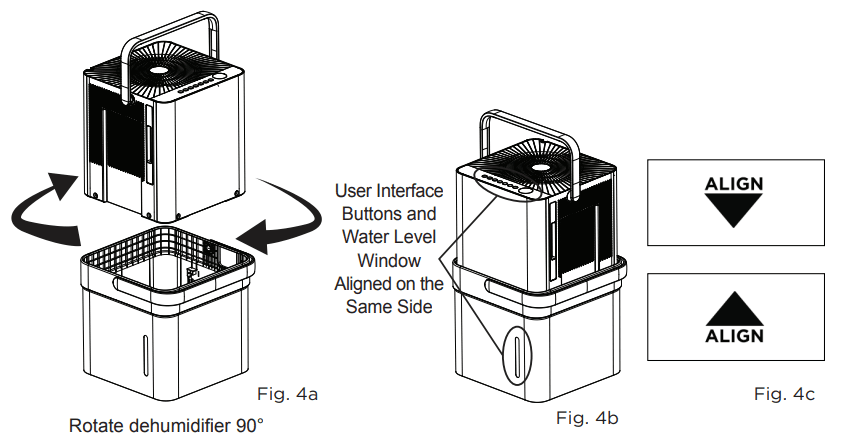

Rotate the dehumidifier 90° and align the arrows on the two labels (one on the bucket and one on the dehumidifier), and carefully set the dehumidifier down onto the bucket. The water level window in the bucket and the user interface buttons on the dehumidifier should be on the same side when properly stacked. Check to ensure the arrows on the unit and bucket are aligned as in Fig. 4c for proper operation.

Step 3

Plug the unit in and press the power button, and the unit is ready to run in normal (bucket) mode.

INSTALLATION INSTRUCTIONS

Positioning the Unit

The dehumidifier should be placed in the area where dehumidification is desired most. Adjacent rooms in which dehumidification is also desired should allow adequate airflow in and out of the space containing the dehumidifier.

Do not use outdoors.
This dehumidifier is intended for indoor residential applications only. This dehumidifier should not be used for commercial or industrial applications.
Place the dehumidifier on a smooth, level floor strong enough to support the unit with a full bucket of water.
Allow at least 8” of air space on all sides of the unit for air circulation (at least 16” for air outlet).
Place the unit in an area where the temperature will not fall below 41°F (5°C). The coils can become covered with frost at lower temperatures, which may reduce performance.
Place the unit away from any clothes dryer, heater, or radiator.
Close all doors, windows, and other openings to the outdoors in the room.

Additional Setup and Usage Information

Scan this QR code with your mobile device to see a playlist of helpful videos about your new Cube Dehumidifier.

OPERATING INSTRUCTIONS

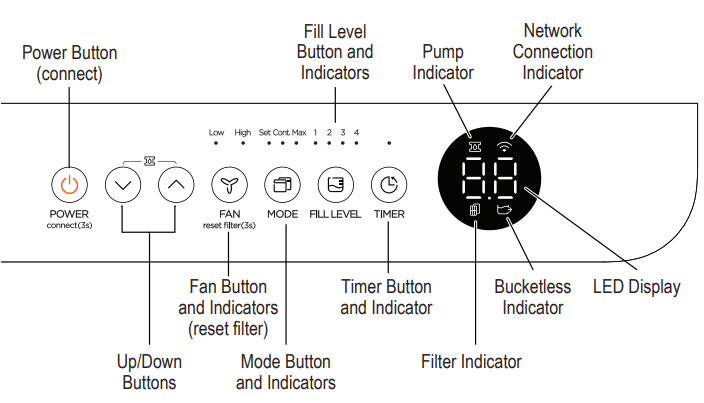

Key Pad Features

NOTICE

The appearance of the control panel on your unit may vary slightly. Functions will be similar.

Operating Instructions

When you push the button to change operation modes, the unit will make a beep sound to indicate that it is changing modes.

Power Button

Press this button to turn the unit on/Off.

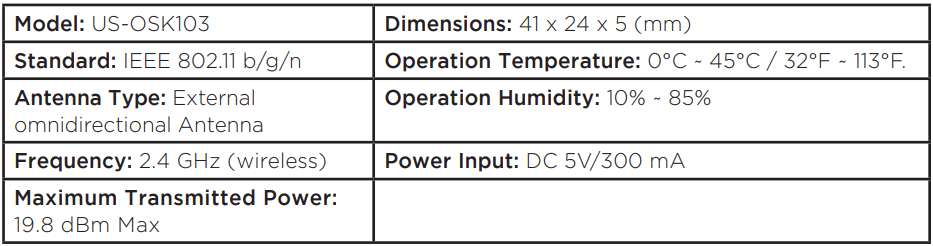

Connect

Holding the power button for 3 seconds will place the unit in network connection mode to set up wireless control.

Up/Down Buttons

Press these buttons to adjust the setpoint or to set the timer feature. Holding the Up and Down buttons for 3 seconds will activate pump mode if the bucket is in place (some models).

Fan Button

Press this button to change the fan speed between High and Low.

Filter Reset

To reset the change filter indicator, hold the fan button for 3 seconds.

Mode Button

Press this button to change the mode of the dehumidifier between Set mode, Max mode, and Continuous run mode.

Set – The dehumidifier runs until the humidity setpoint has been reached. The dehumidifier will begin running once the humidity rises above the setpoint again.
Max – The dehumidifier will run continuously on High Fan.
Continuous – The dehumidifier will run continuously, and the fan speed can be changed in this operating mode.

NOTICE

While operating in continuous and Max modes, the humidity setpoint cannot be adjusted manually.

Fill Level Button

Press this button to change the required water level before the bucket full switch activates. The options will fill approximately to the amounts shown in the table below:

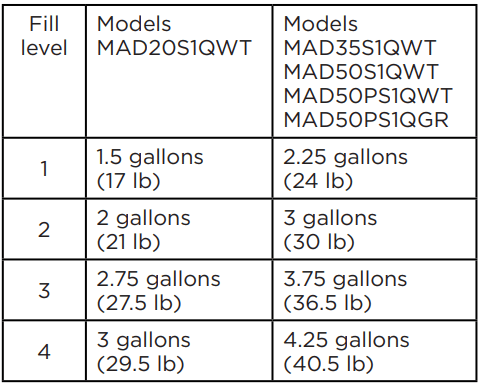

Choose the option that is most comfortable for you when emptying the bucket.

When the bucket is full, the Display will show P2.

The weights above are approximate weights of the bucket when filled with the corresponding volume of water.

NOTICE

For accurate fill levels, ensure the bucket is empty before beginning operation.

Timer Button

Press this button to activate the Timer function. The Timer LED will illuminate, indicating timer mode is being set. 0.0 will also appear on the display, indicating the number of hours from now until the timer function will initiate. When the timer function initiates, the unit will change its power state. For more information, see the Timer function under other features on the next page.

Bucketless mode

Bucketless mode allows you to run the unit without the bucket in place. The included drain hose or a garden hose must be attached for proper bucketless mode operation. To activate bucketless mode, the following steps must be completed within three minutes of plugging the dehumidifier in.

Press and hold the up and fill level buttons for 3 seconds until the bucketless icon appears on the display.
Ensure the dehumidifier is on flat level ground (free of debris).
Make sure the hose for bucketless mode does not rise above the connection point on the unit.
Attempting to change the unit into bucketless mode while it is sitting on the bucket will have no effect.

To remove the unit from bucketless mode, place the unit back on the bucket.

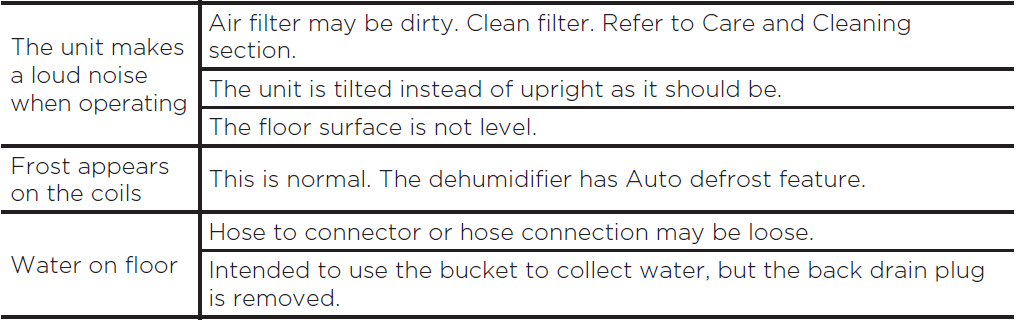

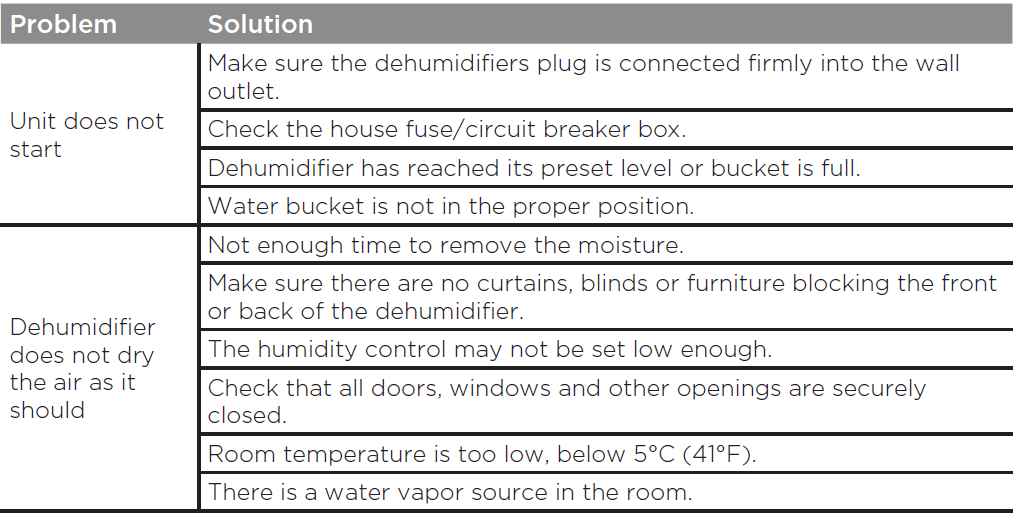

Error Codes and Protection Code

EH60 – Room temperature r sensor error–Unplug the unit and plug it back in. If the error repeats, call for service.
EH61 – Tube Temperature sensor of the evaporator error– Unplug the unit and plug it back in. If the error repeats, call for service.
EH0b – Display board and master control board communication error. Unplug the unit and plug it back in. If the error repeats, call for service.
P2 – The Bucket has reached the set Fill Level– Empty the bucket and place the unit in the bucket properly.
Eb – The Bucket is removed or not in the right position – Replace the bucket in the right position. (only available for the unit with the pump feature.)

Other Features

Auto Defrost

When frost builds up on the evaporator coils, the compressor will cycle off, and the Auto Defrost function will run automatically.

3-minute compressor operation delay protection

After the unit has stopped, it can not be restarted in the first 3 minutes to protect compressor operation. The unit will restart automatically after 3 minutes.

Auto-Restart

If the unit stops unexpectedly due to power being cut, it will restart with the previous function setting (except bucketless mode) automatically when the power resumes.

Timer Function

When activating the Timer function, you are setting the time until the unit changes its power state. This means, if the unit is on, activating the timer function will set the time until the unit turns off. If the unit is off, activating the timer function will set the time until the unit turns on.
The time can be set after pressing the timer button, then using the up or down buttons. These buttons will change the time in 0.5-hour increments up to 10 hours. After 10 hours, the time will change in 1-hour increments up to 24.
If an error code appears during this time, the timer function will be cancelled.

NOTICE

When first using the dehumidifier, operate the unit continuously for 24 hours. Make sure the plastic cover on the continuous drain hose outlet is installed properly so there are no leaks.
This unit is designed to operate in a working environment between 5°C/41°F and 35°C/95°F.
Make sure the water bucket is positioned correctly so that the unit can operate properly. When the water in the bucket reaches a certain level, please be careful while moving the unit to avoid spilling.

Removing Collected Water

There are three ways to remove collected water:

Emptying the bucket

When the bucket reaches the set Fill Level, the unit’s display will show P2 regardless of power status.

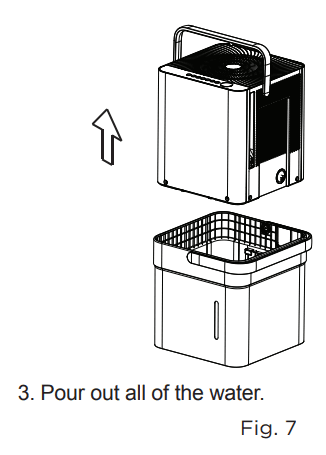

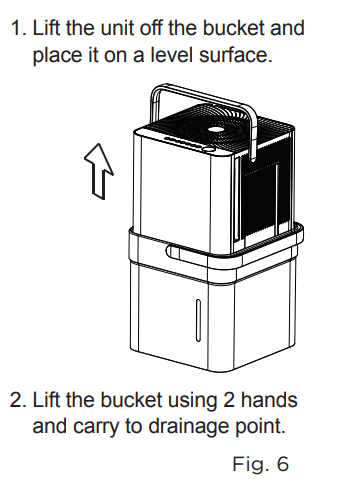

Using proper lifting techniques, remove the unit from the bucket. Be aware, some residual water may spill from the bottom of the unit while not on the bucket.
Using two hands, grab the bucket handle and carry it to the desired drainage point. Pouring from the front corner of the bucket (the bucket window is on the front side), empty the bucket. If pouring from the back of the bucket, some water may spill from the relief holes.
Return the bucket to the desired operating location and place the unit back on the bucket. Be sure the unit is aligned properly.

NOTICE

When you remove the unit from the bucket, do not set the unit on any electrical component, as the bottom may be wet.
Do not set the unit on an uneven surface after removing it from the bucket.
Ensure the unit is seated properly after returning it to the bucket.
If the unit is removed from the bucket during operation, the display will show the error code Eb and cease operation until returned to the bucket or changed to bucketless mode.

Continuous draining

Water can be automatically emptied from the unit into a sink or other type of drain using the included hose.

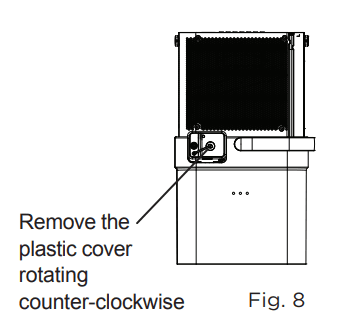

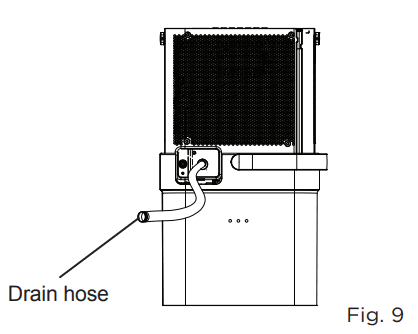

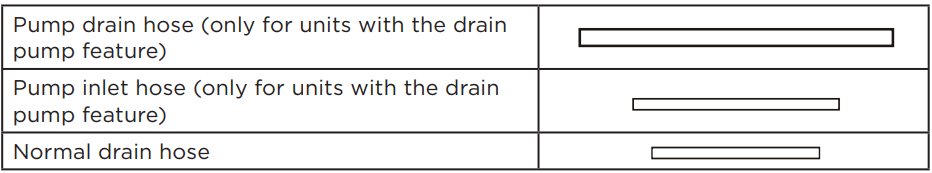

To install the hose, remove the drain cap from the rear of the unit and set it aside. Insert the included drain hose, or attach a garden hose to the drain outlet. Place the other end of the hose on or near the drain so that water will drain properly.
When removing the drain hose, some water may remain in the hose or the drain outlet. Be sure this water will not spill by drying the wet area before moving the unit.

NOTICE

When using the continuous draining feature, ensure the unit is placed above the sink or drain being used. This will ensure proper draining.

Pump draining (some models)

Water can be pumped from the unit into a sink or other type of drain by putting the unit in pump mode and attaching the included pump hose. Be sure to install both the inlet and outlet pump hoses as shown in the figures on the right.

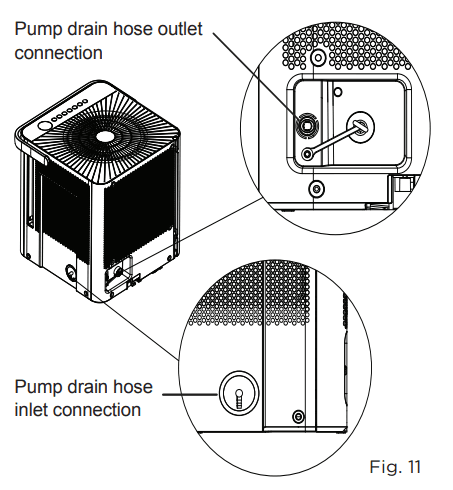

To install the pump hose, remove the plug from the pump drain hole and firmly attach the included pump hose as shown in Fig. 10.
Initiate pump mode by holding both the up and down arrows for three seconds.
The pump inlet hose must be placed in the bucket to pump the water out of the bucket.

NOTICE

The pump may generate a loud noise for the first 3~5 minutes of operation.

Make sure the hose is secure so there are no leaks.
Direct the hose toward the drain, making sure that there are no kinks that will stop the water from flowing.
Place the end of the hose into the drain.
Select the desired humidity setting and fan speed on the unit for the pump draining to start.
When operating in Bucketless mode, the pump cannot be used.

NOTICE

The pump operation light blinks when a failure occurs. Please turn off the unit and disconnect the power cord. Check the following items:

Cleaning the pump filter:
- Clean the pump filter following the instructions below.
Check if the drain hose is clean and free of debris.
Empty the water from the bucket.
Check the hose connection and the bucket for proper fitment. If the error persists, contact Customer Service.

NOTICE

If routing the drain hose outdoors, do not operate when the outdoor temperature is at or below 32°F (0°C) as the water will freeze, blocking the hose and causing the unit to stop.

Make sure to empty the bucket at least once a week when using the pump draining feature. When the pump draining feature is not being used, remove the pump drain hose from the outlet.

CARE AND CLEANING

Turn the dehumidifier off and disconnect the plug from the power source before cleaning.

Clean the Grill and Case

Use water and a mild detergent. Do not use bleach or abrasives.
Do not splash water directly onto the unit. Doing so may cause an electrical shock, cause the insulation to deteriorate, or cause the unit to rust.
The air intake and outlet may get dirty during operation; use a vacuum cleaner or brush to clean.

Clean the bucket

Every few weeks, clean the bucket thoroughly. Partially fill the bucket with clean water and mild detergent. Swish it around in the bucket, empty, and rinse.

NOTICE

Do not use a dishwasher to clean the bucket

Clean the air filters

To remove the filters, pull each filter outwards.
Wash the filters with clean water, then dry.
Reinstall each filter.
Reset the filter indicator light following the operating instructions on page 9.

CAUTION:

To avoid loss of performance or damage to the unit, do not operate the dehumidifier without the filters.

When not using the unit for long periods

Before storing the unit and bucket, let them rest for one full day so that the system can dry out naturally.
Clean the unit, water bucket, and air filters.

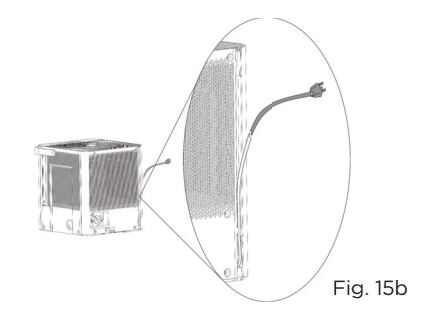

Ensure the power cord is in the power cord storage channel.
Nest the unit inside the bucket.
Cover the unit with a plastic bag.
Store the unit upright in a dry, well-ventilated area.
