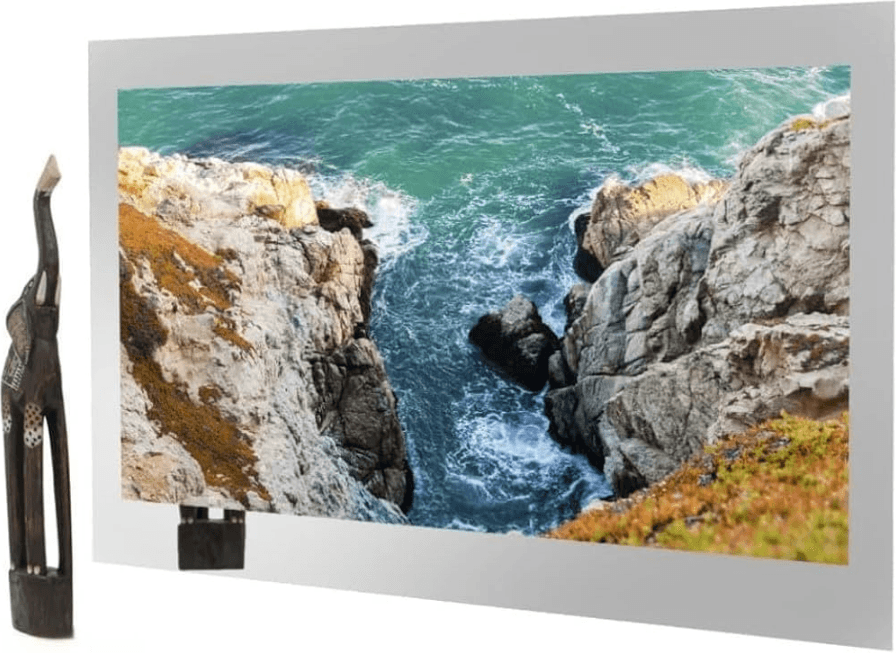

Parallel AV AVS550SM Waterproof Smart Mirror TV
Warnings
- To protect against electric shock, do not immerse the power cord, power plug, or product in water or other liquid.
- Do not overload AC outlets or extension cords. Overloading can cause a fire.
- Close supervision by adults is necessary when a product is used by or near children.
- Do not operate the product with a damaged cord or plug or if it has been damaged in any manner.
- Do not let the power cord come in contact with hot surfaces.
- If you notice any smoke or a scorched smell near the product, unplug the power cord and contact qualified personnel for service or repair.
- Do not use or place any combustible or flammable substances near the product.
- Do not use this product for anything other than its intended use.
- This product is intended for indoor use only.
- For added safety, during a light storm, or when this product is left unattended and unused for a long me, unplug it from the wall outlet and disconnect the antenna.
- Do not use detergents containing abrasives.

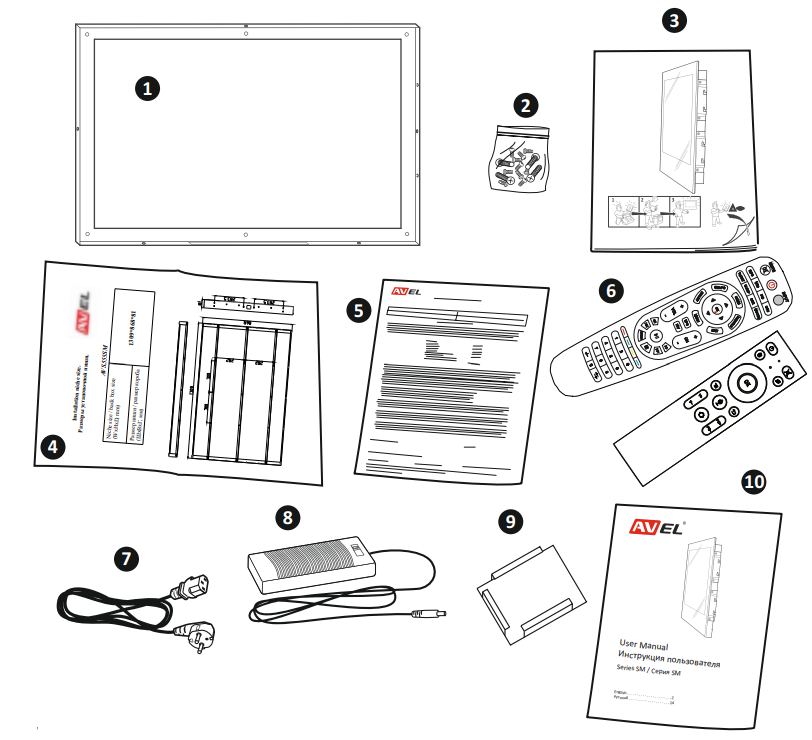

Accessories
Please make sure that the accessories are in the package as shown below:
- Mounng back box x 1 pcs.
- Mounng bolts set x 1 pcs.
- Installation manual x 1 pcs.
- Installation drawing x 1 pcs.
- Warranty service card x 1 pcs.
- Remote control x 2 pcs.
- Power cable x 1 pcs.
- Power adapter x 1 pcs.
- Waterproof remote control holder x 1 pcs.
- User manual x 1 pcs.

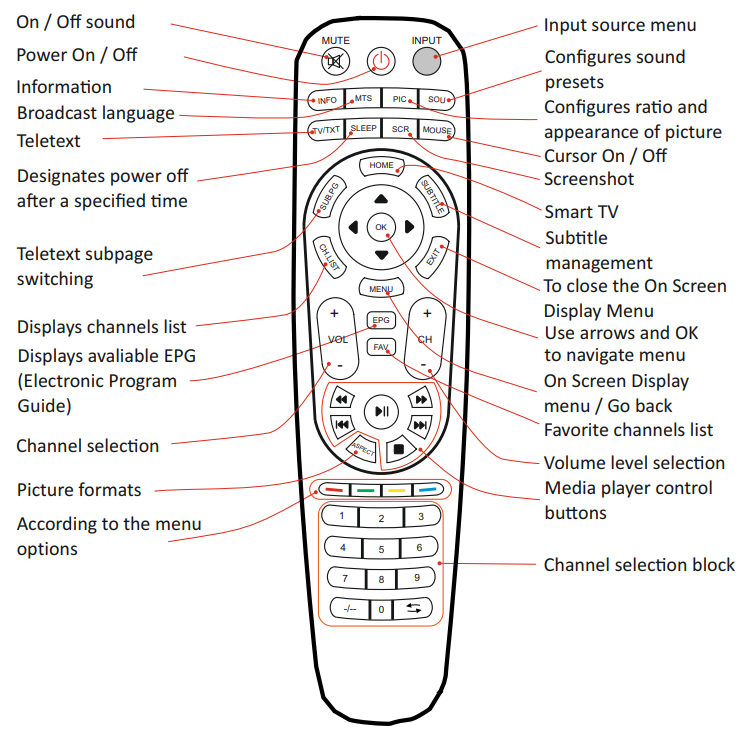

Remote control

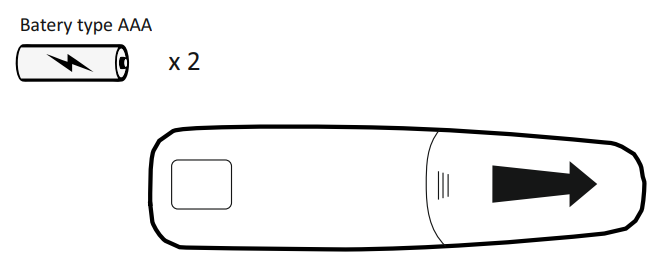

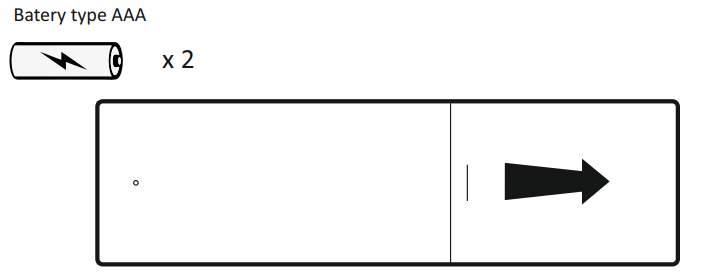

Battery replacement

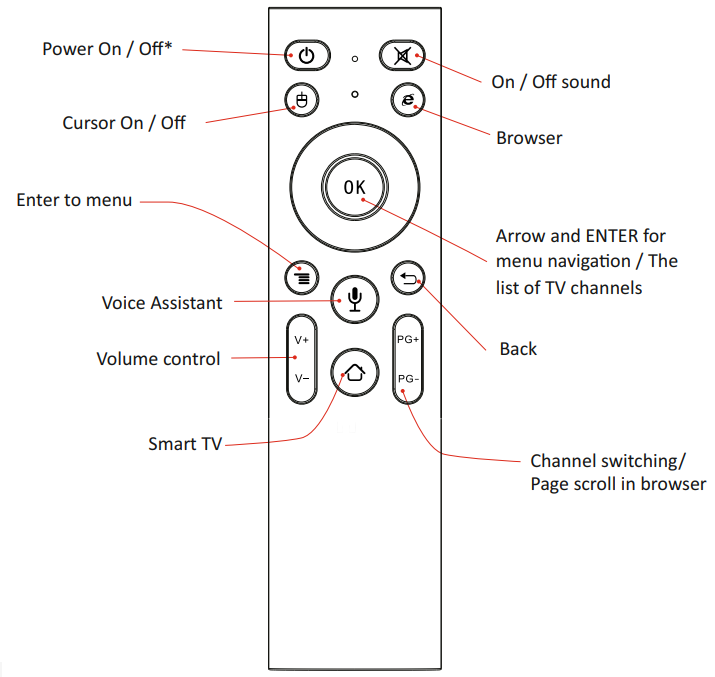

Bluetooth remote control for Smart TV
Battery replacement

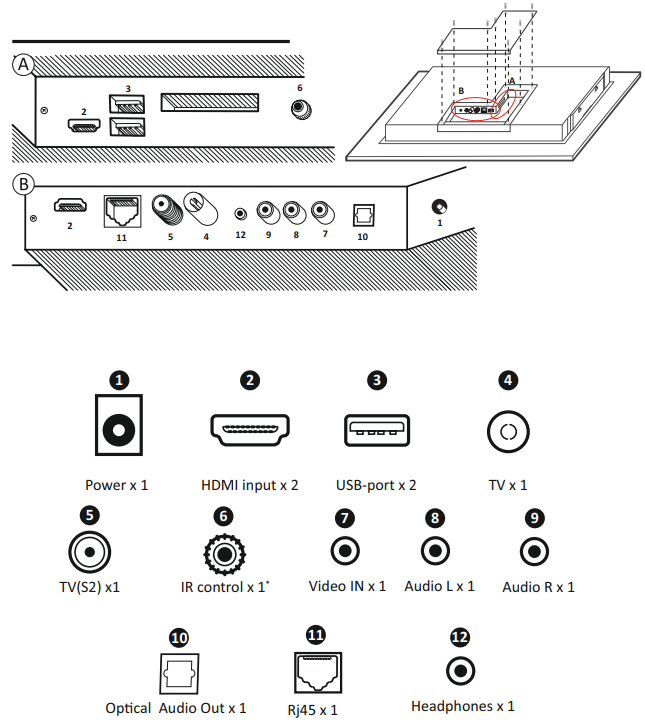

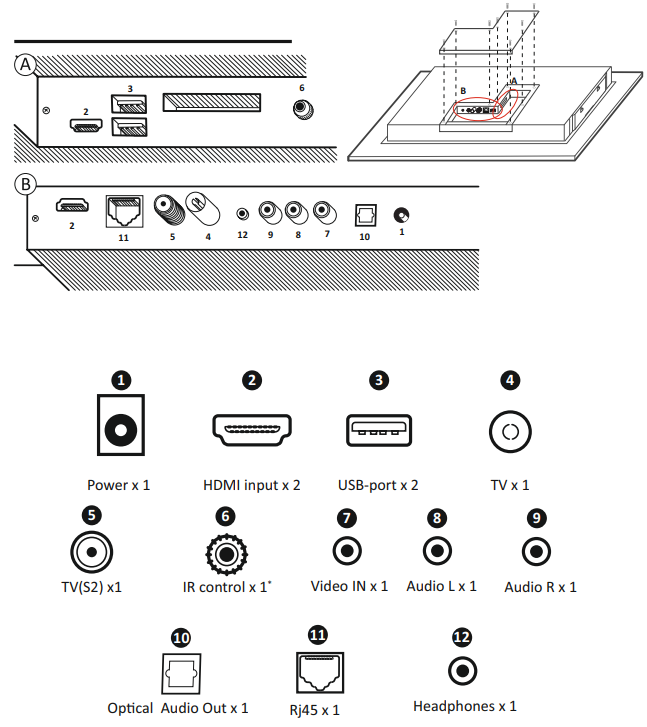

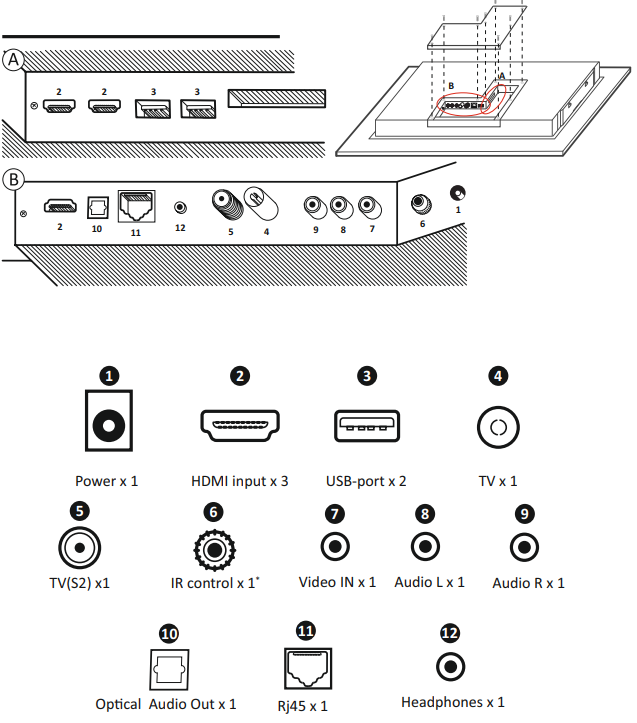

Inputs and Outputs
Settings
Source settings
- Push the button SOURCE.
- Choose from the menu by pressing the ARROW UP/DOWN the source you need.
- Push the ENTER key to confirm.
- . Push the button MENU to return to channel sensors.
Quick Menu
Choose any source (except Smart TV), press the MENU to go to common
settings.
Image settings
Use for changing brightness, color, noise reduction, and color temperature.
Sound settings
Use for equalizer sensors, automatic volume control, and surround sound effects.
Timer settings
Use for the senses and automatically switch off the TV.
Security settings
Use for password settings and block the sources
Menu settings
Use for additional settings and reset mode.
CEC settings
HDMI CEC allows controlling the unit via HDMI.
SMART TV
Smart TV launch
To launch Smart TV, press the button on the remote control.
Settings
In the settings menu, you can connect to the Wi-Fi, change the language, app parameters, set the d, date, and me and etc.
Network settings
Use for wireless and wired networks, for connecting accessories via Bluetooth.
Time settings
Use for song, date, and my zone.
Common settings
Use for setting language, desktop picture, app control, and other Smart TV parameters.
About device
Use for checking information about the device.
My APPs
Use for launching installed apps.
Apps installation
You can use the App Store or Google Play Store for the installation of new Apps.
Playing files from a USB memory card. To play content from a USB card, launch Media Player.
Searching the web pages
For searching web pages, use the Google Chrome browser.
Screen Mirroring
For connecting Android devices to the TV, launch Screen Mirroring.g
Returning to the TV mode
To return to the TV settings, please launch the Live TV app.

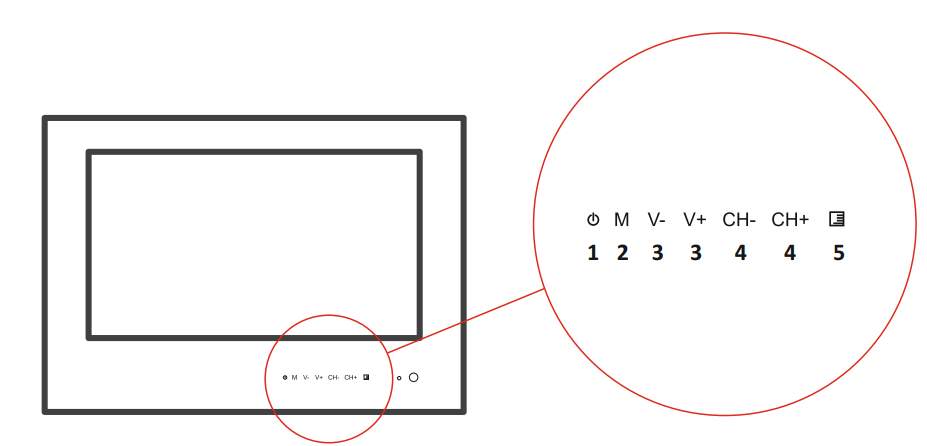

Panel buttons
- Power On/Off
- On-Screen Display menu
- Volume level selection
- Input source menu
- Channel selection
Troubleshooting
Symptoms: Blank screen
Possible Solution
Check the LED indicator. If the LED indicator is red, the TV is on standby. If the LED indicator is green, try to change the input/source. If the LED indicator is black. Check the power connection and the LED indicator on the power adapter.
The remote control doesn’t work.
Point the remote control at the TV and press the power button on the remote control. If the status LED becomes green, the remote control is OK. If not, replace the batteries in the remote control.
FOR MORE MANUALS BY PARALLEL AV, VISIT MANUALSLIBRARY
Parallel AV AVS550SM Waterproof Smart Mirror TV-FAQs
How does a Mirror TV work?
A Mirror TV functions as a regular mirror when turned off but transforms into a high-definition TV when powered on. It uses a special semi-transparent mirror overlay that allows the display to show through while maintaining reflectivity. Control it with a remote, just like a standard TV.
Can two TVs mirror the same content?
Yes! Use an HDMI splitter to connect both TVs to the same source, ensuring they display identical content simultaneously.
How do I enable screen mirroring on this TV?
For Android: Use Smart View or Google Cast.
For iPhone/iPad: Use AirPlay (if supported).
For Windows PC: Press Win + K and select the TV.
How do I clean the Mirror TV screen?
Use a microfiber cloth lightly dampened with water.
Avoid harsh chemicals or spraying water directly on the screen.
Do I need internet for screen mirroring?
No, but both devices must be on the same Wi-Fi network unless using direct casting (e.g., Chromecast or Miracast).
Are Mirror TVs good for bright rooms?
Yes! The tinted mirror surface reduces glare, making the display visible even in well-lit spaces.
What are the benefits of screen mirroring?
Wireless streaming from phones, tablets, or laptops.
Better presentations & entertainment without cables.
Can I screen mirror Netflix or Prime Video?
Netflix: Use the Cast button in the app.
Prime Video: Tap the Cast icon (Chromecast/Android TV).
Note: Some apps may block mirroring due to DRM restrictions.
Is this TV waterproof?
Yes! The AVS550SM is waterproof, making it ideal for bathrooms, pools, or outdoor areas.
Can I use a screen protector on this TV?
Yes, but ensure it’s anti-glare and compatible with touch functionality (if applicable).
