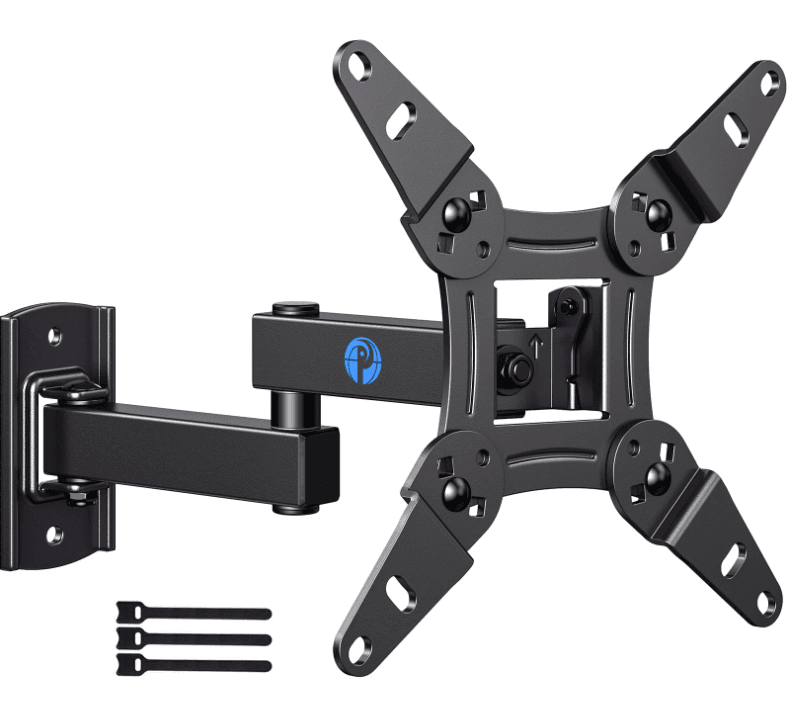

IMPORTANT SAFETY INFORMATION

NOTE

  • Please carefully read all instructions before attempting installation. If you do not understand the instructions or if you have any questions or concerns, please call technical support or email customer service.
  • Before starting assembly, check that all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please call technical support or email customer service.
  • Not all hardware included in this package will be used.
  • CAUTION
  • Avoid the risk of personal injury or property damage!
  • Do not use this product for any purpose that is NOT explicitly specifed in this manual. Do not exceed the maximum weight capacity. We are not liable for damage or injury caused by incorrect assembly, improper mounting, or inappropriate use.
  • WARNING
  • This product is designed for use in wood studs, solid concrete, and brick walls. DO NOT install on drywall alone.
  • The wall must be capable of supporting the weight of the TV and must be mounted four times.
  • This product contains small parts that may pose a choking hazard.

Before getting started, make sure this mount is compatible.

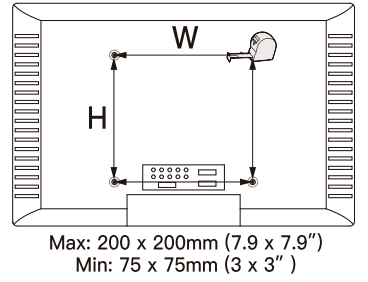

  1. VESA Pattern Compatibility
    • 75 × 75mm
    • 100 × 100mm
    • 100 x 200mm
    • 200 × 100mm
    • 200 × 200mmPipishell Full Motion TV Monitor Wall Mount Instructions Manual-2
  2. If the TV weighs more than 44 lbs (20kg), do not use this product.Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-3

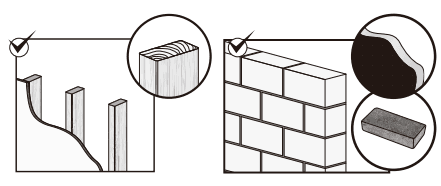

  3. Suitable for use in wood studs, solid concrete, or brick walls. DO NOT install on drywall alonePipishell Full Motion TV Monitor Wall Mount Instructions Manual-4

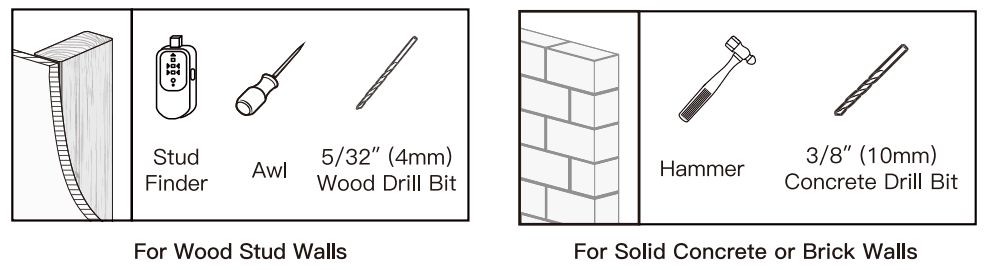

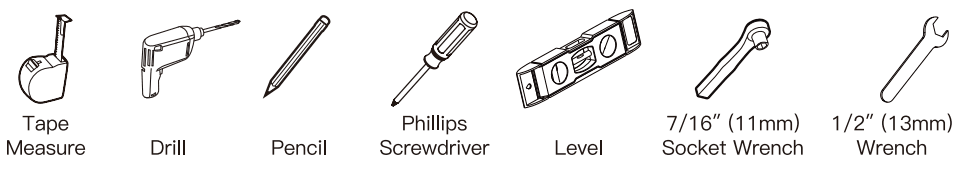

  4. Tools Needed (Not Included)Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-5Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-6

Supplied Parts and Hardware

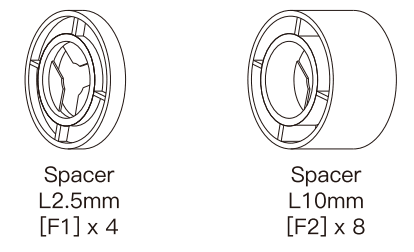

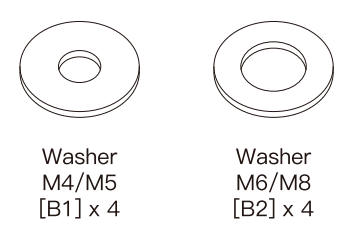

Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-7Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-8Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-9

  • TV Bolt M4 x 12mm [C1] x 4
  • TV Bolt M6 x 15mm [D1] x 4
  • TV Bolt M8 x 25mm [E1] x 4
  • TV Bolt M4 x 30mm [C2] x 4
  • TV Bolt M6 x 35mm [D2] x 4

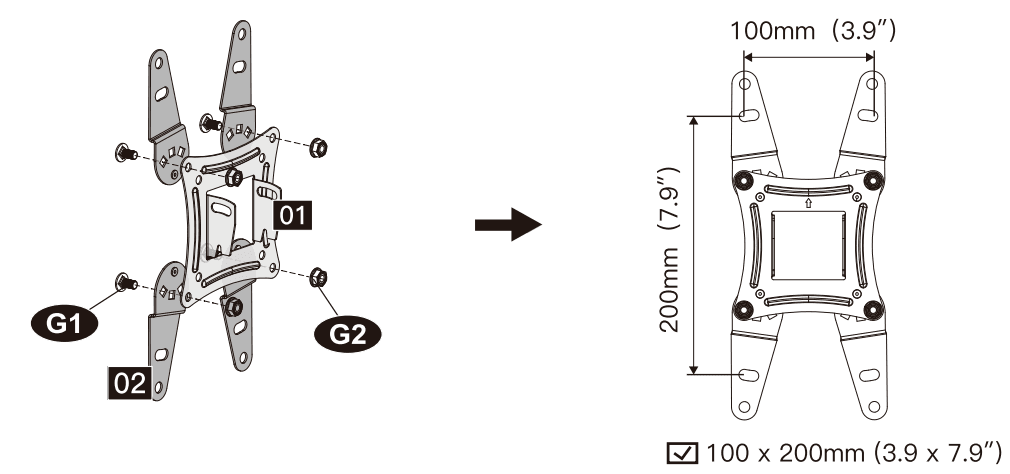

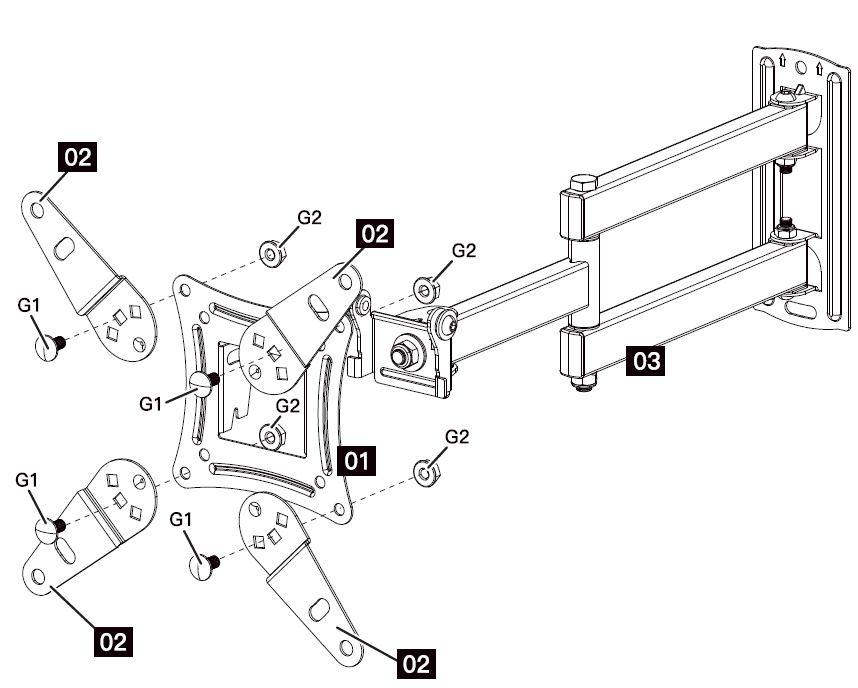

Step 1 Secure the Extender Brackets to the Faceplate (Optional)

Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-11

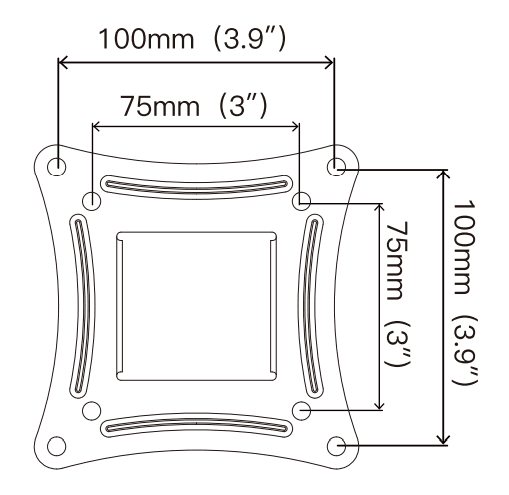

  • 75 x 75mm (3 X 3″)
  • 100 x100mm (3.9 X 3.9″)Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-12Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-13

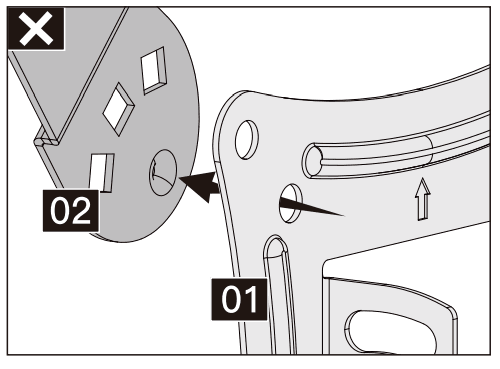

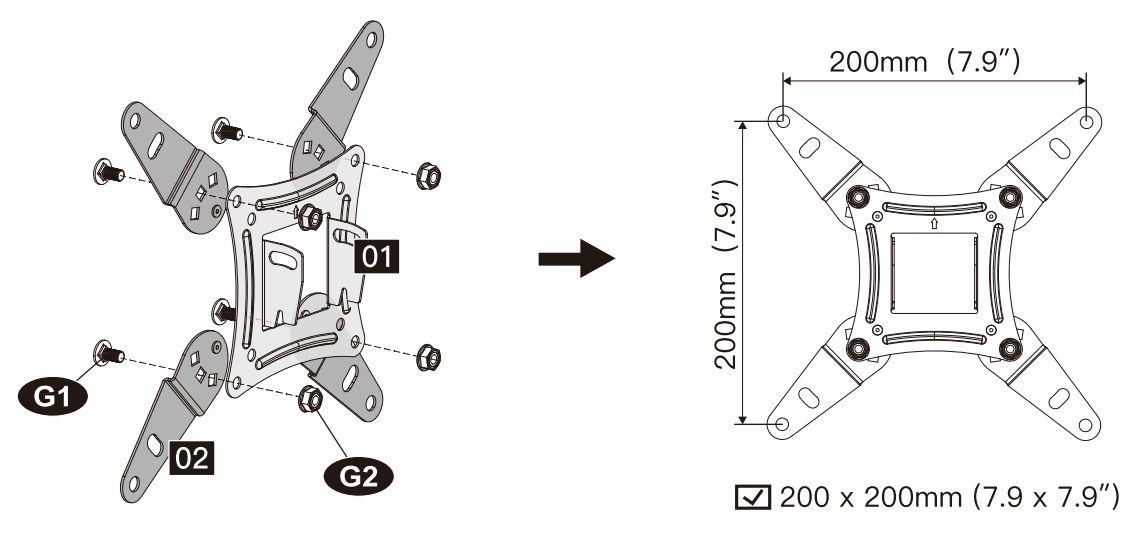

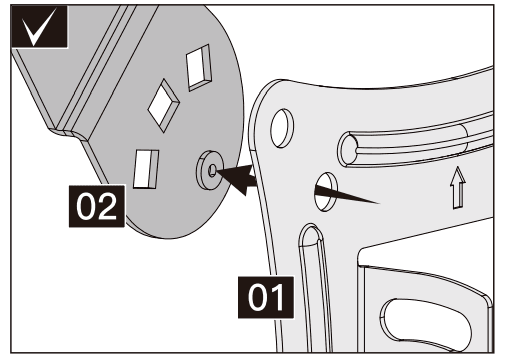

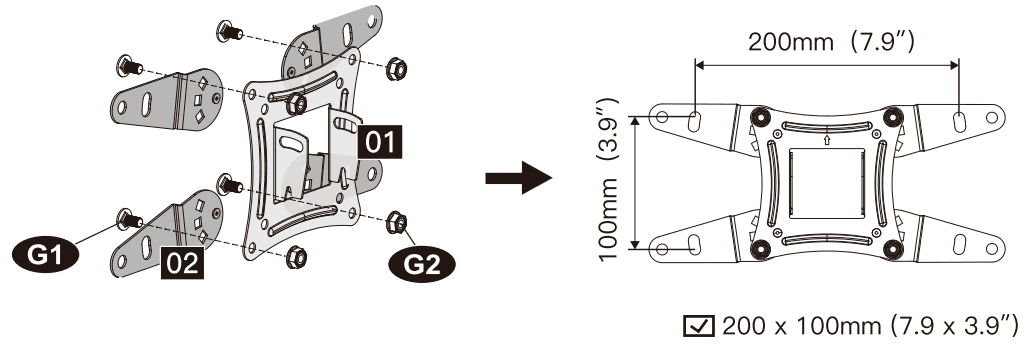

  • Please DO NOT fully tighten the bolts LG1/ and nuts LG2 until Step 2 is finished. The small bump on the extender bracket [02] should be aligned with the hole on the faceplate L01J.Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-14Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-15Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-18



Step 2 Secure the Faceplate with the Extender Brackets to the TV

2-1 Select TV Bolts

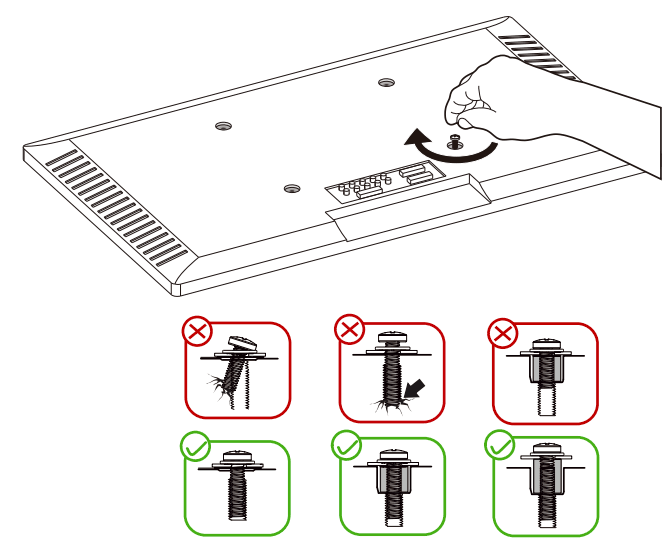

  • Hand thread bolts into the threaded inserts on the back of your TV to determine which bolt (M4, M6 or M8) to use. A minimum of 4-5 turns into the threading is required. Do not turn past the bottom of the hole.Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-17

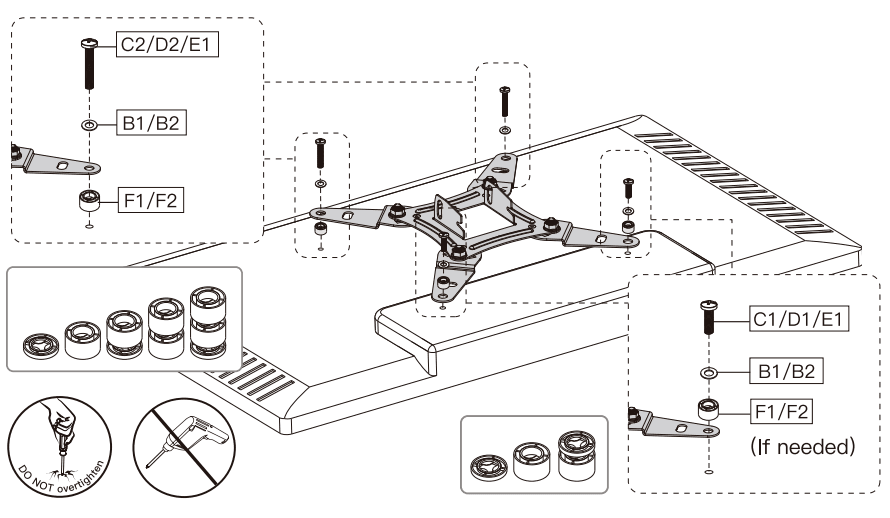

2-2 Spacer and Bolt Configurations

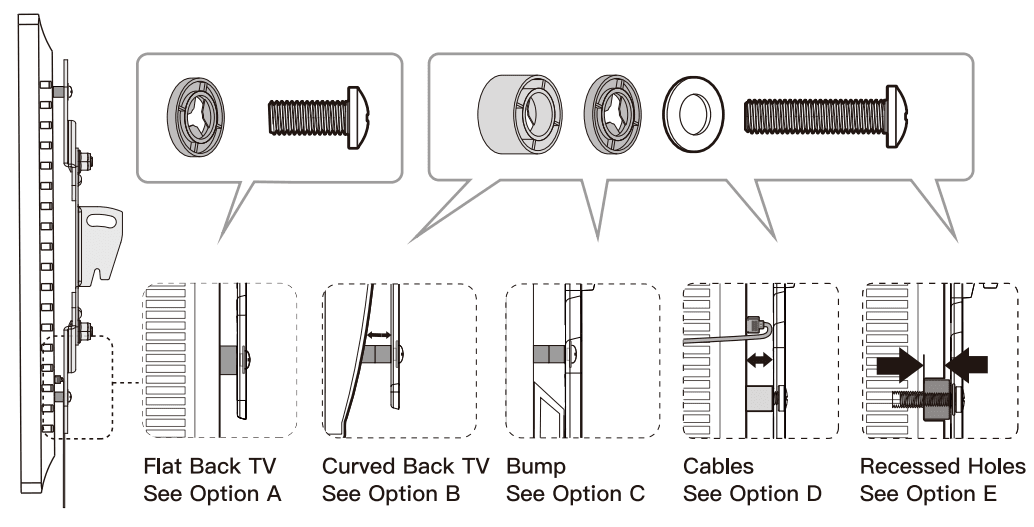

Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-19

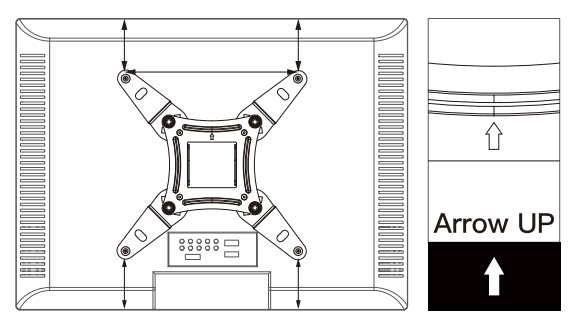

2-3 Attach the Faceplate with the Extender Brackets to Your TV

Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-20

Option A (For Flat Back TVs)

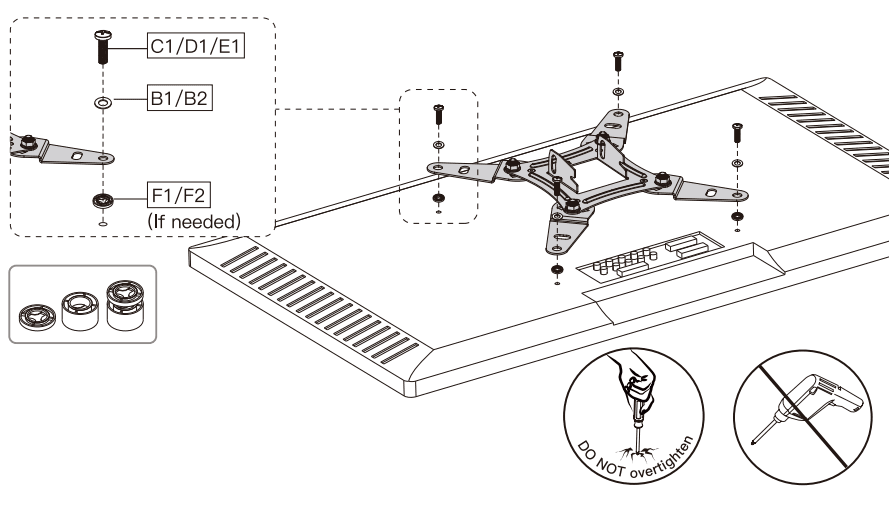

Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-21

  • Add spacers if needed to fit the bolt length and TV back.

Option B (For Curved Back TVs)

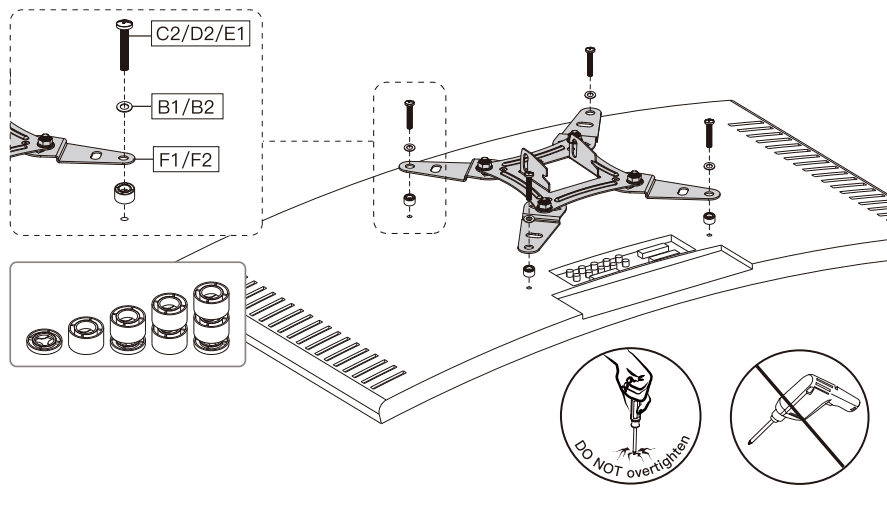

Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-22

  • Spacers must be tall enough so that the curved back of the TV does not interfere with the mounting plate

Option C (For TVs with a Bump)

Pipishell Full Motion TV Monitor Wall Mount Instructions Manual-23
