Razer Naga Pro Wireless Gaming Mouse User Guide

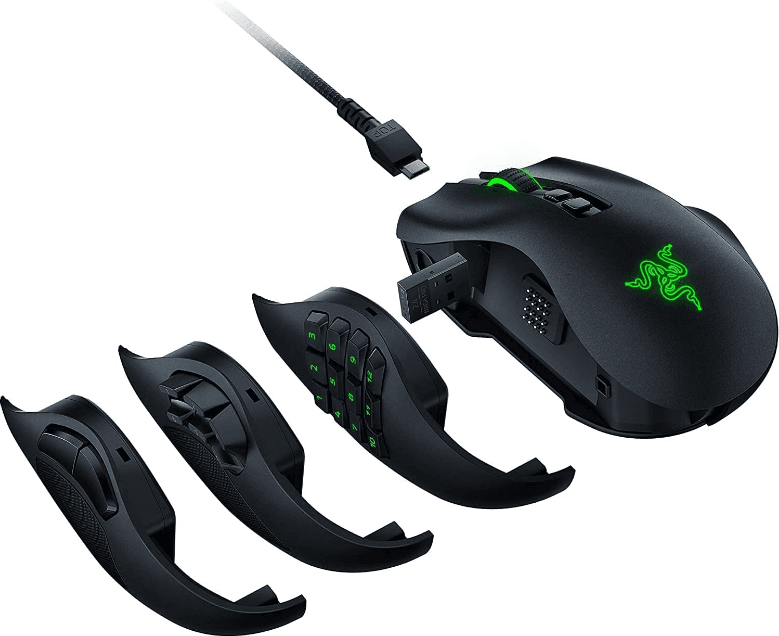

Razer Naga Pro Wireless Gaming Mouse

WHAT’S INSIDE / WHAT’S NEEDED

WHAT’S INSIDE

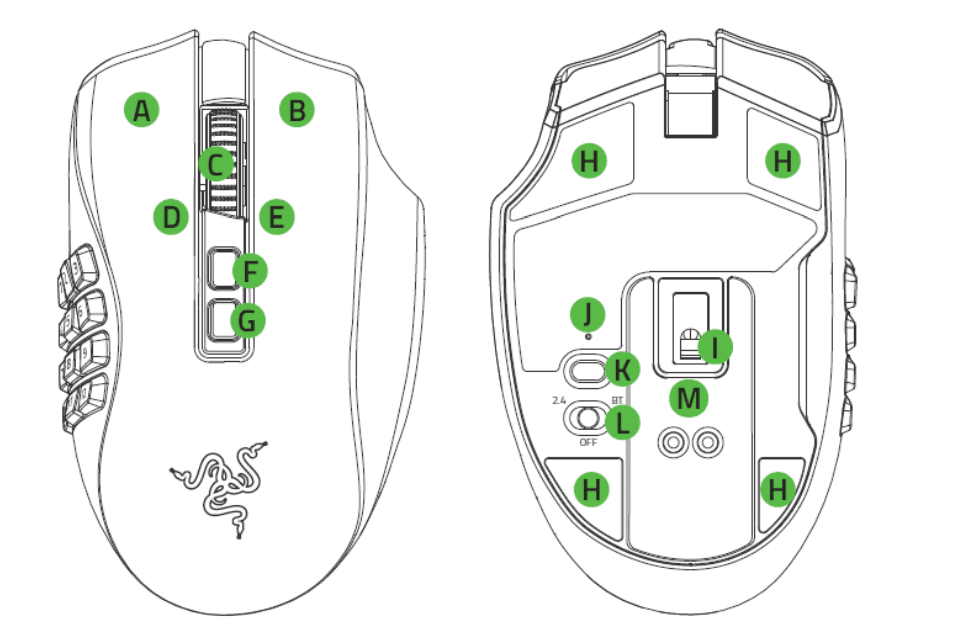

• Razer Naga Pro
• A. Left mouse button
• B. Right mouse button
• C. Scroll wheel
• D. Left tilt-click
• E. Right tilt-click
• F. DPI stage up
• G. DPI stage down
• H. Ultraslick mouse feet
• I. Razer™ Focus+ 20K DPI Optical Sensor
• J. Profile indicator
• K. Profile button
• L. Slider switch
  • Razer™ HyperSpeed Wireless (2.4 GHz) mode
  • Power off mode
  • Bluetooth mode
• Mouse Dock Chroma connector (Mouse Dock Chroma sold separately)

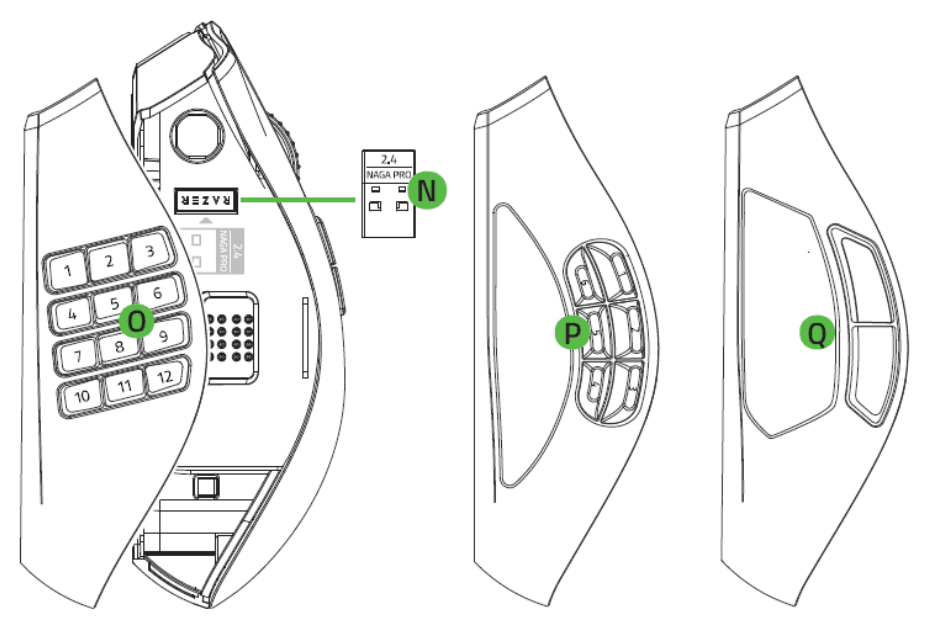

• N. Wireless USB dongle
• 0. 12-button side plate (recommended for MMOs)
• P. 6-button side plate (recommended for battle royales)
• Q. 2-button side plate (recommended for general use)

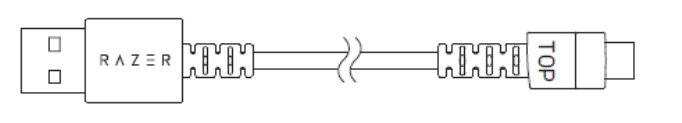

•  Razer™ Speedflex charging cable
• USB dongle adapter
• Important Product Information Guide

The DPI stages are 400, 800, 1600 (default), 3200, and 6400. They can be customized using Razer Synapse.

WHAT’S NEEDED

PRODUCT REQUIREMENTS

• PC with a free USB port or Bluetooth 5.0 connectivity

RAZER SYNAPSE REQUIREMENTS

• Windows® 7 64-bit (or higher)
• Internet connection for software installation

LET’S GET YOU COVERED

You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

• True 20,000 DPI Focus+ optical sensor with 99.6% resolution accuracy
• Up to 650 inches per second (IPS) / 50 G acceleration
• Advanced Lift-off/Landing distance customization
• Razer™ Optical Mouse Switches rated for 70M clicks (M1/M2 only)
• Dual wireless – HyperSpeed (2.4GHz) and BLE
• 3 interchangeable side panels with 2, 6, and 12-button configurations
• (1941) programmable buttons (with 12-button panel)
• 100% PTFE mouse feet (0.8 mm thick)
• Ergonomic right-handed design with textured side-grips.
• Gaming-grade tactile scroll wheel with infinitely customizable resistance
• On-The-Fly Sensitivity Adjustment (Default stages: 400/800/1600/3200/6400)
• Advanced on-board memory (4+1 profiles)
• Razer Synapse 3 enabled
• Powered by Razer Chroma™ RGB with true 16.8 million customizable color options
• Inter-device color synchronization
• 18m 6 ft Speedflex cable for charging and wired use
• Razer Mouse charging dock compatible
• Battery life: Approximately 100 hours with HyperSpeed wireless, 150 hours with BLE (estimates without lighting, battery life depends on usage settings)

APPROXIMATE SIZE & WEIGHT

GAMING MOUSE

• Length: 119mm /469in
• Width: 745mm /2.93in
• Height: 43mm / 169 in
• Weight”: 117g/0257 Ibs “With 12-button side plate, excluding cable and dong)

WEIGHT (SIDE PLATES)

• 12-button: 22 g/ 0.049 Ibs
• 6-button: 19g / 0.042 Ibs
• 2-button: 17g/0.037 Ibs

GETTING STARTED

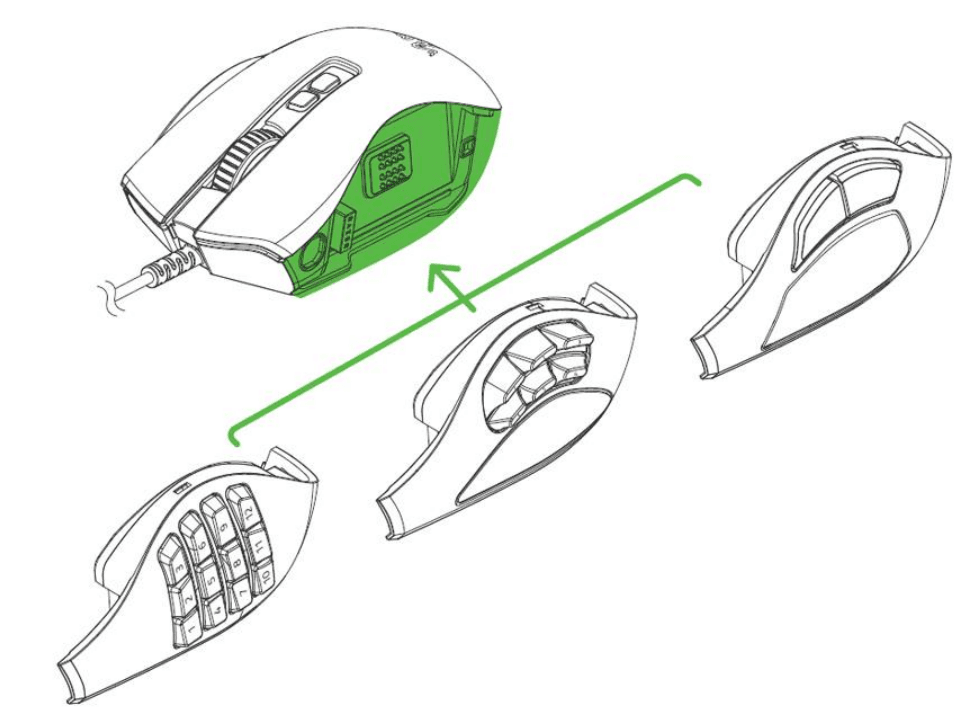

CHANGING THE SIDE PLATE

Pull from the bottom of the side plate to remove, and then replace it with the preferred side plate. It’s recommended that you unplug the mouse first before changing the side plates.

To customize each side plate’s button assignments, please install Razer Synapse. These side plates are designed for the Razer Naga Pro only. Don’t use side plates from the Razer Naga Trinity, and vice versa.

CHARGING YOUR MOUSE

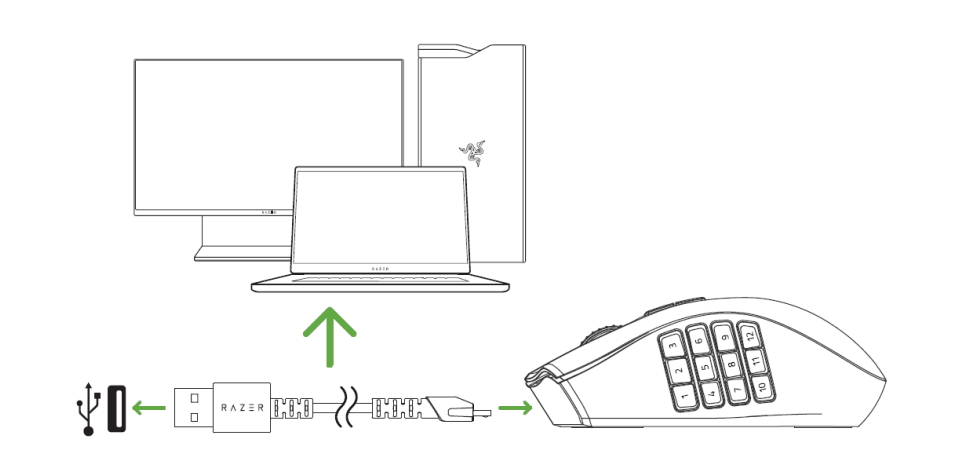

Plug the charging cable from your computer’s USB port to your Razer Naga Pro. For best results, please fully charge the mouse before using it for the first time. A depleted battery will be fully charged in approximately 4 hours. This connection also acts as the wired mode for your Razer device.

The Razer Naga Pro requires a USB connection that can supply sufficient power to charge the device. The charging process may be affected when connecting to a non-powered USB hub or non-powered USB mostly found on keyboards and peripherals. It’s recommended to always connect the Razer Naga Pro directly to the USB port of your computer.

LOW POWER INDICATOR

The scroll wheel will blink red twice in repeated intervals to indicate that its battery power is less than 5%. This lighting sequence will repeat until the battery is drained or the mouse is connected to the PC via the charging cable.

CONNECTING YOUR MOUSE

Via Razer™ HyperSpeed Wireless (2.4 GHz) Mode

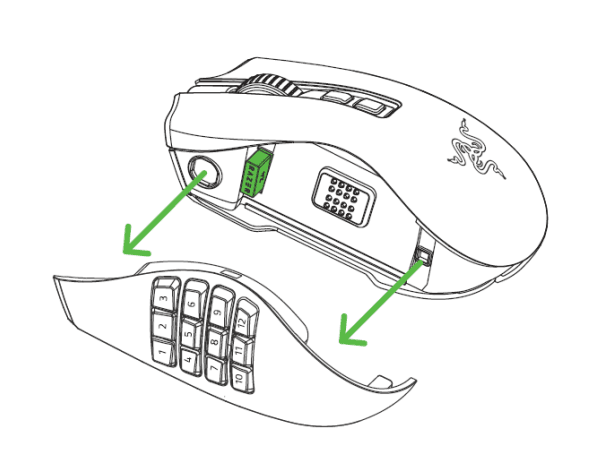

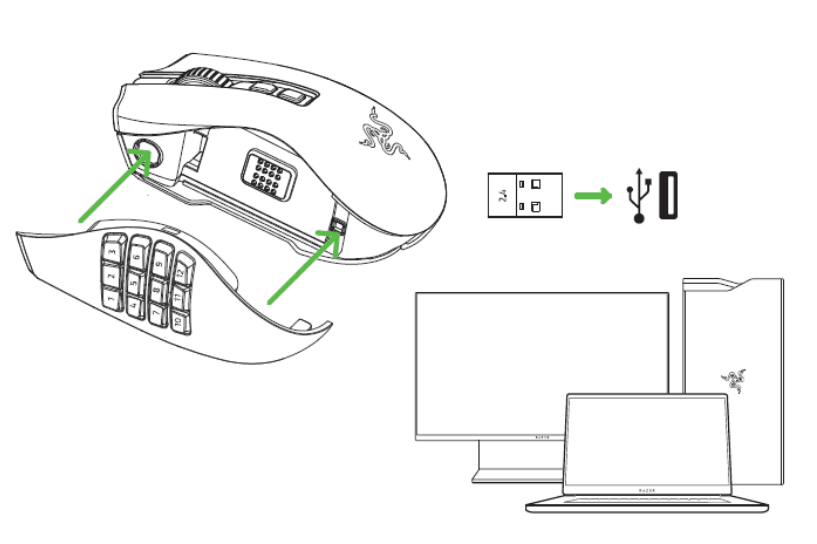

1. Remove the attached side plate from the mouse to remove the wireless USB dongle.
2. Reattach the side plate and insert the wireless USB dongle into the USB port of your PC.

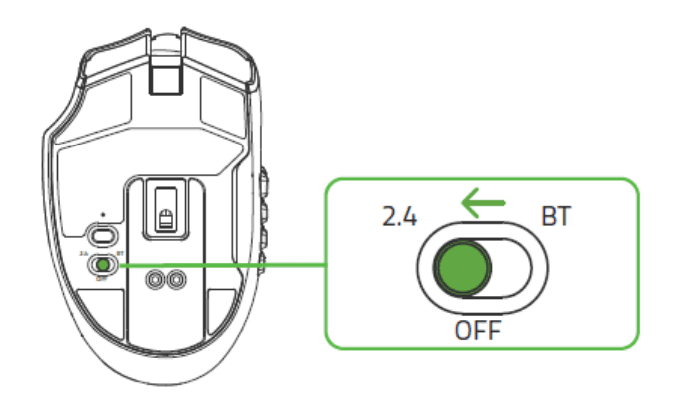

3. Push the slider switch to Razer™ HyperSpeed Wireless (2.4 GHz) mode.
   Your Razer Naga Pro is now ready for use in wireless mode.

Via Bluetooth Mode

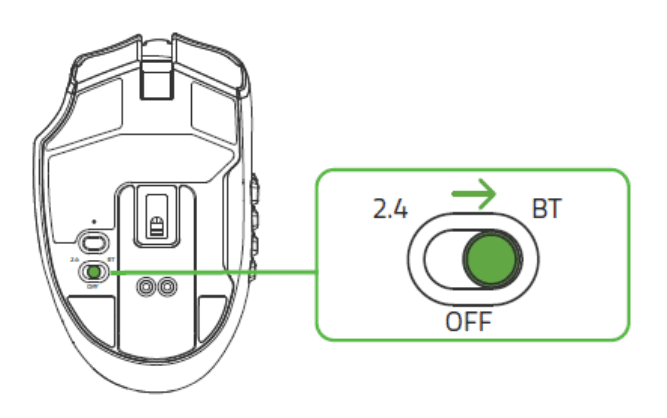

1. Push the slider switch to Bluetooth mode.

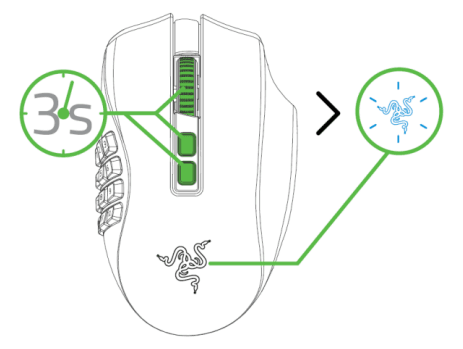

2. Press and hold the scroll wheel, DPI stage up, and DPI stage down buttons simultaneously for three seconds to activate pairing mode. The Razer logo will blink twice in repeated intervals to show that the device is in pairing mode.
3. Activate Bluetooth on your device, search for new Bluetooth devices, and select Razer Naga Pro from the list of devices found.

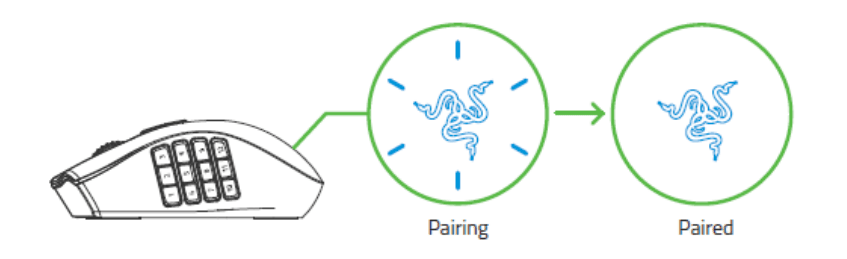

4. Wait until the mouse pairs with your device. When paired, the Razer logo will briefly turn static blue before displaying its current lighting effect.

Once paired, your Razer Naga Pro will automatically reconnect to your device whenever in Bluetooth mode and within range. Keep the pairing devices within close proximity of each other for faster and more stable connections.

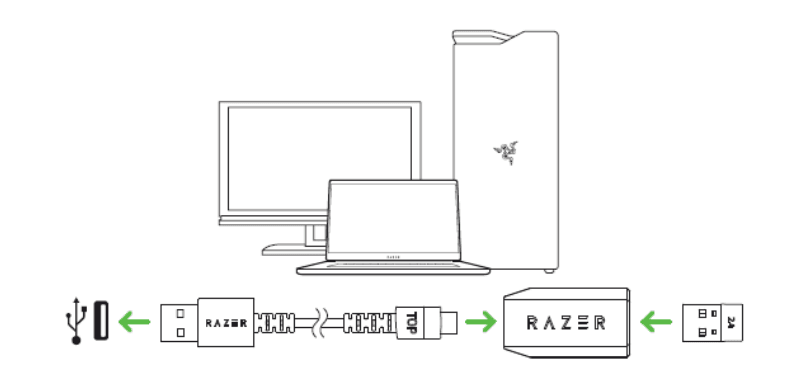

USING THE WIRELESS USB DONGLE ADAPTER

Use the USB dongle adapter to easily access and extend the reach of your wireless USB dongle.

PERSONALIZING YOUR MOUSE

Use the Razer Synapse app to customize your mouse’s lighting, configure its buttons, and even create various profiles suited for different playstyles. Learn more about stored profiles.

Install Razer Synapse when prompted or download the installer from razer.com/synapse

CONFIGURING YOUR RAZER NAGA PRO

An internet connection is required for installation, updates, and cloud-based features. Registering for a Razer ID account is recommended, but optional. All listed features are subject to change based on the current software version, connected device(s), and supported apps and software.

SYNAPSE TAB

The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab.

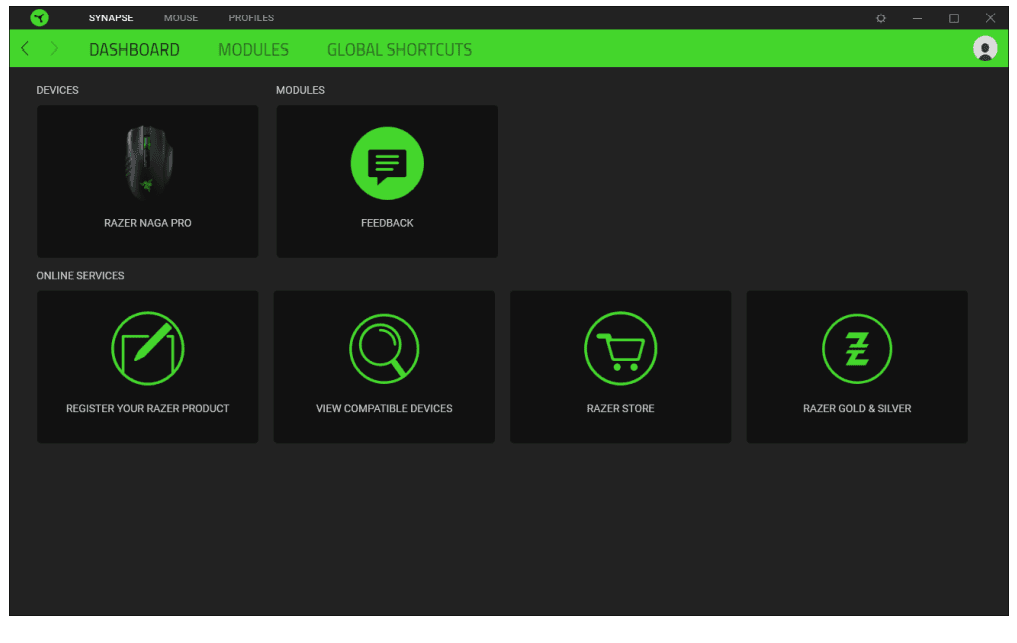

Dashboard

The Dashboard subtab is an overview of your Razer Synapse, where you can access all your Razer devices, modules, and online services.

Modules

The Modules subtab displays all installed and available modules for installation.

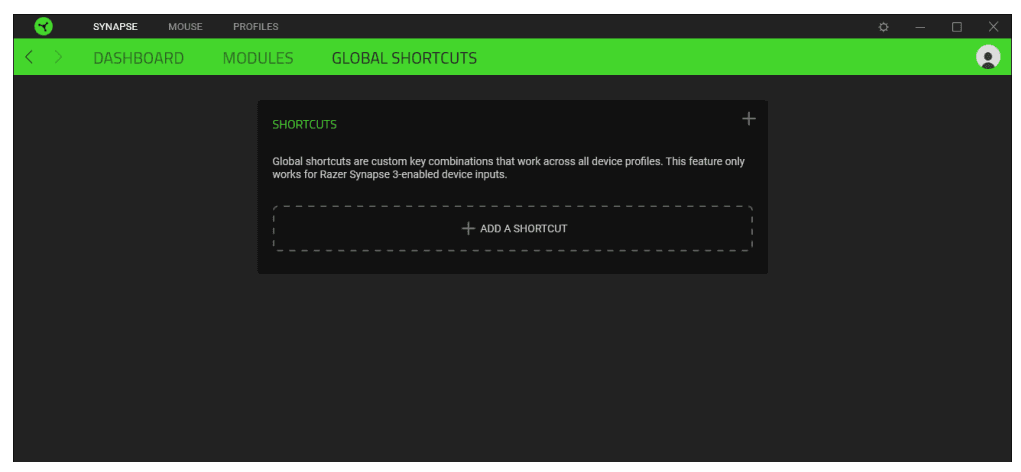

Global Shortcuts

Bind operations or Razer Synapse functions to custom key combinations from any Razer Synapse-enabled device inputs, which apply across all device profiles. Learn more about Profiles

• Only Razer Synapse-enabled device inputs will be recognized.

MOUSE TAB

The Mouse tab is the main tab for your Razer Naga Pro. From here, you can change your device’s settings such as button assignment, DPI sensitivity, and lighting. Changes made under this tab are automatically saved to your system and cloud storage.

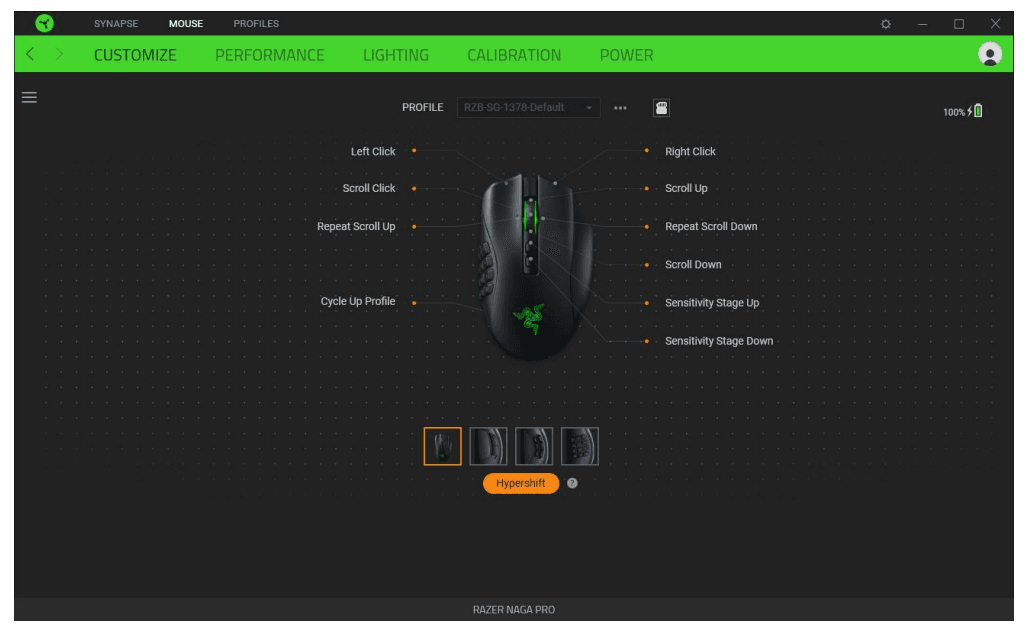

Customize

The Customize subtab is for modifying your mouse’s button assignments.

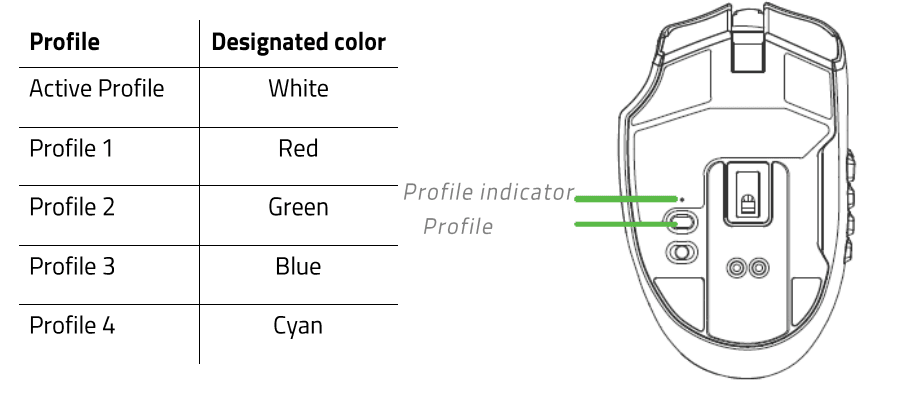

Profile

Profile is a data storage for keeping all your Razer peripherals’ settings. By default, the profile name is based on your system’s name. To add, rename, duplicate, or delete a profile, simply press the Miscellaneous button.

Stored Profiles

Your Razer Naga Pro can store up to 5 profiles from the Razer Synapse app, allowing you to use these profiles even on systems without the app installed. Pressing the profile button will cycle through the different profiles, with the profile indicator’s color showing which profile is currently selected.To assign a profile to any of the available on-board memory slots, click the On-board Profiles button and drag the profile that you want to assign to the preferred memory slot.

Hypershift

Hypershift mode is a secondary set of button assignments that is activated when the Hypershift key is held down. By default, the Hypershift key is assigned to the fn key of your Razer Synapse-supported keyboard however, you can also assign any mouse button as a Hypershift key.

Sidebar

Clicking the Sidebar button will reveal all current button assignments for your Razer Naga Pro.

Alternatively, you can skip to a specific button assignment by selecting it on the Customize tab.

Upon selecting a button assignment, you may then change it to one of the following functions:

Default

This option enables you to return the mouse button to its original setting.

Keyboard Function

This option changes the button assignment into a keyboard function. You can also choose to enable Turbo mode, which allows you to emulate a repeated keyboard function while the button is held down.

Mouse Function

This option substitutes the current button assignment for another mouse function. Listed below are the functions that you can choose from:

• Left Click – Performs a left mouse click using the assigned button.
• Right Click – Performs a right mouse click using the assigned button.
• Scroll Click – Activates the universal scrolling function.
• Double Click- Performs a double left click using the assigned button.
• Mouse Button 4- Performs a “Backward” command for most internet browsers.
• Mouse Button 5 – Performs a “Forward” command for most internet browsers.
• Scroll Up – Performs a “Scroll Up” command using the assigned button.
• Scroll Down – Performs a “Scroll Down” command using the assigned button.
• Scroll Left – Performs a “Scroll Left” command using the assigned button.
• Scroll Right – Performs a “Scroll Right” command using the assigned button.

You can also choose to enable Turbo mode in some of the mouse functions, which allows you to repeatedly pressing and release said function while the button is held down.

sensitivity

This function allows you to manipulate the DPI setting of your Razer Naga Pro with a touch of a button. Listed below are the Sensitivity options and their descriptions

• Sensitivity Clutch – Changes the sensitivity to a predefined DPI while the designated button is held down. Releasing the button will return it to the previous sensitivity.
• Sensitivity Stage Up – Increases the current sensitivity by one stage.
• Sensitivity Stage Down – Decreases the current sensitivity by one stage.
• On-The-Fly Sensitivity – Pressing the designated button and moving the scroll wheel either up or down will increase or decrease the current DPI, respectively
• Cycle Up Sensitivity Stages – Increases the current sensitivity stage by one. Once it reaches the highest sensitivity stage, it will return to stage 1 when the button is pressed again
• Cycle Down Sensitivity Stages – Decreases the current sensitivity stage by one. Once it reaches stage 1, it will return to the highest sensitivity stage when the button is pressed again. Learn more about Sensitivity Stages

Macro

A Macro is a prerecorded sequence of keystrokes and button presses that is executed with precise timing. By setting the button function to Macro, you can conveniently execute a chain of commands. This function will only be visible when the Macro module is installed.

Inter-device

Inter-device allows you to change the functionality of other Razer Synapse-enabled devices. Some of these functionalities are device-specific, such as using your Razer gaming keyboard to change the Sensitivity Stage of your Razer gaming mouse.

Switch Profile

Switch Profile enables you to quickly change profiles and load a new set of button assignments. An on-screen notification will appear whenever you switch profiles.

Switch Lighting

Switch Lighting allows you to easily switch between all advanced lighting effects. This function will only be visible when the Chroma Studio module is installed.

Razer Hypershift

Setting the button to Razer Hypershift will allow you to activate Hypershift mode as long as the button is held down.

Launch Program

Launch Program enables you to open an app or a website using the assigned button. When you select Launch Program, two choices will appear, which require you to search for a specific app you want to open, or write the address of the website you want to visit.

Multimedia

This option allows you to assign multimedia controls to your Razer device. Listed below are the multimedia controls you can choose from:

• Volume Down- Decreases the audio output.
• Volume Up- Increases the audio output.
• Mute Volume – Mutes the audio.
• Mic Volume Up – Increases the microphone volume.
• Mic Volume Down – Decreases the microphone volume.
• Mute Mic- Mutes the microphone.
• Mute All- Mutes both the microphone and audio output
• Play/Pause – Play, pause, or resume playback of the current media
• Previous Track – Play the previous media track,
• Next Track – Play the next media track.

Windows Shortcuts

This option allows you to assign your preferred button to a Windows Operating System shortcut command. For more information, please visit: support.microsoft.com/kh/126449

Text Function

Text Function enables you to type a prewritten text with a touch of a button. Simply write your desired text in the given field, and your text will be typed whenever the assigned button is pressed. This function has full Unicode support, and you can also insert special symbols from character maps.

Disable

This option renders the assigned button unusable. Use Disable if you do not want to use the selected button or if it interferes with your gaming.

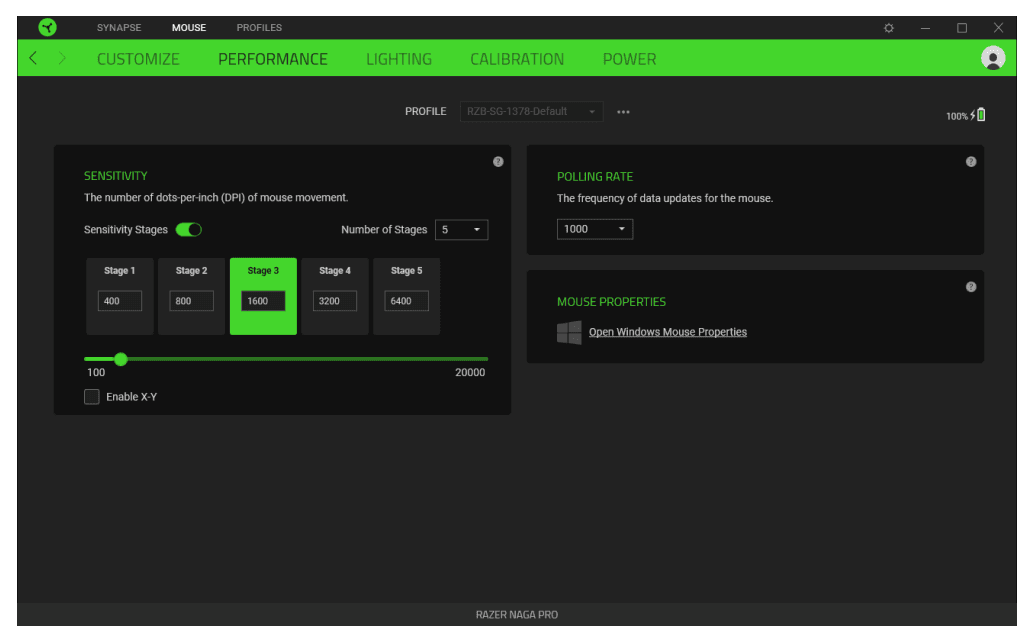

Performance

The Performance subtab allows you to modify the sensitivity, acceleration, and polling rate.

Sensitivity

Sensitivity refers to the distance the cursor will travel based on how far the mouse moves. The higher the DPI, the farther the cursor will travel given the same distance of mouse movement. A sensitivity stage is a preset sensitivity value. You can create up to 5 different sensitivity stages, which you can cycle through using the sensitivity stage up/down buttons. You may use the Enable X-Y Sensitivity concurrently with this option.

Enable X-Y Sensitivity

By default, the X-axis (horizontal) and Y-axis (vertical) use the same sensitivity values. However, you may set different sensitivity values to each of the axes by selecting the Enable X-Y Sensitivity option.

Polling Rate

The higher the polling rate, the more often the computer receives information about the status of your mouse, thus increasing the mouse pointer’s reaction time. You can switch between 125Hz (8ms), 500Hz (2ms) and 1000Hz (1ms) by selecting your desired polling rate on the dropdown menu.

Mouse Properties

From here, you can access the Windows Mouse Properties, where you modify the operating system settings that can directly affect your Razer Naga Pro.

Lighting
The Lighting subtab enables you to modify your Razer device’s light settings.

Brightness

You can turn off your Razer device’s lighting by toggling the Brightness option or increasing/decreasing the luminance using the slider.

Switch Off Lighting

This is a power-saving tool that allows you to disable your device’s lighting in response to your system’s display turning off and/or automatically power down when your Razer Naga Pro has been idle for a set amount of time.

Effects

A number of effects can be selected and applied to your mouse’s lighting, as listed here:

	Name	Description	How to set up
	Audio meter	The LEDs will light up according to the audio level, with a default spectrum of colors	Select a Color Boost level
	Breathing	The lighting will fade in and out of the selected color(s)	Select up to 2 colors or randomize colors
	Reactive	The LEDs will light up when you Click any of the mouse buttons.	Select a color and a duration
	Spectrum Cycling	The lighting will cycle between 16.8 million colors indefinitely	No further customization required
	Static	The LEDs will remain lit in the selected color	Select a color

If you have other supported Razer Chroma-enabled devices, you can synchronize their quick effects with your Razer device by clicking the Chroma Sync button.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

Should you have trouble operating the device properly, and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance. Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads. Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of O ° C (32 ° F) to 40°[ (104 ° F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

COMFORT

Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer Naga Trinity.

• Position your keyboard and monitor directly in front of you with your mouse next to it. Place your elbows next to your side, not too far away, and your keyboard within easy reach.
• Adjust the height of your chair and table so that the keyboard and mouse are at or below elbow-height.
• Keep your feet well supported, your posture straight, and your shoulders relaxed.
• During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend, or twist your hands for long periods.
• Do not rest your wrists on hard surfaces for long periods. Use a wrist rest to support your wrist while gaming.
• Customize the keys on your keyboard to suit your style of gaming to minimize repetitive or awkward motions while gaming.
• Do not sit in the same position all day. Get up, step away from your desk, and do exercises to stretch your arms, shoulders, neck, and legs.
• If you should experience any physical discomfort while using your mouse, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a qualified medical doctor immediately.

MAINTENANCE AND USE

The Razer Naga Trinity requires minimal maintenance to keep it in optimum condition. Once a month, we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents. To get the ultimate experience in movement and control, we highly recommend a premium mouse mat from Razer. Some surfaces will cause undue wear on the feet, requiring constant care and eventual replacement. Do note that the sensor of the Razer Naga Trinity is ‘tuned’ or optimized especially for the Razer mouse mats. This means that the sensor has been tested extensively to confirm that the Razer Naga Trinity reads and tracks best on Razer mouse mats.

BATTERY WARNING

The Razer Naga Pro contains a Li-ion rechargeable battery. In general, the life expectancy of such batteries is dependent upon usage. If you suspect that the Li-ion rechargeable battery inside the Razer Naga Pro maybe drained (has a low charge), try charging it.

Caution: Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire, or heat. Doing so may cause batteries to leak or explode, resulting in personal injury. Battery life varies with usage.

LEGALESE

COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION

©2018 Razer Inc. All rights reserved. Razer, the triple-headed snake logo, Razer logo, “For Gamers. By Gamers.”, and “Powered by Razer Chroma” logo are trademarks or registered trademarks of Razer Inc. and/or affiliated companies in the United States or other countries. All other trademarks and trade names are the property of their respective owners and other company and product names mentioned herein may be trademarks of their respective companies. Windows and the Windows logo are trademarks or registered trademarks of the Microsoft group of companies. Razer Inc. (“Razer”) may have copyright. trademarks, trade secrets, patents, patent applications, or other intellectual property rights (whether registered or unregistered) concerning the product in this guide. Furnishing of this guide does not give you a license to any such copyright, trademark, patent or other intellectual property right. The Razer Naga Trinity (the “Product”) may differ from pictures whether on packaging or otherwise. Razer assumes no responsibility for such differences or for any errors that may appear. Information contained herein is subject to change without notice.

LIMITED PRODUCT WARRANTY

For the latest and current terms of the Limited Product Warranty, please visit razer.com/warranty.

LIMITATION OF LIABILITY

Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of the distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.

GENERAL

These terms shall be governed by and construed under the laws of the jurisdiction in which the Product was purchased. If any term herein is held to be invalid or unenforceable, then such term (in so far as it is invalid or unenforceable) shall be given no effect and deemed to be excluded without invalidating any of the remaining terms. Razer reserves the right to amend any term at any time without notice.
