Sanyo FVM3982 1080p HDTV LCD Owners Manual

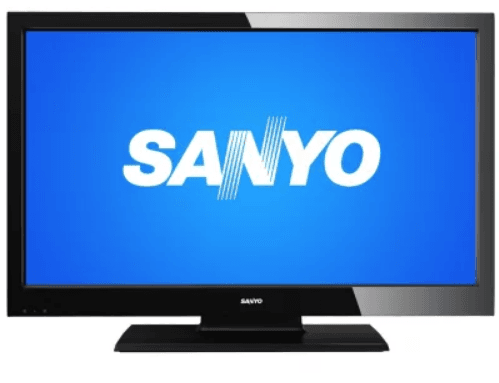

Sanyo FVM3982 1080p HDTV LCD

PROTECTING THE LCD SCREEN

CAUTION: The screen can be damaged if it is not maintained properly.

• Do not use hard objects such as hard cloth or paper to clean the screen.
• Do not use excessive pressure when cleaning the screen; excessive pressure can cause permanent discoloration or dark spots.
• NEVER spray liquids on the screen.

HANDLING PRECAUTIONS

• Handle by the cabinet only.
• Handling by two or more people is recommended.
• Never touch the screen when handling.
• Handling damage is not covered under warranty.
• Do not remove the protective film covering the front cabinet while handling the HDTV.

POSITIONING THE HDTV

• Always use a firm and flat surface when positioning your HDTV.
• Do not position the unit in a confined area.
• Allow adequate space for proper ventilation.
• Do not position the HDTV where it is easily reachable by small children and may present a risk of injury.
• Once the HDTV is positioned, remove the protective film covering the front cabinet.

SPECIFICATIONS

• Power Requirement:
• Source: AC 120V, 60Hz
• AC Power Consumption: 120 watts
• Weight: 20 lbs (w/stand)

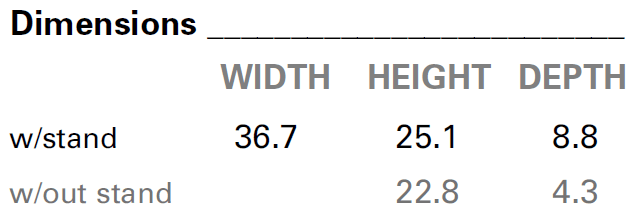

NOTE: Dimensions are in inches.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit fully into your outlet, consult an electrician for the replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as a power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

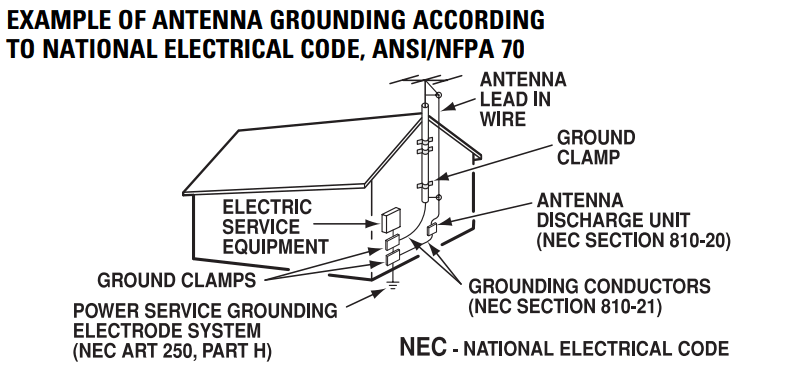

15. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. In the U.S. Selection 810-21 of the National Electrical Code provides information with respect to the proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrodes.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electrical light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.“Note to CATV system installer:
    This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.”
17. Wall or Ceiling Mounting—The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
18. The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on it.
19. When the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to protect reasonably against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user’s authority to operate the unit.

GETTING STARTED

STAND ASSEMBLY

1. Place the HDTV face down on a padded or cushioned flat surface to protect the screen and finish.

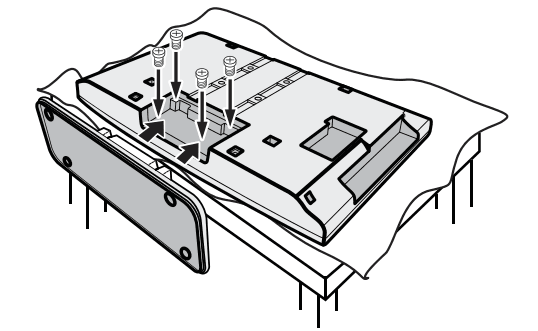

2. Carefully insert the stand base to the bottom of the HDTV and secure it by inserting four (4) screws as indicated in the diagram below.
   NOTE: Stand base screws are located in the literature package.
3. Position the HDTV on a firm and flat surface with adequate space for proper ventilation.

WALL MOUNTING

Wall mounting of the HDTV must be performed by a skilled person. If stand base disassembly is required:

1. Place the HDTV face down on a padded or cushioned flat surface to protect the screen and finish.
2. Remove the four (4) screws securing the foot stand. CAUTION: Hold the stand firmly as you remove the last screw.

Use the four (4) screws included in the literature package to secure the HDTV to a wall mounting kit.
NOTE: Wall mounting kit is not included. VESA standard interface: 200 x 200 Mounting screws measurements: M6 (6mm) Diameter, Length—12mm (maximum)

BATTERY INSTALLATION

Install two (2) “AAA” batteries in the remote control. (Not included)

PRECAUTIONS:

• Replace both batteries at the same time. Do not use a new battery with a used battery.
• There’s a risk of explosion if a battery is replaced by an incorrect type.
• Keep away from moisture.
• Be sure to match the “+” and “–” signs on the batteries with marks inside the remote control.
• Please properly dispose of used-up batteries.
  WARNING: The batteries (or battery pack) shall not be exposed to excessive heat such as sunshine, fire, or the like.

ANTENNA CONNECTION FOR OFF-AIR SIGNALS OR CABLE

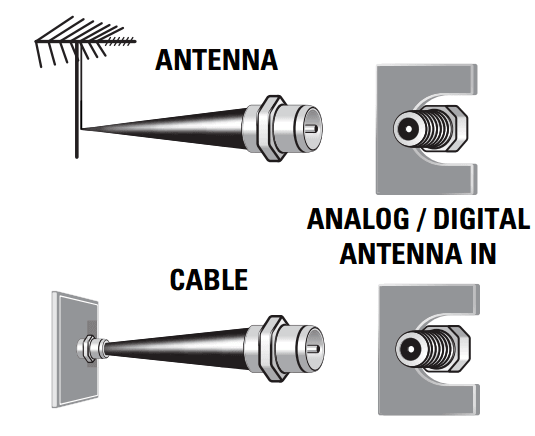

Hook up your antenna or your cable service to the HDTV’s ANT terminal with the use of a 75 OHM coaxial cable.
NOTE: Keep your indoor antenna at least 3 ft. away from the television set and any other electronic equipment.

The tuner in this HDTV can receive:

• Digital and Analog off-air signals from an antenna
• Analog or ClearQAM cable channels from a direct Cable TV connection.

INITIAL CHANNEL SEARCH

1. PLUG-IN AC POWER CORD: 120V AC, 60Hz
2. TURN ON TV
3. TV SET LOCATION SELECTION: Select “Home Mode” to set the HDTV’s backlight to an Energy Star-qualified level, or select “Store Mode” to set the backlight to a retail display level.
4. CHANNEL AND SIGNAL SEARCH: Select “Signal Search” and press ENTER to perform a channel search from an Antenna or a direct Cable connection, and a signal search from devices hooked up to the HDTV’s AV input jacks.

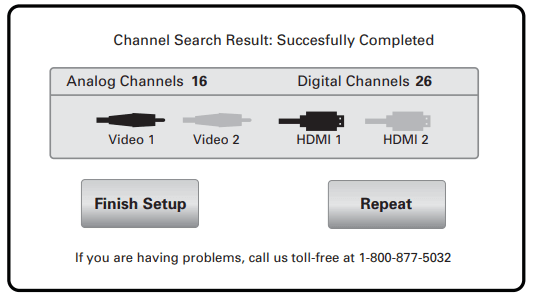

5. SIGNAL SEARCH RESULT SCREEN: The final setup screen displays an analog and digital channel found, as well as AV inputs detected. Select Finish Setup and press ENTER.
   NOTE: If you wish to repeat the process, select Repeat.

AV INPUT SELECTION

Press the INPUT key to select the correct AV input for the video source you wish to watch.

NOTE: Unused AV inputs may be disabled with the Input Setting feature.

HDTV INPUT/OUTPUT REFERENCE

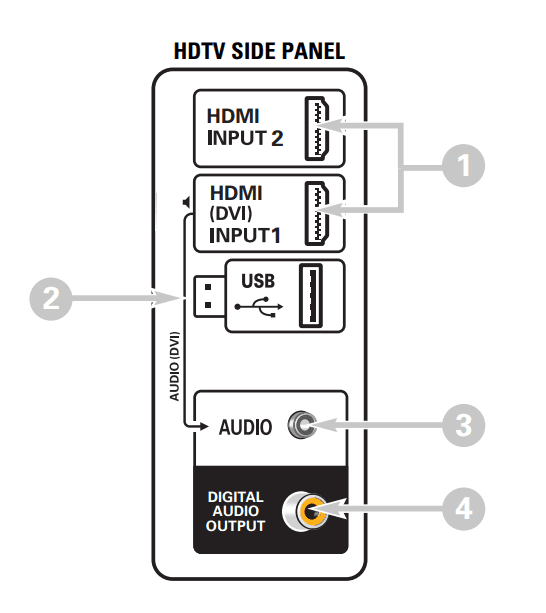

1. HDMI (INPUT1 or INPUT2)
   Use HDMI INPUT1 & 2 to hook up HD digital devices such as a Blu-ray player, HD Cable Box, HD Satellite Receiver, or Video-game System. Connect your digital device’s HDMI output to any of the two (2) HDMI inputs on your HDTV with the use of an HDMI cable.
   NOTE: A DVI connection is possible via the HDMI (DVI) INPUT1 using an appropriate cable or adapter and connecting the audio to the Stereo Mini AUDIO jack.
2. USB
   USB input jack is used to connect a USB mass storage device to watch digital images stored in JPEG format.
3. AUDIO mini stereo jack (3.5mm)
   For AUDIO signal from DVI device.
4. Digital Audio Output (Coaxial)
   Hook up a multichannel receiver with the use of a phenotype digital audio cable.
5. Analog / Digital Antenna Input
   Hook up your indoor or outdoor digital antenna, or a direct Cable service (Analog or ClearQAM).

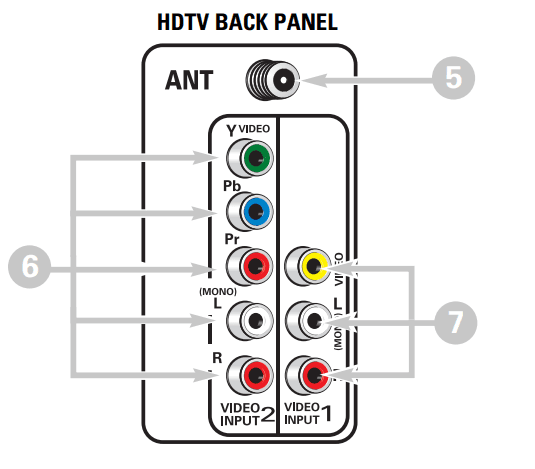

6. VIDEO INPUT2
   Green (Y), blue (Pb), and red (Pr) Video inputs plus the white and red Audio inputs. The  COMPONENT connection will accept SDTV, EDTV, and HDTV video signals. Use it for great image quality from digital devices such as a DVD player or Video Game system. Match your digital device’s Component output jacks to the Component input jack set (VIDEO2) on your HDTV.
   NOTE: A composite connection is possible via VIDEO INPUT2 using the Y (VIDEO) jack and the L/R audio jacks (see Video2 Setting.)
7. VIDEO INPUT1
   Composite yellow (Video), plus white and red (Audio) input jacks. COMPOSITE connections are used to hook up your analog equipment such as a VCR or an older DVD player.
   NOTE: Match the color of your device’s output jack, the connector, and the HDTV’s input jack.

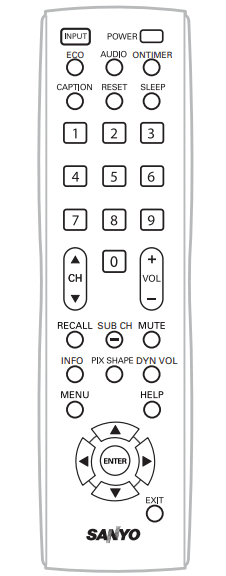

REMOTE CONTROL OPERATION

• POWER. Turns your HDTV On or Off.
• INPUT. Select the video source to view. Holding down the key displays the Input List.
• ECO. Modifies the Energy Saver level.
• AUDIO. Select the desired Audio mode. Stereo, Mono, or SAP (when available.)
• ON TIMER. Displays the current switch on time (if activated.)
• CAPTION. Cycles through the available Caption modes (when available.)
• RESET. Pressing it twice restores your HDTV to its factory settings. All user-customized settings will be cleared.
• SLEEP. Displays the “Off” Timer. While the Off Timer is on-screen, press the “0” key to Set the amount of time (in 30-minute increments) at which the HDTV will turn off.
• NUMERIC KEYS. Choose a channel directly.
  CHScan through the channels in the memory database.
• VOL + – . Increases or decreases the audio level.
• RECALL. Switch between the current channel and the last selected channel or input.
• SUB CH. Use for the direct selection of digital subchannels. For example: for channel 39.1 press the 3 and 9 keys, followed by the dash –, and 1 keys.
• MUTE. Mute or restore the sound.
• INFO. Displays the Channel Information banner.
• PIX SHAPE. Cycles through the various aspect ratios. The different settings either stretch, zoom, or fill the image on your screen. Bars may appear on the top and bottom of your screen (or on the left and right sides) depending on the broadcasted signal or program.
• DYN VOL. Modifies the Dynamic Volume feature settings
• MENU. Displays or the on-screen menu. Use as “back” key in menu navigation.
• HELP. Displays the on-screen Help menu.
• CURSORMove the on-screen cursor in the desired direction.
• ENTER. Set or confirm the selected option.
• EXIT. Exits the on-screen menu.

ON-SCREEN MENU OPERATION

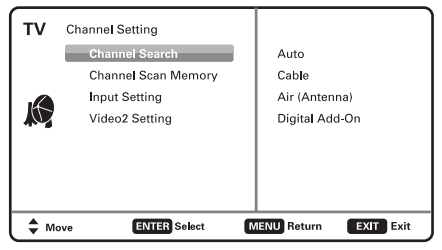

Display the On-Screen menu and use the CURSORkeys to select Channel Setting. Press ENTER.

Channel Search

• Auto – Searches the detected mode, Cable, or Air.
• Cable – Searches for analog and unscrambled (ClearQAM) digital cable channels.
• Air (Antenna) – Searches for analog and digital off-air channels.
• Digital Add-On – Searches digital channels adding newly found digital channels to the channel database.

Channel Scan Memory

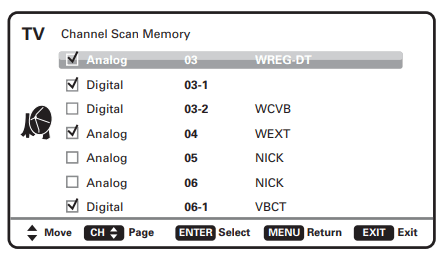

Channel Scan Memory lists all Analog and Digital channels found. It also lists Analog channels that were not found, which can be added. Use the CURSORkeys to move the channel select bar through all enabled and disabled channels.
NOTE: You can use the CHkeys to change the page. Press ENTER to enable or disable the selected channel.

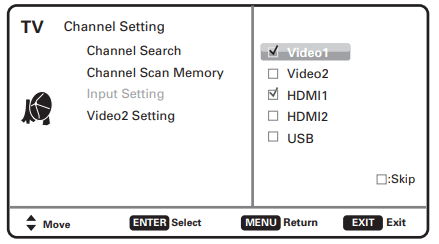

Input Setting

Input Setting feature allows the removal of unused inputs from the AV input loop. Use the CURSORkeys to select an AV input. Press ENTER to disable (uncheck) or enable (check) the highlighted
input.

NOTE: At least one input must and will remain checked. An unchecked box means the input will be skipped.


Display the On-Screen menu and use the CURSORkeys to select Picture. Press ENTER. You may choose between Vivid, Mild, and Standard, which have predetermined fixed picture parameter values, or choose the Manual option for customized personal settings.

NOTE: Each AV input can have its own picture mode (pre-determined or manual.) The current input’s selected option is indicated by a blue marker.

MANUAL PICTURE SETTINGS

Manual parameters to adjust include:

• Color
• Tint
• Contrast
• Brightness
• Sharpness
• Color Temperature

The Detailed Setting option allows for the adjustment of several additional parameters such as:

• Signal Balancer
• Noise Reduction
• White Balance
• Edge Enhancer
• H-Size / V-Size
• Dynamic Contrast

USB INPUT

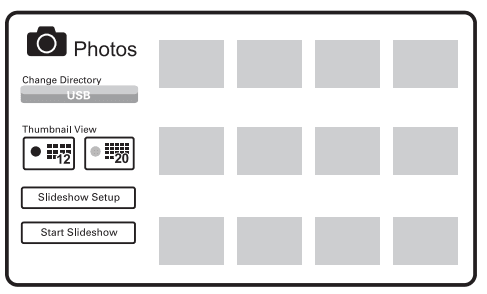

PHOTO VIEWER

View pictures on your HDTV with the use of a USB mass storage device (not included.)

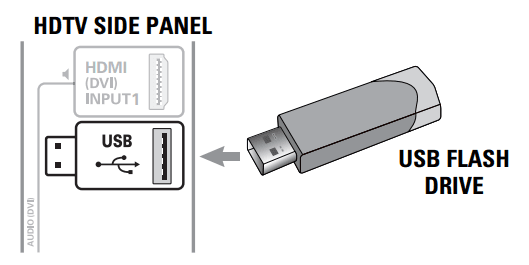

Insert the flash drive into the USB port, the TV will display the Photo Viewer screen, select Shuffle Play or Browse Photos and press ENTER to begin.

USING THE PHOTO VIEWER

Press ENTER on a thumbnail photo to enable the Rotate, Full View, and Start Slideshow functions.
Once in Full View mode:
Use the CURSORkeys to change the picture. Press ENTER to show the full-view options menu.

• Rotate
• Zoom In / Out
• Pan
• Slideshow setup
• Start Slideshow
• Browse Photo

SLIDE SHOW

In the Slideshow Setup menu, you may turn the Shuffle and Quick Change options ON or OFF. Press ENTER on Start Slideshow either from the Thumbnail View Screen or from the full view options menu to start the slideshow from the current picture.
