WELCOME TO ARCTIS

• Your new headset is the result of our unyielding pursuit of perfection for over 15 years. We poured our hearts into creating the best possible gaming headset by pushing the boundaries of sound quality, mic clarity, comfort, and style. Arctis is our glory; now go chase yours.

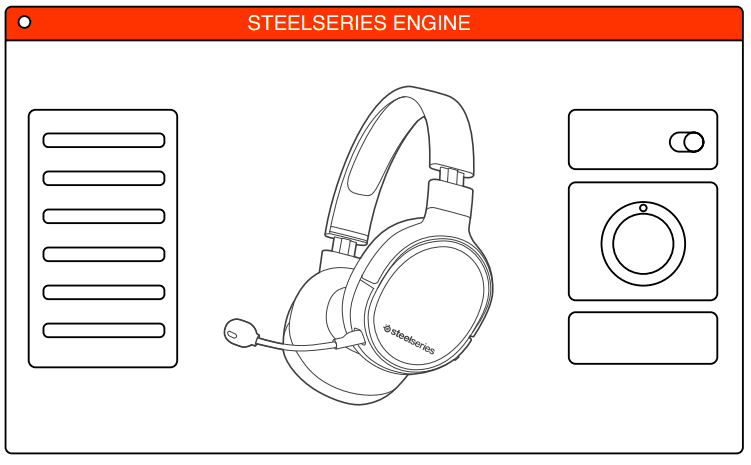

STEELSERIES ENGINE

• Download SteelSeries Engine to customize your audio settings and to integrate with Engine Apps (like Discord): steelseries.com/engine

PACKAGE CONTENTS

• Arctis 1 Wireless Headset
• USB-C Wireless Dongle
• USB Charging Cable
• USB-C to USB-A Adapter Cable
• ClearCast Microphone

SYSTEM REQUIREMENTS /COMPATIBILITY

• PC
• Playstation 4
• Nintendo Switch
• Android (with USB-C)

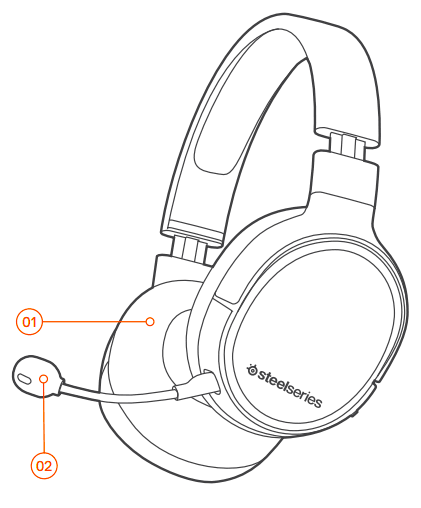

PRODUCT OVERVIEW

1. Airweave Ear Cushions
2. ClearCast Microphone
3. Volume Wheel
4. Microphone Mute Switch
5. 3.5 mm Audio Jack
6. Power Button
7. Power LED
8. Micro-USB Jack for charging and firmware updates
9. Microphone Jack
10. USB-C wireless Dongle
11. Micro-USB charging Cable
12. USB-C to USB-A Adapter Cable
13. 3.5 mm Audio Cable
    • Find accessories and replacement parts at steelseries.com/gaming-accessories

SETUP

WIRELESS SETUP

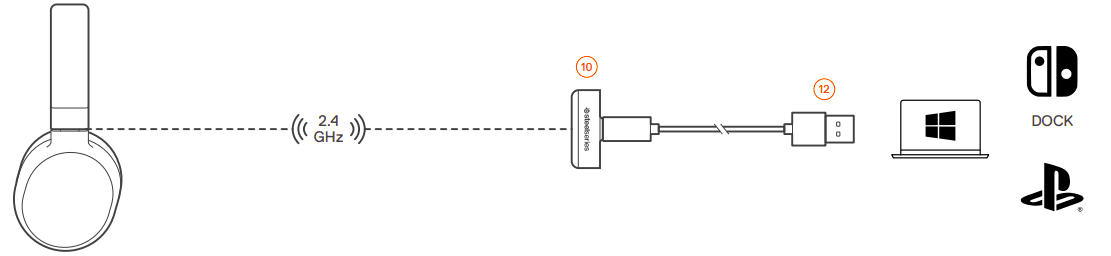

• Connection to USB-A
• PS4 SETTING > DEVICES > AUDIO DEVICES


  Output to Headphones

  All Audio

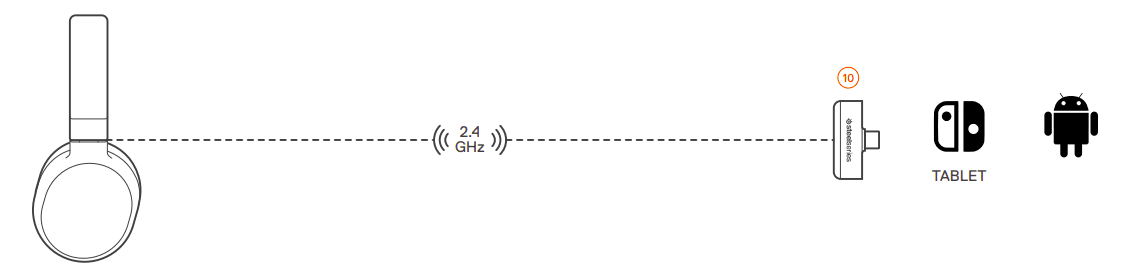

• Connection to USB-C

WIRED SETUP

CHARGING

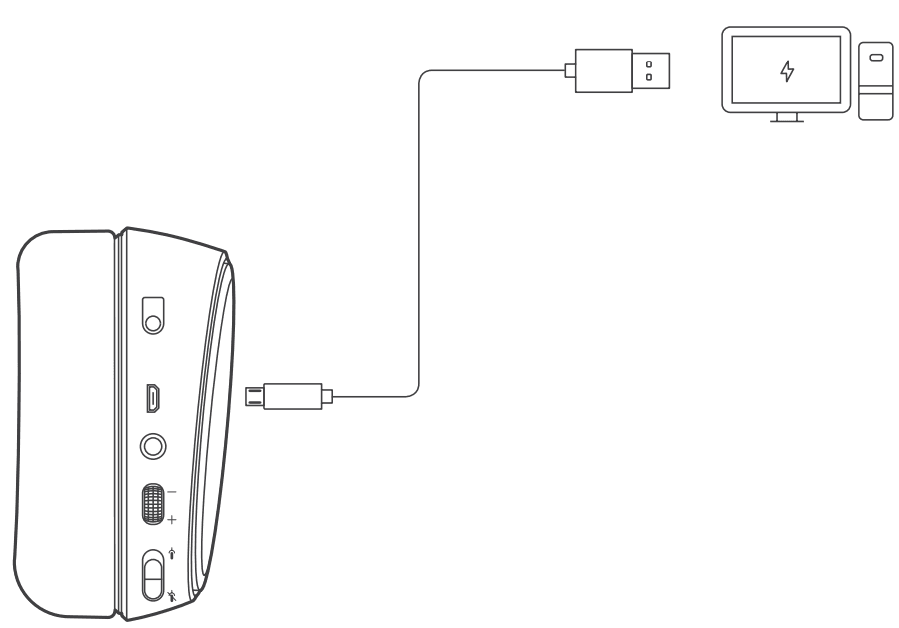

• To charge the headset, connect the micro-USB charging cable 11 to the micro-USB jack 08 on the headset, and plug the other end into any USB power source.

The color of the power LED 07 indicates the battery level.

• Green 100–50 %
• Yellow 49–20 %
• Red 19–10 %
• Red (fast blink) 9–1 %

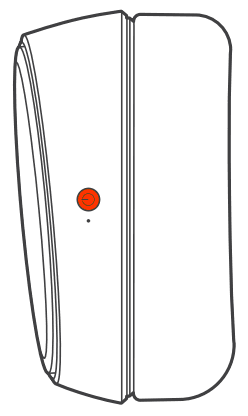

POWER ON/OFF

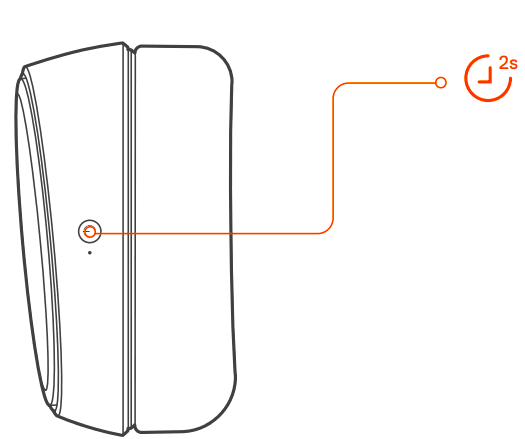

• ON
• To power on the headset, press and hold the power button 06 for at least 2 seconds. You will hear a tone, and the power LED 07 will illuminate.
• OFF
• To power off the headset, press and hold the power 06 button for at least 3 seconds

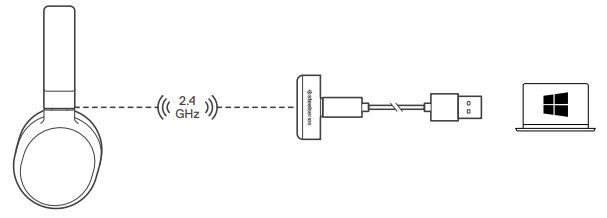

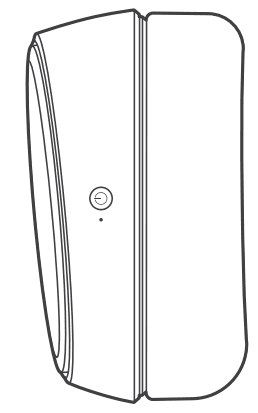

PAIRING

1. Connect the USB-C wireless dongle 10 to a Windows PC with SteelSeries Engine installed
2. Initiate wireless dongle pairing from the Engine
3. With the headset off, press and hold the power button 06 for 6 seconds
4. You will hear a tone when the pairing is completed

MICROPHONE

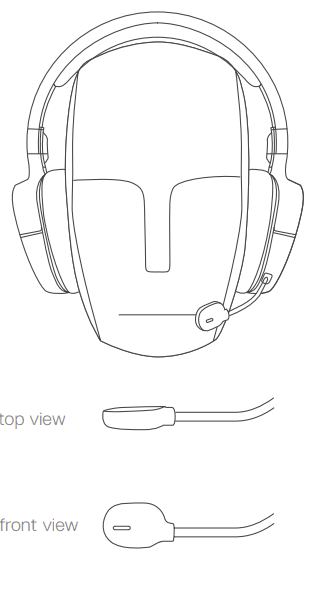

• Microphone attachment
• Position the microphone close to the corner of your mouth with the flat surface facing you

MULTIMEDIA CONTROL

• Answer/end voice call
• single · press Power Button 06
• Play/pause music
• single · press Power Button 06
• Next track
• double · · press Power Button 06
• Previous track
• triple ·press Power Button 06
