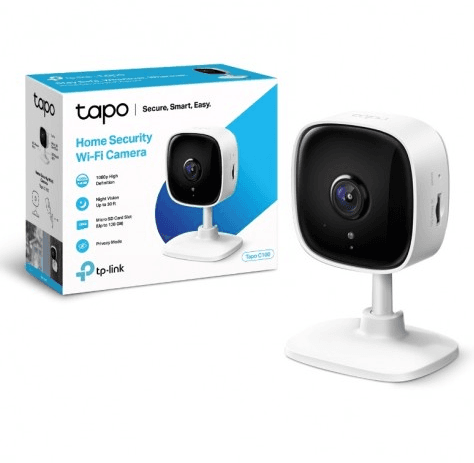

TP-Link Tapo C100 Home Security Wi-Fi Camera
Appearance

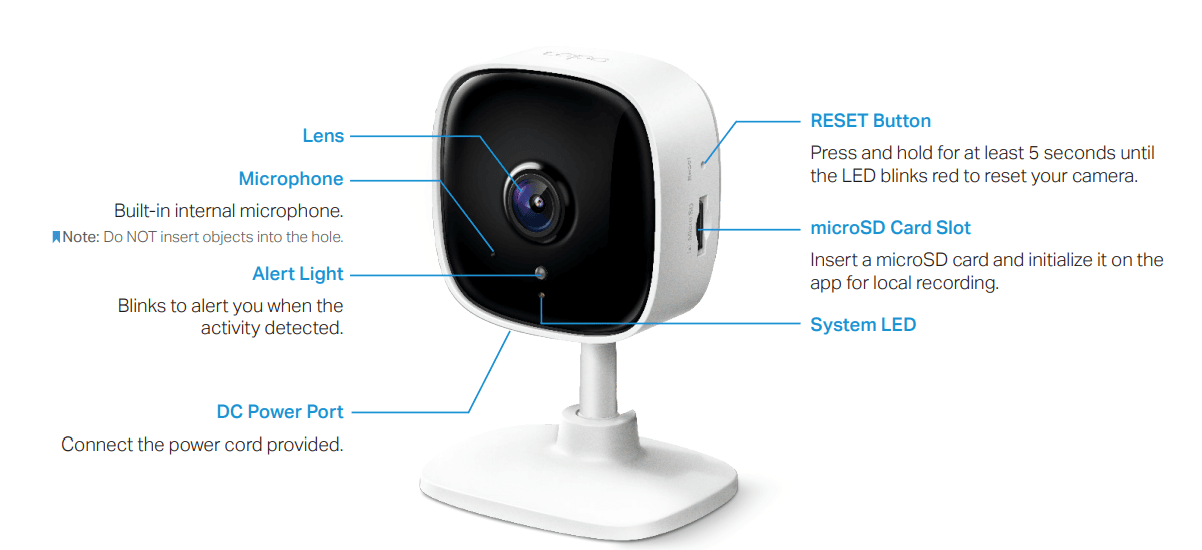

The Home Security Wi-Fi Camera has a system LED that changes color according to its status, an alert light, lens, microphone, DC power port, RESET button and a microSD card slot. Refer below for details.
Set Up Your Camera
Step 1. Download App

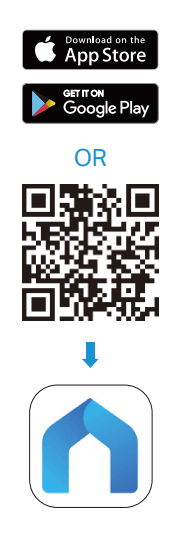

Get the Tapo app from the App Store or Google Play, or by scanning the QR code.
Step 2. Log In

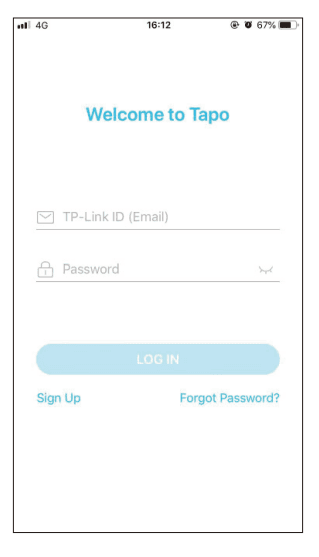

Open the app and log in with your TP-Link ID. If you don’t have an account, create one first.
Step 3. Add Your Camera
Tap the button in the app and select your model.
Step 4. Configure Camera
Follow the app instructions to configure your camera and add it to your home network.
Step 5. Place Camera
Place your camera on a flat surface, or install it on a wall or ceiling with the provided mounted screws.
- Mark Position: Place the mounting template where you want the camera. For wall mounting, drill two holes through two circles.
- Mount Base: Affix two mounting screws with the help of mounting template. For wall mounting, insert two anchors into holes and screw the screws into the anchors.
- Secure Camera: Hang your camera on the screws.
Main Camera Controls
After you successfully set up the camera, you will see your camera listed on the home page. You can view and manage your camera from anywhere at any time with the Tapo app.

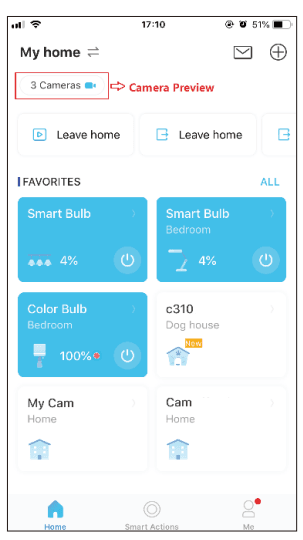

Home Page
This page lists all your cameras you’ve added and you can view them directly and manage them easily. Tap the camera or go to Camera Preview > Manage to enter the Live View page.

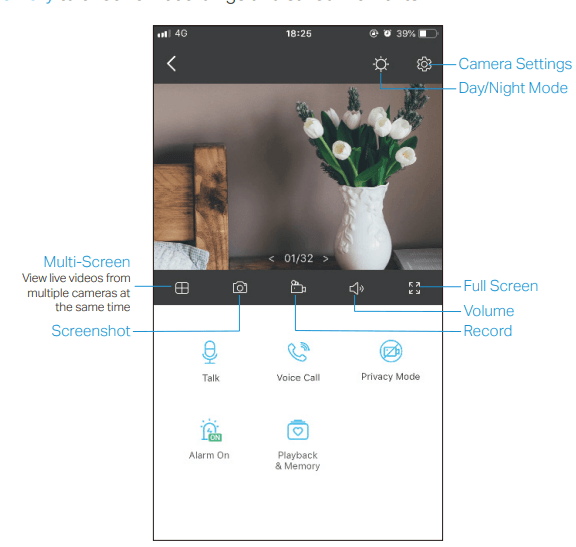

Live View

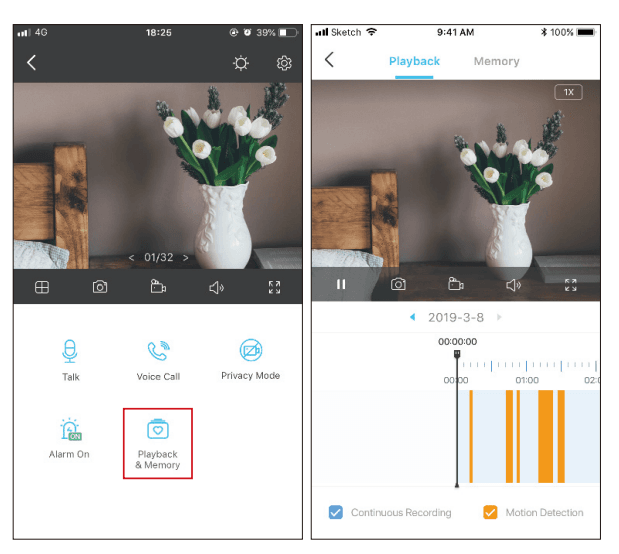

Tap Talk or Voice Call to communicate with loved ones, turn on Alarm to get notified when motions are detected, enable the Privacy Mode to temporarily shut down the surveillance for privacy, or go to Playback & Memory to check all recordings and saved moments.
Camera Settings
On Live View page, tap
to enter the Camera Settings page. You can change the settings of your camera to meet various needs, such as change your camera name, customize detection settings and recording schedules, turn on or off notifications, set activity zones, etc.
Me
On this page, you can edit your account, quickly check the memorable moments you saved, or find the FAQs of using smart camera and basic info related to the Tapo app.
Motion Detection
With motion detection, the Tapo app alerts you of activity that matters and sends notifications straight to you when motion detected. Insert a microSD card to record the clips when motion detected. Otherwise, you can only receive the notifications.

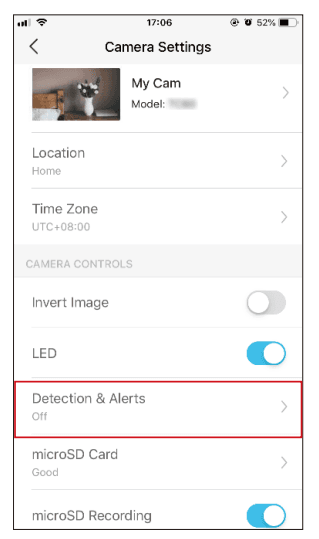

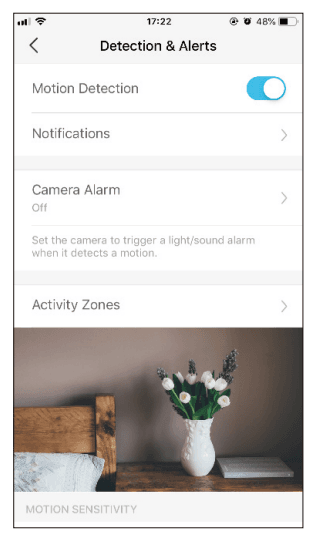

- Go to the Camera Settings page and tap Detection & Alerts to customize its current detection settings.
- On the Detection & Alerts page, enable the Motion Detection function. It’s recommended to enable the Notifications function to receive motion detection messages.
- Customize Camera Alarm settings. Choose Alarm Type (Sound/Light) and Alarm Sound (Siren/Tone), and set Alarm Schedule as needed.

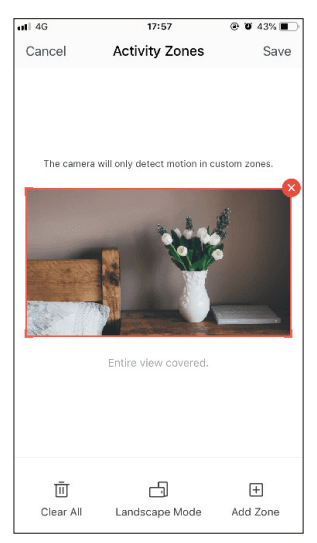

- Customize Activity Zones, and the camera will only detect motion in custom zones. The entire view is covered by default.
- Adjust Motion Sensitivity (Low/Normal/High) as needed. Increased sensitivity results in more recordings and notifications.
- After editing the detection settings for the camera, you can set the Recording Schedule for the motion detection.
- On the Live View page, tap to find all recordings. The orange sections are recordings for motion detection.
24-hour Recordings
The microSD card is needed for 24-hour recording and it’s suggested to initialize the SD card on the app before using it.

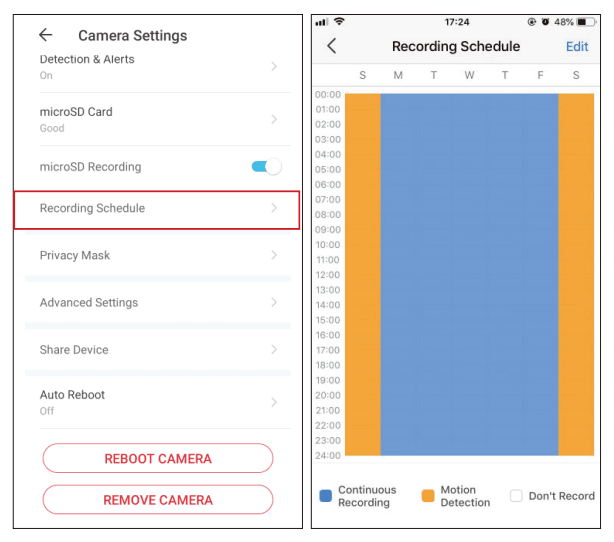

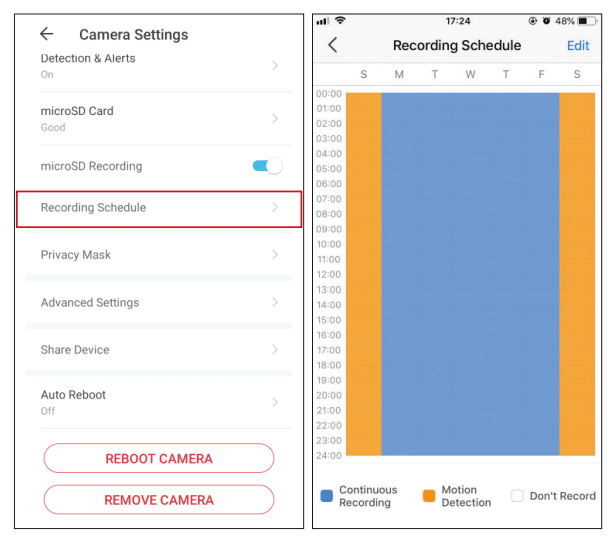

- On the Live View page, tap
to enter the Camera Settings page.
- Toggle on to enable the microSD Recording function and set the Recording Schedule for Continuous Recording (24-hour Recording) as needed
- On the Live View page, tap to find all recordings. The blue sections mean continuous recording.
Privacy Mode

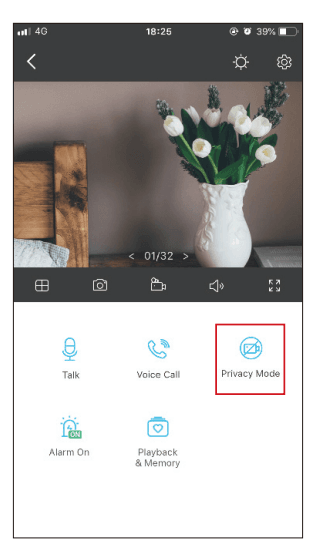

On the Live View page, tap to enable the Privacy Mode. When enabled, streaming and recording functions will be temporarily disabled to protect your privacy.
