Logitech G920 Driving Force Racing Wheel and Floor Pedals User Guide

Logitech G920 Driving Force Racing Wheel and Floor Pedals

G29 Driving Force Racing Wheel

FAQ

We’ve put everything you need to get started with your G29 Driving Force Racing Wheel right here. If you still have questions, browse the topics on the left.

MOST POPULAR

Force feedback turns off intermittently on the G29 or G920 racing wheel

Both the G29 and G920 racing wheels have dual motors that provide force feedback on supported games and systems. Both products contain an overheat protection circuit to safeguard them under high-temperature operating conditions. In rare instances, force feedback features may shut down during use, while the controls continue to operate. If this happens, allow the wheel to cool down by using the following steps:

1. Disconnect the wheel unit’s power adapter from the power source.
2. Disconnect the wheel unit’s USB connection from the game console or PC.

Adjust sensitivity on the G29 and G920 racing wheels with Logitech Gaming Software

Steering wheel and pedal response can be adjusted on the G29 and G920 racing wheels using Logitech Gaming Software (LGS). Before you attempt to make these adjustments, make sure to download and install the latest version of LGS before connecting the G29 or G920 racing wheel to your computer. You can get the latest version of LGS from your product.

NOTE: Not all Logitech racing wheels are compatible with Logitech Gaming Software 8.70.

Please refer to your racing wheel’s product speciȷcations for software compatibility information.

• Steering Sensitivity
• Wheel Operating Range
• Pedal Sensitivity

NOTE: When connecting a G29 racing wheel to your computer, make sure that the Platform Mode switch is set to PS4. For more information, see Set the G29 racing wheel for PlayStation 4, PlayStation 3, or PC platforms (/article/Set-the-G29-racing-wheel-for-Playstation-4-Playstation-3-or-PCplatforms).

Steering Sensitivity

Steering sensitivity on the G29 and G920 racing wheels can be adjusted to accommodate your steering preferences, or improve to steering response in some games.
NOTE: Adjustments to steering sensitivity can be customized for each game, per proȷle in LGS.

To adjust the steering sensitivity:

1. Make sure that the G29 or G920 racing wheel is connected to your computer, and then launch LGS.
2. On the LGS Home screen, navigate to the device selector at the bottom of the LGS window and click on the G29 or G920 icon.
3. Navigate to the Steering Wheel screen, then double-click on the area marked Steering Wheel.

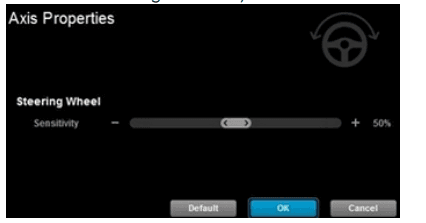

4. Drag the slider to set Steering Sensitivity to the desired percentage. Click the Default button to return the steering sensitivity to the default value of 50%.
5. Click OK to confirm the setting and return to the Steering Wheel screen.

Wheel Operating Range

The G29 and G920 racing wheels allow for maximum lock-to-lock rotation of up to 900 degrees. Some games may require this range to be reduced in order to provide optimal steering response in those.

NOTE: This setting is global and will universally aȴect the wheel operating range for all games.

To adjust the wheel operating range:

1.  Make sure that the G29 or G920 racing wheel is connected to your computer, and then launch LGS.
2. Navigate to LGS Settings, then click on the tab named “G29” or “G920.”

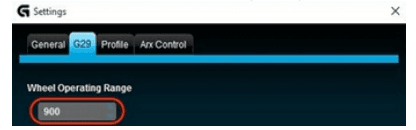

3. Change the Wheel Operating Range to the desired degree range. NOTE: The operating range can be adjusted between 40 and 900 degrees, in 10-degree increments. The default setting is 900 degrees.
4. Click OK to confirm the setting and close the Settings window.

Pedal Sensitivity

Pedal sensitivity on the G29 and G920 racing wheels can be adjusted to accommodate your pedal engagement preferences or to improve clutch, brake, or accelerator pedal response in some games.

NOTE: Adjustments to pedal sensitivity can be customized for each game, per proȷle in LGS.

To adjust the pedal sensitivity:

1. Make sure that the G29 or G920 racing wheel is connected to your computer, and then launch LGS.
2. In the LGS Home screen, click on the G29 or G920 icon.

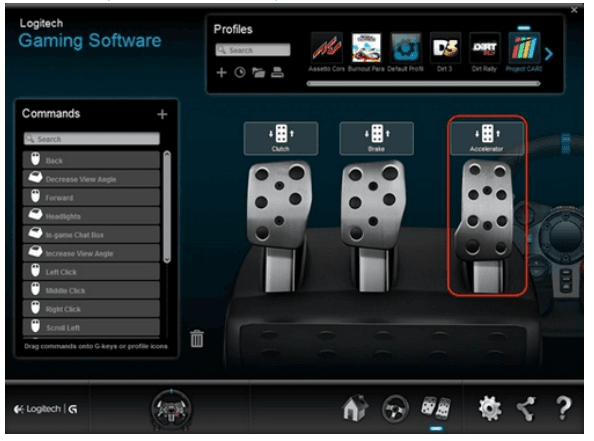

3. Navigate to the Pedals screen, then double-click on either the Clutch, Brake or Accelerator pedals. In this example, the Accelerator pedal will be selected.

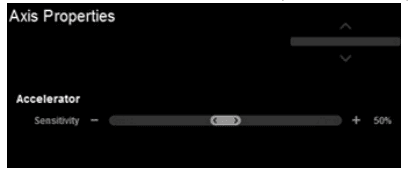

4. Drag the slider to set the Pedal Sensitivity for the selected pedal to the desired percentage. Click the Default button to return the pedal sensitivity to the default value of 50%.
5. Click OK to conȷrm the setting and return to the Pedals screen.

Logitech Gaming Software for Mac Release Notes

• Version 8.92.37
• Version 8.89.38
• Version 8.87.92

Version 8.92.37

• Post Date: 19-APR-2017
• OS: Mac OS X 10.10.x, Mac OS X 10.11.x, Mac OS X 10.12.x

Why Update?

Support added for:

• G90 Gaming Mouse
• Pro Mechanical Gaming Keyboard
• G413 Mechanical Gaming Keyboard

Firmware

LogiProGamingKeyboardUpdate_v13 – Optimizes key response rates for faster gaming performance.

Minor bug ȷxes

Why Update?

• Support added for:
• G203 Prodigy Gaming Mouse (black only)
• C922 Pro Stream Webcam

New Features:

Custom Lighting Eȴects Editor added to the Lighting view for per-key RGB keyboards

• G410 Atlas Spectrum
• G810 Orion Spectrum
• G910 Orion Spectrum
• G910 Orion Spark

Optional ȷrmware update for the G610 Orion keyboard to address a high-pitch whine on some keyboards.

Firmware Update:

• G410Update_v14 – Enhanced lighting eȴects performance for use with Lighting Editor features.
• G610Update_v12 – Eliminates noise that occurred at some lighting levels and settings.
• G810Update_v31 – Enhanced lighting eȴects performance for use with Lighting Editor features.
• G910Update_v26 – Enhanced lighting eȴects performance for use with Lighting Editor features.
• G910R2Update_v7 – Enhanced lighting eȴects performance for use with Lighting Editor features.

Version 8.87.92

• Post Date: 12-OCT-2016
• OS: Mac OS X 10.10.x, Mac OS X 10.11.x, Mac OS X 10.12.x.

Why Update?

Support added for:

• G403 Prodigy Gaming Mouse
• G403 Prodigy Wireless Gaming Mouse
• G213 Prodigy Gaming Keyboard
• Pro Gaming Mouse
• C920 HD Pro Webcam
• C930e Pro Webcam
• G29 Driving Force
• G920 Driving Force
• G610 Orion US-International Keyboard (PID_338)
• G810 Orion Spectrum US-International Keyboard (PID_337)

Firmware Update:

• G910Update_v22: Fixed an issue where the Caps, Num, and Scroll Lock indicator lights may not show the correct status.
• G810Update_v27: Fixed an issue where the Caps, Num, and Scroll Lock indicator lights may not show the correct status.
• G920Update_96_3_49:
• Fixed an issue with missing forces in rFactor 2.
• Removed single-sided damping eȴect at low forces.

Release Notes:

• G920 Driving Force is not supported in Euro Truck Simulator 2 and American Truck Simulator.
• G29 Driving Force is not supported in GRID Autosport.

Logitech Gaming Software for Windows Release Notes

• Version 8.96.81
• Version 8.94.108
• Version 8.92.67
• Version 8.91.48
• Version 8.90.117
• Version 8.89.68

Version 8.96.81

• Post Date: 13-JUL-2017
• OS: Windows 8, Windows 7, Windows 10.

Why Update?

Support added for:

• G603 Wireless Gaming Mouse
• G613 Wireless Mechanical Gaming Keyboard
• Brio 4K Streaming Edition Webcam

Added a ȷrmware update for the G102 and G203 to increase the max sensor DPI to 8000. Added option to gather anonymous data to help us understand how LGS is used so we can improve it in future releases.
New game proȷles for:

• Agents of Mayhem
• Gigantic
• LawBreakers

Version 8.94.108

• Post Date: 19-JUN-2017
• OS: Windows 8, Windows 7, Windows 10

Why Update?

Added support for

• G433 Gaming Headset
• POWERPLAY Wireless Charging System

New game proȷles:

• Prey (2017)
• PLAYERUNKNOWN’S BATTLEGROUNDS

Added a ȷrmware update for the G403 and G900 to optimize the clock tuning parameter. Fixed an issue with localized layouts not being correctly displayed for the G413. Fixed an issue where a user’s custom lighting would be reverted to the HW default when locking their system. Minor bug ȷxes.

Version 8.92.67

• Post Date: 19-APR-2017
• OS: Windows 8, Windows 7, Windows 10

Why Update?

Added support for the G413 Mechanical Gaming Keyboard

New game proȷles:

• For Honor
• Ghost Recon Wildlands
• Mass Eȴect: Andromeda
• Resident Evil 7

Version 8.91.48

• Post Date: 4-JAN-2017
• OS: Windows 8, Windows 7, Windows 10

Why Update?

• Added support for the G90 gaming mouse
• Added a link to Overwolf in the LGS user interface
• Minor bug ȷxes.
• Added support for the Pro mechanical gaming keyboard

Version 8.90.117

• Post Date: 4-JAN-2017
• OS: Windows 8, Windows 7, Windows 10

Why Update?

• Support added for G533 Gaming Headset
• Minor bug ȷxes

Version 8.89.68

• Post Date: 15-DEC-2016
• OS: Windows 8, Windows 7, Windows 10

Create and scan for profiles with Logitech Gaming Software

Logitech Gaming Software (LGS) includes support for approximately six hundred games as of release 8.91. When you run the software for the first time, it should scan and automatically set up game profiles for you. If you install more games later, you can rescan for supported games and have profiles imported for them. You use profiles to customize pointer, lighting, or G-key/function key command assignments for every individual game and application. If you prefer, you can also just use one profile for all your games and applications.

There are two ways to set up profiles for your games or applications:

• Scan for new games
• Create new profiles

Scan For New Games

Logitech Gaming Software’s game profiles are created using registry entries from either Steam, uPlay, Battle.net, or Origin. Certain game profiles are associated with multiple publishers’ registry entries, but the majority are linked to the Steam registry entry, excluding the games that are available exclusively on Battle.net or Origin. See a complete list of games here (/article/List-of-Logitech-Gaming-Softwaredefault- starting-profiles).

1. Open Logitech Gaming Software (LGS).
2. Navigate to the Home window for your mouse, keyboard, or headset.
3. Select Customize buttons, Customize Function keys, or Customize G-keys depending on the device.
4. In the Profiles pane, click Scan For New Games.
5. Once the profiler has completed its scan, click OK to add the profiles to your list.

NOTE: A profile for the selected game should appear in the Profiles pane.

If you own a game that is not automatically detected by the Scan for New Games feature, you can make a few minor adjustments to set up the profile. For more information, please see Scan For New Games does not detect game in Logitech Gaming Software (/article/Scan-For-New-Games-does-notdetect-game-in-Logitech-Gaming-Software).

Create new profiles

If the Scan For New Games list does not contain the game you want, LGS offers the ability to create your own profile. Here’s how:

TIP: LGS can store profiles for any program executable (.exe) file. Use this to customize command assignments for productivity programs.

1. Open Logitech Gaming Software (LGS).
2. Navigate to the Home window for your mouse, keyboard, or headset.
3. Select Customize buttons, Customize Function keys, or Customize G-keys depending on the device.
4. In the Profile pane, click Create new profile (“+”). The New Profile window appears.
5. Type distinct names for your profile in the Name and Description.
6. Click “+” and use the Windows Explorer window that appears to navigate to and open your executable (.exe) file. NOTE: You can assign multiple executable files to the same LGS profile.
7. Select the checkbox to Lock profile while the game is running to prevent other profiles from becoming active while your game or application is running.
8. If you prefer to use another profile’s lighting, command assignment, or pointer settings as a starting point, select the checkbox to Copy from an existing profile. Use the drop-down menu to select a profile to copy settings from.
9. Click OK to save changes and add the new profile. NOTE: A new profile for the game or application should appear in the Profiles pane.

Program buttons on the G29 and G920 racing wheels with Logitech Gaming Software

You can use Logitech Gaming software (LGS) 8.70 and later to assign various commands to the buttons on the G29 and G920 racing wheels.

NOTE: Make sure you’re using the latest version of LGS before you connect your racing wheel to the computer. You can download the latest version of LGS from your racing wheel’s support Download page.

NOTE: Not all Logitech racing wheels are compatible with Logitech Gaming Software 8.70 (or later). Please refer to your racing wheel’s product specifications for software compatibility information.

Default Button Layouts

The default button layouts for both the G29 and the G920 are shown below:

G29 default buttons

NOTE: When connecting a G29 racing wheel to your computer, make sure that the Platform Mode switch is set to PS4. For more information, see Set the G29 racing wheel for PlayStation 4, PlayStation 3, or PC platforms (/article/Set-the-G29-racing-wheel-for-PlayStation-4-PlayStation-3-or-PCplatforms).

Customizing Buttons

1. Make sure that the racing wheel is connected to your computer, and then launch LGS.
2. On the LGS Home screen, navigate to the device selector at the bottom of the LGS window and click on the racing wheel’s device icon.
3. Navigate to the Steering Wheel screen.
4. Navigate to the specific profile for the buttons you wish to customize.

NOTE: For more information on navigating the list of available profiles in LGS, see View racing wheel profiles using Logitech Gaming Software (/article/View-racing-wheel-profiles-using-Logitech-Gaming-Software).

Game-Specific Profile Commands

LGS can be used to create new or import LGS preset game profiles for compatible Logitech racing wheels. These profiles allow you to create customized button layouts and wheel/pedal sensitivity configurations for compatible games on your computer.

For more information on creating and editing profiles, see Create and edit racing wheel profiles using Logitech Gaming Software (/article/Create-and-edit-racing-wheel-profiles-using-Logitech-Gaming-Software).

For more information on importing LGS preset profiles, see Import racing wheel profiles using Logitech Gaming Software (/article/Import-racing-wheel-profiles-using-Logitech-Gaming-Software- Software).

Command Editor

You can customize button command assignments on your racing wheel using the Command Editor.

• Double-click on either an unassigned or assigned button to open the Command Editor. You can create or edit a command using the following customization options:

1. Keystroke — Assign a single key press, or a key press with modifiers.
2. Multi Key — Assign a “macro’d” series of keystrokes (either with or without recorded time delays).
3. Text Block — Create a block of text to be typed out when the button is pressed (either with or without Unicode support).
4. Mouse Function — Assign a button to use any of the available mouse button functions.
5. Media — Set a button to control media playback or volume functions.
6. Hotkeys — Use a predefined keystroke command.
7. Shortcut — Assign a button to launch a file/folder/drive on your computer.
8. Function — Assign a button to act like a Microsoft function button (ex., to open your web browser).
9. Ventrilo — Assign a button to have a function in Ventrilo, if Ventrilo is installed on your computer.

• Click OK to assign the desired command to the button. The command’s name will be visible over that button in the Steering Wheel screen.

Resetting buttons

To reset a single button command assignment:

1. From the Steering Wheel screen, navigate to the Profiles area at the top-right corner of the LGS window.
2. Navigate to the specific profile for the button you wish to reset.
3. Right-click on the button you wish to reset and select one of the following options from the pop-up menu that appears:

• Use Generic — Click on this option to revert the selected button assignment to its generic function.
• Unassign — Click on this option to remove all assignments from the selected button.

NOTE: You can also remove all assignments by dragging the current command from the button to the trash icon (located at the bottom-right corner of the Commands list).

To reset all button command assignments:

1. From the Profile area at the top-right corner of the LGS window, navigate to the profile for which you wish to reset all button assignments.
2. Right-click on the profile and click All G-keys from the pop-up menu that appears.
3. Select one of the following options from the next pop-up menu that appears:

NOTE: Gray-colored text menu items are not accessible.

• Use Generic — Click on this option to revert the command assignments for all buttons to their generic functions.
• Unassign — Click on this option to remove all command assignments from all buttons.
