Important safety instructions

• Do not put your face or body close to the appliance while cooking or when opening the door just after cooking.
  • – Take care that children do not come too close to the appliance.
  • – Failing to do so may result in children burning themselves.
• Do not place food or heavy objects over the edge of the oven door.
  • – If you open the door, the food or object may fall, and this may result in burns or injury.
• Do not abruptly cool the door, the inside of the appliance, or a dish by pouring water over it during or just after cooking.
  • – This may result in damage to the appliance. The steam or water spray may result in burns or injury.
• Do not operate while empty except for self-cleaning.
• Do not defrost frozen beverages in narrow-necked bottles. The bottles can break.
• Do not scratch the glass of the oven door with a sharp object.
  • – This may result in the glass being damaged or broken.
• Do not store anything directly on top of the appliance when it is in operation.
• Do not use sealed containers. Remove seals and lids before cooking. Sealed containers can explode due to the buildup of pressure even after the oven has been turned off.
• Take care that the food you are cooking in the oven does not come into contact with the heating element.
  • – This may result in fire.
• Do not overheat food.
  • – Overheating food may result in a fire.

Introducing your new range

Overview

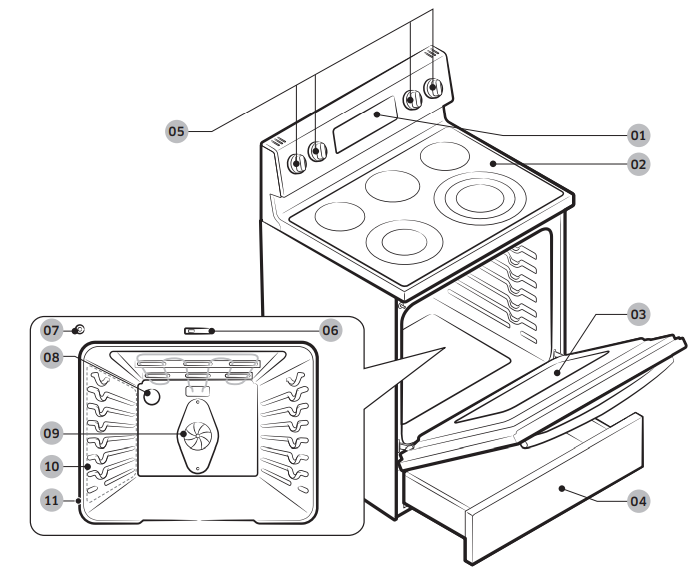

1. Oven control panel (See page 33 for more information)
2. Glass surface 05 * Surface control knobs (See page 26 for more
   information)
3. Oven door 06 Self/steam clean latch 10 Shelf position
4. Storage drawer 08 * Oven light
5. Surface control knobs (See page 26 for more information)
6. Self/steam clean latch
7. Automatic oven light switch
8. Oven light
9. Convection fan
10. Shelf position
11. Gasket

Before you begin

Clean the oven thoroughly before using it for the first time. Then, remove the accessories, set the oven to bake, and then run the oven at 400°F for 1 hour. There will be a distinctive odor. This is normal.
Ensure your kitchen is well ventilated during this conditioning period.

Energy saving tips

• During cooking, the oven door should remain closed except when you turn food over.
• Do not open the door frequently during cooking to maintain the oven temperature and to save energy.
• If cooking time is more than 30 minutes, you can switch the oven off 5-10 minutes before the end of the cooking time to save energy. The residual heat will complete the cooking process.
• To save energy and reduce the time needed for reheating the oven, plan oven use to avoid turning the oven off between
  cooking one item and then the next.
• Whenever possible, cook more than one item at a time.

Cooktop cooking

About the radiant surface elements
The temperature rises gradually and evenly. As the temperature rises, the radiant element will glow red. To maintain the selected setting, the element will cycle on and off. The heating element retains enough heat to provide a uniform and consistent heat during the off cycle. For efficient cooking, turn off the element several minutes before cooking is complete. This will allow residual heat to complete the cooking process.

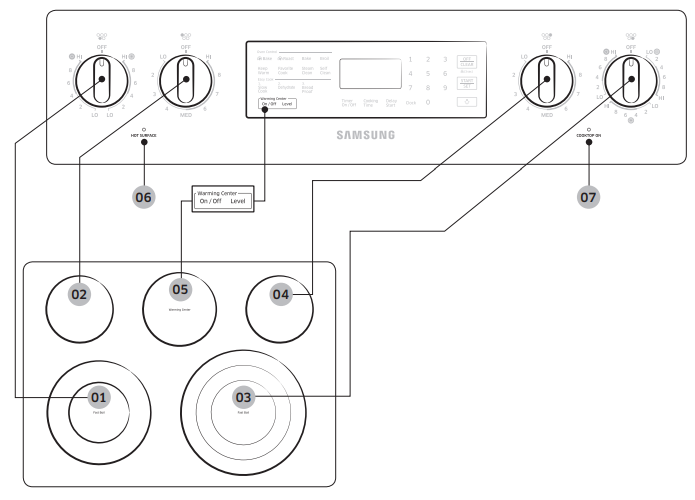

Location of the radiant surface elements and controls
The radiant control knobs operate the radiant surface elements on the cooktop as shown below.

1. Left Front: 6”/9”, 3,300 W
2. Left Rear: 6”, 1,200 W
3. Right Front: 6”/9”/12”, 3,000 W
4. Right Rear: 6”, 1,200 W
5. Warming center: 100 W
6. Hot surface indicator
7. Cooktop on indicator

Hot surface indicator

• Comes on when the unit is turned on or hot to the touch.
• Stays on even after the unit is turned off.
• Glows until the unit is cooled to approximately 150°F.

Cooking areas

• The cooking areas on your range are identified by permanent circles on the glass cooking surface. For the most efficient cooking, fit the pan size to the element size.
• Pans should not extend more than ½” to 1” beyond the cooking area.
• When a control is turned on, a glow can be seen through the glass cooking surface. The element will cycle on and off to
  maintain the preset heat setting, even at high settings.
• For more information on selecting proper types of cookware, refer to the section “Using the proper cookware” on page 30.

How to set the appliance for cooktop cooking

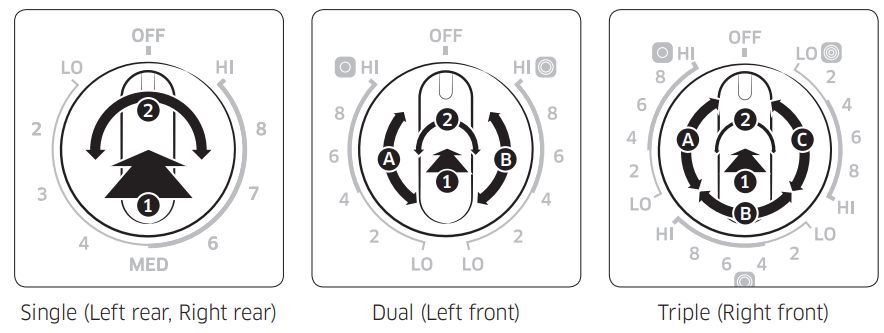

Surface unit control knob

1. Push the knob in.
2. Turn in either direction to the setting you want.

• Position A: Single burner
• Position B: Dual burner
• Position C: Triple burner

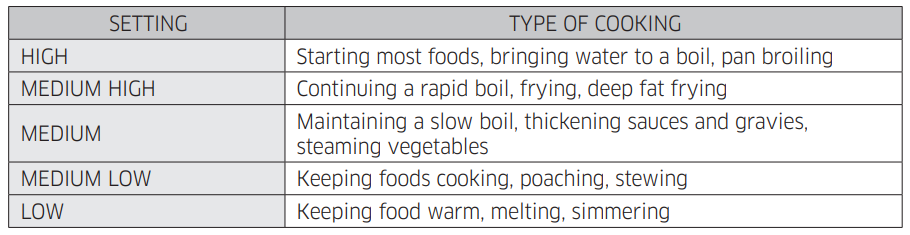

Recommended settings

Using the proper cookware

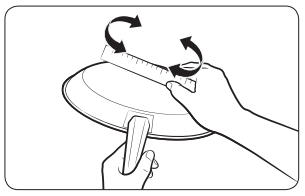

Using the right cookware can prevent many problems, such as uneven cooking or extended cooking times. Using the proper pans will reduce cooking times and cook food more evenly. Check for flatness by rotating a ruler across the bottom of the cookware.

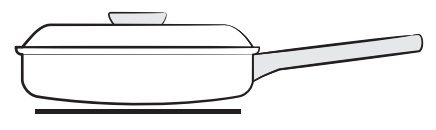

CORRECT

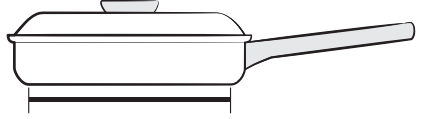

Flat bottom and straight sides.

• Tight-fitting lids.
• The weight of the handle does not tilt the pan.
• Pan is well balanced.
• Pan size matches the amount of food to be prepared and the size of the surface element.
• Made of a material that conducts heat well. Always match the pot diameter to the element surface diameter.

INCORRECT

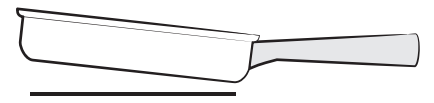

Curved and warped pan bottoms.

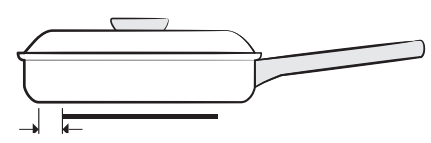

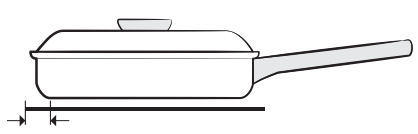

Pan overhangs the element by more than one-half inch.

Pan is smaller than the element.

Heavy handle tilts the pan.

Choosing the proper cookware

What your cookware is made of determines how evenly and quickly heat is transferred from the surface element to the pan bottom.

• ALUMINUM – Excellent heat conductor. Some types of food will cause the aluminum to darken. (Anodized aluminum
  cookware resists staining & pitting.). If aluminum pans are slid across the ceramic cooktop, they may leave metal marks that
  resemble scratches. Remove these marks as soon as the cooktop cools down.
• COPPER – Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see above).
• STAINLESS STEEL – Slow heat conductor with uneven cooking results. It is durable, easy to clean, and resists staining.
• CAST IRON – A poor conductor; retains heat very well. Cooks evenly once the cooking temperature is reached. Not recommended for use on ceramic cooktops.
• ENAMELWARE – Heating characteristics will vary depending on the base material. Porcelain enamel coating must be smooth to avoid scratching ceramic cooktops.
• GLASS – Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass

Protecting the smoothtop

Cleaning

• Clean the cooktop before using it for the first time.
• Clean your cooktop daily or after each use. This will keep your cooktop looking good and can prevent damage.
• If a spillover occurs while you are cooking, immediately clean the spill from the cooking area while it is hot to prevent a tough cleaning chore later. Using extreme care, wipe the spill with a clean, dry towel.
• Do not allow spills to remain on the cooking area or the cooktop trim for a long period of time.
• Do not use abrasive cleansing powders or scouring pads, which will scratch the cooktop.
• Do not use chlorine bleach, ammonia, or other cleansers not specifically recommended for use on a glass-ceramic surface.

Preventing marks and scratches

• Do not use glass cookware. It may scratch the cooktop.
• Do not place a trivet or wok ring between the cooktop and the pan. These items can mark or scratch the cooktop.
• Make sure the cooktop and the pan bottom are clean.
• Do not slide metal pans across the cooktop.

Preventing stains

• Do not use a soiled dishcloth or sponge to clean the cooktop surface. A film will remain, which may cause stains on the cooking surface after the area is heated.
• Continuously cooking on a soiled surface can result in a permanent stain.

Preventing other damage

• Do not allow plastic, sugar, or foods with high sugar content to melt onto the hot cooktop. Should this happen, clean immediately.
• Do not let a pan boil dry, as this will damage the cooktop and the pan.
• Do not use the cooktop as a work surface or cutting board.
• Do not cook food directly on the cooktop. Always use the proper cookware.

Operating the oven

The oven control panel

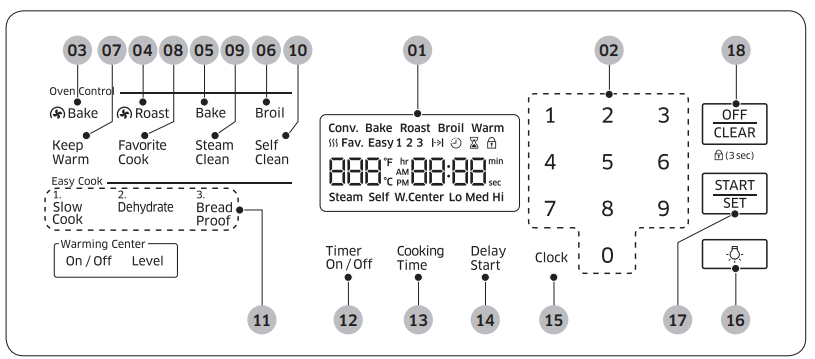

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this user manual.

1. DISPLAY: Shows the time of day, oven temperature, whether the oven is in the bake, broil, or self-cleaning mode, and the time set for the timer or automatic oven operations.
   • When you use the self-cleaning feature, this icon appears in the display.
   • When you use the steam cleaning feature, this icon appears in the display.
   • When the oven is preheating, this icon appears in the display.
2. NUMBER PAD: Used to set any function requiring numbers, such as the time of day on the clock, the timer, the oven
   temperature, the start time, and the length of operation for timed baking.
3. CONVECTION BAKE: Use to select the Convection bake function of the oven.
4. CONVECTION ROAST: Use to select the Convection roast function of the oven.
5. BAKE: Use to select the bake function of
   the oven.
6. BROIL: Use to select the broil function of the oven.
7. KEEP WARM: Use to select the keep warm function of the oven to keep cooked foods warm.
8. FAVORITE COOK: Use to save or recall a favorite cooking mode.
9. STEAM CLEAN: Use to select the steam cleaning function of the oven.
10. SELF CLEAN: Use to select the Self-cleaning function of the oven.
11. EASY COOK: Use to recall the easy cook recipe setting of the oven
12. TIMER ON/OFF: Use to set or cancel the minute timer. The minute timer does not start or stop cooking.
13. COOKING TIME: Press, and then use the number pad to set the amount of time you want your food to cook. The oven
    will shut off when the cooking time has run out.
14. DELAY START: Press to set the oven to start and stop automatically at a time you set. (Bake, Conv.bake/Roast, Cooking Time, and self-clean only.)
15. CLOCK: Used to set the time of day.
16. LAMP: Press to turn the oven light on or off.
17. START/SET: Press to start any cooking or cleaning function in the oven.
18. OFF/CLEAR: Press to cancel all oven operations except the clock and timer.

Maintaining your appliance

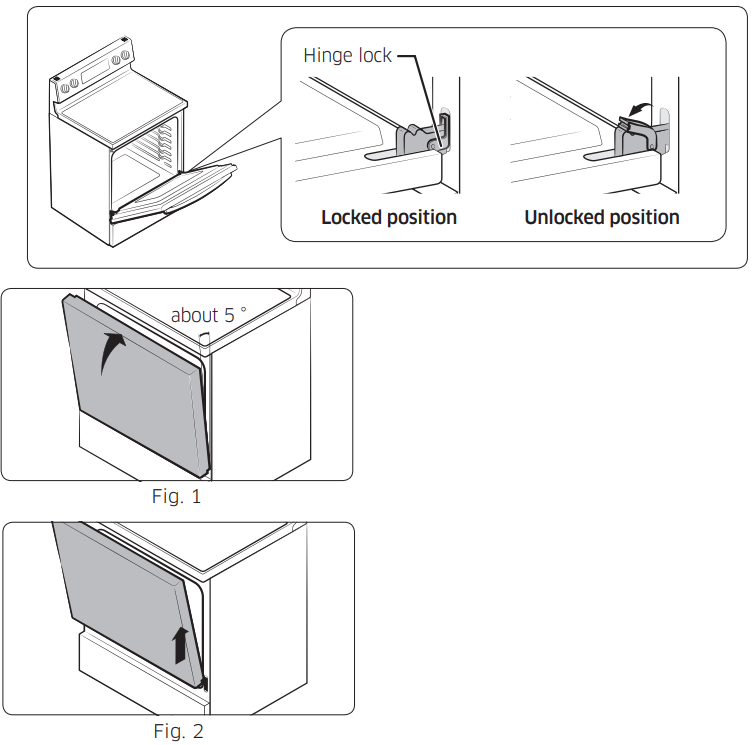

Removing and replacing the oven door

1. Open the door completely.

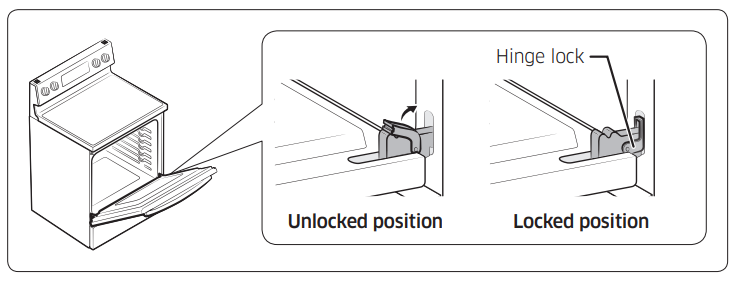

2. Pull the hinge locks down toward the door frame to the unlocked position.
3. Firmly grasp both sides of the door at the top.
4. Close the door to the door removal position, which is approximately 5 degrees from vertical (Fig. 1).
5. Lift the door up and out until the hinge arm is
   clear of the slot (Fig. 2).

How to replace the door

1. 1. Firmly grasp both sides of the door at the top.

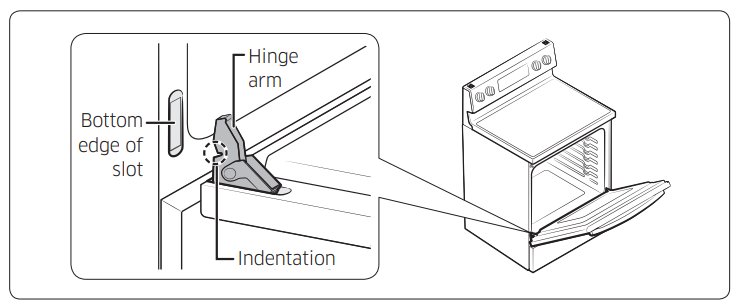

   2. With the door at the same angle as the removal position, slide the indentation of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully inserted into the bottom of the slot.

1. Open the door fully. If the door does not open fully, the indentation is not inserted correctly in the bottom edge of the slot.
2. Push the hinge locks up against the front frame of the oven cavity to the locked position.
3. Close the oven door.

Removing and replacing the storage drawer

How to remove the storage drawer

1. Pull the drawer out until it stops.
2. Tilt the front of the drawer and pull it out until it stops.
3. Lift and pull the drawer out.

How to replace the storage drawer

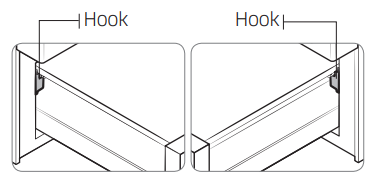

1. Put the left side of the drawer over the left hook and the right side over the right hook.
2. Push the drawer until it stops.
3. Tilt and lift the drawer.
4. Push the drawer in.

Changing the oven light

The oven light is a standard 40-watt appliance bulb. It will come on when the oven door is open. When the oven door is closed, press the pad to turn it on or off. It will not work during a self-cleaning cycle.

1. Make sure the oven and the bulb are cool.
2. Unplug the range or disconnect the power.

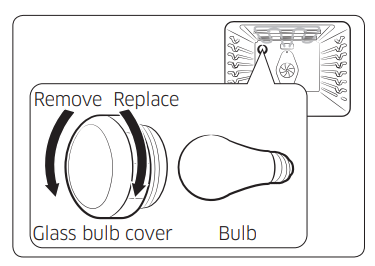

3. Turn the glass bulb cover in the back of the oven counterclockwise to remove.
4. Turn the bulb counterclockwise to remove it from its socket.
5. Insert a new 40-watt appliance bulb, and then turn it clockwise to tighten. Replace the bulb cover by turning counterclockwise.
6. Plug in the range or reconnect the power

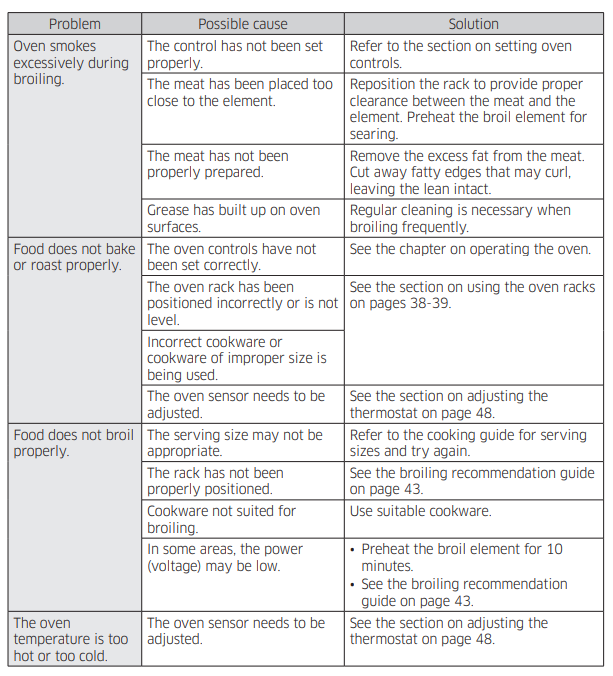

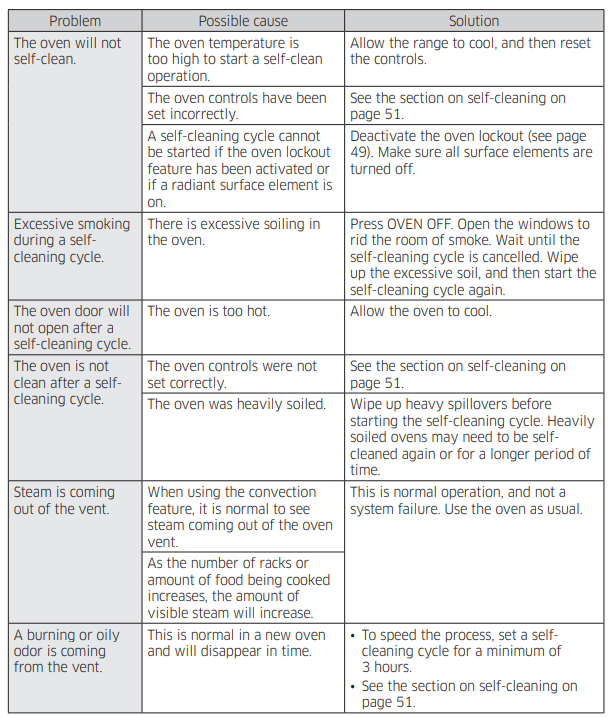

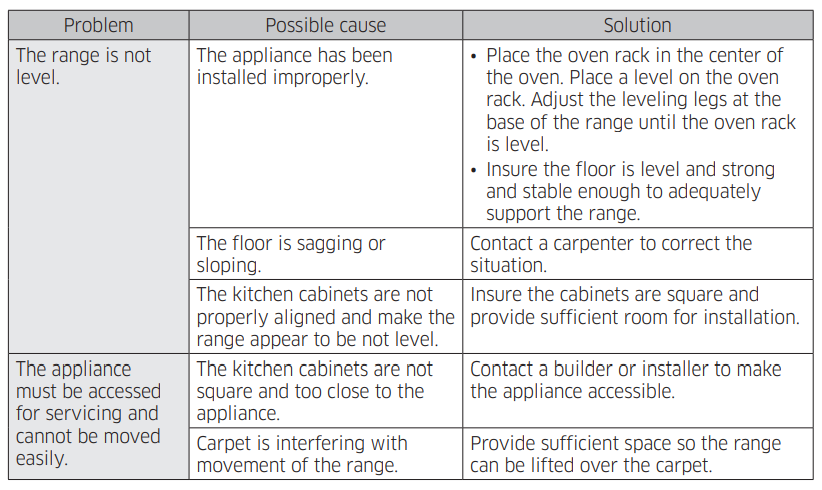

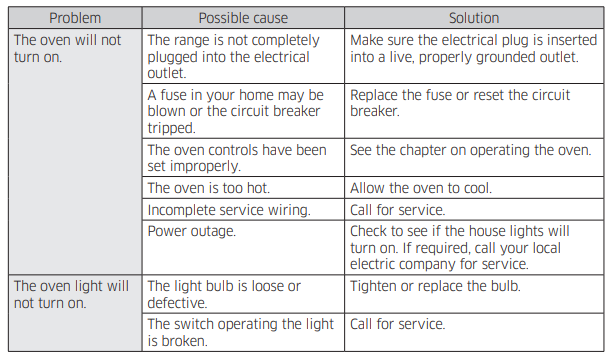

Troubleshooting

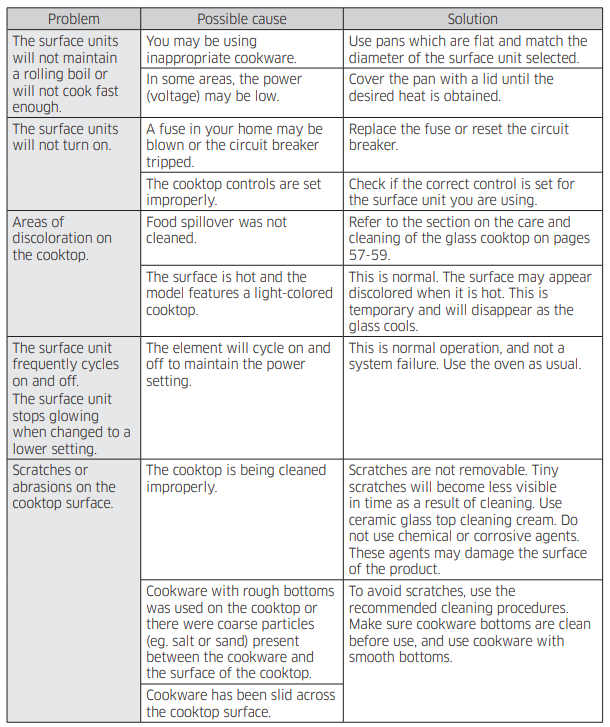

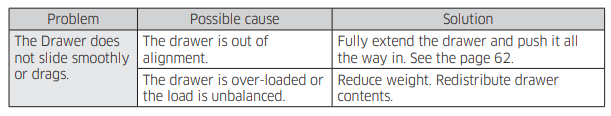

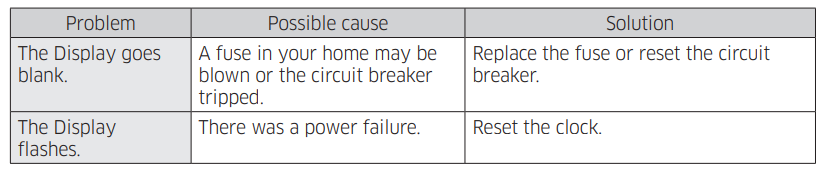

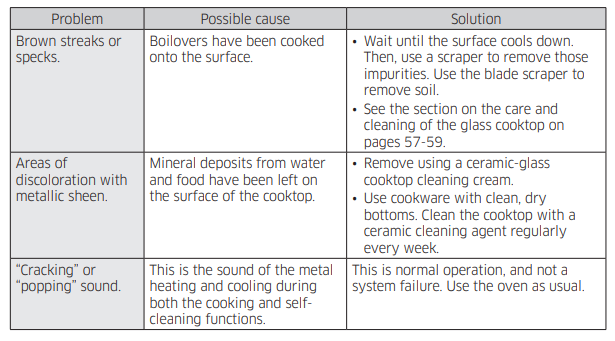

Samsung works hard to ensure that you don’t have problems with your new electric range. If you run into unexpected trouble, look first for a solution in the table below. If, after trying the suggested solution, you’re still having trouble, call Samsung at 1-800-SAMSUNG (1-800-726-7864).

Installtion

CONTROL DISPLAY

COOKTOP

OVEN

DRAWER

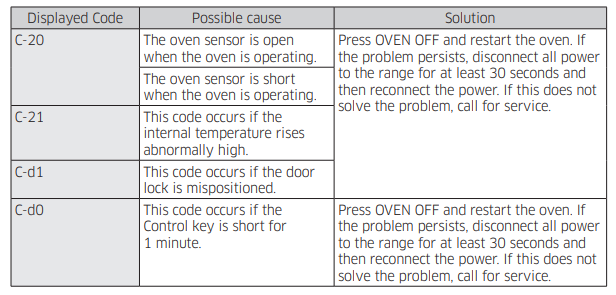

Information codes
